Maritime Safety and Security Information System(MSSIS)A Solid Foundation for Maritime Awareness

Maureen Walker

State Department Representative

National Space Based Positioning, Navigation

and Timing Coordination Office

May 26, 2008


Overview l.jpg
Overview

  • MSSIS – Concept and Benefits

  • PARTICIPATION

  • EXISTING APPLICATIONS

  • OPERATIONAL AND TECHNICAL OVERVIEW


Maritime safety security information system l.jpg
Maritime Safety & SecurityInformation System

  • Goal

    • Create a collaborative, global, maritime information sharing environment through a unity of effort across entities with maritime interests

  • Objectives

    • Maximize transparency of vessels in the maritime domain

    • Enhance Maritime Awareness via “Market Drivers”


Maritime safety security information system4 l.jpg
Maritime Safety & Security Information System

  • A system by which to openly share, non-classified AIS data globally to enhance safety, security, commerce and environmental protection

    • Created by U.S. Department of Transportation’s Volpe Systems Center

    • Based in Volpe’s work in maritime traffic issues (Panama and St. Lawrence)

  • Allows sharing of non-classified AIS data, real-time, between international domestic users through an internet-based, password-protected, exchange portal

    • The data is by design, not owned or controlled by anyone

  • Displays un-altered, AIS data streams gathered from shore-based, waterborne and airborne AIS receiving units

A data exchange tool fostering cooperation


Maritime safety security information system5 l.jpg
Maritime Safety & Security Information System

  • Safety Statistics (via data logging & playback, snap shot files)

  • Pilot navigation (ETA, Closest point of Approach, dead reckoning)

  • Canal Transit Management (Panama Canal, St. Lawrence Seaway)

  • Vessel traffic Management (VTS, situation displays etc.)

  • Accident Investigation (via data logging and playback)

  • Buoy Positioning

  • Oil Spill Modeling Display

  • Harbor surveillance

  • Secure Vessel Transiting

  • Monitoring of Territorial Waters

  • Security zones – Dynamic, static, user defined

MSSIS is serving as the data feed and basis for numerous sophisticated applications


Slide6 l.jpg

Organized crime

Piracy

Drug smuggling

Human smuggling and slavery

Illegal weapons movement/proliferation

Terrorism

Exclusive Economic Zone (resource) exploitation

Illegal fishing

Trade disruption

Illegal migration

Search and Rescue

Environmental issues

Common Maritime Challenges

Economies could find their well-being challenged by these common maritime issues


Slide7 l.jpg

Benefits of Open Maritime Data Sharing

  • Enables economies to better control their maritime domain and its issues

  • Enables Economies to focus usage of their limited resources

  • Economies share data as equal partners regardless of size & and benefit to the extent of their own needs - You share, you receive

  • Information is shared widely, building a culture of trust, confidence and mutual support with a common focus – safety, security, commerce and environmental protection


Slide8 l.jpg

Current Open Data Sharing Examples

  • IMO AIS (Automatic Identification Systems) as source data

  • IMO LRIT (Long Range Identification and Tracking System)

  • IMO Electronic Marine Highway (Malacca Straits)

  • IALA International Association of Marine Aids to Navigation and Lighthouse Authorities

  • MSSIS (Maritime Safety & Security Information Systems)

AIS based systems foster cooperation


How can interested economies participate l.jpg
How can Interested Economies Participate ?

  • Any economy willing to participate by contributing data into MSSIS is eligible to receive MSSIS data in exchange

  • A commitment to MSSIS at a domestic level, followed by support for the necessary steps for proper system implement (AIS receivers, internet connection etc.)

  • System implementation includes connecting to MSSIS through the Internet either existing AIS receivers or installing AIS receivers in key ports and chokepoints

  • Technical assistance can be provided to any economy indicating a willingness to participate as set forth above

You Share Data, You receive Data.


Slide10 l.jpg

Growing MSSIS AIS Data Sharing

Denmark

Poland

Slovenia

Belgium

Montenegro

Bulgaria

UK

USA

Albania

Portugal

Turkey

Spain

Morocco

Italy

Mauritania

Greece

STP

Singapore

USN

44 Countries to Date are sharing AIS data openly via MSSIS.


Mssis supported through the volpe center l.jpg
MSSIS – Supported through The Volpe Center

“Advancing technical, operational, institutional, and managerial innovation

to improve transportation systems.”

St. Lawrence Seaway

First operational Automatic Identification System (AIS) network in North America.

FAA – Enhanced Traffic Management System

Panama Canal

Communications, Traffic Management and Navigation (CTAN)


What does ais report l.jpg

Static data

Who

Every 6 mins/upon request

Mobile Maritime Service Identity (MMSI)

IMO number (if assigned)

Callsign

Name

Length and beam

Ship location of AIS

Voyage data

Where

Every 6 mins/upon request

Destination / ETA

Cargo

Dynamic data

Where

Depend on speed and course change

At anchor: 3 mins

Slow moving: 4-12 secs

Fast moving: 2-6 secs

MMSI

Position

Time stamp (seconds)

Course

Speed

Heading

Nav status (e.g., “anchored”, “underway”) [manual entry]

What does AIS Report?


Mssis tech overview l.jpg
MSSIS Tech Overview

  • Incorporates worldwide servers combining many AIS data streams into a single near real-time (<5min) stream

  • Open architecture design, enabling data streaming via standard protocols

  • Networked via regionally-based, redundant file servers using encrypted data links (TCP/IP SSL secure socket layer) between gov’t entities

  • Utilizing downloadable user interface software (Transview32)

  • Access controlled via hardware key and passwords with usage terms reconfirmed at every sign-in


Typical ais receiver stations l.jpg

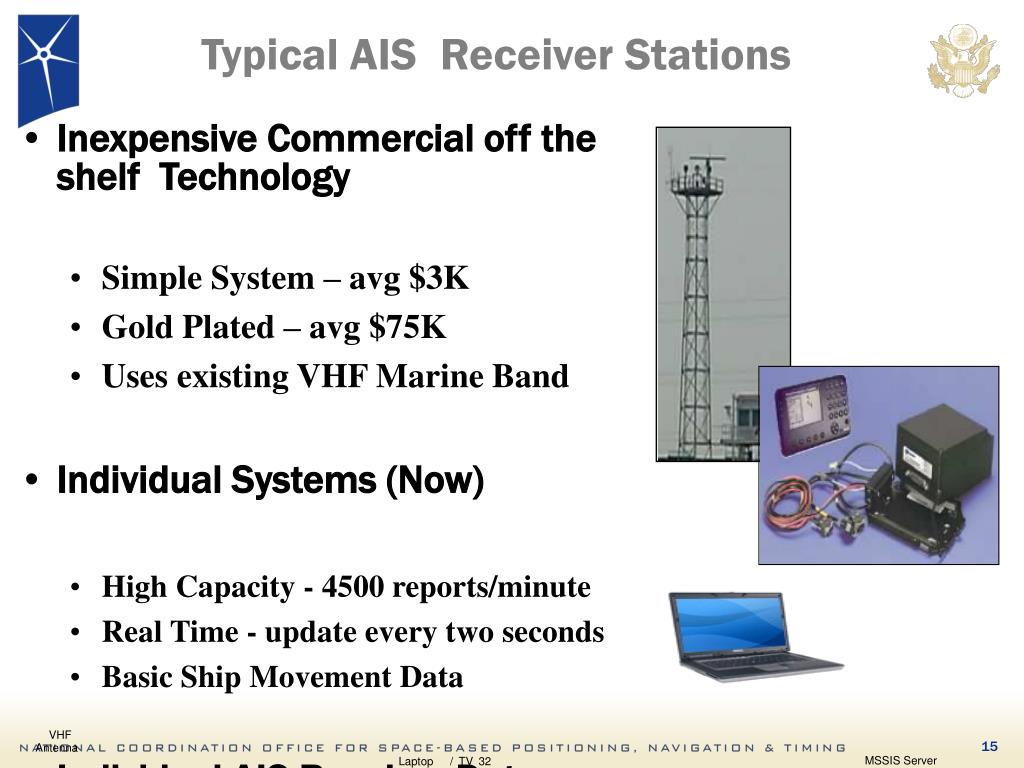

Typical AIS Receiver Stations

  • Inexpensive Commercial off the shelf Technology

    • Simple System – avg $3K

    • Gold Plated – avg $75K

    • Uses existing VHF Marine Band

  • Individual Systems (Now)

    • High Capacity - 4500 reports/minute

    • Real Time - update every two seconds

    • Basic Ship Movement Data

  • Individual AIS Receiver Data can be fused into networks spanning regions and the world, via MSSIS.

VHF

Antenna

MSSIS Server

Laptop

/

TV

32


Summary l.jpg

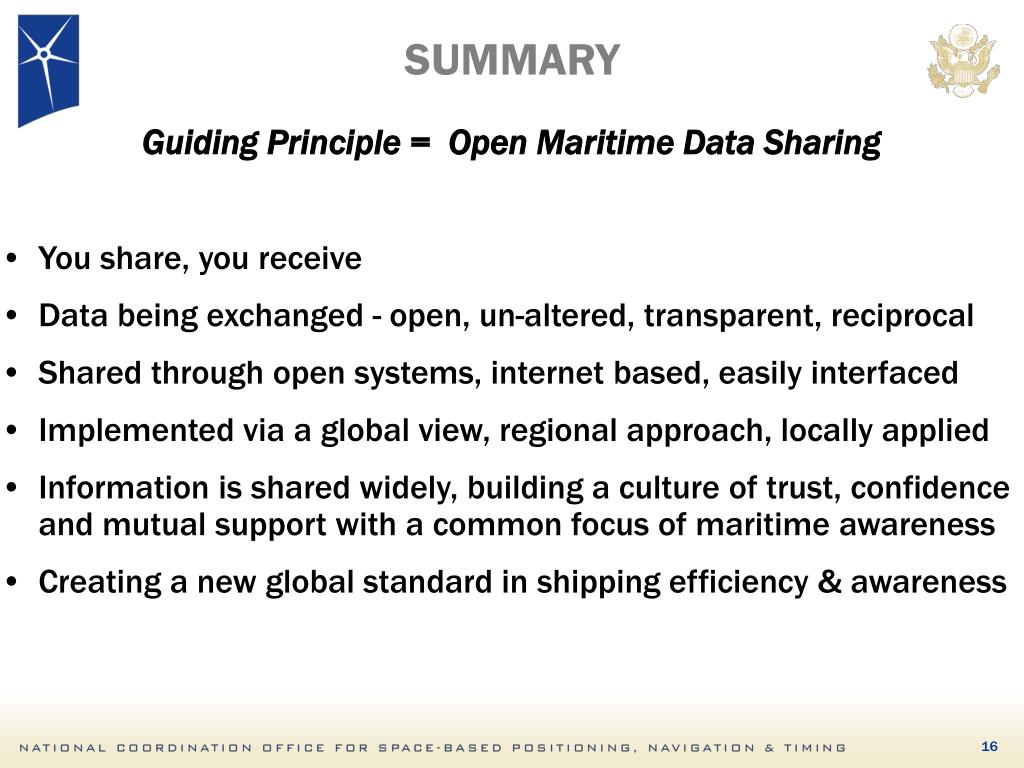

SUMMARY

Guiding Principle = Open Maritime Data Sharing

  • You share, you receive

  • Data being exchanged - open, un-altered, transparent, reciprocal

  • Shared through open systems, internet based, easily interfaced

  • Implemented via a global view, regional approach, locally applied

  • Information is shared widely, building a culture of trust, confidence and mutual support with a common focus of maritime awareness

  • Creating a new global standard in shipping efficiency & awareness



Slide17 l.jpg

Existing MSSIS/TV32 Applications

  • Cape Cod Canal

    • - Channel Traffic Management

  • Columbia River Pilots

    • -Pilot Display

    • -Hydro Graphic Survey


Google earth l.jpg
Google Earth

MSSIS/TV32 with Google Earth overlay





Slide22 l.jpg

Terrorism

Maritime Awareness

Illegal

Immigration

Environmental

Attack

Human

Smuggling

Drug

Trade

Trade

Disruption

Organized

Crime

Piracy

Weapons

Proliferation

89,000+ vessels over 100 Gross tons.
