slide1

Intelligent Office Communication Solution

KX-TDE100/200 IP Telecommunication Systems

agenda
Agenda

Introduction

  • KX-TDE100/200 Converged Solution
  • System Overview
    • KX-TDE – Converged Solutions
    • KX-TDE100/200 – Deployment
  • Product Proposition
  • Key Business Applications
  • System Capacity & Overview
  • Business DECT
  • Business Applications & Solutions
kx tde100 200 converged solutions
KX-TDE100/200 Converged Solutions

All-in-One Converged IP Platform

  • IP Platform, traditional telecom, SIP Trunks, and Applications, a true converged system for today and the future.

Smooth Migration Path for TDA customers

  • Easy Migration is the key for converged systems today
  • Ideal for KX-TDA100/200 upgrades

Easy Installation and Management

  • Easy to install system cards and enable features and applications
  • Unified programming tool allows for remote administration & maintenance.
  • Communications Assistant (built-in support)
kx tde100 200 key features
KX-TDE100/200 – Key Features

TDE100/200 – Version 3.0* Key Features

  • Enhanced IP system capacity*
    • Increased System IP Terminal Capacity:
      • Support max 224 System IP Telephones
      • 128 SIP Phones (no need for separate server)
      • Support up to 256 users
    • New Terminals Supported
      • NT400 Executive IP Telephone
      • New DECT Models
        • Standard KX-TCA175 phone
        • Business compact KX-TCA275 phone
        • KX-NCP0158 : Advanced IP Cell Station
    • High Quality Music-on-Hold on built-in ESVM card
  • Benefits
    • Stronger Portfolio Solution
    • Able to better meet customer requirements
    • Unified Converged Solution with Applications

KX-TDE100

KX-TDE200

kx tde100 200 key features5
KX-TDE100/200 – Key Features

TDE100/200 – Key Features continued

  • System Feature Enhancements
    • High quality Music-on-Hold sound file support
      • Built-in as standard*
    • Group Conference Mode with Meet me functionality for external parties connecting via DISA
    • Common Extension Numbering (Extension numbers can be shared between multiple networked sites)

* Supported on new systems only

kx tde100 200 key features6
KX-TDE100/200 – Key Features

TDE100/200 – Key Features continued

  • Applications Support
    • Built-in support for Communication Assistant Unified Communications Application
    • DECT CTI support – enabling Communication Assistant software to work with DECT handsets
    • Integrate with Standard Business applications such as Microsoft Outlook® and popular Desktop CRM applications.

* Supported on new systems only

tde100 200 deployment
TDE100/200 Deployment

TDE100/200 is ideal for:

  • Medium Size Single Site Businesses
    • Factory
    • Hotel
    • Hospital
    • Offices
  • Multi-Site Networks
    • Network to multiple offices
  • Solutions with wide choice
    • Mix of Digital & IP handsets
    • Good range of wireless handsets
    • Mobility & Application Integration
connect multiple offices
Connect Multiple Offices
  • TDE100/200 Solutions
  • Provide Head Office Solution (KX-TDE200)
  • Network to other offices (KX-TDE100)
  • Connect to Branch/Home Officeover VPN/Broadband Connection

Head Office

Home Office

Sales Office

Regional Office

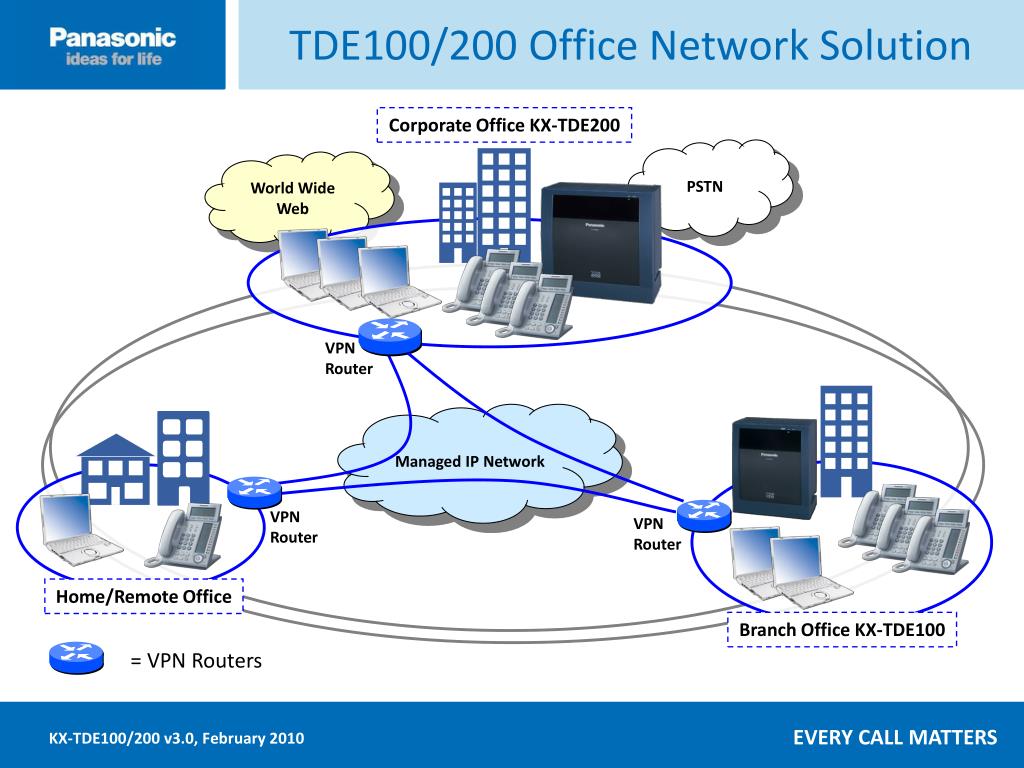

tde100 200 office network solution
TDE100/200 Office Network Solution

Corporate Office KX-TDE200

PSTN

World Wide Web

VPN

Router

Managed IP Network

VPN

Router

VPN

Router

Home/Remote Office

Branch Office KX-TDE100

= VPN Routers

slide10

KX-TDE100/200 – Modular and Scalable

KX-TDE100

128 DT300 Series Phones

128 IP Phones on MPR

96 IP Phone via IP-EXT16

KX-TDE200

256 DT300 Series Phones

128 IP Phones on MPR

128 IP Phone via IP-EXT16

Ideal for small to medium size companies using a mix of IP and digital extensions

Ideal for medium size companies using a large number of digital extensions

40 ~ 100 users

80 ~ 250 users

Select the TDE system that allows you to grow – as your business grows

kx nt400 executive ip phone
KX-NT400 Executive IP Phone

The KX-NT400 is an application enabled IP network telephone designed for easy touch access to business productivity applications

The KX-NT400 combines:

  • Fully featured executive IP telephone
  • Colourful touch screen interface
  • Built-in Communication Assistant Application
  • Unified communications solution
  • IP Camera Monitor Station
  • High quality audio (G.722) support
  • Bluetooth Headset support

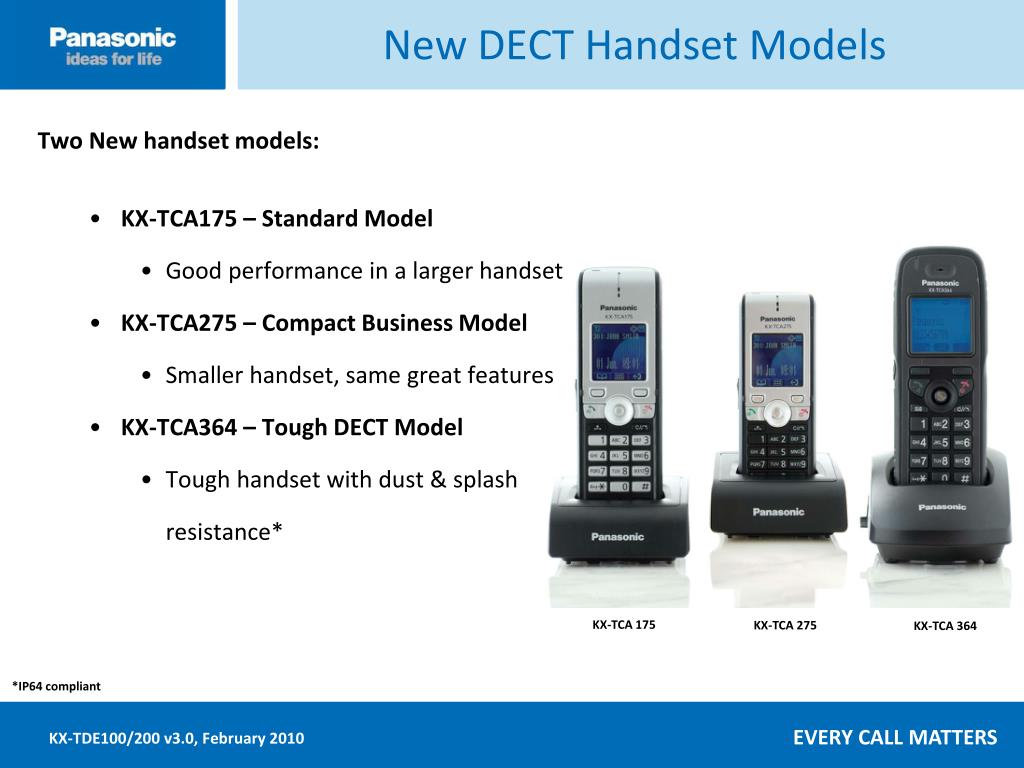

new dect handset models
New DECT Handset Models

Two New handset models:

  • KX-TCA175 – Standard Model
    • Good performance in a larger handset
  • KX-TCA275 – Compact Business Model
    • Smaller handset, same great features
  • KX-TCA364 – Tough DECT Model
    • Tough handset with dust & splash

resistance*

KX-TCA 175

KX-TCA 275

KX-TCA 364

*IP64 compliant

dect wireless kx tca175 handset
DECT Wireless KX-TCA175 Handset

KX-TCA175 – Standard Model

The KX-TCA175 is a perfect choice for users who want good performance in a larger handset

Key features include:

  • DECT Handset with Headset Support
  • Full range of PBX features
  • Large Colour Back-Lit LCD
  • 200 User Phonebook
  • CTI Functionality (connect to applications)

Benefits

Provide an ideal phone for general business use

  • Office staff, supervisor, meeting rooms
dect wireless kx tca275 handset
DECT Wireless KX-TCA275 Handset

KX-TCA275 – Compact Model

KX-TCA275 DECT handset combines compact size, light weight and durability, with a host of powerful business telephony features.

Key features include:

  • DECT Handset with Headset Support
  • Full range of PBX features
  • Vibration alert & Large Colour Back-Lit LCD
  • Message Mode & 200 User Phonebook
  • CTI Functionality (connect to applications)

Benefits

  • Provide an ideal phone for all business use
    • Managers, security, meeting rooms
dect wireless kx tca364 handset
DECT Wireless KX-TCA364 Handset

TCA364 – Tough DECT Model

The Panasonic KX-TCA364 is a rugged handset that meets the strict dust and splash resistant IP64 standards. This is combined with a vast array of business telephony features.

Key features include:

  • Easy to use feature interface
  • Headset Support
  • Large range of PBX features
  • Vibration Alert
  • Large Back-lit blue LCD
  • 12 Programmable Menu Keys

Benefits

  • Provide an ideal phone for Tough-type handset specially designed for rugged environments and any business demanding harsh work environments.
    • industrial, manufacturing, healthcare, retail and warehousing markets.
kx ncp0158 high density ip cell station
KX-NCP0158 High Density IP Cell Station

NCP0158 IP Cell Station

8 simultaneous voice channels via LAN

No License required on TDE100/200

Air Synchronization bridge w/ Repeater (A272)

Power supply with Power over Ethernet or AC adapter

DHCP Client/Static Address

NCP0158

IP CS & Traditional CS canCoexist in the same area

slide18

KX-NCP0158 IP Cell Station Benefits

NCP0158 IP Cell Station

Cost effectiveness

  • Lower installation costs, with connection ports already installed (LAN port)
  • KX-NCP0158 provides unhindered access to wireless telephony for up to 8 simultaneous DECT mobility users per cell
  • Benefits
  • Lower installation costs, with no need for special wiring to cell stations
  • Better flexibility to move cell station as business needs change
  • 8 users per cell station, providing lower number of cell stations required*
  • Extend to additional buildings, multiple floors with same LAN connections.

Compatibility

  • KX-NCP0158, compatible with KX-TDE and KX-NCP communication platforms

* Compared to 2 or 4 channel solutions

dect cell station connection
DECT Cell Station Connection

KX-NCP0158 IP CS provides wireless solutions:

  • Long distance installation on larger premises
  • Branch offices*
  • Save costs with wiring for converged voice and data networks.

Second Building

Head Office

LAN

IP Network

Campus

Branch Office

*Requires VPN Access

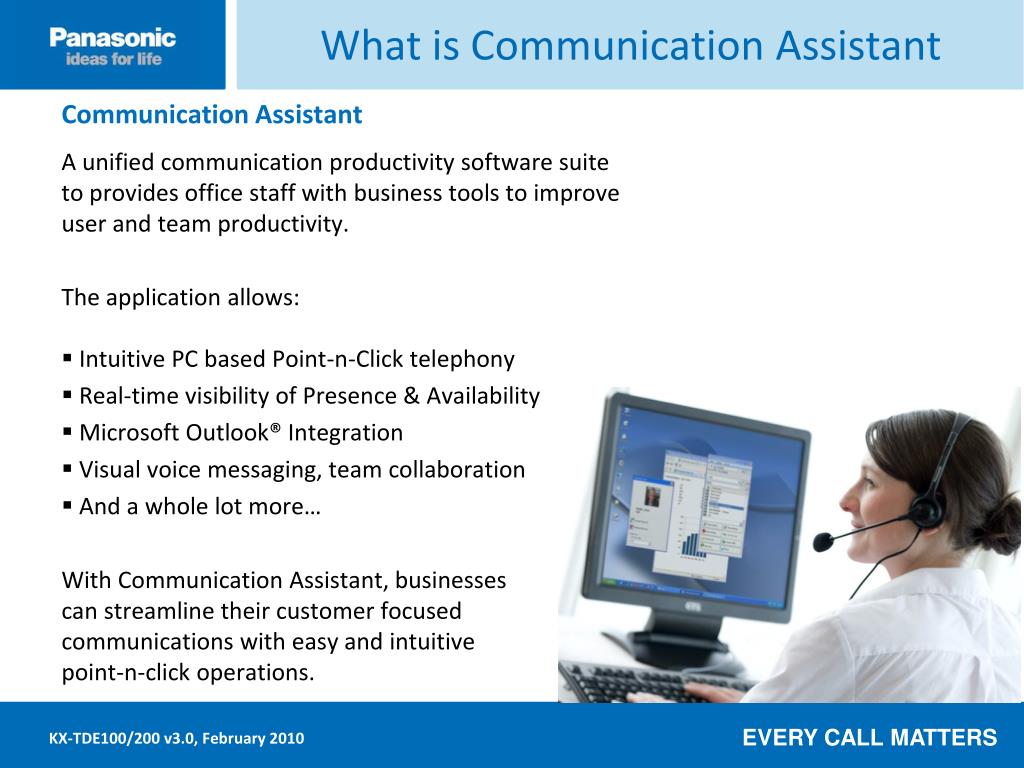

what is communication assistant
What is Communication Assistant

Communication Assistant

A unified communication productivity software suite to provides office staff with business tools to improve user and team productivity.

The application allows:

Intuitive PC based Point-n-Click telephony

Real-time visibility of Presence & Availability

Microsoft Outlook® Integration

Visual voice messaging, team collaboration

And a whole lot more…

With Communication Assistant, businesses can streamline their customer focused communications with easy and intuitive point-n-click operations.

unified communications solution
Unified Communications Solution

Higher

productivity

Improve Customer Service

Remote Workers

Mobile

Worker

Decentralised and Distributed Organisations

Communication Assistant provides Unified Communication solutions to customer needs

Faster

response capability

benefits of communication assistant
Benefits of Communication Assistant
  • Easy to stay in contact
  • Fast and efficient way to connect with customers, suppliers, and colleagues – improving communication efficiency.
  • Increase User and Team Productivity
  • Quick, efficient lookup of customer information and speeds up person to person and team communications and collaboration.
  • Rapid Team Management
  • Quickly view team member\'s communication

activities and view vital statistics.

  • Empower Mobile Work Force
  • Leverage IP and wireless technologies to provide anytime, anywhere access to corporate communications.
communication assistant user modes
Communication Assistant – User Modes

Communication Assistant UC Clients can be installed in three different modes depending on the set of features required.

  • Mode: Basic Express
  • Point and click telephony – idea for application connectivity & dialing
  • Deployment type: [Server-less] or grow to [CA Server]
  • Mode: Pro
  • Intuitive point and click telephony – fully featured with real-time presence indication.
  • Deployment type: [Server-less] or grow to [CA Server]
  • Mode: Group Supervisor
  • For supervisors to easily monitor and manage telephony activities of group members.
  • Deployment type: [Server-less] only
communication assistant basic express
Communication Assistant – Basic Express
  • Intuitive point and click telephony – with limited capacity
  • Users presence and availability is only shown when clicked (phone status and presence icons in main window appear only as grey)
  • User is limited in the number of contacts and call history entries
    • 10 contacts
    • 10 call history entries
communication assistant pro
Communication Assistant – Pro
  • Intuitive point and click telephony – fully featured client software
  • User presence status is shown in real time – as any contact’s phone status or availability changes
  • Easily change your presence indication from default settings or define your own presence message - for fast and efficient collaboration.
  • Note: Presence is much more than just absent messages.

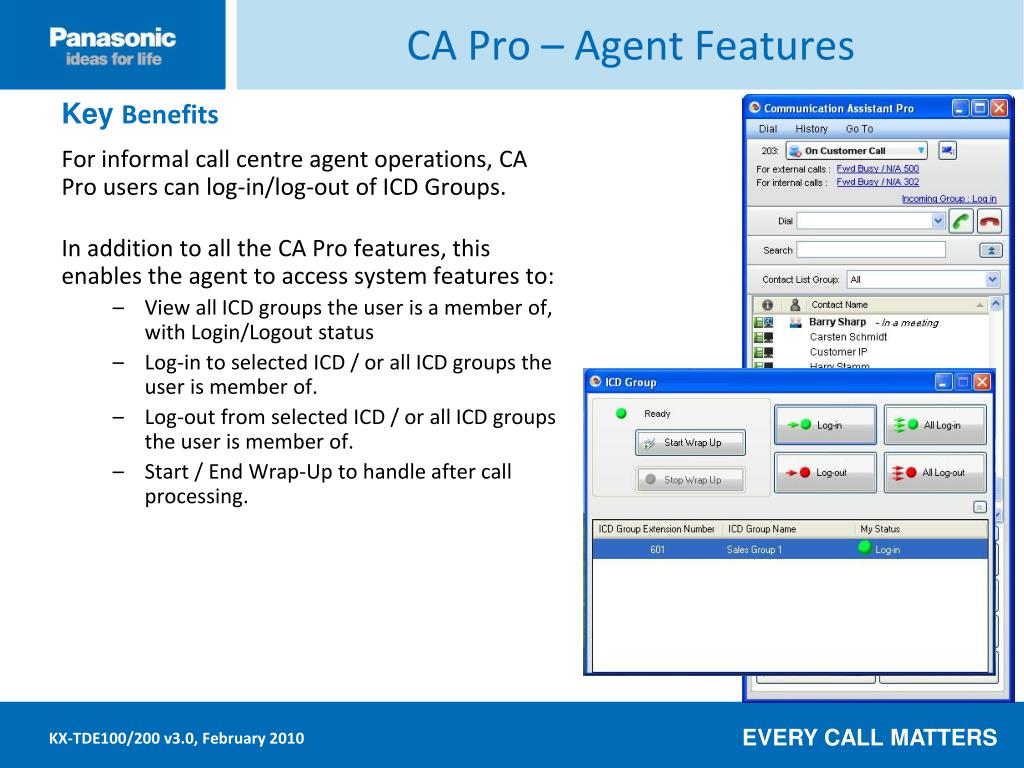

ca pro agent features
CA Pro – Agent Features

Key Benefits

For informal call centre agent operations, CA Pro users can log-in/log-out of ICD Groups.

In addition to all the CA Pro features, this enables the agent to access system features to:

  • View all ICD groups the user is a member of, with Login/Logout status
  • Log-in to selected ICD / or all ICD groups the user is member of.
  • Log-out from selected ICD / or all ICD groups the user is member of.
  • Start / End Wrap-Up to handle after call processing.
communication assistant supervisor
Communication Assistant – Supervisor
  • For team supervisors to monitor real-time telephony activities of group members.
  • Access Group Call Reports for total incoming calls, average waiting time, overflow call or lost calls.
  • Supervisors can silently Listen-in, Barge-in or even take over any group call for further handling, if required.
  • Note: Supervisor mode is only available in server-less deployments
integrate with business applications
Integrate with Business Applications

Improve Business Efficiency

Enable desktop applications to have point-n-click access to business telephony – e.g. Dial directly from Word, Web pages etc using the copy and call function.

Users can also program a key – to automatically dial the selected phone number from any application.

Integrate with Common TAPI based desktop CRM applications (CA Pro, Supervisor & Console only)

Benefits

  • Simplifies communication for telephony contacts
  • Increases probability of real-time communications
communication assistant server
Communication Assistant Server

Communication Assistant (CA) Server is an application that provides the following additional capabilities:

  • CA UC Client user capacity (up to 256 users)
  • Application users can use a central common contact list
  • Application users can select presence based contact method
  • Businesses can deploy CA in Thin Client IT environment

Benefits

  • Provides office-wide solution for team workers on single system
dial from any pc application
Dial from any PC Application

Dial any contact numbers from any PC application

Scenario:

  • You are a busy office worker using office applications on your PC – such as Word, Email (e.g. Outlook), CRM applications, or web based application.
  • You have customer contact numbers in your PC application and you want to quickly and easily contact the customer – without having to manually dial the number from your phone.

Solution:

  • Simply highlight the desired number you want to dial – and select “Copy & Dial” or press the pre-programmed key as defined in Communication Assistant UC Client.
  • Your phone goes off –hook and your desired number is automatically dialled.
  • You can now focus on the conversation rather then how to call the customer.
dial from any pc application37
Dial from any PC Application

With Communication Assistant – Yes You can!

Procedure:

  • Simply highlight the desired number you want to dial – from any application you are using – and select “Copy & Dial” using Communication Assistant UC Client – and you are done!
  • You can assign a special single key to expedite making the call – e.g. select “F8” to make phone calls.
  • Your phone goes off –hook and your desired number is automatically dialled.
point n click conference call
Point n Click Conference Call

Point-Click Multi-Party Conferencing

Scenario:

  • While talking with a customer – you want to conference in a project person who is working on the customer’s project to update her on new customer requirements.

Solution:

  • While on the call, simply select the Conference Call option to initiate the conference call set up. You no longer have to remember any complicated key combinations, or special codes.
  • You can now focus on providing better customer service and handle your business.

Customer

point n click conference call39
Point n Click Conference Call

With Communication Assistant – Yes You Can!

Procedure

  • While on a customer call – simply click on the “Make a conference” option and then click on the available colleague’s contact icon from the main application window and you are done.
  • To add more people on the conference call – simply repeat the steps. You can add up to eight (8) people in one conference call.
easy call recording
Easy Call Recording

Point-Click Call management (Call Recording)

Scenario:

  • While on a customer call, you may want to save a recording of the customer call – for business needs.
  • You may also wish to automatically record all calls without having to remember to manually press a button.

Solution:

  • To record a call – while on the call – simply select the record to Voice Mail icon and the call is automatically recorded to the Voice Mail system.
  • The software also allows you to automatically record all calls – if enabled.
  • You can now focus on providing better customer service and concentrate on your business.
easy call recording41
Easy Call Recording

With Communication Assistant – Yes You Can!

Procedure:

  • While on a customer call – simply click on the “Record to VM” icon and your call gets recorded to the attached TVM50/TVM200* Voice Processing System.
  • If you prefer that all calls get automatically recorded – simply click to enable the “Record to VM automatically” feature under the Options menu.

*optional

set and view presence and availability
Set and View Presence and Availability

Check and Inform Availability with one click Presence

Scenario:

  • leaving your desk for a meeting you want to make sure that any calls from your customers get forwarded to your onsite DECT mobile handset.
  • You want to inform all colleagues of your presence status to ensure that you never miss any business opportunity.

Solution:

  • Select from either built-in presence settings, edit and customise the settings for your own needs, or create a new entry. Once modified – simply click to select the presence settings (e.g. In a Meeting) and with one click – all customer calls get forwarded to your DECT mobile extension while any calls from work colleagues receive the Do Not Disturb indication.
  • With CA - you never miss any business opportunity.
set and view presence and availability43
Set and View Presence and Availability

With Communication Assistant – Yes You Can!

Procedure:

  • Simply select the presence and availability setting you want to select from the drop down menu, click it – and you are done. You may select from predefined presence settings such as “Available”, “Urgent Only”, “Will Return Soon”, “In a Meeting”, “Not At My Desk”, or “Gone Home”.
  • Should you need to modify a setting select the “Modify” option and if you need to create a new setting of your own – simply select the “New Setting” option, enter and update the data and press OK to submit.
visually manage voice messages
Visually Manage Voice Messages

Visually Manage Your Voice Mail Messages

Scenario:

  • As you are about to rush out to a meeting – you notice that you have multiple voice messages but only have time to listen to the important ones from your customer.
  • You want to share any important voice message by forwarding it as an email attachment to work colleagues.

Solution:

  • With Voice Mail Assistant for CA, Unified Messaging is built-in. Simply click on the Voice Mail icon to connect to the TVM voice mail system, and you are presented with a visual list of all voice messages you have received.
  • Simply click on the message that you want to listen to – and if required, download the messages to your PC – for forwarding to colleagues via email.
  • Focus on what is important to you and never miss any business opportunity.
visually manage voice messages45
Visually Manage Voice Messages

With Communication Assistant – Yes You Can!

Procedure:

  • To check for your voice messages, click on voice mail icon and then select the “Call Voice Mail” option.
  • The Voice Mail Assistant window will pop-up – allowing you to visually see all your voice mail messages and giving you the opportunity to select the ones you would like to play.
  • The software also allows you to:
      • Play and pause messages & Skip messages
      • Change message playback speed
      • Delete messages
      • Download the message to your PC
      • Send messages via E-mail
      • Call the person who left the message

Benefits –Improve Productivity

    • Quickly and easily make contact with customer and colleagues, quicker and faster when out of the office
integrate with microsoft outlook
Integrate with Microsoft Outlook®

Use MS Outlook® to dial / answer calls

Scenario:

  • You use MS Outlook® as your preferred PIM and want to dial all your customer contacts from within MS Outlook®.

Solution:

  • Simply use the built-in Outlook Toolbar and it allows you to dial/answer calls from within MS Outlook®.
  • If a call comes in from a contact that is already registered in your MS Outlook® contacts, the application can even pop-up the relevant contact details allowing you to improve customer service.
  • Focus on providing better customer service and handle your business.
integrate with microsoft outlook47
Integrate with Microsoft Outlook

With Communication Assistant – Yes You Can!

Procedure:

  • To use Outlook to make and receive calls, simply use the Outlook toolbar that comes with Communication Assistant.
  • You can either enter a number in the dial field and press “Enter” to dial, or select a contact from your Outlook Contacts list and right click to “Call Contact”.
  • When you receive a call, you can also answer the call from within Outlook toolbar by pressing the “Answer” button.
easily manage teams
Easily Manage Teams

Visually Manage Your Team with point-n-click

Scenario:

  • You need to manage a team of agents and want to easily keep an eye on how they are handling customer calls.
  • You may wish to silently “Listen-In” to a call to make sure that a customer call is being properly handled by a new employee.

Solution:

  • Focus on managing your team and easily handle your informal call centre to provide better customer service.
easily manage teams49
Easily Manage Teams

With Communication Assistant – Yes You Can!

Procedure:

  • Simple run Communication Assistant Supervisor and use it to easily and visually manage your team.
  • The Current Member Status shows you status of all team members in real-time.
  • The Group Call Report section shows you total incoming calls, average waiting time, overflow call or lost calls.
  • Select a member – and you can log them in to the group, or log-out – if needed.
  • As a supervisor, you can silently Listen-in, or even – take over the call for further handling, if required.
communicate with busy colleagues
Communicate with Busy Colleagues

Quickly communicate even when colleagues are busy

Scenario:

  • As a secretary you want to inform your boss who is in a meeting that a guest has arrived and is waiting – without having to disturb your boss.
  • You may also need to contact a work colleague to ask a quick question – but they are on another call.

Solution:

  • You can now chat with your boss or work colleagues from your computer – without having to disturbing them – if they are on a phone call.
  • The software also allows you to escalate from a chat to a phone call – with the click on a button.
  • Make office communications – quick and efficient, and focus on providing better customer service.
communicate with busy colleagues51
Communicate with Busy Colleagues

With Communication Assistant – Yes You Can!

Procedure:

  • Simply click on the contact icon for a colleague who may be busy on a phone call – but is online and click the “Start Chat” feature button.
  • You can now communicate with your work colleagues using short text messages.
  • While on a Chat, if you want to escalate the communication from a Chat to a phone call – simply click on the green dial icon within the chat window.
ad
