Presentation Transcript


Slide1 l.jpg

MOUNTAIN

OPERATIONS

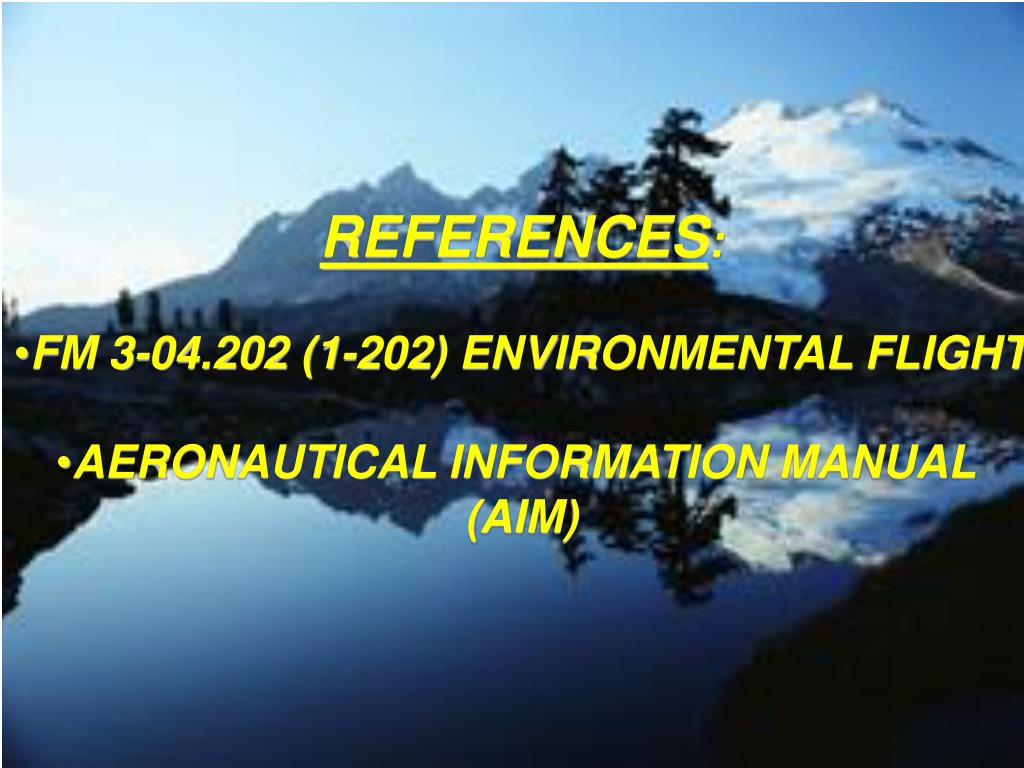

Slide2 l.jpg

  • REFERENCES:

  • FM 3-04.202 (1-202) ENVIRONMENTAL FLIGHT

  • AERONAUTICAL INFORMATION MANUAL

  • (AIM)


Overview l.jpg

OVERVIEW

  • The mountain environment requires special flying techniques due to:

    • Its severe and rapidly changing weather

    • Impacts on aircraft performance capabilities

    • Acceleration of crew fatigue


Winds l.jpg

WINDS

  • Winds associated with mountains can be broken down into three main categories.

    • Prevailing winds: upper-level winds flowing predominately from west to east in the continental US.

    • Local winds: also called valley winds, are created by convection heating & cooling. They flow parallel to larger valleys. During the day, these winds tend to flow up valley; at night, they flow down valley.

    • Surface wind: the layer of air which lies close to the ground. It is less turbulent than prevailing & local winds.


Demarcation line l.jpg

DEMARCATION LINE

  • Demarcation line: the point which separates the up flow from the down flow of air.

    • It forms from the highest point of the mountain & extends diagonally upward.

    • The velocity of the wind and the steepness of the uplift slope will determine the position of the demarcation line.

    • Generally, the higher the wind speed, & steeper the terrain, the steeper the demarcation line.


Slide6 l.jpg

TURBULENCE

&

DOWNFLOW

PREVAILING WINDS

DEMARCATION LINE

LOCAL WIND

(UPFLOW)

SURFACE WINDS

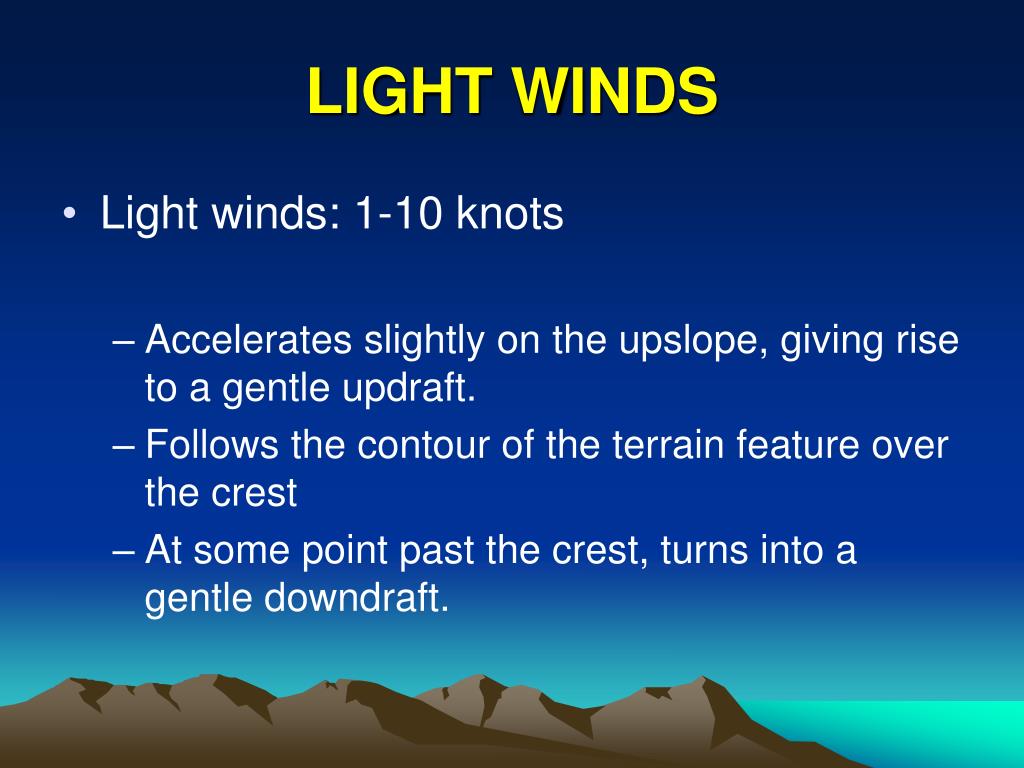

Light winds l.jpg

LIGHT WINDS

  • Light winds: 1-10 knots

    • Accelerates slightly on the upslope, giving rise to a gentle updraft.

    • Follows the contour of the terrain feature over the crest

    • At some point past the crest, turns into a gentle downdraft.


Slide8 l.jpg

PREVAILING WINDS

DEMARCATION LINE

LIGHT WINDS


Moderate winds l.jpg

MODERATE WINDS

  • Moderate wind: 11 to 20 knots

    • Will increase the strength of the up drafts and downdrafts and create moderate turbulence.

    • An updraft will be experienced on the lee (the side sheltered from the wind) slope near the crest of the mountain.

    • The demarcation line forms closer to the hill crest and is steeper


Slide10 l.jpg

PREVAILING WINDS

DEMARCATION LINE

MODERATE WINDS


Strong winds l.jpg

STRONG WINDS

  • Strong winds: above 20 knots

    • The demarcation line will move forward to the leading edge of the hill crest

    • Becomes progressively steeper and the severity of updrafts, downdrafts, and turbulence will also increase.

    • Under these conditions, the best landing spot is close to the forward edge of the terrain feature.


Slide12 l.jpg

PREVAILING WINDS

DEMARCATION LINE

STRONG WINDS


Mountain wave l.jpg

MOUNTAIN WAVE

  • A phenomenon that occurs when the airflow over mountainous terrain meets certain criteria:

    • Low-level layer of unstable air

    • Stable layer of air above the lower levels

    • Wind direction fairly constant with altitude

    • Wind speed increasing w/ altitude

    • Mountain lying perpendicular to the airflow


Mountain wave14 l.jpg

MOUNTAIN WAVE

  • The following conditions can exist in a Mountain Wave:

    • Vertical currents of 2,000fpm are common, 5,000fpm possible

    • Moderate to severe turbulence

    • Wind gusts up to 22 knots

    • Altimeters errors up to 1,000 feet

    • Icing can be expected


Slide15 l.jpg

STABLE LAYER

WIND

MOUNTAIN WAVE

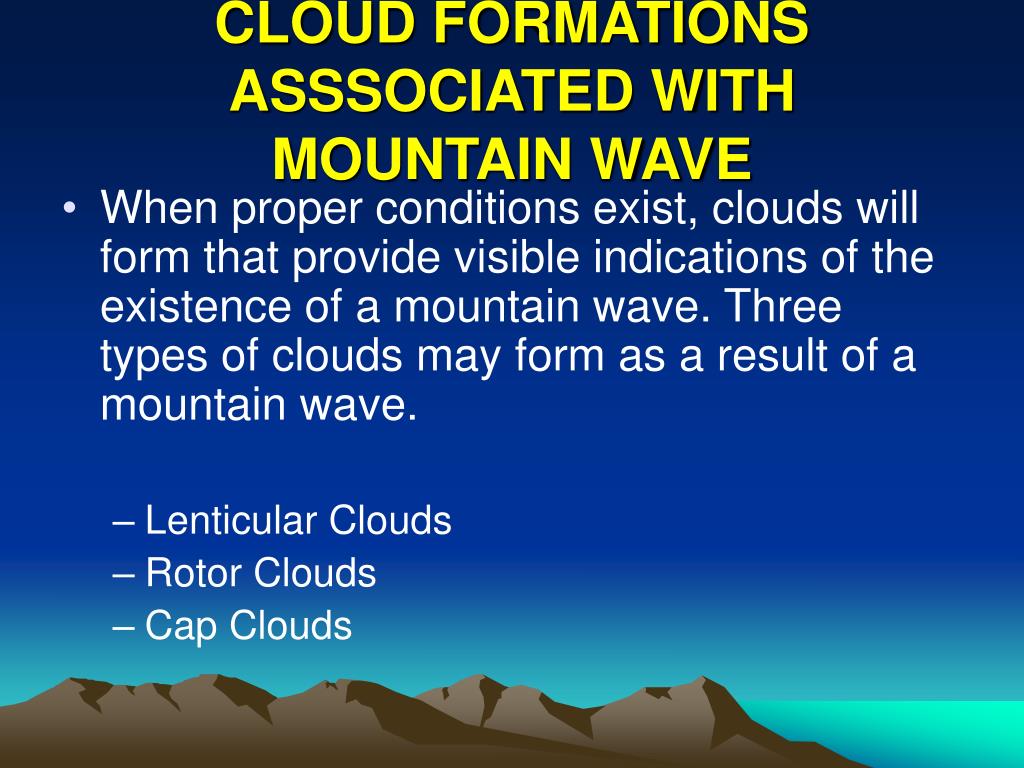

Cloud formations asssociated with mountain wave l.jpg

CLOUD FORMATIONS ASSSOCIATED WITH MOUNTAIN WAVE

  • When proper conditions exist, clouds will form that provide visible indications of the existence of a mountain wave. Three types of clouds may form as a result of a mountain wave.

    • Lenticular Clouds

    • Rotor Clouds

    • Cap Clouds


Cloud formations asssociated with mountain wave17 l.jpg

CLOUD FORMATIONS ASSSOCIATED WITH MOUNTAIN WAVE

  • Lenticular Clouds:

    • lens shaped, high altitudes, 25,000-40,000’. Form in bands or as single clouds, located above and slightly downwind from the ridge of the mountain, turbulence may be encountered under the cloud

  • Rotor Clouds:

    • downwind from the ridge, several rows lying parallel to the ridge, bases at or below ridge level, up/down drafts in excess of 5,000fpm. Short duration & tend to disappear rapidly.

  • Cap Clouds:

    • formed primarily from vertical updrafts, up/down as they pass over the mountain. Part of the cloud extends upwind, with finger-like extensions running down the slope on downwind side of the ridge.


Slide18 l.jpg

LENTICULAR

CLOUDS

CAP CLOUD

ROTOR

CLOUDS

CLOUD FORMATIONS

ASSSOCIATED W/

MOUNTAIN WAVE


Slide19 l.jpg

SLACK WINDS

STABLE LAYER

STRONG

GRADIENT

WINDS

WIND

SHEAR

30K

ROTOR

CLOUD

25K

20K

STRONG

WINDS

UNSTABLE AIR

ROTOR STREAMING

TURBULENCE


Wind across a ridge l.jpg

WIND ACROSS A RIDGE

  • Smooth air and updrafts will be experienced on the windward side of the ridge and downdrafts on the lee side.

  • The steeper the updraft slope & the higher the wind velocity, the more severe the updrafts.

  • As the air flows over the crest, a venturi effect is created. An area of low pressure develops on the lee side of the mountain.

  • Where the ridge line is irregular, a funneling of air through the gaps will occur, causing a mixing of air on the lee side. This condition tends to increase the turbulence.

  • Wind striking the ridge at less than 90° produces fewer updrafts and downdrafts.


Slide21 l.jpg

WIND

WIND ACROSS A RIDGE


Wind across a snake ridge l.jpg

WIND ACROSS A SNAKE RIDGE

  • Down drafts and turbulent air may be encountered on the windward slope of succeeding ridges.

  • The severity will be determined by the distance between the ridges, the depth of the valley, and the angle the wind strikes the slope.

  • The closer the ridges are together and the closer the wind is to 90° to the slope, the updrafts and turbulence will be more severe.

  • Greater turbulence will be experienced on the downdraft slope of succeeding ridges due to turbulent air flowing over the ridge.


Slide23 l.jpg

WIND

SNAKE RIDGE


Wind across a crown l.jpg

WIND ACROSS A CROWN

  • Airflow in the vicinity of a crown is normally lateral around its outer edges and over the top.

  • Turbulence will develop on the lee side of the hill, but will not extend too far out from the ground.


Slide25 l.jpg

WIND

WIND ACROSS A CROWN


Shoulder wind l.jpg

SHOULDER WIND

  • The airflow around a shoulder is extremely turbulent regardless of the wind direction.

  • Extreme downdrafts may be experienced if the shoulder is located on the lee side of the mountain.

  • Rotary turbulence may be experienced on the uplift side of the shoulder.


Slide27 l.jpg

WIND BACKLASH

SHOULDER WIND


Wind across a canyon l.jpg

WIND ACROSS A CANYON

  • Usually the lower winds flow parallel to the canyon floor. The degree of turbulence in the low areas of a canyon depends on the width & depth of the canyon and the wind speed.

  • In a narrow canyon, the most severe turbulence is in the low area

  • In a wide canyon, the low area may be turbulent free.

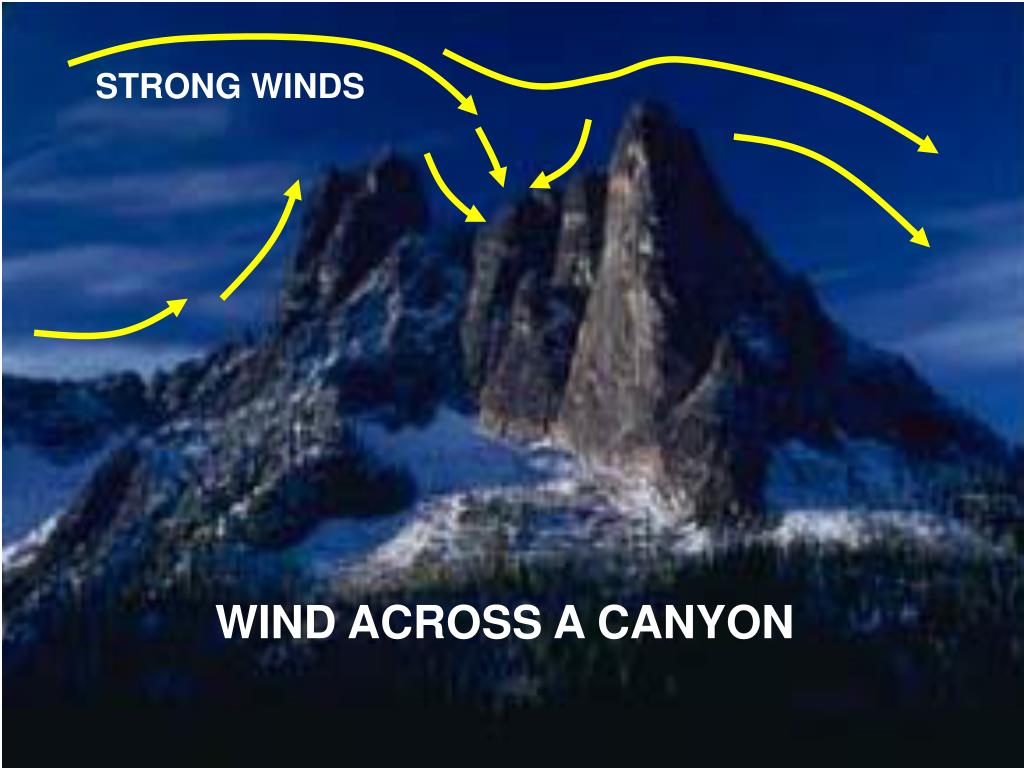

Slide29 l.jpg

STRONG WINDS

WIND ACROSS A CANYON


Slide30 l.jpg

TECHNIQUES

FLYING


Flying techniques l.jpg

FLYING TECHNIQUES

  • During Mountain Flying the aviator’s senses are sometimes unreliable.

  • A natural tendency is to judge airspeed as too slow and altitude too high.

  • Difficulty may be experienced in maintaining the proper flight altitude.

  • Frequent reference should be made to the flight instruments.

  • Update the PPC to compensate for gross weight changes and center of gravity.


Mountain takeoff l.jpg

MOUNTAIN TAKEOFF

  • Hover power check should be conducted.

  • PPC: as a minimum: max torque available, go/no-go torques, predicted hover torque

  • When performing a mountain takeoff, apply torque as necessary to gain forward airspeed while maintaining sufficient altitude to clear any obstacles until climb airspeed is reached.

  • Where drop-offs are located along the takeoff path, the aircraft may be maneuvered downslope to gain airspeed.


Slide33 l.jpg

NORMAL TAKEOFF

AIRSPEED OVER ALTITUDE

MOUNTAIN TAKEOFF


Flight along a valley l.jpg

FLIGHT ALONG A VALLEY

  • Aircraft should be flown in the smoother upflowing air on the lifting side of the valley.

  • Requires less power and gives the aircraft a safe flight path.

  • The velocity of the wind will determine how close you will fly to the lifting side.

  • In strong winds, it is advisable to avoid flying close to the slope because of turbulence caused by irregular projections may be encountered.

  • In light winds, aircraft should be flown closer to the side of the valley to allow for maximum horizontal clearance for a 180° turn


Slide35 l.jpg

WIND

DOWNDRAFT

& TURBULENCE

UPDRAFT

FLIGHT ALONG A VALLEY


Ridge crossing l.jpg

RIDGE CROSSING

  • Crossing at a 45° angle facilitates turning away from the ridge should the helicopter be carried below the crest by a downdraft.


Slide37 l.jpg

RIDGE CROSSING

45° ANGLE


Slide38 l.jpg

180° TURN OR EARLY CLIMB


Slide39 l.jpg

APPROACH

&

LANDING


Factors in the consideration of an approach path l.jpg

FACTORS IN THE CONSIDERATION OF AN APPROACH PATH

  • Wind direction and velocity

  • Vertical air currents

  • Escape routes

  • Terrain contour & obstacles

  • Position of the sun

  • Approach paths and areas to be avoided


Type of approach l.jpg

TYPE OF APPROACH

  • There is no standard type of mountain approach.

  • Light wind/when demarcation line is shallow:

    • A relatively low angle of descent or flat approach should be used- requires less power & control movement. If downdrafts are encountered insufficient altitude may be available to continue the approach.

  • Stronger wind/steeper demarcation line:

    • Steeper approach angle. Higher rate of descent & requires more power to terminate the approach. Provides more terrain clearance if downdrafts are encountered.

  • Running landing:

    • Used if insufficient torque to make a normal or shallow approach and landing area is suitable. Effective translational lift is maintained until contact with the ground.


Slide42 l.jpg

LZ

FIGURE EIGHT

CIRCULAR

LZ

LZ

RACETRACK

LZ RECONNAISSANCE


After reconnaissance l.jpg

After Reconnaissance

  • Avoid descents greater than 700fpm

  • Normally, pattern altitude will not exceed 500 feet above the touchdown point.

  • Mountain approach:

  • When 50’ above the touchdown point begin losing effective translational lift. Do not hover OGE. Prior to reaching the near edge of the landing area, the descent should be stopped & forward airspeed reduced to a brisk walk.


Slide44 l.jpg

WIND

AREA TO BE AVOIDED


Slide45 l.jpg

AREA

TO BE

AVOIDED

WIND


Slide46 l.jpg

WIND

AREA

TO BE

AVOIDED


Slide47 l.jpg

OTHER CONSIDERATIONS


Slide48 l.jpg

  • SETTLING WITH POWER

  • Vertical / Near Vertical Descent

  • at least 300fpm

  • Low Forward Airspeed

  • Using some of available Engine Power

  • 20%-100%

HOVER OGE

-Large blade-tip vortexes

-High velocity of induced airflow

HOVER IGE

-Reduced rotor tip vortex

-Reduced velocity of induced airflow


Slide49 l.jpg

QUIZ

Click on the link below to access the

Mountain Flying Techniques Quiz

http://ang.quizstarpro.com

Log-in and Click “Search” Tab

Class Name = Mountain Flying Techniques
