Presentation Transcript


Ergonomics in the textile and apparel industries l.jpg

Ergonomics in the Textile and Apparel Industries


Introduction l.jpg

Introduction

  • Challenges Facing the Industry Today:

    • Competition From Overseas Companies With Access to Inexpensive Labor

    • Shortage of Available US Textile Workers

    • Annual Turnover Rates Ranging From 30% to Over 100%


Introduction3 l.jpg

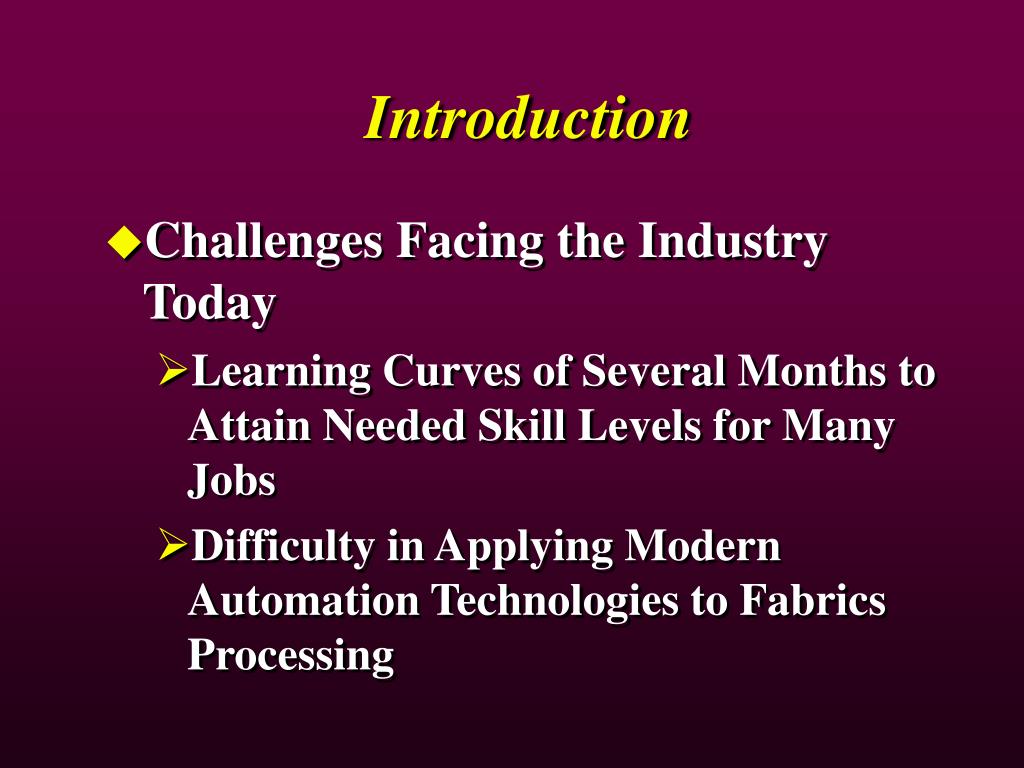

Introduction

  • Challenges Facing the Industry Today

    • Learning Curves of Several Months to Attain Needed Skill Levels for Many Jobs

    • Difficulty in Applying Modern Automation Technologies to Fabrics Processing


Ergonomics l.jpg

Ergonomics

  • Improving Ergonomic Conditions Can Improve Productivity and Safety - Enhance Competitiveness

  • Reduce Worker Compensation Costs

  • Provide More Reliable Workforce

  • May Include Allocating High Risk Jobs to Machines Where Possible (They Will Be Going Overseas Anyway)


Injuries and illnesses among textile and apparel workers l.jpg

Injuries and Illnesses Among Textile and Apparel Workers

  • 70% of Sewing Machine Operators Using Foot Controls Report Back Pain

  • 35% Report Persistent Low Back Pain

  • 25% Have Suffered a Compensable Cumulative Trauma Disorder (CTD)

    • 81% of CTDs Were to the Wrist

    • 14% of CTDs to the Elbow

    • 5% of CTDs to the Shoulder


Injuries and illnesses among textile and apparel workers6 l.jpg

Injuries and Illnesses Among Textile and Apparel Workers

  • 49% of Workers Experience Pain in the Neck

  • Absenteeism Increases as Working Conditions Worsen

  • Loss of Workers Due to Injuries or Turnover is Associated With Working Conditions


Tasks associated with injuries and illnesses l.jpg

Tasks Associated With Injuries and Illnesses

  • Hand Sewing and Trimming are Stressful to All Upper Limbs

  • Stitching Tasks are Associated With Pain in the Shoulders, Wrists, and Hands

  • Ironing by Hand is Associated With Elbow Pain

  • Garment Assembly Tasks are Associated With CTDs of the Hands and Wrists

  • Foot Operated Sewing is Associated With Pain in the Back


Static postures and ctds l.jpg

Static Postures and CTDs

  • Analysis Reveals That 40% of Operators at Sewing Machines Stoop Forward > 20o Throughout the Machine Cycle

  • 60% Tilt Their Heads Forward > 20o Throughout the Machine Cycle - Why?

    • Visual Demands of the Work

    • Geometry of the Work Station

    • Inadequate Seating


Postural stress and lighting l.jpg

Postural Stress and Lighting

  • Precise Stitching Tasks are Visually Demanding

  • Thread and Fabric Often Offer Little or No Visual Contrast

  • 36% of Operators Feel Lighting is Inadequate

  • Surveys Found Light Levels at Less Than 60% of Recommended Levels

  • Operators Lean Forward to See Their Work


Seating l.jpg

Seating

  • Straight Backed Wooden or Metal Chairs are Typical in the Industry

  • Chairs Often Lack Cushioning

  • Chairs Often Lack Adjustable Back Rests

  • Chairs Often Lack Height Adjustability

  • Improved Seating is Readily Available


Psychosocial considerations l.jpg

PsychoSocial Considerations

  • Psychomotor Demands are High (Speed, Accuracy, Coordination)

  • Positive Attitudes Toward Work are Inversely Related to Increased Monotony and Fatigue

  • Positive Attitudes Toward Work are Directly Related to Job Satisfaction


Work organization l.jpg

Work Organization

  • As Many as 100% of Piecework Operators in High Manipulation Jobs Have Symptoms of CTDs

  • Workers in Piecework are 4 Times as Likely to Develop Severe Disabilities as Hourly Workers

  • Workers in Piecework are 9 Times as Likely to Develop Arthritic and Osteoarticular Disorders as Hourly Workers

  • As Duration of Employment in Piecework Increases, So Does Severe Disabilities


Duration of exposure l.jpg

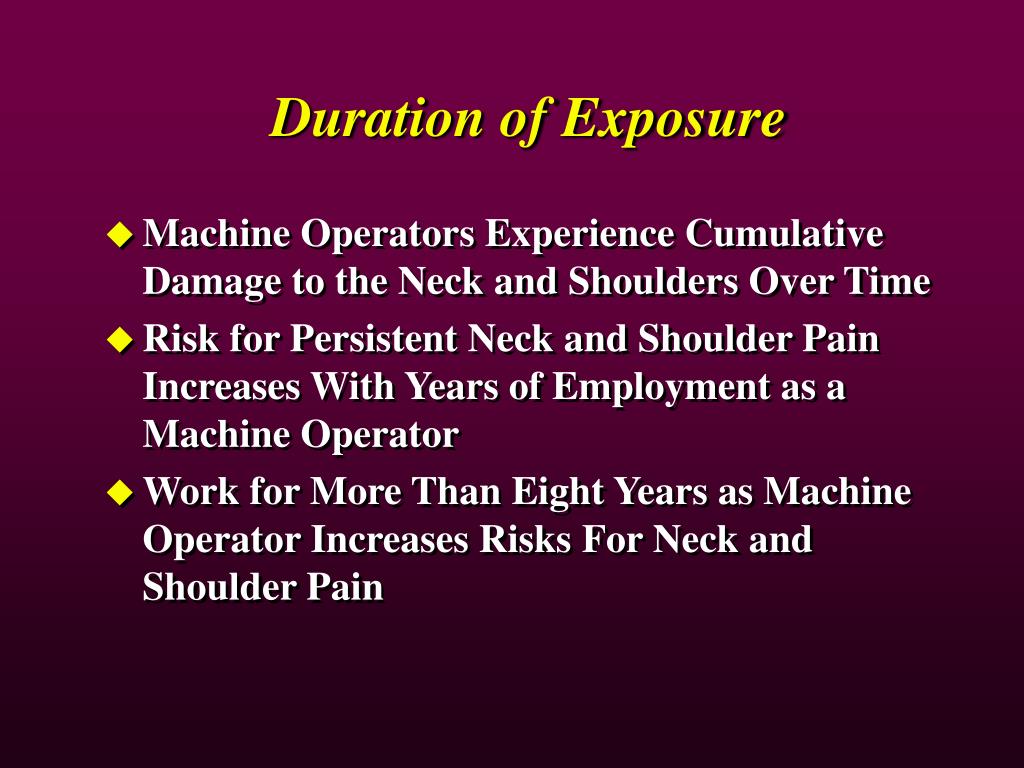

Duration of Exposure

  • Machine Operators Experience Cumulative Damage to the Neck and Shoulders Over Time

  • Risk for Persistent Neck and Shoulder Pain Increases With Years of Employment as a Machine Operator

  • Work for More Than Eight Years as Machine Operator Increases Risks For Neck and Shoulder Pain


Solutions a comprehensive ergonomics program l.jpg

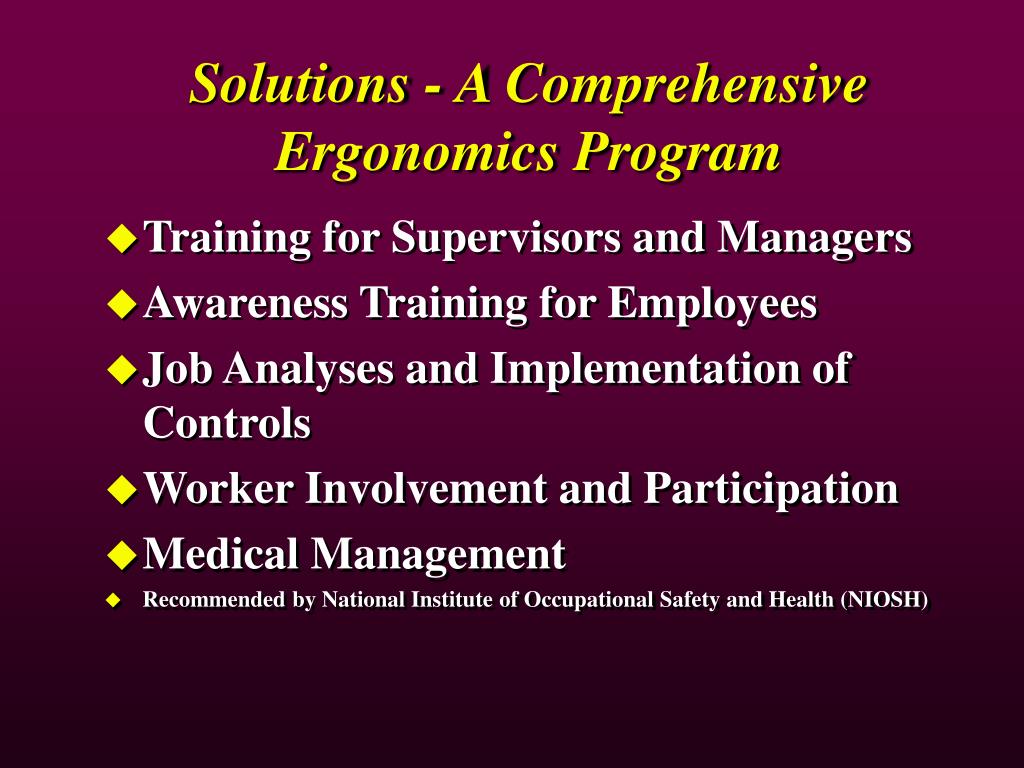

Solutions - A Comprehensive Ergonomics Program

  • Training for Supervisors and Managers

  • Awareness Training for Employees

  • Job Analyses and Implementation of Controls

  • Worker Involvement and Participation

  • Medical Management

  • Recommended by National Institute of Occupational Safety and Health (NIOSH)


Workstation redesign sewing machines l.jpg

WorkStation Redesign - Sewing Machines

  • 30” Fixed TableTop Height

  • Point of Operation Between 4-7” Above TableTop

  • Sewing Machine Tilted 11o Toward Operator

  • For Jobs of Longer Duration Sewing - Bench Mounted Arm Rests

  • Adjustable Chair

  • Adjustable Foot Rest With Movable Machine Control


Work enhancements l.jpg

Work Enhancements

  • Foam Padded Edges to Sharp Table Edges

  • Provide Cloth Upholstered Adjustable Chairs

  • Angle Packing Boxes to Workers With Tilt Equipment

  • Provide Anti-Fatigue Matting for Standing Workers

  • Improved Lighting

  • Require Rest Periods

  • Job Rotations


Automated materials handling l.jpg

Automated Materials Handling

  • Eliminates Heavy Lifting by Operators or “Bundle Boys”

  • Uses Pre-Programmed Hanging Conveyor

  • Moves Only One or a Few Work Pieces Per Hanger

  • Computer Controlled - Movement Tracked by Bar-Coded Hangers and Series of Scanners

  • Delivers Work to Queue Near Operator


Automated materials handling18 l.jpg

Automated Materials Handling

  • Strong on Pre-Programmed Use But Weak on Flexibility (Short Term Changes, etc.)

  • Technology is Rapidly Improving

  • Future Models Will Direct More Work to the Queues of the Most Productive Workers and Less to Slower Workers or Beginners


Modular manufacturing concept l.jpg

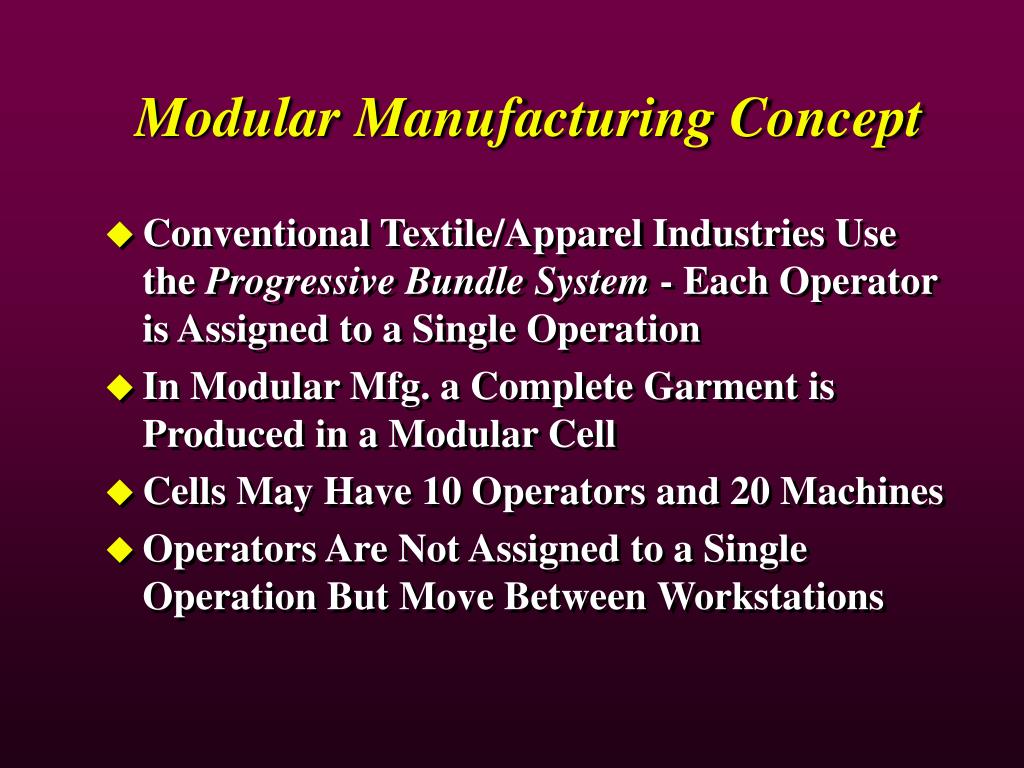

Modular Manufacturing Concept

  • Conventional Textile/Apparel Industries Use the Progressive Bundle System - Each Operator is Assigned to a Single Operation

  • In Modular Mfg. a Complete Garment is Produced in a Modular Cell

  • Cells May Have 10 Operators and 20 Machines

  • Operators Are Not Assigned to a Single Operation But Move Between Workstations


Modular manufacturing concept20 l.jpg

Modular Manufacturing Concept

  • Teams of Operators are Responsible for Work Planning and Management, Product Quality, etc.

  • Employees are Empowered - Boosts Morale

  • A Variety of Motions are Used by Each Operator - Reduces Risk for CTDs and Relieves Static Postures

  • Can Be Reconfigured Rapidly, Providing Great Flexibility


Modular manufacturing l.jpg

Modular Manufacturing

  • Significantly Reduced Absenteeism

  • Necessitates Better Ergonomic Designs of Workstations to Accommodate Different Operators

  • Many Operations Converted to Standing Workstations Instead of Seated Workstations

  • Employees Paid on a Group Incentive System


Additional resources l.jpg

Additional Resources

  • American Textile Manufacturers Institute (ATMI) Washington DC

  • ATMI Quest for Best in Safety and Health Program

  • Must Have Comprehensive Program to Join

  • Must be Willing to Interact With Other Members Companies

  • Nearly Half of ATMI Member Companies Participate


Additional resources23 l.jpg

Additional Resources

  • National Institute for Occupational Safety and Health (NIOSH)

  • 800-35-NIOSH

  • NIOSH Publication: Elements of Ergonomics Programs, January 1997


Questions and answers l.jpg

Questions and Answers


This program developed by david mahone cna insurance companies chicago il l.jpg

This program developed by David Mahone, CNA Insurance Companies, Chicago IL
