Chapter 17 reactions of aromatic compounds l.jpg

Organic Chemistry, 5th EditionL. G. Wade, Jr.

Chapter 17Reactions of Aromatic Compounds

Jo Blackburn

Richland College, Dallas, TX

Dallas County Community College District

ã 2003,Prentice Hall


Electrophilic aromatic substitution l.jpg

=>

Electrophilic Aromatic Substitution

Electrophile substitutes for a hydrogen on the benzene ring.

Chapter 17


Mechanism l.jpg

Mechanism

=>

Chapter 17


Bromination of benzene l.jpg

Bromination of Benzene

  • Requires a stronger electrophile than Br2.

  • Use a strong Lewis acid catalyst, FeBr3.

Animation

Animation

Animation

=>

Chapter 17


Energy diagram for bromination l.jpg

Energy Diagramfor Bromination

=>

Chapter 17


Chlorination and iodination l.jpg

=>

Chlorination and Iodination

  • Chlorination is similar to bromination. Use AlCl3 as the Lewis acid catalyst.

  • Iodination requires an acidic oxidizing agent, like nitric acid, which oxidizes the iodine to an iodonium ion.

Chapter 17


Nitration of benzene l.jpg

Nitration of Benzene

Use sulfuric acid with nitric acid to form the nitronium ion electrophile.

NO2+ then forms a

sigma complex with

benzene, loses H+ to

form nitrobenzene. =>

Chapter 17


Sulfonation l.jpg

=>

Sulfonation

Sulfur trioxide, SO3, in fuming sulfuric acid is the electrophile.

Chapter 17


Desulfonation l.jpg

=>

Benzene-d6

Desulfonation

  • All steps are reversible, so sulfonic acid group can be removed by heating in dilute sulfuric acid.

  • This process is used to place deuterium in place of hydrogen on benzene ring.

Chapter 17


Nitration of toluene l.jpg

=>

Nitration of Toluene

  • Toluene reacts 25 times faster than benzene. The methyl group is an activator.

  • The product mix contains mostly ortho and para substituted molecules.

Chapter 17


Sigma complex l.jpg

Sigma Complex

Intermediate is more stable if nitration occurs at the orthoor para position.

=>

Chapter 17


Energy diagram l.jpg

Energy Diagram

=>

Chapter 17


Activating o p directing substituents l.jpg

=>

Activating, O-, P-Directing Substituents

  • Alkyl groups stabilize the sigma complex by induction, donating electron density through the sigma bond.

  • Substituents with a lone pair of electrons stabilize the sigma complex by resonance.

Chapter 17


Nitration of anisole l.jpg

Nitration of Anisole

Ortho attack

Meta attack

Para attack

=>

Chapter 17


The amino group l.jpg

=>

The Amino Group

Aniline reacts with bromine water (without a catalyst) to yield the tribromide. Sodium bicarbonate is added to neutralize the HBr that’s also formed.

Chapter 17


Summary of activators l.jpg

Summary ofActivators

=>

Chapter 17


Deactivating meta directing substituents l.jpg

Deactivating Meta-Directing Substituents

  • Electrophilic substitution reactions for nitrobenzene are 100,000 times slower than for benzene.

  • The product mix contains mostly the meta isomer, only small amounts of the orthoand para isomers.

  • Meta-directors deactivate all positions on the ring, but the meta position is less deactivated. =>

Chapter 17


Ortho substitution on nitrobenzene l.jpg

Ortho Substitutionon Nitrobenzene

=>

Chapter 17


Para substitution on nitrobenzene l.jpg

Para Substitution on Nitrobenzene

=>

Chapter 17


Meta substitution on nitrobenzene l.jpg

Meta Substitutionon Nitrobenzene

=>

Chapter 17

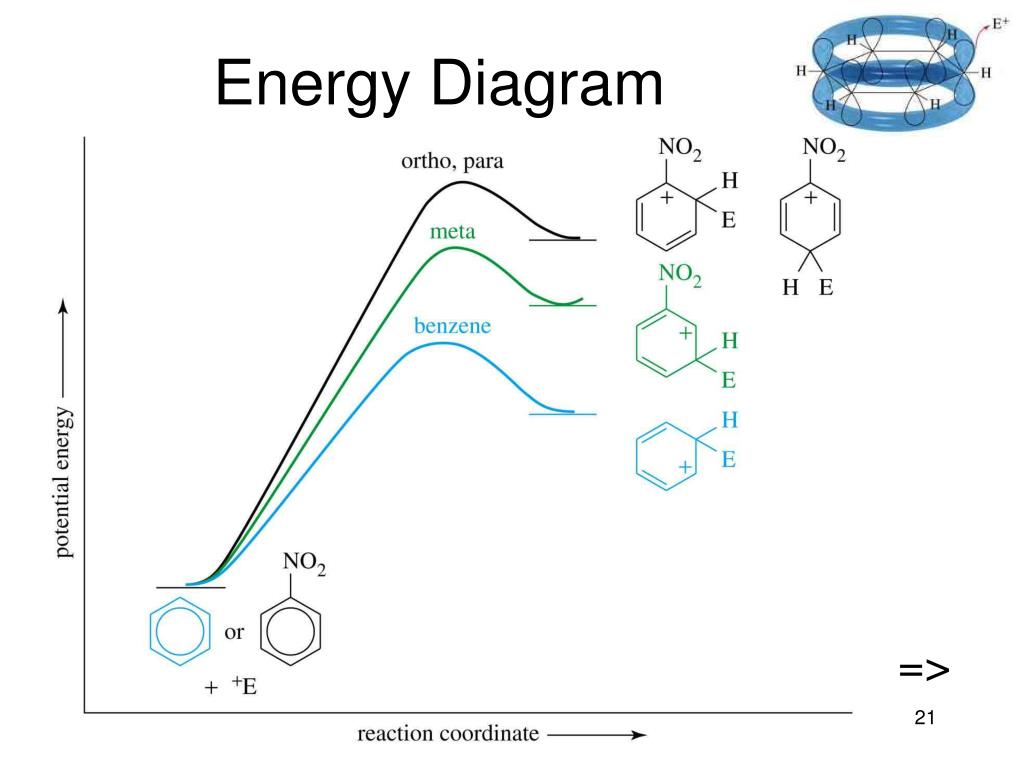

Energy diagram21 l.jpg

Energy Diagram

=>

Chapter 17


Structure of meta directing deactivators l.jpg

Structure of Meta-Directing Deactivators

  • The atom attached to the aromatic ring will have a partial positive charge.

  • Electron density is withdrawn inductively along the sigma bond, so the ring is less electron-rich than benzene. =>

Chapter 17

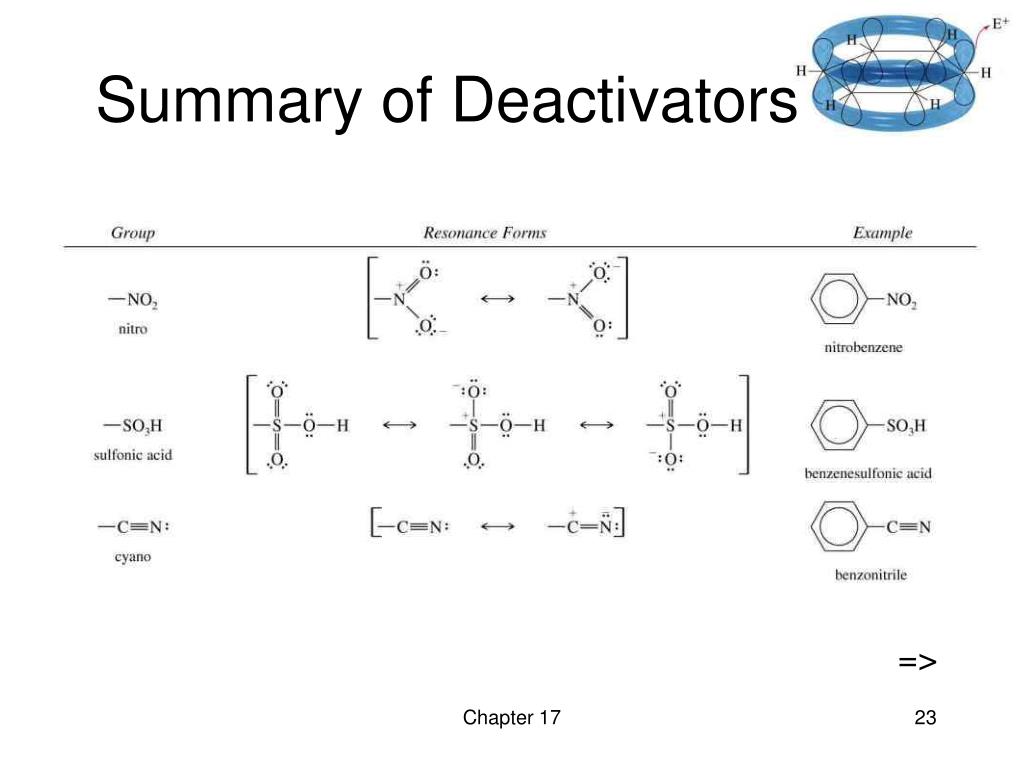

Summary of deactivators l.jpg

Summary of Deactivators

=>

Chapter 17


More deactivators l.jpg

More Deactivators

=>

Chapter 17

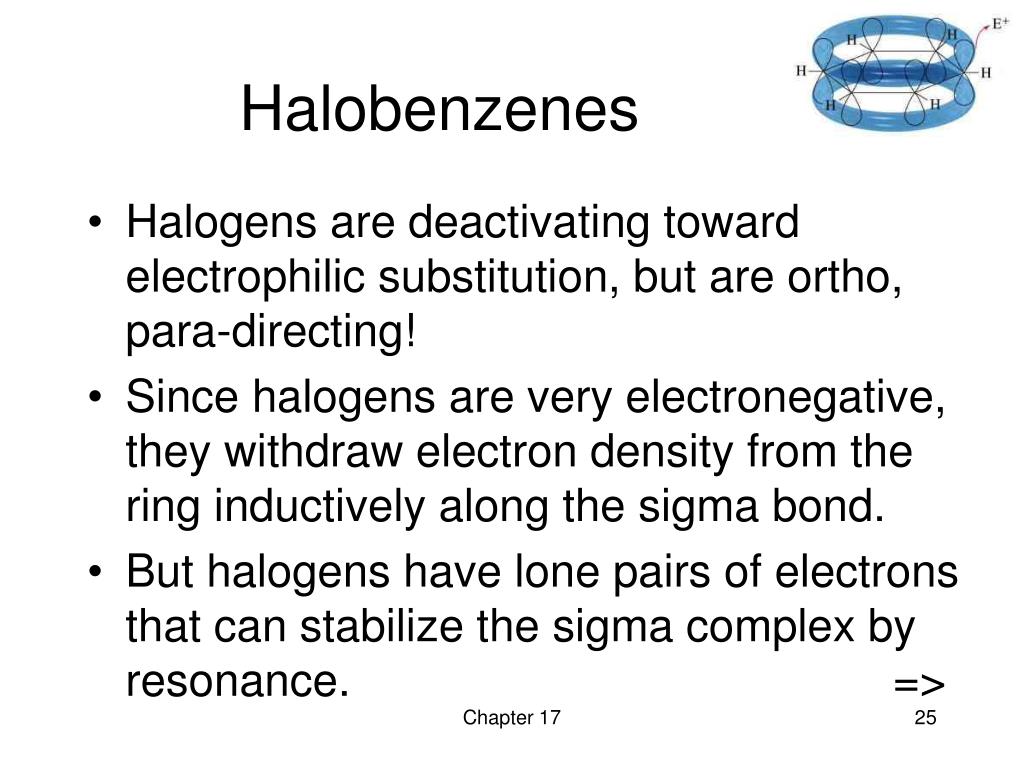

Halobenzenes l.jpg

Halobenzenes

  • Halogens are deactivating toward electrophilic substitution, but are ortho, para-directing!

  • Since halogens are very electronegative, they withdraw electron density from the ring inductively along the sigma bond.

  • But halogens have lone pairs of electrons that can stabilize the sigma complex by resonance. =>

Chapter 17


Sigma complex for bromobenzene l.jpg

Ortho and para attacks produce a bromonium ionand other resonance structures.

No bromonium ion possible with meta attack.

=>

Sigma Complexfor Bromobenzene

Chapter 17


Energy diagram27 l.jpg

Energy Diagram

=>

Chapter 17


Summary of directing effects l.jpg

Summary of Directing Effects

=>

Chapter 17


Multiple substituents l.jpg

=>

Multiple Substituents

The most strongly activating substituent will determine the position of the next substitution. May have mixtures.

Chapter 17


Friedel crafts alkylation l.jpg

Friedel-Crafts Alkylation

  • Synthesis of alkyl benzenes from alkyl halides and a Lewis acid, usually AlCl3.

  • Reactions of alkyl halide with Lewis acid produces a carbocation which is the electrophile.

  • Other sources of carbocations: alkenes + HF or alcohols + BF3. =>

Chapter 17


Examples of carbocation formation l.jpg

=>

Examples ofCarbocation Formation

Chapter 17


Formation of alkyl benzene l.jpg

-

+

=>

Formation of Alkyl Benzene

Chapter 17

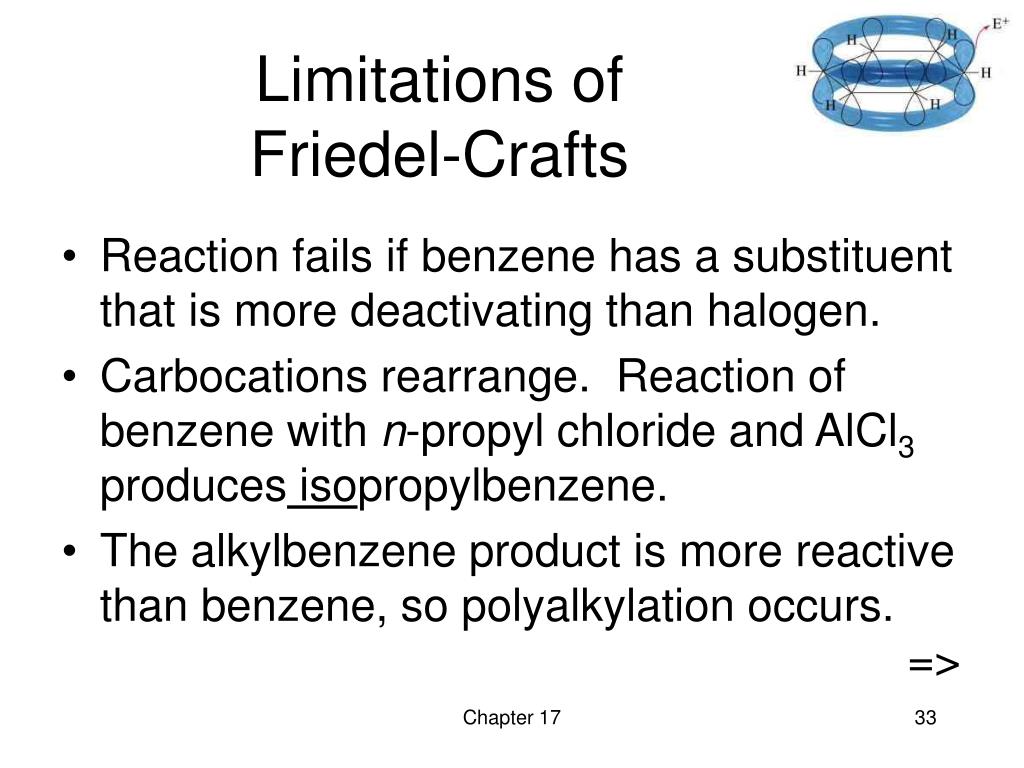

Limitations of friedel crafts l.jpg

Limitations ofFriedel-Crafts

  • Reaction fails if benzene has a substituent that is more deactivating than halogen.

  • Carbocations rearrange. Reaction of benzene with n-propyl chloride and AlCl3 produces isopropylbenzene.

  • The alkylbenzene product is more reactive than benzene, so polyalkylation occurs. =>

Chapter 17


Friedel crafts acylation l.jpg

Friedel-CraftsAcylation

  • Acyl chloride is used in place of alkyl chloride.

  • The acylium ion intermediate is resonance stabilized and does not rearrange like a carbocation.

  • The product is a phenyl ketone that is less reactive than benzene. =>

Chapter 17


Mechanism of acylation l.jpg

=>

Mechanism of Acylation

Chapter 17

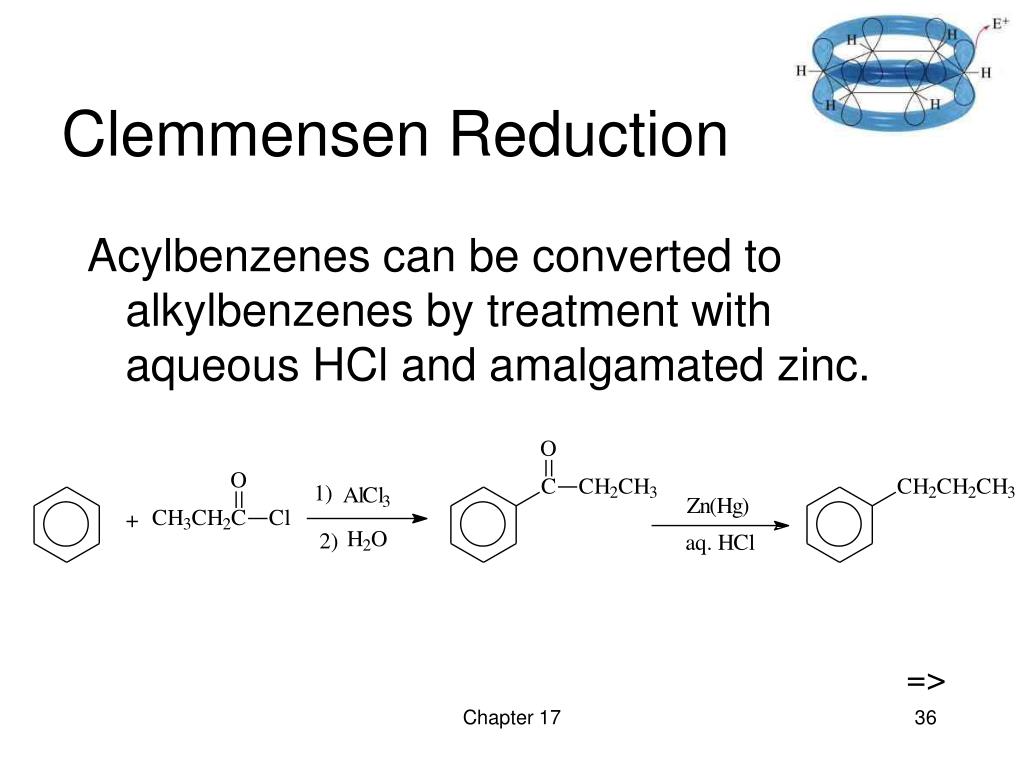

Clemmensen reduction l.jpg

=>

Clemmensen Reduction

Acylbenzenes can be converted to alkylbenzenes by treatment with aqueous HCl and amalgamated zinc.

Chapter 17


Gatterman koch formylation l.jpg

=>

Gatterman-KochFormylation

  • Formyl chloride is unstable. Use a high pressure mixture of CO, HCl, and catalyst.

  • Product is benzaldehyde.

Chapter 17


Nucleophilic aromatic substitution l.jpg

NucleophilicAromatic Substitution

  • A nucleophile replaces a leaving group on the aromatic ring.

  • Electron-withdrawing substituents activate the ring for nucleophilic substitution. =>

Chapter 17


Examples of nucleophilic substitution l.jpg

Examples ofNucleophilic Substitution

=>

Chapter 17


Addition elimination mechanism l.jpg

=>

Addition-EliminationMechanism

Chapter 17


Benzyne mechanism l.jpg

Benzyne Mechanism

  • Reactant is halobenzene with no electron-withdrawing groups on the ring.

  • Use a very strong base like NaNH2. =>

Chapter 17


Benzyne intermediate l.jpg

=>

Benzyne Intermediate

Chapter 17


Chlorination of benzene l.jpg

=>

Chlorination of Benzene

  • Addition to the benzene ring may occur with high heat and pressure (or light).

  • The first Cl2 addition is difficult, but the next 2 moles add rapidly.

  • The product, benzene hexachloride, is an insecticide.

Chapter 17


Catalytic hydrogenation l.jpg

=>

Catalytic Hydrogenation

  • Elevated heat and pressure is required.

  • Possible catalysts: Pt, Pd, Ni, Ru, Rh.

  • Reduction cannot be stopped at an intermediate stage.

Chapter 17


Birch reduction regiospecific l.jpg

=>

Birch Reduction: Regiospecific

  • A carbon with an e--withdrawing group

  • is reduced.

  • A carbon with an e--releasing group

  • is not reduced.

Chapter 17


Birch mechanism l.jpg

=>

Birch Mechanism

Chapter 17


Side chain oxidation l.jpg

=>

Side-Chain Oxidation

Alkylbenzenes are oxidized to benzoic acid by hot KMnO4 or Na2Cr2O7/H2SO4.

Chapter 17


Side chain halogenation l.jpg

=>

Side-Chain Halogenation

  • Benzylic position is the most reactive.

  • Chlorination is not as selective as bromination, results in mixtures.

  • Br2 reacts only at the benzylic position.

Chapter 17

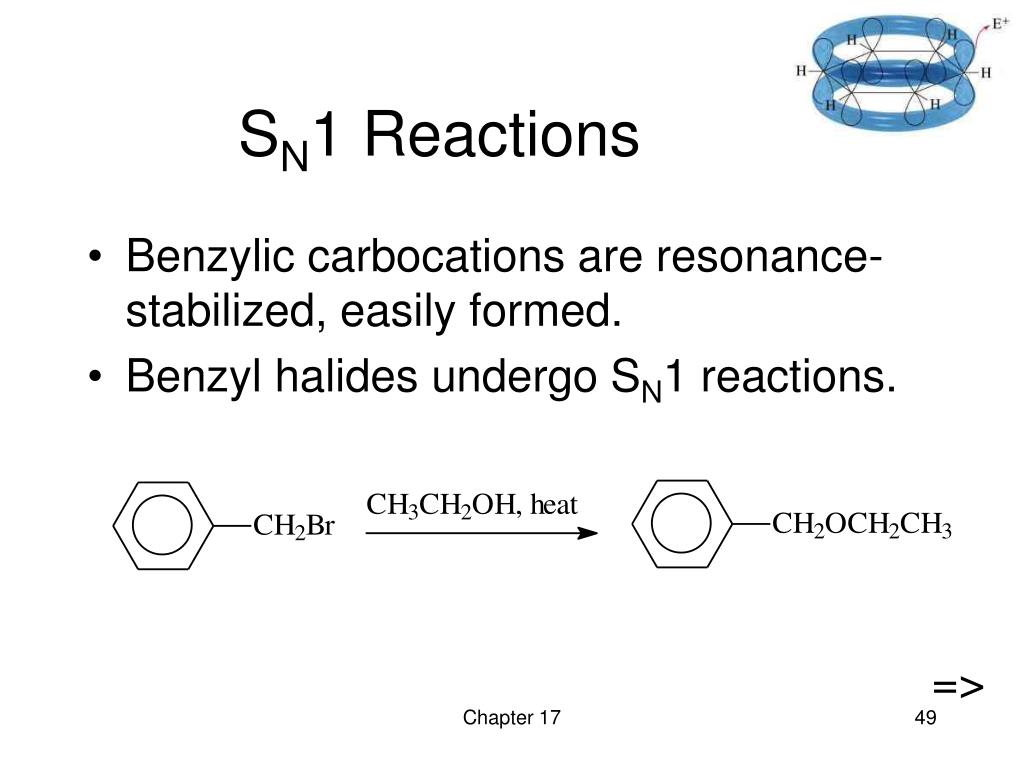

S n 1 reactions l.jpg

=>

SN1 Reactions

  • Benzylic carbocations are resonance-stabilized, easily formed.

  • Benzyl halides undergo SN1 reactions.

Chapter 17


S n 2 reactions l.jpg

=>

SN2 Reactions

  • Benzylic halides are 100 times more reactive than primary halides via SN2.

  • Transition state is stabilized by ring.

Chapter 17


Reactions of phenols l.jpg

=>

Reactions of Phenols

  • Some reactions like aliphatic alcohols:

    • phenol + carboxylic acid  ester

    • phenol + aq. NaOH  phenoxide ion

  • Oxidation to quinones: 1,4-diketones.

Chapter 17


Quinones l.jpg

Quinones

  • Hydroquinone is used as a developer for film. It reacts with light-sensitized AgBr grains, converting it to black Ag.

  • Coenzyme Q is an oxidizing agent found in the mitochondria of cells. =>

Chapter 17


Electrophilic substitution of phenols l.jpg

=>

ElectrophilicSubstitution of Phenols

  • Phenols and phenoxides are highly reactive.

  • Only a weak catalyst (HF) required for Friedel-Crafts reaction.

  • Tribromination occurs without catalyst.

  • Even reacts with CO2.

Chapter 17


End of chapter 17 l.jpg

End of Chapter 17

Chapter 17
