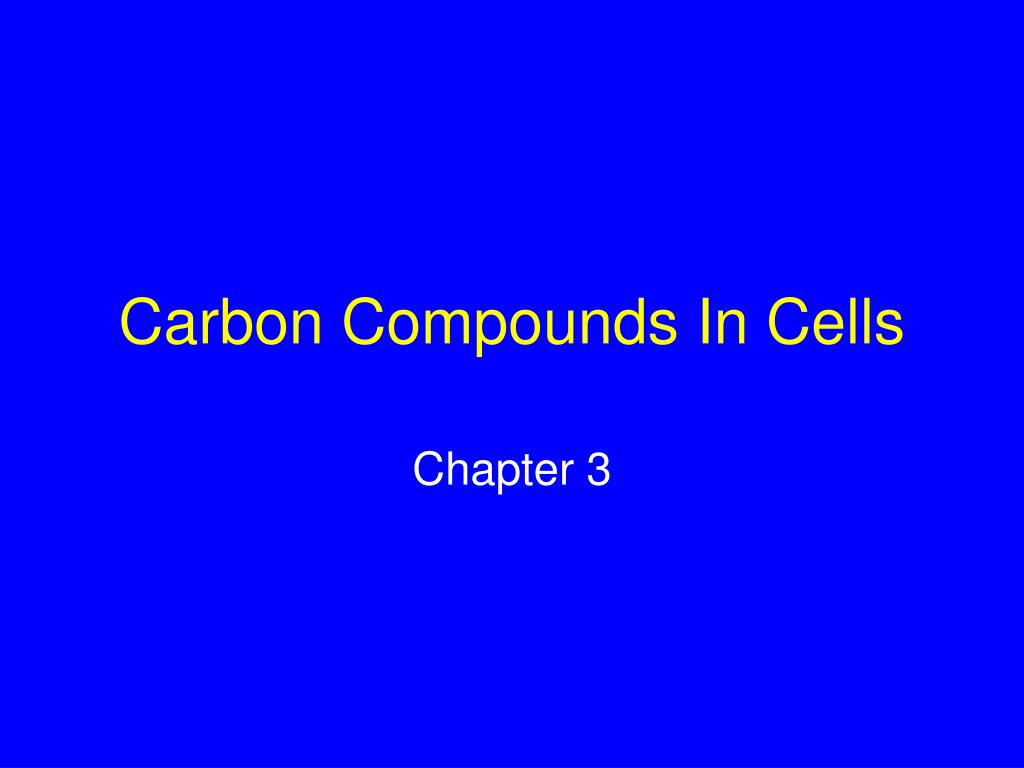

Carbon compounds in cells
Download
1 / 34

carbon compounds in cells - PowerPoint PPT Presentation


  • 287 Views
  • Updated On :

Carbon Compounds In Cells. Chapter 3. Organic Compounds. Hydrogen and other elements covalently bonded to carbon Carbohydrates Lipids Proteins Nucleic Acids . Carbon’s Bonding Behavior . Outer shell of carbon has 4 electrons; can hold 8

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'carbon compounds in cells' - JasminFlorian


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

Organic compounds l.jpg
Organic Compounds

Hydrogen and other elements covalently bonded to carbon

Carbohydrates

Lipids

Proteins

Nucleic Acids


Carbon s bonding behavior l.jpg
Carbon’s Bonding Behavior

  • Outer shell of carbon has 4 electrons; can hold 8

  • Each carbon atom can form covalent bonds with up to four atoms


Bonding arrangements l.jpg
Bonding Arrangements

  • Carbon atoms can form chains or rings

  • Other atoms project from the carbon backbone


Carbohydates l.jpg
CARBOHYDATES

  • Basic Formula = Cn(H2O)n

  • One water for each Carbon, hence carbohydrate


Two simple sugars l.jpg
Two Simple Sugars

glucose

fructose


Disaccharides l.jpg
Disaccharides

glucose

fructose

+ H2O

sucrose


Polysaccharides l.jpg
Polysaccharides

  • Straight or branched chains of many sugar monomers

  • Most common are composed entirely of glucose

    • Cellulose

    • Starch (such as amylose)

    • Glycogen


Cellulose starch l.jpg

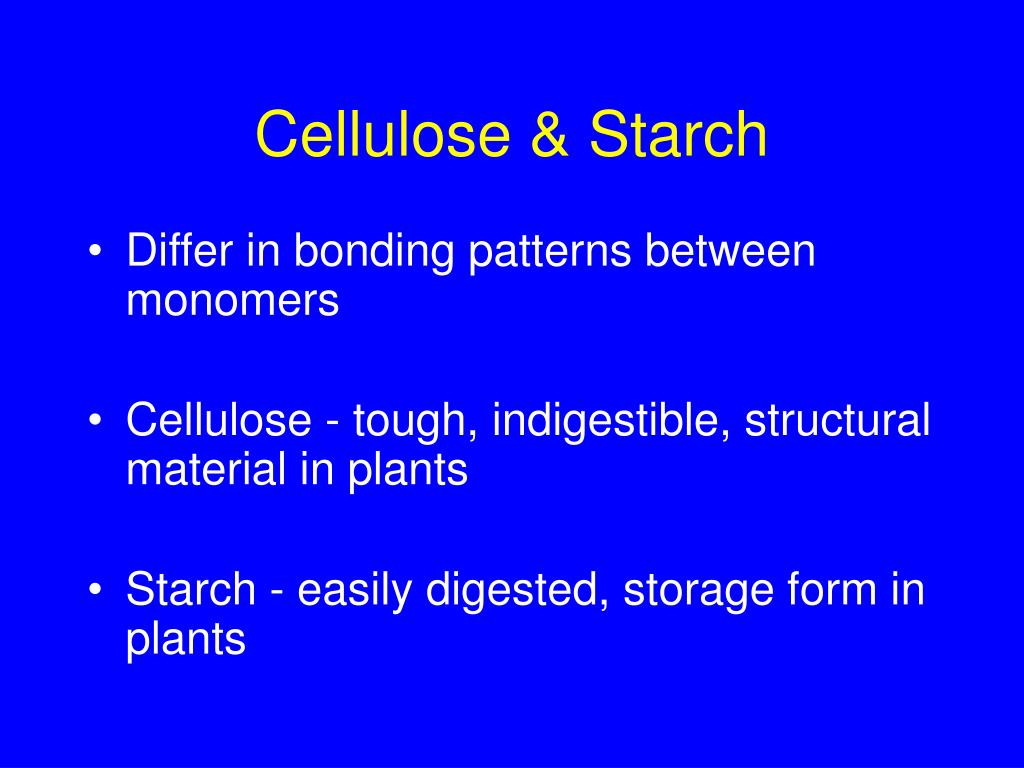

Cellulose & Starch

  • Differ in bonding patterns between monomers

  • Cellulose - tough, indigestible, structural material in plants

  • Starch - easily digested, storage form in plants



Glycogen l.jpg
Glycogen

  • Sugar storage form in animals

  • Large stores in muscle and liver cells

  • When blood sugar decreases, liver cells degrade glycogen, release glucose


Lipids l.jpg
Lipids

  • Most include fatty acids

    • Fats

    • Phospholipids

    • Waxes

  • Sterols and their derivatives have no fatty acids

  • Tend to be insoluble in water


Fatty acids l.jpg
Fatty Acids

  • Carboxyl group (-COOH) at one end

  • Carbon backbone (up to 36 C atoms)

    • Saturated - Single bonds between carbons

    • Unsaturated - One or more double bonds


Three fatty acids l.jpg

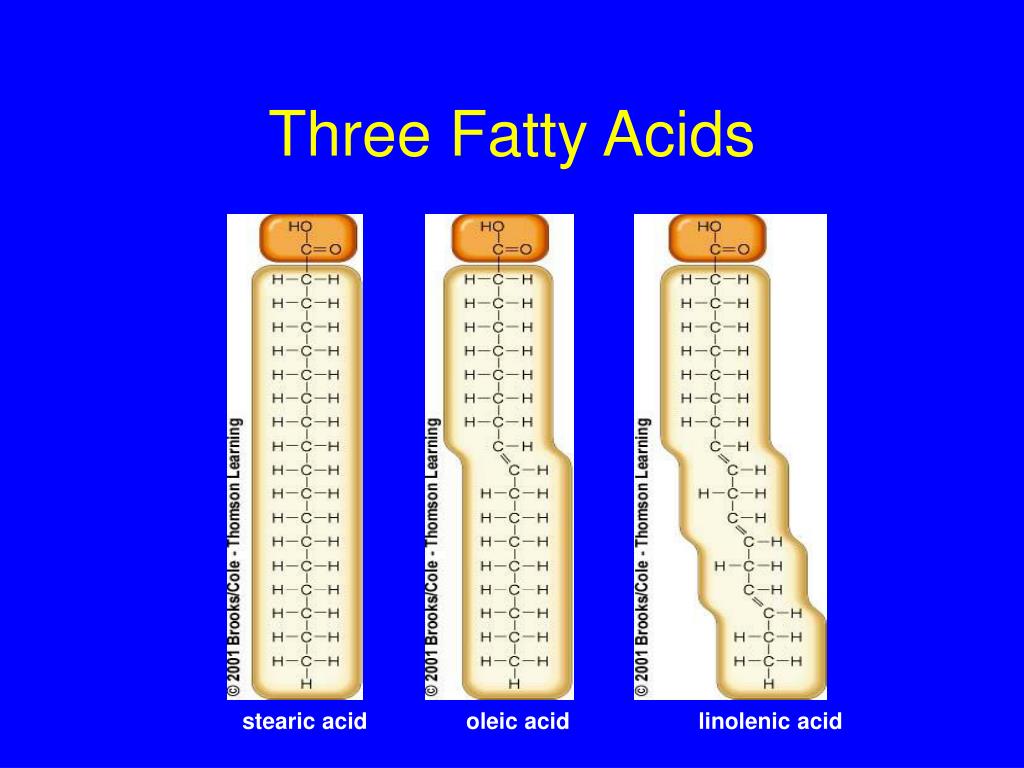

stearic acid

oleic acid

linolenic acid

Three Fatty Acids


Slide15 l.jpg
Fats

  • Fatty acid(s) attached to glycerol

  • Triglycerides are most common


Phospholipids l.jpg
Phospholipids

  • Main components of cell membranes


Sterols and derivatives l.jpg

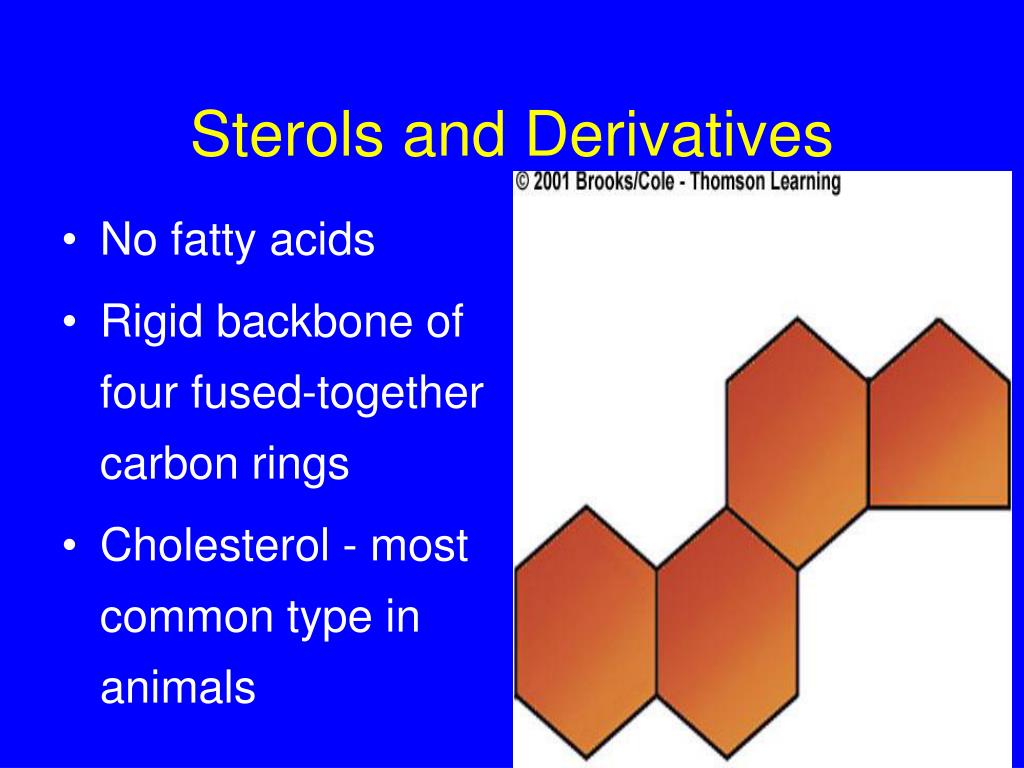

Sterols and Derivatives

  • No fatty acids

  • Rigid backbone of four fused-together carbon rings

  • Cholesterol - most common type in animals


Proteins l.jpg
PROTEINS

  • Key in Cellular Structure & Function

  • Key Functional Role as Enzymes Controlling all Chemical Reactions

  • Amino Acid Building Blocks


Amino acid structure l.jpg
Amino Acid Structure

carboxyl

group

amino

group

R group


Protein synthesis l.jpg
Protein Synthesis

  • Protein is a chain of amino acids linked by peptide bonds

  • Peptide bond = Primary Bonding

    • Type of covalent bond

    • Links amino group of one amino acid with carboxyl group of next


Primary structure protein shape l.jpg
Primary Structure & Protein Shape

  • Primary structure influences shape in two main ways:

    • Allows hydrogen bonds to form between different amino acids along length of chain

    • Puts R groups in positions that allow them to interact


Secondary structure l.jpg
Secondary Structure

  • Internal bond angles give rise to coiled or extended pattern

  • Hydrogen bonds form between different parts of polypeptide chain

  • Helix or pleated sheet



Tertiary structure l.jpg
Tertiary Structure

heme group

Folding as a result of interactions between R groups

coiled and twisted polypeptide chain of one globin molecule


Quaternary structure l.jpg
Quaternary Structure

Some proteins are made up of more than one polypeptide chain

Hemoglobin


Denaturation l.jpg
Denaturation

  • Disruption of three-dimensional shape

  • Breakage of weak bonds

  • Causes of denaturation:

    • pH

    • Temperature

  • Destroying protein shape disrupts function


A permanent wave l.jpg
A Permanent Wave

different

bridges

form

bridges

broken

hair wrapped

around cuticles


Nucleic acids l.jpg
NUCLEIC ACIDS

  • DNA = Deoxyribo Nucleic Acid

  • RNA = Ribonucleic Acid

  • Nucleotide Building Blocks


Nucleotide structure l.jpg
Nucleotide Structure

  • Sugar

    • Ribose or deoxyribose

  • At least one phosphate group

  • Base

    • Nitrogen-containing

    • Single or double ring structure


Slide30 l.jpg

ADENINE

(a base)

THYMINE

phosphate group

sugar (deoxyribose)

GUANINE

CYTOSINE

Fig. 3.19, p. 46


Nucleotide functions l.jpg
Nucleotide Functions

  • Energy carriers

  • Coenzymes

  • Chemical messengers

  • Building blocks for nucleic acids


Nucleic acids32 l.jpg
Nucleic Acids

Adenine

  • Composed of nucleotides

  • Single- or double-stranded

  • Sugar-phosphate backbone

Cytosine


Slide33 l.jpg
DNA

  • Double-stranded

  • Consists of four types of nucleotides

  • A bound to T

  • C bound to G


Slide34 l.jpg
RNA

  • Ribose instead of Deoxyribose

  • Usually single strands

  • Four types of nucleotides

  • Unlike DNA, contains the base uracil in place of thymine
