Presentation Transcript
Windows xp boot process l.jpg

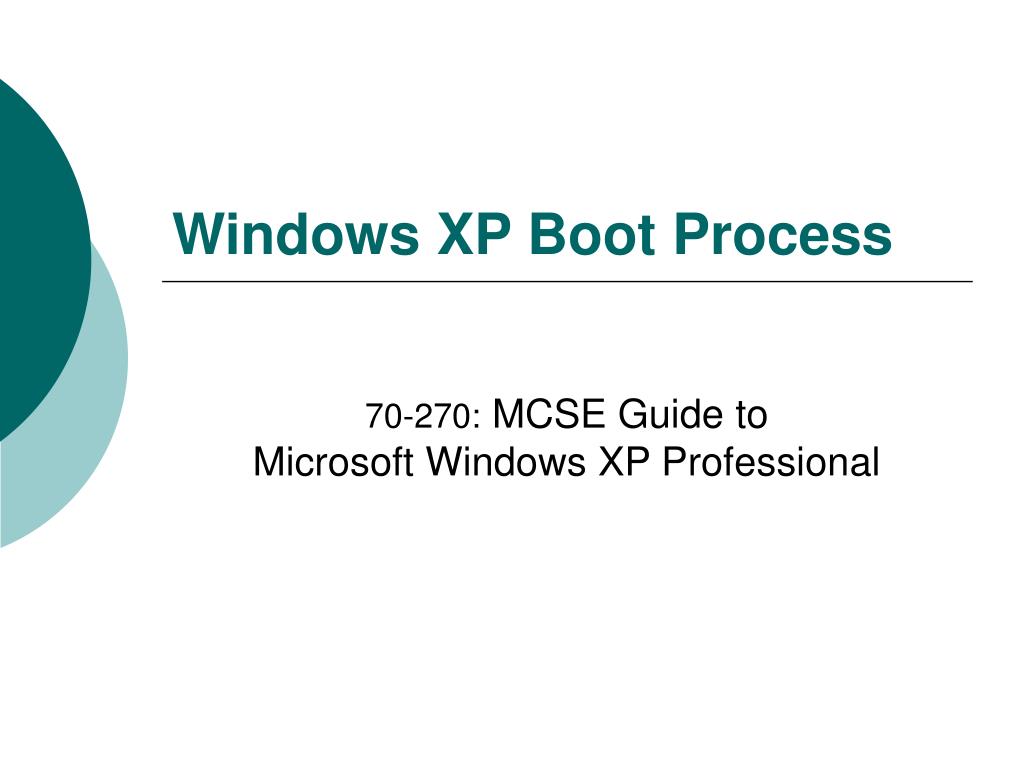

Windows XP Boot Process

70-270: MCSE Guide to Microsoft Windows XP Professional


Booting windows xp page 1 l.jpg
Booting Windows XP (Page 1)

  • Boot processphases:

    • Boot phase begins when computer is first powered on

    • Or begins when Restart is chosen from "Shut Down Windows" dialog box

  • Windows XP load phases

    • Begins when boot phase is completed

    • Configuration is selected


Booting windows xp page 2 l.jpg

Boot Phase Steps

Power-on self test (POST)

Initial startup

Boot loader

Select operating system

Detect hardware

Select configuration

Windows XP Load Phase

Load the kernel

Initialize the kernel

Services load

Windows XP system startup

Log on

Booting Windows XP (Page 2)


Power on self test page 1 l.jpg

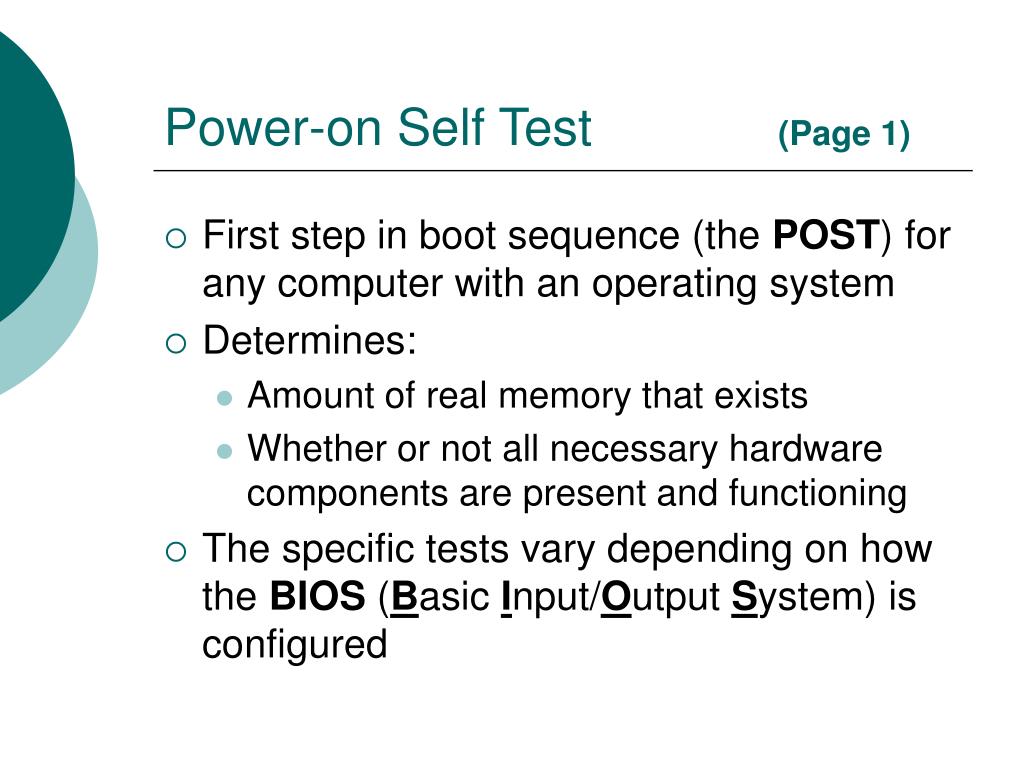

Power-on Self Test (Page 1)

  • First step in boot sequence (the POST) for any computer with an operating system

  • Determines:

    • Amount of real memory that exists

    • Whether or not all necessary hardware components are present and functioning

  • The specific tests vary depending on how the BIOS (Basic Input/Output System) is configured


Power on self test page 2 l.jpg
Power-on Self Test (Page 2)

  • If POST is successful, computer boots itself

  • If the tests are unsuccessful, the computer reports error by:

    • Emitting a series of beeps (number of beeps identifies the error—differs from one BIOS to another)

    • Also possibly might display error message and a code on the screen


Power on self test page 3 l.jpg
Power-on Self Test (Page 3)

  • Software that performs POST resides in called the CMOS (complementary metal oxide semiconductor)

    • Battery-powered chip that also can hold basic configuration information so POST can check installed RAM, number and type of hard drives, type of keyboard and mouse, the boot sequence (Which drive first?), etc.

    • In Windows XP, BIOS no longer stores information about devices and drivers connected to system (replaced by the HAL)


Power on self test l.jpg
Power-on Self Test

  • The following screen shows results of sample successful POST completion



Power on self test page 4 l.jpg
Power-on Self Test (Page 4)

  • After POST completes, each adapter with a BIOS performs its own self-test (POST), i.e.

    • Video card

    • SCSI (small computer system interface) cards which are interfaces that provide much faster data transmission rates than standard parallel and serial ports; used for printers, scanners, etc.

    • Adapters issue their own reports on monitor


Power on self test page 5 l.jpg
Power-on Self Test (Page 5)

  • At this point there still is no operating system in RAM …

    • POST application in the BIOS is in control

    • Output on screen is in basic, text-only form


Initial startup page 1 l.jpg
Initial Startup (Page 1)

  • The BIOS finds the first sector of the first hard drive which contains the Master Boot Record (MBR) and transfers control to it:

    • It is the job of MBR ultimately to load the Ntldr program (the boot loader program) and pass control of the boot process on to it (either directly or indirectly)


Initial startup page 2 l.jpg
Initial Startup (Page 2)

  • The Master Boot Record (con.):

    • In FAT partitions, because the boot sector is only one sector in size, MBR points to another location on disk which then points to the boot loader

    • In NTFS partitions, boot sectors may be up to 16 sectors in size so it is large enough to store the code to find the boot loader

  • If booting from a floppy, the first sector contains the partition boot sector


Initial startup page 3 l.jpg
Initial Startup (Page 3)

  • BIOS stores information as to the order in which drives are checked to see which is the startup drive (as stored in CMOS)

    • If floppy drive is in the sequence, partition boot sector is loaded and runs the MBR from the floppy

    • If the floppy does not have a partition boot sector, the message "Non-system disk or disk error …" appears

      • Remove disk, and turn machine off an then on—do not reboot to avoid viruses


Initial startup page 314 l.jpg
Initial Startup (Page 3)

  • Ntldr is stored on the system partition

    • This is the partition where the MBR expects to find the system

  • Ultimately its job is to boot the Windows XP operating system which is stored on the boot partition

    • The system itself actually can be stored on any partition

    • The system and boot partitions may or may not be the same


Boot loader page 1 l.jpg
Boot Loader (Page 1)

  • Collection of files on system partition used to initiate loading of operating system

  • Required files to boot Windows XP are Ntldr, Ntdetect.com and Boot.ini

    • Other optional boot loader programs are Bootsect.dos and Ntbootdd.sys



Boot loader page 2 l.jpg
Boot Loader (Page 2)

  • The boot loader first switches processor into 32-bit mode

    • Previously it had been running in real mode as if it were an 8088 or 8086 machine

  • Next it starts the appropriate file system, FAT, FAT32 or NTFS

    • The ability to access any of the file systems is programmed into Ntldr


Boot loader page 3 l.jpg
Boot Loader (Page 3)

  • Primary functions of the boot loader are to:

    • Select the operating system to load if there is more than one from which to choose

    • Detect hardware

    • Select a configuration

  • Ntldr stays in control throughout boot loader process until it loads and passes control to Windows XP kernel (Ntoskrnl.ext)


Selecting the operating system l.jpg
Selecting the Operating System

  • Ntldr reads Boot.ini and displays the Boot selection menu (if necessary)

    • Contains operating system choices, if more that one, from which the user may choose

    • It also is possible from this screen to press <F8> to reach the "Troubleshooting and Advanced Startup" screen (more later)

  • Will auto select first option after a specified number of seconds

  • Change default O/S or time in Boot.ini



Detecting hardware l.jpg
Detecting Hardware

  • If the user selects Windows XP (or if it is the only O/S present), Ntldr executes Ntdetect.com

    • Used to collect a list of hardware currently installed in computer

  • From hardware list, creates system profile

    • Later will be compared to Windows XP Registry entries for discrepancies that could lead to problems


Selecting a configuration l.jpg
Selecting a Configuration

  • Next boot loader selects a configuration

    • Known as the hardware profile

  • If there is one hardware profile, it is selected

  • If there is more than one, system tries to select one that matches detected hardware

  • If system cannot make automatic selection, user is prompted for manual selection


Troubleshooting and advanced startup options page 1 l.jpg
Troubleshooting and Advanced Startup Options (Page 1)

  • Windows XP combines the boot and recovery options of Windows NT and Windows 95/98

  • Provides several options to restore a malfunctioning system to functional state

  • Before timer expires, or Windows XP kernel starts to load, press <F8> to access Windows Advanced Options Menu



Troubleshooting and advanced startup options page 2 l.jpg
Troubleshooting and Advanced Startup Options (Page 2)

  • Contents of menu may include:

    • Safe Mode—boots Windows XP with only minimum system files and drivers

      • May be able to boot into a functioning system when some drivers are corrupted

      • Might allow replacing or removing the problem driver before rebooting

    • Safe Mode with Networking—same as above but with networking components

      • If network drivers are not the problem


Troubleshooting and advanced startup options page 3 l.jpg
Troubleshooting and Advanced Startup Options (Page 3)

  • Contents of menu may include (con.):

    • Safe Mode with Command Prompt—same as above but not to the GUI environment

    • Enable Boot Logging—enables or disables boot process, and writes details to log file Ntbtlog.txt in %systemroot% folder

      • Records process of steps between boot menu and logon prompt which could provide clues to which driver, system or procedure is causing the problem


Troubleshooting and advanced startup options page 4 l.jpg
Troubleshooting and Advanced Startup Options (Page 4)

  • Contents of menu may include (con.):

    • Enable VGA Mode—normal boot but with only basic VGA video driver (in case there is a bad video driver)

    • Last Known Good Configuration—state of Registry during last successful user logon

      • Could be useful if a new driver or software recently has been installed, or the Registry was recently modified


Troubleshooting and advanced startup options page 5 l.jpg
Troubleshooting and Advanced Startup Options (Page 5)

  • Contents of menu may include (con.):

    • Directory Services Restore Mode—only on Windows XP domain controllers, restores Active Directory


Troubleshooting and advanced startup options page 6 l.jpg

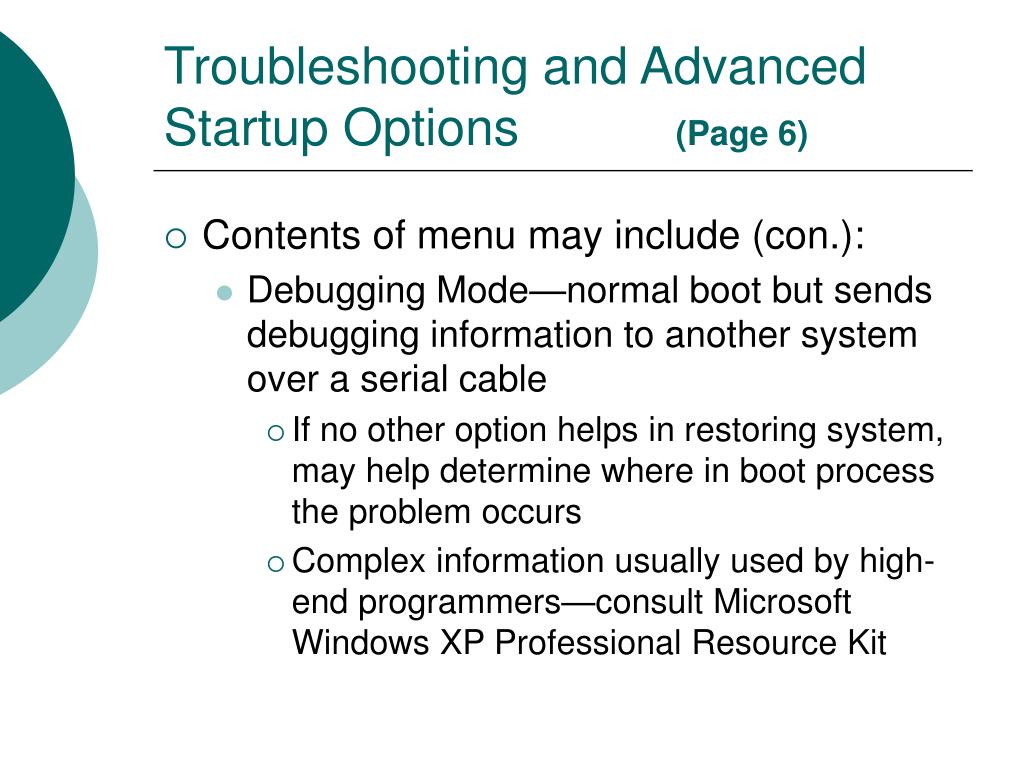

Troubleshooting and Advanced Startup Options (Page 6)

  • Contents of menu may include (con.):

    • Debugging Mode—normal boot but sends debugging information to another system over a serial cable

      • If no other option helps in restoring system, may help determine where in boot process the problem occurs

      • Complex information usually used by high-end programmers—consult Microsoft Windows XP Professional Resource Kit


Activity l.jpg
*** Activity ***

  • Try one or more of following boot options (press <F8> function key during boot):

    • Safe Mode

    • Safe Mode with Command Prompt

    • Enable VGA Mode

    • Last Known Good Configuration

  • Reboot normally when done


Boot configuration and selecting an operating system page 1 l.jpg
Boot Configuration and Selecting an Operating System (Page 1)

  • Controlled through configuration of the Boot.ini file …

    • Located in the root directory of the system partition (usually drive C:\)

      • To view the file, uncheck "Hide Protected operating system files" in Folder Options

    • Updated from the "System and Recovery" dialog window on the Advanced tab of Control Panel's System applet

To Sample"Boot.ini"


Boot configuration and selecting an operating system page 2 l.jpg
Boot Configuration and Selecting an Operating System (Page 2)

  • Used by boot loader to display the list of available operating systems

  • Consists of two sections: [boot loader] and [operating systems]

To Sample"Boot.ini"



Boot loader l.jpg
[boot loader]

  • Settings:

    • Timeout—number of seconds system waits for user to select an operating system …

      • If set to zero (0), the default operating system is loaded automatically

      • If set to (-1), waits indefinitely (this value only can be set in text editor—an invalid value in System applet in "Control Panel"

    • Default—shows path to default O/S

To Sample"Boot.ini"


Operating systems page 1 l.jpg
[operating systems] (Page 1)

  • Lists available operating systems as follows:

    • Path to boot partition for operating system

    • Text displayed in boot loader screen

    • Optional parameters (switches) provide options many of which are equivalent to <F8> "Windows Advanced Options Menus"

      • As well as a few other options

To Sample"Boot.ini"


Operating systems page 2 l.jpg
[operating systems] (Page 2)

  • Switches:

    • /BASEVIDEO—same as Enable VGA Mode

    • /BAUDRATE=n—baud rate for Debugging Mode

    • /BOOTLOG—same as Enable Boot Logging

    • /CRASHDEBUG—starts Debugging Mode but remains inactive until STOP error occurs


Operating systems page 3 l.jpg
[operating systems] (Page 3)

  • Switches (con.):

    • /DEBUG—starts Debugging Mode and allows access by the remote computer

    • /DEBUGPORT={com1|com2|1394}—sets port for Debugging Mode

    • /FASTDETECT={com1|com2|…}—specifies serial ports to skip during hardware scan

      • All if no port specified

      • Included in every entry by default when the operating system is installed


Operating systems page 4 l.jpg

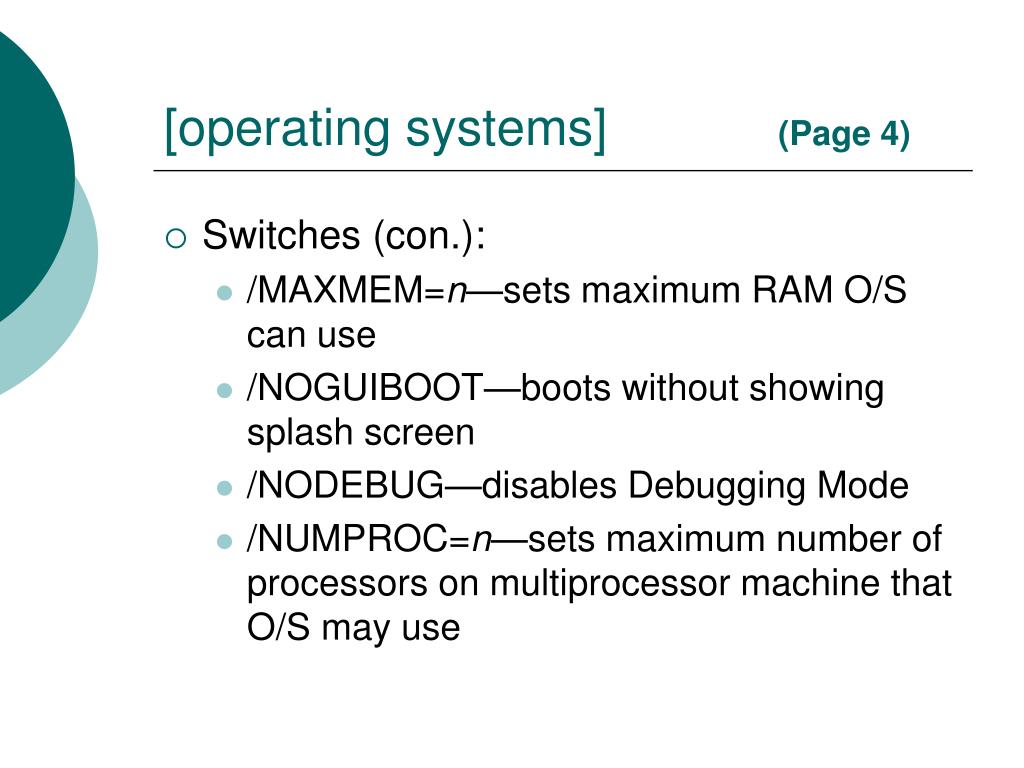

[operating systems] (Page 4)

  • Switches (con.):

    • /MAXMEM=n—sets maximum RAM O/S can use

    • /NOGUIBOOT—boots without showing splash screen

    • /NODEBUG—disables Debugging Mode

    • /NUMPROC=n—sets maximum number of processors on multiprocessor machine that O/S may use


Operating systems page 5 l.jpg
[operating systems] (Page 5)

  • Switches (con.):

    • /SAFEBOOT:MINIMAL—boots to Safe Mode

    • /SAFEBOOT:NETWORK—boots to Safe Mode with Networking

    • /SAFEBOOT:MINIMAL(ALTERNATESHELL)—boots to Safe Mode with Command Prompt

    • /SOS—displays device driver names when they are loaded


Advanced risc computing pathnames page 1 l.jpg
Advanced RISC Computing Pathnames (Page 1)

  • Advanced RISC Computing pathname is a path naming convention that is used in the "Boot.ini" file

  • Defines the hard disk, partition and folder where Windows XP Professional and any other operating systems reside

  • Created automatically when an operating system is installed into a partition

To Sample"Boot.ini"


Advanced risc computing pathnames page 2 l.jpg

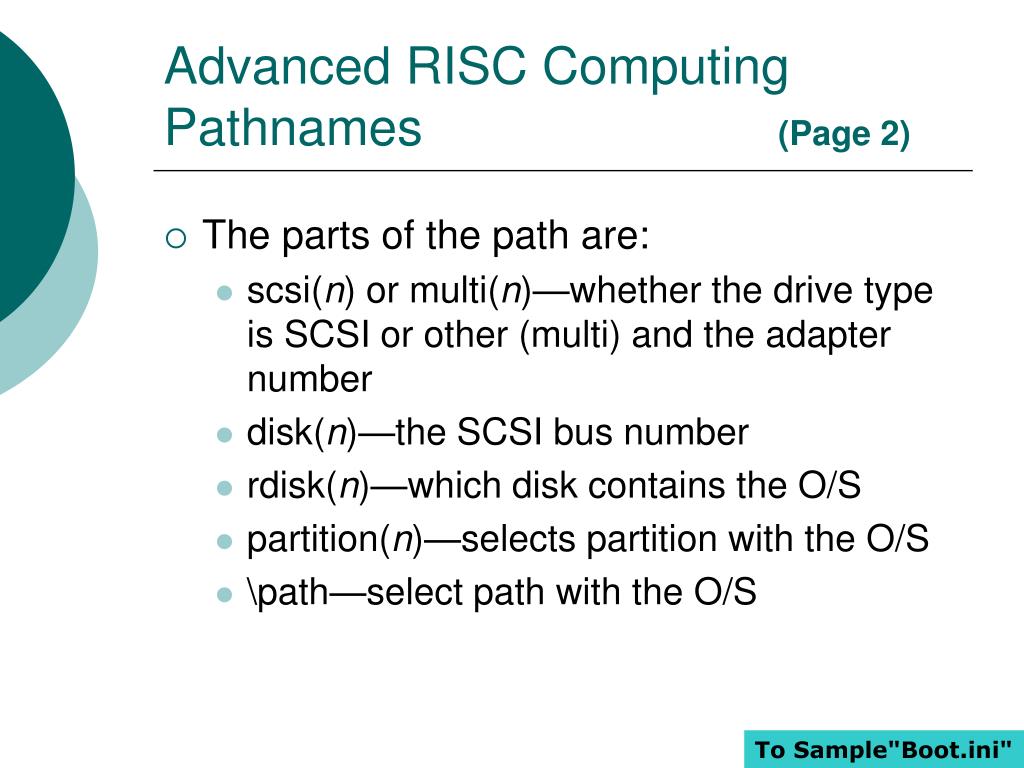

Advanced RISC Computing Pathnames (Page 2)

  • The parts of the path are:

    • scsi(n) or multi(n)—whether the drive type is SCSI or other (multi) and the adapter number

    • disk(n)—the SCSI bus number

    • rdisk(n)—which disk contains the O/S

    • partition(n)—selects partition with the O/S

    • \path—select path with the O/S

To Sample"Boot.ini"


Editing boot ini l.jpg
Editing Boot.ini

  • Options for editing (see next slides):

    • Use Control Panel to edit indirectly

    • Use text editor (i.e. Notepad) to change the Boot.ini file directly


Using control panel l.jpg

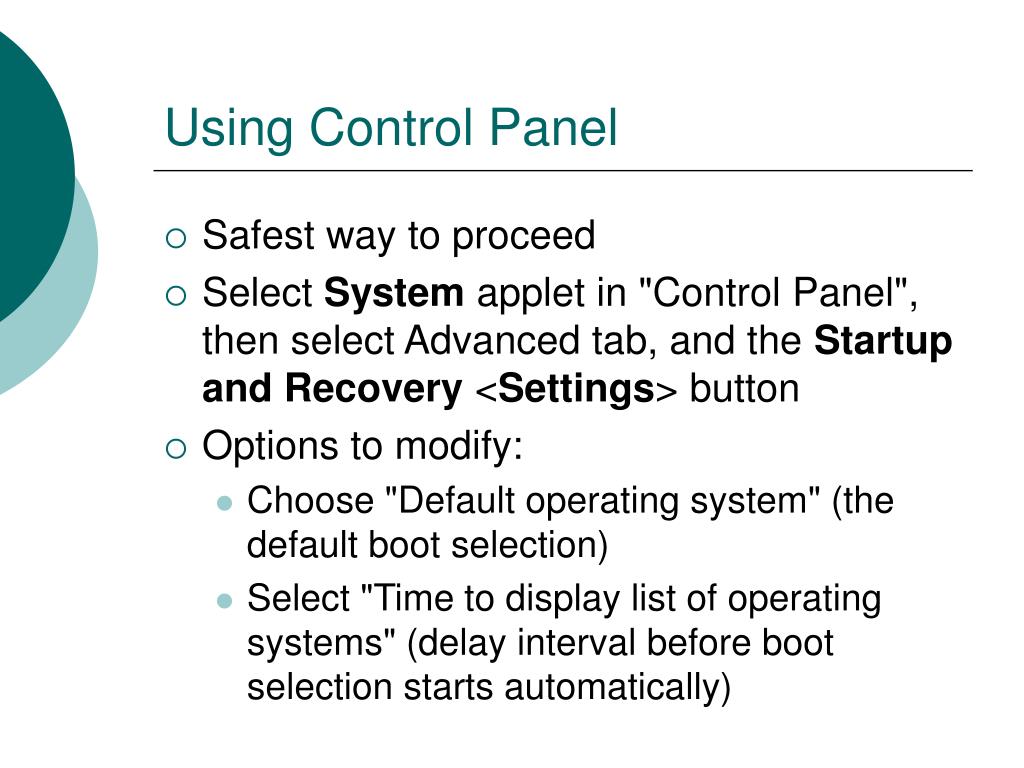

Using Control Panel

  • Safest way to proceed

  • Select System applet in "Control Panel", then select Advanced tab, and the Startup and Recovery <Settings> button

  • Options to modify:

    • Choose "Default operating system" (the default boot selection)

    • Select "Time to display list of operating systems" (delay interval before boot selection starts automatically)



Using a text editor l.jpg
Using a Text Editor

  • Use Notepad or any other text editor

    • The <Edit> button in the "Startup and Recovery" window launches Notepad and opens the Boot.ini file

  • Be careful when editing file

  • Windows XP might not boot if there is an incorrect configuration

  • Create backup copy of the file before making changes


Activity46 l.jpg
*** Activity ***

  • Before starting this activity, you should backup boot.ini

  • Modify "timeout" value using Notepad

  • Set the "timeout" value back to its original value (30) using Startup and Recovery dialog in System applet in "Control Panel"

  • Return to Notepad and open boot.ini to confirm the change


Activity47 l.jpg

See next slide

*** Activity ***

  • Before starting this activity, you should backup boot.ini

  • In Notepad, create one or more additional operating system entries, i.e.

    • An additional Windows XP Professional entry but booting in VGA Mode

    • A fictional entry for Windows 2000 on an alternate partition


Sample boot ini48 l.jpg
Sample "Boot.ini"

[boot loader]

timeout=30

default=multi(0)disk(0)rdisk(0)partition(1)\WINDOWS

[operating systems]

multi(0)disk(0)rdisk(0)partition(1)\WINDOWS="Microsoft Windows XP Professional" /fastdetect

multi(0)disk(0)rdisk(0)partition(1)\WINDOWS="Microsoft Windows XP Pro VGA Mode" /fastdetect /basevideo

multi(0)disk(0)rdisk(3)partition(2)\WINNT="Microsoft Windows 2000" /fastdetect

To Sample"Boot.ini"


Windows xp load phase l.jpg
Windows XP Load Phase

  • Stages:

    • Loading the kernel

    • Initializing the kernel

    • Services load

    • Windows XP system startup

    • Logging on


Loading the kernel page 1 l.jpg

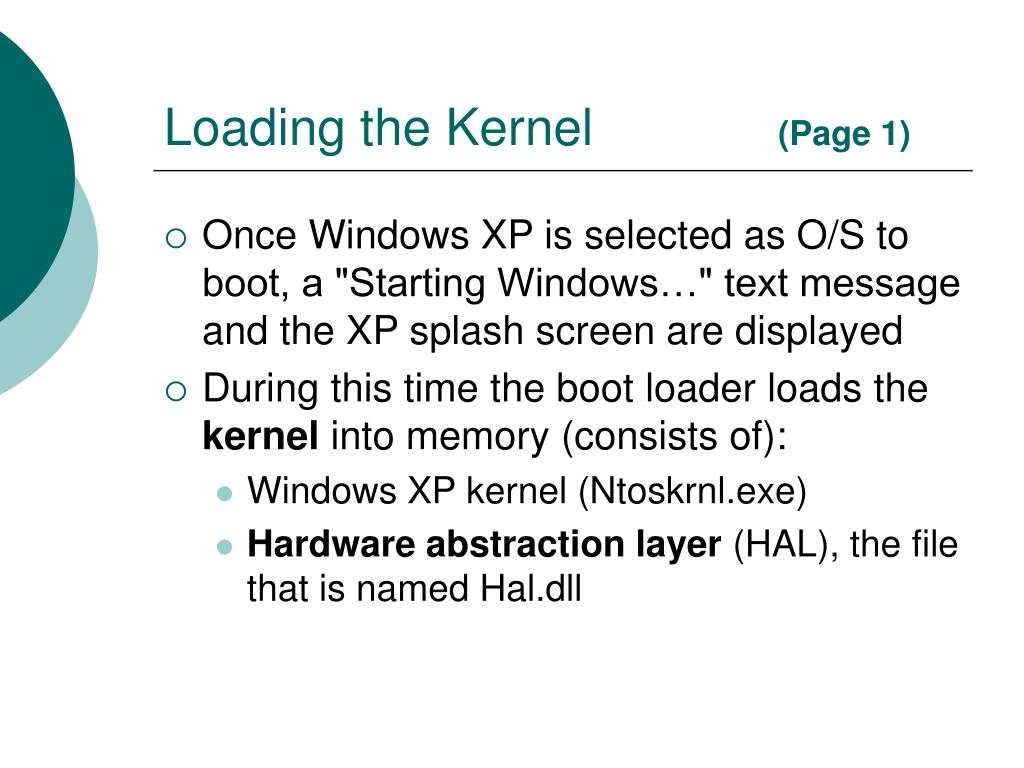

Loading the Kernel (Page 1)

  • Once Windows XP is selected as O/S to boot, a "Starting Windows…" text message and the XP splash screen are displayed

  • During this time the boot loader loads the kernel into memory (consists of):

    • Windows XP kernel (Ntoskrnl.exe)

    • Hardware abstraction layer (HAL), the file that is named Hal.dll


Loading the kernel page 2 l.jpg
Loading the Kernel (Page 2)

  • The kernel is the central module of an operating system:

    • Loads first and remains in main memory at all times

    • Essential that it is as small as possible while still providing services required by the O/S and applications


Loading the kernel page 3 l.jpg
Loading the Kernel (Page 3)

  • The kernel (con.)

    • Communicates between processes and the hardware

    • Responsible for memory management, process and task management, and disk management


Loading the kernel page 4 l.jpg
Loading the Kernel (Page 4)

  • The Hardware Abstraction Layer (HAL) is an O/S programming component

    • Functions as an interface between the system’s hardware and software

    • Applications do not access hardware directly but access the abstract layer provided by the HAL


Loading the kernel page 5 l.jpg
Loading the Kernel (Page 5)

  • Hardware Abstraction Layer (con.):

    • Like APIs, allows applications to be device-independent

      • They abstract information from systems such as caches, I/O buses and interrupts

      • Use this data to give the software a way to interact with the specific requirements of the hardware on which it is running


Loading the kernel page 6 l.jpg
Loading the Kernel (Page 6)

  • Before kernel and HAL begin to execute, the boot loader loads the Registry key HKLM\SYSTEM …

    • Retrieves configuration based upon Registry subkey HKLM\SYSTEM\Select data value

    • CurrentControlSet is created (not written to Registry yet) from one of the following:

      • ControlSet00x, a per either the Select or LastKnownGoodRecovery (if “Last Known Good Configuration” was selected) data value, Default, etc.

See next slide (HKLM\SYSTEM\Select)



Loading the kernel page 7 l.jpg
Loading the Kernel (Page 7)

  • Loads drivers listed in Registry subkey:

    • HKLM\SYSTEM\CurrentControlSet\Services

    • These drivers are loaded and/or initialized according to their Registry settings

See next slide (HKLM\SYSTEM\CurrentControlSet\Services



Initializing the kernel page 1 l.jpg
Initializing the Kernel (Page 1)

  • Registry key HKLM\HARDWARE created by kernel using information it received from boot loader program Ntdetect.com

  • Creates CloneControlSet by making a copy of CurrentControlSet

    • Never modified—intended as a backup

  • Initializes drivers that were loaded by the boot loader


Initializing the kernel page 2 l.jpg
Initializing the Kernel (Page 2)

  • If the driver experiences an error while loading, a message with the error level reported is reported to the kernel:

    • Ignore—error is ignored and no message is displayed to user

    • Normal—boot process continues with message displayed to user


Initializing the kernel page 3 l.jpg
Initializing the Kernel (Page 3)

  • Driver error levels (con.):

    • Severe—displays message; if Last Known Good Configuration is not in use, restarts using LKGC; if LKGC is in use, boot process continues after message

    • Critical—displays message; if Last Known Good Configuration is not in use, restarts using LKGC; if LKGC is in use, boot process fails after message

  • All events saved to the System log


Services load page 1 l.jpg
Services Load (Page 1)

  • Kernel starts Session Manager

  • Starts programs that correspond to key entries under Registry key:

    • HKLM\SYSTEM\CurrentControlSet\Control\Session Manager\BootExecute

      • A REG_MULTI_SZ data type, i.e. an array

    • The default entry Autocheck makes sure these files are consistent, and tries to repair them if they are not

See next slide (HKLM\SYSTEM\CurrentControlSet\Control\Session Manager\BootExecute



Services load page 2 l.jpg
Services Load (Page 2)

  • Paging files are set up as per:

    • HKLM\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management

See next slide (HKLM\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management



Services load page 3 l.jpg
Services Load (Page 3)

  • Session Manager writes to Registry:

    • CurrentControlSet

    • CloneControlSet

  • Windows (Win32) subsystem loaded as per Registry entry:

    • HKLM\SYSTEM\CurrentControlSet\Control\Session Manager\Subsystems

    • Default subsystem, and also the subsystem in which the user shell always executes

See next slide (HKLM\SYSTEM\CurrentControlSet\Control\Session Manager\Subsystems



Windows xp system startup l.jpg
Windows XP System Startup

  • At this point, Windows is considered fully started which is signaled by appearance of a Windows XP logon screen

  • Win32 subsystem starts winlogon.exe which launches Local Security Authority (Lsass.exe) process


Logging on l.jpg
Logging On

  • The user logs on successfully with logon name, as well as a password if required

  • Clone control set is copied to the Last Known Good control set completing the boot process


Multiple boot systems page 1 l.jpg
Multiple-boot Systems (Page 1)

  • Windows XP operating system can coexist peacefully with other operating systems

  • Operating system uses one or more file systems to organize the data within volumes, i.e. FAT or NTFS


Multiple boot systems page 2 l.jpg
Multiple-boot Systems (Page 2)

  • Not all file systems and operating systems are compatible:

    • MS-DOS, Windows 95/98, Windows NT, Windows 2000, Windows Server 2003 and Windows XP can share files through FAT volumes

    • Windows NT, Windows 2000, Windows Server 2003 and Windows XP can share files through NTFS volumes


Multiple boot systems page 3 l.jpg
Multiple-boot Systems (Page 3)

  • File system and operating system compatibility (con.):

    • Windows and UNIX do not have a common file system, but Linux can access FAT volumes

    • Only Windows 2000, Windows Server 2003 and Windows XP support dynamic disks

  • When selecting file systems for partitions in a multiple-boot system, keep these factors in mind if you wish to share files between the partitions


Multiple windows operating systems page 1 l.jpg
Multiple Windows Operating Systems (Page 1)

  • Different versions of Windows can be installed on the same system, i.e.

    • Windows 3.1, Windows 3.11, Windows 95/98, Windows NT, Windows 2000, Windows Server 2003, even Linux/Unix

    • Even the same version of Windows XP can be installed on separate partitions


Multiple windows operating systems page 2 l.jpg
Multiple Windows Operating Systems (Page 2)

  • Why? User needs to run software versions that require an older O/S

  • Just remember to specify different partitions for each installation

  • To run an application under two O/S’s, run the setup program twice, once while booted to each operating system


Multiple installation order l.jpg
Multiple Installation Order

  • Order in which you install operating systems is important

  • Install older operating systems first, i.e.

    • MS-DOS, Windows 95/98, Windows 2000/2003, etc.

    • This really is a warning, not necessarily an absolute requirement

  • When installing Windows XP, it recognizes the previously installed older O/S and leaves it alone


ad
