Presentation Transcript

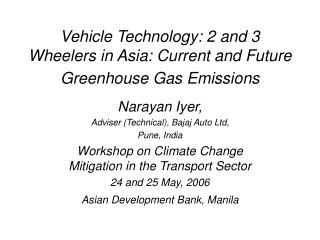

Vehicle technology 2 and 3 wheelers in asia current and future greenhouse gas emissions l.jpg

Vehicle Technology: 2 and 3 Wheelers in Asia: Current and Future Greenhouse Gas Emissions

Narayan Iyer,

Adviser (Technical), Bajaj Auto Ltd,

Pune, India

Workshop on Climate Change Mitigation in the Transport Sector

24 and 25 May, 2006

Asian Development Bank, Manila


Presentation contents l.jpg
Presentation Contents Future Greenhouse Gas Emissions

  • Structure of 2 & 3 wheeler fleet in terms of types of vehicles, engines, technologies and fuels

  • Known, potential and emerging technologies and their evolution

  • Estimations of co2 emissions and fuel consumption of new technologies

  • Available estimates of transport GHG emissions in India


Motor vehicle growth in india 1971 2001 l.jpg
Motor Vehicle Growth in India, Future Greenhouse Gas Emissions1971-2001

Source: Ministry of Shipping, Road Transport & Highways,

Government of India, 2004.


Growth of 2 3 wheeler population in india l.jpg
Growth of 2 & 3-Wheeler Population in India Future Greenhouse Gas Emissions

  • Sources:

  • 1. Ministry of Shipping, Road Transport & Highways, Government of India, 2004.

  • 2. Society of Indian Automobile Manufacturers


Slide5 l.jpg

Vehicle Fleet in Asia Future Greenhouse Gas Emissions

Source:Jitendra (Jitu) Shah


Penetration of vehicles in asian countries l.jpg
Penetration of Vehicles in Asian Countries Future Greenhouse Gas Emissions

Source:

Alok Rawat, “Fuel Efficiency Improvement and Automotive CO2 Reduction

Policies – an Indian Perspective” UNEP Workshop, Shanghai, October 2004


Matrix of fuel technology and vehicle type l.jpg
Matrix of Fuel, Technology, and, Vehicle Type Future Greenhouse Gas Emissions

SI*: Spark Ignition Internal Combustion Engine (ICE)

EV^ Electric Motor

Hybrid EV** Combination of Electric Motor & ICE

CI# Compression Ignition ICE

Petrol includes blends with ethanol

Diesel includes blends with biodiesel




Progression of indian emission standards for 2 3 wheelers l.jpg
Progression of Indian Emission Standards for 2 & 3-Wheelers Future Greenhouse Gas Emissions

All limit values for mass emissions in g/km under Indian Driving Cycle




Changes in technology choice resulting from consumer preferences emission standards l.jpg
Changes in Technology Choice Resulting from Consumer Preferences & Emission Standards

The proportions of 2-stroke and 4-stroke have been calculated based

on a study of the sales figures of various companies obtained from

Society of Indian Automobile Manufacturers (SIAM) and

from the knowledge of the models produced by manufacturers


Methodology for the estimation of fuel consumption and co 2 emissions 1 2 l.jpg
Methodology for the Estimation of Fuel Consumption and CO Preferences & Emission Standards2 Emissions – 1/2

  • (a) Baseline fuel consumption of current technologies is average of “Type Approval Test” results of several models published by the Automotive Research Association of India (ARAI)*.

  • ARAI calculates fuel consumption in km/litre using the ‘carbon balance method’ from measured exhaust emission levels under “Indian Driving Cycle” run on a chassis dynamometer

  • (b) The baseline data for average CO2 emissions (tail pipe only) of each category of vehicle has also been determined from the same source of data

* Source: Bhanot B, Kulkarni U.,”Indian Auto Emission Profile”,

Symposium on International Vehicle Technology,

Automotive Research Association of India, 2001


Methodology for the estimation of fuel consumption and co 2 emissions 2 2 l.jpg
Methodology for the Estimation of Fuel Consumption and CO Preferences & Emission Standards2 Emissions – 2/2

  • (c ) The fuel consumption of new Internal Combustion Engine (ICE) technologies based on the indications in literature.

  • (d) All the fuel consumption values converted to MJ/km by using appropriate values of density and Lower Heating Values of the respective fuels.

  • (e) CO2 emissions of new ICE technologies derived from the fuel consumption by establishing a relationship between fuel consumption and CO2 emissions


Slide16 l.jpg
Fuel Consumption Trends of Different Categories of 2 & 3-Wheelers Resulting from Various ICE Technologies


Progressive reduction in fuel consumption of 2 wheelers resulting from improved ice technologies l.jpg
Progressive Reduction in Fuel Consumption of 2-Wheelers Resulting from Improved ICE Technologies


Progressive reduction in co 2 emission of 2 wheelers resulting from improved ice technologies l.jpg
Progressive Reduction in CO Resulting from Improved ICE Technologies2 Emission of 2-Wheelers Resulting from Improved ICE Technologies


Slide19 l.jpg
Progressive Reduction in Fuel Consumption of 3-Wheelers Resulting from Improved ICE Technologies and CNG


Slide20 l.jpg
Progressive Reduction in CO Resulting from Improved ICE Technologies and CNG2 Emission of 3-Wheelers Resulting from Improved ICE Technologies and CNG


Methodology for the estimation of fuel consumption and co 2 emissions of ev and hybrid ev l.jpg
Methodology for the Estimation of Fuel Consumption and CO Resulting from Improved ICE Technologies and CNG2 Emissions of EV and Hybrid EV

  • (a) The energy consumption (in MJ/km) of battery operated electric vehicle was considered to be 30% of the energy consumption of the basic ICE. This is based on the reported energy consumption of 0.06 kWh/km of the Bajaj three wheeler(1).

  • (b) The energy consumption of hybrid electric vehicles has been considered as 85% of that of the EV based on literature for both the hybrid and electric four wheelers (2).

  • (c) CO2 emission of EV and Hybrid EV based on ratio of the fuel consumption of the hybrid and corresponding basic ICE used in the category of vehicle

Sources

(1) Berry R.K., Schweitzer Samuel, Basu Tapan, Bedewi Nabih, Vincent Daniel, Dhungana Atulya,

“Indian Zero Emission Transportation Program – a driving force for change”,

International Symposium on Automotive Electronics and Alternative Energy Vehicles,

Indian Institute of Technology, Kanpur, November 2001.

(2) Ybema J.R., Lako P., Gielen D.J., Oosterheert R.J., Kram T.,

“Prospects For Energy Technologies in the Netherlands, Volume 2,

Technology characterizations and technology results”, ECN, August 1995


Slide22 l.jpg
Progressive Reduction in Fuel Consumption of 2 & 3 -Wheelers Resulting from Improved ICE, Battery and Hybrid Electric Technologies


Sectoral emission of carbon dioxide from energy consumption india l.jpg
Sectoral Emission of Carbon Dioxide from Energy Consumption, India

Source: “Sectoral Analysis of Greenhouse Gases in India: Choice of

Key Mitigation/Abatement Options” ALGAS Project, TERI, December 1996


Estimates of co 2 emissions from vehicles in india 1997 l.jpg
Estimates of CO India2 Emissions from Vehicles in India - 1997

Source: Moti L. Mittal and C.Sharma, “Emissions from

Vehicular Transport in India”, USAID, March 2003


Co 2 emissions from transport in india various agencies l.jpg
CO India2 Emissions from Transport in India – Various Agencies

Souces:

1. “ CO2 Mitigation & the Indian Transport Sector”, TERI, 1996

2. A.P. Mitra “Green house Gas Emissions in India – 1996 update” National Physical Laboratory, 1996

3. Moti L. Mittal “Emissions from Vehicular Transport in India” USAID, 2003


Fuel consumption factors for vehicles various authors l.jpg
Fuel Consumption Factors for Vehicles – Various Authors India

Sources:

1. R.K.Bose & K.S.Nesamani “Pacific & Asian Journal of Energy 11(1): 31 – 49

2. Moti L. Mittal “Emissions from Vehicular Transport in India” USAID, 2003

3. N.V.Iyer “Unpublished data”


Co 2 emission factors for vehicles various authors l.jpg
CO India2 Emission Factors for Vehicles – Various Authors

Sources:

1. R.K.Bose & K.S.Nesamani “Pacific & Asian Journal of Energy 11(1): 31 – 49

2. Moti L. Mittal “Emissions from Vehicular Transport in India” USAID, 2003

3. N.V.Iyer “Unpublished data”


Conclusions 1 2 l.jpg
Conclusions 1/2 India

  • There is a rapid increase in the number of motor vehicles in India, the population being dominated by two wheelers, yet, vehicle penetration is among the lowest in the world

  • Progressively stringent emission standards and customer demand for fuel economy resulted in manufacturers adopting new technologies to reduce emissions and fuel consumption that have also resulted in reduction in CO2 emissions


Conclusions 2 2 l.jpg
Conclusions 2/2 India

  • Adoption of more stringent standards for 2&3 wheelers in the coming years is expected to lead to the adoption of newer technologies which are also expected to bring about further reductions in fuel consumption and CO2 emissions.

  • CO2 contribution of the Indian transport sector is estimated to be 15% of the total (1994-95). While the rapidly increasing population of vehicles may lead to an increase in this, the progressively reducing levels of CO2 emissions may have a compensating effect.


Slide30 l.jpg

THANK YOU India
