Presentation Transcript
Seed how everything comes together part ii l.jpg

SEED - how everything comes together - Part II

GETTING SEED DATA FROM PASSCAL EXPERIMENTS TO THE DATA MANAGEMENT CENTER DMC

IRIS/PASSCAL

DATA/SOFTWARE GROUP


Slide2 l.jpg

PURPOSE

Describe the data flow for the submission of SEED data from PASSCAL experiments to IRIS/PASSCAL for QC/delivery to the Data Management Center (DMC) using ANTELOPE (BRTT)


Content l.jpg
CONTENT

  • Pre and post experiment requirements.

  • Installing and updating antelope

  • Building the Database

    • Data Reduction and Timing Quality control

    • Populating the Antelope Database

    • Create the dataless SEED

  • Send Data to IRIS/PASSCAL


Pre and post experiment requirements l.jpg
Pre- and Post-Experiment Requirements

  • Network code request: http://www.fdsn.org/getcode.html

  • Mobilization form: http://www.iris.edu/stations/mob.htm

  • Demobilization form: http://www.iris.edu/stations/demob.htm


Antelope http www brtt com l.jpg
ANTELOPEhttp://www.brtt.com

  • Requesting antelope

  • Installing and Updating

  • License

  • Verifying installation

  • Setting the environment

  • Patching


Data reduction l.jpg
Data Reduction

  • Directory structure set up

    • Raw_data

    • seed/

    • response/

  • Conversion to mseed

    • RT130 - ref2mseed

    • Q330 - miniseed2days

  • Verification of Data Quality

    • Timing

    • Parameters, boom position, SOH, etc

  • Time corrections - Quality Control


  • Fixing the headers l.jpg
    FIXING THE HEADERS

    • Fixhdr - python

      • GUI

      • Batch_mode

  • Fix_miniseed - antelope

  • Example:

    # Header Changes

    # stat:chan:loc:net:sps stat:chan:loc:net

    hdrlist{

    01053:1C4::XX:40.0 SITE:BHZ::PI

    01053:1C5::XX:40.0 SITE:BHN::PI

    01053:1C6::XX:40.0 SITE:BHE::PI

    }

    net_sta_chan_loc &Tbl

    {

    XX_Q0453_BHZ_01 PI_B1_BHZ_01

    XX_Q0453_BHN_01 PI_B1_BHN_01

    XX_Q0453_BHE_01 PI_B1_BHE_01

    }

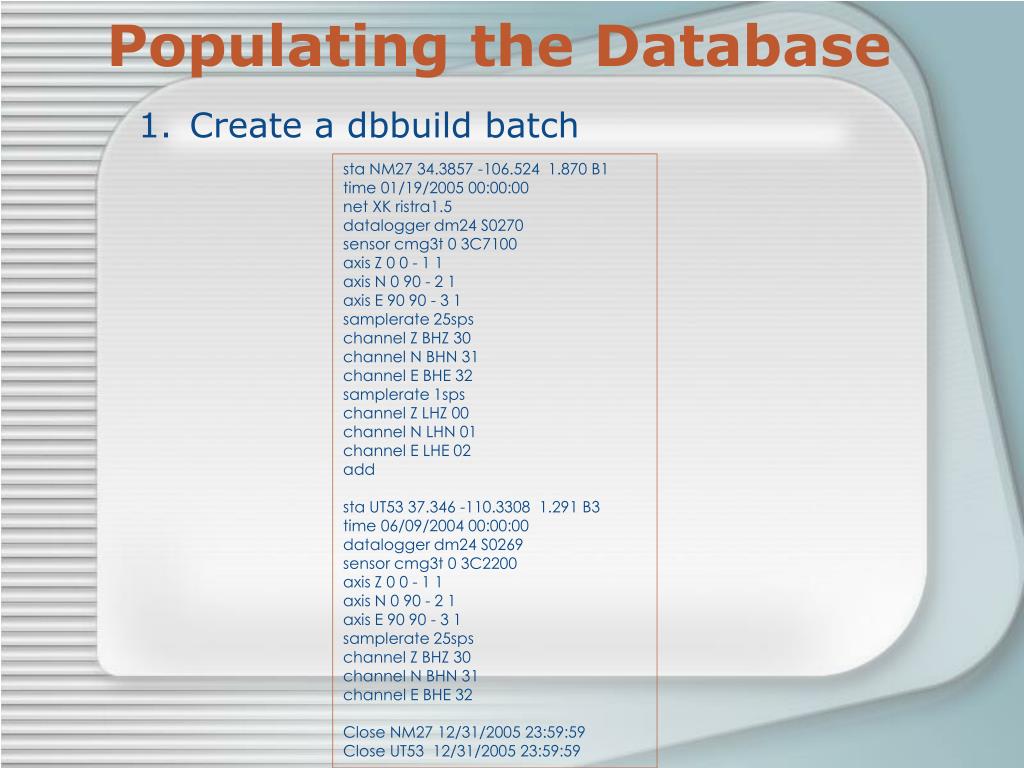

    Populating the database l.jpg
    Populating the Database

    sta NM27 34.3857 -106.524 1.870 B1

    time 01/19/2005 00:00:00

    net XK ristra1.5

    datalogger dm24 S0270

    sensor cmg3t 0 3C7100

    axis Z 0 0 - 1 1

    axis N 0 90 - 2 1

    axis E 90 90 - 3 1

    samplerate 25sps

    channel Z BHZ 30

    channel N BHN 31

    channel E BHE 32

    samplerate 1sps

    channel Z LHZ 00

    channel N LHN 01

    channel E LHE 02

    add

    sta UT53 37.346 -110.3308 1.291 B3

    time 06/09/2004 00:00:00

    datalogger dm24 S0269

    sensor cmg3t 0 3C2200

    axis Z 0 0 - 1 1

    axis N 0 90 - 2 1

    axis E 90 90 - 3 1

    samplerate 25sps

    channel Z BHZ 30

    channel N BHN 31

    channel E BHE 32

    Close NM27 12/31/2005 23:59:59

    Close UT53 12/31/2005 23:59:59

    • Create a dbbuild batch


    Slide9 l.jpg

    2. Building the Antelope database

    > dbbuild -b db_name batch_file_name

    3. View the database

    > dbe db_name

    4. Adding waveforms to the database

    RT130 - minisee2days -d

    Q330 - miniseed2db

    5. Verify the integrity of your database

    > dbverswf -dtu db_name

    > dbverify -tj db_name


    The dataless l.jpg
    The Dataless

    1. Create the dataless :

    > mk_dataless_seed db_name

    • Rename the dataless by convention:

      NN.YY.dbname.YYYYJJJHHMM.dataless

      Where: NN is your network code

      YY is the year of your data YYYYJJJHHMM is the approximate time

      the file was created

      > mv db_name_dataless_seed PI.04.db_name.20042082000.dataless

    • Test the dataless - seed2db

      > seed2db PI.04.db_name.20042082000.dataless


    Sending data to iris passcal l.jpg
    Sending data to IRIS/PASSCAL

    1. Packing for IRIS/PASSCAL >

    gui_DoFTP or con_Do_FTP
