Presentation Transcript


Initial vsc training program l.jpg

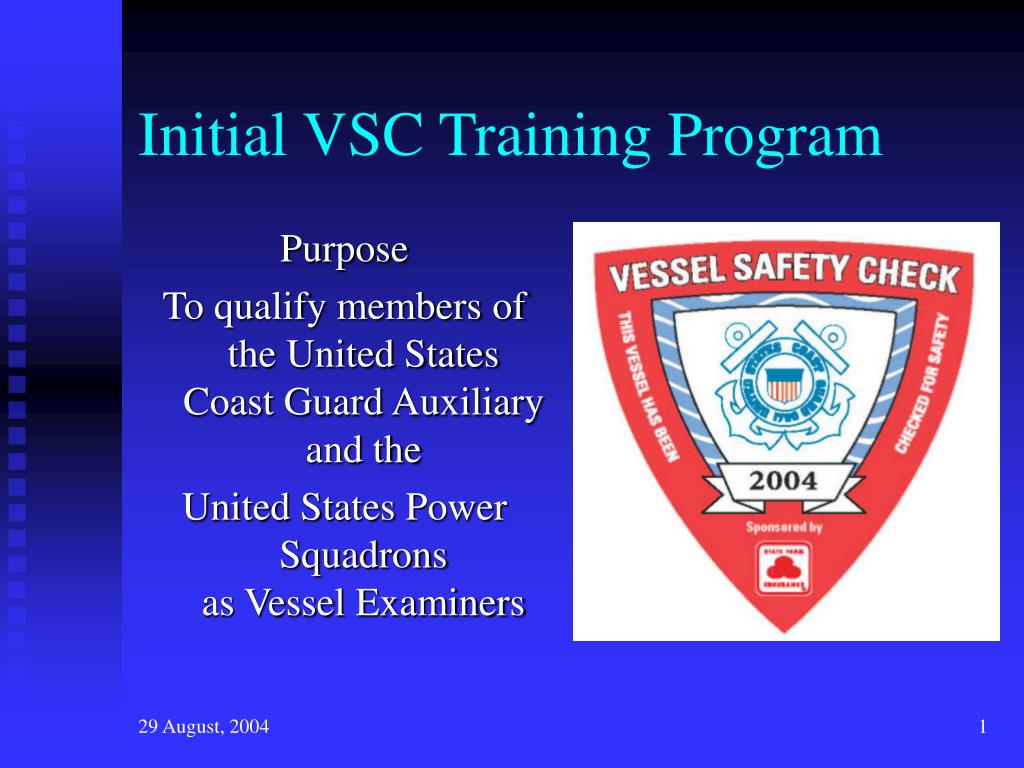

Initial VSC Training Program

Purpose

To qualify members of the United States Coast Guard Auxiliary and the

United States Power Squadrons as Vessel Examiners


Chapter 1 one of three l.jpg

Chapter 1 one of three

  • Definitions

  • The VSC Program

  • The Vessel Examiner

  • The Vessel Safety Check


Chapter 1 two of three l.jpg

Chapter 1 two of three

  • Vessels eligible for the VSC

  • Vessels NOT eligible for the VSC

  • Activities beyond the scope of the VSC

  • Relations with Law Enforcement officials


Chapter 1 three of three l.jpg

Chapter 1 three of three

  • District supervision of the VSC Program

  • VSC performed outside your home District

  • Vessel Examiner qualifications


Chapter 2 vessel safety check techniques l.jpg

Chapter 2 – Vessel Safety Check Techniques

  • This chapter addresses the techniques that the Vessel Examiner should be aware of and adhere to when performing a Vessel Safety Check


Chapter two one of two l.jpg

Chapter Two one of two

  • The Vessel Examiner

  • Educational Materials

  • Exchange Boating Information


Chapter two two of two l.jpg

Chapter Two two of two

  • Conducting the VSC

  • Awarding the VSC Decal


Chapter 3 the vsc decal requirements l.jpg

Chapter 3 – The VSC Decal Requirements

  • This chapter focuses on what the Vessel Examiner and the boater need to understand to ensure the safety of the boat and its passengers.


Coast guard approved and certified equipment l.jpg

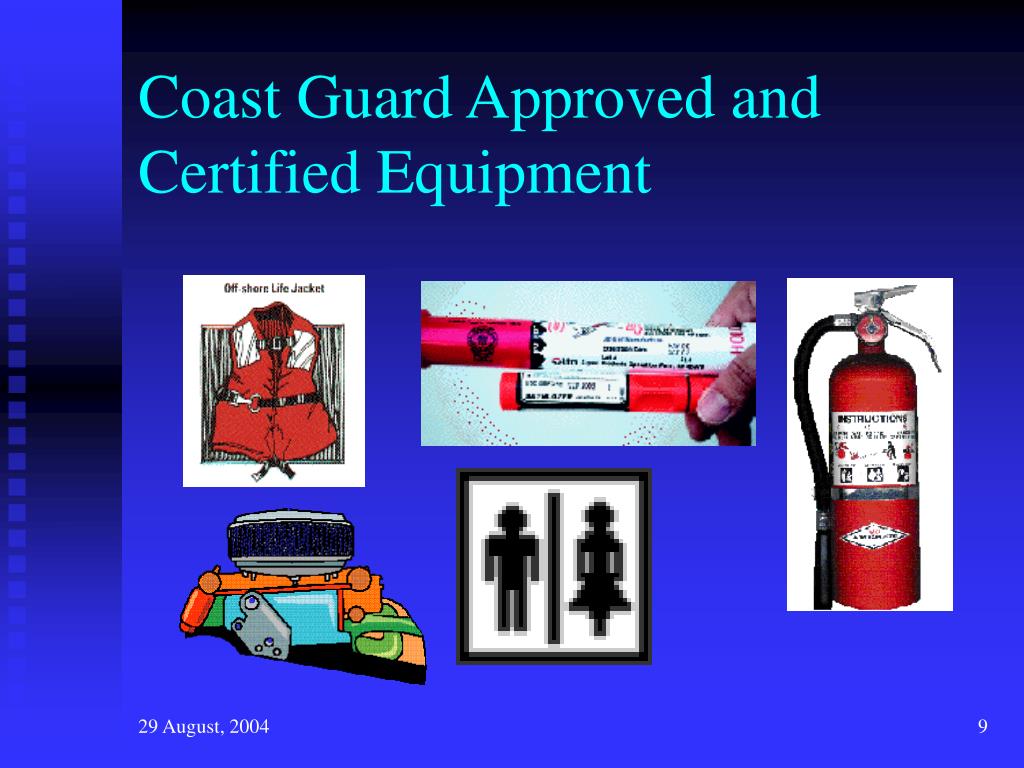

Coast Guard Approved and Certified Equipment


Letters and numbers must be l.jpg

Letters and numbers must be:

  • At least 3” high.

  • Block-type letters.

  • Color contrast with hull color.

  • Space or hyphen between letters and numbers equal to the width of another letter except “I”.

  • Attached to forward half of the boat.

  • State decal is placed according to the requirements of the state of registration.


Boat numbers l.jpg

Boat Numbers

PLACEMENT

Painted or Attached

to Each Side of Bow

Always Read Left to Right

CHARACTERS

Block not less than

3 inches high

FL 1234 AB

COLOR

Must be of a Color

Contrasting to the

Background

SPACING

Hyphen or Equivalent Space

Between 3 Parts of Number

FL 1234 AB

FL-1234-AB

FL1234AB

FL 1234 AB


Most power driven vessels must be see exceptions l.jpg

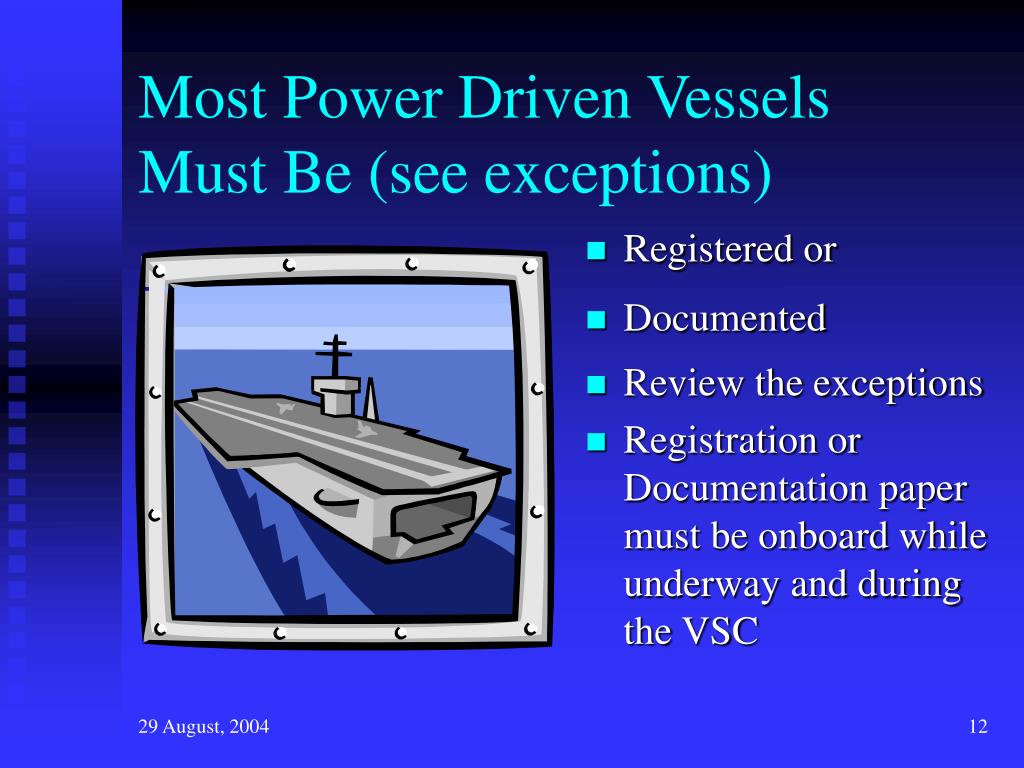

Most Power Driven Vessels Must Be (see exceptions)

  • Registered or

  • Documented

  • Review the exceptions

  • Registration or Documentation paper must be onboard while underway and during the VSC


The legal paperwork one of two l.jpg

The Legal Paperwork one of two

  • State Registration

  • Must be registered in the state of principal use.

  • Vessel numbers are obtained from the State

  • Vessel numbers remain with the vessel after it is sold.


The legal paperwork two of two l.jpg

The Legal Paperwork two of two

  • Documented Vessel

  • 5 or more net tons.

  • Pleasure use only.

  • Owner must be US Citizen.


Hull identification number l.jpg

Hull Identification Number

  • HIN

  • Usually on Starboard Side of Transom


Hull identification number16 l.jpg

Hull Identification Number

DATE OF

CERTIFICATION

MANUFACTURERS

I.D. CODE

HULL SERIAL

NUMBER

  • Before July 31, 1984

  • Since August 1, 1984

A B C 4 5 6 7 8 M 7 3 E

MANUFACTURERS

I.D. CODE

HULL SERIAL

NUMBER

OPTIONAL METHOD

DATE OFCERTIFICATION

A B C 4 5 6 7 8 A 4 9 2

MODEL

YEAR

MANUFACTURERS

I.D. CODE

DATE OF

CERTIFICATION

HULL SERIAL

NUMBER


Measuring the length of boats l.jpg

Measuring the Length of Boats


Personal flotation devices life jackets one of two l.jpg

Personal Flotation Devices (Life Jackets) one of two

  • Must Be Coast Guard approved and suitable size for wearer

  • For boats Less than 16’

    • One wearable for each person

  • For boats 16’ and longer

    • One wearable for each person

    • PLUS one throwable on the boat


Personal flotation devices life jackets two of two l.jpg

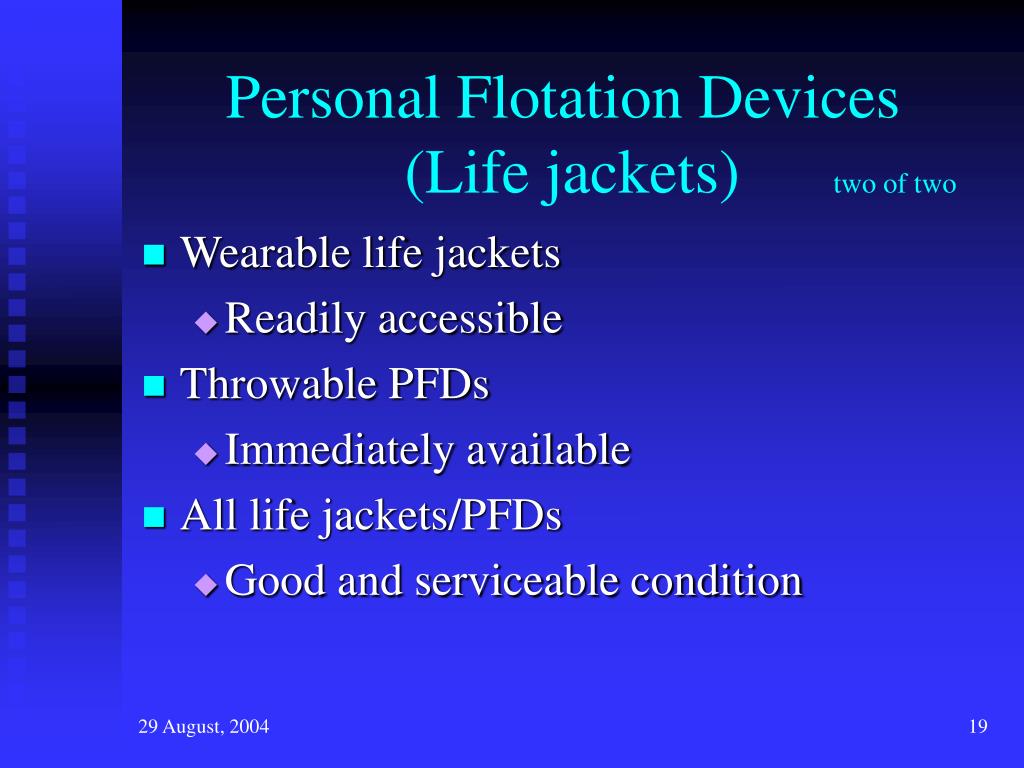

Personal Flotation Devices (Life jackets) two of two

  • Wearable life jackets

    • Readily accessible

  • Throwable PFDs

    • Immediately available

  • All life jackets/PFDs

    • Good and serviceable condition


Type i offshore jacket l.jpg

Type I Offshore Jacket

  • 22 Pounds Flotation

  • Will turn most unconscious people face up

  • Acceptable on all recreational boats and commercial vessels


Type ii near shore buoyant vest l.jpg

Type II Near Shore Buoyant Vest

  • 15.5 Pounds Flotation

  • May turn most unconscious people face up

  • Acceptable on all recreational boats


Type iii flotation aid l.jpg

Type III Flotation Aid

  • 15.5 Pounds Flotation

  • Many special designs for water sports

  • Acceptable on all recreational boats


Type iv throwable l.jpg

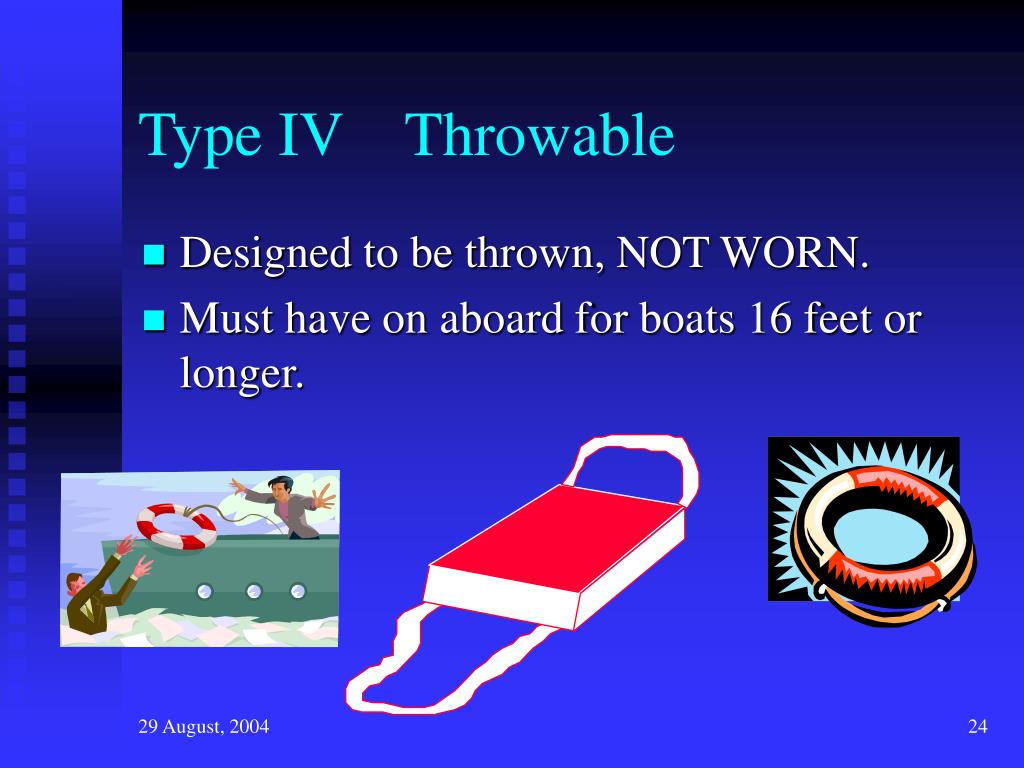

Type IV Throwable

  • Designed to be thrown, NOT WORN.

  • Must have on aboard for boats 16 feet or longer.


Type v l.jpg

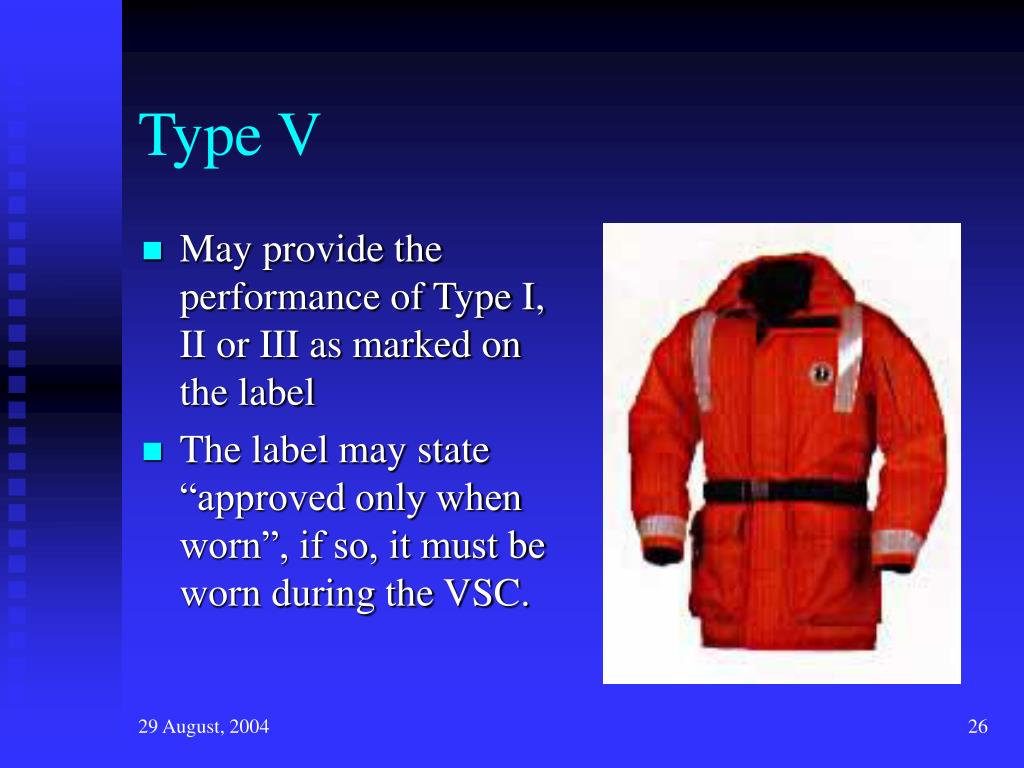

Type V

  • May provide the performance of Type I, II or III as marked on the label

  • The label may state “approved only when worn”, if so, it must be worn during the VSC.


Slide27 l.jpg

Survival Suit


Fully inflatable pfd l.jpg

Fully inflatable PFD

  • Must be worn!

  • May perform as a type II or III when inflated

  • Manual and/or automatic inflatable

  • Demonstrate the method of checking this device


Visual distress signal required l.jpg

Visual Distress Signal Required

Approved VDS for:

  • All vessels > 16 feet

  • Operating on the “high seas”, Great Lakes or Coastal & Inland waters of the US


Visual distress signal exemptions l.jpg

Visual Distress Signal Exemptions

  • Vessels participating in an organized parade or similar event

  • A manually propelled boat

  • Sailboat under 26 feet of open construction and no propulsion equipment (engine)


Visual distress signals l.jpg

Visual Distress Signals

  • Day - Night

  • Pyrotechnic - Non-Pyrotechnic

  • Coastal Waters - Great Lakes –Inland Waters


Non pyrotechnic visual distress signals l.jpg

Non Pyrotechnic Visual Distress Signals

  • Day

  • Night


Pyrotechnic visual distress signals l.jpg

Pyrotechnic Visual Distress Signals

  • Day

    • Smoke

  • Night

    • Hand Held Flares

    • Aerial Flares

      • Keep Dry - Short burn time

      • Use only when they might be seen


Visual distress signals vds l.jpg

Visual Distress Signals (VDS)

  • Daytime Pyrotechnic Devices

  • Orange Smoke

  • Hand Held Flares

  • Aerial Flares


Visual distress signals vds38 l.jpg

Visual Distress Signals (VDS)

  • Nighttime Non-Pyrotechnic Devices

  • Flash Light (SOS)

    ( hand held flood or

    spot lights are acceptable)


Visual distress signals vds39 l.jpg

Visual Distress Signals (VDS)

  • Nighttime Pyrotechnic Devices

  • Hand Held Flare

  • Aerial Flare

  • Controlled fire on Boat

    (Not Recommended)


Fire extinguishers l.jpg

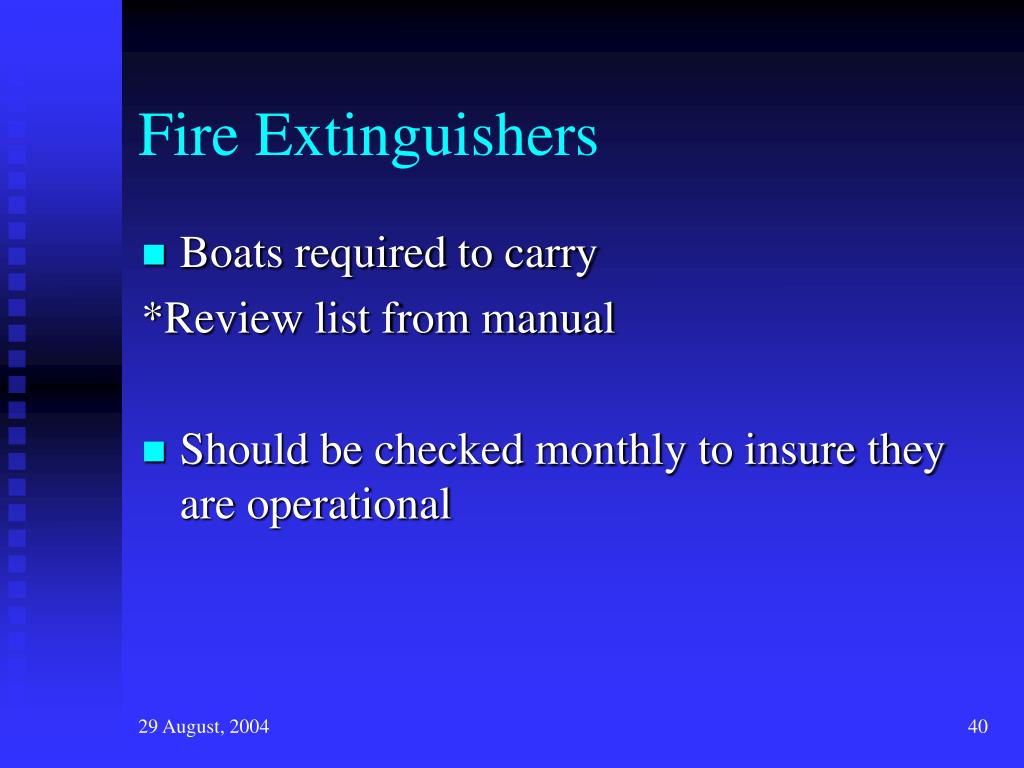

Fire Extinguishers

  • Boats required to carry

    *Review list from manual

  • Should be checked monthly to insure they are operational


Types of fires l.jpg

Types of Fires

  • A - Wood, Paper, Cloth

  • B - Oil, Grease, Gasoline

  • C - Electrical

  • D - Burning Metal


Fire extinguishers42 l.jpg

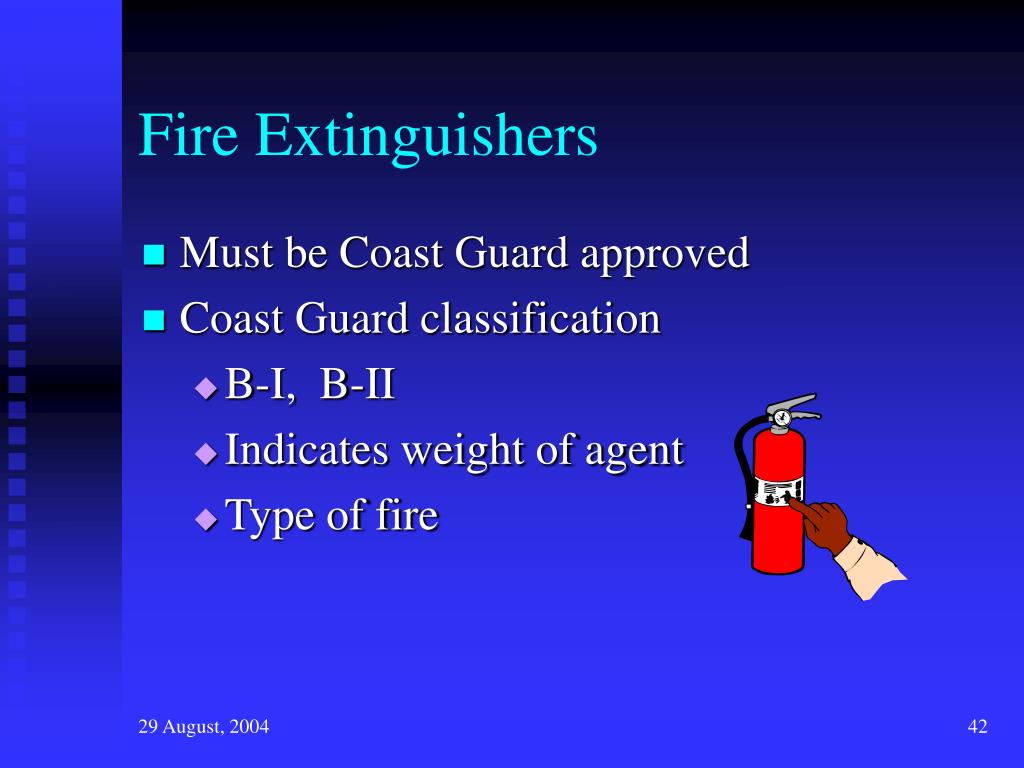

Fire Extinguishers

  • Must be Coast Guard approved

  • Coast Guard classification

    • B-I, B-II

    • Indicates weight of agent

    • Type of fire


Types of fire extinguishers l.jpg

Types of Fire Extinguishers

  • Carbon Dioxide

  • Dry Chemicals

  • Halon

    *Halon replacementsuch as FE 241 is now

    available.


Class b fire extinguishers l.jpg

Class B Fire Extinguishers

Coast Guard

Classification

(type-size)

B-II

B-I

Underwriter’s

Laboratory

Listing

10B

5B

Carbon

Dioxide

(lbs.)

15

4

Dry

Chemical

(lbs.)

2

10

Halon

(lbs.)

2.5

10


Slide45 l.jpg

Minimum Number of Hand Portable

Fire Extinguishers With and Without

Fixed Extinguishing Systems

Fixed fire

extinguishing

system in

machinery space

No fixed

system in

machinery space

Length of Vessel

1 B-I

None

Less than 26 feet

2 B-I or 1 B-II

1 B-I

26 ft. to under 40 ft.

3 B-I or

1 B-I and 1 B-II

2 B-I or 1 B-II

40 ft. to 65 ft.


Using a fire extinguisher l.jpg

Using a Fire Extinguisher

  • Pull the safety pin.

  • Aim the discharge of the

    at the base of the flames.

  • Squeeze the Handle

  • Sweep the discharge of the

    extinguisher from side to side


Fire extinguishers47 l.jpg

FIRE EXTINGUISHERS


Ventilation system l.jpg

Ventilation System

General Precautions:

Use your Nose

If you smell gasoline,

DO NOT START THE ENGINE.

Find the source of the leak

and fix it!


Ventilation l.jpg

Ventilation

Ventilation is not required in

open boats.

(Engine and Fuel tank are

out in the open.)


Slide50 l.jpg

Vents


Ventilation systems l.jpg

Ventilation Systems

Powered Ventilation Systems


Ventilation systems52 l.jpg

Ventilation Systems

Powered Ventilation Systems


Natural ventilation l.jpg

Natural Ventilation


Slide54 l.jpg

Have Proper Ventilation


Warning label l.jpg

Warning Label

Warning

Gas vapors can explode

Before starting engine, operate blower for four minutes and check engine compartment and bilge for gas vapors


Slide56 l.jpg

Inboard Gasoline Engines Must Have Backfire Flame Control


Backfire flame control l.jpg

Backfire Flame Control


Sound producing devices l.jpg

Sound Producing Devices

  • Electric Horn

  • Airhorn

  • Coach’s Whistle

  • Whistle


Slide59 l.jpg

Sound Producing Devices

Audibility Range Required:

Less than 65 feet long ----- 0.5 mile

Longer than 65 feet ----- 1 mile


Added requirements over 65 ft l.jpg

Added Requirements over 65 ft

Bell

[May apply to shorter vessels by State requirements]


Slide61 l.jpg

PWC Operator Should Have Whistle Attached To Personal Flotation Device.


Definitions l.jpg

Definitions

  • Sidelight

  • Sternlight

  • Towing light

  • All-Around light

  • Flashing light

  • Special flashing light


Arc of visibility l.jpg

Arc of visibility

  • Port – red 112.5o

  • Starboard – green 112.5o

  • Stern – white 135o

  • Masthead – white 225o

  • Anchor –white 360o


Vessels under 65 feet l.jpg

Vessels under 65 feet


Vessels under 39 4 feet may l.jpg

Vessels under 39.4 feet may:


Sail 23 feet and vessel under oars may l.jpg

Sail <23 feet and Vessel under oars may:

Carry a flashlight or lantern showing a white light that could be displayed in time to prevent a collision


Additional requirements l.jpg

Additional Requirements

  • Anchor lights

    • Exclusions

  • Sailboat when under power is a power boat

  • Day Shapes


The federal water pollution control act l.jpg

The Federal WaterPollution Control Act

  • Prohibits the discharge of oil or hazardous substances into U.S. navigable waters.

  • Vessels longer than 26 feet must display a placard

    • 5 x 8 durable material

    • In a conspicuous place near bilge pump station and machinery space

  • See page 25 for details


Marpol placards l.jpg

MARPOL Placards

  • The Act to Prevent Pollution from ships (MARPOL ANNEX V) places limitations on the discharge of garbage from vessels.

  • Vessels of 26 feet or longer must display, in a prominent location, a durable, placard at least 4 x 9 inches notifying the crew and passengers of the discharge restrictions


Marpol exceptions l.jpg

MARPOL Exceptions

  • Recreational vessels used exclusively in the Great Lakes may use the Annex V placards or a specially developed placard that prohibits the dumping of garbage.

  • The trash placard is NOT required on inland lakes and sole state waters unless specified by State or Local regulations.


Trash plan requirement l.jpg

Trash Plan Requirement

  • Boats 40 ft or longer and equipped with a galley and berthing must have a writtenTrash Management Plan


Msd requirements l.jpg

MSD Requirements

  • All recreational vessels with installed toilet facilities MUST have an operable marine sanitation device (MSD) on board. Direct discharge toilets are illegal.

    • Vessels < 65 feet may install type I, II or III MSD

    • Vessels 65 feet or longer must install a type II or III MSD


Types of msd l.jpg

Types of MSD

Type I and Type II devices are waste treatment units and have the ability to discharge overboard.

Type III devices re-circulate waste. They are discharged at a pump out station in a legal dumping area.


No discharge area l.jpg

No-Discharge Area

A Type I or II MSD must be adequately secured while the vessel is in a no-discharge area to prevent any overboard discharge of treated or untreated sewage.


Carriage of inland navigation rules l.jpg

Carriage of Inland Navigation Rules

  • The owner or operator of each self-propelled vessel 39.4 feet or longer shall carry on board and maintain for ready reference a complete and current copy of the Navigation Rules.


State and local requirements l.jpg

State and Local Requirements

  • The requirements of the state and local law enforcement jurisdictions where the VSC is conducted will be included in the VSC criteria.

  • While states may require liability insurance, license restrictions, or specific activity equipment, only equipment directly related to vessel safety or items on the VSC checklist will be considered.


Overall vessel condition l.jpg

Overall Vessel Condition

  • The vessel must have a safe overall condition in order to meet the finalrequirement for the VSC decal.

  • Following are some applicable items critical to the safety of the vessel and must be acceptable before the VE awards the VSC decal.


Overall vessel condition78 l.jpg

Overall Vessel Condition

  • Deck free of hazards

  • Clean Bilge

  • Electrical Systems

  • Fuel Systems

  • Galley

  • Heating System


Electrical and fuel systems l.jpg

Electrical and Fuel Systems


Galley and heating systems l.jpg

Galley and Heating Systems


Chapter 4 recommended discussion items l.jpg

Chapter 4 – Recommended & Discussion Items

  • This chapter provides information on items not required by Federal Regulations but strongly recommended for the safety of recreational boaters.


Marine radio l.jpg

Marine Radio

  • Distress Calls

    • MAYDAY

    • PAN-PAN

    • SECURITY

  • Radio Licenses

  • Radio Listening Watch

  • False Distress Signals


Dewatering devices and backup l.jpg

Dewatering Devices and Backup

  • At least one effective dewatering device

  • Also one manual device such as a pail or hand pump


Mounted fire extinguishers l.jpg

Mounted Fire Extinguishers

  • While it is NOT required to mount fire extinguishers, it is recommended that they be mounted in a readily visible and consistent location known to all aboard.


Slide85 l.jpg

Should Have An Anchor

And Line Suitable For

Boat And Boating Area.


First aid kits l.jpg

First Aid Kits

  • Boaters are encouraged to carry additional safety equipment including a First Aid Kit. These can be purchased in various sizes, depending on the type of boating a person does (small lakes versus offshore cruising).


Person in water kits l.jpg

Person in Water Kits

  • A line attached to the PFD or ring thrown to a PIW will provide a means for pulling the Person in the Water back to the vessel.


Vds onboard for some inland use l.jpg

VDS Onboard for some Inland Use

  • Although not required for some localities, it is always a good idea to have a way to signal for HELP.


Capacity plate information l.jpg

Capacity Plate Information

  • Outboards

    • U.S. Coast Guard Capacity Information

      • Maximum Horse Power

      • Maximum Persons Capacity

      • Maximum Weight Capacity

        • Persons Motor & Gear

  • Inboards

    • U.S. Coast Guard Capacity Information

      • Maximum Persons Capacity

      • Maximum Weight Capacity

        • Persons Motor & Gear


Capacity plate for outboards l.jpg

Capacity Plate for Outboards

U.S. COAST GUARD CAPACITY INFORMATION

MAXIMUM HORSE POWER

MAXIMUM PERSONS CAPACITY (POUNDS)

MAXIMUM WEIGHT CAPACITY

PERSONS MOTOR & GEAR (POUNDS)


Slide91 l.jpg

Capacity Plate for Inboards

U.S. COAST GUARD CAPACITY INFORMATION

MAXIMUM PERSONS CAPACITY (POUNDS)

MAXIMUM WEIGHT CAPACITY

PERSONS MOTOR & GEAR (POUNDS)


Compliance plate l.jpg

Compliance Plate

THIS BOAT COMPLIES WITH U.S. COST GUARD

SAFETY STANDARDS IN EFFECT ON THE DATE OF

CERTIFICATION

MODEL NO. SERIAL NO.

MFD BY


Discussion items one of two l.jpg

Discussion Items one of two

a. Accident reporting / Owner responsibility

b. Offshore Operation

c. Nautical Charts / Navigation Aids

d. Survival Tips / First Aid


Discussion items two of two l.jpg

Discussion Items two of two

e. Fueling / Fuel Mgt.

f. Float Plan / Weather & Sea Conditions

g. Insurance Considerations

h. Boating Check List

i. Safe Boating Classes


Some more topics for discussion l.jpg

Some more topics for discussion


Warning systems l.jpg

Warning Systems

  • Fire Detectors

  • Smoke Detectors

  • Fire Ports

  • Combustible Fumes Detectors

  • Carbon Monoxide Detectors

  • Fire Extinguisher Alarms


Emergency gear bag l.jpg

Emergency Gear Bag

Emergency Gear Bag


Chapter 5 forms and materials l.jpg

Chapter 5 – Forms and Materials

  • This chapter provides information on resources and forms applicable to the Vessel Safety Check Program.


Chapter 5 l.jpg

Chapter 5

  • Federal Requirements Pamphlet

  • Coast Guard Infoline

  • State Requirements

  • VSC Form 7012


Useful web sites l.jpg

Useful WEB Sites

  • United States Power Squadrons National Page - USPS.org

  • CG Auxiliary National Page - CGAUX.org

  • V Department Page – SafetySeal.net/index3.asp

  • VSC National Public Page - SafetySeal.net


Slide103 l.jpg

Thank you for your attention and enjoy the VSC program


  • Login
