Presentation Transcript
Slide1 l.jpg

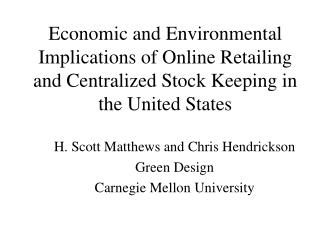

Economic and Environmental Implications of Online Retailing and Centralized Stock Keeping in the United States

H. Scott Matthews and Chris Hendrickson

Green Design

Carnegie Mellon University


Growth of retail e commerce l.jpg
Growth of Retail E-commerce ($) and Centralized Stock Keeping in the United States

  • US DOC began measuring and reporting retail e-commerce in March 2000

    • 4Q 02 = $14.3 Billion

    • 1.6% of all retail purchases [$46B for 2002]

    • Uses same sampling as traditional surveys

      • 12,000 out of 2 million firms (dangerous now?)

    • Note the following are not considered retail (and thus also not counted in e-commerce $)

      • Travel, financial, ticket brokering


E commerce retail quarterly volume b l.jpg
E-Commerce Retail Quarterly Volume ($B) and Centralized Stock Keeping in the United States


Traditional retail logistics system l.jpg
Traditional Retail Logistics System and Centralized Stock Keeping in the United States

  • Factory to warehouse to warehouse to retailer.

  • Last leg of trip by private vehicle


Single facility sales l.jpg
Single Facility Sales and Centralized Stock Keeping in the United States

  • LL Bean, Lands End - catalogue sales

  • Amazon (original), MusicOutpost - web based sales from a single facility


Www eiolca net l.jpg
www.eiolca.net and Centralized Stock Keeping in the United States

  • Free life cycle assessment software on the web from Carnegie Mellon - public data

  • >20,000 uses this year

  • economic, environment and resource requirements for purchases from any sector

    • just added injury and fatality data

  • based on linear model of economy and 500 sectors!


Eio lca implementation l.jpg
EIO-LCA Implementation and Centralized Stock Keeping in the United States

  • Use the 480*480 commodity input-output matrix of the U.S. economy (1997)

  • Augment with sector-level environmental impact coefficient matrices (R) (average impact per dollar of output)

  • Linear environmental impact calculation:

    E = R[I - D]-1F


Book publishing case study l.jpg
Book Publishing Case Study and Centralized Stock Keeping in the United States

  • Traditional System:

    • logistics: printer > warehouse > warehouse > retailer > home, all by truck/car

    • unsold returns - roughly 35% for bestsellers

  • E-commerce System:

    • logistics: printer > warehouse > distribution center >home, by air and truck.

    • No unsold returns


Comparative analysis l.jpg

Traditional: and Centralized Stock Keeping in the United States

truck transport (1000 mi)

warehousing

production of returns

reverse travel of returns

private automobile transport

E-Commerce

air transport (500 mi)

truck transport (500 mi)

warehousing

Comparative Analysis


Comparative costs 1000s for 1 m or 290 000 books l.jpg
Comparative Costs ($ 1000s for and Centralized Stock Keeping in the United States $ 1 M or 290,000 books)


Why are e commerce costs lower l.jpg
Why are E-Commerce Costs Lower? and Centralized Stock Keeping in the United States

  • Higher transportation costs for e-commerce, but:

    • Returns of unsold copies

    • Lower retail transactions costs

    • Lower (private) automobile cost

  • Result is cost advantage for e-Commerce


Summary environmental impacts per book basis l.jpg
Summary Environmental Impacts and Centralized Stock Keeping in the United States (per-book basis)


Sensitivity analysis l.jpg
Sensitivity Analysis and Centralized Stock Keeping in the United States

  • ‘Traditional’ becomes better if:

    • Local distance to bookstore < 3 miles

    • Air transport of books > 700 miles

    • Orders not shipped together


Harry potter case l.jpg
Harry Potter Case and Centralized Stock Keeping in the United States

  • 250,000 books shipped on release date by Amazon.com

    • 9,000 trucks and 100 airplanes

  • 2.5 lb. book, 0.7 lb. packaging (3.2 lbs.)

    • Bookstores got 10 per box

  • Shopping trips for books avg. 11 miles

    • Marginal effects


Example 2 centralized or virtual warehouse l.jpg
Example 2: Centralized or Virtual Warehouse and Centralized Stock Keeping in the United States

  • Traditional: Stock at Local Warehouse with Rapid Delivery but High Stock Costs

  • Centralized or Virtual: Stock at Remote Warehouse with Rapid Delivery by Higher Cost Mode. (Note E-commerce Model: Delivery Mode Choices).


Warehousing vs trucking 100m l.jpg
Warehousing vs. Trucking ($ 100M) and Centralized Stock Keeping in the United States


Example defense logistics agency l.jpg
Example: Defense Logistics Agency and Centralized Stock Keeping in the United States

  • Military spare parts management: 632,000 part types, inventory of 108 million parts, value of $ 83 B, 286 storage locations.

  • GAO – Consolidate spare parts inventory in major sites.

  • GAO – also, reduce excess inventory (not analyzed here)


Centralized warehousing l.jpg
Centralized Warehousing and Centralized Stock Keeping in the United States


Local to central warehouses l.jpg
Local to Central Warehouses and Centralized Stock Keeping in the United States


Some analysis issues l.jpg
Some Analysis Issues and Centralized Stock Keeping in the United States

  • What are E-commerce future scenarios?

  • What will happen with local manufacturing technology?

  • What will be impact of new business models for controlling inventory (warehousing), manufacturing and shipping.

  • What is appropriate time scale of analysis?


Analysis boundary issues cont l.jpg
Analysis Boundary Issues (cont.) and Centralized Stock Keeping in the United States

  • Buildings - decrease in retail or warehouse space?

  • Shopping - will individuals substitute other travel for reduced shopping travel?

  • Computers - what fraction of personal computer burdens should be allocated to E-commerce?


Will e commerce improve or degrade the environment l.jpg
Will E-commerce Improve or Degrade the Environment? and Centralized Stock Keeping in the United States

  • Net Effect - hypothesis: depends upon product and processes and upon the analysis boundary.

  • Appropriate Public Policy -

    • Don’t ignore service industries in environmental policy.

    • Consider life cycle costs including social costs.

    • Take advantage of cost savings to create environmental benefits


Acknowledgments l.jpg
Acknowledgments and Centralized Stock Keeping in the United States

  • AT&T Foundation’s Industrial Ecology Faculty Fellowship Program

  • Organization of Economic Cooperation and Development (OECD)

  • Japan Foundation Center for Global Partnership


References l.jpg
References and Centralized Stock Keeping in the United States

  • "Environmental and Economic Effects of E-Commerce: A Case Study of Book  Publishing and Retail Logistics," Hendrickson, Chris T., H. Scott Matthews, and Denise L. Soh,  Transportation Research Record 1763, pp. 6-12, 2001.

  • "Harry Potter and the Health of the Environment," Matthews, H. Scott, Chris Hendrickson and Lester Lave, Spectrum, 20-22, November 2000.

  • The Economic and Environmental Implications of Warehousing Strategies in the New Economy, Matthews, H. Scott and Chris Hendrickson,  J. of Industrial Ecology, 2002.
