Presentation Transcript
Open plm standards versus proprietary projects solutions l.jpg

Open PLM Standards versus proprietary projects solutions

Real life experiences from integration projects

Mirko Theiß

[email protected]

Matthias Grau

[email protected]

Karsten Theis

[email protected]

© PROSTEP AG 2010


Agenda l.jpg
Agenda

  • Process and Information Standard related Experiences

    • PLM Services: A Standard based on Standards

    • Standards-based PDM integration project

    • Approaches for a PDM integration platform

  • SW Development Standard related Experiences

    • Information system for innovation-management

    • Cost management tool for complex products

    • Space System Reference Model (SSRM)

  • Conclusions

© PROSTEP AG 2010


Plm services a standard based on standards l.jpg
PLM ServicesA Standard based on Standards

Platform-independent

Specification of Data & Behavior /

Standardized platform-specific

Models

OMG PLM Services

Presentation Languages

OMG UML

W3C XML

W3C WSDL

Platform Independent Spec.

OMG MDA

STEP

AP214

STEP

PDM Schema

PDTnet

PDM Enablers

Content (Data/Behavior)

© PROSTEP AG 2010


Plm services scope of omg plm services 2 0 l.jpg

Part Identification

Part Structure

Document and File Management

Shape Definition and Transformation

Classification

Properties

Alias Identification

Authorization

Configuration Management

Change and Work Management

Process Planning

Multi Language Support

PDM Schemaas Basis

PLM ServicesScope of OMG PLM Services 2.0

© PROSTEP AG 2010


Standards based pdm integration project l.jpg
Standards-based PDM integration project

ERP-System

TDM-System

PDM-System

  • Context

    • Automotive sector

    • Introduction of a new PDM system

    • Currently many 1:1 interfaces in established solution

    • Different transport protocols and (proprietary) data models

  • Goals

    • Service-oriented architecture

    • Standard transport protocols and standard data model

    • Business driven design (Business should understand interface contracts)

  • Business driven interface design

    • Well-defined Service-contract:

    • Understandable by the business,

    • self-contained and

    • in principle more than one service consumer

  • Business-vision governs technology usage

    • Web-Services technology stack provides best interoperability

    • PLM Services 2.0 standard data model provides interoperability and understanding on a business level

ERP-Adapter

TDM-Adapter

PDM-Adapter

Service

Bus

ServiceRepository

PDM-Adapter

PDM-System

© PROSTEP AG 2010


Standards based pdm integration project6 l.jpg
Standards-based PDM integration project

  • Business aspects:

    • repeated value over time exceeds the initial investment

      • Integration of three consumers

      • with one service provider

      • by usage of one well-defined contract.

    • Increased business agility due to

      • no distributed business-logic anymore

      • no more 1:1 integrations

    • Extensible solution

  • Technical aspects:

    • Business driven PLMServices 2 data model guarantees understanding on business and IT side and improves human communication

    • Service-bus provides logging & monitoring (domain-wide debugger)

    • Open Web-Service technology stack guarantees system interoperability

  • High customer acceptance of the build solution

SOA + PLM-Services

success story

© PROSTEP AG 2010


Approaches for a pdm integration platform a common problem but many solutions l.jpg

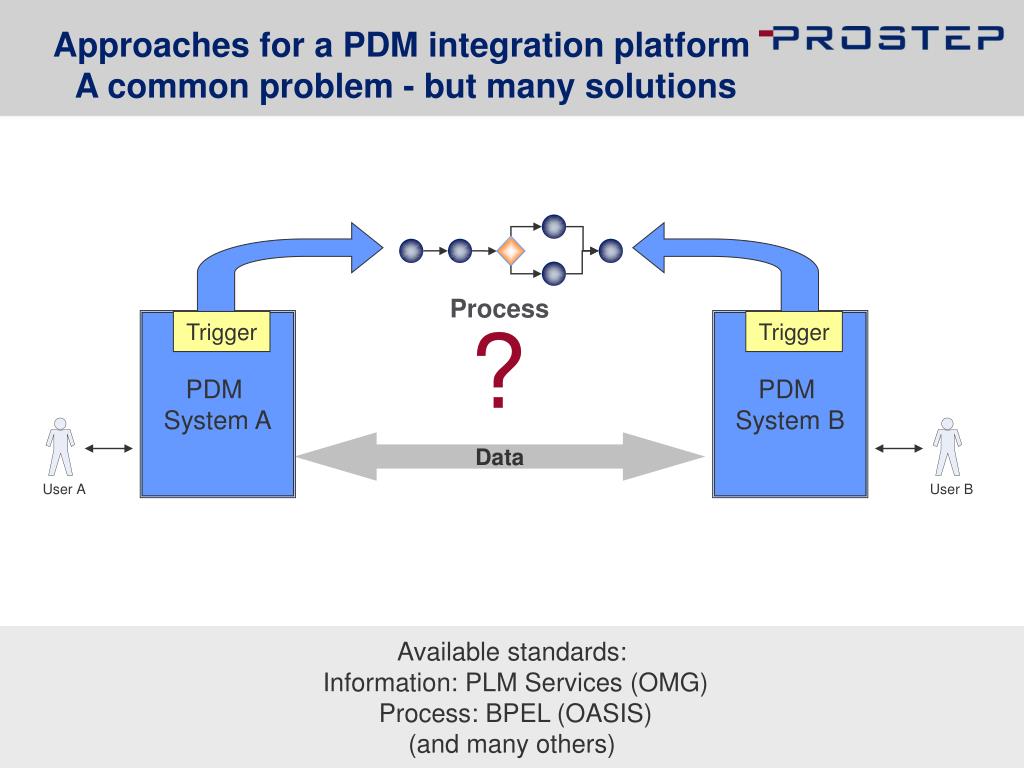

Approaches for a PDM integration platformA common problem - but many solutions

Process

?

PDM

System A

Trigger

PDM

System B

Trigger

Data

User A

User B

Available standards:

Information: PLM Services (OMG)

Process: BPEL (OASIS)

(and many others)

© PROSTEP AG 2010


Approaches for a pdm integration platform solution 1 with full use of standards l.jpg
Approaches for a PDM integration platformSolution 1: With full use of standards

Workflow Engine (ESB)

Process Definition

Specific Procedures / Rules

PLM-Services

XML

PDM

System A

Trigger

PDM

System B

Trigger

PLM Services

WebServices

Connector A

Integration Tool

Connector B

Data

Data

User A

User B

  • Pros: (in theory)

  • Reusable processes

  • Well defined data model

  • Simpler mappings

  • Easy to understand

  • Cons: (in reality)

  • Performance Issues

  • Standard data model doesn't fit to all use cases

  • Two mappings needed: A->Standard->B

  • Users don’t know the standard but the native data models

  • Some use cases are hard or even impossible to implement based on BPEL and PLM-Services

  • Higher infrastructure costs

© PROSTEP AG 2010


Approaches for a pdm integration platform solution 2 direct mapping direct implementation l.jpg
Approaches for a PDM integration platformSolution 2: Direct Mapping / Direct Implementation

Proprietary solution

success story

REST-Services

Integration Tool

JMS

Queue

PDM

System A

Trigger

PDM

System B

Trigger

Java

Connector A

Connector B

Data

Data

User A

User B

  • Implementation

  • Native PDM data models are used (represented as XML)

  • Mappings are defined A->B

  • Process is implemented in Java

  • Transaction save processing by use of JMS

  • Pros

  • Better performance

  • Easier to understand / lower complexity:

    • fewer mappings

    • native data model

    • users understand the mapping and the data models

  • All special use cases can be implemented in Java

  • Lower infrastructure costs

© PROSTEP AG 2010


Approaches for a pdm integration platform conclusions l.jpg
Approaches for a PDM integration platform Conclusions

  • Experiences over 10 years and more than 100 OpenPDM based implementation projects show

    • Customers often do not accept additional costs caused by the extra effort of a more complex solution

    • Customers often have the expectation to technically understand the solution but do not want to invest in know how rg. standards

    • Business often asks explicitly for a standards based solution, but the IT wants a solution for the smallest possible costs

  • PROSTEP’s OpenPDM Integration Platform supports standards-based solutions but:

    Balancing the pros and cons of using standards is a must in each and every OpenPDM project

© PROSTEP AG 2010


Agenda11 l.jpg
Agenda

  • Process and Information Standard related Experiences

    • PLM Services: A Standard based on Standards

    • Standards-based PDM integration project

    • Approaches for a PDM integration platform

  • SW Development Standard related Experiences

    • Information system for innovation-management

    • Cost management tool for complex products

    • Space System Reference Model (SSRM)

  • Conclusions

© PROSTEP AG 2010


Information system for innovation management l.jpg

MDA formal process

MDA project process

Domain-Knowledge /Information-Objects

CIM

manual modeling

PIM

Tool-Export

model transformation

apply XSLT

XML Schema

apply JavaCode-Generator

PSM

XMI

Artefacts:Value Objects, Validator-Pattern, Memento-Pattern

Information system for innovation management

MDA success story

  • Project context

    • Team size: 12

    • 5 sub-projects and development teams

    • Domain-knowledge was subject to change frequently during development

    • Quality of shared Java artefacts over all interfaces/sub-projects is crucial

  • Used MDA components

    • CIM (Domain-model as requirements specification)

    • PIM (UML)(Platform independent view of domain model, meta model, no technical details)

    • Platform specific view generated from PIM by applying mappings and code-generators (XML Schema, Java impl., XSLT)

  • Conclusion

    • High productive use of MDA

    • Applying a formal process to create critical code is essential

    • Applying MDA is an iterative process

    • Initial effort to setup the tool chain is quickly amortized, because changes can be handled fast and easy

    • Quality of automated software creation from meta models increases with quality of available tools

© PROSTEP AG 2010

CIM = Computational Independent Model PIM = Platform Independent Model  PSM = Platform Specific Model


Cost management tool for complex products l.jpg
Cost management tool for complex products

  • Project context

    • Team size: 5

    • Complex enterprise environment with many constraints and restrictions

    • Many change requests caused methodology changes for code generation

  • Used MDA components

    • Describe functional aspects of model for business tier and integration tier as UML stereo types

    • Self made code generator

      • DAOs, DTOs and DTA

  • Generator creates

    • Persistence

    • navigation and

    • loading strategies

  • Conclusion

    • Restricted productivity gain of MDA

    • Changes caused too much effort(because of logical changes)

    • Don’t change the generator AND the PIM in the same project

MDA lesson learned

© PROSTEP AG 2010


Space system reference model ssrm l.jpg

System Engineering Data

Verification Matrix

Requirement

Assembly &

Verification

Integration

Functional

Operational

Allocation

Design

Physical Architecture

SOA

MDA

J2EE

BPEL

ECSS ETM-10-23

Accomondation

System Allocation

Functional

Architectural

Physical Design

Design

Design

Space System Reference Model (SSRM)

  • Project context

    • Team size: 5

    • DBMS to store user/admin information in a tool-independent syntax and semantics

    • Network-distributed environment as the basis for tool adoption

    • Platform independent integration architecture

    • Workflows to control exchange and communication processes from the user perspective

  • Used MDA and SOA components

    • W3C web services to transport data via XML and define operations

    • Servlet technology to implement server

    • JDBC/SQL Database to persist data

    • BPEL to drive workflow

    • OMG PLM Services

  • Conclusion

    • Intensive use of standardized technologies

    • Enables the usage of both commercial and open source software

    • Technical Proof of Concept fulfilled the customer needs and is continued in several pilots

a joint project with:

MDA and PLM Services

success story

© PROSTEP AG 2010


Agenda15 l.jpg
Agenda

  • Process and Information Standard related Experiences

    • PLM Services: A Standard based on Standards

    • Standards-based PDM integration project

    • Approaches for a PDM integration platform

  • SW Development Standard related Experiences

    • Information system for innovation-management

    • Cost management tool for complex products

    • Space System Reference Model (SSRM)

  • Conclusions

© PROSTEP AG 2010


Conclusion l.jpg
Conclusion

  • Proprietary solutions …

    • are often more efficient in the scope of a single project

    • reduce the complexity

    • can solve problems, where standards don’t fit

      BUT: often do not scale or adopt to similar adjacent areas

      THEREFORE: need a clear decision to serve exactly only the specific project task

  • Standards-based solutions …

    • improve stability and productivity

    • improve the reusability of the tool chain

      BUT: require high skill level at developer and customer side

      THEREFORE: need an project lead with sufficient management support

  • Standards require a strategic approach, because

    • standards typically don’t fit a single specific project task

    • one project often can’t fund a true standards based implementation approach

    • successful application of standards requires upfront investment in skills, infrastructure, IT governance, … – i.e. a management level IT strategy

© PROSTEP AG 2010


ad
