Presentation Transcript


Mires of tierra del fuego l.jpg

Mires of Tierra del Fuego

With contributions of:

Erwin Adema (RUG)

Hans Joosten (Uni-Greifswald)

John Couwenberg (Uni-Greifswald)

Christiaan Fritz (Uni-Greifswald)

Olivier Ogliati (Uni-Greifs.;fotos)

Jan Sliva (Uni-Munchen; fotos)

1

2

3

4

5


Slide2 l.jpg

Maria Bahety fen (1)

Radicell/sedge peat

This region practically has no forests and has a high grazing pressure. The precipitation is low and the evaporation rather high. We visited the fen in a very wet condition. Normally it is much dryer.

7m

Sphagnum/radicell peat

Lake sediments

Sand

spring

3500

1500

270

980

220

This fen is fed by groundwater with a relatively low EC 230-350. The surface water has very high EC values (900-1500 µS/cm), since it has dissolved many salts from the surface. At 1m depth we measured 3500 µS/cm.

Almost dry salty lake


Slide3 l.jpg

Maria Cristina fen (2)


Slide4 l.jpg

Maria Cristina fen

170

117

The fen is fed by groundwater with different EC values. It is also fed by surface water from streams and from ditches along the road. The bog, which is only 60 cm, on top of the fen also stores rain water. So this bog development is very recent

240

170

113

170

>230

550

650


Andorra mire 3 l.jpg

Andorra mire (3)


The spring forest l.jpg

Andorra mire

The spring forest is situated on thin peat where much groundwater discharges. Shifting groundwater flows create opportunities for trees at one site, but may drown trees somewhere else. Strong winds can easily put these trees down.

The spring forest


The spring fen l.jpg

This is the best preserved part of the spring mire. Further down a small rivulet from the hill cuts through the peat and at the end causes some erosion

Andorra mire

160

75

150

140

35-40

140

The spring fen

75

This is an older erosion gully, which is now almost dry. These structures drained the mire upstream, so a forest vegetation could develop or a bog.


The spring area l.jpg

Andorra mire

The spring area

The original spring mire could have looked like this, showing spring water coming in and proceeding through the fen peat to the river. Such a mire is extremely sensitive to erosion of inflowing surface water. The results of the German students show that the spring fen was later blocked by the bog expansion.


The bog margin l.jpg

Andorra mire

The bog has a small lagg zone and sometimes small rivulets are formed. Both have low values in EC (ca. 40 µS/cm). Only the rivulets that cross the bog have higher values of about 130 µS/cm

7m

130

The bog margin

40

40


Slide10 l.jpg

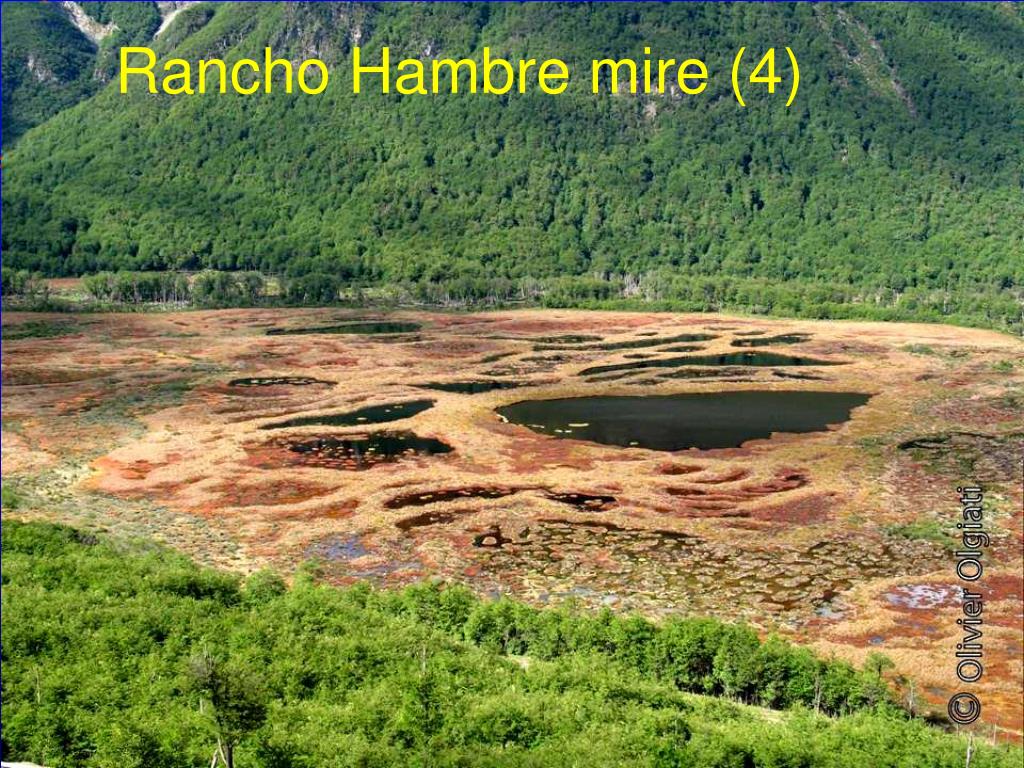

RanchoHambre mire (4)


Slide11 l.jpg

Rancho Hambre mire

340

110

Sphagnum peat

35

100

14

50

radicel/sedge peat

Sphagnum/

radicell peat

Lake sediments

sand

This bog complex is mainly fed by rain and surface water. Most of the surface water originates from rivulets from the slope


Moat mires 5 l.jpg

Moat mires (5)


A lake on top l.jpg

Moat mires

This lake is a local high point of a mire system. Sphagnum magellanicum is dominant here with EC between 60-95. Slightly under the top an Astelia mire is present with higher EC in the pools (125)

> 4 m deep

A lake on top


Going down l.jpg

Moat mires

So Sphagnum magellanicum appears to be dominant at slightly lower EC then Astelia.

60

110

75

125

97

110/135

135

Going down

126

297


Slide15 l.jpg

Hans Joosten made a boring in this Sphagnum and Astelia pumila vegetation: under the Sphagnum was over 60 cm of Sphagnum peat, while under the Astelia was 60 cm of Astelia peat, followed by Sphagnum peat. Apparently competition between Sphagnum magallanicum and Astelia can be a stable state for hundreds of years. In most situations Astelia is pushing Sphagnum back to the pool

EC = 126


Slide16 l.jpg

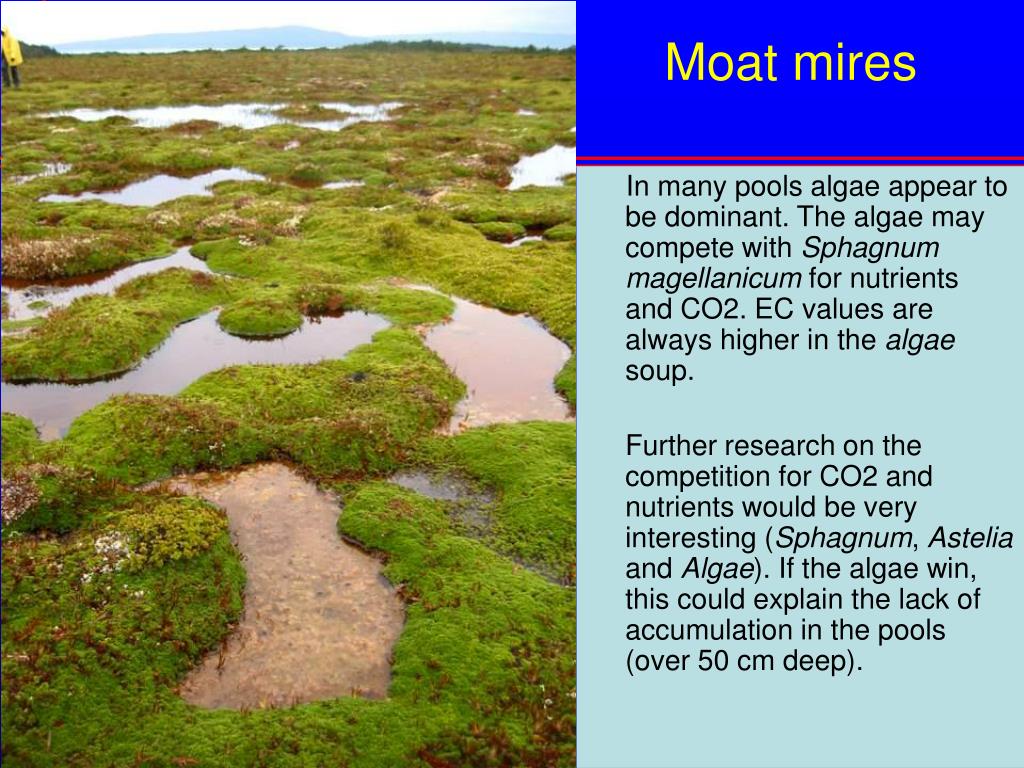

Moat mires

In many pools algae appear to be dominant. The algae may compete with Sphagnum magellanicum for nutrients and CO2. EC values are always higher in the algae soup.

Further research on the competition for CO2 and nutrients would be very interesting (Sphagnum, Astelia and Algae). If the algae win, this could explain the lack of accumulation in the pools (over 50 cm deep).
