Presentation Transcript


Lecture 3 phases of the moon l.jpg

Lecture 3Phases of the Moon


Slide2 l.jpg

Moon

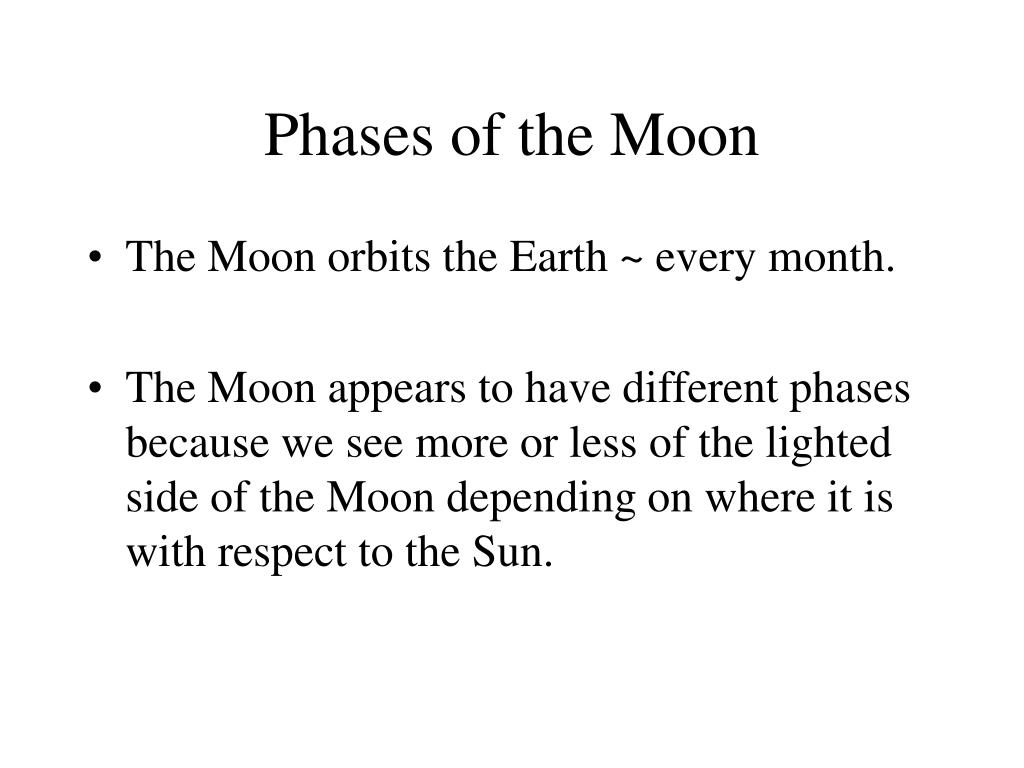

Phases of the moon l.jpg

Phases of the Moon

  • The Moon orbits the Earth ~ every month.

  • The Moon appears to have different phases because we see more or less of the lighted side of the Moon depending on where it is with respect to the Sun.

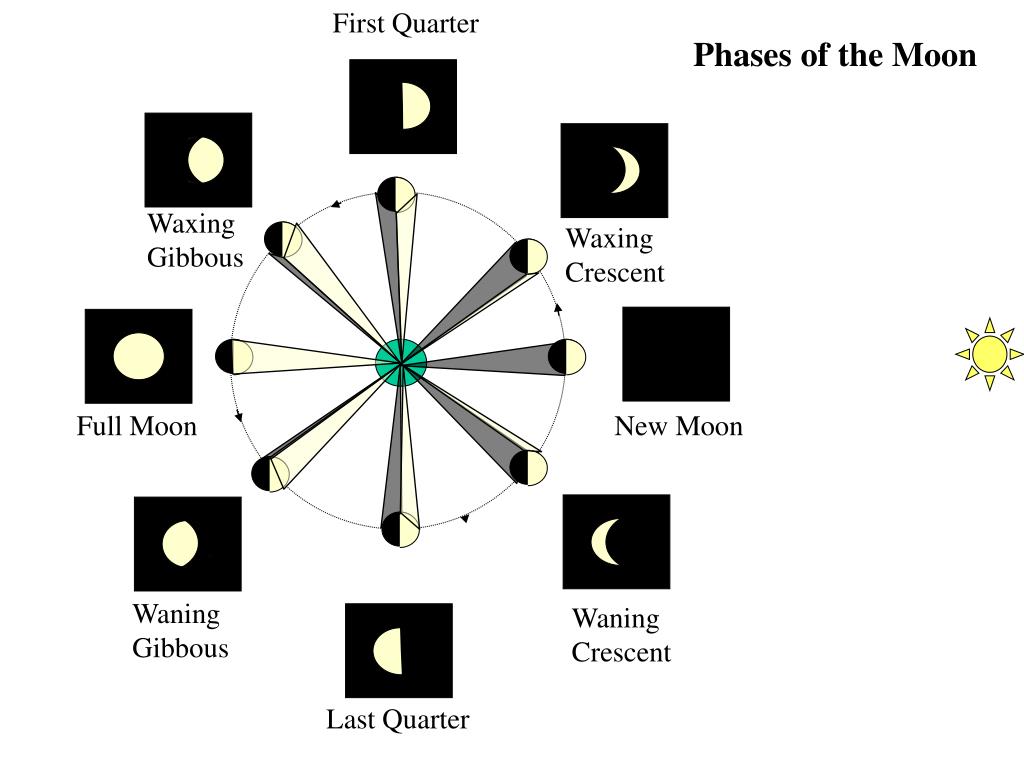

Slide4 l.jpg

First Quarter

Waxing

Gibbous

Waxing

Crescent

Full Moon

New Moon

Waning

Gibbous

Waning

Crescent

Last Quarter

Phases of the Moon


Phases photos l.jpg

Phases - Photos


Rotation of the moon l.jpg

Rotation of the Moon

  • We only see one side of the moon

  • Moon rotates at the same rate as it orbits the Earth

  • When spin and orbital periods are correlated = synchronous orbit


Rotation of the moon7 l.jpg

Rotation of the Moon


Moon part of far side l.jpg

Moon -- Part of Far Side


Orbit of the moon lunar month l.jpg

Orbit of the Moon – Lunar Month

  • Sidereal Month = amount of time for the moon to come to same spot with respect to the celestial sphere. (27.3 days)

  • Solar Month = amount of time for the moon to come to same position with respect to the sun (29.5 days)

    • One Lunar phase cycle


Siderial and solar month l.jpg

Siderial and Solar Month


Eclipses l.jpg

Umbra

Sun

E

Penumbra

Eclipses

  • Umbra = darkest shadow of and object.

    • Sun completely blocked in umbra

  • Penumbra = lighter shadow

    • Sun only partially blocked


Eclipses12 l.jpg

Eclipses

  • Solar eclipse = when the Earth passes through the shadow of the moon

  • Lunar eclipse = when the Moon passes through the shadow of the Earth


Total solar eclipse l.jpg

Umbra

View from the Earth

Sun

E

Penumbra

Total Solar Eclipse

  • Sun completely covered by the moon -- seen only in the umbra

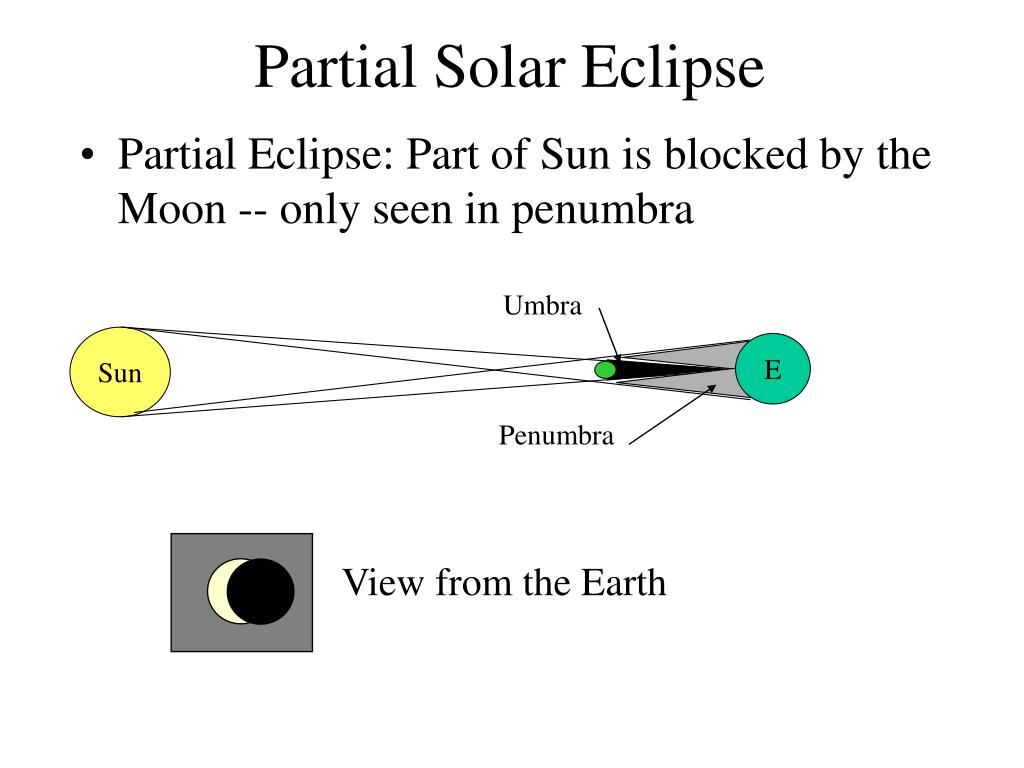

Partial solar eclipse l.jpg

Umbra

View from the Earth

Sun

E

Penumbra

Partial Solar Eclipse

  • Partial Eclipse: Part of Sun is blocked by the Moon -- only seen in penumbra


Annular solar eclipse l.jpg

Umbra

Sun

E

Penumbra

Umbra does not touch the Earth

View from the Earth

Annular Solar Eclipse

  • Moon too far from Earth to cover Sun completely -- umbra does not reach the Earth


Solar eclipse l.jpg

Solar Eclipse


Solar eclipse august 11 1999 l.jpg

Solar Eclipse -- August 11, 1999


Total lunar eclipse l.jpg

Umbra

Total Eclipse

Sun

E

View from Earth

Penumbra

Total Lunar Eclipse

  • Moon pases through umbra of the Earth.


Penumbral eclipse l.jpg

Penumbral Eclipse

View from Earth

Penumbral Eclipse

  • Moon only passes through penumbra.

Umbra

Total Eclipse

Sun

E

Penumbra


Partial lunar eclipse l.jpg

Partial Eclipse

Umbra

Total Eclipse

Sun

E

Penumbral Eclipse

Penumbra

View from Earth

Partial Lunar Eclipse

  • Moon partially passes through umbra.


Lunar eclipse l.jpg

Lunar Eclipse


Why are there few eclipses l.jpg

Why are there few eclipses?

  • Orbit of moon is tilted with respect to Earth’s orbital plane by 5°

  • Line of Nodes = position where moon and earth’s orbital planes intersect


Line of nodes l.jpg

Line of Nodes

  • When the moon is on the line of nodes it is crossing the Earth’s orbital plane

  • At other times moon is slightly above or below the Earth’s orbital plane

  • If moon crosses the line of nodes near a new or full phase an eclipse will occur


Orbit of the moon l.jpg

Orbit of the Moon
