Presentation Transcript
Configuration management for transportation management systems l.jpg

Configuration Management for Transportation Management Systems

Brian L. Smith

Center for Transportation Studies

Project Update

June 3, 2003

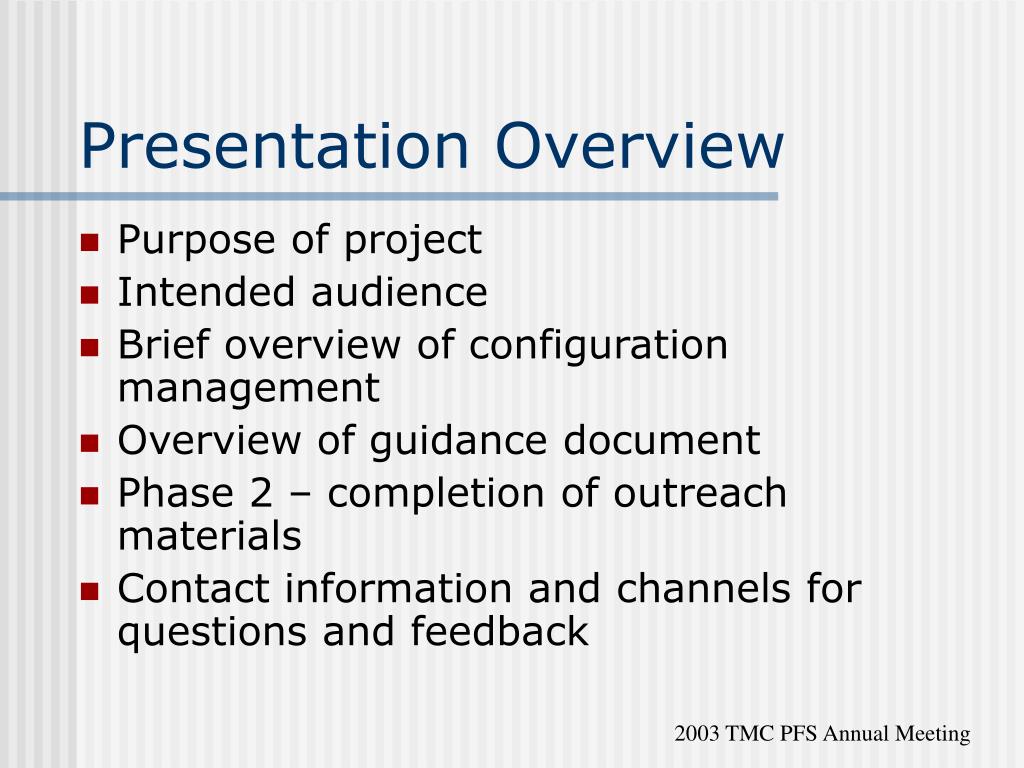

Presentation overview l.jpg
Presentation Overview Systems

  • Purpose of project

  • Intended audience

  • Brief overview of configuration management

  • Overview of guidance document

  • Phase 2 – completion of outreach materials

  • Contact information and channels for questions and feedback

2003 TMC PFS Annual Meeting


Project purpose l.jpg
Project Purpose Systems

  • Configuration Management for Transportation Management Systems is intended to provide guidance for transportation professionals who are either

    • seeking to improve change management in a traffic management system or regionally integrated intelligent transportation system by introducing formal CM, or

    • using CM currently and require a technical reference to support their activities.

2003 TMC PFS Annual Meeting


Intended audience l.jpg
Intended Audience Systems

  • Configuration Management for Transportation Management Systems is intended to be guidance material for any individual who is engaged with or responsible for the planning, design, implementation, management, operation or maintenance of transportation management systems.

  • Supports both

    • Technical personnel

    • Policy/program-level personnel

2003 TMC PFS Annual Meeting


Project status l.jpg
Project Status Systems

  • Content for guidance document is complete

    • Comprehensive

    • Many concrete examples

    • Best practices recommended

  • Current effort

    • Complete document formatting

    • Complete related outreach materials

2003 TMC PFS Annual Meeting


Overview of cm l.jpg
Overview of CM Systems

  • Before providing an overview of the guidance document, important to briefly review the fundamentals of configuration management

  • This overview is included in Chapter 1 of the document.

2003 TMC PFS Annual Meeting


Configuration management l.jpg
Configuration Management Systems

A management process for establishing and maintaining consistency of a product’s performance, functional, and physical attributes with its requirements, design, and operational information throughout its life. -EIA Standard 649

2003 TMC PFS Annual Meeting


Cm process l.jpg

Configuration Systems

Management

Configuration

Identification

Change

Management

Configuration

Status

Accounting

Define the product and

its configuration

documentation

Identification

Control changes to a Product and its configuration documentation

Provide status and information about a product and its configuration documentation

Configuration

Audits

Verify consistency of configuration documentation against the product

CM Process

2003 TMC PFS Annual Meeting


Cm plan l.jpg
CM Plan Systems

  • CM Plan describes how configuration management is accomplished and how consistency between system’s configuration and the configuration records is achieved and maintained

2003 TMC PFS Annual Meeting


Configuration identification l.jpg
Configuration Identification Systems

  • Configuration Identification is the basis from which the configuration of items are defined and verified products and documents are labeled and changes are managed.

2003 TMC PFS Annual Meeting


Change control l.jpg
Change Control Systems

  • Change Control is a process for managing product configuration changes and variances in order to assure system integrity

2003 TMC PFS Annual Meeting


Config status accounting l.jpg
Config Status Accounting Systems

  • Configuration Status Accountingis a set of activities associated with periodic reporting on the status of a configuration and the changes to that configuration

2003 TMC PFS Annual Meeting


Configuration audits l.jpg
Configuration Audits Systems

  • Configuration Audits ensure that the performance and functional requirements defined in the configuration documentation have been achieved and that the design itself has been accurately documented.

2003 TMC PFS Annual Meeting


Overview of guidance document l.jpg
Overview of Guidance Document Systems

  • Philosophy

  • Key features

  • Walk through chapter-by-chapter

2003 TMC PFS Annual Meeting


Philosophy l.jpg
Philosophy Systems

  • Generic CM guidance is available

  • There is a need to relate this available guidance to TMCs through concrete examples

    • Extensive use of real-world examples of CM usage in TMCs

  • Provide “pointers” to allow one to avoid reading document sequentially

2003 TMC PFS Annual Meeting


Features eia 649 l.jpg
Features – EIA 649 Systems

  • EIA Standard 649 was used as the foundation for the document. Basic definitions and guidance were derived from the standard.

2003 TMC PFS Annual Meeting


Features implementation guidance l.jpg
Features – Implementation Guidance Systems

  • Following standard definitions, specific implementation guidance as related to TMCs is provided.

2003 TMC PFS Annual Meeting


Features implementation guidance summary l.jpg
Features – Implementation Guidance Summary Systems

  • Following the discussion of implementation guidance, a summary box is presented for quick access and review

2003 TMC PFS Annual Meeting


Features best transportation practices l.jpg
Features – Best Transportation Practices Systems

  • Best transportation practices are presented. These are based on concrete examples included in the document.

2003 TMC PFS Annual Meeting


Features navigation help l.jpg
Features – Navigation Help Systems

  • Numerous navigation boxes are included to help readers gain further information on context-sensitive items.

2003 TMC PFS Annual Meeting


Chapter 1 introduction l.jpg
Chapter 1 - Introduction Systems

  • Fundamentals of CM

  • Resources

  • How to Use this Document

2003 TMC PFS Annual Meeting


Chapter 2 current practices l.jpg
Chapter 2 – Current Practices Systems

  • Results of a 2000 survey of agencies, intended to gauge level of activity in CM

  • Largely reproduced from NCHRP Synthesis report

  • Steering committee felt this information provides importance context for remainder of document

2003 TMC PFS Annual Meeting


Chapter 3 cm processes l.jpg
Chapter 3 – CM Processes Systems

  • Covers every component of the CM process.

  • Heavy emphasis on

    • Describing & presenting transportation best practices

    • Highlighting key aspects of CM standards

2003 TMC PFS Annual Meeting


Chapter 4 cm plan l.jpg
Chapter 4 – CM Plan Systems

  • This chapter is devoted to CM planning

  • Example CM Plan outline presented

  • Extensive transportation best practices.

2003 TMC PFS Annual Meeting


Chapter 5 cm baselines l.jpg
Chapter 5 – CM Baselines Systems

  • What is a baseline?

    • Including different types of baselines

  • Importance of establishing and maintaining a baseline

  • Transportation best practices

2003 TMC PFS Annual Meeting


Chapter 6 cm program l.jpg
Chapter 6 – CM Program Systems

  • The theme of this chapter is “making it work in your agency”

  • Specific topics

    • Establishing a CM Program

    • Organizing for CM

    • Personnel

    • Budgeting Considerations

2003 TMC PFS Annual Meeting


Chapter 7 cm the system lifecycle l.jpg
Chapter 7 – CM & the System Lifecycle Systems

  • This chapter provides specific guidance on the use of CM as a system moves from a concept to operations

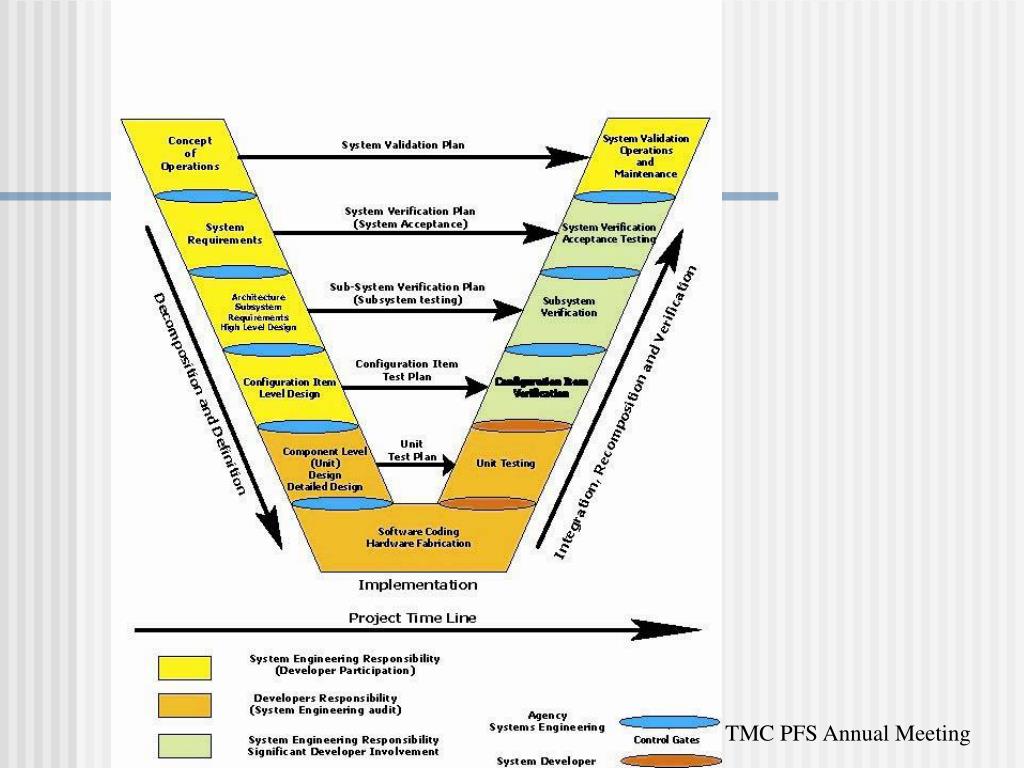

  • Integrated with the system engineering lifecycle “V” diagram

2003 TMC PFS Annual Meeting



Chapter 8 cm tools l.jpg
Chapter 8 – CM Tools Systems

  • Presents software tools available to support a CM program

  • Includes a link to a website providing an inventory of available tools

  • Examples of DOT’s selection and usage of tools

2003 TMC PFS Annual Meeting


Chapter 9 resources to support cm l.jpg
Chapter 9 – Resources to Support CM Systems

  • Addresses training and staff development needs

    • Available training courses

    • On-line resources

  • Discusses the use of consulting services in a CM program

2003 TMC PFS Annual Meeting


Chapter 10 conclusion l.jpg
Chapter 10 - Conclusion Systems

  • Focus on key guiding principles

  • Nine principles that were selected from EIA 649

    • Include transportation-specific discussion of these principles

2003 TMC PFS Annual Meeting


Appendices l.jpg
Appendices Systems

  • A – Description/Summary of EIA 649

  • B – Annotated Bibliography

  • C – Summary of CM Plans

  • D – System Descriptions (used in Transportation Best Practices)

  • E – List of References

  • F – List of Acronyms

2003 TMC PFS Annual Meeting


Phase 2 complete outreach materials l.jpg
Phase 2 – Complete Outreach Materials Systems

  • Effort began in May 2003

  • Partnership

    • UVA Smart Travel Lab

    • SAIC

      • Lead - Rebecca Doyle

  • Purpose – to develop outreach materials based on core document

2003 TMC PFS Annual Meeting


Outreach materials l.jpg
Outreach Materials Systems

  • Presentation

  • Fact sheet

  • Tri-fold brochure

  • Communications plan

  • CM Primer

  • CM Research & Development Needs White Paper

  • Final publication of guidance document

2003 TMC PFS Annual Meeting



Slide38 l.jpg

For More Information Systems

Brian L. Smith

[email protected]

http://SmartTravelLab.virginia.edu

Rebecca Doyle

[email protected]

2003 TMC PFS Annual Meeting
