Geographic information -

Imagery and gridded data

Wolfgang Kresse

[email protected]

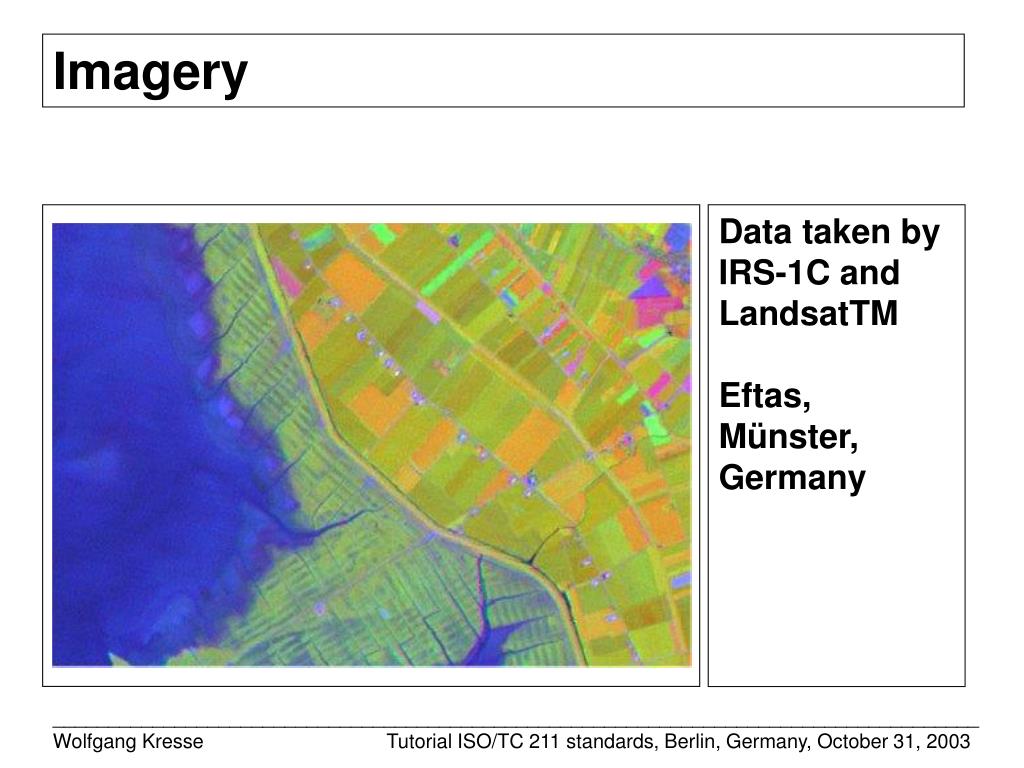

Imagery

Data taken by

IRS-1C and

LandsatTM

Eftas, Münster, Germany




ISO-Standards

ISO 19101-2 “Reference model for imagery“

ISO 19115-2 “Metadata – Part 2: Extensions for imagery …“

ISO 19118-2 “Encoding for imagery“ (*)

ISO 19xxx “Calibration/Validation for imagery” (*)

ISO 19129 “Imagery, gridded and coverage data framework“

ISO 19130 “Sensor and data models for imagery and gridded data“

(*) Title still unofficial


ISO 19101-2

“Reference model - imagery“

  • Extension of existing ISO 19101 “Reference model”,

  • Based upon models of information science

  • Computational Viewpoint:

    • Functional decomposition

  • Information Viewpoint:

    • Semantics of information

  • Engineering Viewpoint:

    • Interaction between sensor and platform

  • Outline for typical applications

  • Example:

  • photogrammetric project according to DIN 18740-x

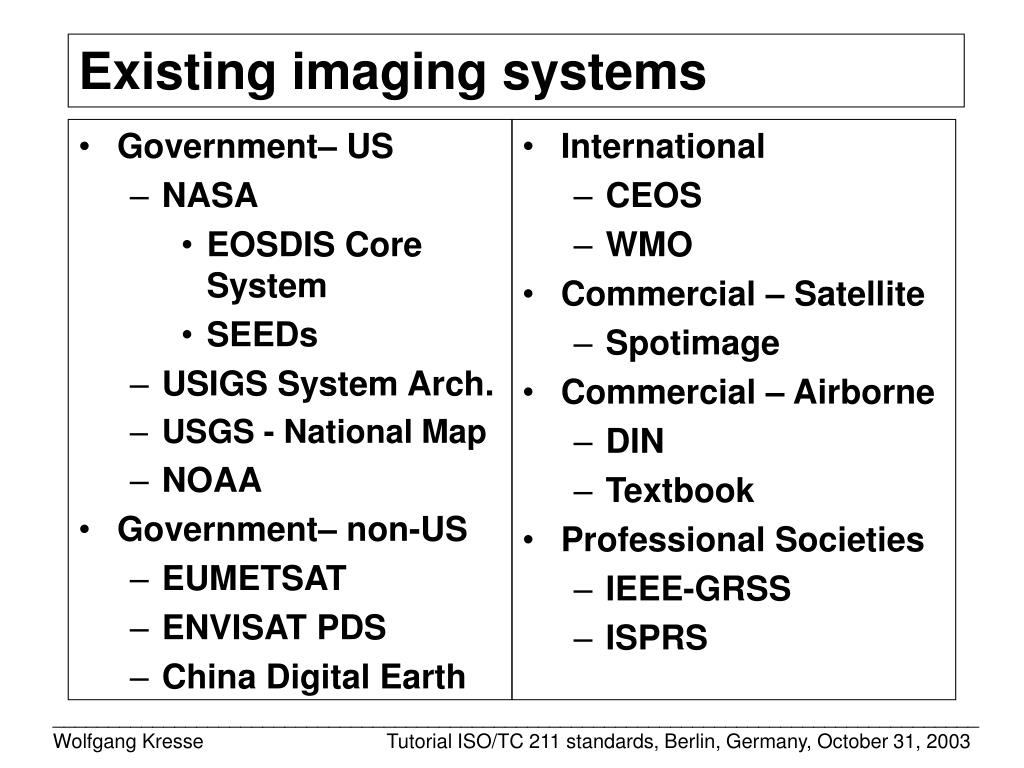

  • Existing imaging systems

    • Government– US

      • NASA

        • EOSDIS Core System

        • SEEDs

      • USIGS System Arch.

      • USGS - National Map

      • NOAA

    • Government– non-US

      • EUMETSAT

      • ENVISAT PDS

      • China Digital Earth

    • International

      • CEOS

      • WMO

    • Commercial – Satellite

      • Spotimage

    • Commercial – Airborne

      • DIN

      • Textbook

    • Professional Societies

      • IEEE-GRSS

      • ISPRS


    Classes of operations on images

    Image sensing

    Image processing

    Image analysis

    Image interpretation

    Image synthesis

    Image presentation

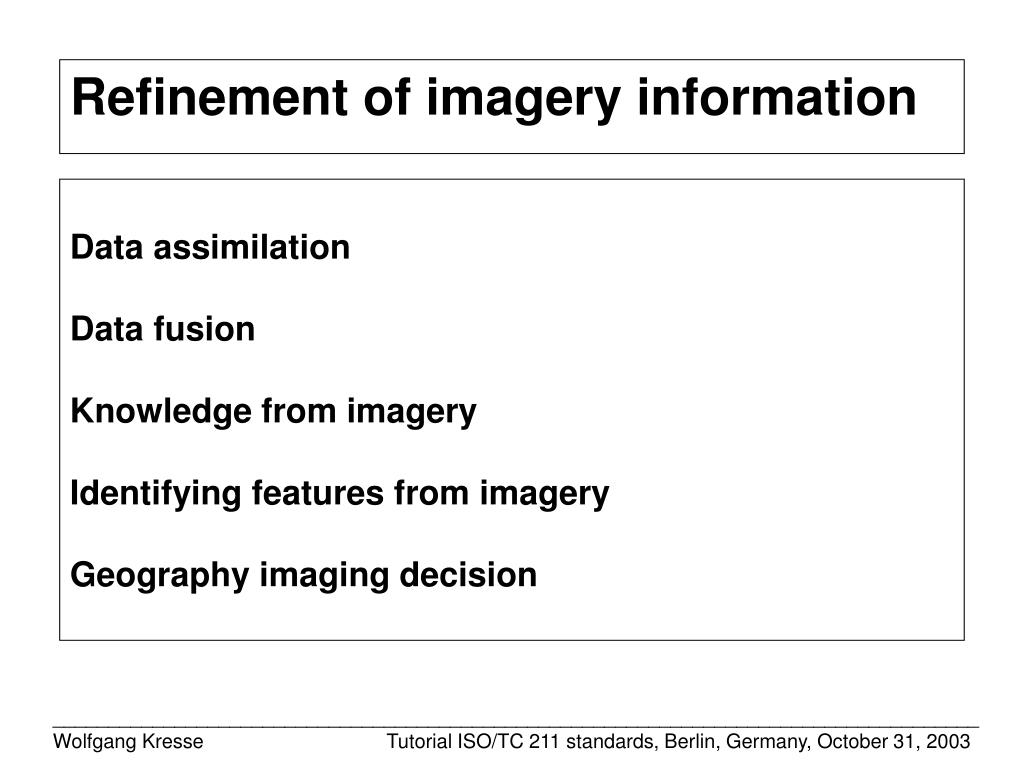

    Refinement of imagery information

    Data assimilation

    Data fusion

    Knowledge from imagery

    Identifying features from imagery

    Geography imaging decision

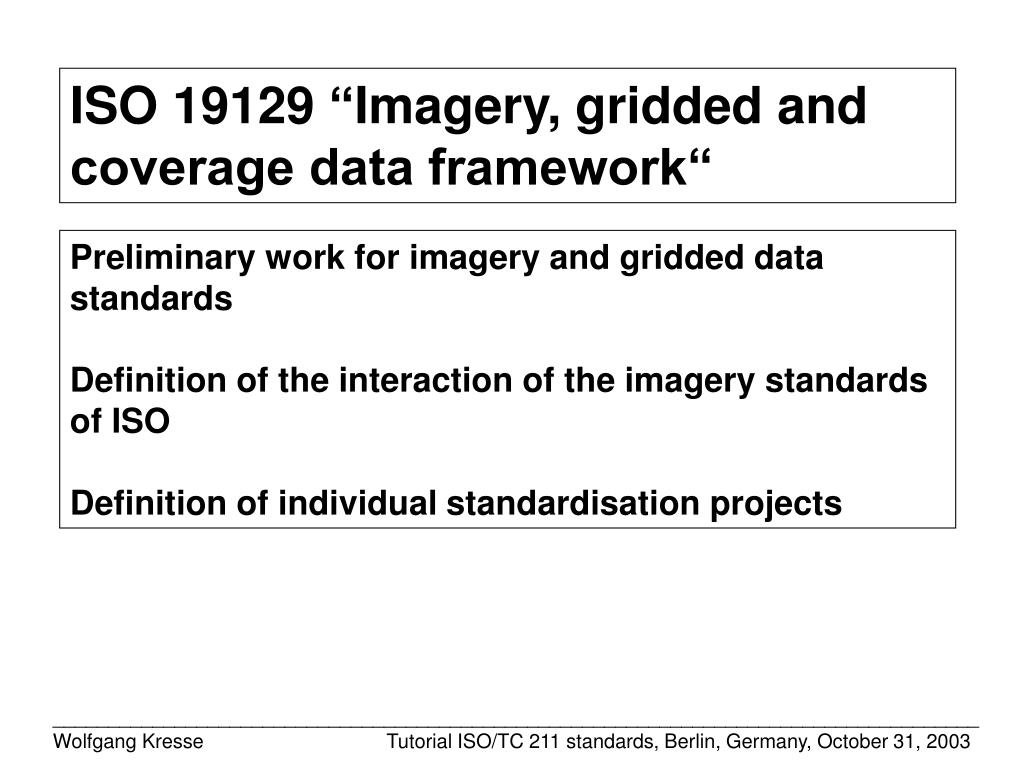

    ISO 19129 “Imagery, gridded and

    coverage data framework“

    Preliminary work for imagery and gridded data standards

    Definition of the interaction of the imagery standards of ISO

    Definition of individual standardisation projects

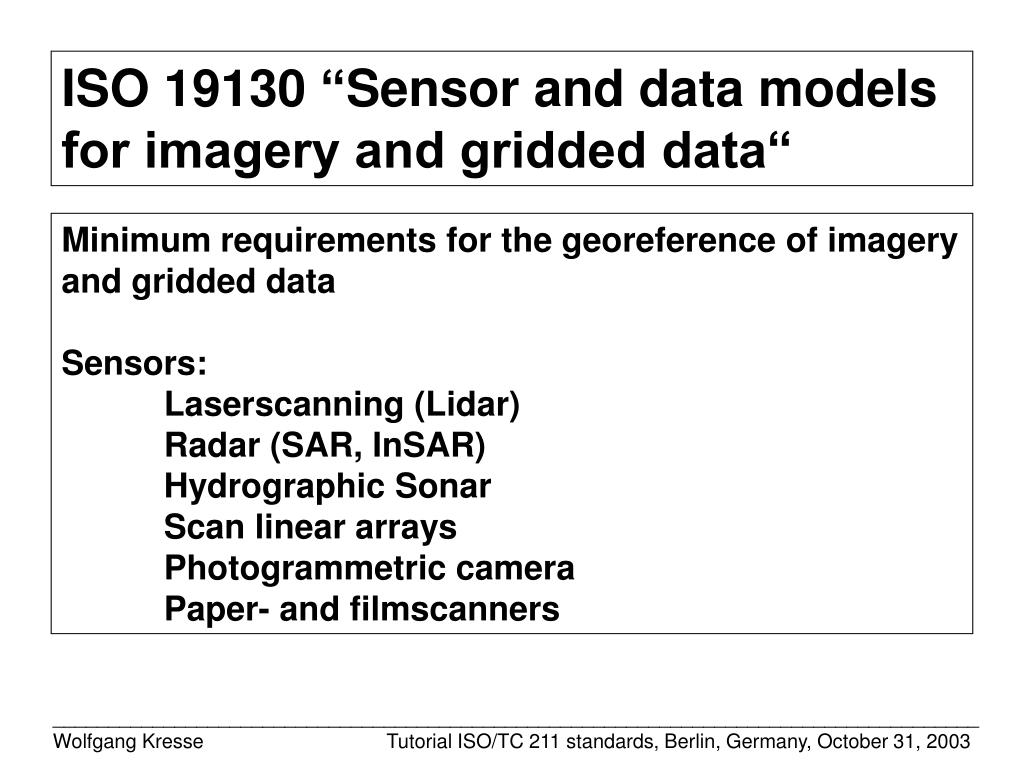

    ISO 19130 “Sensor and data models

    for imagery and gridded data“

    Minimum requirements for the georeference of imagery and gridded data

    Sensors:

    Laserscanning (Lidar)

    Radar (SAR, InSAR)

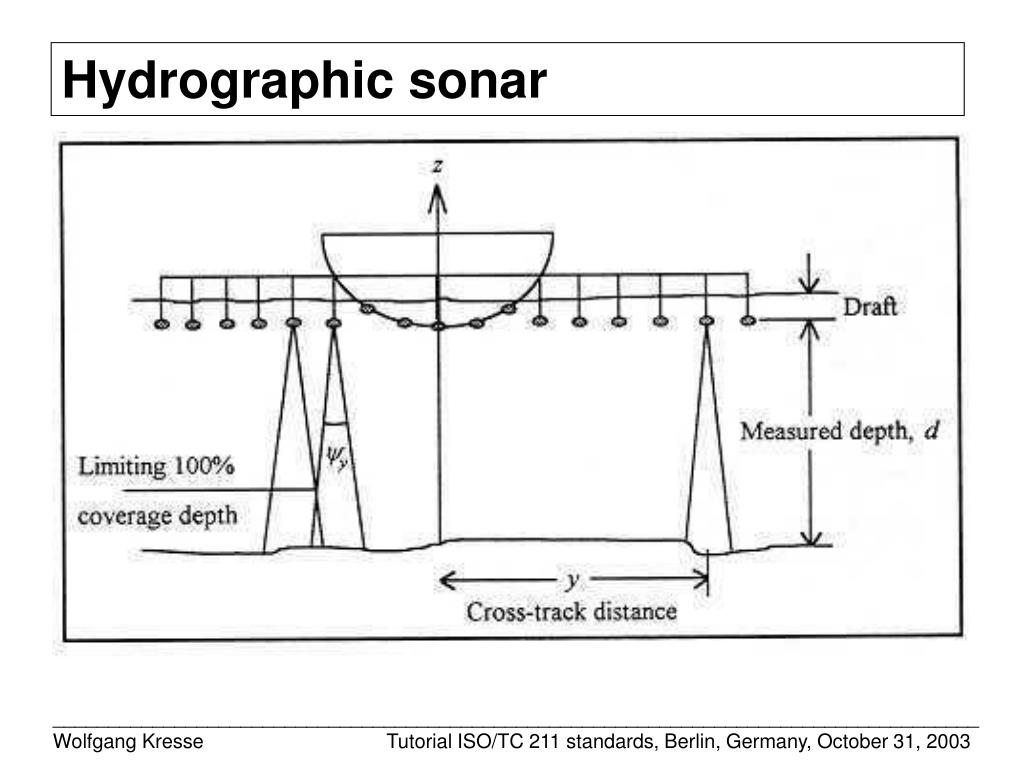

    Hydrographic Sonar

    Scan linear arrays

    Photogrammetric camera

    Paper- and filmscanners

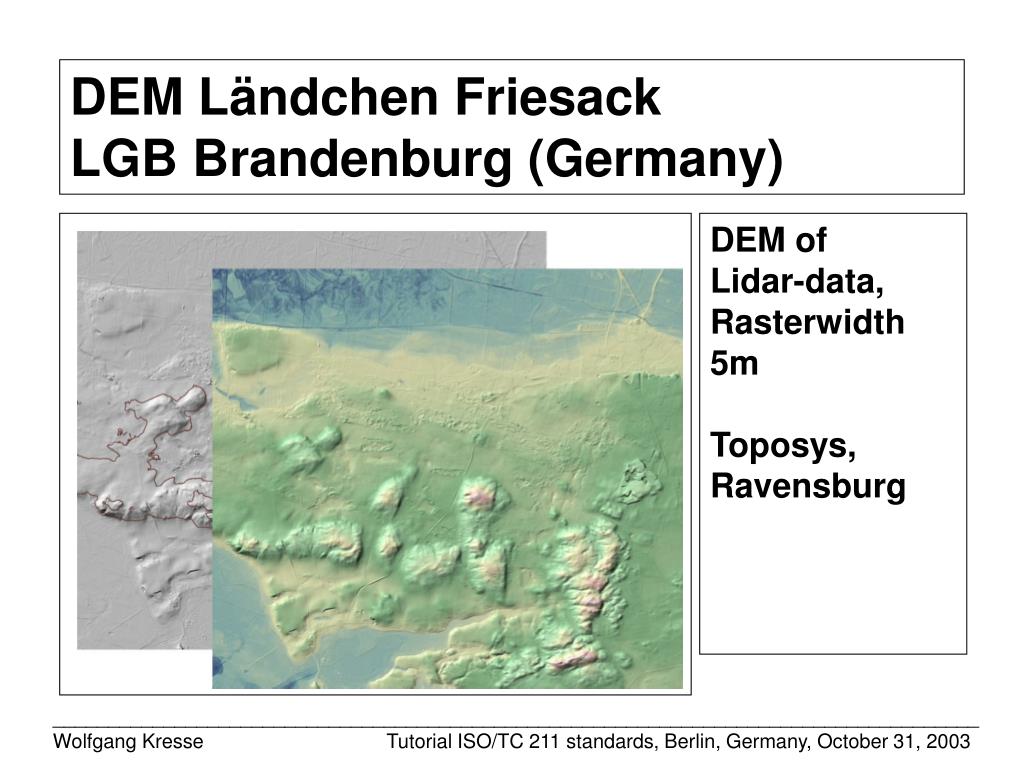

    DEM Ländchen Friesack

    LGB Brandenburg (Germany)

    DEM of

    Lidar-data,

    Rasterwidth 5m

    Toposys,

    Ravensburg


    Rs

    Rg

    SAR SARInSAR



    Focal plane

    Optical system

    Scan mirror/telescope system

    Scan direction

    Cross track

    Ground track

    Scan linear array



    Geolocation Information

    Rigorous Model

    using a sensor model

    Functional Fit Model

    Polynomial Fit (Polynomial functions)

    Grid Interpolation

    Ratios of Polyomials

    Universal Real Time (mosaic of ratios of Polyn.)

    Terminology issue:

    Ground Control Point (GCP)

    Location GCP (row, column, x, y, (z))

    Survey GCP (ID, x, y, (z))


    Sensor Model Language (SensorML)

    Scanner/Profiler Model

    The line-of-sight sensor (one Pixel per time)

    Conic scanners

    Line-scanners

    Imager

    Optical Camera Model

    Frame camera

    Video camera

    SLR camera (Single Lens Reflex cameras)

    Rapid Positioning Coordinate (Universal Real Time)

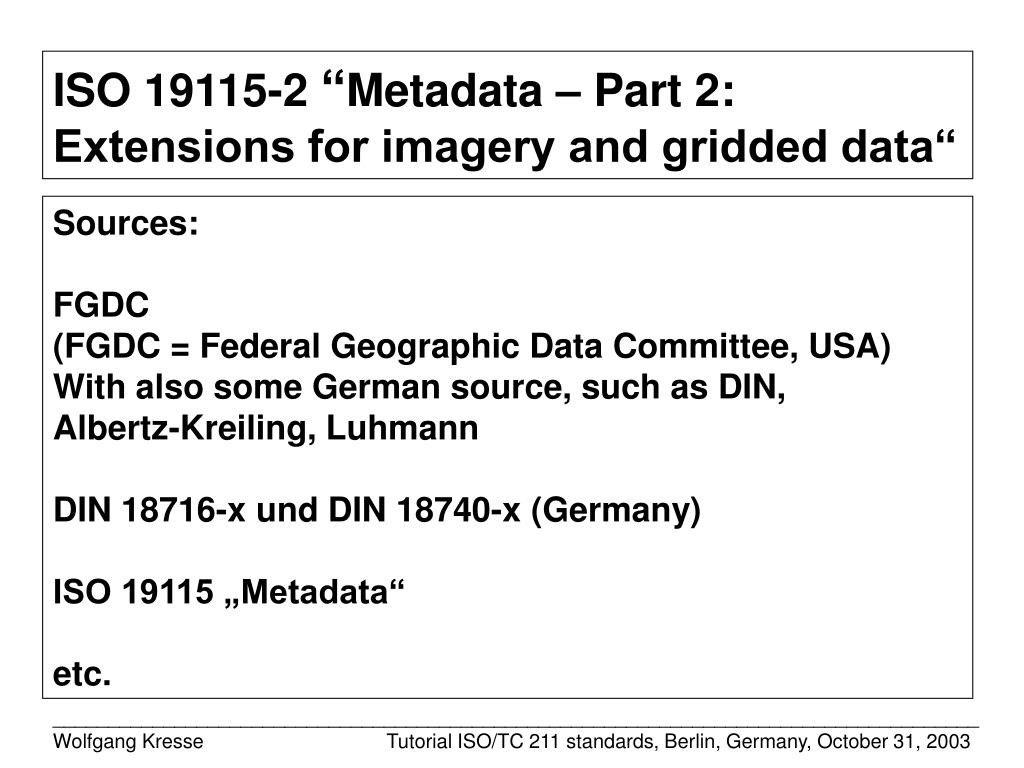

    ISO 19115-2 “Metadata – Part 2:

    Extensions for imagery and gridded data“

    Sources:

    FGDC

    (FGDC = Federal Geographic Data Committee, USA)

    With also some German source, such as DIN,

    Albertz-Kreiling, Luhmann

    DIN 18716-x und DIN 18740-x (Germany)

    ISO 19115 „Metadata“

    etc.

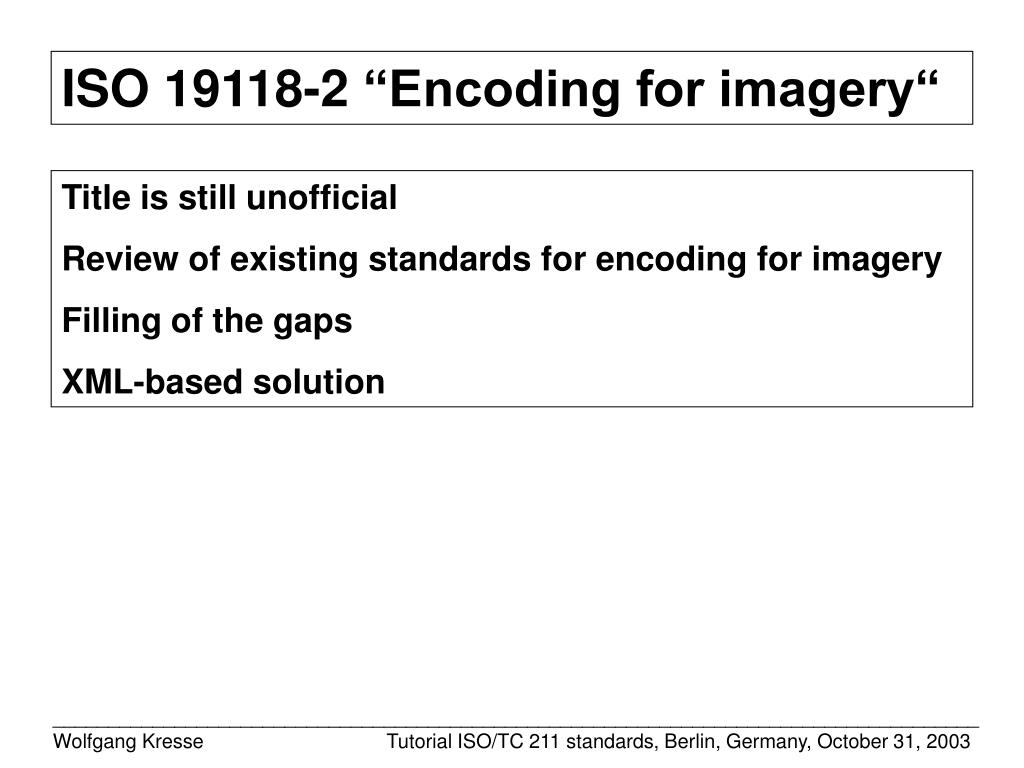

    ISO 19118-2 “Encoding for imagery“

    Title is still unofficial

    Review of existing standards for encoding for imagery

    Filling of the gaps

    XML-based solution

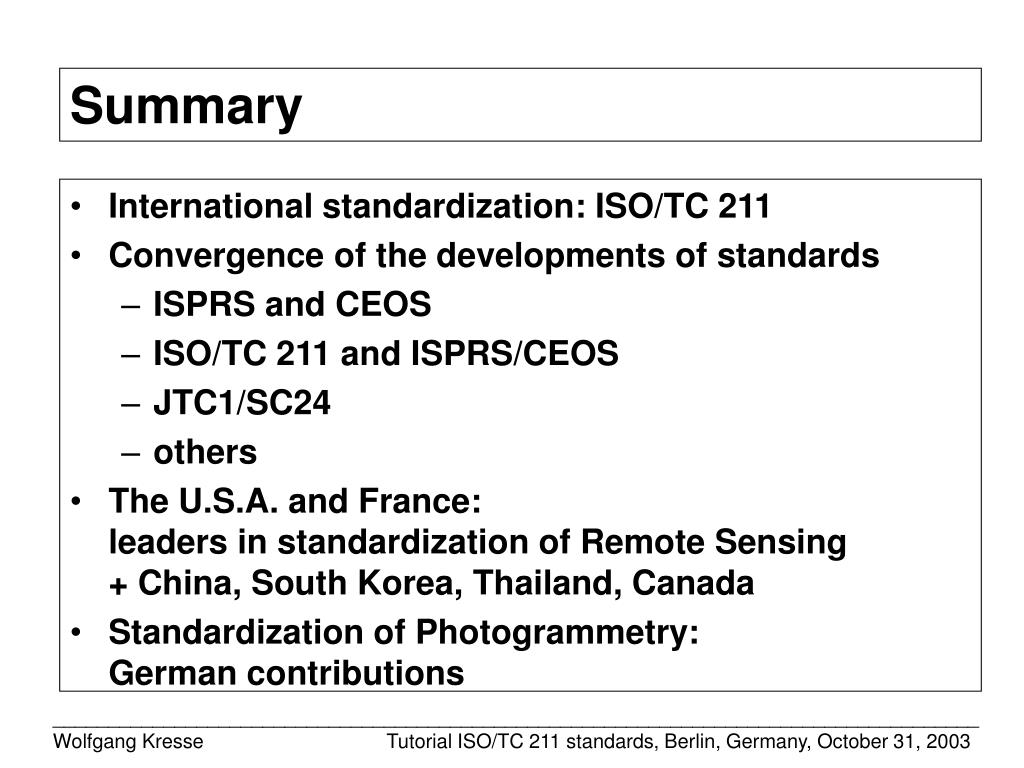

    Summary

    • International standardization: ISO/TC 211

    • Convergence of the developments of standards

      • ISPRS and CEOS

      • ISO/TC 211 and ISPRS/CEOS

      • JTC1/SC24

      • others

    • The U.S.A. and France:leaders in standardization of Remote Sensing+ China, South Korea, Thailand, Canada

    • Standardization of Photogrammetry:German contributions
