Presentation Transcript
Introduction to macromedia flash l.jpg

Introduction toMacromedia Flash

Adobe

Kevin McManus

the University of Greenwich


We are going to look at l.jpg
We are going to look at

  • What is Flash

    • an IDE to create shockwave media

  • Animation

    • timelines, symbols, tweening

  • Programming with ActionScript

  • Sound

  • Publishing on the Web

  • Morphing

  • Fonts

  • Forms

the University of Greenwich


Shockwave l.jpg
Shockwave

  • Binary file format for Flash web pages

    • small download sizes

    • open standard

    • requires a browser to have a shockwave plug-in

      • only from macromedia

      • currently at version 8 in Adobe Flash CS3

  • Supports all features found in DHTML

    • plus so much more

    • extensive animation support

      • vector and bitmap graphics

    • guaranteed pixel perfect on all browsers

      • providing they have a shockwave plug-in

      • no more browser compatibility issues

the University of Greenwich


Shockwave4 l.jpg
Shockwave

  • Created using the Flash environment

    • sophisticated IDE

      • work with .fla files and compile to .swf files to publish

    • graphics + animation toolkit

    • part of Adobe Creative Suite 3

      • Dreamweaver, Contribute, Fireworks, Illustrator, PhotoShop

        • not ColdFusion

  • Other shockwave tools

    • Swish and many others

  • Sophisticated applications

    • ActionScript programming in the client

    • Flash remoting to access server side scripts

    • XML and web service interfaces

the University of Greenwich


Animation l.jpg
Animation

  • Cell based (frame) animation

    • key frames

    • motion tweening

    • shape tweening - morphing

  • Path based (vector) animation

    • follows an object’s transition over a vector

  • Combination of cell and path based animation

  • Computational animation

    • object moves by calculating its x and y coordinates

  • Program or script based animation

    • ActionScript - Flash’s scripting language

      • ECMA script

      • flexible, powerful, interactive

      • not as powerful as Lingo - Director’s scripting language

the University of Greenwich


Flash l.jpg
Flash

Animation IDE with the ability to support

  • Scripted behaviors

    • ActionScript

  • User interaction

    • events

    • forms

  • Key Frames

    • timeline

  • Tweening

    • motion

    • shape

  • Layers

  • Symbols, buttons and movie clips

the University of Greenwich


Flash7 l.jpg
Flash

  • IDE with lots of training support in built

    • A set of lessons implemented as interactive Flash movies complete with template files

      • Getting started with Flash

      • Illustrating in Flash

      • Adding and editing text

      • Creating and editing symbols

      • Understanding layers

      • Creating tweened animation

      • Creating buttons

    • Comprehensive set of HTML tutorials

    • Conventional HTML help system

  • It is a good idea to complete the lessons before attempting to do anything with Flash

the University of Greenwich


Symbols l.jpg
Symbols

  • Each symbol has a unique timeline and stage, complete with layers

  • When you create a symbol you choose the symbol type, depending on how you want to use the symbol in the movie

    • graphic symbols

    • button symbols

    • movie clip symbols

  • Use graphic symbols for static images

    • to create reusable pieces of animation that are tied to the timeline of the main movie

    • graphic symbols operate in sync with the movie's timeline

  • Interactive controls and sounds won't work in a graphic symbol's animation sequence

the University of Greenwich


Symbols9 l.jpg
Symbols

  • Use button symbols to create interactive buttons in the movie that respond to events

    • onRollOver, onPress, onRelease, etc

  • Define the graphics associated with various button states

    • assign actions to a button instance.

  • Use movie clips symbols to create reusable pieces of animation.

  • Movie clips have their own multi-frame timeline that plays independent of the main movie's timeline

    • movies inside movies

    • can contain interactive controls, sounds

    • even other movie clip instances.

  • Place movie clip instances inside the timeline of a button symbol to create animated buttons.

the University of Greenwich


Bouncing ball l.jpg
Bouncing Ball

  • Exercise to animate a bouncing ball

    • Make the ball

    • Turn it into a symbol

    • Create a motion tween

    • Modifying the tween

    • Guide lines

    • Easing

    • Buttons

the University of Greenwich


Make the ball l.jpg
Make the Ball

  • Draw with the oval tool

    • Fill with a texture to give a “3D” effect

    • Save it as a symbol in the library

      • why?

        • can’t use it until it is in the library

        • motion tweens work with symbols

  • Before a shape is a symbol in the library it is a graphic on the stage consisting of strokes and fills

the University of Greenwich


Keyframes l.jpg
Keyframes

  • The symbol exists in a keyframe (1) in a layer on the timeline

    • insert another keyframe in the layer

      • right click in a blank frame (30)

    • set a motion tween between them

      • right click between the two key frames

  • In the new key frame move the symbol to a different position

    • Flash interpolates

    • move the play head to see the effect

the University of Greenwich


Motion tween l.jpg
Motion Tween

  • You can animate by creating intermediate keyframes that modify the ball’s path

the University of Greenwich


Motion tween14 l.jpg
Motion Tween

  • But this is clumsy

    • the interpolation is not effective

  • Add guide lines using a guide layer to effectively control motion

    • force the symbol to follow a path

the University of Greenwich


Guide layer l.jpg
Guide Layer

  • They’re still jagged -let’s smooth them and curve them

the University of Greenwich


Guide layer16 l.jpg
Guide Layer

the University of Greenwich


Easing l.jpg
Easing

  • Easing is a way of controlling the frame rate to…

    • accelerate into a scene

    • decelerate out of a scene

note orient to path

the University of Greenwich


Buttons l.jpg
Buttons

  • There is an internal timeline (state-line) associated with each button

  • When the user interacts with the button (a mouse event) the button references its internal timeline and performs the action set for it

  • There are four button states:

    • Up (first frame) dormant no interaction with mouse

    • Over (second frame) rollover by mouse

    • Down (third frame) mouse button down and over button

    • Hit (fourth frame) not seen by user, defines the area that responds to the mouse

the University of Greenwich


Buttons19 l.jpg
Buttons

  • Insert another layer and create a button symbol

  • Double click the symbol to see it’s timeline

  • Up must have some content

    • visual element for user interaction

the University of Greenwich

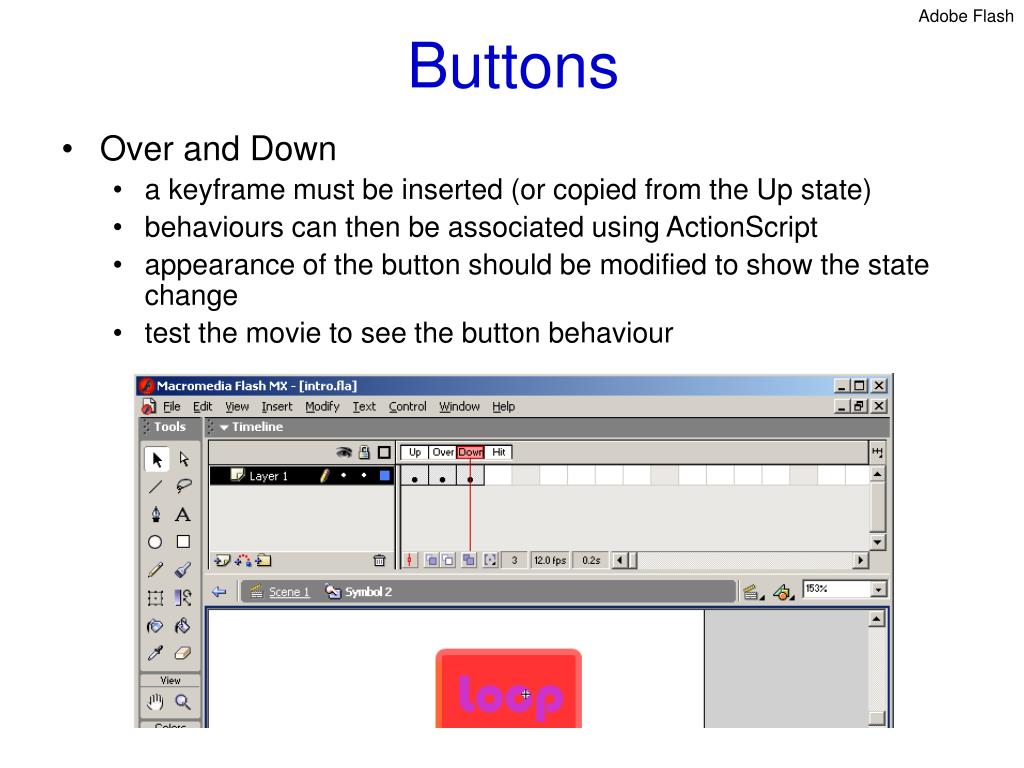

Buttons20 l.jpg
Buttons

  • Over and Down

    • a keyframe must be inserted (or copied from the Up state)

    • behaviours can then be associated using ActionScript

    • appearance of the button should be modified to show the state change

    • test the movie to see the button behaviour


Buttons21 l.jpg
Buttons

  • Hit

    • inserting a blank keyframe here stops the button working

    • defining the hit area is then necessary, this supercedes previous hit area definitions

    • why do this?

      • If you are using text as a button only the stroke of each character is considered a hit area. A hit area allows all of the box space of the text to respond to the mouse.

the University of Greenwich


Actionscript l.jpg
ActionScript

  • ActionScript provides elements, such as actions, operators, and objects, that you combine with scripts that tell your movie what to do

    • events, such as mouse overs, button clicks and key presses trigger these scripts.

    • e.g. use ActionScript to create navigation buttons for your movie

  • You can write simple scripts without a full understanding of ActionScript.

    • to begin working with ActionScript use the built-in tutorial resource

      Help > Tutorials > Introduction to ActionScript.

the University of Greenwich


Actionscript23 l.jpg
ActionScript

  • In Flash, you use the Actions panel to write ActionScript.

  • Attach scripts to buttons, movie clips or frames to create the required interactivity

  • In normal editing mode the Actions panel helps you to build scripts by choosing options from menus and lists.

  • In expert editing mode you enter text directly into the Script pane.

  • In both modes code hints help you complete actions and insert properties and events.

the University of Greenwich


Actionscript24 l.jpg
ActionScript

  • Add ActionScript to stop the movie in the last frame

select the last frame

expert view

add script


Actionscript25 l.jpg
ActionScript

  • Add ActionScript to handle events for buttons

or find the button in this menu

select the button

add script to replay the movie


Sound l.jpg
Sound

  • Flash offers a number of ways to handle sounds.

  • Make sounds that play continuously independent of the timeline

    • (sound has it’s own timeline)

  • Synchronize animation to a sound track

  • Add sounds to buttons to make them more interactive

    • make sounds fade in and out for a more polished sound track.

the University of Greenwich


Sound27 l.jpg
Sound

  • There are two types of sounds in Flash:

    • event sounds

      • an event sound must download completely before it begins playing, and it continues playing until explicitly stopped.

    • stream sounds.

      • stream sounds begin playing as soon as enough data for the first few frames has been downloaded

      • stream sounds can be synchronized to the timeline for playing on a web site.

the University of Greenwich


Sound28 l.jpg
Sound

  • Use Adobe Soundbooth to create audio files

    • or a wave editor such as GoldWave or CoolEdit

  • Import the sound into a movie

    File > Import to Library…

  • Select compression options for individual sounds

    • using the Sound Properties dialog box

    • define settings for all sounds in the movie in the Publish Settings dialog box.

  • Use sounds in shared libraries, to link a sound from one library to multiple movies.

  • Use the ActionScript onSoundComplete event to trigger an event based on the completion of a sound.

the University of Greenwich


Sound29 l.jpg
Sound

  • Create a layer to carry the sound

    • insert keyframes into the sound layer

    • drag sounds from the library onto the stage

the University of Greenwich


Publishing l.jpg
Publishing

  • Movies are usually published as shockwave files

    • embedded into HTML pages

      File > Publish Settings…

  • Can also publish in other formats - GIF, QuickTime, etc.

the University of Greenwich


Html embedding l.jpg
HTML Embedding

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en">

<head>

<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1" />

<title>Arrow</title>

</head>

<body bgcolor="#ffffff">

<object classid="clsid:d27cdb6e-ae6d-11cf-96b8-444553540000" codebase="http://fpdownload.macromedia.com/pub/shockwave/cabs/flash/swflash.cab#version=6,0,0,0" width="550" height="400" id="Arrow" align="middle">

<param name="allowScriptAccess" value="sameDomain" />

<param name="movie" value="Arrow.swf" />

<param name="quality" value="high" />

<param name="bgcolor" value="#ffffff" />

<embed src="Arrow.swf" quality="high" bgcolor="#ffffff" width="550" height="400" name="Arrow" align="middle" allowScriptAccess="sameDomain" type="application/x-shockwave-flash" pluginspage="http://www.macromedia.com/go/getflashplayer" />

</object>

</body>

</html>

Flash creates an HTML template using <embed> nested inside <object> for browser compatibility

the University of Greenwich


Xhtml strict l.jpg
XHTML Strict

  • Strictly speaking there is no <embed> element in XHTML

  • Could simply not include the <embed> element in the web page containing the shockwave

    • but then some browsers may not work

  • A workaround is to nest two <object> elements

    • use CSS to hide one of the objects

      • exploit some IE CSS quirks

    • see the XHTML 1.1 example in the teaching material

the University of Greenwich


Shape tweening l.jpg
Shape Tweening

  • Flash can transform one shape into another over a sequence of frames

    • shape tweening (morphing)

  • Insert two keyframes into the timeline

    • Insert graphics into the keyframes

  • Click on the timeline between the two keyframes and select Shape from the Tweening menu in the properties panel

    • the frames are coloured pale green with an arrow between them

  • Use the onion skin control to see the intermediate stages

  • Add shape hints to control the tweening

    Modify > Shape > Add Shape Hints

the University of Greenwich

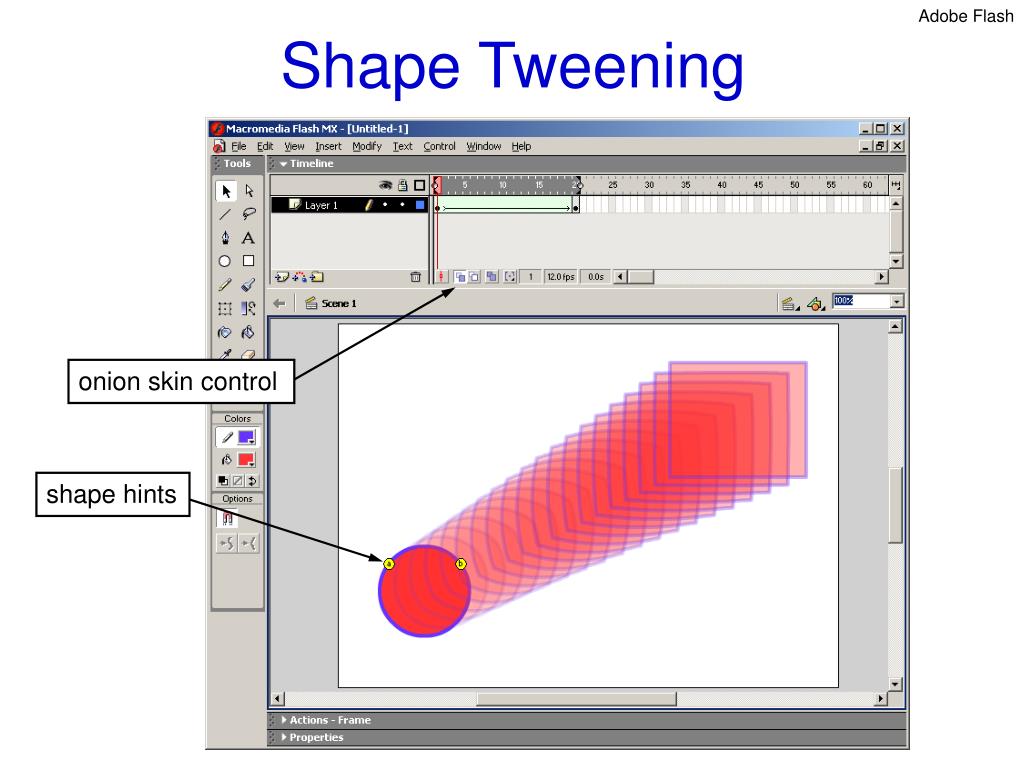

Shape tweening34 l.jpg
Shape Tweening

onion skin control

shape hints


Fonts l.jpg
Fonts

  • Flash provides an extensive font library

  • Insert some text onto the stage using the Text tool from the toolbox

  • Modify it’s properties

    • size, colour, font, style, justification, kerning

  • Text is created in symbolic form

    • Break the text apart (Modify) to

      • decompose strings into characters

      • decompose characters into stroke and fill graphics

      • allow shape tweening

the University of Greenwich



Forms l.jpg
Forms

  • Use text fields as input devices

    • select type Input Text from the properties

    • give the text fields a name

  • Other input devices can be found in the Components window

    • checkboxes, menus, etc

    • set their Properties

  • Create Button symbols

    • Add ActionScript to submit the form

the University of Greenwich


Forms38 l.jpg
Forms

more GUI components

add code to the button

the University of Greenwich


Forms39 l.jpg
Forms

on (release) {

// Prepare the data transfer object.

var sender = new LoadVars();

// Custom form-submission function.

function submitForm () {

if (validateForm()) {

// Assemble text field values into our LoadVars object.

sender.user = name_txt.text;

sender.pass = passwd_txt.text;

// Hidden field

sender.foo = "bar";

// Transfer the data to the server-side script.

sender.send("http://staffweb.cms.gre.ac.uk/~mk05/cgi-bin/form.pl", this, "GET");

} else {

//respond to user

}

}

function validateForm() {

// test input data

return true;

}

submitForm();

}

get the text from the text boxes

send data to a URL

the University of Greenwich


We have not looked at l.jpg
We have not looked at...

  • Sophisticated ActionScript

  • Remoting

  • AJAX like applications

    • see teaching material for example

  • XML and web services

  • Video

  • Flex

the University of Greenwich


Why not to flash l.jpg
Why not to Flash

  • Flash is evil

  • Clearly there are accessibility issues associated with Flash but does that make Flash intrinsically evil?

Macromedia says Flash is "the solution for producing and delivering high-impact web sites." It's also a solution for making your site highly annoying and downright unusable.

dack.com

the University of Greenwich

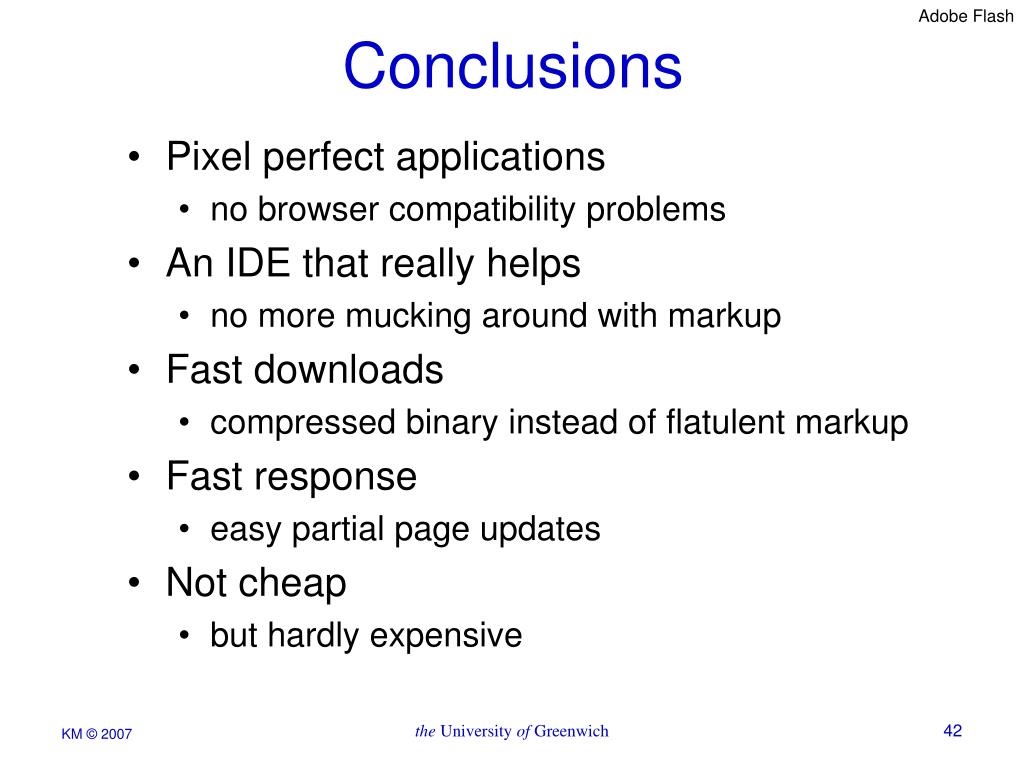

Conclusions l.jpg
Conclusions

  • Pixel perfect applications

    • no browser compatibility problems

  • An IDE that really helps

    • no more mucking around with markup

  • Fast downloads

    • compressed binary instead of flatulent markup

  • Fast response

    • easy partial page updates

  • Not cheap

    • but hardly expensive

the University of Greenwich


ad
