Presentation Transcript


Introduction to opengl l.jpg

Introduction toOpenGL

By

NematAllah Ahmadyan


About opengl l.jpg

About OpenGL

  • Open Graphic Library is an open-source library for displaying 2D/3D shapes.

  • a software interface to graphics hardware.


Implementation l.jpg

implementation

  • Mesa3D

    • Linux mostly

  • GLUT

    • Linux, ported to Win32


Using glut under win32 l.jpg

Using GLUT under Win32

  • Obtain GLUT from web

    • http://192.48.159.181/resources/libraries/glut/glut_downloads.html

  • Some IDEs ( like Dev-Cpp ) comes with bundled OpenGL/Glut

  • #include <gl/gl.h>

  • #include <gl/glut.h> // handles windows


Slide5 l.jpg

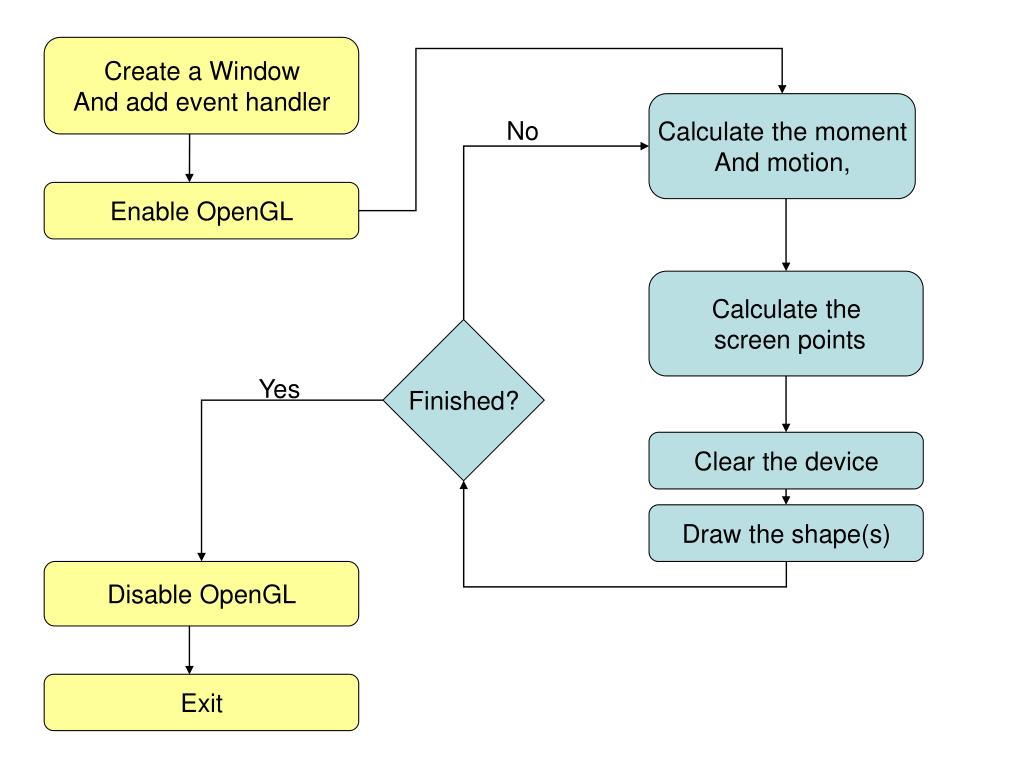

Create a Window

And add event handler

Calculate the moment

And motion,

No

Enable OpenGL

Calculate the

screen points

Finished?

Yes

Clear the device

Draw the shape(s)

Disable OpenGL

Exit


Prototype l.jpg

Prototype

  • LRESULT CALLBACK WndProc(HWND hWnd, UINT message,WPARAM wParam, LPARAM lParam);

  • void EnableOpenGL(HWND hWnd, HDC *hDC, HGLRC *hRC);

  • void DisableOpenGL(HWND hWnd, HDC hDC, HGLRC hRC);

  • void Simulate();

  • int WINAPI WinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPSTR lpCmdLine, int iCmdShow)
