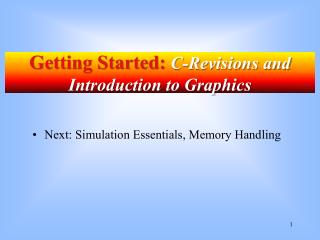

Getting Started: C-Revisions and Introduction to Graphics


Topics for discussion l.jpg

159.234

Elements of the Tank Game

Compiling your program

Topics for Discussion

Simple Animation

Double-buffering technique

Keyboard handling

Mouse handling

Demo



Elements of the game l.jpg

159.234

Graphics Engine

Keyboard & mouse control

Elements of the Game

Physics Engine

Dynamic Memory handling

Objects: Tank, Alien, Bomb, Bullet, Wall, Ledge

Transformation Equations, Zooming features

Trigonometric Equations


Slide5 l.jpg
Demo

  • C:\Core\Massey Papers\159234\Animation-2008-v.4.0

  • C:\Core\Massey Papers\159234\Bomb-v.1.0

  • C:\Core\Massey Papers\159234\Bomb-v.11.0

  • C:\Core\Massey Papers\159234\TankGame-2008-v.1.0

  • C:\Core\Massey Papers\159234\Assignments\Samples\A1-06193242-Sample\Tank 2.0

Why resort to writing codes using the Object-Oriented approach?


What can you notice here l.jpg
What can you notice here?

if(clock() > detonationTime){

for(int i=0; i < count; i++){

//Note: append Tank's x and y-components

Wx = Xdev(WBound,DBound,x(obj[i].t,obj[i].vO, obj[i].theta) + TankX); Wy = Ydev(WBound,DBound,y(obj[i].t,obj[i].vO, obj[i].theta) + TankY);

setlinestyle(SOLID_LINE, 0, 1);

fillellipse(Wx,Wy,Xdev(WBound,DBound,3.0),Xdev(WBound,DBound,3.0));

obj[i].t=obj[i].t + obj[i].tInc;

}

t=t+tinc;

}


What about here l.jpg
What about here?

for(int i=0; i < numOfBombs; i++){

b[i].activate();

b[i].tick(tfm);

b[i].draw(tfm);

}


C programming revisions l.jpg

159.234

C-LANGUAGE STRUCTURE

/* include statements */

#include <stdio.h>

#include <string.h>

/* define statements */

#define MAX 2000

/* function prototypes */

void subfunc(int argument);

/* global variables */

int i, j;

char c;

float x,y;

char s[80];

/* functions */

void subfunc(int argument) {

int i; /* local variables */

statements...

}

/* main program */

int main() {

statements...

}

C-Programming Revisions


Compiling your program l.jpg

159.234

MAKEFILE (for JFE)

Turn on all the warning messages possible

Compiling your Program

MyProg.exe : MyProg.o graphics.o

gcc -wl,-s -o MyProg.exe MyProg.o graphics.o

MyProg.o : MyProg.cpp graphics.h

gcc -c-fpermissive -fconserve-space MyProg.cpp

graphics.o : graphics.cpp graphics.h

gcc -c-fpermissive -fconserve-space graphics.cpp

Should start with a tab

This is the minimum requirement for compilation.


Graphics project l.jpg

159.234

WORKSPACE (JFE)

Graphics Project

MYPROG.CPP

GRAPHICS.CPP

GRAPHICS.H

MAKEFILE

GAME.WSP


Compiling your program11 l.jpg

159.234

MAKEFILE (for scite)

Compiling your Program

MyProg.exe : MyProg.ographics.o

g++ -wl,-s -o MyProg.exe MyProg.ographics.o

MyProg.o : MyProg.cpp graphics.h

g++ -c-fpermissive-fconserve-space MyProg.cpp

graphics.o : graphics.cpp graphics.h

g++ -c-fpermissive-fconserve-space graphics.cpp

This is the minimum requirement for compilation.


Slide12 l.jpg

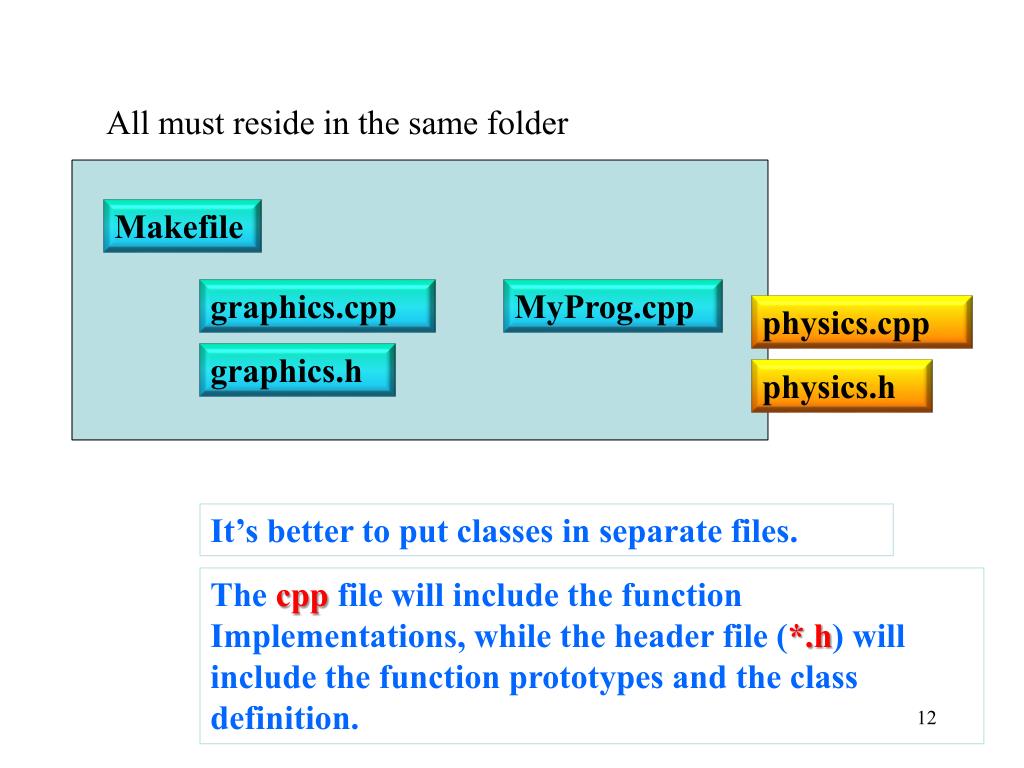

All must reside in the same folder

Makefile

graphics.cpp

MyProg.cpp

physics.cpp

graphics.h

physics.h

It’s better to put classes in separate files.

The cpp file will include the function

Implementations, while the header file (*.h) will

include the function prototypes and the class

definition.


Incorporating more files l.jpg

159.234

MAKEFILE (for scite)

MyProg.exe : MyProg.o transform.o fuzzylogic.o physics.o bomb.o graphics.o

g++ -Wl,-s -o MyProg.exe MyProg.o transform.o fuzzylogic.o physics.o bomb.o graphics.o

MyProg.o : MyProg.cpp graphics.h transform.h fuzzylogic.h bomb.h gameDef.h

g++ -c -fpermissive -fconserve-space MyProg.cpp

transform.o : transform.cpp transform.h

g++ -c -fpermissive -fconserve-space transform.cpp

fuzzylogic.o : fuzzylogic.cpp fuzzylogic.h

g++ -c -fpermissive -fconserve-space fuzzylogic.cpp

physics.o : physics.cpp physics.h

g++ -c -fpermissive -fconserve-space physics.cpp

bomb.o : bomb.cpp bomb.h

g++ -c -fpermissive -fconserve-space bomb.cpp

graphics.o : graphics.cpp graphics.h

g++ -c -fpermissive -fconserve-space graphics.cpp

Incorporating more files...


C programming revisions14 l.jpg

159.234

INITIALIZING GRAPHICS

#include <windows.h>

#include <stdio.h>

#include <math.h>

#include <time.h>

#include "graphics.h"

int main(void)

{

srand(time(NULL)); // Seed the random number generator

int GraphDriver=0,GraphMode=0;

initgraph(&GraphDriver, &GraphMode, "", 1280, 1024 );

TankGame();//start the game – this is user-defined function

return 0;

}

C-Programming Revisions

User-defined, take note of the double quotes.


Simple animation l.jpg

159.234

Single Page Animation (flickery!)

void SinglePage()

{

int i;

int x,y;

cleardevice();

y=getmaxy()/2;

while( (GetAsyncKeyState(VK_ESCAPE))==0 )

for(x=0;x<getmaxx();x++)

{

if(GetAsyncKeyState(VK_ESCAPE) != 0) break;

setactivepage(0);

cleardevice();

setfillstyle(SOLID_FILL,RED);

fillellipse(x,y,12,12);

rectangle(x,y+(getmaxy()/12),x+100,y+(getmaxy()/11));

settextjustify(CENTER_TEXT, CENTER_TEXT);

settextstyle(TRIPLEX_FONT, HORIZ_DIR, 4);

outtextxy(getmaxx()/2,getmaxy()/8,"PAGE 0");

}

}

Simple Animation

Check if the ESC key has been pressed


Slide16 l.jpg
Demo

  • C:\Core\Massey Papers\159234\TankGame-2008-v.1.0

  • See SinglePage and double buffering animations


Simple animation17 l.jpg

159.234

Double-buffering Animation (flicker-free!)

void MultiplePages()

{

int i, x, y;

bool PageFlag=TRUE;

setactivepage(1);

cleardevice();

outtext("PAGE 1");

setvisualpage(1);

y=getmaxy()/2;

while( (GetAsyncKeyState(VK_ESCAPE))==0 )

for(x=0;x<getmaxx();x++) {

if(GetAsyncKeyState(VK_ESCAPE) != 0) break;

if (PageFlag)

{

setactivepage(0);

cleardevice();

setfillstyle(SOLID_FILL,RED);

fillellipse(x,y,12,12);

rectangle(x,y+(getmaxy()/12),x+100,y+(getmaxy()/11));

settextjustify(CENTER_TEXT, CENTER_TEXT);

settextstyle(TRIPLEX_FONT, HORIZ_DIR, 4);

outtextxy(getmaxx()/2,getmaxy()/8,"PAGE 0");

setvisualpage(0);

}

Simple Animation

Continued...


C programming revisions18 l.jpg

159.234

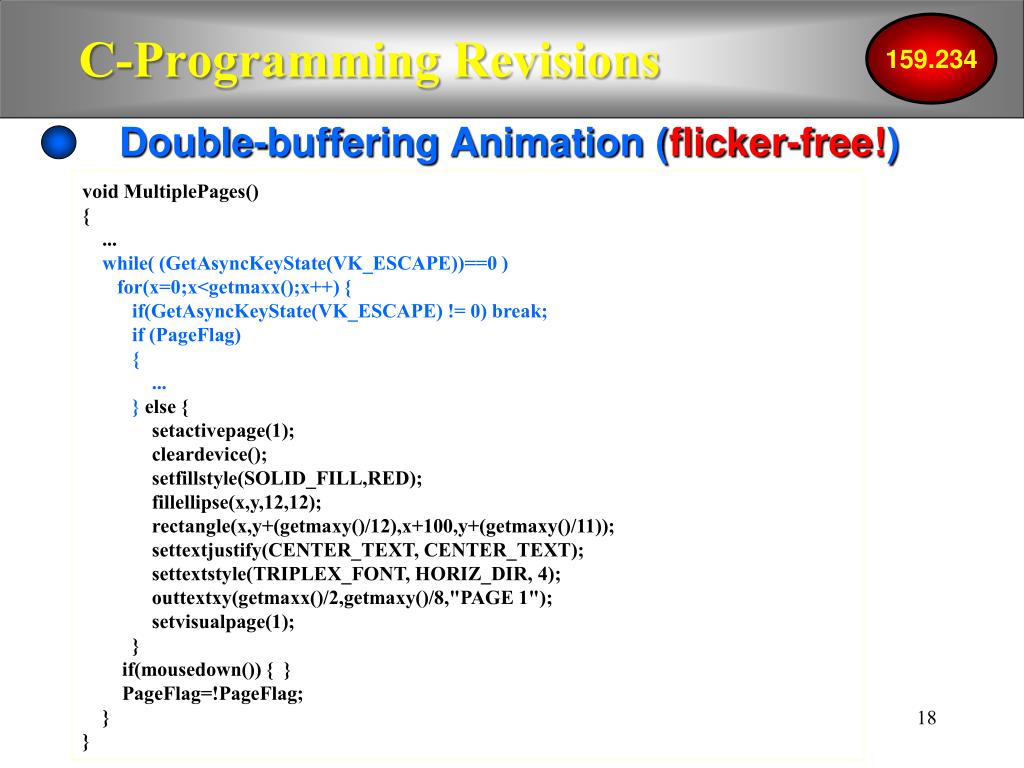

Double-buffering Animation (flicker-free!)

void MultiplePages()

{

...

while( (GetAsyncKeyState(VK_ESCAPE))==0 )

for(x=0;x<getmaxx();x++) {

if(GetAsyncKeyState(VK_ESCAPE) != 0) break;

if (PageFlag)

{

...

} else {

setactivepage(1);

cleardevice();

setfillstyle(SOLID_FILL,RED);

fillellipse(x,y,12,12);

rectangle(x,y+(getmaxy()/12),x+100,y+(getmaxy()/11));

settextjustify(CENTER_TEXT, CENTER_TEXT);

settextstyle(TRIPLEX_FONT, HORIZ_DIR, 4);

outtextxy(getmaxx()/2,getmaxy()/8,"PAGE 1");

setvisualpage(1);

}

if(mousedown()) { }

PageFlag=!PageFlag;

}

}

C-Programming Revisions


Graphics functions l.jpg

159.234

void cleardevice (void);

cleardevice erases (that is, fills with the current background color) the entire graphics screen and moves the CP (current position) to home (0,0).

Graphics Functions

0

+x

e.g. 1280 x 1024 pixels

(XDevice,YDevice)

+y

Device System of Coordinates


Maximum boundaries l.jpg

159.234

int getmaxx (void); int getmaxy (void);

Maximum Boundaries

outtextxy(getmaxx()/2, getmaxy()/2, “Graphics");

(0,0)

Graphics

(getmaxx(), getmaxy())


Graphics functions21 l.jpg

159.234

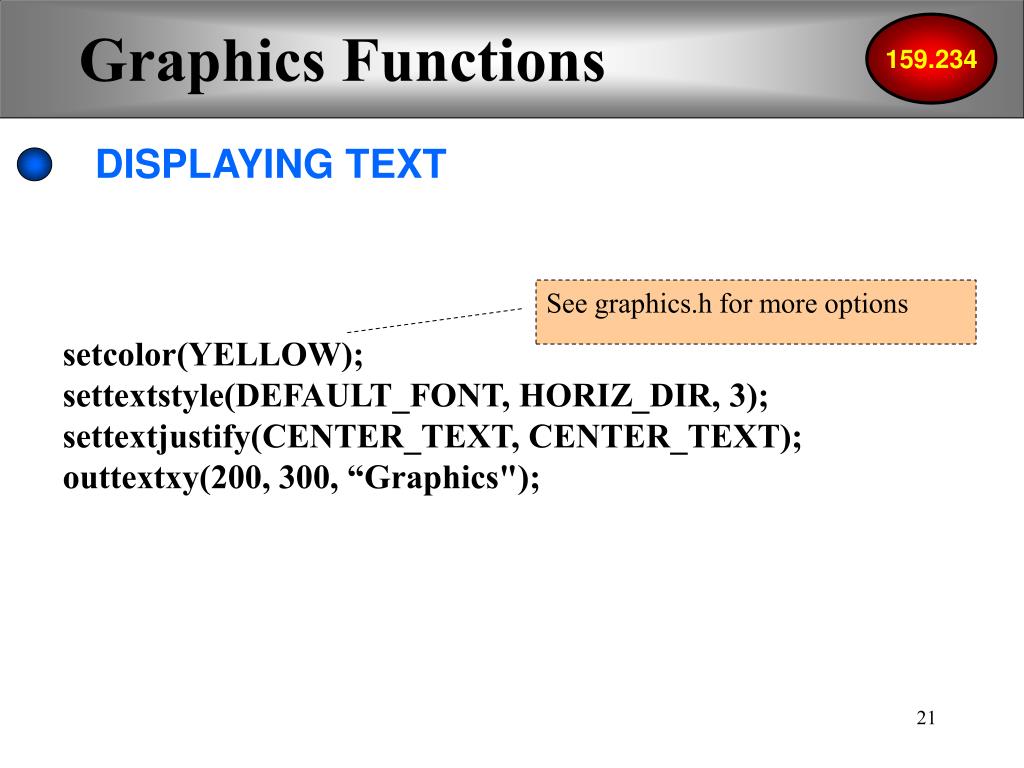

DISPLAYING TEXT

Graphics Functions

See graphics.h for more options

setcolor(YELLOW);

settextstyle(DEFAULT_FONT, HORIZ_DIR, 3);

settextjustify(CENTER_TEXT, CENTER_TEXT);

outtextxy(200, 300, “Graphics");


Slide22 l.jpg
Demo

  • C:\Core\Massey Papers\159234\TankGame-2008-v.1.0

  • See GraphicsDemo()


Graphics functions23 l.jpg

159.234

DISPLAYING TEXT

char mx[80];

float N;

sprintf(mx,"%d",mousecurrentx());

moveto(105, 224);

outtext(mx);

N=4.5;

sprintf(mx,"%3.2f", N);

outtextxy(100, 250, mx);

Graphics Functions

Get mouse current x-position


Graphics functions24 l.jpg

159.234

DISPLAYING TEXT

void settextstyle (int font, int direction, int charsize);

Graphics Functions


Graphics functions25 l.jpg

159.234

DISPLAYING TEXT

void settextjustify (int horiz, int vert);

Graphics Functions


Text height text width l.jpg

159.234

int textheight (char *textstring); int textwidth (char *textstring);

Text Height, Text Width

Use textheight to compute the height of strings, instead of doing the computations manually. By using this function, no source code modifications have to be made when different fonts are selected


Mouse routines l.jpg

159.234

int mousecurrentx();

int mousecurrenty();

int whichmousebutton();

LEFT_BUTTON

RIGHT_BUTTON

bool mouseup();

bool mousedown();

void clearmouse();

Mouse Routines


Introducing delay l.jpg

159.234

void delay (int millisec);

  • the length of time to sleep in milliseconds.

Introducing Delay

delay(50);

Sleep(100);


Setting the color l.jpg

159.234

void setcolor (int color);

  • Sets the text, line, circle, rectangle, ellipse, arc colors

  • Affects outline color of all filled shapes

Setting the Color

setcolor(RED);

setcolor(50);

//From 0 to 64


Line style l.jpg

159.234

void setlinestyle (int linestyle, unsigned upattern, int thickness);

Line Style

thickness specifies whether the width of subsequent lines drawn will be normal or thick.


Rectangle l.jpg

159.234

void rectangle (int left, int top, int right, int bottom);

Rectangle


Fill style l.jpg

159.234

void setfillstyle (int pattern, int color);

Pattern:

EMPTY_FILL, SOLID_FILL, LINE_FILL, LTSLASH_FILL, SLASH_FILL, BKSLASH_FILL,

LTBKSLASH_FILL, HATCH_FILL, XHATCH_FILL, INTERLEAVE_FILL, WIDE_DOT_FILL,

CLOSE_DOT_FILL, USER_FILL

Fill Style

  • Affects filled-shapes


Slide33 l.jpg

159.234

void bar (int left, int top, int right, int bottom);

bar

The upper left and lower right corners of the rectangle are given by (left, top) and (right, bottom), respectively. The coordinates refer to pixels.


Bar3d l.jpg

159.234

void bar3d (int left, int top, int right, int bottom, int depth, int topflag);

Bar3D

  • bar3d draws a three-dimensional rectangular bar, then fills it using the current fill pattern and fill color. The three-dimensional outline of the bar is drawn in the current line style and color. The bar's depth in pixels is given by depth. The topflag parameter governs whether a three-dimensional top is put on the bar. If topflag is nonzero, a top is put on; otherwise, no top is put on the bar (making it possible to stack several bars on top of one another). The upper left and lower right corners of the rectangle are given by (left, top) and (right, bottom), respectively. To calculate a typical depth for bar3d, take 25% of the width of the bar, like this:

  • bar3d(left,top,right,bottom, (right-left)/4,1);


Circle l.jpg

159.234

void circle (int x, int y, int radius);

Circle


Ellipse l.jpg

159.234

void ellipse (int x, int y, int stangle, int endangle, int xradius, int yradius);

void fillellipse (int x, int y, int xradius, int yradius);

Ellipse

  • ellipse draws an elliptical arc in the current drawing color with its center at (x,y) and the horizontal and vertical axes given by xradius and yradius, respectively. The ellipse travels from stangle to endangle. If stangle equals 0 and endangle equals 360, the call to ellipse draws a complete ellipse.

  • The angle for ellipse is reckoned counterclockwise, with 0 degrees at 3 o'clock, 90 degrees at 12 o'clock, and so on.

  • The linestyle parameter does not affect arcs, circles, ellipses, or pie slices. Only the thickness parameter is used.


Putpixel l.jpg

159.234

void putpixel (int x, int y, int color);

Putpixel


Slide38 l.jpg

159.234

void arc (int x, int y, int stangle, int endangle, int radius);

Arc

  • Angles in degrees 0-360.

  • 0-right. Counter-clockwise (90-up, 180-left, 270-down)

  • The linestyle parameter does not affect arcs, circles, ellipses, or pie slices. Only the thickness parameter is used.


Pieslice l.jpg

159.234

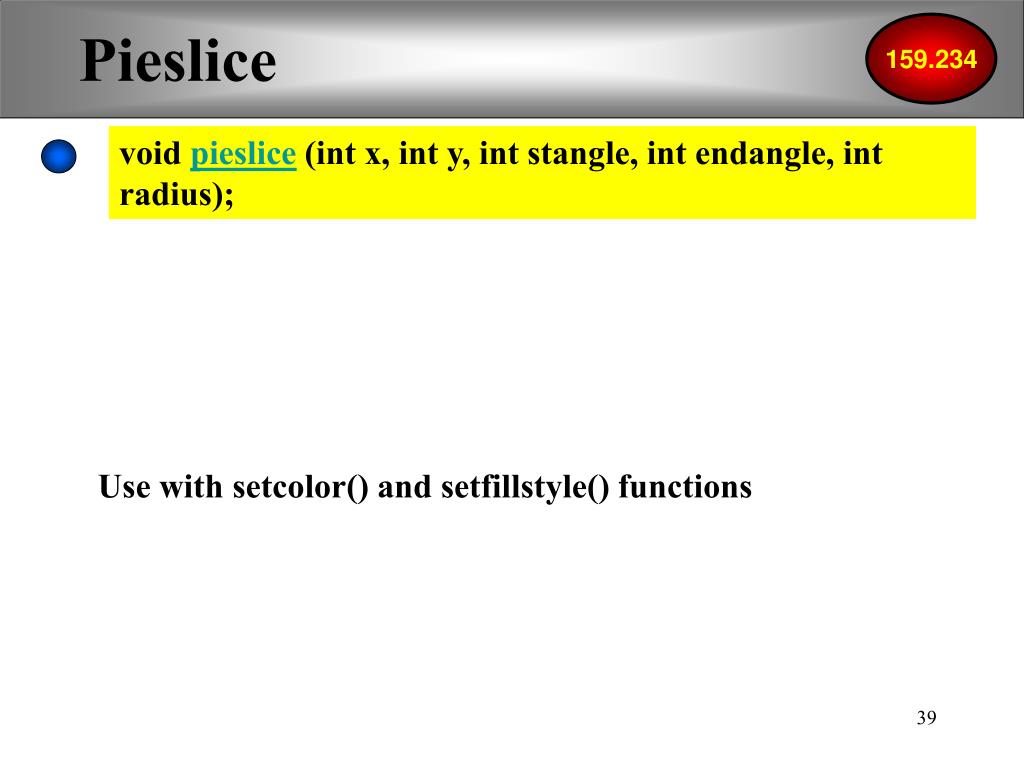

void pieslice (int x, int y, int stangle, int endangle, int radius);

Pieslice

  • Use with setcolor() and setfillstyle() functions


Fillpoly l.jpg

159.234

void fillpoly (int numpoints, int *polypoints);

Fillpoly

Array of integers

  • fillpoly draws the outline of a polygon with numpoints points in the current line style and color (just as drawpoly does), then fills the polygon using the current fill pattern and fill color. polypoints points to a sequence of (numpoints * 2) integers. Each pair of integers gives the x- and y-coordinates of a point on the polygon.


Fillpoly example l.jpg

159.234

void fillpoly (int numpoints, int *polypoints);

  • int poly[8];

  • int maxx, maxy;

  • maxx = getmaxx(); maxy = getmaxy();

  • poly[0] = 20; /* first vertex */

  • poly[1] = maxy / 2;

  • poly[2] = maxx - 20; /* second vertex */

  • poly[3] = 20;

  • poly[4] = maxx - 50; /* third vertex */

  • poly[5] = maxy - 20;

  • poly[6] = maxx / 2; /* fourth, vertex */

  • poly[7] = maxy / 2;/* automatically closes the polygon */

  • fillpoly(4, poly);

Fillpoly Example

4 points, 8 array elements


Keyboard handling l.jpg

159.234

GetAsyncKeyState

The GetAsyncKeyState function determines whether a key is up or down at the time the function is called, and whether the key was pressed after a previous call to GetAsyncKeyState.

Keyboard Handling

SHORT GetAsyncKeyState( int vKey); // vKey - virtual-key code

  • Virtual-key code

  • e.g.

    • vk_shift

    • vk_control

To find other pre-defined constants:

Using google, type the following keywords: msdnvk_shift


Keyboard handling43 l.jpg

159.234

GetAsyncKeyState

void MoveSprite()

{

if(GetAsyncKeyState(VK_UP) < 0) {

SpriteY = SpriteY - 2; //up

outtext("UP");

}

if(GetAsyncKeyState(VK_DOWN) < 0) {

SpriteY = SpriteY + 2; //down

outtext("DOWN");

….

Keyboard Handling

To find other pre-defined constants:

Using google, type the following keywords: msdn virtual key codes

http://msdn.microsoft.com/en-us/library/ms645540(VS.85).aspx


Slide44 l.jpg

Keyboard Handling

Monitoring the Control and Shift keys:

bool ControlFlag, ShiftFlag;

if(GetAsyncKeyState(VK_CONTROL)<0)

{

ControlFlag =! ControlFlag;

}

if(GetAsyncKeyState(VK_SHIFT)<0)

{

ShiftFlag =! ShiftFlag;

}

For the Tank to Jump to the Right: Control + Shift + Right Arrow key

For the Tank to Jump to the Left: Control + Shift + Left Arrow key


Slide45 l.jpg

Keyboard Handling

Possible approach in monitoring key combinations :

if(GetAsyncKeyState(VK_RIGHT)<0)

{

XDir=RIGHT;

if(ShiftFlag)

{

outtext("SHIFT + RIGHT");

ShiftFlag=!ShiftFlag;

}

if(ControlFlag)

{

outtext("CTRL + RIGHT");

if (TankX < getmaxx()-W) TankX += 2;

Angle=Angle-5;

RaiseWheelFlag=TRUE;

ControlFlag=!ControlFlag;

}


ad
