Presentation Transcript
Eatmp hmi tcas ra draft 11 december 2002 l.jpg
EATMP HMITCAS RADRAFT11 December 2002

Eurocontrol Human Machine Interface Service

[email protected]


Principles l.jpg
Principles

TCAS HMI must be consistent with current EATMP HMI.

There might be a need to combine some of the TCAS warnings for simplicity.

Usefulness of particular warnings must be examined.

Voice prompts are introduced to increase controller’s alertness.

For clarity, TCAS warning examples are shown without STCA or MTCD warnings. Flight levels are shown for illustration purposes only.

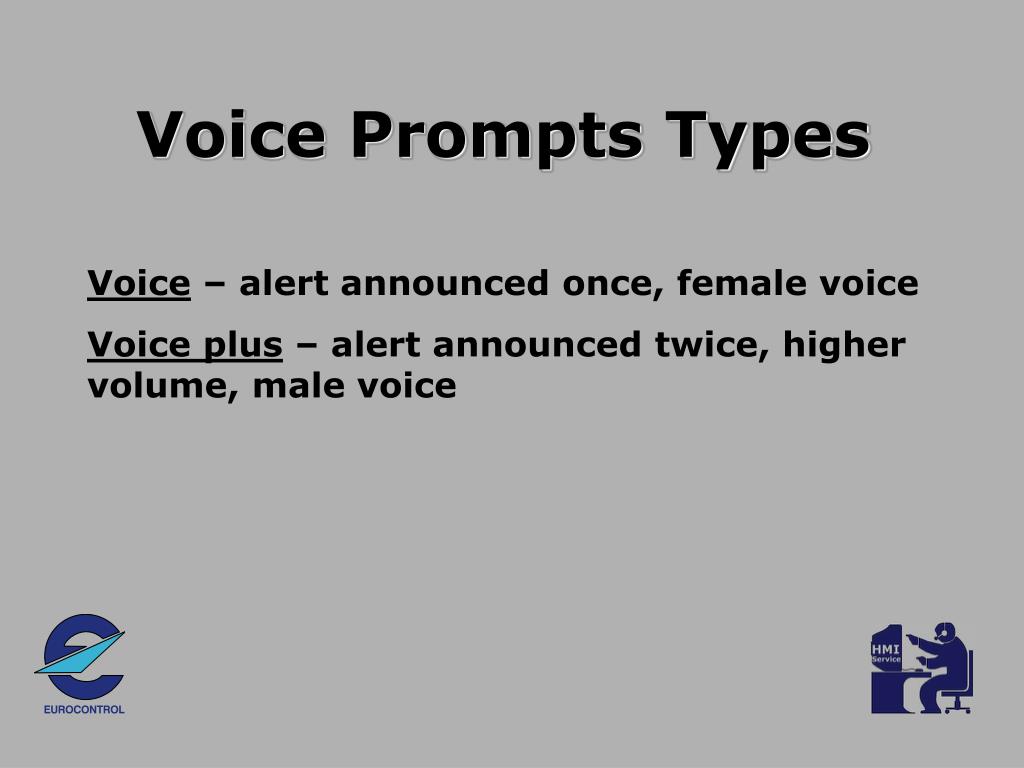

Voice prompts types l.jpg
Voice Prompts Types

Voice – alert announced once, female voice

Voice plus – alert announced twice, higher volume, male voice


Voice prompts l.jpg
Voice Prompts

TCAS – “voice plus” announced once immediately after alert is generated, repeated only if RA sense is reversed; suppresses STCA voice announcements for that conflict

STCA – “voice” announced once immediately after STCA is generated, “voice plus” announced after 15 sec., repeated every 15 sec. until clear of conflict


Existing hmi normal situation l.jpg
Existing HMINormal Situation

BAW362 NS

330


Existing hmi mtcd warning l.jpg
Existing HMI MTCD Warning

BAW362 NS

330


Existing hmi mtcd and stca warnings l.jpg
Existing HMIMTCD and STCA Warnings

BAW362 NS

330


Mtcd stca and tcas ra l.jpg
MTCD, STCA and TCAS RA

TCAS 

BAW362 NS

330


Mtcd and tcas ra no stca l.jpg
MTCD and TCAS RA(no STCA)

TCAS 

BAW362 NS

330


Tcas ra with direction indication no stca and mtcd l.jpg
TCAS RA with direction indication(no STCA and MTCD)

TCAS 

BAW362 NS

330


Tcas ra alternative solution ra in line o l.jpg
TCAS RAAlternative solutionRA in Line O

RA 

BAW362 NS

330

Considerations:

  • STCA and TCAS are anagrams - might be confusing under stress

  • For that reason displaying “RA” instead of “TCAS” in line 0 might be better

  • However, “RA” will inconsistent with ATC phraseology (“TCAS descend/climb”)


Tcas ra alternative solution no ra type l.jpg
TCAS RAAlternative solutionNo RA type

RA

BAW362 NS

330

No indication of RA type given


All vsls l.jpg
All VSLs

TCAS VSL

BAW362 NS

325  330

TCAS - All VSLs:

  • Monitor vertical speed

  • Adjust vertical speed, adjust

  • Maintain vertical speed, maintain

  • Maintain vertical speed, crossing maintain


Descend l.jpg
Descend

TCAS 

BAW362 NS

330

TCAS: Descend, descend


Crossing descend l.jpg
Crossing descend

TCAS X

BAW362 NS

330

TCAS: Descend, crossing descend…

Consideration:

Controllers may associate the word crossing with crossing tracks.


Climb l.jpg
Climb

TCAS 

BAW362 NS

330

TCAS: Climb, climb


Crossing climb l.jpg
Crossing climb

TCAS X

BAW362 NS

330

TCAS: Climb, crossing climb…

Consideration:

Controllers may associate the word crossing with crossing tracks.


Increase descend l.jpg
Increase descend

TCAS 

BAW362 NS

324  330

TCAS: Increase descend, increase descend


Increase climb l.jpg
Increase climb

TCAS  

BAW362 NS

335  330

TCAS: Increase climb, increase climb


Descend now reverse sense ra l.jpg
Descend NOW(reverse sense RA)

TCAS

BAW362 NS

335  330

TCAS: Descend, descend NOW


Descend now reverse sense ra alternative solution different icon l.jpg
Descend NOW(reverse sense RA)Alternative Solution - different icon

BAW362 NS

335  330

TCAS ()

TCAS: Descend, descend NOW

Alternative solution - if the icon on the previous slide cannot be implemented.


Climb now reverse sense ra l.jpg
Climb NOW(reverse sense RA)

TCAS

BAW362 NS

324  330

TCAS: Climb, climb NOW


Climb now reverse sense ra alternative solution different icon l.jpg
Climb NOW(reverse sense RA)Alternative Solution - different icon

TCAS ()  BAW362 NS

324  330

TCAS: Climb, climb NOW

Alternative solution - if the icon on the previous slide cannot be implemented.


Intruder with no tcas l.jpg
Intruder with no TCAS

TCAS NO RA

LOT467 NS

330

TCAS 

BAW362 NS

330

Intruder with no TCAS, no RA generated or TCAS in TA mode only

Consideration:

Controllers have no means knowing which aircraft are not TCAS equipped or TCAS in-op.


Clear of conflict l.jpg
Clear of Conflict

TCAS CLEAR

BAW362 NS

330

TCAS: Clear of conflict


Alert window l.jpg
Alert Window

TCAS LOT282  SAS751 
