Topics correlation

Topics: Correlation

  • The road map

  • Examining “bi-variate” relationships through pictures

  • Examining “bi-variate” relationships through numbers


Correlational research

Correlational Research

  • Exploration of relationships between variables for better understanding

  • Exploration of relationships between variables as a means of predicting future behavior.


Correlation bi variate relationships

Correlation:Bi-Variate Relationships

  • A correlation describes a relationship between two variables

  • Correlation tries to answer the following questions:

    • What is the relationship between variable X and variable Y?

    • How are the scores on one measure associated with scores on another measure?

    • To what extent do the high scores on one variable go with the high scores on the second variable?


Types of correlation studies

Types of Correlation Studies

  • Measures of same individuals on two or more different variables

  • Measures of different individuals on the “same” variable

  • Measures of the same individuals on the “same” variable(s) measured at different times

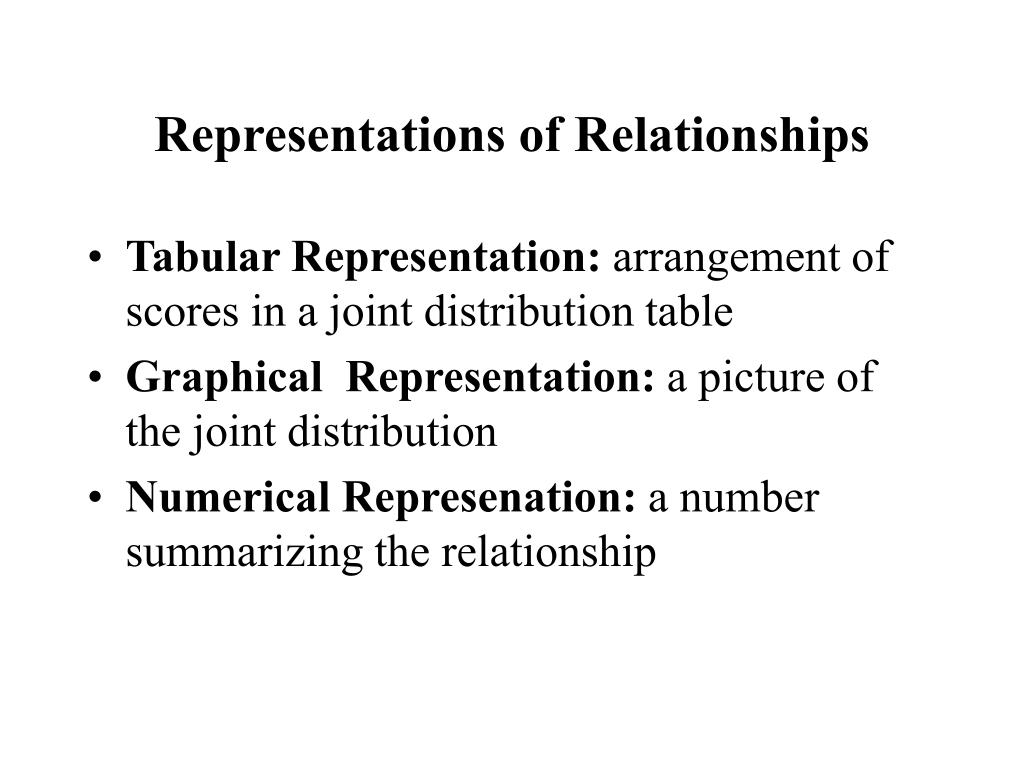

Representations of relationships

Representations of Relationships

  • Tabular Representation: arrangement of scores in a joint distribution table

  • Graphical Representation: a picture of the joint distribution

  • Numerical Represenation: a number summarizing the relationship

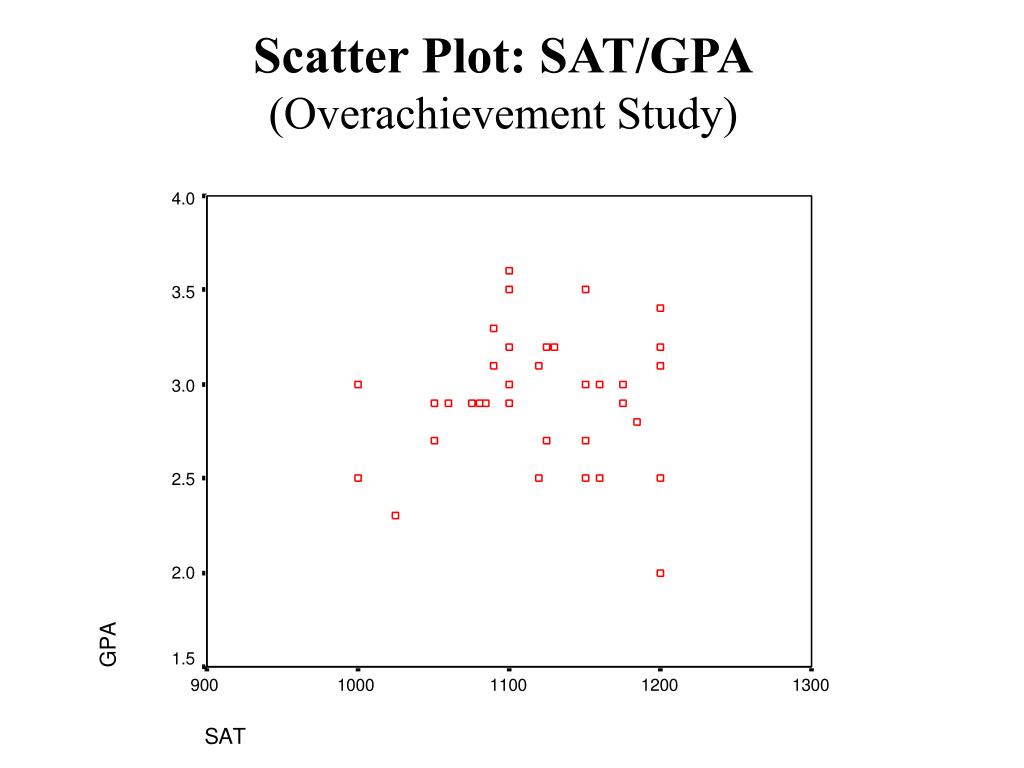

Scatter plot sat gpa overachievement study

Scatter Plot: SAT/GPA(Overachievement Study)


Creating a scatter plot

Creating a Scatter Plot

  • Construct a joint distribution table

  • Draw the axis of the graph

    • Label the abscissa with name of units of the X variable

    • Label the ordinate with the name of the units of the Y variable

  • Plot one point for each subject representing their scores on each variable

  • Draw a perimeter line (“fence”) around the full set of data points trying to get as tight a fit as possible.

  • Examine the shape:

    • The “tilt”

    • The “thickness”


Reading the nature of relationship

Reading the Nature of Relationship

  • Tilt: The slope (or slant) of the scatter as represented by an imaginary line.

    • Positive relationship: The estimated line goes from lower-left to upper right (high-high, low-low situation)

    • Negative relationship: The estimated line goes from upper left to lower right (high-low, low-high situation)

    • No relationship: The line is horizontal or vertical because the points have no slant

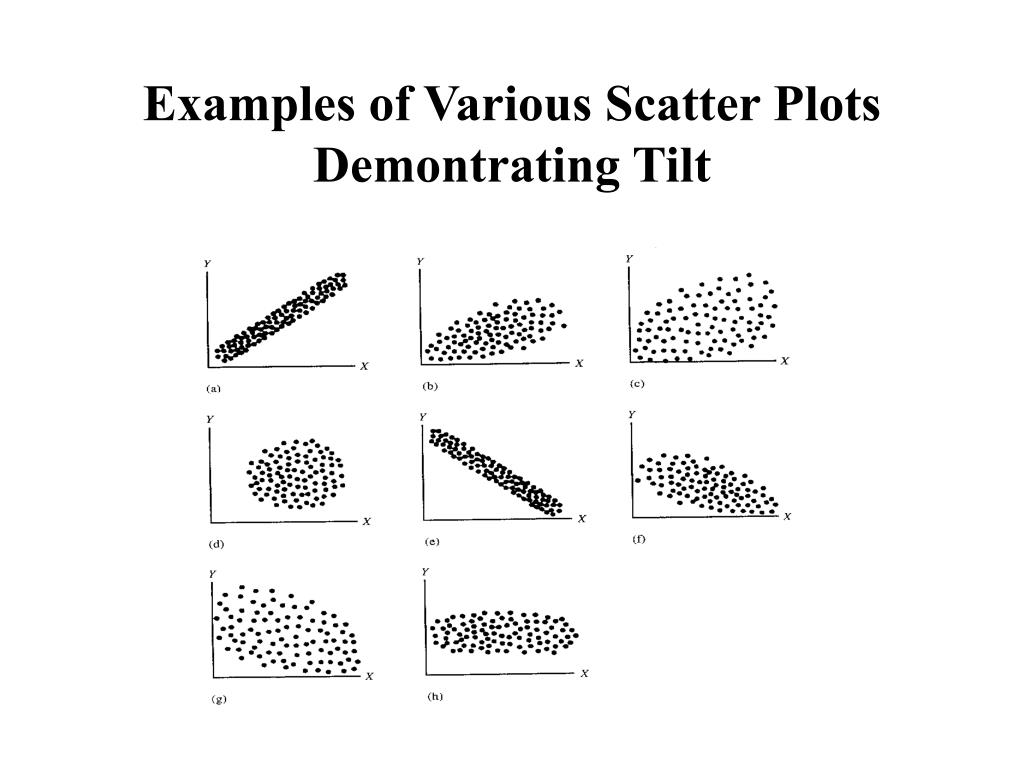

Examples of various scatter plots demontrating tilt

Examples of Various Scatter Plots Demontrating Tilt


Reading the strength of relationship

Reading the Strength of Relationship

  • Shape: the degree to which the points in the scatter plot cluster around the imaginary line that represents the slope.

    • Strong relationship: If oval is elongated and thin.

    • Weak relationship: If oval is not much longer than it is wide.

    • Moderate relationship: Somewhere in between.


Examples of various scatter plots demontrating shape strength

Examples of Various scatter plots Demontrating Shape (Strength)


Numerical representation the correlation coefficient

Numerical Representation: The Correlation Coefficient

  • Correlation Coefficient = numerical summary of scatter plots. A measure of the strength of association between two variables.

  • Correlation indicated by ‘r’ (lowercase)

  • Correlation range:-1.00 0.00 +1.00

  • Absolute magnitude: is the indicator of the strength of relationship. Closer to value of 1.00 (+ or -) the stronger the relationship; closer to 0 the weaker the relationship.

  • Sign (+ or -): is the indication of the nature (direction,)tilt) of the relationship (positive,negative).


Types of correlation coefficients

Types of Correlation Coefficients


Influences on correlation coefficients

Influences on Correlation Coefficients

  • Restriction of range

  • Use of extreme groups

  • Combining groups

  • Outliers (extreme scores)

  • Curvilinear relationships

  • Sample size

  • Reliability of measures


Restriction of range example

Restriction of Range: Example

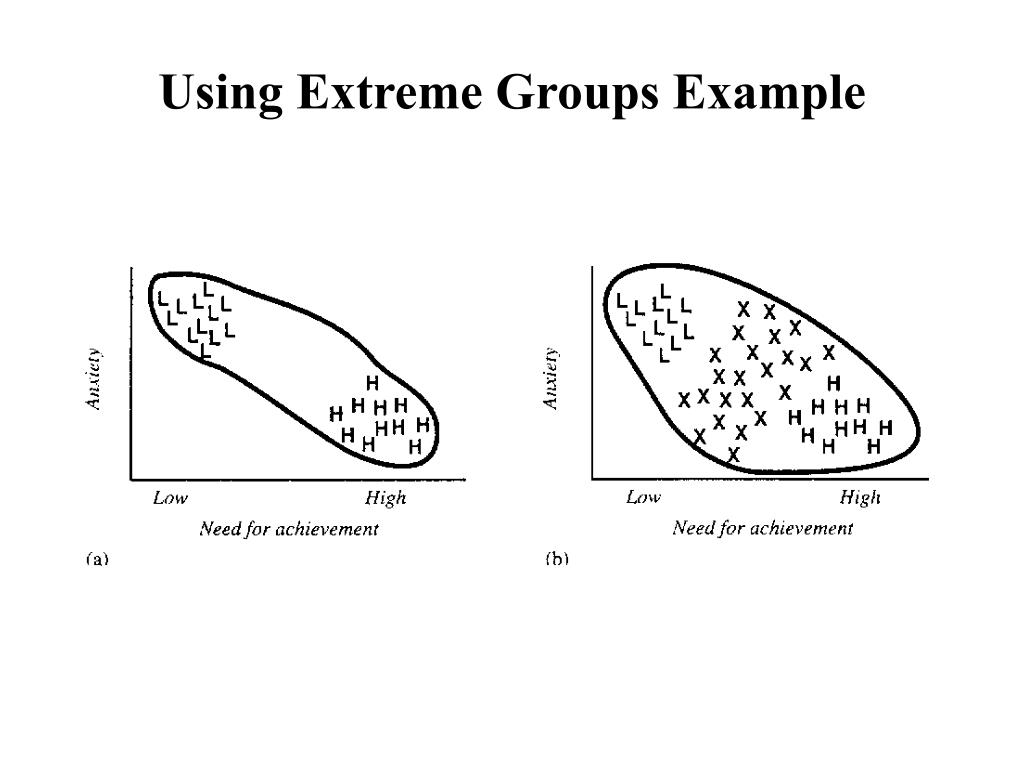

Using extreme groups example

Using Extreme Groups Example

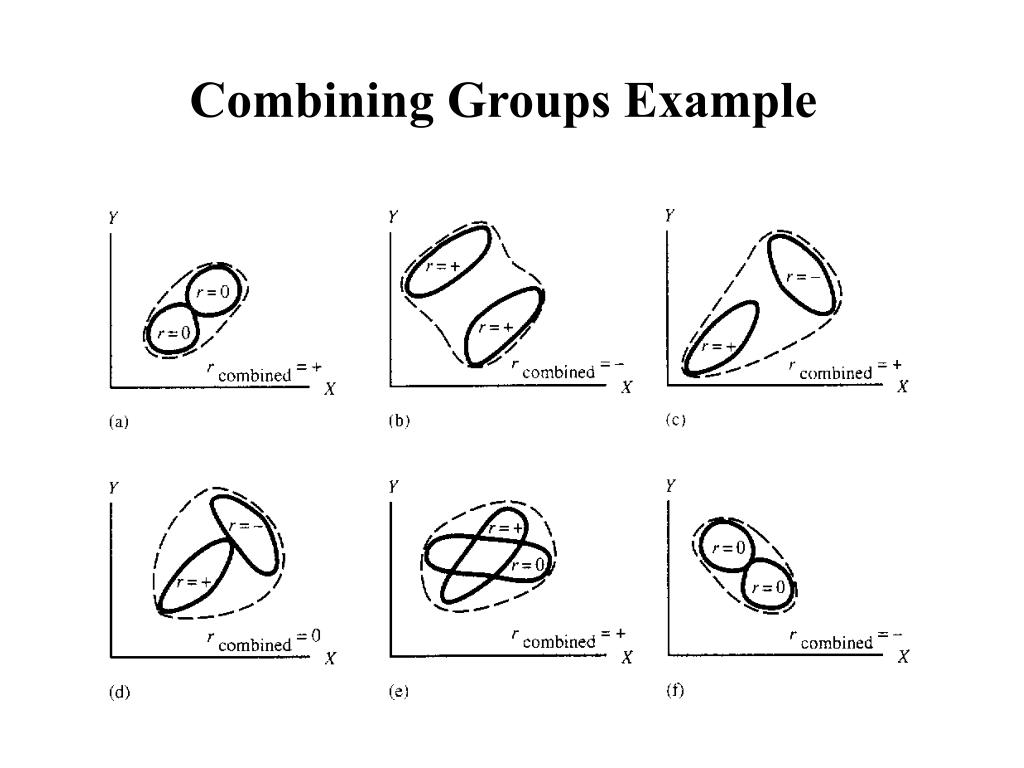

Combining groups example

Combining Groups Example

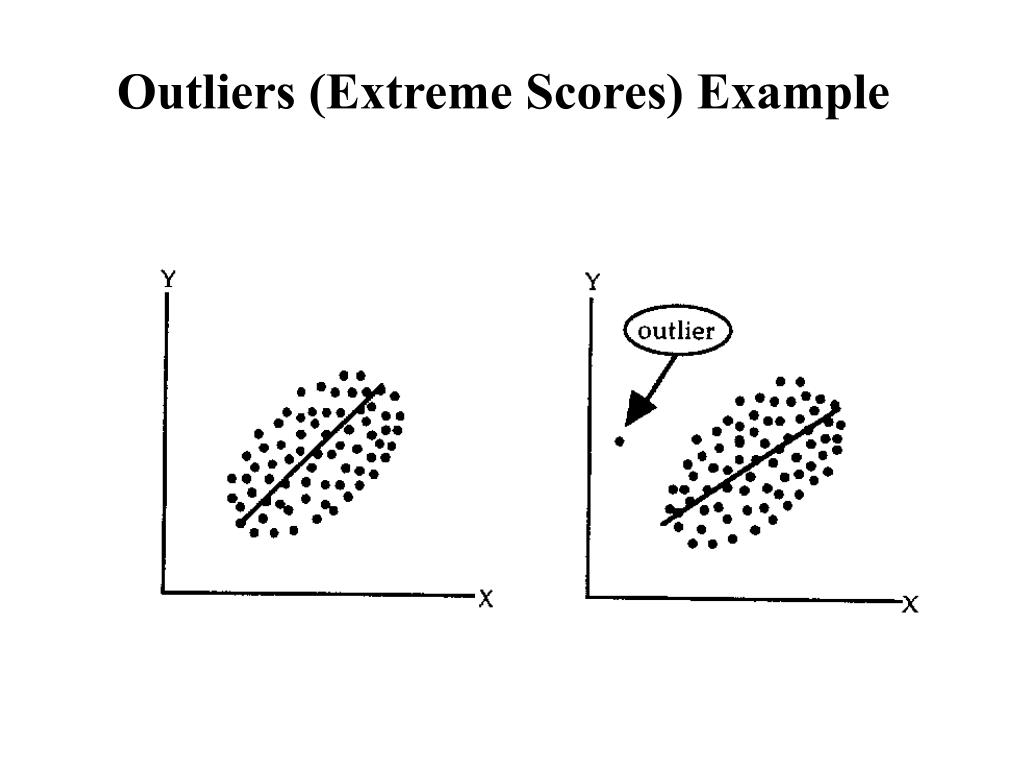

Outliers extreme scores example

Outliers (Extreme Scores) Example


Curvilinear examples

Curvilinear Examples

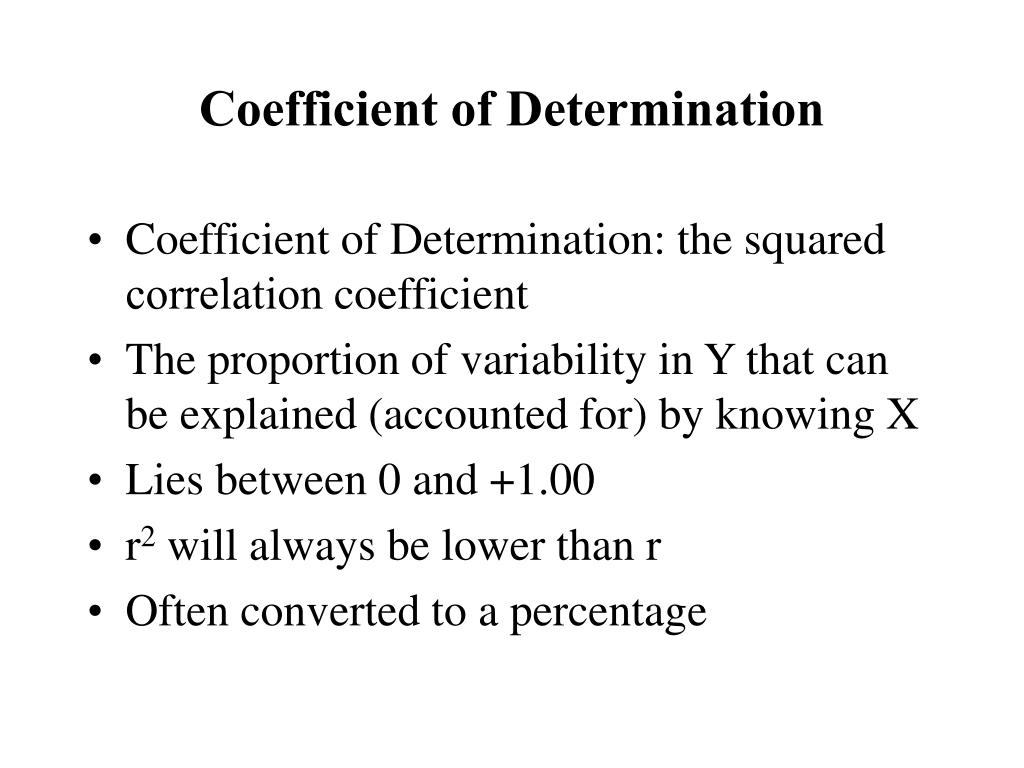

Coefficient of determination

Coefficient of Determination

  • Coefficient of Determination: the squared correlation coefficient

  • The proportion of variability in Y that can be explained (accounted for) by knowing X

  • Lies between 0 and +1.00

  • r2 will always be lower than r

  • Often converted to a percentage


Coefficient of determination graphical display

Coefficient of Determination:Graphical Display


Some warnings

Some Warnings

  • Correlation does not address issue of cause and effect: correlation ≠ causation

  • Correlation is a way to establish independence of measures

  • No rules about what is “strong”, “moderate”, “weak” relationship
