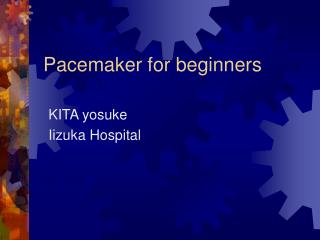

Pacemaker for beginners l.jpg

Pacemaker for beginners

KITA yosuke

Iizuka Hospital

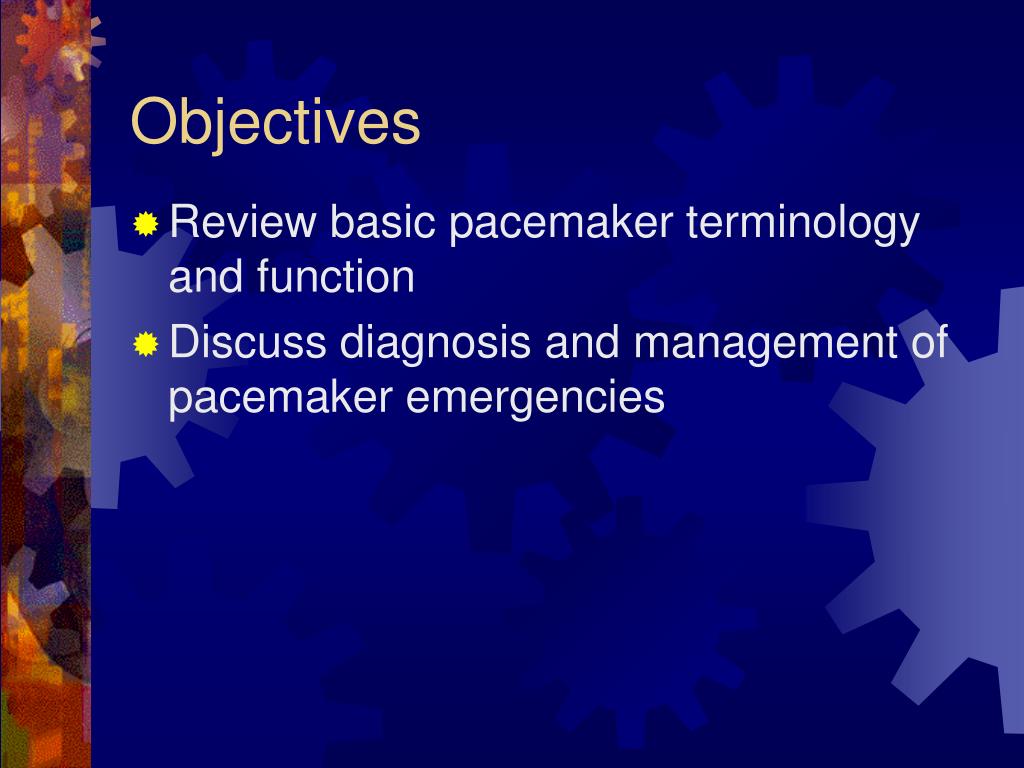

Objectives l.jpg
Objectives

  • Review basic pacemaker terminology and function

  • Discuss diagnosis and management of pacemaker emergencies


Historical perspective l.jpg
Historical Perspective

  • Electrical cardiac pacing for the management of brady-arrhythmias was first described in 1952

  • Permanent transvenous pacing devices were first introduced in the early 1960’s


Pacemaker components l.jpg
Pacemaker Components

  • Pulse Generator

  • Electronic Circuitry

  • Lead system

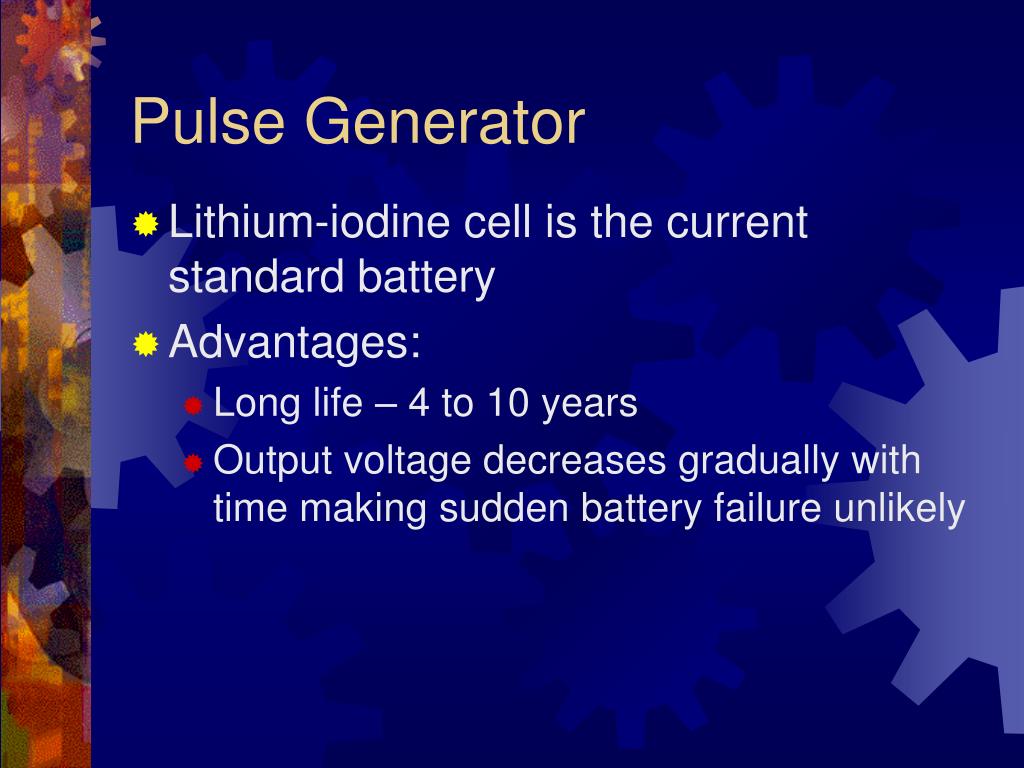

Pulse generator l.jpg
Pulse Generator

  • Lithium-iodine cell is the current standard battery

  • Advantages:

    • Long life – 4 to 10 years

    • Output voltage decreases gradually with time making sudden battery failure unlikely


Electronic circuitry l.jpg
Electronic Circuitry

  • Determines the function of the pacemaker itself

  • Utilizes a standard nomenclature for describing pacemakers



Lead systems l.jpg
Lead Systems

  • Endocardial leads which are inserted using a subclavian vein approach

  • Actively fixed to the endocardium using screws or tines

  • Unipolar or bipolar leads


Electrocardiogram during cardiac pacing l.jpg
Electrocardiogram During Cardiac Pacing

  • Pacemaker has two main functions:

    • Sense intrinsic cardiac electrical activity

    • Electrically stimulate the heart

  • VVI- senses intrinsic cardiac activity in the ventricle and when a preset interval of time with no ventricular activity occurs it depolarizes the right ventricle causing ventricular contraction



Electrocardiogram l.jpg
Electrocardiogram

  • Dual chamber pacer is more complicated because the pacer has the ability to both sense and pace either the atrium or the ventricle

  • Possible to have only atrial, only ventricular or both atrial and ventricular pacing

  • DDD pacer is a common example of this


Slide14 l.jpg

Atrial Spike

Ventricular Spike

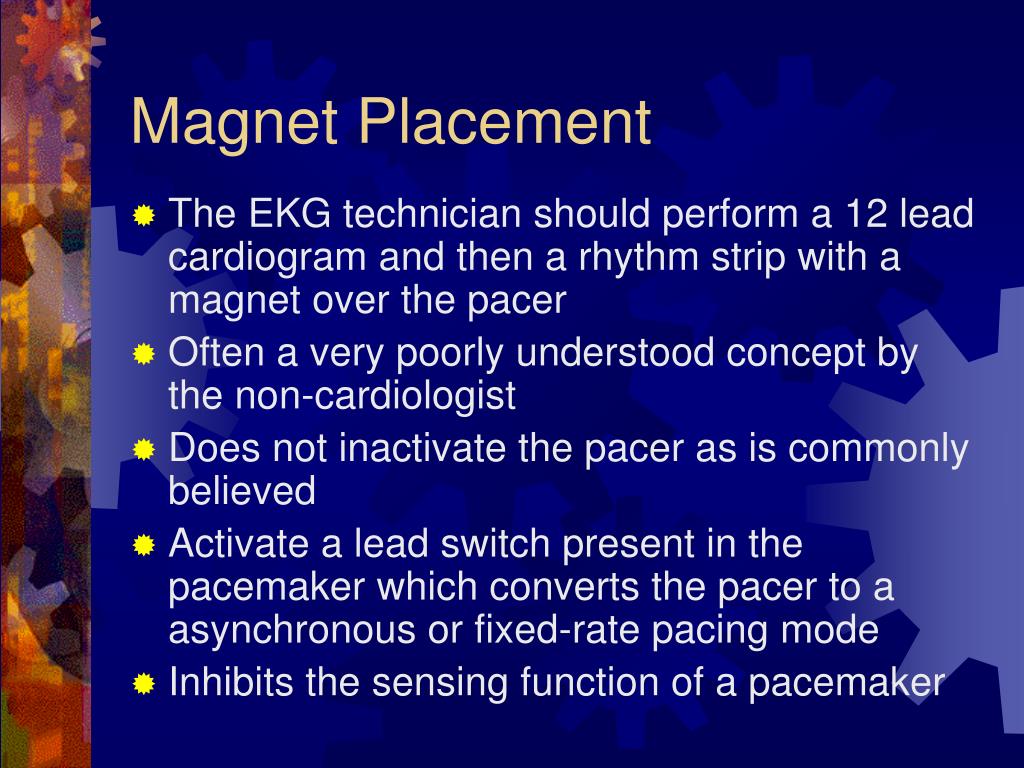

Magnet placement l.jpg
Magnet Placement

  • The EKG technician should perform a 12 lead cardiogram and then a rhythm strip with a magnet over the pacer

  • Often a very poorly understood concept by the non-cardiologist

  • Does not inactivate the pacer as is commonly believed

  • Activate a lead switch present in the pacemaker which converts the pacer to a asynchronous or fixed-rate pacing mode

  • Inhibits the sensing function of a pacemaker


Class i indications for permanent pacing l.jpg
Class I Indications For Permanent Pacing

  • Third degree AV block associated with:

    • Symptomatic bradycardia

    • Symptomatic bradycardia secondary to drugs required for dysrhythmia management

    • Asystole > 3 seconds or escape rate < 40

    • After catheter ablation of the AV node

    • Post-op AV block not expected to resolve

    • Neuromuscular disease with AV block


Indications l.jpg
Indications

  • Symptomatic bradycardia from second degree AV block

  • Bifascicular or trifascicular block with intermittent third degree or type II second degree block

  • Sinus node dysfunction with symptomatic bradycardia

  • Recurrent syncope caused by carotid sinus stimulation


Indications20 l.jpg
Indications

  • Post myocardial infarction with any of:

    • Persistent second degree AV block with bilateral bundle branch block or third degree AV block

    • Transient second or third degree AV block and bundle branch block

    • Symptomatic, persistent second or third degree AV block


Infections l.jpg
Infections

  • Pacemaker insertion is a surgical procedure:

    • 1% risk for bacteremia

    • 2% risk for wound or pocket infection

  • Usually occur soon after pacer insertion

  • Presence of a foreign body complicates management


Infection l.jpg
Infection

  • Cellulitis or pocket infection:

    • Tenderness and redness over the pacemaker itself

    • Avoid performing a needle aspiration – damage the pacer

  • Bacteremia: Staphylococcus

    • aureus and Staphylococcus epi 60-70% of the time

    • Empiric antibiotics should include vancomycin pending culture


Infection23 l.jpg
Infection

  • Consult the pacemaker physician

  • Draw blood cultures

  • Give appropriate antibiotics

  • Frequently the pacer and lead system need to be removed


Case 1 l.jpg
Case 1

  • 67 year old male presents to the emergency room 12 hours after insertion of a pacemaker complaining of left sided chest pain and shortness of breath

  • PR96, RR 33, BP 125/85, Oxygen saturation 88% RA

  • CXR as shown


Pneumothorax l.jpg
Pneumothorax

  • Occurs during cannulation of the subclavian vien

  • Incidence - ?? Cardiologist dependent

  • Treatment:

    • Asymptomatic or small – observation

    • Symptomatic or large – tube thoracostomy

  • Notify the pacemaker physician


Case 2 l.jpg
Case 2

  • 72 year old male presents to the emergency room after a fall, tripped over a bath mat, no LOC

  • Shortened and rotated left leg

  • Past history – pacemaker, hypertension

  • Nurse does an routine pre-op CXR and EKG


Septal perforation l.jpg
Septal Perforation

  • Usually identified at the time of pacer insertion but leads can displace after insertion

  • Can occur with transvenous pacer insertion

  • Keys diagnosis are a RBBB pattern on EKG and a pacer lead displaced to the apex of the heart on CXR

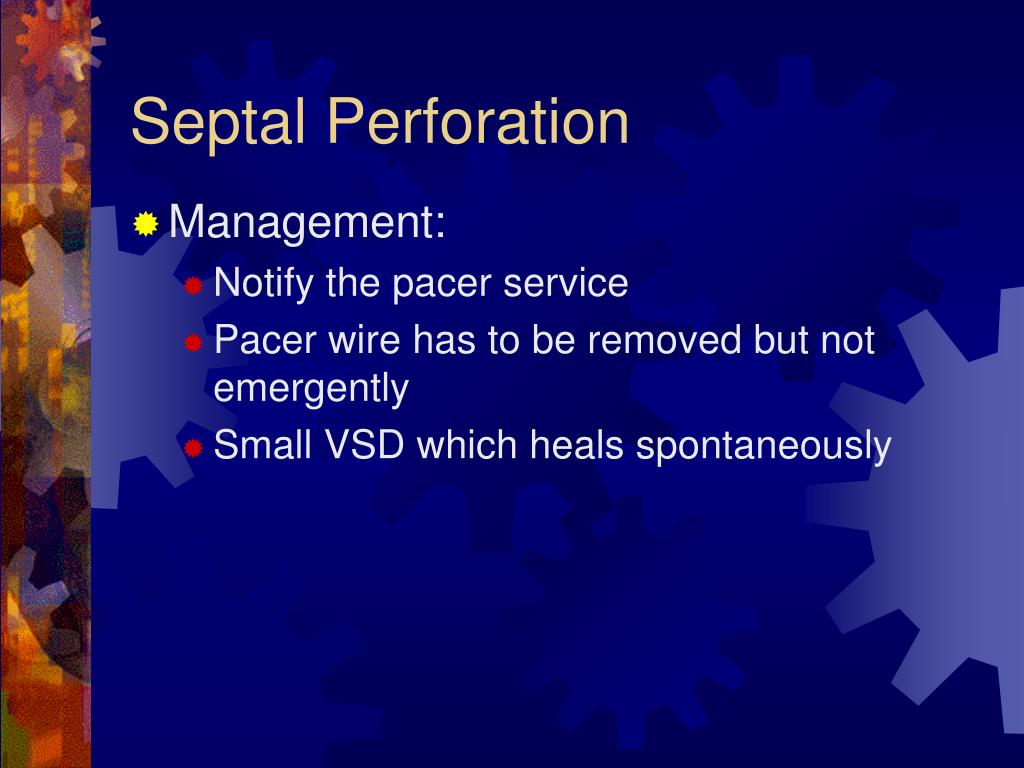

Septal perforation31 l.jpg
Septal Perforation

  • Management:

    • Notify the pacer service

    • Pacer wire has to be removed but not emergently

    • Small VSD which heals spontaneously

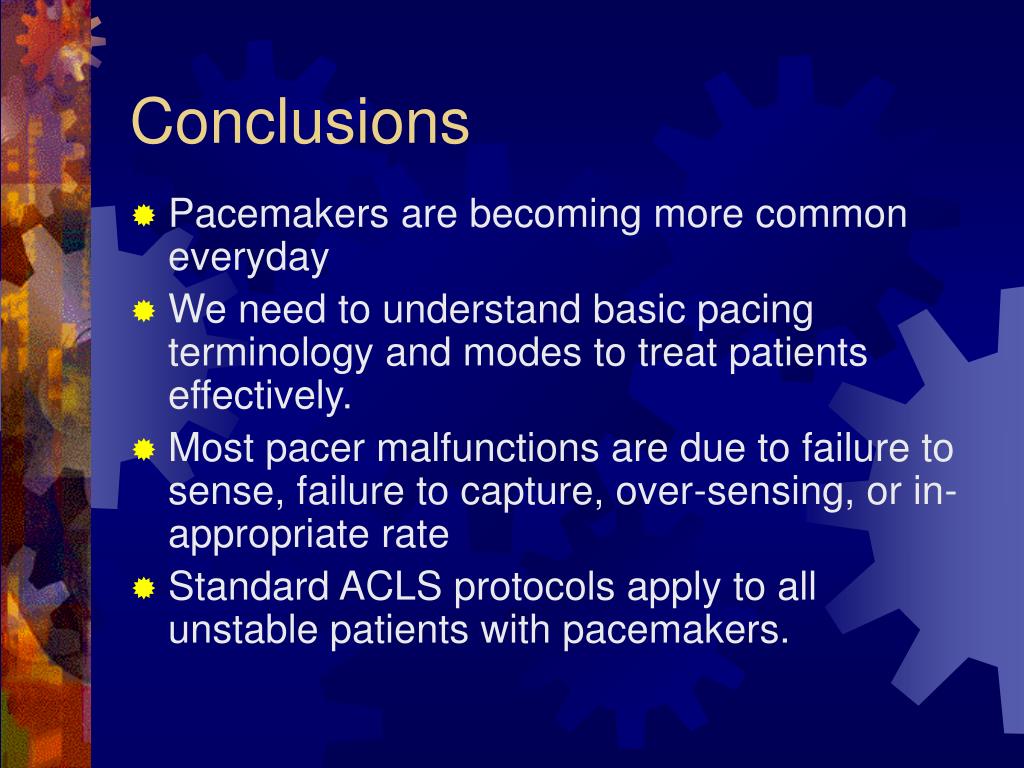

Conclusions l.jpg
Conclusions

  • Pacemakers are becoming more common everyday

  • We need to understand basic pacing terminology and modes to treat patients effectively.

  • Most pacer malfunctions are due to failure to sense, failure to capture, over-sensing, or in-appropriate rate

  • Standard ACLS protocols apply to all unstable patients with pacemakers.
