Lecture 9 motors and actuators l.jpg

Lecture 9: Motors and Actuators

Working At The Boundary Between EE/CSE/EPE, Mechanical and Materials Engineering

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Magnetism l.jpg
Magnetism

  • One of the first compasses, a fish shaped iron leaf was mentioned in the Wu Ching Tsung Yao written in 1040

    Trinity College, Dublin

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Animal magnetism l.jpg
Animal Magnetism

  • A frog suspended in an intense magnetic field – all of us are paramagnetic

  • Much money is wasted on magnetic therapy

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Electromagnetic revolution l.jpg
Electromagnetic Revolution

  • These four equations epitomize the electromagnetic revolution. Richard Feynman claimed that "ten thousand years from now, there can be little doubt that the most significant event of the 19th century will be judged as Maxwell's discovery of the laws of electrodynamics"

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Magnetic attraction l.jpg
Magnetic Attraction

  • It is possible to produce motion using magnetic attraction and/or repulsion

  • Either permanent magnets or electromagnets or both can be used

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Magnetic attraction and repulsion l.jpg
Magnetic Attraction and Repulsion

  • One of the many facts we all recall from our earliest science education

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


2 minute quiz name sec date l.jpg
2 Minute QuizName______Sec_____Date______

  • True or false, unlike magnetic poles attract and like magnetic poles repel one another.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Dc motors l.jpg
DC Motors

  • The stator is the stationary outside part of a motor. The rotor is the inner part which rotates. In the motor animations, red represents a magnet or winding with a north polarization, while green represents a magnet or winding with a south polarization. Opposite, red and green, polarities attract.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Dc motors9 l.jpg
DC Motors

  • Just as the rotor reaches alignment, the brushes move across the commutator contacts and energize the next winding. In the animation the commutator contacts are brown and the brushes are dark grey. A yellow spark shows when the brushes switch to the next winding.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Dc motor applications l.jpg
DC Motor Applications

  • Automobiles

    • Windshield Wipers

    • Door locks

    • Window lifts

    • Antenna retractor

    • Seat adjust

    • Mirror adjust

    • Anti-lock Braking System

  • Cordless hand drill

  • Electric lawnmower

  • Fans

  • Toys

  • Electric toothbrush

  • Servo Motor

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Beakman s motor l.jpg
Beakman’s Motor

  • A simple DC motor made with a battery, two paperclips, a rubber band and about 1 meter of enameled wire.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Brushless dc motors l.jpg
Brushless DC Motors

  • A brushless dc motor has a rotor with permanent magnets and a stator with windings. It is essentially a dc motor turned inside out. The control electronics replace the function of the commutator and energize the proper winding.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Brushless dc motor applications l.jpg
Brushless DC Motor Applications

  • Medical: centrifuges, orthoscopic surgical tools, respirators, dental surgical tools, and organ transport pump systems

  • Model airplanes, cars, boats, helicopters

  • Microscopes

  • Tape drives and winders

  • Artificial heart

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Full stepper motor l.jpg
Full Stepper Motor

  • This animation demonstrates the principle for a stepper motor using full step commutation. The rotor of a permanent magnet stepper motor consists of permanent magnets and the stator has two pairs of windings. Just as the rotor aligns with one of the stator poles, the second phase is energized. The two phases alternate on and off and also reverse polarity. There are four steps. One phase lags the other phase by one step. This is equivalent to one forth of an electrical cycle or 90°.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Half stepper motor l.jpg
Half Stepper Motor

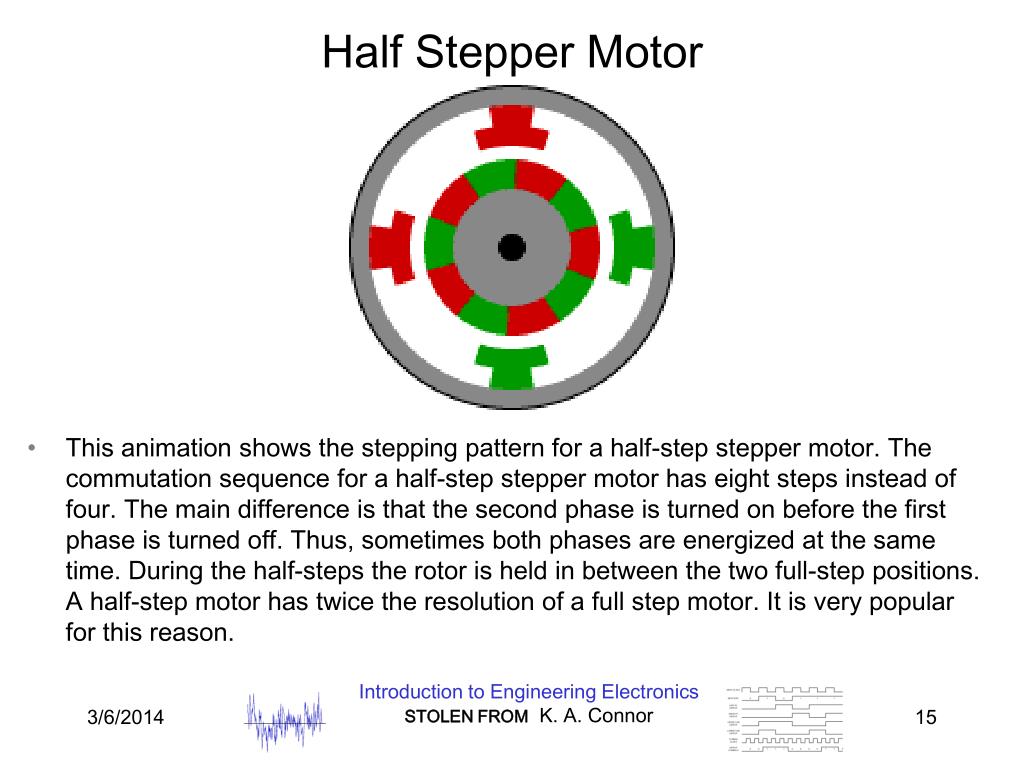

  • This animation shows the stepping pattern for a half-step stepper motor. The commutation sequence for a half-step stepper motor has eight steps instead of four. The main difference is that the second phase is turned on before the first phase is turned off. Thus, sometimes both phases are energized at the same time. During the half-steps the rotor is held in between the two full-step positions. A half-step motor has twice the resolution of a full step motor. It is very popular for this reason.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Stepper motors l.jpg
Stepper Motors

  • This stepper motor is very simplified. The rotor of a real stepper motor usually has many poles. The animation has only ten poles, however a real stepper motor might have a hundred. These are formed using a single magnet mounted inline with the rotor axis and two pole pieces with many teeth. The teeth are staggered to produce many poles. The stator poles of a real stepper motor also has many teeth. The teeth are arranged so that the two phases are still 90° out of phase. This stepper motor uses permanent magnets. Some stepper motors do not have magnets and instead use the basic principles of a switched reluctance motor. The stator is similar but the rotor is composed of a iron laminates.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


More on stepper motors l.jpg
More on Stepper Motors

  • Note how the phases are driven so that the rotor takes half steps

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


More on stepper motors18 l.jpg
More on Stepper Motors

  • Animation shows how coils are energized for full steps

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


More on stepper motors19 l.jpg
More on Stepper Motors

  • Full step sequence showing how binary numbers can control the motor

  • Half step sequence of binary control numbers

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Stepper motor applications l.jpg
Stepper Motor Applications

  • Film Drive

  • Optical Scanner

  • Printers

  • ATM Machines

  • I. V. Pump

  • Blood Analyzer

  • FAX Machines

  • Thermostats

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


2 minute quiz name sec date21 l.jpg

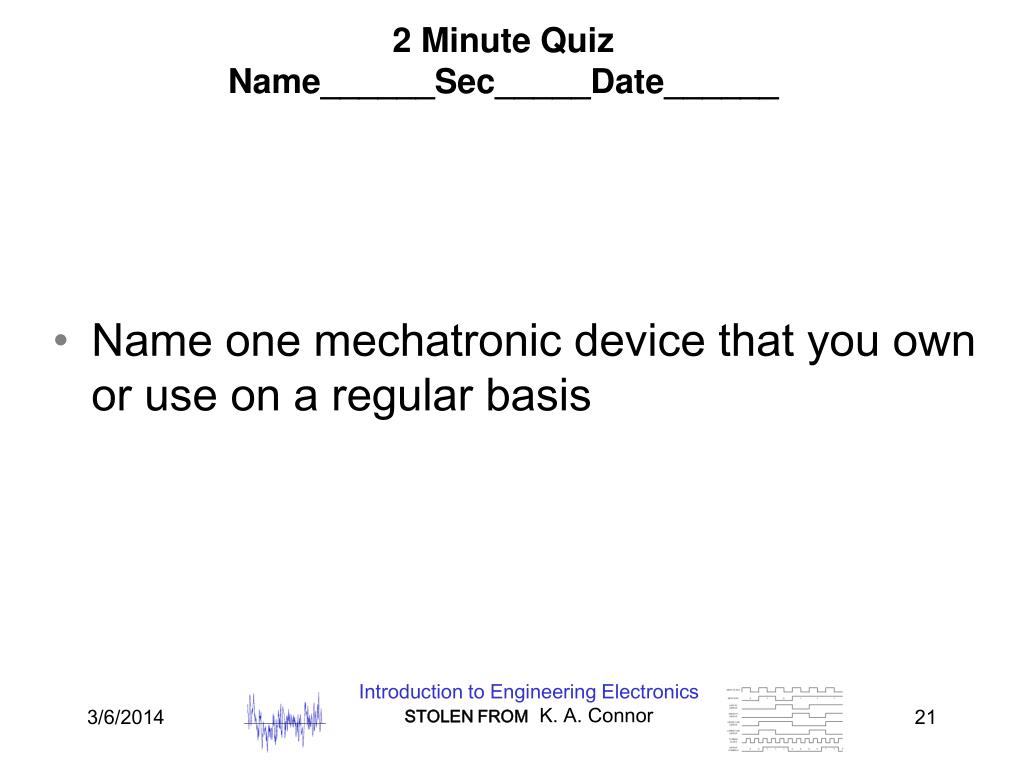

2 Minute QuizName______Sec_____Date______

  • Name one mechatronic device that you own or use on a regular basis

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Switched reluctance motor l.jpg
Switched Reluctance Motor

  • A switched reluctance or variable reluctance motor does not contain any permanent magnets. The stator is similar to a brushless dc motor. However, the rotor consists only of iron laminates. The iron rotor is attracted to the energized stator pole. The polarity of the stator pole does not matter. Torque is produced as a result of the attraction between the electromagnet and the iron rotor in the same way a magnet is attracted to a refrigerator door. An electrically quiet motor since it has no brushes.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Switched reluctance motor applications l.jpg
Switched Reluctance Motor Applications

  • Motor scooters and other electric and hybrid vehicles

  • Industrial fans, blowers, pumps, mixers, centrifuges, machine tools

  • Domestic appliances

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Brushless ac motor l.jpg
Brushless AC Motor

  • A brushless ac motor is driven with ac sine wave voltages. The permanent magnet rotor rotates synchronous to the rotating magnetic field. The rotating magnetic field is illustrated using a red and green gradient. An actual simulation of the magnetic field would show a far more complex magnetic field.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Ac induction motor l.jpg
AC Induction Motor

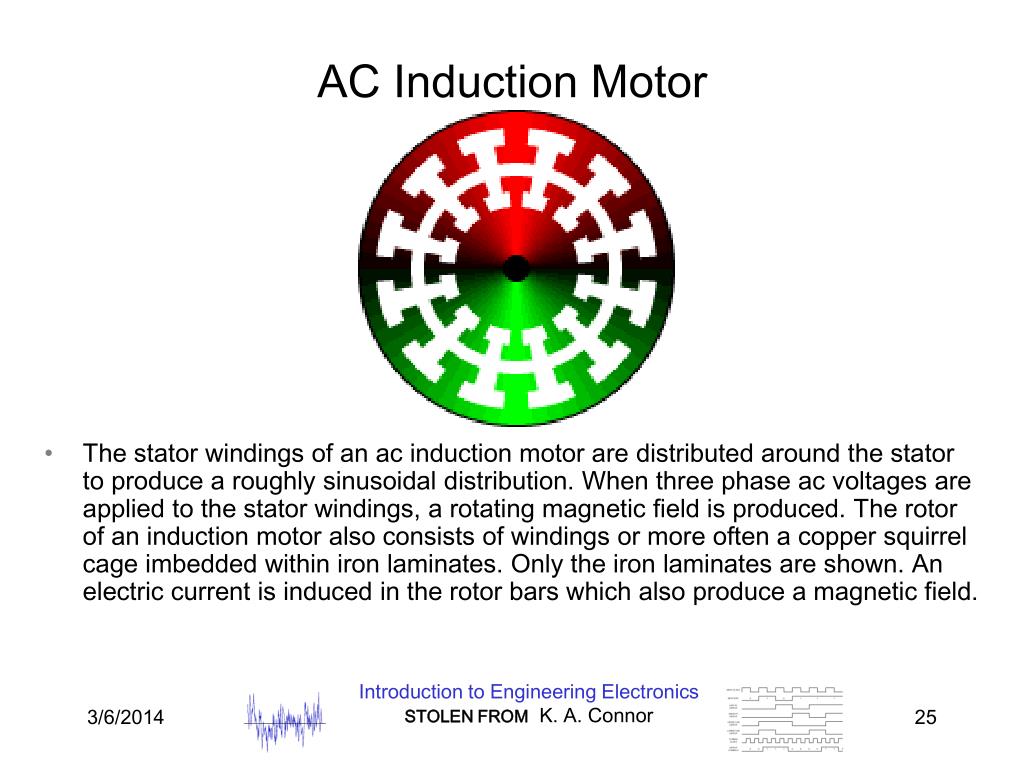

  • The stator windings of an ac induction motor are distributed around the stator to produce a roughly sinusoidal distribution. When three phase ac voltages are applied to the stator windings, a rotating magnetic field is produced. The rotor of an induction motor also consists of windings or more often a copper squirrel cage imbedded within iron laminates. Only the iron laminates are shown. An electric current is induced in the rotor bars which also produce a magnetic field.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Ac induction motor26 l.jpg
AC Induction Motor

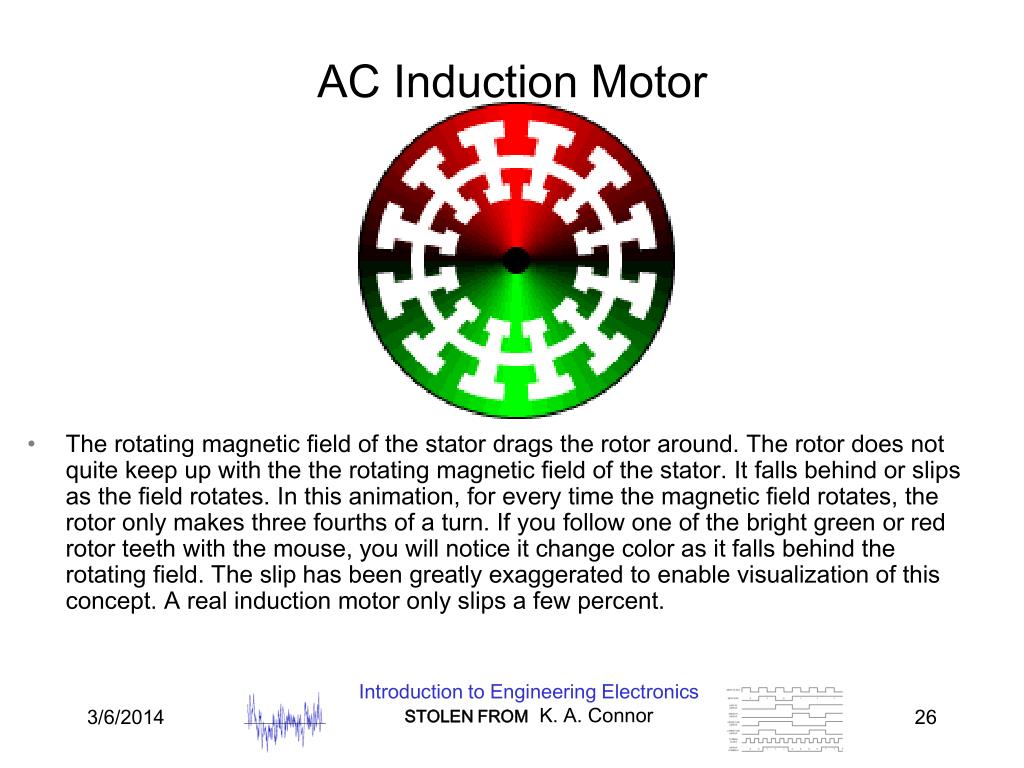

  • The rotating magnetic field of the stator drags the rotor around. The rotor does not quite keep up with the the rotating magnetic field of the stator. It falls behind or slips as the field rotates. In this animation, for every time the magnetic field rotates, the rotor only makes three fourths of a turn. If you follow one of the bright green or red rotor teeth with the mouse, you will notice it change color as it falls behind the rotating field. The slip has been greatly exaggerated to enable visualization of this concept. A real induction motor only slips a few percent.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Huge list of applications from hurst l.jpg

Aircraft Window Polarizing Drives

Antenna Positioning and Tuning Devices

Audio/Video Recording Instruments

Automated Inspection Equipment

Automated Photo Developing Equipment

Automated Photo Slide Trimming & Mounting Equipment

Automatic Carton Marking & Dating Machines

Automatic Dying and Textile Coloring Equipment

Automatic Food Processing Equipment

Automatic I.V. Dispensing Equipment

Automatic Radio Station Identification Equipment

Automotive

Automotive Engine Pollution Analyzers

Baseball Pitching Machine

Blood Agitators

Blood Cell Analyzer

Warning Light Flashers

Railroad Signal Equipment

Remote Focusing Microscopes

Resonator Drives for Vibraphones

……..

Silicone Wafer Production Equipment

Solar Collector Devices

Sonar Range Recorders and Simulators

Steel Mill Process Scanners

Tape Cleaning Equipment

Tape Input for Automatic Typewriters

Telescope Drives

Ultrasonic Commercial Fish Detectors

Ultrasonic Medical Diagnostic Equipment

Voltage Regulators

Water and Sewage Treatment Controls

Weather Data Collection Machines

Welding Machines

X-Ray Equipment

XY Plotters

Huge List of Applications from Hurst

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Stepper motor from mechatronics l.jpg
Stepper Motor from Mechatronics

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Mechatronics stepper motor continued l.jpg
Mechatronics Stepper Motor Continued

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Mechatronics l.jpg
Mechatronics

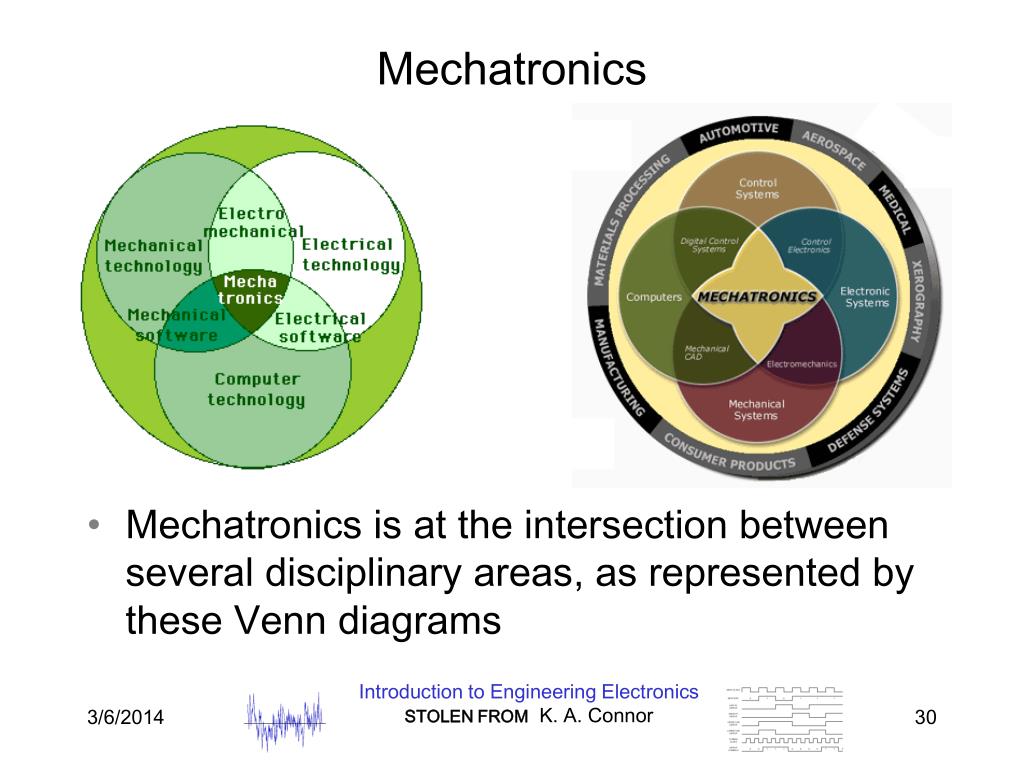

  • Mechatronics is at the intersection between several disciplinary areas, as represented by these Venn diagrams

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


What is mechatronics l.jpg
What Is Mechatronics?

  • Mechatronics is the synergistic integration of mechanical engineering, electronics, controls, and computers; all integrated through the design process.

  • EXAMPLES:

    • robots

    • anti-lock brakes

    • photocopiers

    • consumer products (e.g., clothes dryers)

    • disk drives

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Slide32 l.jpg
MEMS

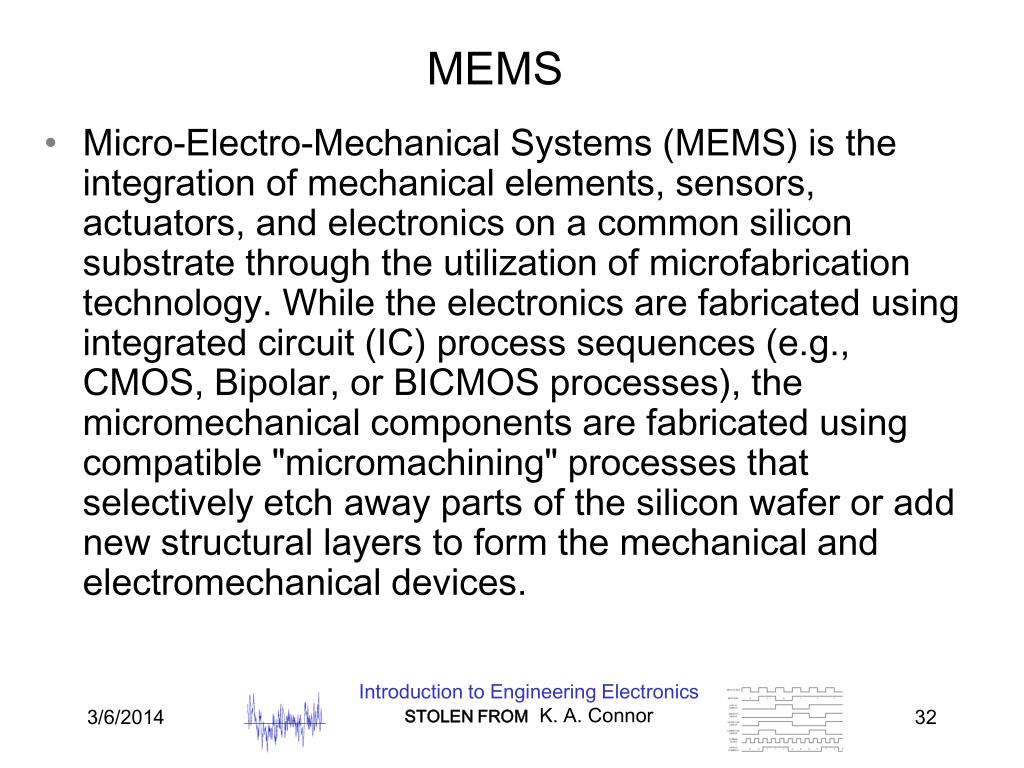

  • Micro-Electro-Mechanical Systems (MEMS) is the integration of mechanical elements, sensors, actuators, and electronics on a common silicon substrate through the utilization of microfabrication technology. While the electronics are fabricated using integrated circuit (IC) process sequences (e.g., CMOS, Bipolar, or BICMOS processes), the micromechanical components are fabricated using compatible "micromachining" processes that selectively etch away parts of the silicon wafer or add new structural layers to form the mechanical and electromechanical devices.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Mems stepper motor l.jpg
MEMS Stepper Motor

  • This motor is very much like the other stepper motors mentioned above, except that it is 2D and very small

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Slide34 l.jpg
MEMS

  • The potential complexity of the MEMS device increases exponentially with the number of unique process features and individual structural layers.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Mems steam engine l.jpg
MEMS: Steam Engine

  • Water inside of three compression cylinders is heated by electric current and vaporizes, pushing the piston out. Capillary forces then retract the piston once current is removed.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Slide36 l.jpg
MEMS

  • Rotary motor

  • Steam Engine (single piston)

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Mems gear trains l.jpg
MEMS Gear Trains

  • Six gear planar train at various speeds

  • Close up of six gear train

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Power mems l.jpg
Power MEMS

  • 80 Watt gas microturbine designed and built at MIT for MEMS power applications

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Integrated mems l.jpg
Integrated MEMS

  • This six-degrees-of-freedom micro-inertial measurement system combines microelectronic circuitry [top right] with a couple of

  • micromechanical elements: an accelerometer [center right] and gyroscope [bottom right].

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Integrated mems40 l.jpg
Integrated MEMS

  • Types of micromechanical devices that might be used in integrated microsystems of the future [shown clockwise from right] include this gear, pop-up mirror, mirror assembly, and hinge. The gear is part of an assembly that has demonstrated torque ratios of up to 3 million to 1. The silicon mirror is fabricated flat on the silicon wafer, then "popped up" to its raised position using the gear assembly.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Integrated mems41 l.jpg
Integrated MEMS

  • Sample collection regions for concentration, microseparation channels, sensor arrays for detection, and an exit region are illustrated in schematic of the chemical analysis section of a micro-chemlab. Chemicals are detected measuring the response of surface acoustic-wave devices to a chemical's presence. The photograph is of an array of micromachined 3-µm silicon posts in a microchannel being studied as a tool for enhancing electrokinetically driven liquid separations.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Mems displays l.jpg
MEMS Displays

  • Iridigm Display -- The iMoD element uses interference to create color in the same way that structural color works in nature. Microscopic structures on butterfly wings and peacock feathers cause light to interfere with itself, creating the shimmering iridescent colors that we see in these creatures. (Used in PDAs)

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Mems displays43 l.jpg
MEMS Displays

  • The iMoD element is a simple MEMS device that is composed of two conductive plates. One is a thin film stack on a glass substrate, the other is a metallic membrane suspended over it. There is a gap between the two that is filled with air. The iMoD element has two stable states. When no voltage is applied, the plates are separated, and light hitting the substrate is reflected as shown above. When a small voltage is applied, the plates are pulled together by electrostatic attraction and the light is absorbed, turning the element black.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Mems displays44 l.jpg
MEMS Displays

  • iMoD elements are minuscule, typically 25-60 microns on a side (400-1,000 dots per inch). Therefore, many iMoD elements are ganged and driven together as a pixel, or sub-pixel in a color display. The color of the iMoD element is determined by the size of the gap between the plates. As shown, the blue iMoD has the smallest gap and the red has the largest. To create a flat panel display, a large array of iMoD elements are fabricated in the desired format (i.e. 5" full color VGA) and packaged. Finally, driver chips are attached at the edge to complete the display.

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


References l.jpg
References

  • Motor Operation Principles from Motorola

  • Basic Stepper Motor Concepts

  • MEMS Clearinghouse

  • Mechatronics at Rensselaer

  • Mechatronics.org

  • Beakman’s Motor: Electronic Instrumentation and Fields and Waves I

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


2 minute quiz name sec date46 l.jpg
2 Minute QuizName______Sec_____Date______

  • Which engineering majors are some interest to you? Electrical, Computer & Systems, Electric Power, Nuclear, Mechanical, Aeronautical, Biomedical, Civil, Industrial & Management, Materials, Chemical, Environmental, Engineering Physics

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Primary course goal for iee l.jpg
Primary Course Goal for IEE

  • Assure that each EE and CSE student has a minimum of 20 hours of practical electronics and instrumentation experience before they begin taking disciplinary courses.

    • For students with no experience – 20 hours successfully completing labs

    • For students with some experience – 20 hours completing labs, expanding their knowledge base and helping those with less experience

    • For students outside of EE and CSE – provide a working knowledge of electronics

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


2 minute quiz answers l.jpg
2 Minute QuizANSWERS

  • True or false, unlike magnetic poles attract and like magnetic poles repel one another. TRUE

  • Name one mechatronic device that you own or use on a regular basis- CD PLAYER, DISHWASHER

  • Which engineering majors are some interest to you? Electrical, Computer & Systems, Electric Power, Nuclear, Mechanical, Aeronautical, Biomedical, Civil, Industrial & Management, Materials, Chemical, Environmental, Engineering Physics

  • ELECTRICAL-THE ONLY ONE

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


Where will you see this material again l.jpg
Where Will You See This Material Again?

  • Mechatronics: MANE-4490 Mechatronics, MANE-4250 Mechatronic Systems Design, MANE 6960 Sensors & Actuators in Mechatronics

  • Motor Drives: ECSE/EPOW-4080 Semiconductor Power Electronics and EPOW-4090 Power Electronics Lab

  • Motor Control: ENGR-2350 Introduction to Embedded Control

  • Concentration in Power Electronics: EPOW-4080 and MANE-4490

Introduction to Engineering Electronics

STOLEN FROMK. A. Connor


ad
