Presentation Transcript

Slide2 l.jpg

Why Robotics?

Practice

Promise


Slide3 l.jpg

Why Robotics?

Vibrant field

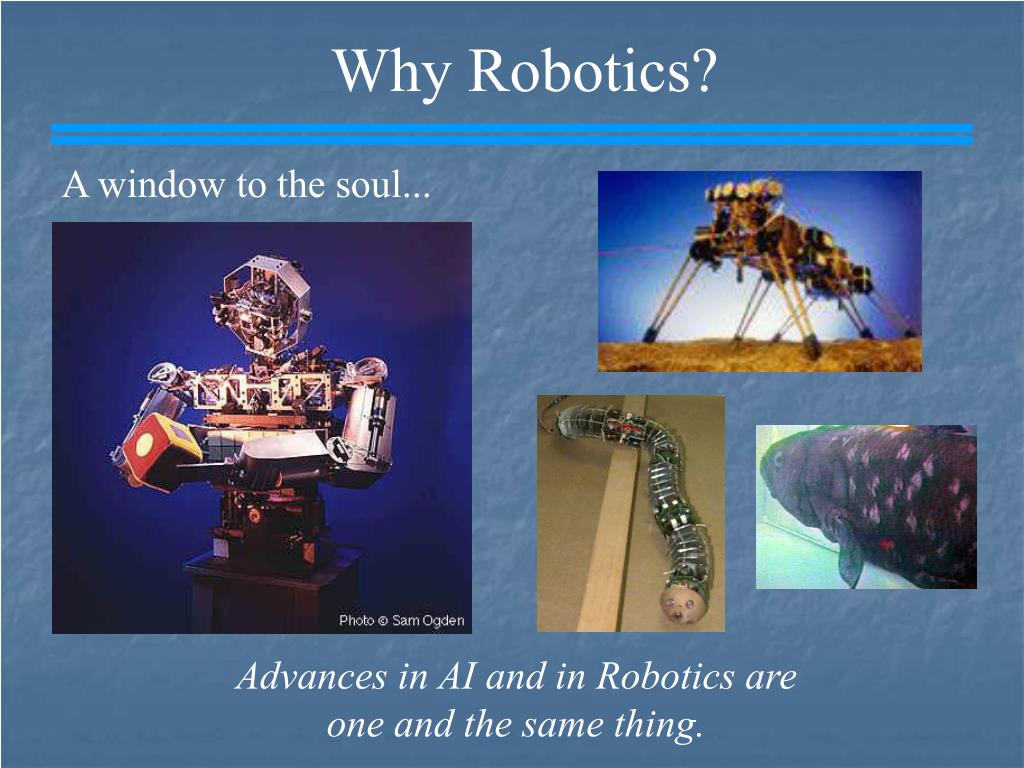

Slide4 l.jpg

Why Robotics?

A window to the soul...

Advances in AI and in Robotics are one and the same thing.



Slide6 l.jpg

What is a robot?

MOVIT line follower

Rug Warrior

Self-guiding golf cart

Sea-man

USC helicopter

Al Gore

Ripley’s Exoskeleton

Battlescar the BattleBot


Slide7 l.jpg

categorizing robots

Abstraction

just is

software

hardware

human-controlled

Autonomy

independent


Slide8 l.jpg

categorizing robots

Abstraction

just is

software

hardware

human-controlled

Autonomy

independent


Slide9 l.jpg

What is robotics?

Autonomous : Robot :: ________ : Mudder

Sleeping

Unicycling

Overworked

Robot a physical system that autonomously senses the environment and acts in it.


Slide10 l.jpg

Robot timeline

...

1921


Slide11 l.jpg

Robot timeline

Isaac Asimov’s Laws of Robotics

First Law:

A robot may not injure a human being, or, through inaction, allow a human being to come to harm.

Second Law:

A robot must obey orders given it by human beings, except where such orders would conflict with the First Law.

Third Law:

A robot must protect its own existence as long as such protection does not conflict with the First or Second Law.

Karl Capek

...

I, Robot

1921

1950


Slide12 l.jpg

Robot timeline

Karl Capek

...

I, Robot

1921

1950

2020


Slide13 l.jpg

Robot timeline

Karl Capek

Dalek

...

I, Robot

1921

1950

2020

2150


Slide14 l.jpg

Robot timeline

Karl Capek

Dalek

...

I, Robot

1921

1950

2020

2150

2421


Slide15 l.jpg

Real robot timeline

“Tortoise”

...

1951


Slide16 l.jpg

Shakey

Nils Nilsson @ Stanford Research Inst.

first “general-purpose” mobile platform

...

...

1968


Slide17 l.jpg

Shakey

Nils Nilsson @ Stanford Research Inst.

first “general-purpose” mobile platform

Living Room (L)

Kitchen (K)

sp

tv

sh

tvg

Bedroom (B)

...

...

1968


Slide18 l.jpg

Shakey Start

START

  • Go(x,y)

  • Preconditions: At(sh,x)

  • Postconditions: At(sh,y)

  • Push(obj,x,y)

  • Preconditions: At(sh,x)  At(obj,x)

  • Postconditions: At(sh,y)  At(obj,y)

ACTIONS

At(sh,L)  At(sp,K)  At(tvg,B)  At(tv,L)

Go(L,B)

Push(tv,L,B)

Go(L,K)

Push(tv,L,K)

At(sh,K)  At(sp,K)  At(tvg,B)  At(tv,K)

At(sh,L)  At(sp,L)  At(tvg,L)  At(tv,L)

GOAL

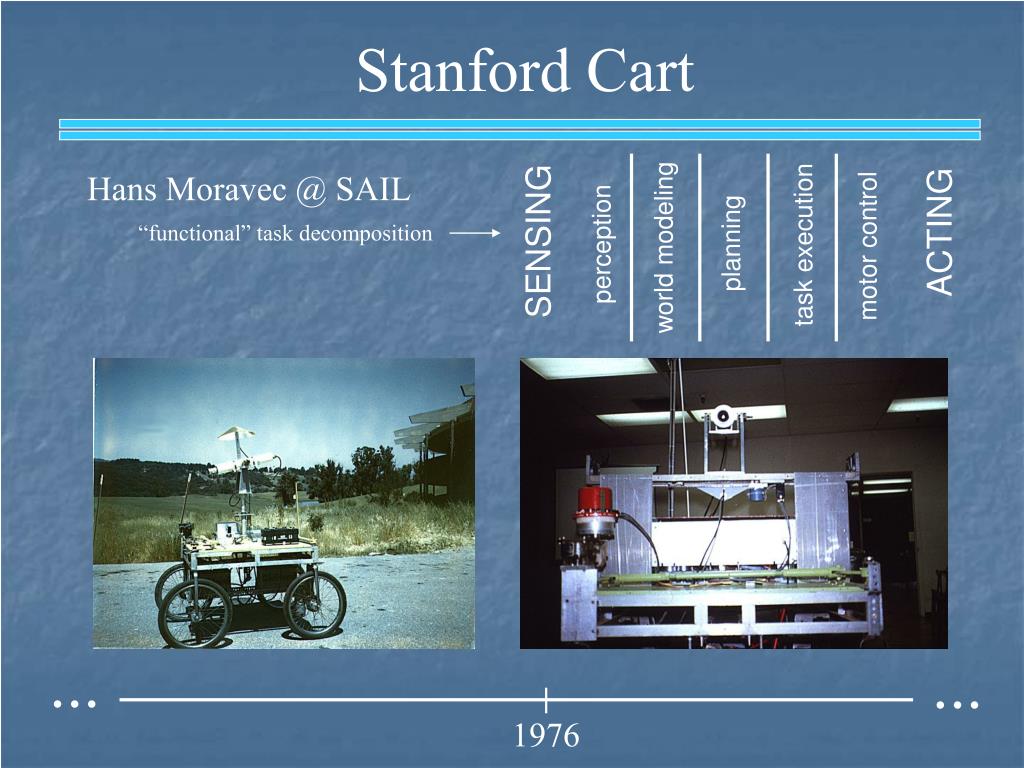

Slide19 l.jpg

Stanford Cart

Hans Moravec @ SAIL

ACTING

“functional” task decomposition

SENSING

planning

perception

task execution

motor control

world modeling

...

...

1976



Slide21 l.jpg

Insects

Rodney Brooks @ MIT

planning and reasoning

“behavioral” task decomposition

identify objects

build maps

ACTING

SENSING

explore

wander

avoid objects

...

...

1985


Slide22 l.jpg

Subsumption Architecture

runaway behavior

FSM / DFA


Slide23 l.jpg

Subsumption Architecture

wander behavior

runaway behavior

FSM / DFA


Slide24 l.jpg

Subsumption Architecture

navigate behavior

wander behavior

runaway behavior

FSM / DFA


Slide25 l.jpg

Subsumption Architecture

Genghis in action!


Slide26 l.jpg

Beyond subsumption

Navlab & ALVINN

Polly

...

...

1995
