Presentation Transcript


Slide1 l.jpg

Direct Simulation Monte Carlo:

A Particle Method for Nonequilibrium Gas Flows

Iain D. BoydDepartment of Aerospace EngineeringUniversity of MichiganAnn Arbor, MI 48109Support Provided By:MSI, AFOSR, DARPA, NASA


Slide2 l.jpg

Physical characteristics of nonequilibrium gas flow.

Direct simulation Monte Carlo (DSMC) method.

The MONACO DSMC code:

data structure;

scalar/parallel optimization.

Illustrative DSMC applications:

hypersonic aerothermodynamics;

materials processing;

spacecraft propulsion.

Summary and future directions.

Overview


Slide3 l.jpg

Physical characteristics of nonequilibrium gas systems:

low density and/or small length scales;

high altitude hypersonics (n=1020 m-3, L=1 m);

space propulsion (n=1018 m-3, L=1 cm);

micro-fluidics (n=1025 m-3, L=1 m).

Gas dynamics:

rarefied flow (high Knudsen number);

collisions still important;

continuum equations physically inaccurate.

Modeling Considerations


Slide4 l.jpg

Characterization ofNonequilibrium Gas Flows

Flow Regimes:

transitional

slip

free-molecular

continuum

Kn

0.1

0.01

10

DSMC

Boltzmann Equation

Control equations:

Collisionless

Boltzmann Eqn

Navier-Stokes

Euler

Burnett


Slide5 l.jpg

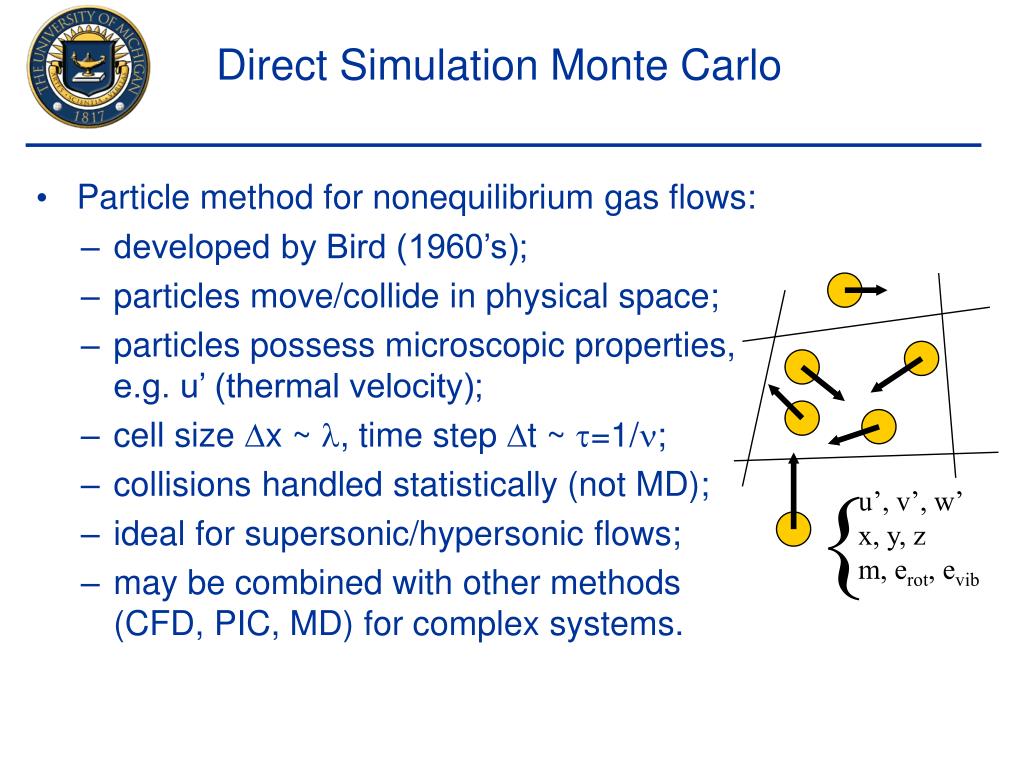

Direct Simulation Monte Carlo

  • Particle method for nonequilibrium gas flows:

    • developed by Bird (1960’s);

    • particles move/collide in physical space;

    • particles possess microscopic properties, e.g. u’ (thermal velocity);

    • cell size Dx ~ l, time step Dt ~ t=1/n;

    • collisions handled statistically (not MD);

    • ideal for supersonic/hypersonic flows;

    • may be combined with other methods (CFD, PIC, MD) for complex systems.

{

u’, v’, w’

x, y, z

m, erot, evib


Slide6 l.jpg

Direct Simulation Monte Carlo


Slide7 l.jpg

The DSMC Algorithm

  • MOVE:

    • translate particles Dx = uDt;

    • apply boundary conditions (walls, sources, sinks).

  • SORT:

    • generate list of particles in each cell.

  • COLLIDE:

    • statistically determine particles that collide in each cell;

    • apply collision dynamics.

  • SAMPLE:

    • update sums of various particle properties in each cell.


Slide8 l.jpg

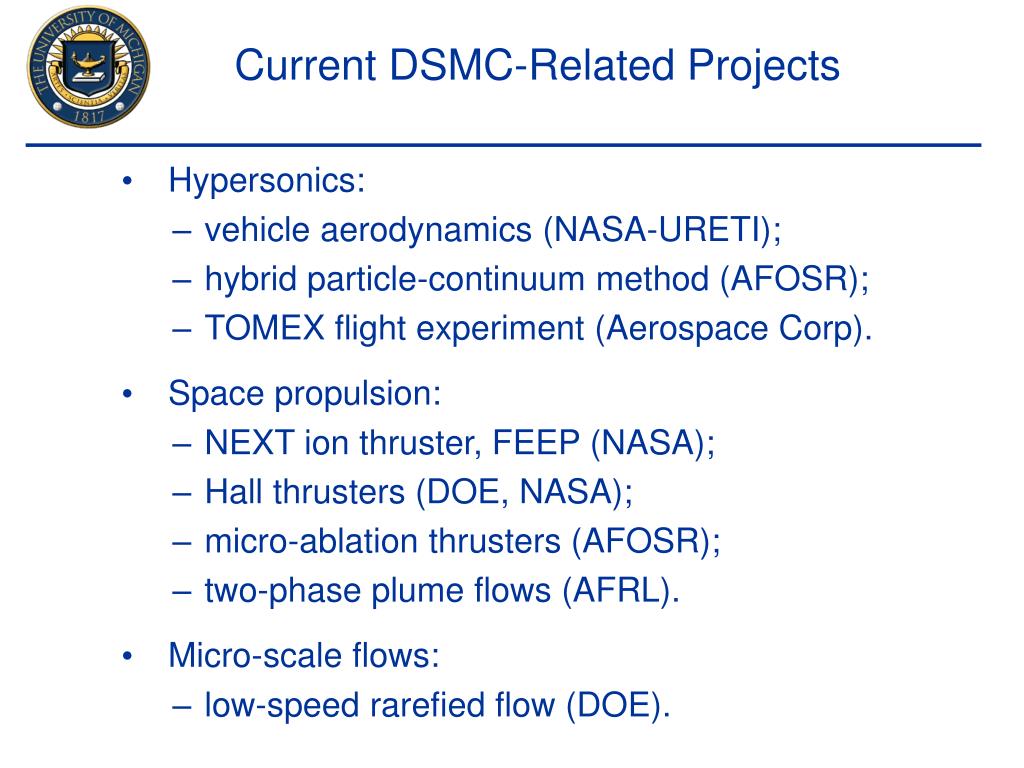

Hypersonics:

vehicle aerodynamics (NASA-URETI);

hybrid particle-continuum method (AFOSR);

TOMEX flight experiment (Aerospace Corp).

Space propulsion:

NEXT ion thruster, FEEP (NASA);

Hall thrusters (DOE, NASA);

micro-ablation thrusters (AFOSR);

two-phase plume flows (AFRL).

Micro-scale flows:

low-speed rarefied flow (DOE).

Current DSMC-Related Projects


Slide9 l.jpg

The DSMC Code MONACO

  • MONACO: a general purpose 2D/3D DSMC code.

  • Physical models:

    • Variable Soft Sphere (Koura & Matsumoto, 1992);

    • rotational relaxation (Boyd, 1990);

    • vibrational relaxation (Vijayakumar et al., 1999);

    • chemistry (dissociation, recombination, exchange).

  • Applications:

    • hypersonic vehicle aerodynamics;

    • spacecraft propulsion systems;

    • micro-scale gas flows, space physics;

    • materials processing (deposition, etching).


Slide10 l.jpg

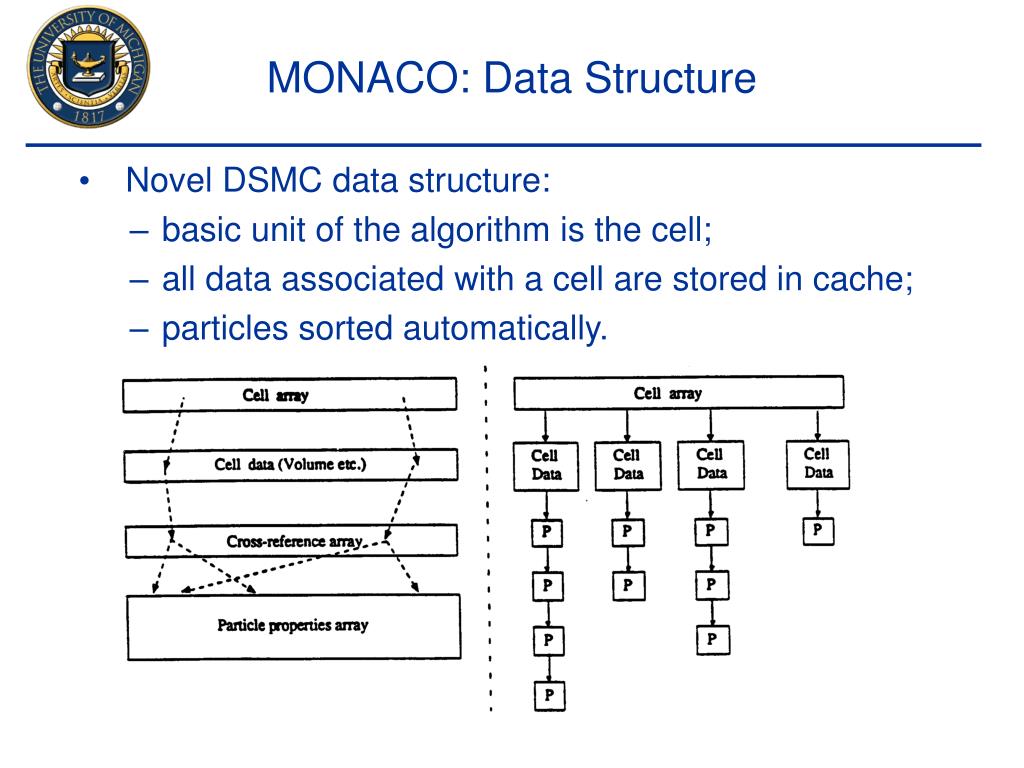

MONACO: Data Structure

  • Novel DSMC data structure:

    • basic unit of the algorithm is the cell;

    • all data associated with a cell are stored in cache;

    • particles sorted automatically.


Slide11 l.jpg

MONACO: Scalar Optimization

  • Inexpensive cache memory system used on workstations:

    • data localization leads to performance enhancement.

  • Optimization for specific processor:

    • e.g. overlap *add*, *multiply* and *logical* instructions.


Slide12 l.jpg

MONACO: Parallel Implementation

  • Grid geometry reflected in the code data structure:

    • domain decomposition employed.

  • When a particle crosses a cell edge:

    • particle pointed to new cell;

    • thus, particles sorted-by-cell automatically.

  • When a particle crosses a domain edge:

    • communication link employed;

    • linked lists of particles sent as matrix;

    • inter-processor communication minimized;

    • no explicit synchronization required.


Slide13 l.jpg

MONACO: Parallel Implementation


Slide14 l.jpg

MONACO: The Software System

  • Consists of four modular libraries:

    • KERN, GEOM, PHYS, UTIL.


Slide15 l.jpg

MONACO: Code Performance

  • MONACO performance on IBM SP (Cornell, 1996):

    • largest DSMC computation at the time;

    • best performance with many particles/processor;

    • parallel performance ~ 90%;

    • serial performance 30-40%.


Slide16 l.jpg

MONACO: Unstructured Grids

Hypersonic flow around

a planetary probe

3D Surface geometry of

TOMEX flight experiment


Slide17 l.jpg

DSMC Applications:

1. Hypersonic Aerothermodynamics

  • Hypersonic vehicles encounter a variety of flow regimes:

    • flights/experiments are difficult and expensive;

    • continuum: modeled accurately and efficiently using CFD;

    • rarefied: modeled accurately and efficiently using DSMC.

NASA’s Hyper-X

DSMC:particle approach

high altitude

sharp edges

uses kinetic theory

CFD:continuum approach

low altitude

long length scales

solves NS equations


Slide18 l.jpg

Hypersonic Viscous Interaction

  • Flow separation configuration:

    • N2 at M~10 over double cone;

    • data from LENS (Holden).


Slide19 l.jpg

Shock-Shock Interactions

  • Cowl lip configuration:

    • N2 at M~14;

    • data from LENS (Holden).


Slide20 l.jpg

Complex 3D Flows

  • TRIO flight experiment:

    • analysis of pressure gauges;

    • external/internal flows.


Slide21 l.jpg

Aerothermodynamics

Of Sharp Leading Edges

  • Computations of hypersonic flow around several power-law leading edge configurations performed using MONACO at high altitude.

  • Advanced physical modeling:

    • vibrational relaxation and air chemistry;

    • incomplete wall accommodation.

  • Effects of sharpening the leading edge:

    • reductions in overall drag coefficient and shock standoff distance;

    • increases in peak heat transfer coefficient.


  • Slide22 l.jpg

    Flow Fields

    Temperature Ratio (T / T∞)

    Cylinder at 7.5 km/s

    n=0.7 at 7.5 km/s


    Slide23 l.jpg

    Aerothermodynamic Assessment

    Drag Coefficient

    Shock Standoff Distance/Heat Transfer Coefficient


    Slide24 l.jpg

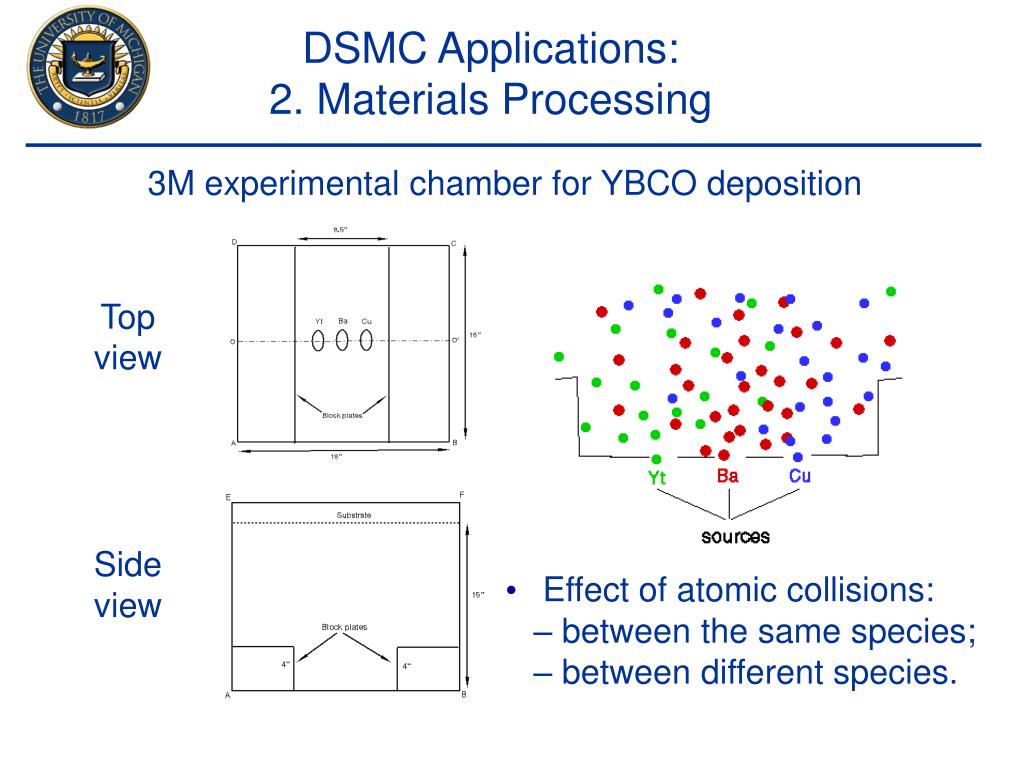

    DSMC Applications:

    2. Materials Processing

    3M experimental chamber for YBCO deposition

    Top view

    Side view

    • Effect of atomic collisions:

    • – between the same species;

    • – between different species.


    Slide25 l.jpg

    3D MONACO Modeling

    • 20x60x50 cuboid cells.

    • Non-uniform cell sizes.

    • 2,000,000 particles.

    • Overnight solution time


    Slide26 l.jpg

    Yttrium Evaporation

    Source flux: 9.95x10-5 moles/sec

    Number density

    Z-component of velocity


    Slide27 l.jpg

    Yttrium Evaporation

    • Comparison of calculated and measured film deposition thickness.

    • Significant effect of atomic collisions.


    Slide28 l.jpg

    Yttrium Evaporation

    Calculated and measured atomic absorption spectra:

    – along an aperture close to the substrate symmetry line;

    – at frequencies of 668 nm (left) and 679 nm (right).


    Slide29 l.jpg

    Co-evaporation of Yt, Ba, and Cu

    Source fluxes (10-5 moles/cm2/sec)

    Y : Ba :Cu = 0.84 : 1.68 : 2.52

    Total Number Density


    Slide30 l.jpg

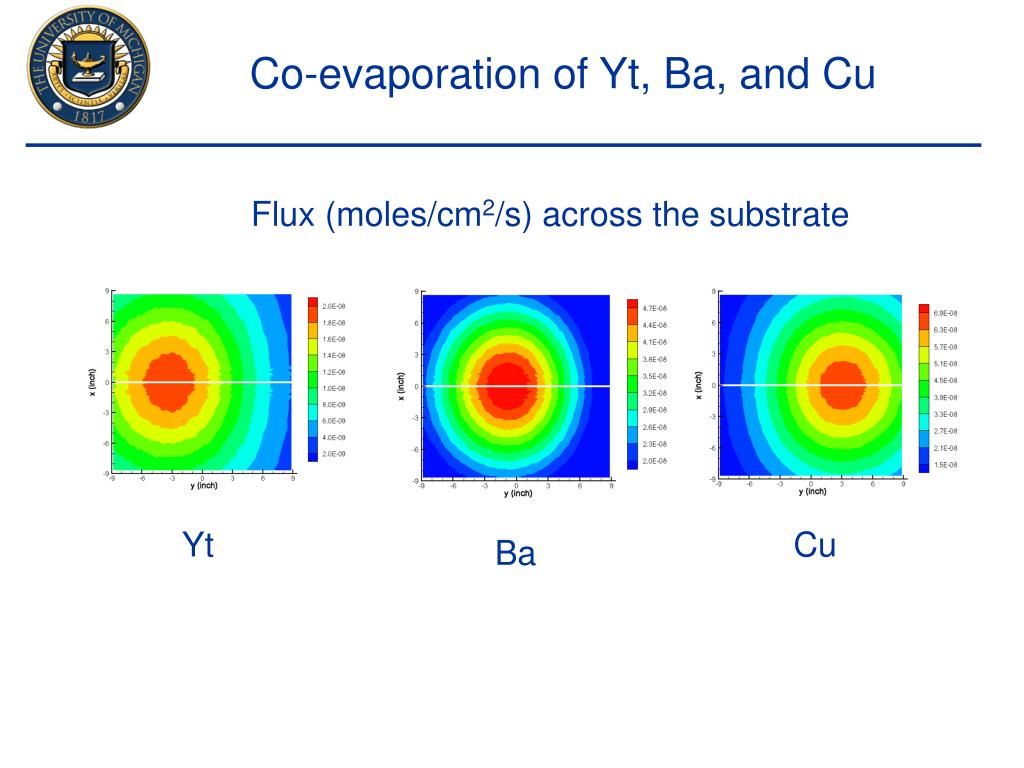

    Co-evaporation of Yt, Ba, and Cu

    Flux (moles/cm2/s) across the substrate

    Yt

    Cu

    Ba


    Slide31 l.jpg

    Tasks for spacecraft propulsion systems:

    orbit transfer (e.g. planetary exploration);

    orbit maintenance (e.g. station-keeping);

    attitude control.

    Motivations for development of accurate models:

    simulations less expensive than testing;

    improve our understanding of existing systems;

    optimize engine performance and lifetime;

    assessment of spacecraft integration concerns.

    DSMC Applications:

    3. Spacecraft Propulsion


    Slide32 l.jpg

    Spacecraft Propulsion

    Gridded

    ion thruster

    (UK-10)

    Arcjet

    (Stanford)

    Pulsed

    Plasma

    Thruster

    (EOS-1)

    Hall:stationary

    plasma thruster

    (SPT-100)


    Slide33 l.jpg

    Two Russian GEO spacecraft launched in 2000:

    SPT-100 Hall thrusters used for station-keeping;

    in-flight characterization program managed by NASA;

    first in-flight plume data for Hall thrusters.

    Express Spacecraft

    • Diagnostics employed on spacecraft:

      • electric field sensors;

      • Faraday probes (ion current density);

      • retarding potential analyzers, RPA’s (ion current density, ion energy distribution function);

      • pressure sensors;

      • disturbance torques (from telemetry data).


    Slide34 l.jpg

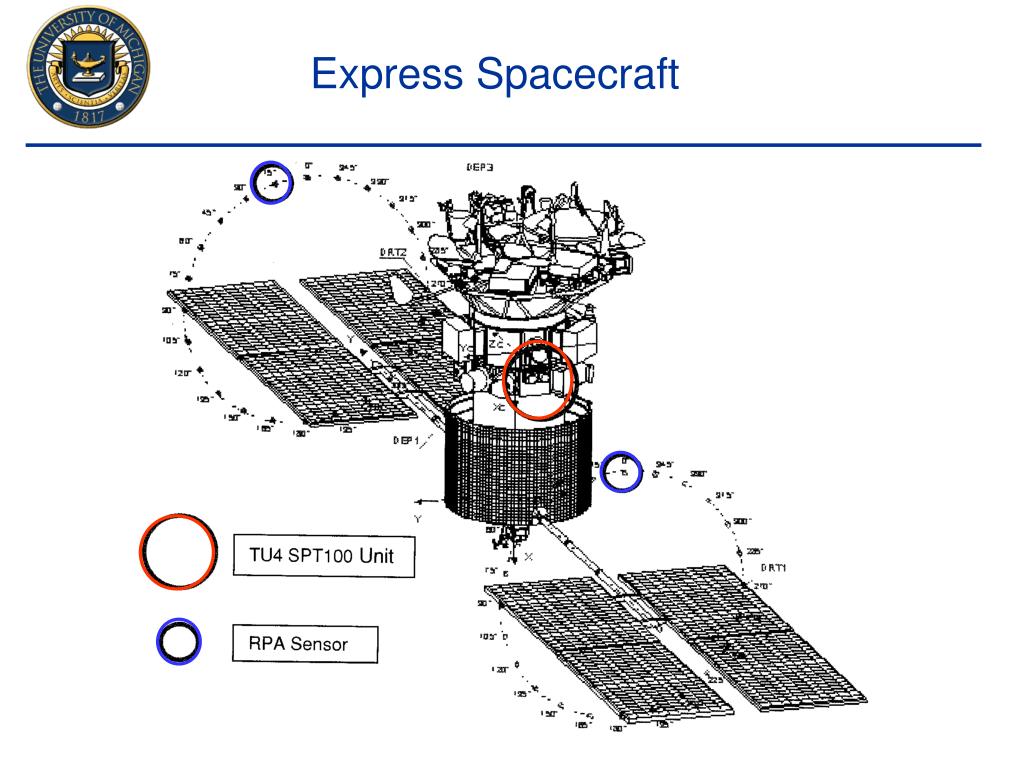

    Express Spacecraft


    Slide35 l.jpg

    Particle In Cell (PIC)

    • Particle method for nonequilibrium plasma:

      • developed since the 1960’s;

      • charged particles move in physical space;

      • particles possess microscopic properties, e.g. u’ (thermal velocity);

      • cell size Dx ~ d, time step Dt ~ 1/w;

      • self-consistent electric fields, E;

      • may be combined with DSMC for collisional plasmas.

    E3

    E4

    E2

    E1

    {

    u’, v’, w’

    x, y, z

    m, q


    Slide36 l.jpg

    Hybrid DSMC-PIC

    • Particle model for ions, fluid model for electrons.

    • Boltzmann relation for electrons provides potential:

      • currentless, isothermal, un-magnetized, collisionless;

      • quasi-neutrality provides potential from ion density:

    • Collision mechanisms:

      • charge exchange;

      • momentum exchange.


    Slide37 l.jpg

    Number Densities (m-3)

    Xe+ ion

    Xe atom


    Slide38 l.jpg

    Ion Current Density


    Slide39 l.jpg

    Ion Energy Distributions

    Beam plasma (15 deg.)

    CEX plasma (77 deg.)


    Slide40 l.jpg

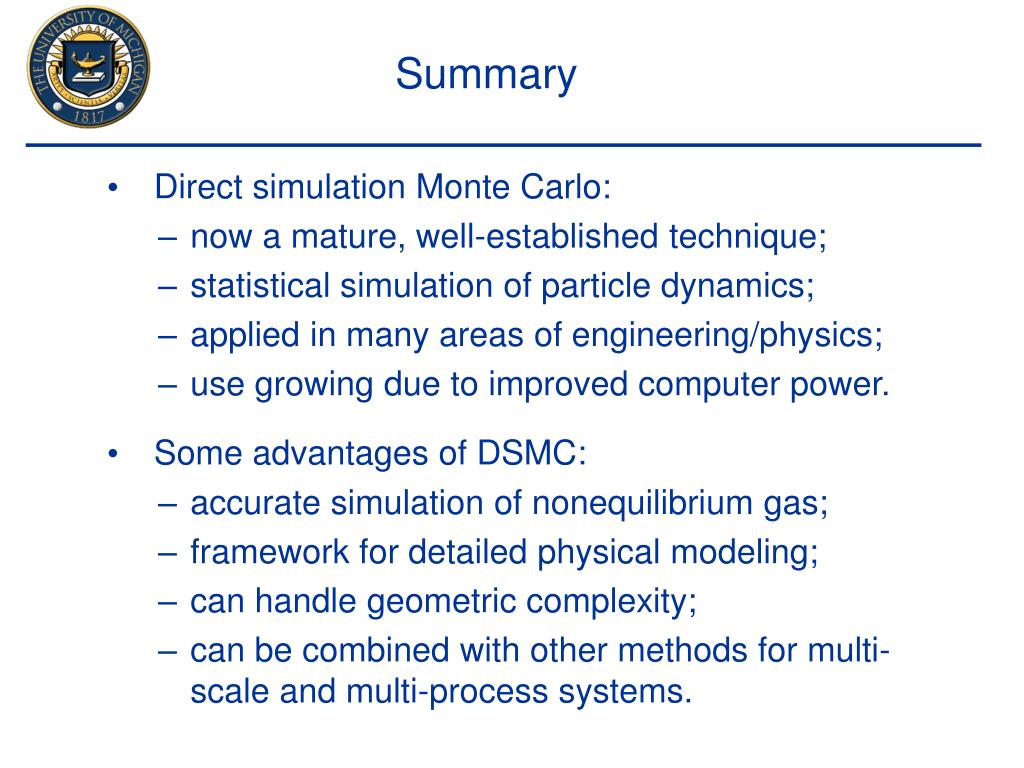

    Direct simulation Monte Carlo:

    now a mature, well-established technique;

    statistical simulation of particle dynamics;

    applied in many areas of engineering/physics;

    use growing due to improved computer power.

    Some advantages of DSMC:

    accurate simulation of nonequilibrium gas;

    framework for detailed physical modeling;

    can handle geometric complexity;

    can be combined with other methods for multi-scale and multi-process systems.

    Summary


    Slide41 l.jpg

    Development of MONACO:

    unsteady and 3D flows;

    user help: “DSMC for dummies”;

    dynamic domain decomposition;

    more detailed physical models.

    Extensions of DSMC:

    hybrid DSMC-CFD (using IP interface);

    generalized hybrid DSMC-PIC;

    2-phase DSMC (gas and solid particles);

    speedup: implicit DSMC, variance reduction.

    Future Directions
