Presentation Transcript


Hurricane katrina storm surge induced flooding l.jpg

Hurricane KatrinaStorm Surge Induced Flooding

and

Low-Lying New Orleans:

How to Prevent Future Damages


Introduction l.jpg

Introduction

  • What is storm surge

  • What happened during Hurricane Katrina

  • Why New Orleans is vulnerable

  • The future of New Orleans

http://www.pbs.org/wgbh/nova/sciencenow/dispatches/images/050901-katrina2-l.jpg


What is a storm surge l.jpg

What is a Storm Surge?

  • “Meteorological Residual”

  • Most dangerous phenomenon associated with hurricanes

  • Accounts for 70-90% of death & damage


What is storm surge l.jpg

What is Storm Surge?

  • Large change in sea level

  • Generated by extreme weather conditions

  • “Mound” of water driven toward shore by storm

  • Waves on top of surge devastate area

    • Water weighs 1000 kg/m3 – Immense potentially destructive power

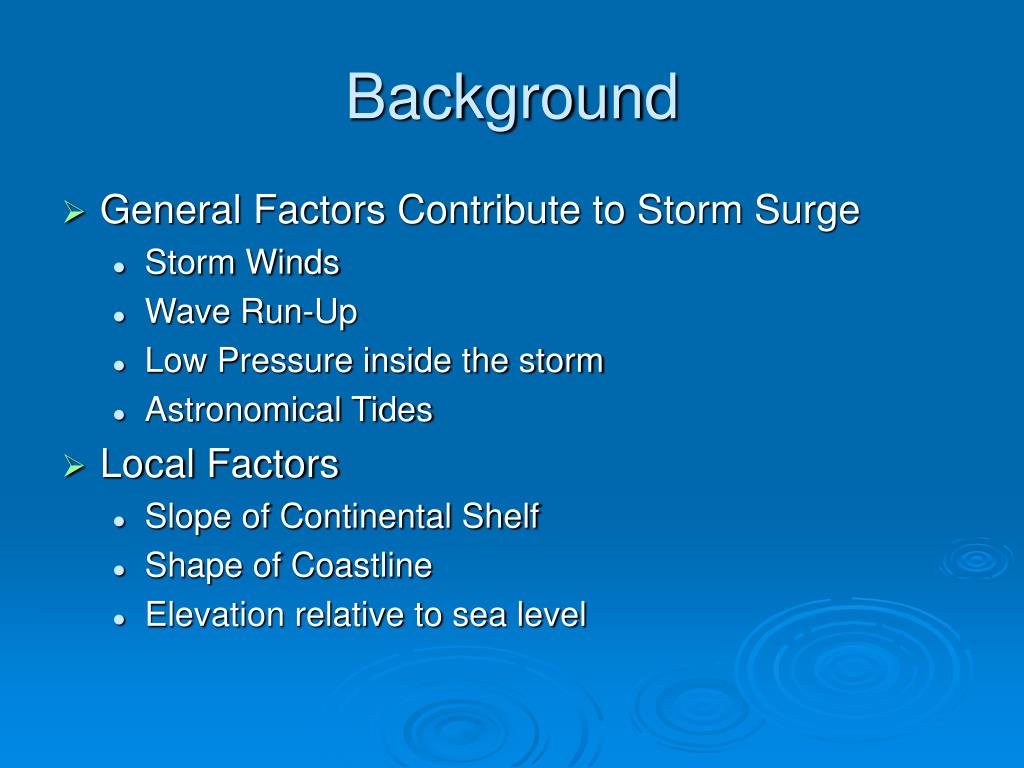

Background l.jpg

Background

  • General Factors Contribute to Storm Surge

    • Storm Winds

    • Wave Run-Up

    • Low Pressure inside the storm

    • Astronomical Tides

  • Local Factors

    • Slope of Continental Shelf

    • Shape of Coastline

    • Elevation relative to sea level


Dangers of surge l.jpg

Dangers of Surge

  • Devastating to low-lying coastal regions

    • Bay of Bengal - India

    • Galveston – Texas

  • Inland Surge

    • Lake Okeechobee, Florida

      • 1928-3m surge; Hurricane San Filippe

      • 1,836 people killed, massive flooding

    • Lake Pontechrain, Louisiana

      • 2005 ~8m; Hurricane Katrina

      • Death toll-unknown and still rising


Slide7 l.jpg

BEFORE

AFTER

http://www.spaceimaging.com/gallery/hurricanes2005/katrina/NewOrleans/NewOrleans1.jpg


Before and after l.jpg

Before and After

http://chattablogs.com/quintus/new_orleans1.jpg


Slide9 l.jpg

Satellite Images

After – August 30th

Before – August 27th

http://www.nasa.gov/images/content/126535main_neworleans_flood_0831.jpg


What happened during katrina l.jpg

Storm Surge

~8 meters (25-28 feet)

Water is STRONG!

Pumping Stations flooded

Lack of drainage in city

Left helpless

What Happened During Katrina?


What happened during katrina11 l.jpg

What Happened During Katrina?

  • Channels/Canals

    • Lack of sea gates allowed water to flow deep into the city

    • Intense pressure from water and winds

    • Protective walls broke

    • Funneling

      • MRGO & Intracoastal Waterway

  • New Orleans Flood Map

    • http://mapper.cctechnol.com/floodmap.php


Why is new orleans vulnerable below sea level l.jpg

Why is New Orleans VulnerableBelow Sea Level

  • City averages 6 feet below sea level

  • Drainage of former swamp areas led to subsidence

  • Located between levees of Lake Pontchartrain and Mississippi River

  • Creates “bowl” effect

http://en.wikipedia.org/wiki/Image:New_Orleans_Levee_System.gif


New orleans elevation l.jpg

New Orleans Elevation


Why is new orleans vulnerable disappearing wetlands and barrier islands l.jpg

Why is New Orleans VulnerableDisappearing Wetlands and Barrier Islands

  • Wetlands and Barrier Islands are best natural defense against storm surges

  • For every mile of continuous wetland the height of a storm surge can be reduced 3 to 8 inches

  • Wetlands and Barrier Islands are naturally replenished with sediment from the flooding Mississippi

Before and after Hurricane Katrina

http://news.nationalgeographic.com/news/2005/09/images/050919_katrina_delta.jpg


Why is new orleans vulnerable disappearing wetlands and barrier islands15 l.jpg

Why is New Orleans VulnerableDisappearing Wetlands and Barrier Islands

  • Upriver Dams have reduced sediment in the river by up to 67%

  • Levees built around New Orleans channel the rivers flow far out into Gulf of Mexico

  • Wetlands and barrier islands being denied natural replenishment

http://news.minnesota.publicradio.org/features/2003/08/14_hetlandc_morupdate/images/gavinspointdam_large.jpg


Why is new orleans vulnerable disappearing wetlands and barrier islands16 l.jpg

Why is New Orleans VulnerableDisappearing Wetlands and Barrier Islands

  • Over the last 50 years wetland loss has been about 60 square kilometers per year

  • Canal construction has allowed saltwater intrusion to freshwater marshes

  • Additional salinity kills native plants, which causes even more erosion

http://www.whitehouse.gov/omb/budget/fy2005/images/corps-6.jpg


The future of new orleans rebuilding current structures l.jpg

The Future of New OrleansRebuilding Current Structures

  • Restore New Orleans to Pre-Katrina before June 1st

    • Official start of hurricane season

    • Many building permits already given out

http://ap.lancasteronline.com/5/new_orleans_levees

Work continues, Wednesday, Nov. 30, 2005, at the 17th Street Canal floodwall that was breached after Hurricane Katrina in New Orleans. Government engineers performing sonar tests at the 17th Street Canal found exactly what independent investigators said they would, that steel reinforcements barely went more than half as deep as they were supposed to, a U.S. Army Corps of Engineers official said Wednesday. (AP Photo/Cheryl Gerber)


The future of new orleans sea gates l.jpg

The Future of New OrleansSea Gates

  • Giant air-filled walls

  • Across Lake Pontchartrain’s two inlets

  • Considered since 1960’s

  • Used in Holland & Britain

  • Cost ~ $500 million-1 billion

The Delta Project - Holland

http://www.alumni.northwestern.edu/travel/holland-belgium-photos.html?action=viewPhoto&photoID=1115312046


The future of new orleans closing covering canals l.jpg

The Future of New OrleansClosing/Covering Canals

  • Only keep heavily used canals open

  • Cover others (turn into culverts $$$)

  • Turn into parks/trails

MRGO

Today, only a slim line of broken marsh lies between the MRGO and Lake Borgne (top of frame).

http://www.louisianasportsman.com/stories/2003/paradise-lost/future-of-mrgo.htm


The future of new orleans wetland rehabilitation l.jpg

The Future of New OrleansWetland Rehabilitation

  • Dredging of canals

  • Saltwater intrusion

  • Hand planting is costly

http://www.pbs.org/journeytoplanetearth/images/1la2.jpg


The future of new orleans barrier islands l.jpg

The Future of New OrleansBarrier Islands

  • First line of protection

  • Shrinking rapidly

  • Coast 2050

http://www.earthsky.com/humanworld/shows.php?date=20051230

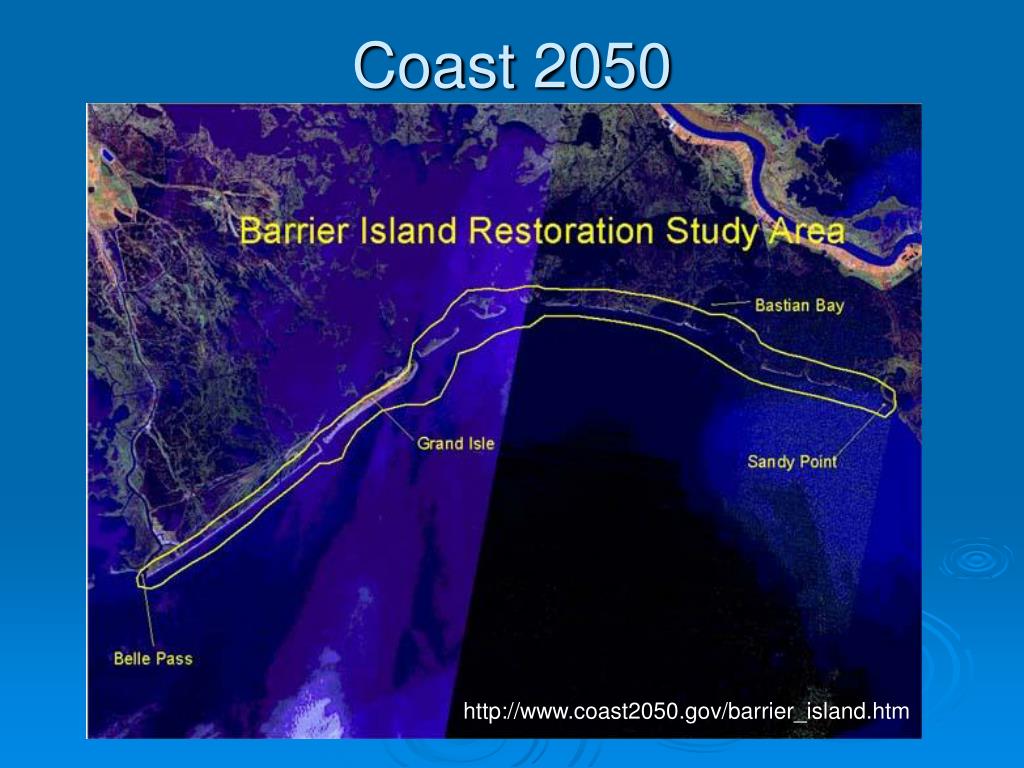

Coast 2050 l.jpg

Coast 2050

http://www.coast2050.gov/barrier_island.htm


The future of new orleans other ideas l.jpg

The Future of New OrleansOther Ideas

  • Move pumping stations

  • Drainage Systems

  • Contain Neighborhoods

  • Connect barrier Islands

    • Netherlands: Delta Works

  • Lowlands into parks

http://www.globalsecurity.org/military/facility/new-orleans-flooding-pics.htm


Conclusion l.jpg

Conclusion

  • New Orleans future is unclear

  • Will take multiple solutions to protect the sinking city

  • High cost and will take years to infiltrate

http://www.globalsecurity.org/military/facility/new-orleans-flooding-pics.htm

http://rst.gsfc.nasa.gov/Sect14/Sect14_10a.html


Thanks l.jpg

THANKS!!!

Keith Erickson

Rachel Kjos

Chris Below

Chris Dierich

http://www.all4all.org/images/2005/09/2065.jpg
