Test Sieve Shaker

<br>Test Sieve Shaker features 1 to 8 sieve working layers <br>which rotates at speed of 1400 rpm for fine particle <br>distribution analysis. With diameter of 200 mm sieve, <br>it can test 50 to 150 g of sample material. Used to <br>determine particle size distribution of raw and finished<br>materials in the form of particles, powder and liquid.<br>A Test Sieve Shaker is a laboratory instrument used to <br>shake a stack of test sieves in order to efficiently <br>separate particles of different sizes. The primary purpose <br>of this equipment is to perform particle size analysis and <br>ensure the consistency and accuracy of

Eleanor96
Download Presentation

Test Sieve Shaker

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

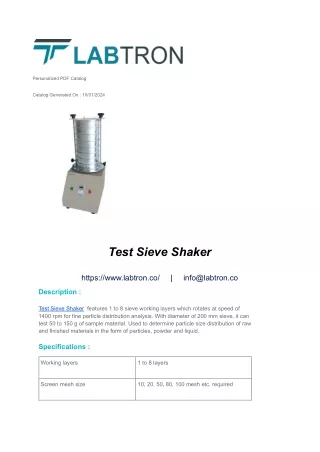

  1. Personalized PDF Catalog Catalog Generated On : 10/01/2024 Test Sieve Shaker https://www.labtron.co/ | info@labtron.co Description : Test Sieve Shaker features 1 to 8 sieve working layers which rotates at speed of 1400 rpm for fine particle distribution analysis. With diameter of 200 mm sieve, it can test 50 to 150 g of sample material. Used to determine particle size distribution of raw and finished materials in the form of particles, powder and liquid. Specifications : Working layers 1 to 8 layers Screen mesh size 10, 20, 50, 80, 100 mesh etc. required

  2. Diameter 200 mm Material Stainless steel 304 Timing range 1 to 99 hours Speed 1400 rpm Power consumption 120 W Power supply 110/ 220 V± , 60/ 50 Hz External dimension (W×D×H) 400 × 330 × 370 mm Packaging dimension (W×D×H) 540 × 490 × 460 mm Gross weight 55 kg Features : Screen mesh size range from 4 to 500 mesh Made up of Stainless steel 304 Can easily set time from seconds to hours Diameter of sieve 200 mm Compatible with 10, 20, 50, 80, 100 mesh etc. size screen mesh Applications : Test Sieve Shaker finds application in particle size distribution of raw materials, finished products across laboratory and quality control testing units.

  3. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom

  4. Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
