Specific Gravity Tester

Specific Gravity Tester determines the theoretical <br>maximum specific gravity of bituminous mixtures in <br>accordance to ASTM D2041 Standard Test Method for <br>Theoretical Maximum Specific Gravity of Bituminous <br>Mixtures (Vacuum process). Adopted with single chip <br>machine technology to shake a loose asphalt mixture <br>sample submerged in water. Vacuum is applied into the <br>sample, to extract out the air bubble.

Eleanor96
Download Presentation

Specific Gravity Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

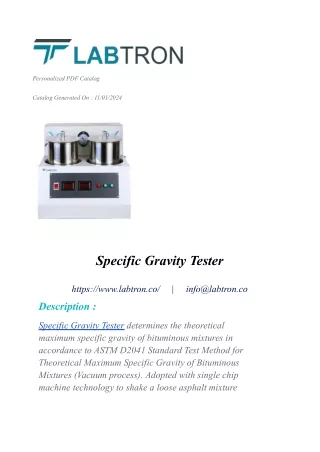

  1. Personalized PDF Catalog Catalog Generated On : 11/01/2024 Specific Gravity Tester https://www.labtron.co/ | info@labtron.co Description : Specific Gravity Tester determines the theoretical maximum specific gravity of bituminous mixtures in accordance to ASTM D2041 Standard Test Method for Theoretical Maximum Specific Gravity of Bituminous Mixtures (Vacuum process). Adopted with single chip machine technology to shake a loose asphalt mixture

  2. sample submerged in water. Vacuum is applied into the sample, to extract out the air bubble. Specifications : Vessel Volume 4000 ml × 2 Power of Vacuum pump 160 W Negative power 3.7 kPa（27.75 mmHg） Power of shaking machine 30 W Power supply AC(220±10%)V, 50Hz Dimension 510×520×380 mm Features : High test efficiency Test 2 samples at one time Adopts single chip machine technology Equipped with a high-accuracy absolute pressure sensor Vacuum meter showing working status of vacuum pump

  3. Water buffer device preventing water flow from negative pressure container into the vacuum pump Applications : Suitable for measuring theoretical specific gravity of bituminous mixtures. Can also be used for the calculation of the percent of air voids in compacted bituminous mixtures and the amount of bitumen absorbed by the aggregates.

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
