Portable Explosives Drug Detector

<br>Portable Explosives Drug Detector uses IMS (Ion Mobility Spectrometry) technology to <br>detect trace level of explosives. With higher sensitivity it detects explosive present <br>in nanogram level in a test sample. Various explosives like Black Powder, Ammonium Nitrate <br>(AN), TNT, PETN, RDX, nitro-glycerine, Octo, Tetra, Dinitrotoluene (DNT), C4, Semtex, TATP, <br>etc. can be detected. Features like audio and visual alert system, password lock option, <br>touch screen display, results displayed in few seconds etc. makes it highly efficient. It <br>has wide applications in investigation department, research

Eleanor96
Download Presentation

Portable Explosives Drug Detector

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

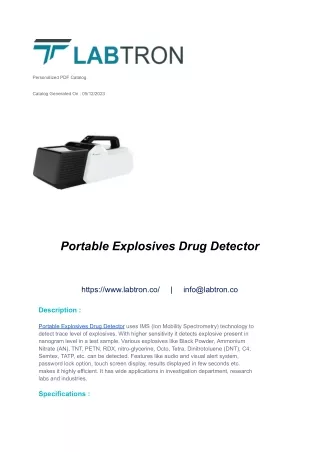

  1. Personalized PDF Catalog Catalog Generated On : 05/12/2023 Portable Explosives Drug Detector https://www.labtron.co/ | info@labtron.co Description : Portable Explosives Drug Detector uses IMS (Ion Mobility Spectrometry) technology to detect trace level of explosives. With higher sensitivity it detects explosive present in nanogram level in a test sample. Various explosives like Black Powder, Ammonium Nitrate (AN), TNT, PETN, RDX, nitro-glycerine, Octo, Tetra, Dinitrotoluene (DNT), C4, Semtex, TATP, etc. can be detected. Features like audio and visual alert system, password lock option, touch screen display, results displayed in few seconds etc. makes it highly efficient. It has wide applications in investigation department, research labs and industries. Specifications :

  2. Black Powder, Ammonium Nitrate(AN),TNT, PETN, RDX, Detectable nitro-glycerine, Octo, Tetra, Dinitrotoluene (DNT), C4, Semtex, explosives TATP, etc. Self-diagnosis built-in diagnostics, power-on self-test function Sensitivity nanogram Alarm mode voice + information display Analysis time < 5 s Detection rate ≥ 99% False positive rate ≤ 1% Machine weight < 3 kg Warm-up time ≤ 10 min Working -15°C to 50°C environment Display screen 5 inch high-definition touch display Battery display graphic display of battery usage function Standby time > 5 hours Product Dimension 338 ×148 ×175 mm (L×W×H)

  3. Power 220 V AC 50-60 Hz / Lithium battery powered input 220 V / AC 50-60 Hz Power adapter output 16 V / DC Weight < 3 kg Features : Adopts IMS Technology Displays location map Detection within few seconds Remote operation available Option to add new samples by users Self-diagnosis of the sample Audio and visual alert system 5 inch touch screen to view and pre-set parameters Battery last up to 4 to 5 hours Light weight, ergonomic design, user friendly interface Handle provided for better grip Applications : It is widely used in Airport, police, railways security department, research labs etc. to detect traces of explosives.

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
