Open Cup Flash Point Tester

Open cup flash point tester is designed with higher precision and <br>perfection to meet its wide range of applications. It is incorporated <br>with advanced and reasonable temperature control features.it is a device <br>used to determine the flash point of a substance. The flash point is the <br>lowest temperature at which vapors of a substance ignite when exposed to <br>an open flame or other ignition source.<br>

Eleanor96
Download Presentation

Open Cup Flash Point Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

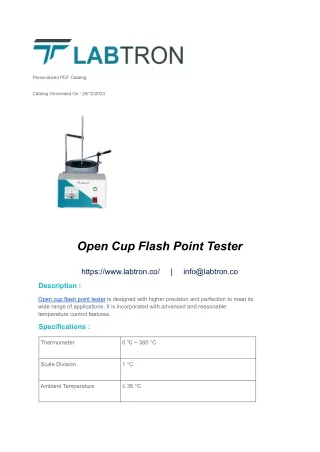

  1. Personalized PDF Catalog Catalog Generated On : 29/12/2023 Open Cup Flash Point Tester https://www.labtron.co/ | info@labtron.co Description : Open cup flash point tester is designed with higher precision and perfection to meet its wide range of applications. It is incorporated with advanced and reasonable temperature control features. Specifications : Thermometer 0 ℃ ~ 360 °C Scale Division 1 °C Ambient Temperature ≤ 35 °C

  2. Relative Humidity ≤ 85 % Outer Crucible-Material Carbon structural steel Outer Crucible-Diameter Of Φ100 ± 5 mm Upper Opening Outer Crucible-Height 50 ± 5 mm Outer Crucible-Diameter Of Φ56 ± 2 mm Bottom Inner Crucible-Material Carbon structural steel Inner Crucible-Diameter Of Φ64 ± 1 mm Upper Opening Inner Crucible-Height 47 ± 1 mm Inner Crucible-Diameter Of Φ38± 1 mm Bottom 12mm away from the rim of upper opening and Inner Crucible-Scale Line 18mm away from the rim of upper opening Gas Tube Φ0.8 ~ Φ1 mm Flame 3 to 4 mm Heater Heated by an electric furnace Heating Power 1000W Dimensions 410 x 360 x 240 mm

  3. Power Consumption ≤ 1100 W Power Supply AC 220 V ± 10 %, 50Hz Features : Adjustable heating power Electric current meter to display power Tiny desktop structure Easy to operate Applications : Used to determine the flash point and fire point of lubricating oil and dark petroleum products

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
