Melting Point Apparatus

Melting Point Apparatus offers desktop design, visual melting <br>point apparatus is of reliable performance. The Temperature <br>ranges from Room temperature to 280u02daC and offers 0.1u02daC minimum <br>digital display. Designed with LCD display. Measurement of the <br>melting point of medicines, dye-stuffs and perfumes and other <br>organic crystal substances to determine purity. Measurement <br>method is in conformity with the standard of pharmacopoeia. <br>It Measures three samples at the same time and calculate average <br>value of initial and final melting points automatically.

Eleanor96
Download Presentation

Melting Point Apparatus

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

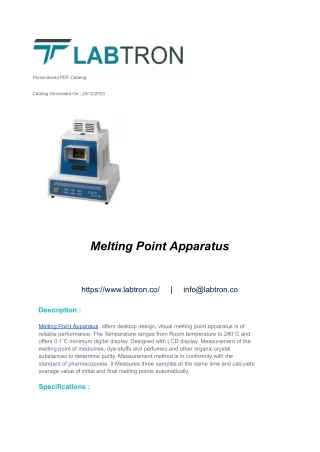

  1. Personalized PDF Catalog Catalog Generated On : 25/12/2023 Melting Point Apparatus https://www.labtron.co/ | info@labtron.co Description : Melting Point Apparatus offers desktop design, visual melting point apparatus is of reliable performance. The Temperature ranges from Room temperature to 280˚C and offers 0.1˚C minimum digital display. Designed with LCD display. Measurement of the melting point of medicines, dye-stuffs and perfumes and other organic crystal substances to determine purity. Measurement method is in conformity with the standard of pharmacopoeia. It Measures three samples at the same time and calculate average value of initial and final melting points automatically. Specifications :

  2. Measurement range Room temperature to 280˚C Heating conducting medium Silicon oil Minimum digital display 0.1˚C Linear heating up rate 0.5, 1.0, 1.5, 3.0 ˚C/min Accuracy ≤ 200˚C, ± 0.4˚C, 200˚C, ±0.7˚C Repeatability (Standard 0.3˚C (heating rate 1.0˚C/min) Deviation) Φ 1.4 mm (outside diameter) Φ 1.0 mm (inside Size of capillary diameter) Length: 120 mm Number of capillary 3 Loading height of Sample 3 mm Display LCD Interface RS232 Dimension 390 × 390 × 520 mm Gross Weight 13 kg

  3. Features : Designed with LCD display Temperature ranges from Room temperature to 280˚C Equipped with heating conducting medium silicon oil Offers 3 mm loading height of sample It Measures three samples at the same time Automatically calculate average value of initial and final melting points Applications : It finds application across finding meting point of oil and fat in food and drug industry, biochemistry, medicines, mining, water management industry.

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
