_Handheld refractometer

Handheld Refractometer with automatic temperature compensation (ATC) <br>is ideal for measurement of refractive index of material under varying <br>temperature conditions during a production process. It offers refractive <br>index scale range of 1.440 to 1.520 ND and 0 to 30u02daC Temperature compensation <br>range. The reading resolution is 0.001 ND. The liquid measurement is very easy. <br>Feature satin chrome finish and have rubber-insulated grips, a zero adjusting <br>screw for calibration and eyepiece focusing. Place a few drops of the liquid on <br>the optical part of the refractometer, cover the prism (the liqu

Eleanor96
Download Presentation

_Handheld refractometer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

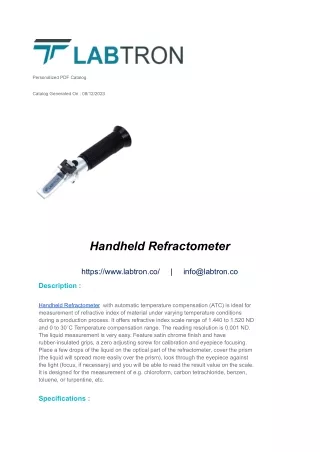

  1. Personalized PDF Catalog Catalog Generated On : 08/12/2023 Handheld Refractometer https://www.labtron.co/ | info@labtron.co Description : Handheld Refractometer with automatic temperature compensation (ATC) is ideal for measurement of refractive index of material under varying temperature conditions during a production process. It offers refractive index scale range of 1.440 to 1.520 ND and 0 to 30˚C Temperature compensation range. The reading resolution is 0.001 ND. The liquid measurement is very easy. Feature satin chrome finish and have rubber-insulated grips, a zero adjusting screw for calibration and eyepiece focusing. Place a few drops of the liquid on the optical part of the refractometer, cover the prism (the liquid will spread more easily over the prism), look through the eyepiece against the light (focus, if necessary) and you will be able to read the result value on the scale. It is designed for the measurement of e.g. chloroform, carbon tetrachloride, benzen, toluene, or turpentine, etc. Specifications :

  2. Scale Range 1.440 to 1.520 ND refractive index Resolution 0.001 ND Reference Temperature 20˚C Length 175 mm Temperature compensation 0 to 30˚C Material body Metal, glass and rubber Dimension 30 × 40 × 210 mm Weight 0.27 kg Features : Designed with refractive index refractometer scale range 1.440 to 1.520 ND Automatic temperature compensation (ATC) with reference temperature of 20°C Good focus possibility and offers 175 mm length Light-weight, portable, includes protective carrying case High Quality, Accurate Testing Results Used for on-site measurements in processing and storage areas, or in field

  3. Applications : Handheld Refractometer used for accurately determine i.e. the refractive index measurement of chloroform, carbon tetrachloride, benzen, toluene, turpentine, etc. used in R & D Labs, Biotechnology Labs, Analytical Labs, Microbiology Lab, Pharma Lab, Hospitals and Clinical Research Laboratories. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom

  4. Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
