Digital Hay Moisture Meter (17)

Handheld Refractometer with automatic temperature compensation (ATC) <br>is ideal for measurement of refractive index of material under varying <br>temperature conditions during a production process. It offers refractive <br>index scale range of 1.440 to 1.520 ND and 0 to 30u02daC Temperature compensation <br>range. The reading resolution is 0.001 ND. The liquid measurement is very easy. <br>Feature satin chrome finish and have rubber-insulated grips, a zero adjusting <br>screw for calibration and eyepiece focusing. Place a few drops of the liquid on <br>the optical part of the refractometer, cover the prism (the liqu

Eleanor96
Download Presentation

Digital Hay Moisture Meter (17)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

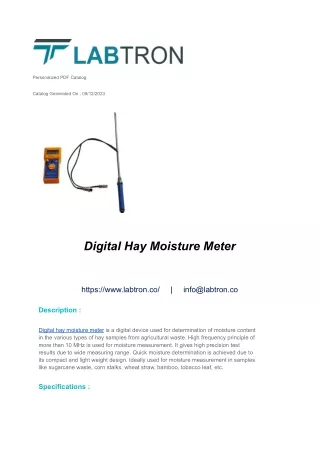

  1. Personalized PDF Catalog Catalog Generated On : 08/12/2023 Digital Hay Moisture Meter https://www.labtron.co/ | info@labtron.co Description : Digital hay moisture meter is a digital device used for determination of moisture content in the various types of hay samples from agricultural waste. High frequency principle of more than 10 MHz is used for moisture measurement. It gives high precision test results due to wide measuring range. Quick moisture determination is achieved due to its compact and light weight design. Ideally used for moisture measurement in samples like sugarcane waste, corn stalks, wheat straw, bamboo, tobacco leaf, etc. Specifications :

  2. Measuring range 0 % to 80 % Resolution 0.001 0 % to 10 % : ± 0.2 % Accuracy 10 5 to 40 % : ± 0.5 % 40 % to 80 % : ± 1 % Probe length 600 mm Display LCD Power supply 9 V battery × 1 Dimensions (W × D × H) 160 × 60 × 27 mm Packing dimensions (W × D × H) 610 × 110 × 170 mm Net weight 250 g Gross weight 1 kg

  3. Features : High frequency principle used for moisture content determination,br/> More than 10 MHz frequency applied Steel and PTFE material used for sensor probe Sensor probe is corrosion and wear resistant Wide measuring range with high precision result Fast determination due to compact and light weight Built-in 10th measurement switch stalls LCD display screen for test value observation Applications : Widely used for determining moisture content in the agricultural samples like straw, wheat straw, forage, hay, sugarcane waste, corn stalks, reeds, bamboo, tobacco leaf botanicals, fern stalks, paper bales waste, etc.

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
