blood collection monitor

Blood Collection Monitor is a tabletop monitor with a measuring range of<br>0 to 1200 ml providing smooth and gentle rocking for homogeneous mixing with<br>anticoagulant without blood clot formation. Taring and calibration function ensures<br>measuring accuracy. Soft shaking mode improves survival of effective components. If<br>collection volume is preset the balance automatically stops shaking on a gap of 10 ml.

Eleanor96
Download Presentation

blood collection monitor

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

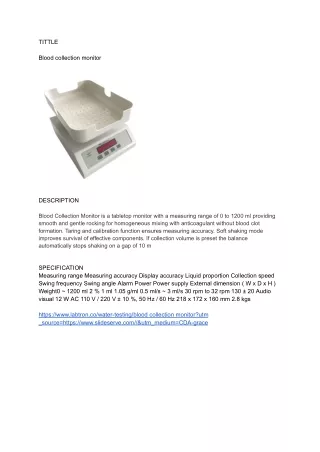

  1. TITTLE Blood collection monitor DESCRIPTION Blood Collection Monitor is a tabletop monitor with a measuring range of 0 to 1200 ml providing smooth and gentle rocking for homogeneous mixing with anticoagulant without blood clot formation. Taring and calibration function ensures measuring accuracy. Soft shaking mode improves survival of effective components. If collection volume is preset the balance automatically stops shaking on a gap of 10 m SPECIFICATION Measuring range Measuring accuracy Display accuracy Liquid proportion Collection speed Swing frequency Swing angle Alarm Power Power supply External dimension ( W x D x H ) Weight0 ~ 1200 ml 2 % 1 ml 1.05 g/ml 0.5 ml/s ~ 3 ml/s 30 rpm to 32 rpm 130 ± 20 Audio visual 12 W AC 110 V / 220 V ± 10 %, 50 Hz / 60 Hz 218 x 172 x 160 mm 2.8 kgs https://www.labtron.co/water-testing/blood collection monitor?utm _source=https://www.slideserve.com//&utm_medium=CDA-grace
