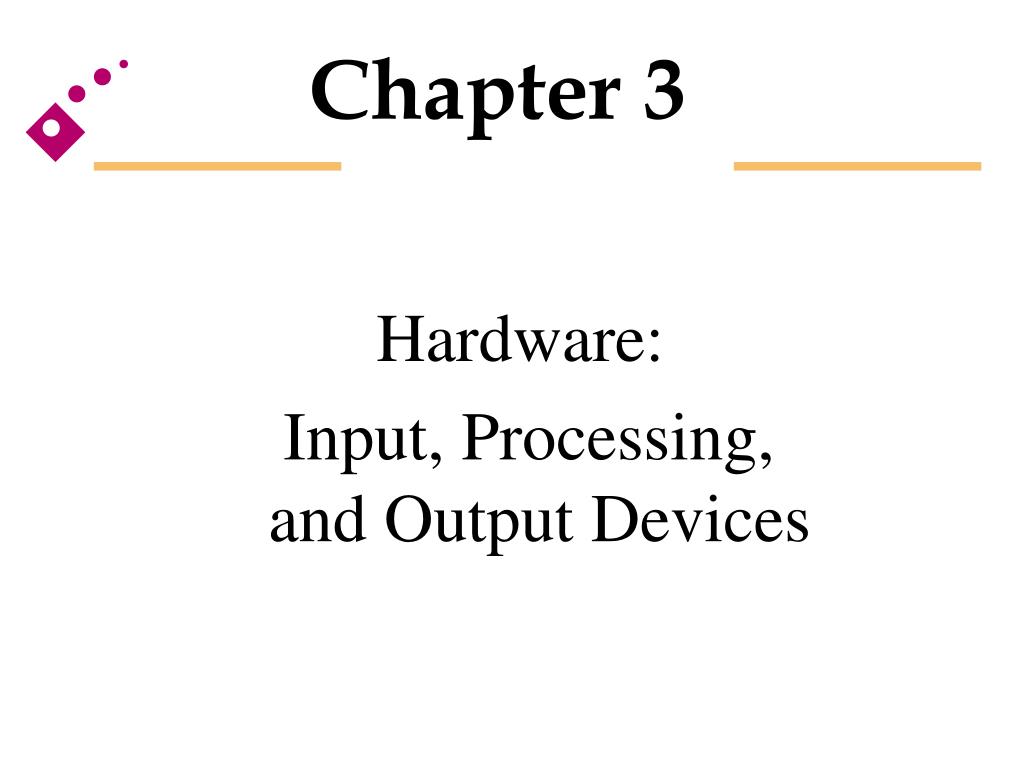

Hardware input processing and output devices l.jpg

Chapter 3

Hardware:

Input, Processing, and Output Devices


Computer system l.jpg
Computer System

  • Special subsystem of an organization's overall information system

  • Integrated assembly of physical devices, centered around at least one processing mechanism utilizing digital electronics

  • Used to input, process, store, and output data and information


Computer system components l.jpg
Computer System Components

[Figure 3.1]

Computer system hardware components include devices that perform the functions of input, processing, data storage, and output.


Central processing unit cpu l.jpg
Central Processing Unit (CPU)

  • Arithmetic/logic unit (ALU)

    • Performs mathematical calculations

    • Makes logical comparisons

  • Control unit

    • Sequentially accesses and decodes program instructions

    • Coordinates flow of data in and out of the ALU, registers, primary storage, secondary storage, output devices

  • Registers

    • High-speed storage areas

    • Temporarily hold small units of program instructions and data immediately before, during, and after execution by CPU


Primary storage l.jpg
Primary Storage

  • Holds program instructions and data immediately before or immediately after the registers

  • Also called memory or main memory

  • Closely associated with the CPU


Execution of an instruction l.jpg
Execution of an Instruction

  • Instruction phase

    • Step 1: Fetch instruction

    • Step 2: Decode instruction

  • Instruction time (I-time): The time to complete the instruction phase


Execution of an instruction7 l.jpg
Execution of an Instruction

  • Execution phase

    • Step 3: Execute instruction

    • Step 4: Store results

  • Execution time (E-time): The time to complete the execution phase



Cpu characteristics l.jpg
CPU Characteristics

  • Machine cycle time

  • Clock speed

  • Wordlength and bus line width

  • Physical characteristics

  • Complex and reduced instruction set computing


Machine cycle time l.jpg
Machine Cycle Time

  • Measured in fractions of a second

    • Millisecond - one thousandth of one second

    • Microsecond - one millionth of one second

    • Nanosecond - one billionth of one second

    • Picosecond - one trillionth of one second

  • Or in terms of instructions per second

    • MIPS - millions of instructions per second


Clock speed l.jpg
Clock Speed

  • Predetermined rate at which the CPU produces a series of electronic pulses

  • Microcode

    • Predetermined internal instructions executed in accordance with clock speed

  • Often measured in megahertz (MHz) or millions of cycles per second; ranges from 20 MHz to over 200 MHz for PCs



Wordlength and bus line width l.jpg
Wordlengthand Bus Line Width

  • Bit

    • A binary digit: 0 or 1

  • Wordlength

    • Number of bits the CPU can process at any one time

  • Bus lines

    • Physical wiring that connects computer system components


Physical characteristics of the cpu l.jpg
Physical Characteristicsof the CPU

Moore’s Law: The hypothesis that transistor densities on a single chip will double every 18 months

[Figure 3.4]


Cisc and risc l.jpg
CISC and RISC

  • Complex instruction set computing (CISC)

    • Places as many microcode instructions into the central processor as possible

  • Reduced instruction set computing (RISC)

    • Reduces the number of microcode instructions built into a chip to an essential set of common instructions


Memory l.jpg
Memory

  • Storage capacity

    • Byte = eight bits

      • Kilo, Mega, Giga, Tera

  • Types of memory

    • Random access memory (RAM)

      • Temporary and volatile

    • Read-only memory (ROM)

      • Permanent and non-volatile

    • Cache memory

      • High-speed, quicker access than main memory




Multiprocessing l.jpg
Multiprocessing

  • Processing that occurs using more than one processing unit

  • Coprocessor

    • A processor that speeds processing by executing specific types of instructions while the CPU works on another processing activity


Parallel processing l.jpg
Parallel Processing

Speeds processing by linking several processors to operate at the same time


Parallel processing21 l.jpg
Parallel Processing

  • Shared memory processing (SMP)

    • Involves fewer processors and a common pool of main memory

    • An independent task runs on each processor

  • Massively parallel processing (MPP)

    • Involves hundreds or thousands of microprocessor chips assigned to do the computing for a single program


Parallel processing22 l.jpg
Parallel Processing

[Figure 3.8]


Secondary storage l.jpg
Secondary Storage

  • The portion of the computer that holds large amounts of data, instructions, and information more permanently than does main memory

  • Also called permanent storage



Access method trade offs l.jpg
Access Method Trade-Offs

  • Direct access

    • Process by which data and information are retrieved directly, without the need to pass by other data in sequence

  • Sequential access storage device (SASD)

    • Device used to sequentially access secondary storage media


Access method trade offs26 l.jpg
Access Method Trade-Offs

  • Direct access storage device (DASD)

    • Device used to directly access secondary storage media


Secondary storage devices l.jpg
Secondary Storage Devices

  • Magnetic tape

    • Common secondary storage media

    • Mylar film coated with iron oxide

  • Magnetic disks

    • Steel platters (hard disks) or Mylar film (floppy disks) coatedwith iron oxide

Fig. 3.11


Secondary storage devices28 l.jpg
Secondary Storage Devices

  • Redundant array of independent/ inexpensive disks (RAID)

    • Generates extra bits of data from existing data so the system can create a “reconstruction map” to rebuild lost data

  • Disk mirroring

    • Provides an exact copy of data on drive


Secondary storage devices29 l.jpg
Secondary Storage Devices

  • Optical disks

    • A rigid disk of plastic onto which data is recorded by special lasers that physically burn pits into the disk

  • Compact disk read-only memory (CD-ROM)

    • A common form of optical disk on which data, once recorded, cannot be modified


Secondary storage devices30 l.jpg
Secondary Storage Devices

  • CD-rewriteable (CD-R)

    • Allows PC users to replace their diskettes with high capacity CDs that can be written upon and edited over

  • Write-once, read-many (WORM)

    • Allows businesses to record customized data and information onto an optical disk


Secondary storage devices31 l.jpg
Secondary Storage Devices

  • Magneto-optical disk

    • A hybrid between magnetic disks and optical disks

  • Digital video disk (DVD)

    • Looks like a CD-ROMdisk, but can store about 135 minutes of digital video

Fig. 3.12


Secondary storage devices32 l.jpg
Secondary Storage Devices

  • Memory cards

    • Credit-card sized devices that can be installed in an adapter or slot in many personal computers

  • Flash memory

    • A silicon chip that is nonvolatile and keeps its memory when the power is shut off


Secondary storage devices33 l.jpg
Secondary Storage Devices

  • Expandable storage

    • Storage devices that use removable disk cartridges

Fig. 3.13


Secondary storage devices34 l.jpg
Secondary Storage Devices

  • Floptical disk

    • Experimental storage device that is the same size as a diskette, but is able to hold many more times the data



Speed and functionality l.jpg
Speed And Functionality

  • The nature of data

    • Human-readable data vs. machine-readable data

  • Data entry and input

    • Data entry: Human-readable data is converted into a machine-readable

    • Data input: Machine-readable data is transferred into the system

continued...


Speed and functionality37 l.jpg
Speed And Functionality

  • Source data automation

    • Automation of data entry and input where the data is created, thus ensuring accuracy and timeliness


Input devices l.jpg

Personal computer input devices

Keyboard

Mouse

Voice recognition devices

Digital computer cameras

Terminals

Scanning devices

Optical data readers

Optical mark recognition readers

Optical character reader

Input Devices

continued...


Input devices39 l.jpg

Magnetic ink character recognition (MICR) devices

Point-of-sale (POS) devices

Automatic teller machine (ATM) devices

Pen input devices

Light pens

Touch-sensitive screens

Bar code scanners

Input Devices


Sample input device digital computer camera l.jpg
Sample Input Device: Digital Computer Camera

Fig. 3.14


Sample input device micr device l.jpg
Sample Input Device: MICR Device

Fig. 3.15


Output devices monitors l.jpg
Output Devices: Monitors

  • Display monitors

    • Monochrome

    • RGB (red, green, blue)

    • Color graphics adapter (CGA)

    • Enhanced graphics adapter (EGA)

    • Video graphics array (VGA)

    • Extended graphics array (XGA)

  • Liquid crystal display (LCDs)


Output devices printers plotters and microfilm l.jpg
Output Devices: Printers, Plotters,and Microfilm

  • Impact printers

    • Letter-quality printers, dot-matrix printers, near-letter quality printers (NLQ)

  • Non-impact printers

    • Ink-jet printers and laser printers

  • Plotters

  • Computer output microfilm devices (COM)

  • Special-Purpose Devices: Multifunction device

    • A device that combines several input/output devices (e.g., printer, fax, scanner)


Classifying computers l.jpg
Classifying Computers

  • Special-purpose computers

    • Used for limited applications

  • General-purpose computers

    • Most common type of computers

    • Used for a variety of applications


Types of computer systems l.jpg
Types of Computer Systems

  • Personal computers

  • Network computers

  • Workstations

  • Midrange computers

  • Mainframes

  • Supercomputers


Types of computer systems46 l.jpg
Types of Computer Systems

  • Personal computers

    • Relatively small and inexpensive

    • Also called microcomputers


Computer system types l.jpg
Computer System Types

  • Network Computers

    • Stripped-down personal computers

    • Primarily used with network system and the Internet

  • Workstations

    • Fit between high-end microcomputers and low-end midrange computers in terms of cost and processing power


Computer system types48 l.jpg
Computer System Types

  • Midrange computers

    • Systems that can accommodate several users at one time

    • Formerly known as minicomputers

  • Mainframes

    • Large powerful computers often shared by hundreds of concurrent users connected to the machine via terminals

  • Supercomputers

    • Most powerful computer systems with the fastest processing speeds


Network computer l.jpg

Processor speed

1-5 MIPs

Amount of RAM

4-16 MB

Approximate cost

$500-$1,500

How used

Supports data entry

Connects to the Internet

Example

Oracle Network computer

Network Computer


Personal computer l.jpg

Processor speed

5-20 MIPs

Amount of RAM

16-128 MB

Approximate cost

$1,200-$5,000

How used

Improves individual worker’s productivity

Example

Compaq Pentium computer

Personal Computer


Workstation l.jpg

Processor speed

50-100 MIPs

Amount of RAM

32-256 MB

Approximate cost

$4,000 to over $20,000

How used

Engineering CAD

Software development

Example

Sun Microsystems computer

Workstation


Midrange computer l.jpg

Processor speed

25-100 MIPs

Amount of RAM

32-512 MB

Approximate cost

$20,00 to over $100,000

How used

Meets computing needs for a department or small company

Example

Hewlett-Packard HP-9000

Midrange Computer


Mainframe computer l.jpg

Processor speed

40-4,550 MIPs

Amount of RAM

256-1,024 MB

Approximate cost

$250,000 to over $2 million

How used

Meets computing needs for a company

Example

IBM ES/9000

Mainframe Computer


Supercomputer l.jpg

Processor speed

60 billion-3 trillion instructions per sec

Amount of RAM

8,192MB+

Approximate cost

$2.5 million-$3.5 million

How used

Scientific applications

Marketing

Customer support

Product development

Example

Cray C90

Supercomputer


Multimedia computers l.jpg
Multimedia Computers

  • Involves the marriage of sound, animation, and digitized video

  • Multimedia standards

    • Enable software and hardware vendors to build products that will work together to meet the needs of their customers


Multimedia support l.jpg
Multimedia Support

  • Microsoft multimedia extension for Windows

  • Multimedia PC Council (MPC)

  • IBM Ultimedia Solution


Multimedia support audio l.jpg
Multimedia Support: Audio

  • Musical Instrument Digital Interface (MIDI)

    • Standard system for connecting musical instruments and synthesizers to computers

  • Digital signal processor (DSP)

    • A chip used by advanced sound systems to improved the analog-to-digital-to-analog conversion process


Multimedia support video l.jpg
Multimedia Support: Video

  • Video compression

    • A process that uses mathematical formulas to reduce the number of bits required to present a single video frame



Architecture and upgrades responding to change l.jpg
Architecture and Upgrades: Responding to Change

  • Computer system architecture

    • The structure, or configuration, of hardware components of a computer system


Computer standards l.jpg
Computer Standards

  • Approved reference models determined by groups for building various products

  • Common PC standards:

    • Plug and play (PnP)

    • Small Computer Systems Interface (SCSI)

    • Multimedia extension (MMX)


Information systems principles l.jpg
Information Systems Principles

  • Assembling an efficient computer subsystem requires an understanding of its relationship to the information system and the organization. The computer system objectives are subordinate to, but supportive of, the information system and the organization.


Information systems principles63 l.jpg
Information Systems Principles

  • Components of information systems (input devices, people, procedures, goals) are interdependent. Because the performance of one system affects the others, all systems should be measured according to the same standards of effectiveness and efficiency.


Information systems principles64 l.jpg
Information Systems Principles

  • When selecting computer subsystem devices, consider current and future needs. The choice of a particular computer system should allow for later improvements in the overall information system. Reasoned forethought is the hallmark of a true systems professional.


Information systems principles65 l.jpg
Information Systems Principles

  • Determine hardware needs based on how the hardware will be used to support the objectives of the information systems and the goals of the organization. For PC users, this means knowing what software you want to run.


Information systems principles66 l.jpg
Information Systems Principles

  • Do research to gain an understanding of the trade-offs between overall system performance, and cost, control, and complexity.


ad
