Drinking Water PowerPoint PPT Presentation


Drinking Water. Lecture. Undergraduate Study – General Medicine. Assoc. Prof. Zdenek Fiala , Ph.D. Department of Hygiene and Preventive Medicine Charles University, Faculty of Medicine, Hradec Kralove. General sources of Water. Glacial water. Sea water. Surface water. Groundwater.

Download Presentation

Drinking Water

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Slide1 l.jpg

Drinking Water

Lecture

Undergraduate Study – General Medicine

Assoc. Prof. Zdenek Fiala, Ph.D.

Department of Hygiene and Preventive Medicine

Charles University, Faculty of Medicine, Hradec Kralove


Slide2 l.jpg

General

sources

of Water

Glacial

water

Sea

water

Surface

water

Groundwater


Slide3 l.jpg

Water supply

to population

Public water

systems

Treated water

Chemicals/Byproducts

Strict output control

Transportation/contamination

Large number of people

Water wells

Bottled

water

Untreated water

Natural contamination

Irregular/weak control

Limited number of people

Untreated/treated water

Without chlorination (O3, UV)

Strict output control

Storage conditions/contamination

Large number of people


Slide4 l.jpg

Absence of the pathogen

micro-organisms and the viruses

(Enterovirusis, Hepatitis-A)

Water quality

(cold/hot water)

WHO

Microscopic organisms

within the permitted limits

Chemical contamination

within the permitted limits

Physical indicators

within the permitted limits

Recommended content

of minerals

and trace elements

Radioactive contamination

within the permitted limits

(radon, α/β-radioactivity

http://www.who.int/entity/water_sanitation_health/dwq/en


Slide5 l.jpg

Pathogens and microscopic organisms(examples)

CFU= Colony-Forming Unit

LV = Limiting Value = upper limit of acceptable values (not acute)

HLV = Highest Limiting Value = excludes water as drinking water (acute)


Slide6 l.jpg

Chemical substances and physical factors (examples)

LV = Limiting Value = upper limit of acceptable values (not acute)

HLV = Highest Limiting Value = excludes water as drinking water (acute)


Slide7 l.jpg

Minerals and trace elements(examples)

HLV = Highest Limiting Value = excludes water as drinking water (acute)

LV = Limiting Value = lower limit of acceptable values

RV = recommended value

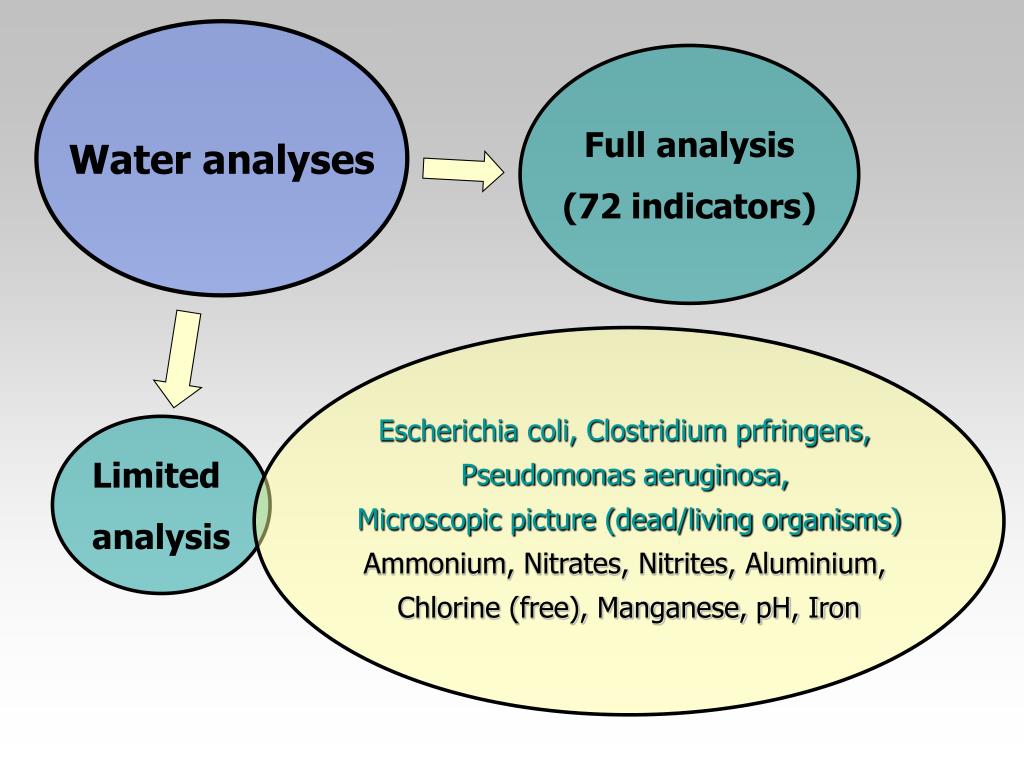

Slide8 l.jpg

Water analyses

Full analysis

(72 indicators)

Escherichia coli, Clostridium prfringens,

Pseudomonas aeruginosa,

Microscopic picture (dead/living organisms)

Ammonium, Nitrates, Nitrites, Aluminium,

Chlorine (free), Manganese, pH, Iron

Limited

analysis


Slide9 l.jpg

Frequency of analyses of drinking water (examples)


Slide10 l.jpg

Glass, Polyethylene,

Polycarbonate

Baby water

Table (spring)

water

Bottled

water

Drinking water

Natural mineral

water

Natural medicinal

water


Slide11 l.jpg

Baby water

Groundwater without treatment

Mineralization < 1 g/L

Nitrates < 15 mg/L

UV bacterial decontamination

Best quality

for lifelong use

Table (spring) water

Groundwater

Physical treatment allowed

Mineralization < 1 g/L

Nitrates < 25 mg/L

UV bacterial decontamination


Slide12 l.jpg

Drinking water

Groundwater, surface water

Chemical/physical treatment

Mineralization < 1 g/L

Nitrates < 50 mg/L

UV bacterial decontamination

For lifelong use

Average

quality

Soda water

Saturated Drinking water (CO2)

UV bacterial decontamination

For casual use

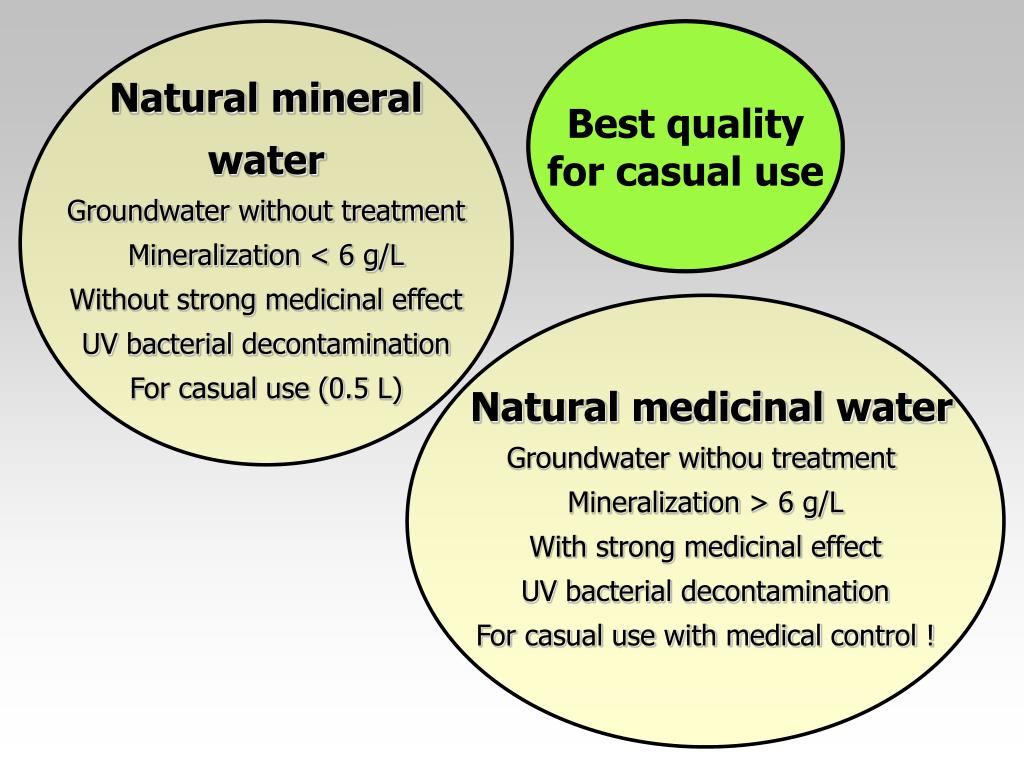

Slide13 l.jpg

Natural mineral

water

Groundwater without treatment

Mineralization < 6 g/L

Without strong medicinal effect

UV bacterial decontamination

For casual use (0.5 L)

Best quality

for casual use

Natural medicinal water

Groundwater withou treatment

Mineralization > 6 g/L

With strong medicinal effect

UV bacterial decontamination

For casual use with medical control !


Slide14 l.jpg

Recommendation for babies

Baby water or table (spring) water

Without carbon dioxide

Nitrates <15 mg/L

Sodium < 15 mg/L

Recommendation for bottled water

Calcium40 – 80 mg/L

Magnesium20 – 30 mg/L

Potassium1 – 5 mg/L

Sodium< 20 mg/L

Nitrates< 15 mg/L

Sulphates< 240 mg/L

Chlorides< 25 mg/L
