Presentation Transcript


Spectrogram its reading l.jpg

Spectrogram & its reading


What is spectrogram l.jpg

What is spectrogram?

  • Begin to be used since 1940s

  • Another representation of frequency domain analysis

  • The most popular way of representing spectral information

  • 3 dimensional representation

    • X-axis: Time

    • Y-axis: Frequency

    • Darkness (or color): Energy

Reviving Sonus


Waveform spectrogram aligned l.jpg

Waveform & Spectrogram aligned

Reviving Sonus


Spectrogram example color resolution of word compute l.jpg

Spectrogram example (color resolution of word “compute”)

Reviving Sonus


Spectrogram example grayscale of word compute l.jpg

Spectrogram example (grayscale of word “compute”)

Reviving Sonus


Slide6 l.jpg

Wideband vs. Narrowbandspectrograms of the question "Is Pat sad, or mad?" The 5th, 10th and 15th harmonics have been marked by white squares in two of the vowels

Reviving Sonus


Types of spectrogram l.jpg

Types of spectrogram

  • Wideband spectrogram

    • better time resolution

    • eg) 15 msec window, 1 msec shift, 125 Hz bandwidth

  • Narrowband spectrogram

    • better frequency resolution

    • eg) 50 msec window, 1 msec shift, 40 Hz bandwidth

Reviving Sonus


Advantages disadvantages l.jpg

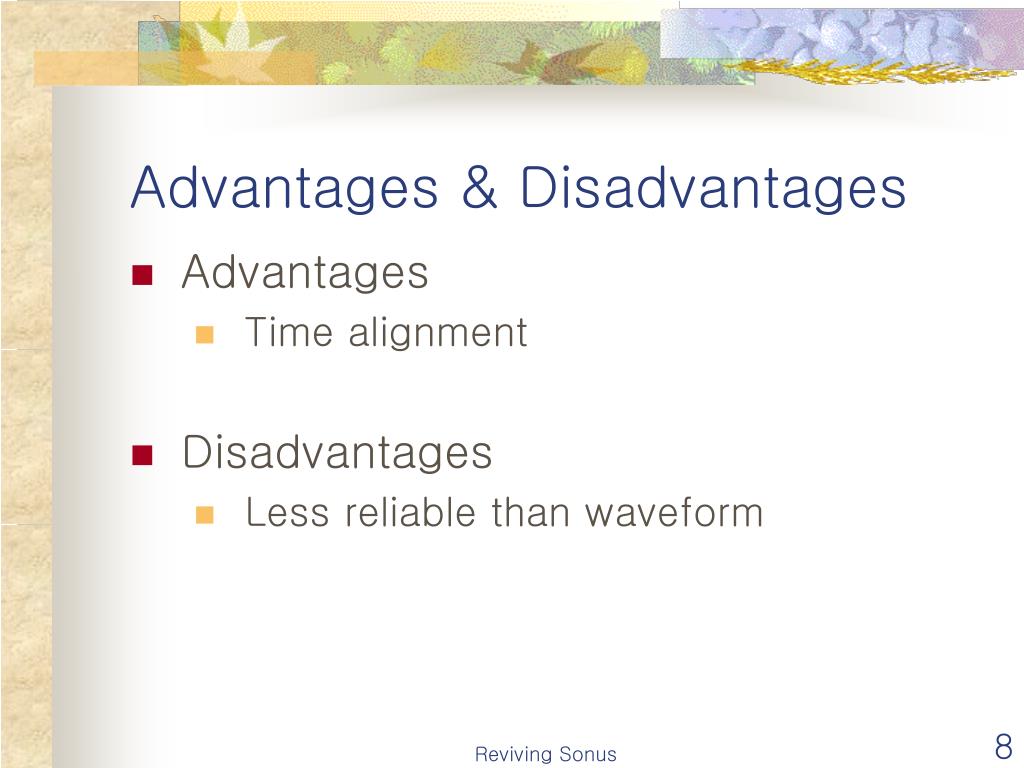

Advantages & Disadvantages

  • Advantages

    • Time alignment

  • Disadvantages

    • Less reliable than waveform

Reviving Sonus


Vowel spectrogram l.jpg

Vowel Spectrogram

  • Formant frequencies are critical cues for vowel distinction

  • F1: Height

    • high vowels: low F1

  • F2: Backness

    • back vowels: low F2

Reviving Sonus


Examples of formant frequencies of english monophthongs l.jpg

Examples of formant frequencies of English monophthongs

Reviving Sonus


Heed hid head had hod hawed hood who d a male speaker american english l.jpg

"heed, hid, head, had, hod, hawed, hood, who'd" (a male speaker, American English)

Reviving Sonus


Consonant spectrogram l.jpg

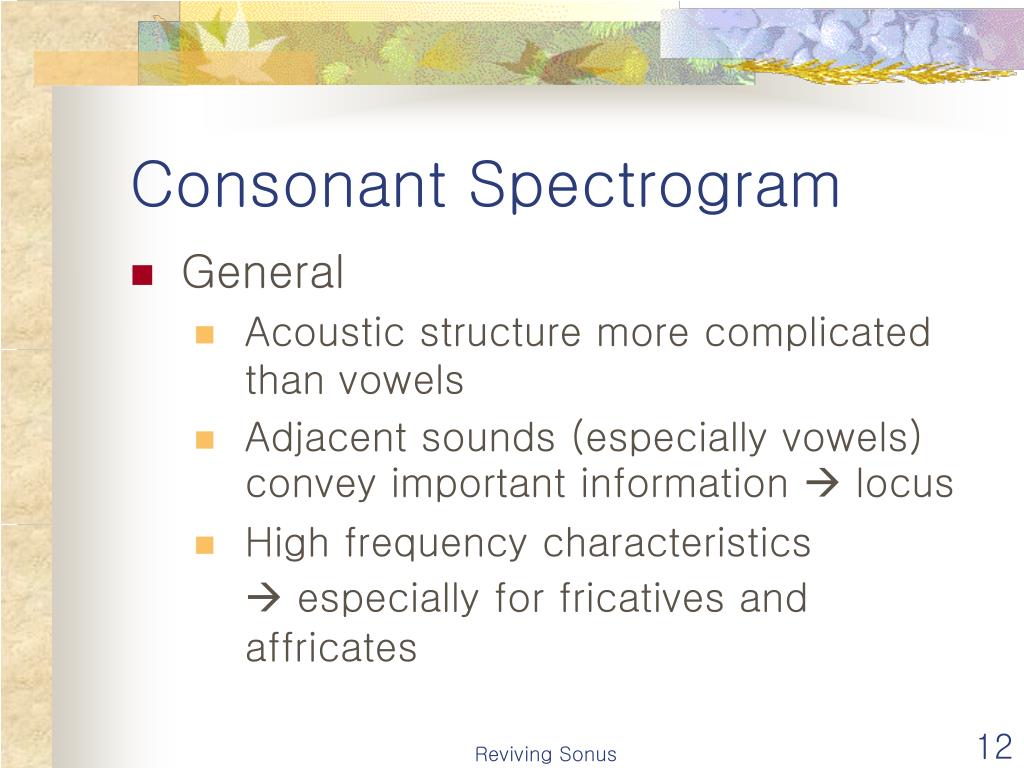

Consonant Spectrogram

  • General

    • Acoustic structure more complicated than vowels

    • Adjacent sounds (especially vowels) convey important information  locus

    • High frequency characteristics

       especially for fricatives and affricates

Reviving Sonus


What is locus l.jpg

What is LOCUS

  • Information of formant transition from vowels into obstruents or from obstruents into vowels

  • The target frequency that each formant transition is heading toward as an obstruction is made, or the frequency the transition comes as the obstruction is released

  • The characteristic of the consonantal place and manner  roughly the same in different vowel contexts

Reviving Sonus


Stops l.jpg

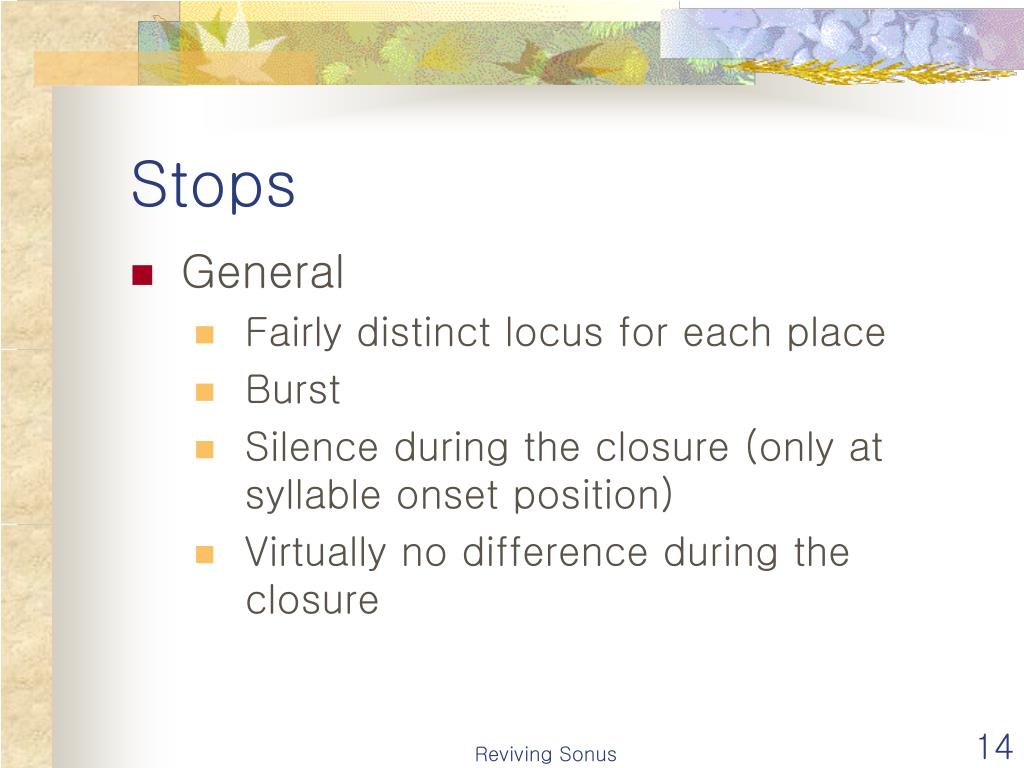

Stops

  • General

    • Fairly distinct locus for each place

    • Burst

    • Silence during the closure (only at syllable onset position)

    • Virtually no difference during the closure

Reviving Sonus


Stops cntd l.jpg

Stops (cntd.)

  • Voicing distinction

    • voiced: vertical striations for voiced sounds, less abrupt burst, frequently weakened to be like fricatives or approximants

    • voiceless: generally abrupt burst at higher frequency area

Reviving Sonus


Stops cntd16 l.jpg

Stops (cntd.)

  • Place distinction

    • bilabial

      • relatively low F2, F3 locus  rising into and falling out of vowel

      • weak and spread vertical lines

    • alveolar

      • F2 locus about 1800 Hz

      • Strong vertical lines

    • velar

      • Velar pinch: vowels F2, F3 merging

      • often double burst

      • long formant transitions

Reviving Sonus


Stops cntd17 l.jpg

Stops (cntd.)

  • Manner distinction

    • Silence duration, VOT, Following V F0

Reviving Sonus


Examples a bab a dad a gag l.jpg

Examples -- “a bab, a dad, a gag”

Reviving Sonus


Place dependent loci l.jpg

Place dependent loci

Reviving Sonus


Fricatives l.jpg

Fricatives

  • General

    • Random noise pattern especially in high frequency regions

    • Place distinction

      • Labiodental [f, v]: rising locus into the following vowel

      • Dental [T, D]: major energy above 6000Hz

      • Alveolar [s, z]: major energy above 4000Hz

      • Alveopalatal [s&, zà]: major energy above 6000Hz

      • Glottal [h]: the trace of formant frequencies of neighbouring vowels

Reviving Sonus


Fricatives cntd l.jpg

Fricatives (cntd.)

  • Weak vs. strong

    • Strong [s, z, s&, zà]: darker bands

    • Weak [f, v, T, D]: spread and fainter

      • Voiced [v, D]: often so weak and confused with nasals or approximants

      • Cues to tell [T] from [f]: higher formants of [T] fall into adjacent vowels

Reviving Sonus


Example fie thigh sigh shy l.jpg

Example –“fie, thigh, sigh, shy”

Reviving Sonus


Example ever weather fizzer pleasure l.jpg

Example –“ever, weather, fizzer, pleasure”

Reviving Sonus


Nasals l.jpg

Nasals

  • General

    • Formants similar to vowels but fainter

    • Very low F1 (about 250Hz), F2 (about 2500Hz), and F3 (about 3250Hz)

  • Place distinction

    • bilabial [m]: downward F2, F3 locus

    • alveolar [n]: less amount of F2 transition

    • velar [N]: velar pinch

Reviving Sonus


Examples a pam a tan a kang l.jpg

Examples -- “a Pam, a tan, a kang”

Reviving Sonus


Liquids approximants l.jpg

Liquids & Approximants

  • General

    • Formants similar to vowels but fainter (especially at high frequency regions)

    • Approximately F1(250Hz), F2(1200Hz), F3(2400Hz)

    • Slow formant movements

Reviving Sonus


Liquids approximants cntd l.jpg

Liquids & Approximants(cntd.)

  • Phone specific properties

    • Labial glide [w]:

      • very low F1, F2 (600-1000Hz|) and gets too close to each

      • relatively low F3

      • rapid falloff of spectral amplitude (formant movements)

    • Palatal glide [y]:

      • extremely low F1

      • extremely high F2, F3

Reviving Sonus


Liquids approximants cntd28 l.jpg

Liquids & Approximants(cntd.)

  • Phone specific properties (cntd.)

    • Flap [R]: soft burst, short duration

    • Retroflex [r]:

      • F3 dipping down close to F2

      • General lowering of F3, F4

    • Lateral [l]:

      • Low F1, F2 (approx. F1 250Hz, F2 1200Hz)

      • usually substantial energy in the high F region

Reviving Sonus


Example led red wed yell l.jpg

Example –“led, red, wed, yell”

Reviving Sonus


Final remarks l.jpg

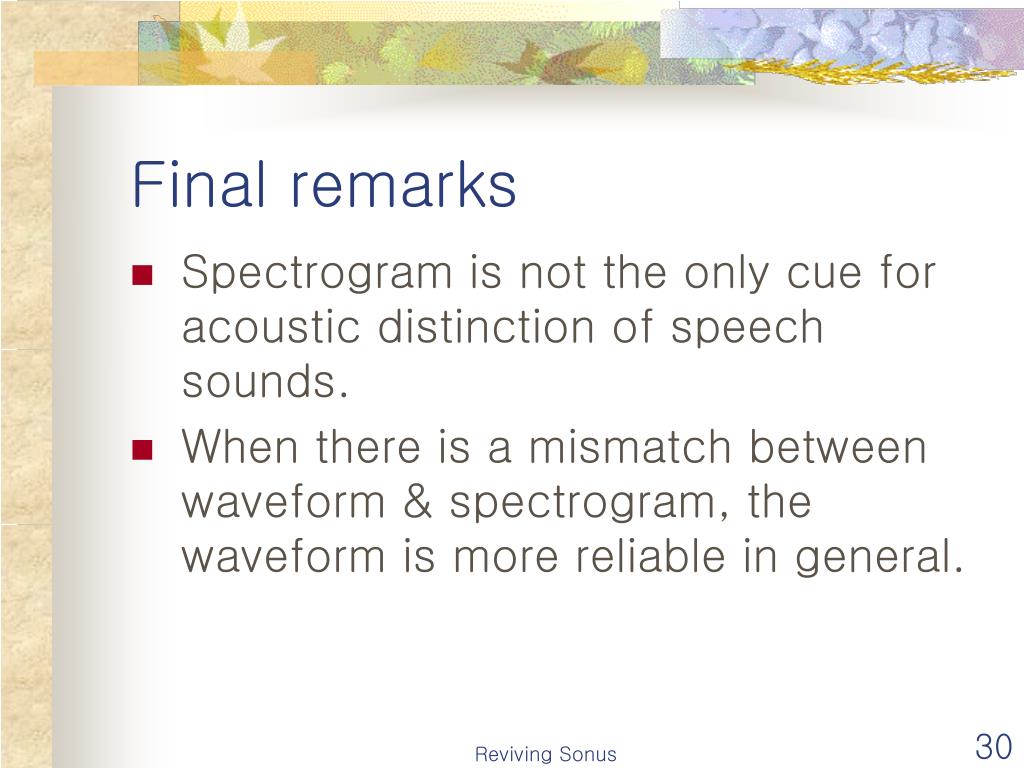

Final remarks

  • Spectrogram is not the only cue for acoustic distinction of speech sounds.

  • When there is a mismatch between waveform & spectrogram, the waveform is more reliable in general.

Reviving Sonus


References links l.jpg

References & Links

  • http://cslu.cse.ogi.edu/tutordemos/SpectrogramReading/spectrogram_reading.html

  • http://hctv.humnet.ucla.edu/departments/linguistics/VowelsandConsonants/course

  • http://www.cs.indiana.edu/~port/teach/306/speech.acoustics.html

  • http://www.phon.ucl.ac.uk/courses/spsci/b203/week2-5.pdf
