Presentation Transcript
Iguard lm520 f o sc with secugen optical sensor available in november 1 st 2009 l.jpg

iGuard® LM520-FOSC with Secugen® Optical sensor(Available in November 1st, 2009)

Lucky Technology Ltd./Inc.


An alternative to lm520 fsc l.jpg
An alternative to LM520-FSC

  • LM520-FSC

  • Fujitsu FPS200 Capacitive Sensor

LM520-FOSC

SecuGen® SDA03M Optical Sensor


Lm520 f o sc vs lm520 fsc l.jpg
LM520-FOSC “vs” LM520-FSC

  • Dimension and Weight

    • LM520-FOSC 105 x 55 x 150 mm 0.64 Kg

    • LM520-FSC 105 x 38 x 150 mm 0.60 Kg

  • Pricing $

    • Same (except for –SP, -SAM, and spare parts)

  • Inter-operative

    • Both works with LM520-SC, LM-SM Super-master

    • LM520-FOSC and LM520-FSC don’t work with each other


  • Which one is better l.jpg
    Which one is better ?

    • Both models have the same pricing

    • An alternative to our customers


    Why we use secugen sensor l.jpg
    Why we use SecuGen ® Sensor ?

    • We are currently using SDA03M sensor for LM520-FOSC

    • A new model with SDA04 sensor (FBI Certified, FIPS 201/PIV Compliant, GSA APL Listed) will be introduced in mid. 2010 to address the high end market


    Faq master slave l.jpg
    FAQ: master/slave

    • LM520-FOSC and LM520-FSC are not inter-operable in the same master/slave network

      • because of the different in template format and matching algorithm

  • LM520-FOSC can used with LM520-SC, LM-SM super master because they are all using LM series data structure.


  • Faq can lm520 fsc be upgraded lm520 f o sc l.jpg

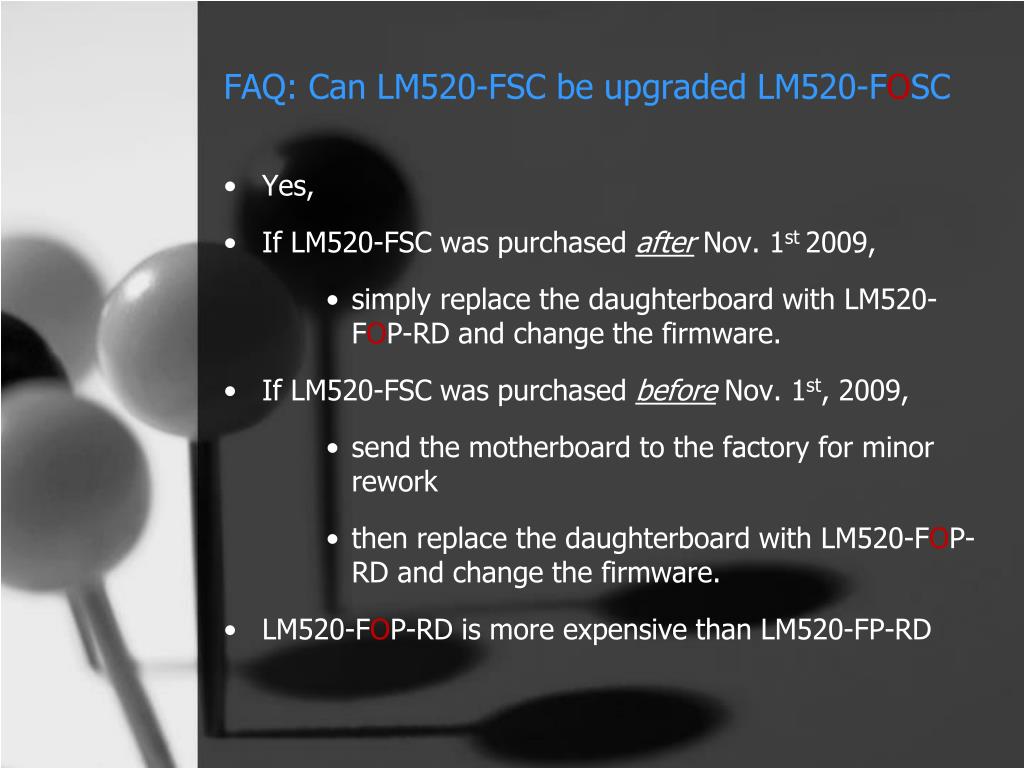

    FAQ: Can LM520-FSC be upgraded LM520-FOSC

    • Yes,

    • If LM520-FSC was purchased after Nov. 1st 2009,

      • simply replace the daughterboard with LM520-FOP-RD and change the firmware.

  • If LM520-FSC was purchased before Nov. 1st, 2009,

    • send the motherboard to the factory for minor rework

    • then replace the daughterboard with LM520-FOP-RD and change the firmware.

  • LM520-FOP-RD is more expensive than LM520-FP-RD


  • Faq smart cards l.jpg
    FAQ: Smart Cards

    • Smart cards used in LM520-FSC can be used in LM520-FOSC as well.


    Faq installation l.jpg
    FAQ: Installation

    • The mounting dimension of LM520-FOSC and LM520-FSC are the same

    • Both models use the same power supply with the same power consumption

    • The relay, wiring terminals, power connector, external relay connector, and wiegand output connector are the same for both models.


    Faq lm520 f o sc sam is available l.jpg
    FAQ: LM520-FOSC-SAM is available ?

    • LM520-FOSC-SAM sample unit for evaluation is available after Nov. 1st, 2009

    • LM520-FOSC-SAM is a little more expensive than LM520-FSC-SAM
