Quad Wave Class IV Equine Laser _ Quad 45W Laser Class IV Device

The Quad 45W Laser Class IV Device allows for accelerated healing, exceptional pain relief, and rapid post-surgical recovery.<br><br>Accelerated wound healing<br>Anti-inflammatory<br>Effective pain relief<br>Reduced recovery time<br>Increase in blood oxygen levels<br>Enhanced cell function<br><br>Our device uses electromagnetic rays at red or Near InfraRed (NIR) wavelengths. The laser enables precise and accurate treatments to reduce inflammation and pain, and promote recovery.

Camila2
Download Presentation

Quad Wave Class IV Equine Laser _ Quad 45W Laser Class IV Device

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

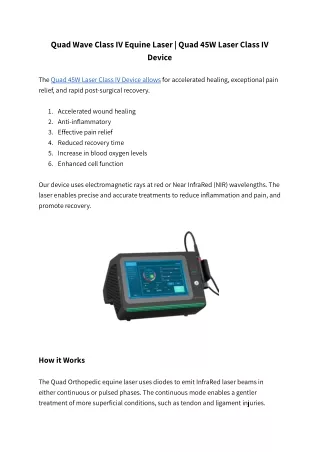

  1. Quad Wave Class IV Equine Laser | Quad 45W Laser Class IV Device TheQuad 45W Laser Class IV Device allowsfor acceleratedhealing, exceptional pain relief, and rapid post-surgical recovery. 1. Accelerated wound healing 2. Anti-inflammatory 3. Effective pain relief 4. Reduced recovery time 5. Increase in blood oxygen levels 6. Enhanced cell function Our device uses electromagnetic rays at red or Near InfraRed (NIR) wavelengths. The laser enables precise and accurate treatments to reduce inflammation and pain, and promote recovery. How it Works The Quad Orthopedic equine laser uses diodes to emit InfraRed laser beams in either continuous or pulsed phases. The continuous mode enables a gentler treatment of more superficial conditions, such as tendon and ligament injuries.

  2. Super-pulsed mode enables intensive treatment, with the intervals adding safety by preventing heat generation. The beams are carried via a fiber optic cable to the treatment wand, which is aimed over the skin using the red light aiming beam. As treatment is delivered, infrared light penetrates the tissue, at the correct dosage, depth and duration. Thelight energy causes biochemicalchangesto occur at cellular level, stimulating cell proliferation leading to wound repair. Free nerve endings are also stimulated, blocking pain pathways and bringing rapid pain relief to the horse. Technical Specification:- ● GaAs diode laser with deep penetrating 980nm, 915nm and 810nm diodes. ● Outstanding 45W power forrapid treatments in super-pulsedmode. ● High powered Near InfraRed (NIR) laser diodes produce electromagnetic energy. ● Super-pulsed output enables rapid treatment without heating. ● Quickstart function enables optimum treatment times. ● Fiber handpiece with 0.4mm spot size for focused treatment. ● Operates within 5-40°C and less than 80% humidity range. ● Main body input voltage DC 12V~17V, Power input AC110V ~ 220V ± 20%. ● Dimensions 235 * 278 * 325mm, weighing 6.5 kg. ● 12.1" color touchscreen for microcomputer control. ● Software updating through USB plug'n'play upgrades. ● Operates within 5-40°C and less 80% humidity range. ● Main body input voltage DC 12V~17V, Power input AC110V ~ 220V ± 20%.

  3. ● Screen powered with Li-battery 4700mAh (2-hr working, 8-hr standby). ● Dimensions 235 * 278 * 325mm, weighing 6.5 kg. ● 10" color touchscreen for microcomputer control. Quad Wave Class IV Laser Equineee for Fast, Deep Healing ● Superior device for the veterinary clinic, equine rehab or training center. ● Instantly available, rapid treatment reduces downtime in sport horses. ● Deeper, long-lasting rehabilitation from traumatic sports injuries ● Improves career longevity by addressing distal limb stress injuries. ● Approved by veterinarians, professional riders, and equine physical therapists. 650nm wavelength:This wavelength is best used forwound healing and scar tissue regeneration by promoting healing of skin surface tissues. The wavelength is largely absorbed by the melanin in the skin, inhibiting bacteria proliferation and promoting fine cell growth. 810nm wavelength:This wavelength rapidly activatesthe hemoglobin oxygenation process to transfer energy supplies from blood into muscles and tendons. This promotes tissue regeneration and increases ATP production.

  4. 915nm wavelength:Thiswavelength increases the bloodoxygentransport capacity facilitating release of nutrients needed for self-healing and allowing cells to absorb these nutrients. 980nm wavelength:This wavelength decreases pain viathe analgesic effect by optimizing thermoreceptors and mechanoreceptor interactions with the peripheral nervous system. This activates the gate-control mechanism to produce the analgesia.
