Presentation Transcript


Slide1 l.jpg

Train Communication Network

IEC 61375 - 2

Real Time Protocols

Process Variables


Real time protocols l.jpg

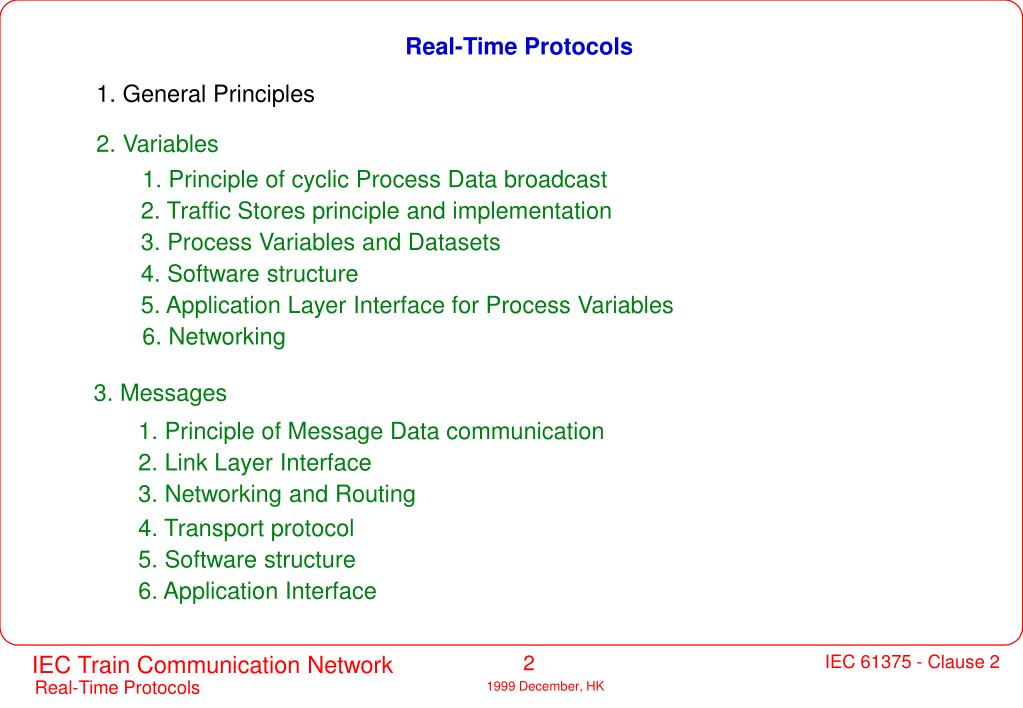

Real-Time Protocols

1. General Principles

2. Variables

1. Principle of cyclic Process Data broadcast

2. Traffic Stores principle and implementation

3. Process Variables and Datasets

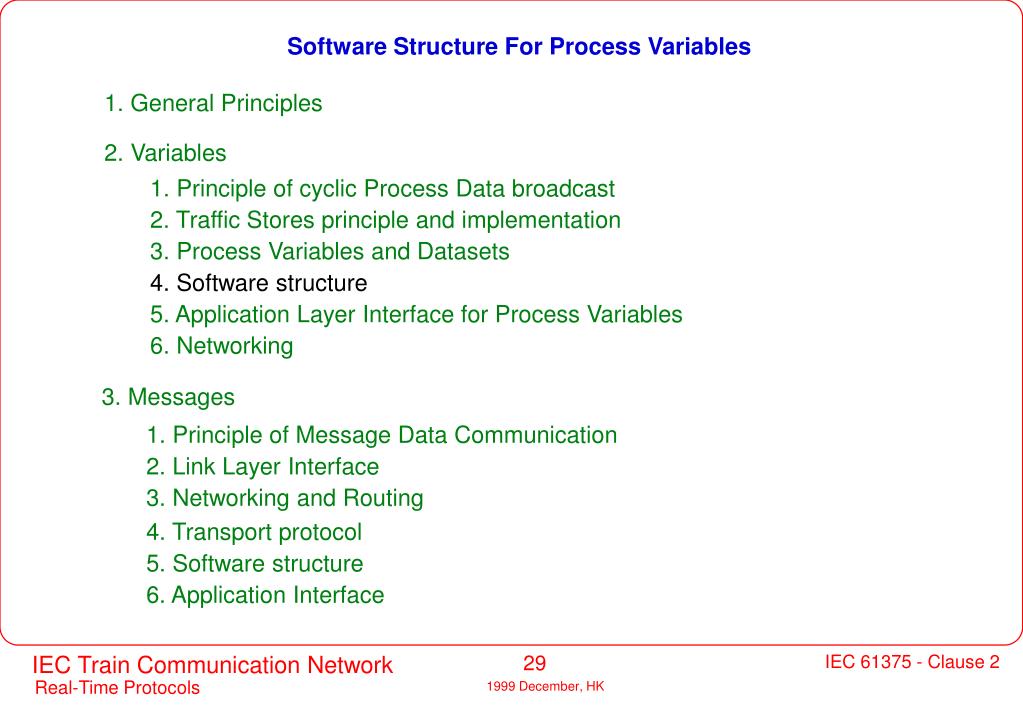

4. Software structure

5. Application Layer Interface for Process Variables

6. Networking

3. Messages

1. Principle of Message Data communication

2. Link Layer Interface

3. Networking and Routing

4. Transport protocol

5. Software structure

6. Application Interface


Tcn data traffic l.jpg

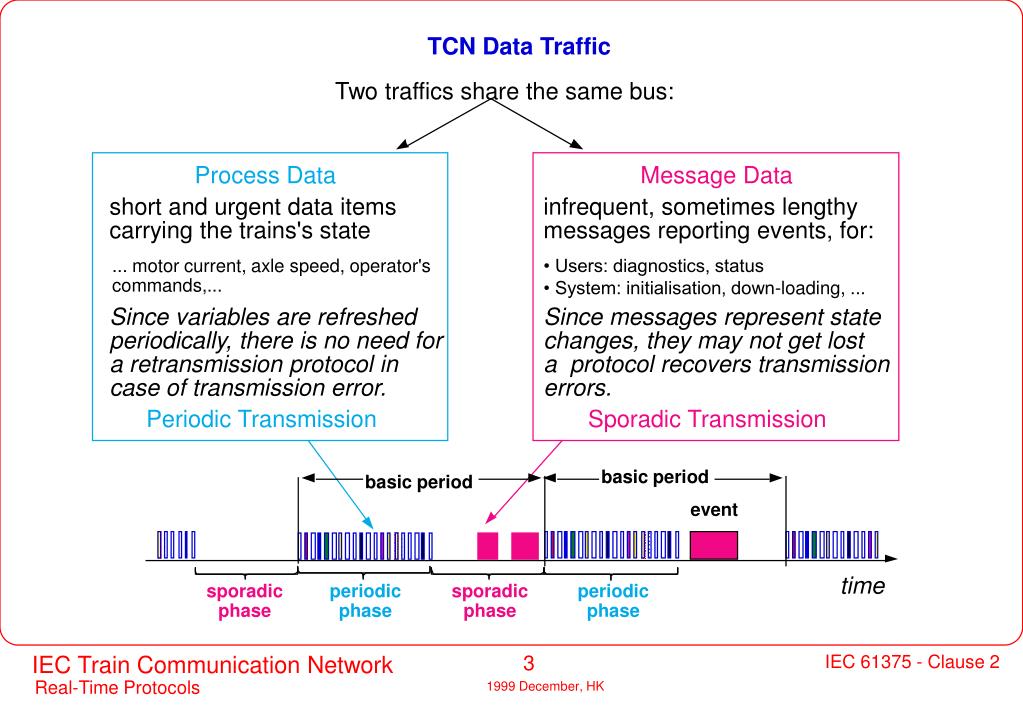

TCN Data Traffic

Two traffics share the same bus:

Process Data

Message Data

short and urgent data items

infrequent, sometimes lengthy

carrying the trains's state

messages reporting events, for:

... motor current, axle speed, operator's

• Users: diagnostics, status

commands,...

• System: initialisation, down-loading, ...

Since variables are refreshed

Since messages represent state

periodically, there is no need for

changes, they may not get lost

a retransmission protocol in

a protocol recovers transmission

case of transmission error.

errors.

Periodic Transmission

Sporadic Transmission

basic period

basic period

event

time

sporadic

periodic

sporadic

periodic

phase

phase

phase

phase


Application sight of communication l.jpg

Application Sight Of Communication

Periodical Tasks

Event-driven Tasks

R1

R2

R3

R4

E1

E2

E3

Variables Services

Message Services

Traffic Store

Queues

(Process Data

Base)

Supervisory

Message Data

Process Data

Data

(destination-oriented)

(Broadcast)

station

bus controller

bus


Principle of cyclic source addressed broadcast l.jpg

Principle of Cyclic Source-Addressed Broadcast

1. General Principles

2. Variables

1. Principle of cyclic source-addressed broadcast

2. Traffic Stores principle and implementation

3. Process Variables and Datasets

4. Software structure

5. Application Layer Interface for Process Variables

6. Networking

3. Messages

1. Principle of Message Data communication

2. Link Layer Interface

3. Networking and Routing

4. Transport protocol

5. Software structure

6. Application Interface


Cyclic data transfer l.jpg

Cyclic Data Transfer

plant

Poll

List

devices

1

2

3

4

5

6

bus master

Address

The master polls addresses in a fixed sequence, according to its Poll List.

N participants

Individual period

1

2

3

4

5

6

1

2

3

4

5

6

1

2

3

4

time [ms]

The duration of each poll is the sum of

2 · Tpd

the transmission time of address and

data (bit-rate dependent)

Address

Data

Address

10 µs/km

(4)

(4)

(5)

and of the

reply delay

of the signals

(independent of bit-rate).

time [µs]

read transfer


Cyclic operation l.jpg

Cyclic Operation

Cyclic operation is used to transmit the state variables of the train.

Periodically transmitted state variables are called Periodic Data.

Periodic Data are transmitted at fixed intervals , whether they changed or not.

Their delivery delay (refresh rate) is deterministic and constant.

The bus is under control of a central master.

There is no need for error recovery since a fresh value will be transmitted in

the next cycle.

Only states may be transmitted, not state changes.

The cycle time is limited by the product of the number of data transmitted by

the duration of each poll.

(e.g. 100 µs /point, 100 points => 10 ms)

To keep a low poll time, only small data items may be transmitted (<256 bits)


Optimizing cyclical operation l.jpg

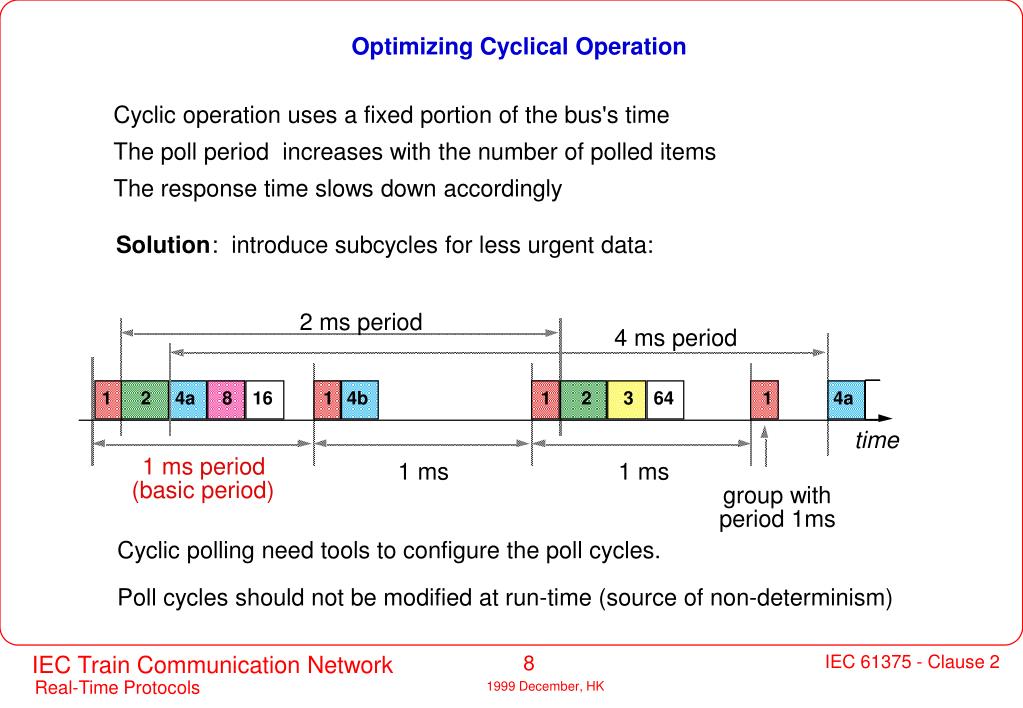

Optimizing Cyclical Operation

Cyclic operation uses a fixed portion of the bus's time

The poll period increases with the number of polled items

The response time slows down accordingly

Solution

: introduce subcycles for less urgent data:

2 ms period

4 ms period

1

2

4a

8

16

1

4b

1

2

3

64

1

4a

time

1 ms period

1 ms

1 ms

(basic period)

group with

period 1ms

Cyclic polling need tools to configure the poll cycles.

Poll cycles should not be modified at run-time (source of non-determinism)


Subscription principle l.jpg

Subscription Principle

A device exports many process data (state variables) with different priorities.

If there were only one poll type per device, a device should be polled at the

frequency required by its highest-priority data.

Rather than poll a device, the master polls the process data.

Each device is subscribed as source or as sink for a number of process

data. Only one device may be source of a certain process data (collision).

The replicated traffic stores can be considered as "caches" of the plant state.

The application accesses them in the same way as a process database.

The bus becomes an on-line data base.

Each station monitors the bus and snoops the variables it is interested in .

Each station needs an associative memory to recognize its variables.


Process data transmission l.jpg

Process Data Transmission

Process Data are transmitted by

source-addressed broadcast

:

Phase1:

The bus master broadcasts the identifier of a variable to be transmitted:

subscribed

subscribed

device

device

subscribed devices

BUS

devices

MASTER

sink

source

sink

sink

(slaves)

BUS

variable identifier

Phase 2:

The device which sources that variable responds with a slave frame

containing the value, all devices subscribed as sink receive that frame.

subscribed

subscribed

subscribed devices

device

device

BUS

devices

sink

source

sink

sink

MASTER

(slaves)

BUS

variable value


Traffic stores l.jpg

Traffic Stores

cyclic

cyclic

cyclic

cyclic

algorithms

algorithms

algorithms

algorithms

application

application

application

application

cyclic

poll

1

2

3

4

bus

source

master

port

Ports

Ports

Ports

Ports

Traffic

Periodic

Stores

List

sink

sink

port

port

bus

bus

bus

bus

bus

controller

controller

controller

controller

controller

bus

port address

port data

The bus traffic and the application cycles are asynchronous to each other.

The bus master scans the identifiers at its own pace.

Bus and applications interface through a shared memory, the

traffic store.


Traffic stores12 l.jpg

Traffic Stores

1. General Principles

2. Variables

1. Principle of cyclic Process Data broadcast

2. Traffic Stores principle and implementation

3. Process Variables and Datasets

4. Software structure

5. Application Layer Interface for Process Variables

6. Networking

3. Messages

1. Principle of Message Data communication

2. Link Layer Interface

3. Networking and Routing

4. Transport protocol

5. Software structure

6. Application Interface


Mvb traffic store implementation l.jpg

MVB Traffic Store Implementation

12-bit port address

0

unused = 0

PCS

Page0

Page1

0

trash

trash

1

dock2

2

3

4096

dock4

4

entries

5

6

7

dock8

1234

8

9

port index

9

...

4095

255

4 octets

8 octets

8 octets

port index

port control

ports

ports

table

& status

odd page

even page

4K ports

256 PCS

256 docks

256 docks

x 1 octet

x 4 octets

x 8 octets

x 8 octets

= 4K octets

= 1K octets

= 2K octets

= 2K octets


Mvb traffic store ports and docks l.jpg

MVB Traffic Store, Ports And Docks

Traffic stores are divided into Ports, each Port corresponding to one identifier

A device has normally a small number of Ports (e.g. 256), but a supervisory

device may have the full range of 4096 Ports.

A Port may be up to 1024 bit wide (256bits on the MVB)

A Port is divided into Docks of 32 bits for better memory usage.

Its Port Control and Status register indicates if a Port is source or sink.

The Port Index Table forms an associative memory, which indicates for each

identifier if it is subscribed to that device, by pointing to the PCS.

The former contents of a Port is overwritten (buffered, not queued).

To provide simultaneous and consistent access by either application or bus,

each Port is stored in two independent pages, written alternately.

The PCS performs additional functions like freshness supervision and

interrupt generation.


Freshness supervision l.jpg

Freshness Supervision

Process Data are not retransmitted explicitely in case of transmission error,

they will be retransmitted anyhow at the next poll.

The application must tolerate an occasional loss of data.

To protect the application from using obsolete data, each Port in the traffic

store has a freshness counter.

This counter is reset by writing to that Port. It is incremented regularly,

either by the application processor (BAP) or by the bus controller (MVBC).

The application should always read the value of the counter before using

the Port data and compare it with its tolerance level.

The freshness supervision is evaluated by each reader independently, some

readers may be more tolerant than others.

Bus error interrupts in case of severe disturbances are not directed to the

application, but to the device management.


Implementation of port control and status bap controller l.jpg

Implementation of Port Control And Status (BAP controller)

function code (size)

reserved

SRC

SINK

TMP

Port

Port

Store

Active

Active

Check

Source

Sink

Octet

size in 16 bit words

IE3

IE2

IE1

IE0

Enable

Enable

Enable

Enable

Interrupt

Interrupt

Interrupt

Interrupt

3

2

Event 1

Event 0

unused

VP

BNI

TERR

STO

Valid

Bus Not

Transfer

Slave

Page

Idle

Error

TimeOut

T7

T6

T5

T4

T3

T2

T1

T0

sink time supervision counter

The PCS depends both on the traffic store and on the bus controller


Traffic store access restriction l.jpg

Traffic Store Access Restriction

t1

t2

starts

time

ends

writer

reader 1

error !

(slow) reader 2

page0

traffic store

page1

page 1 becomes valid

page 0 becomes valid

• there may be no semaphores to guard access to a traffic store (real-time)

• there may be only one writer for a port, but several readers

• a reader must read the whole port before the writer overwrites it again

• this time is equal to the basic period in the worst case ( 1ms)

• therefore, the processor must read ports with interrupt off.


Process variables and datasets l.jpg

Process Variables And Datasets

1. General Principles

2. Variables

1. Principle of cyclic Process Data broadcast

2. Traffic Stores principle and implementation

3. Process Variables and Datasets

4. Software structure

5. Application Layer Interface for Process Variables

6. Networking

3. Messages

1. Principle of Message Data communication

2. Link Layer Interface

3. Networking and Routing

4. Transport protocol

5. Software structure

6. Application Interface


Datasets l.jpg

all door closed

lights on

heat on

air condition on

Datasets

It is economical to transport several variables in the same frame as a dataset.

A dataset is treated as a whole for communication and access.

A variable is identified within a dataset by its offset and its size

Variables may be of different types, types can be mixed.

Dataset

binary variables

analog variables

wheel

air

line

motor

speed

pressure

voltage

current

0

16

32

48

64

66

70

bit offset

size


Variable types l.jpg

Variable Types

Data representation may be different according to the processor

(e.g. Intel's Little-Endians and Motorola's Big-Endians)

However, there may be no ambiguity on the bus

Therefore, each transmitted variable has a defined type associated with it.

This type is agreed beforehand between the applications during configuration

To guarantee consistency, the type of the variable is part of the variable's name

TCN specifies a number of standard network variable types.

The format obeys to the Big-Endian convention (most significant first)


Predefined variable types l.jpg

Predefined Variable Types

0 = FALSE

BOOLEAN1

1 = TRUE

10= forced

00 = network error

ANTIVALENT2

11 = data undefined

01 = ok

BITSETn (array of n boolean)

INTEGERn (2's complement)

SB

SB = sign bit

UNSIGNEDn

FRACTIONALn

0

SB

2

REAL32 (IEEE)

exponent

SB

mantissa

ARRAY n OF CHARACTER8

char 0

char 1

TIMEDATE48...

Application data types have been defined in ROSIN


Configuration change and errors l.jpg

Configuration Change And Errors

Reconfiguring the whole bus to include new variables is normally not allowed in a

running project, since this can affect the time behaviour of all applications.

E.g. in the Train Bus, old coaches cannot be modified to consider new variables.

It also may be that a variable is invalid when produced, e.g. by a defective unit.

The producer may not modify the structure of data sets to exclude failed data

Mechanisms are provided to protect against production and transmission errors:

Freshness Supervision at reception

Check Variable: production supervision

Dedicated variables (Lifesigns) let all devices monitor the other's health


Check variable l.jpg

Check Variable

TCN relies on the invalidation of stale data at the source through a check variable:

TCN does not rely on a source freshness supervision

value

check

publisher application

subscriber application

value

check

freshness

value

check

set to 00 if

stale or wrong

source port

sink port

Traffic Store

Traffic Store


Variable extension and invalidation l.jpg

Variable Extension And Invalidation

To allow later extension, room is left in the datasets for additional variables.

Since the type of these future data is unknown, unused fields are filled with '1".

To signal that a variable is invalid, the producer overwrites the variable with "0".

Since both an "all 1" and an "all 0" word can be a meaningful combination, each

variable can be supervised by a check variable, of type ANTIVALENT2:

Dataset

variable value

check

correct variable

0

1

0

1

1

1

0

0

0

1

error

0

0

0

0

0

0

0

0

0

0

undefined

1

1

1

1

1

1

1

1

1

1

00 = network error

chk_offset

01 = ok

var_offset

10 = forced

11 = data undefined

A variable and its check variable are treated indivisibly when reading or writing

The check variable may be located anywhere in the same data set.


Example train bus frames extension l.jpg

Example: Train Bus Frames Extension

Vehicle Status

Traction Status

Cab Commands

40 octets

40 octets

48 octets

locomotive with

1992

1995

free

1992

free

1992

free

attended cab

steering coach with

1992

free

free

1992

free

attended cab

unattended

1992

1995

free

free

free

steering coach

locomotive with

1992

free

1992

free

1992

free

unattended cab

motor coach

1992

free

1992

free

(no cab)

coach (no cab, no

1992

free

traction)

old vehicles understand the new vehicle's 1992 data and ignore 1995 variables.

new vehicles understand the old vehicle's 1992 data and ignore undefined fields.


Pv name l.jpg

PV_Name

Each Process Variable is identified by a unique PV_Name

dataset identifier

(DS-Name)

traffic

port address

size

variable offset

type

check offset

store

4

12

6

10

6

10

traffic

n

port address

store

PV_Name

n+2

size

bit_offset

type

check_offset

n+4

this is how it look in memory,

independently if the processor

is little-endian or big-endian.

To each variable, the application associates a value location and a check location

Sink variables have in addition the freshness argument


Scope of the pv name l.jpg

Scope Of The PV-name

traffic

offset

dataset

store

1234

8

3

device x

device y

8

1

1234

application

application

application

B

C

traffic

A

dataset

offset

store

traffic store1

traffic store2

traffic store3

traffic store1

bus

1234

process data frame (dataset)

8

1234

port

offset

the port identifier and the offset within the port

identifies a variable within a bus or within a traffic store


Process variables instances l.jpg

Process Variables Instances

publisher

application instance

device

traffic store

instance

bus instance

bus

subscribers

application

instances

applications

device

device

There exist a number of (inconsistent) instances of the same Process Variable


Software structure for process variables l.jpg

Software Structure For Process Variables

1. General Principles

2. Variables

1. Principle of cyclic Process Data broadcast

2. Traffic Stores principle and implementation

3. Process Variables and Datasets

4. Software structure

5. Application Layer Interface for Process Variables

6. Networking

3. Messages

1. Principle of Message Data Communication

2. Link Layer Interface

3. Networking and Routing

4. Transport protocol

5. Software structure

6. Application Interface


Application access to process variables l.jpg

Application Access To Process Variables

Application Interface

Application

ap_

Program

Application

APA

AVA

Process

Link Interface

PTA

lp_

Traffic Store

dataset with

a variable, its check

variable and its

freshness counter

bus

Link Process

controller

bus

applications access the traffic store directly, as a shared memory.

(there may be only writer for a given port)


Several applications one traffic store l.jpg

Several Applications, One Traffic Store

Application

Program

Application

Application

Program

APA

AVA

Program

APA

AVA

PTA

APA

AVA

PTA

PTA

same process

Traffic

Store

bus

Link Process

controller

bus

several processes may access the traffic store in parallel


One application several traffic stores l.jpg

One Application, Several Traffic Stores

Application

Application Interface ap_

Program

APA

AVA

Link Interface lp_

PTA1

PTA2

traffic

traffic

store

store

2

1

link

link

Link 1

Link 2

process 1

process 2

Bus 1

Bus 2


Access to several traffic stores l.jpg

Access To Several Traffic Stores

PV_Name

traffic store

port

typesize

var_offset

port index table 2

traffic

MVB

store

index

traffic

store

descriptor

PCS

page 0

page 1

port index table 5

WTB

PCS

page 0

page 1


Forcing l.jpg

Forcing

Variables can be forced individually for debugging and commissioning

get/put

force

bus

mask ports

substitute ports

even ports

odd ports

Port Index Table

if a source variable is forced, its substitute value is copied to the bus and to

every (local) application which reads it

if a sink variable is forced, its substitute value is read by local applications,

remote appplications are not affected


Forcing operation l.jpg

Forcing Operation

port offset

binary

1234:21

analog

1234:6

Mask Port

1

1

1

1

1

1

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

0

1

1

1

1

1

1

Substitute Port

x

x

x

x

x

x

1

0

1

0

1

0

1

0

x

x

x

x

x

x

x

1

x

x

x

x

x

x

Even Traffic Port

1

1

1

1

1

0

x

x

x

x

x

x

x

x

1

0

1

1

0

1

0

0

1

0

1

0

1

0

Odd Traffic Port

1

1

1

1

1

0

x

x

x

x

x

x

x

x

1

1

1

1

0

1

0

0

1

0

1

0

1

0

For each bit set to 0 in the Mask Port, the corresponding bit of the Substitute

port is copied to the variable location


Application interface for process variables l.jpg

Application Interface For Process Variables

1. General Principles

2. Variables

1. Principle of cyclic Process Data broadcast

2. Traffic Stores principle and implementation

3. Process Variables and Datasets

4. Software structure

5. Application Layer Interface for Process Variables

6. Networking

3. Messages

1. Principle of Message Data communication

2. Link Layer Interface

3. Networking and Routing

4. Transport protocol

5. Software structure

6. Application Interface


Ava procedures l.jpg

AVA Procedures

individual access

apd_put_variable (pv_name, producer)

write a variable

apd_get_variable (pv_name, consumer, check)

read a variable

apd_force_variable (pv_name, substitute)

force a variable to a value

apd_unforce_variable (pv_name)

restore bus communication

apd_unforce_all

same for all variables

apd_init

initialize traffic store

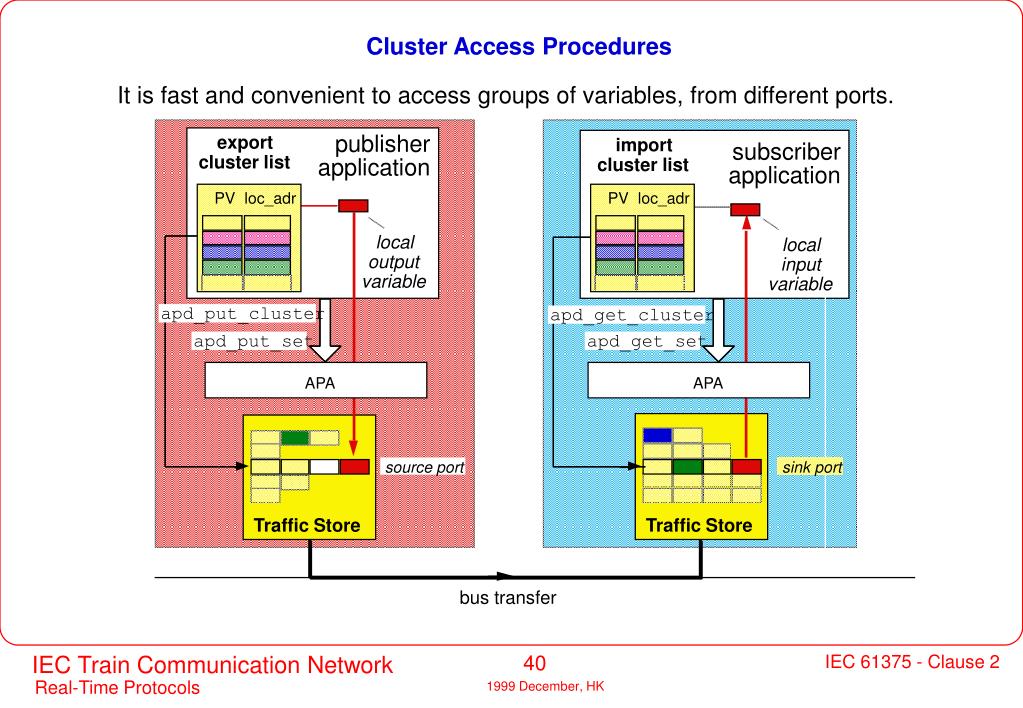

cluster access

ap_put_cluster (pv_list)

read a cluster of variables

ap_get_cluster (pv_list)

write a cluster of variables

pv-set access

ap_put_set (pv_list)

read a set of variables

ap_get_set (pv_list)

write a set of variables

dataset access (link layer)

ds_received (ds_name)

signals reception of dataset

signals emission of dataset

ds_sent (ds_name)

ds_subscribe_sent (ds_name, sent_ind)

corresponding subscriptions

ds_subscribe_received (ds_name, received_ind)

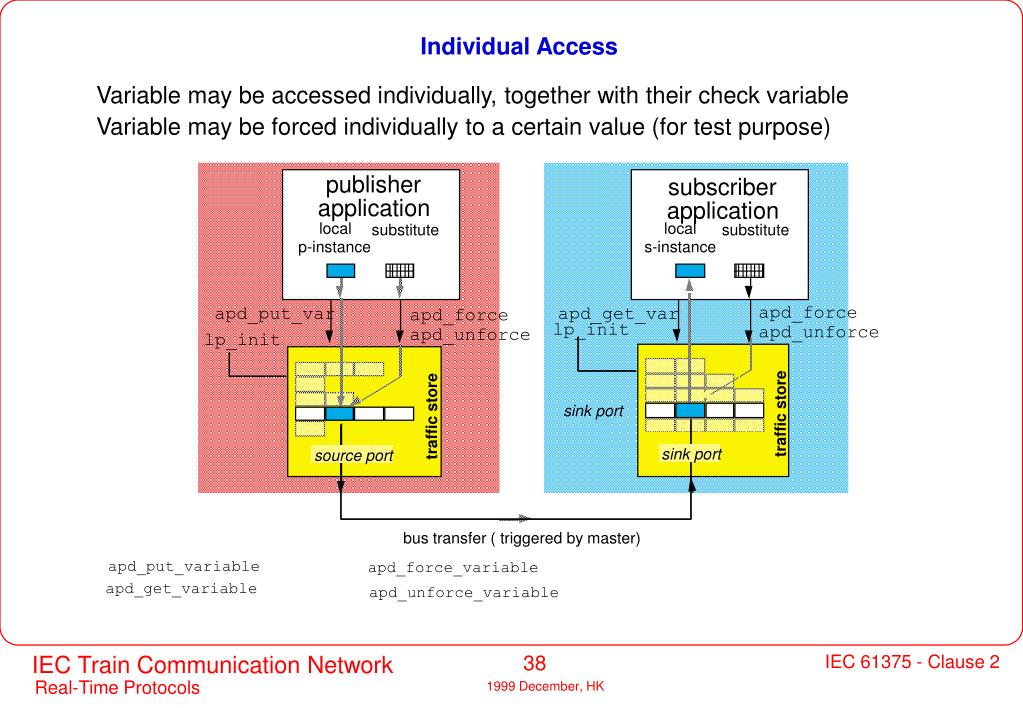

Individual access l.jpg

Individual Access

Variable may be accessed individually, together with their check variable

Variable may be forced individually to a certain value (for test purpose)

publisher

subscriber

application

application

local

local

substitute

substitute

p-instance

s-instance

apd_force

apd_put_var

apd_get_var

apd_force

lp_init

apd_unforce

apd_unforce

lp_init

sink port

traffic store

traffic store

sink port

source port

bus transfer ( triggered by master)

apd_put_variable

apd_force_variable

apd_get_variable

apd_unforce_variable


Individual access procedures l.jpg

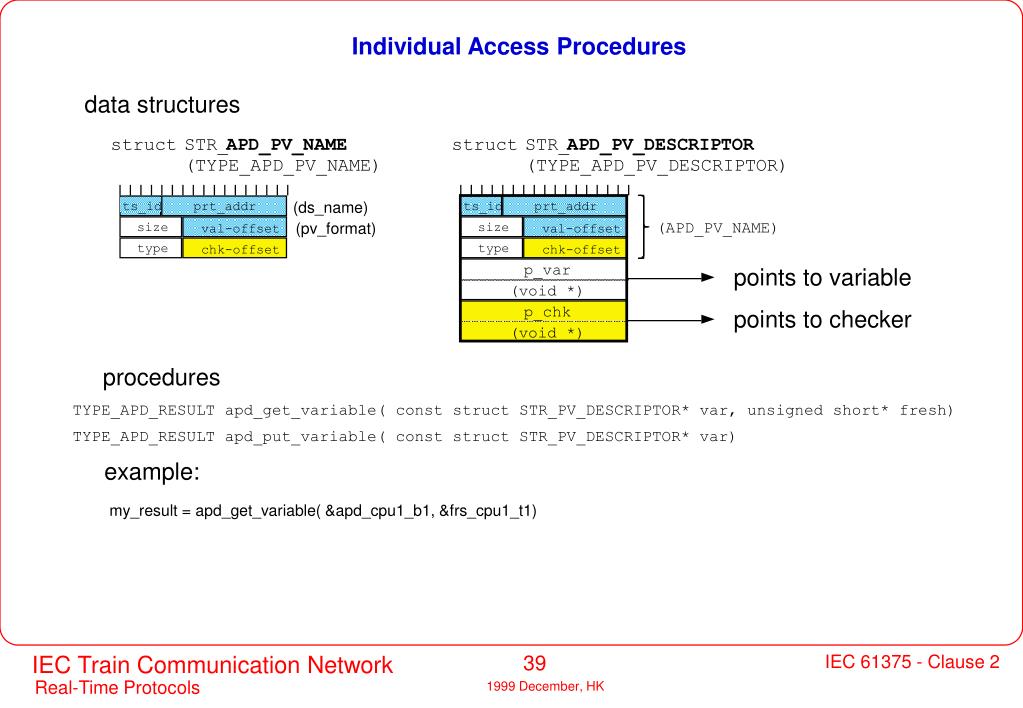

Individual Access Procedures

data structures

struct

STR_

APD_PV_NAME

struct

STR_

APD_PV_DESCRIPTOR

(TYPE_APD_PV_NAME)

(TYPE_APD_PV_DESCRIPTOR)

(ds_name)

ts_id

prt_addr

ts_id

prt_addr

(pv_format)

(APD_PV_NAME)

size

size

val-offset

val-offset

type

type

chk-offset

chk-offset

p_var

points to variable

(void *)

p_chk

points to checker

(void *)

procedures

TYPE_APD_RESULT apd_get_variable( const struct STR_PV_DESCRIPTOR* var, unsigned short* fresh)

TYPE_APD_RESULT apd_put_variable( const struct STR_PV_DESCRIPTOR* var)

example:

my_result = apd_get_variable( &apd_cpu1_b1, &frs_cpu1_t1)


Cluster access procedures l.jpg

Cluster Access Procedures

It is fast and convenient to access groups of variables, from different ports.

publisher

export

import

subscriber

cluster list

application

cluster list

application

PV

loc_adr

PV

loc_adr

local

local

output

input

variable

variable

apd_put_cluster

apd_get_cluster

apd_put_set

apd_get_set

APA

APA

source port

sink port

Traffic Store

Traffic Store

bus transfer


Pv set l.jpg

PV_Set

A PV_set groups variables of the same port

data structures

struct

STR_

APD_PV_DESCRIPTOR

(TYPE_APD_PV_DESCRIPTOR)

ts_id

prt_addr

(APD_PV_NAME)

size

val-offset

type

chk-offset

array of pv_descriptors

p_var

(void *)

p_chk

(void *)

procedures

TYPE_APD_RESULT apd_get_set(

const struct STR_PV_DESCRIPTOR* pvset,

unsigned short* fresh,

int nr_variables)

TYPE_APD_RESULT apd_put_set( const struct STR_PV_DESCRIPTOR* pvset, int nr_variables)

example:

my_result = apd_get_set( &ads_cpu1_t1, &frs_cpu1_t1, 5)


Dataset access procedures l.jpg

Dataset Access Procedures

struct

STR_

APD_DS_NAME

(TYPE_APD_DS_NAME)

array of dataset identifiers

for refresh timer

ts_id

prt_addr

To supervise their freshness, data sets are grouped in a time-out set

With the BAP, the set must be explicitely refreshed.

This operation is not needed anymore with the MVBC.


Synchronization l.jpg

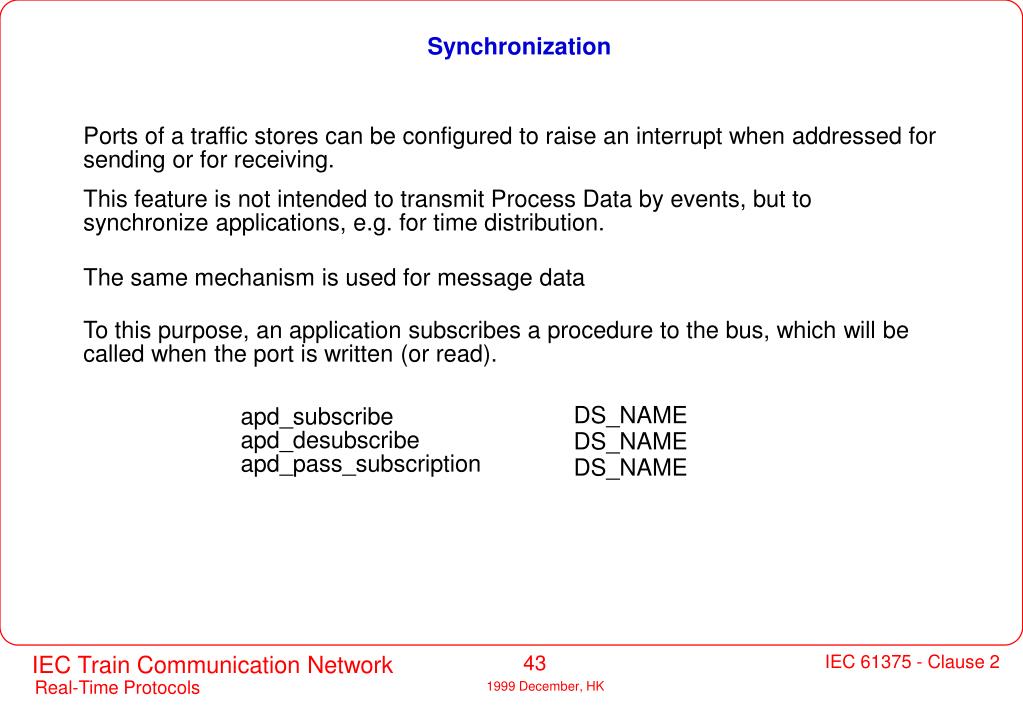

Synchronization

Ports of a traffic stores can be configured to raise an interrupt when addressed for

sending or for receiving.

This feature is not intended to transmit Process Data by events, but to

synchronize applications, e.g. for time distribution.

The same mechanism is used for message data

To this purpose, an application subscribes a procedure to the bus, which will be

called when the port is written (or read).

DS_NAME

apd_subscribe

apd_desubscribe

DS_NAME

apd_pass_subscription

DS_NAME


Process data networking l.jpg

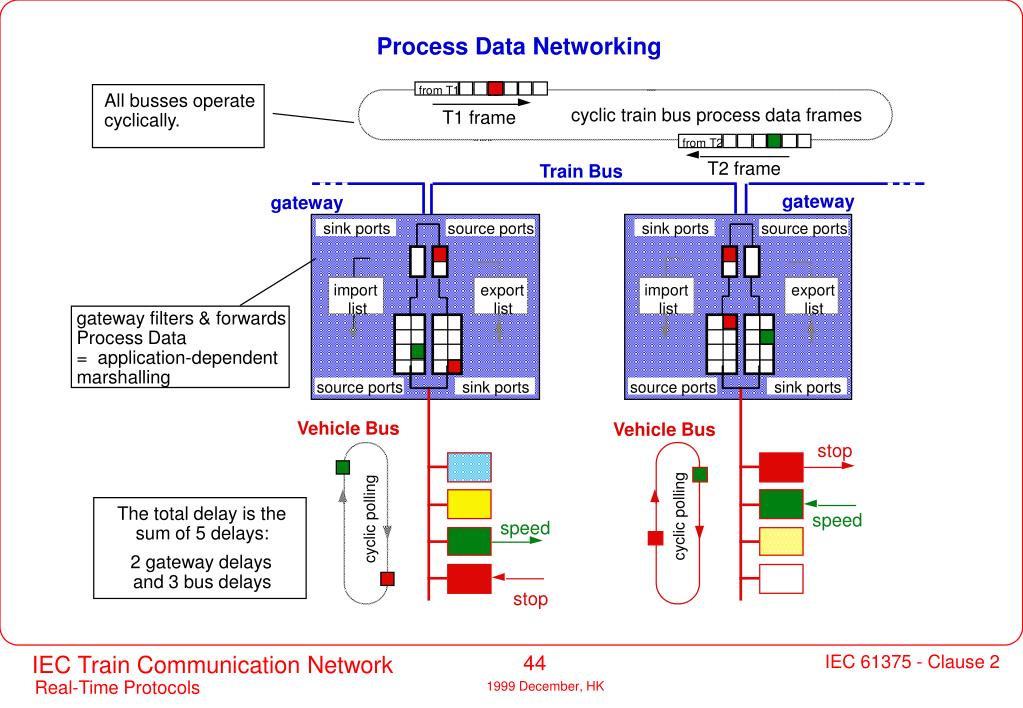

Process Data Networking

from T1

All busses operate

cyclic train bus process data frames

T1 frame

cyclically.

from T2

T2 frame

Train Bus

gateway

gateway

sink ports

source ports

sink ports

source ports

import

export

import

export

list

list

list

list

gateway filters & forwards

Process Data

= application-dependent

marshalling

source ports

sink ports

source ports

sink ports

Vehicle Bus

Vehicle Bus

stop

The total delay is the

cyclic polling

speed

cyclic polling

speed

sum of 5 delays:

2 gateway delays

and 3 bus delays

stop


  • Login
