Presentation Transcript

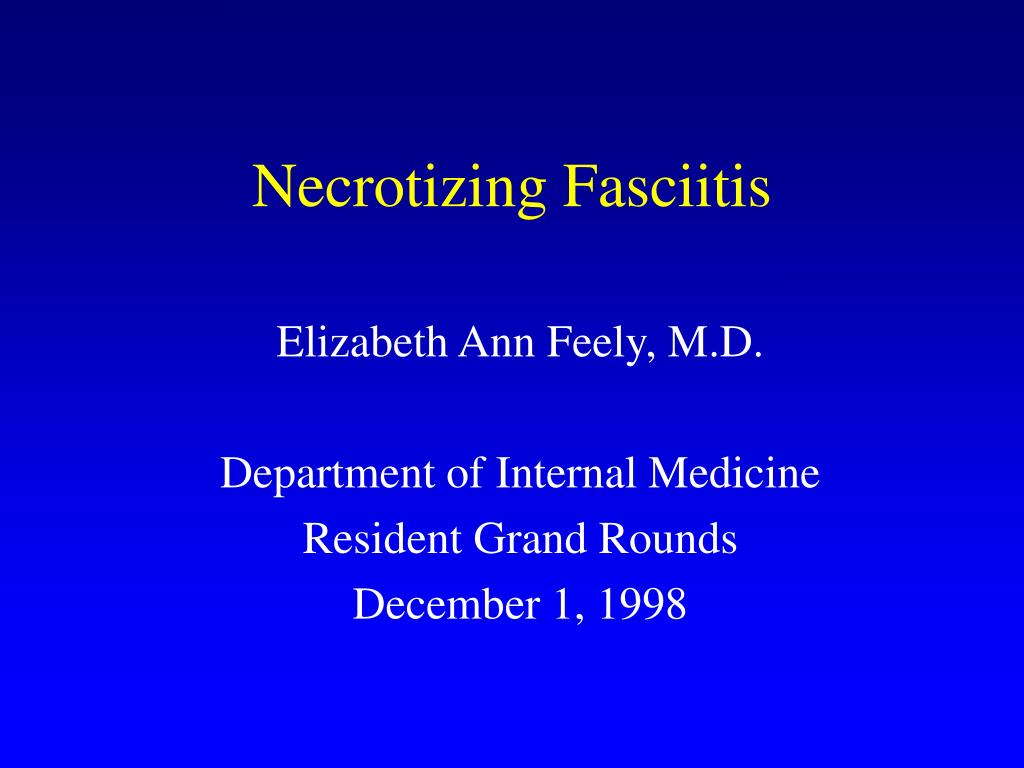

Necrotizing fasciitis l.jpg

Necrotizing Fasciitis

Elizabeth Ann Feely, M.D.

Department of Internal Medicine

Resident Grand Rounds

December 1, 1998


Case presentation l.jpg

Case Presentation

HPI: B.T. is a 48 YOWF with ESRD, DM, HTN, and

CAD, who was recently hospitalized for uncomplicated

angioplasty of her LAD. She presented to WFU/BMC

ED with c/o a “painful boil on her bottom ” x 3 days.

Pain started in the region of her right groin catheterization

site and had progressively become unbearable. Mild

subjective fever and chills. Denied N/V, SOB, CP,

diarrhea, dysuria, or vaginal discharge.

Meds: ASA, Atenolol, Imdur, Insulin NPH, Prilosec,

Nu-Iron, Folate, and NTG SL


Case presentation3 l.jpg

Case Presentation

Pertinent Physical Exam Findings:

VS: T 96.6, P 56, BP 86/42, R 20

Gen: obese WF in NAD

CV/Lungs: within normal limits

Abd: soft, obese, slightly tender in right lower quadrant, nl. BS. Large hematoma in right groin w/ surrounding erythema. No purulence. On deep palpation, + soft tissue crepitus.

GU: grossly swollen labium, with crepitus on palpation.

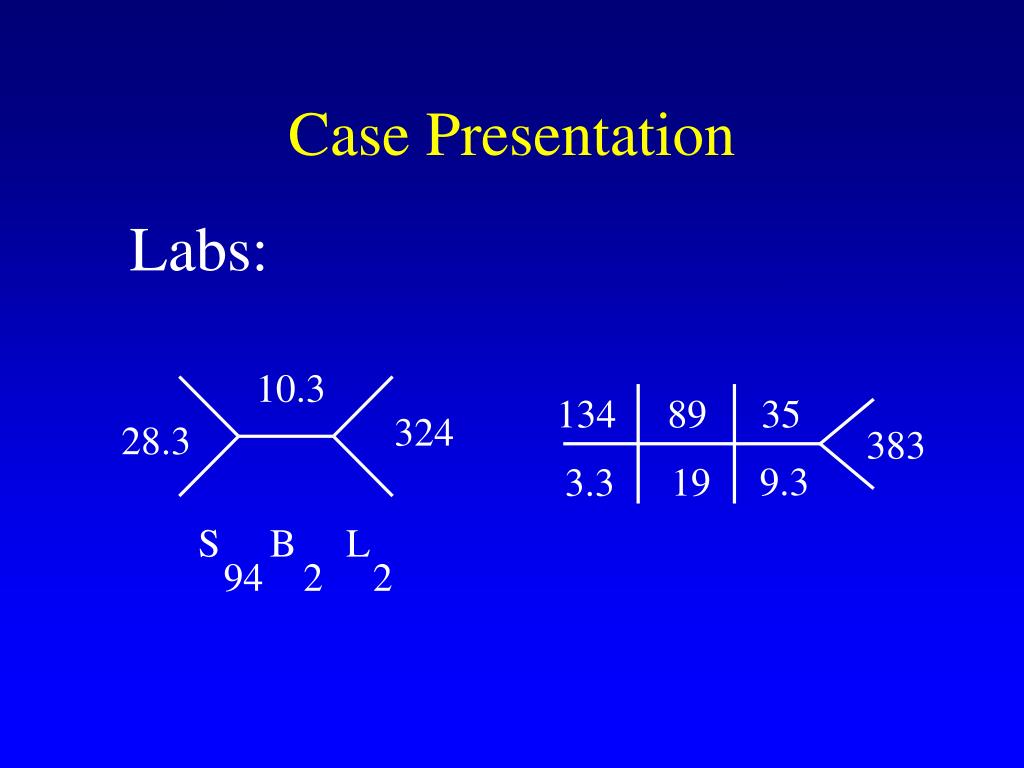

Case presentation4 l.jpg

10.3

134

89

35

324

28.3

383

9.3

19

3.3

S B L

94 2 2

Case Presentation

Labs:


Case presentation5 l.jpg

Case Presentation

ED Course: Pt. started on KVO NS and given 1 g IV Rocephin. Medicine consulted for ? infected Bartholin’s cyst. Plain film of pelvis was recommended. Plain film showed air within soft tissues from groin into labium. Given her crepitance,  WBC, and DM, necrotizing fasciitis was high on differential. Surgery consult performed incision over groin hematoma, revealing foul-smelling, nonviable SQ tissue.


Definition l.jpg

Definition

Necrotizing fasciitis (NF)

  • rare, life-threatening soft-tissue infection usually caused by toxin-producing bacteria

  • characterized by widespread fascial necrosis with sparing of skin and muscle

  • can be associated with severe systemic toxicity

  • may rapidly lead to death unless promptly treated

  • part of a spectrum of soft-tissue infections, which can be categorized anatomically


Anatomic and clinical classification of soft tissue infections l.jpg

Anatomic and Clinical Classification of Soft Tissue Infections


History l.jpg

History

  • Earliest report dates back to 5th century B.C. when Hippocrates described a complication of erysipelas:

    “… the erysipelas would quickly spread widely in all directions. Flesh, sinews and bones fell away in large quantities… Fever was sometimes present and sometimes absent… There were many deaths. The course of the disease was the same to whatever part of the body it spread.”

  • first described in U.S. in 1871

  • the term, necrotizing fasciitis, first used in 1952


Epidemiology l.jpg

Epidemiology

  • estimates of 500-1,500 new cases are reported in the US each year ; rare

  • actual incidence is complicated by use of multiple terms to describe same entity

    • acute non-clostridial crepitant cellulitis, non-clostridial gas gangrene, synergistic necrotizing cellulitis, necrotizing cellulitis, bacterial synergistic gangrene, gangrenous or necrotizing erysipelas, hemolytic streptococcal gangrene, Fournier’s gangrene.

  • no age or sex predilection


Bacteriology l.jpg

Bacteriology

  • ~ 10% of cases due to aerobes, 20% due to anaerobes, 70% due to mixed flora

  • A single organism is isolated in < 10% of cases.

  • Two types:

    Type 1: mixed anaerobic, aerobic, and facultative bacteria; accounts for ~ 90% of cases.

    Type 2: Group A Streptococcus only; occurs ~ 10% of cases.

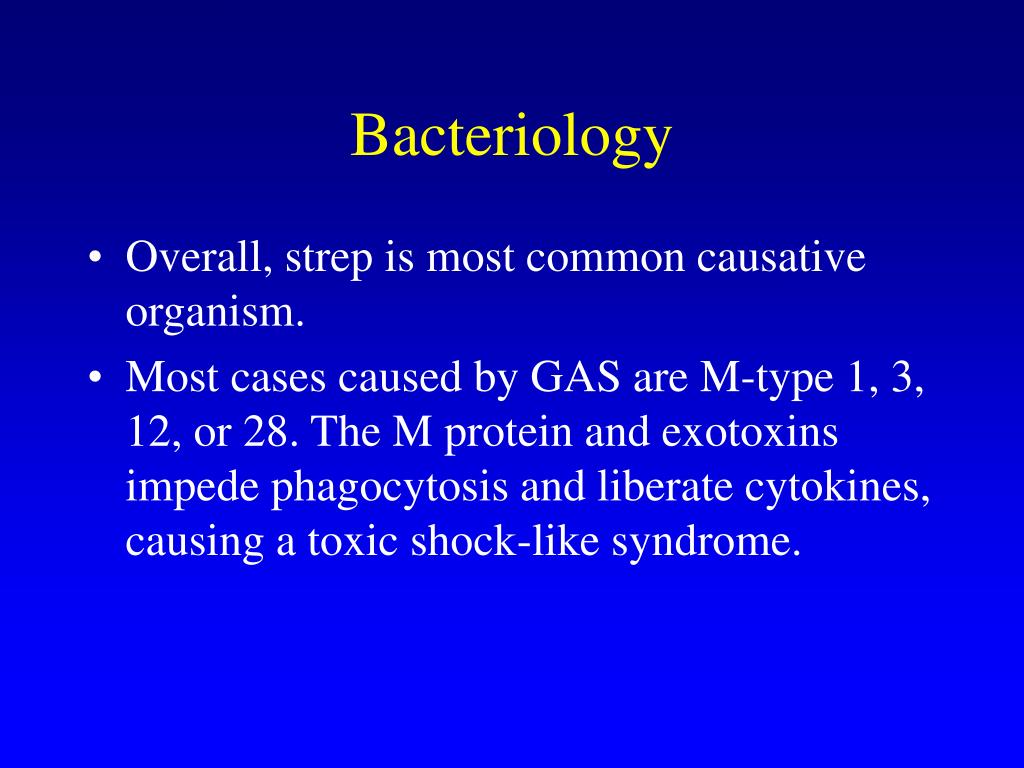

Bacteriology11 l.jpg

Bacteriology

  • Overall, strep is most common causative organism.

  • Most cases caused by GAS are M-type 1, 3, 12, or 28. The M protein and exotoxins impede phagocytosis and liberate cytokines, causing a toxic shock-like syndrome.


Organisms identified in necrotizing fasciitis l.jpg

Organisms Identified in Necrotizing Fasciitis


Risk factors l.jpg

Risk Factors

  • Diabetes mellitus

  • Peripheral vascular disease

  • IV drug use

  • Alcoholism

  • Immunosupressed patients

  • Old age/obesity/malnutrition

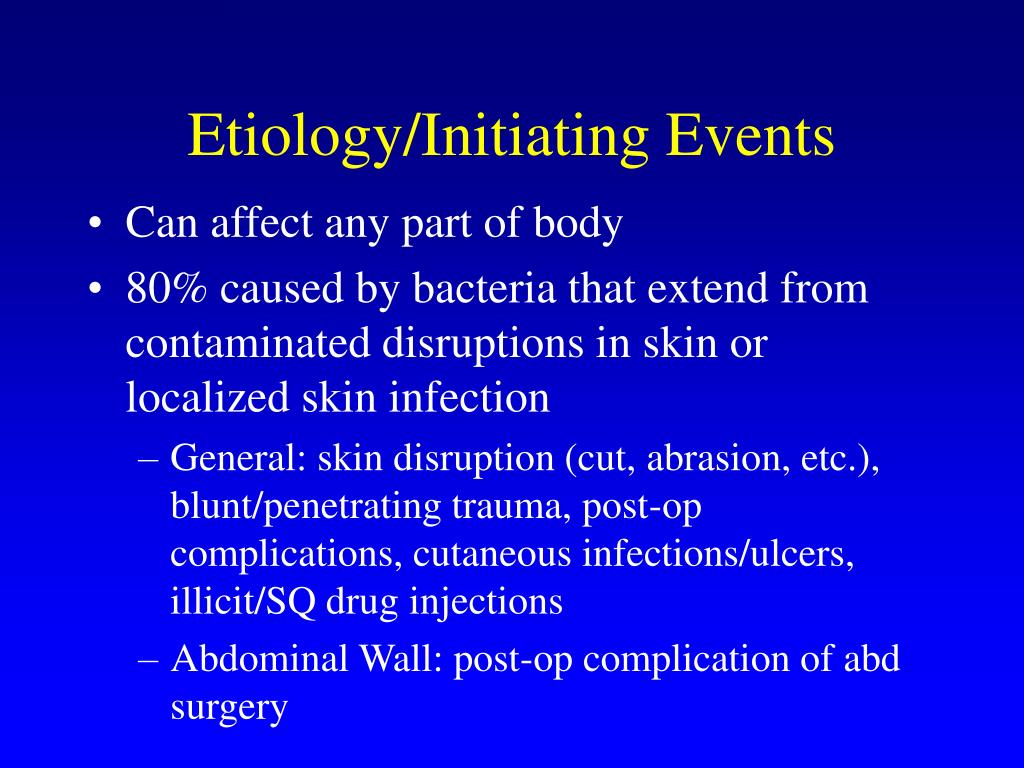

Etiology initiating events l.jpg

Etiology/Initiating Events

  • Can affect any part of body

  • 80% caused by bacteria that extend from contaminated disruptions in skin or localized skin infection

    • General: skin disruption (cut, abrasion, etc.), blunt/penetrating trauma, post-op complications, cutaneous infections/ulcers, illicit/SQ drug injections

    • Abdominal Wall: post-op complication of abd surgery


Etiology initiating events15 l.jpg

Etiology/Initiating Events

  • Extremity: trauma, illicit drug use, insect bite, scratch, or wound

  • Perineum: post-op complication, pilonidal abscess, neglected ischiorectal/perineal abscess

  • Vulva: Bartholin’s gland duct abscess, vulvar abscess, pudendal nerve block; post-op wound infection from C-section, episiotomy, hysterectomy, etc.

  • Fournier’s gangrene (NF of male genital organs): GU infections, traumatic instrumentation, urethral calculus, neoplasm, surgery, coital injury

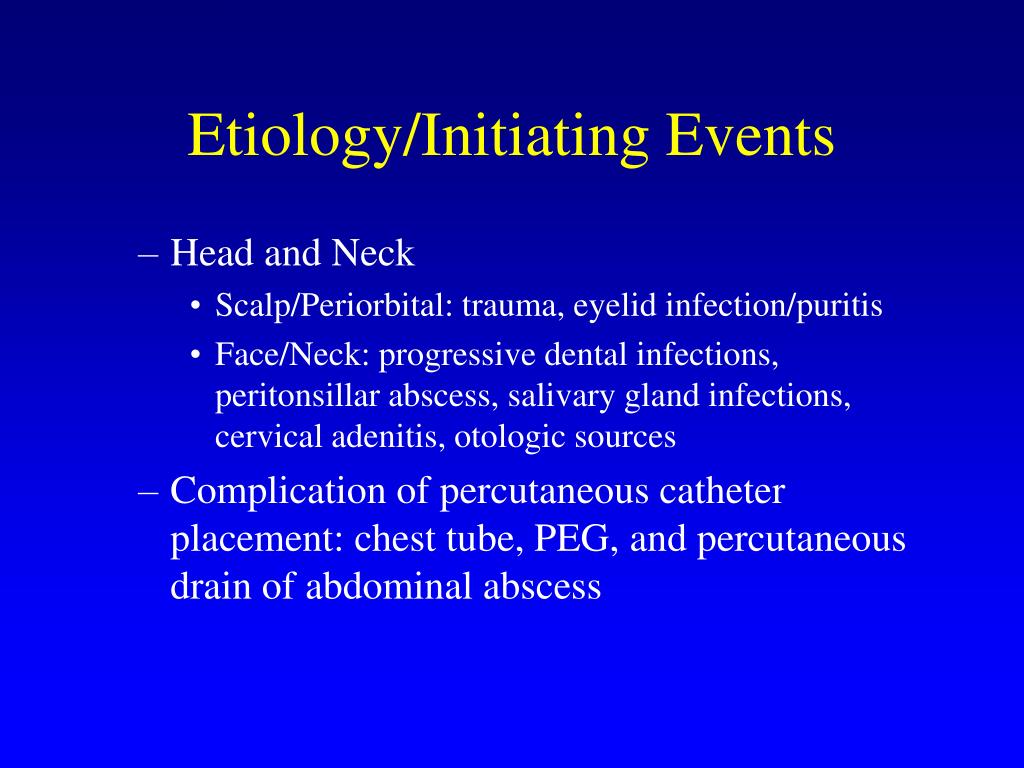

Etiology initiating events16 l.jpg

Etiology/Initiating Events

  • Head and Neck

    • Scalp/Periorbital: trauma, eyelid infection/puritis

    • Face/Neck: progressive dental infections, peritonsillar abscess, salivary gland infections, cervical adenitis, otologic sources

  • Complication of percutaneous catheter placement: chest tube, PEG, and percutaneous drain of abdominal abscess


Etiology initiating events17 l.jpg

Etiology/Initiating Events

  • Idiopathic necrotizing fasciitis

    • cases that occur without an obvious portal of entry

    • occur in ~ 20% of cases

    • more likely to occur in healthy patients

    • typically caused by single organism (Strep pyogenes)

    • commonly involves lower extremities

    • result of infection from unrecognized breaks in skin or hematogenous spread


Clinical presentation l.jpg

Clinical Presentation

  • Initially present with nonspecific symptoms (pain, high fever, edema, and erythema).

  • Pain out of proportion to exam and systemic toxicity should suggest possibility of NF.

  • Initial signs include erythematous, swollen, tender area of cellulitis- distinct margins and induration are absent.


Slide19 l.jpg

  • Needle pic


Clinical presentation20 l.jpg

Clinical Presentation

  • With progression, skin color darkens, blisters develop, and skin can become anesthetized with focal areas of skin necrosis.

  • Fascial necrosis occurs with involved fascia and SQ fat appearing dull grey, edematous, and necrotic with serosanguinous exudate.


Slide21 l.jpg

  • Butt pic


Slide22 l.jpg

  • Necrotic foot


Slide23 l.jpg

  • fascia


Clinical manifestations of necrotizing fasciitis l.jpg

Clinical Manifestations of Necrotizing Fasciitis

  • table


Pathophysiology l.jpg

Pathophysiology

  • precise mechanism is not known

  • thought to be due to bacterial enzymes (lipases and hyaluronidase)

  • extent of fascial necrosis is more widespread than overlying skin changes

  • arteries can thrombose, resulting in focal areas of necrosis; nerves can be destroyed

  • signs of sepsis occur as organisms and toxins are delivered into bloodstream


Slide26 l.jpg

  • Histology pic


The importance of rapid diagnosis l.jpg

The Importance of Rapid Diagnosis

Study by Lille et al. suggests a delay in the diagnosis by a matter of hours significantly increases mortality.

  • 10 yr. retrospective analysis of 29 pts. w/ confirmed NF (by intraop findings)

  • pts. categorized into early group (surgery <24 hours; n=17) or delayed group (surgery >24 hours; n=12)

  • no significant differences between groups based on age, gender, infection location, or premorbid medical conditions


Importance of rapid diagnosis l.jpg

Importance of Rapid Diagnosis

Lille et al.

  • Mortality was 6% in the early group verses 25% in the delayed group.

  • Advanced clinical signs were present in 76% of early group verses 25% of the delayed group.

  • Other factors (FNA, radiographs,etc.) were also compared between the two groups.


Slide29 l.jpg

  • Table 2and table 3 pics


Importance of rapid diagnosis30 l.jpg

Importance of Rapid Diagnosis

Lille et al.

  • Study suggests prompt diagnosis followed by appropriate treatment decreases mortality in pts. w/ NF.

  • Factors contributing to diagnostic delay were:

    • lack of clinical symptoms and signs

    • negative FNA and radiographic changes

    • admission to a nonsurgical service


Clinical question l.jpg

Clinical Question

What is the best diagnostic modality available to establish the diagnosis of necrotizing fasciitis?


Review of the literature l.jpg

Review of the Literature

  • Review was performed on the following diagnostic modalities:

    • frozen tissue biopsy

    • plain film

    • computed tomography

    • magnetic resonance imaging

  • Limitations were small study sizes. Difficult to perform prospective RCTs because of the rarity of the disease and the benefits to any procedure that could possibly shorten the diagnostic delay.


Frozen tissue biopsy l.jpg

Frozen Tissue Biopsy

Stamenkovic and Lew studied frozen -section biopsy for diagnosis of NF in early stages.

  • 13 yr. retrospective review of 19 cases of histologically proven NF

  • Pts. were categorized into frozen-section biopsy group or group who did not undergo biopsy, but had diagnosis made later on clinical grounds or surgical resection.

  • Differences were seen in the mortality and the time between onset of sxs and surgery.


Frozen tissue biopsy34 l.jpg

Frozen Tissue Biopsy

Comparative Mortality and Time (Between Onset of Sympotms and Treatment) for Biopsy Group and Non-Biopsied Group

  • Table 2 mort


Frozen tissue biopsy35 l.jpg

Frozen Tissue Biopsy

Stamenkovic and Lew

  • performing frozen-section soft-tissue biopsy early can provide definitive diagnosis and decrease mortality

  • biopsies excluded the diagnosis in 6 cases

  • drawbacks

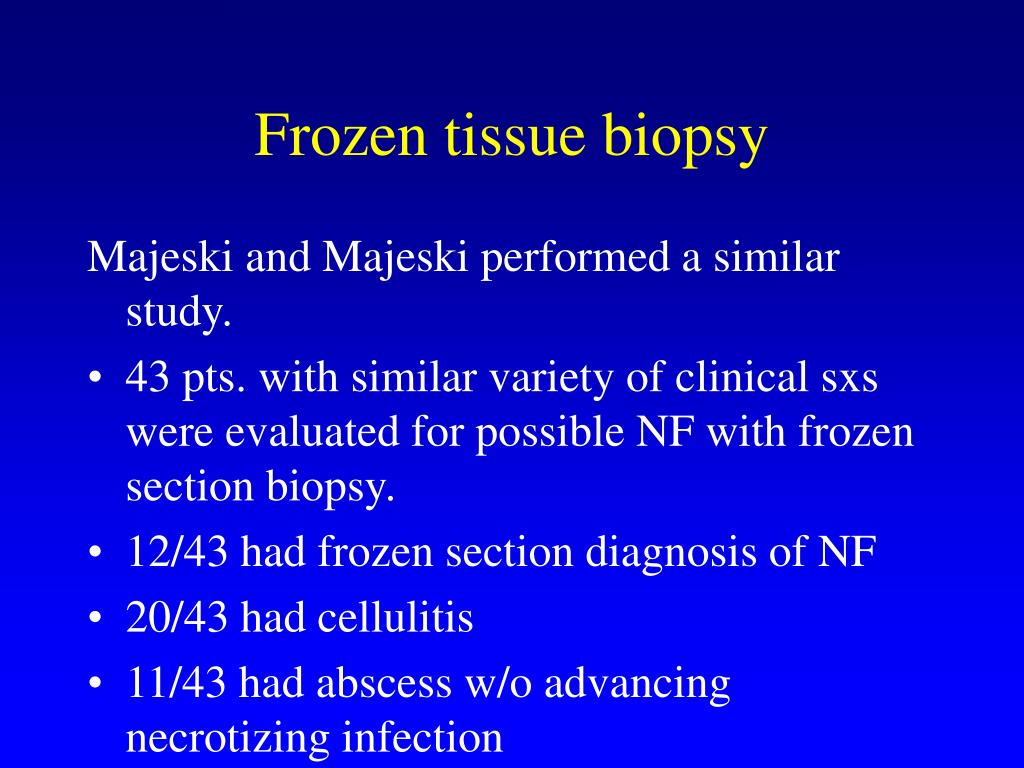

Frozen tissue biopsy36 l.jpg

Frozen tissue biopsy

Majeski and Majeski performed a similar study.

  • 43 pts. with similar variety of clinical sxs were evaluated for possible NF with frozen section biopsy.

  • 12/43 had frozen section diagnosis of NF

  • 20/43 had cellulitis

  • 11/43 had abscess w/o advancing necrotizing infection


Frozen tissue biopsy37 l.jpg

Frozen Tissue Biopsy

Majeski

  • 100% of pts. W/ NF survived

  • avg. time between initial eval. and surgery was 4 hours

  • frozen section biopsy provides reliable diagnosis of NF

  • drawbacks


Plain film l.jpg

Plain Film

Fisher et al. studied roentgenographic studies in diagnosing NF.

  • 9 yr. retrospective review of 26 cases of NF (proven by clinical, gross, and pathologic criteria)

  • gas was found in soft tissues of 19 pts. (73%) and was seen as bubbles at surgery

  • crepitation and plain films were checked on each pt. to detect the presence of soft-tissue gas


Slide39 l.jpg

  • X-ray pic


Plain film40 l.jpg

Plain film

  • Table 3


Plain film41 l.jpg

Plain film

Fisher et al.

  • physical exam finding of crepitus not a reliable tool to detect soft-tissue gas

  • x-rays detected gas reliably and simply

  • drawbacks

  • x-rays are specific but infrequently show soft-tissue gas

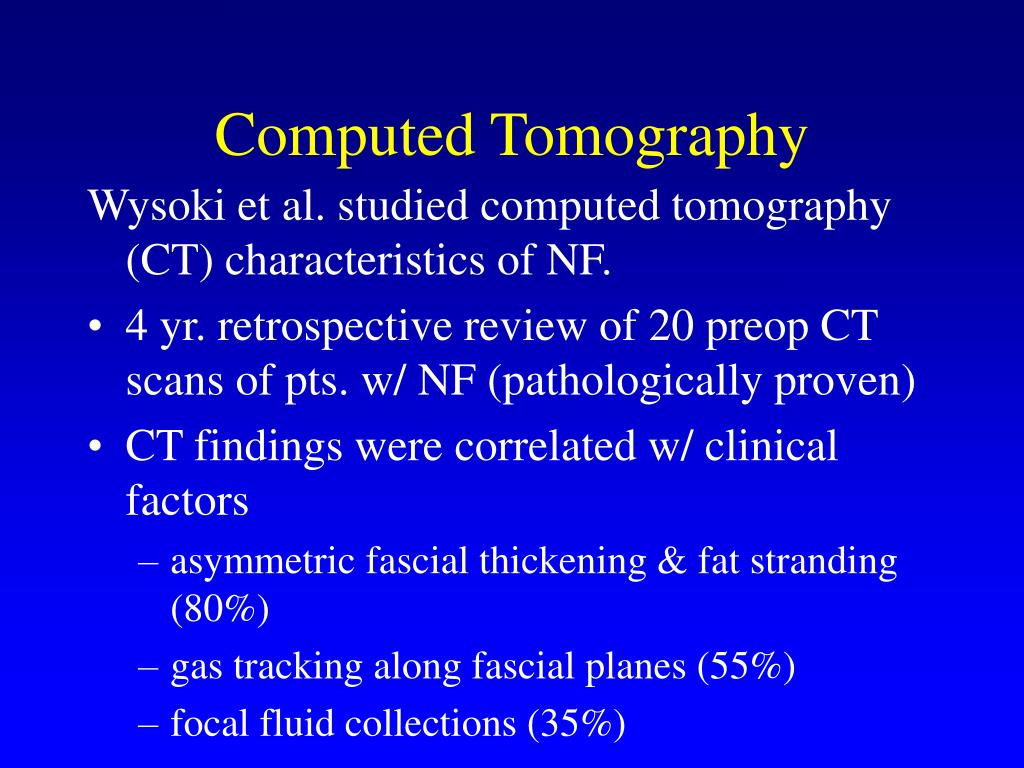

Computed tomography l.jpg

Computed Tomography

Wysoki et al. studied computed tomography (CT) characteristics of NF.

  • 4 yr. retrospective review of 20 preop CT scans of pts. w/ NF (pathologically proven)

  • CT findings were correlated w/ clinical factors

    • asymmetric fascial thickening & fat stranding (80%)

    • gas tracking along fascial planes (55%)

    • focal fluid collections (35%)


Computed tomography43 l.jpg

Computed Tomography

  • CT scan pic


Computed tomography44 l.jpg

Computed Tomography

Wysoki et al.

  • asymmetric fascial thickening and gas on CT are valuable in diagnosing NF

  • CT can also delineate true extent of disease

  • pts. w/o soft-tissue gas on CT create more of a diagnostic challenge

  • drawbacks


Magnetic resonance imaging l.jpg

Magnetic Resonance Imaging

Schmid et al. evaluated MRI in differentiating NF from cellulitis.

  • 4 yr. retrospective review of MRI exams on 17 pts. w/ clinically suspected NF

  • cellulitis diagnosed by thickening and contrast enhancement of SQ tissues/ superficial fascia and deeper structures nl.

  • NF diagnosed by deep fascial signal intensities (on T2-weighted and contrast enhanced T1-weighted images)


Magnetic resonance imaging46 l.jpg

Magnetic Resonance Imaging

Schmid et al.

  • final diagnosis was NF in 11/17 pts. (proven surgically or autopsy) and cellulitis in 6/17 pts.

  • 11 cases of NF and 5/6 cases of cellulitis were correctly identified

  • one case of cellulitis was overstaged

  • sensitivity of 100%, specificity of 86%


Slide47 l.jpg

Cellulitis vs. Necrotizing Fasciitis on MRI


Magnetic resonance imaging48 l.jpg

Magnetic Resonance Imaging

Loh et al. studied specificity of deep fascial hyperintense T2-weighted signal abnormalities for necrotizing soft-tissue infections.

  • 22 MRIs (w/ deep fascial signal abnl.) retrospectively reviewed w/o knowledge of clinical or pathologic diagnosis

  • necrotizing soft-tissue process was diagnosed if deep fascial signal abnl. were present


Slide49 l.jpg

Loh et al.

Pretty tables 1 and 2

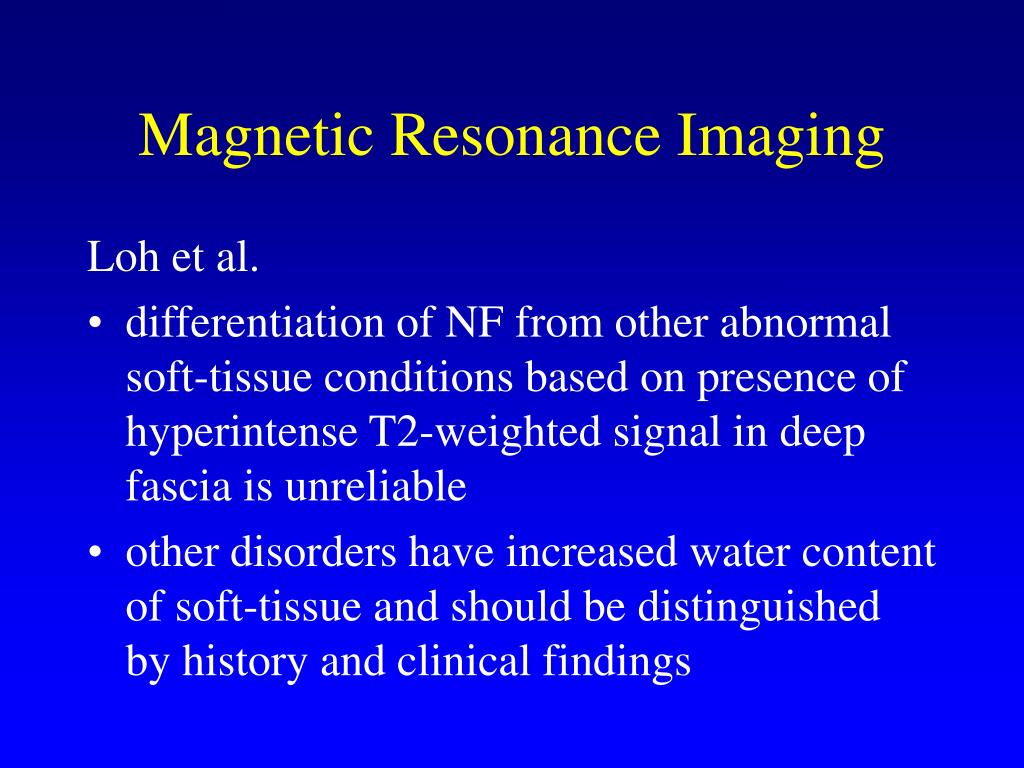

Magnetic resonance imaging50 l.jpg

Magnetic Resonance Imaging

Loh et al.

  • differentiation of NF from other abnormal soft-tissue conditions based on presence of hyperintense T2-weighted signal in deep fascia is unreliable

  • other disorders have increased water content of soft-tissue and should be distinguished by history and clinical findings


Magnetic resonance imaging51 l.jpg

Magnetic Resonance Imaging

Rahmouni et al.

  • 3 yr. Prospective


  • Login
