Presentation Transcript

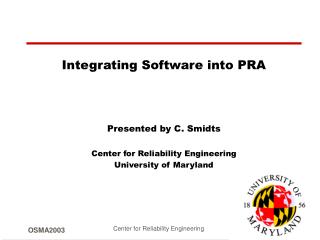

Integrating software into probabilistic risk assessment

Integrating Software into PRA

Presented by C. Smidts

Center for Reliability Engineering

University of Maryland

Center for Reliability Engineering


Integrating software into pra

Integrating Software into PRA

Probabilistic Risk Assessment (PRA) is a technique to assess the probability of failure or success of a mission. Current PRA neglects the contributions of software to the risk of the mission. The objective of our research is to extend current PRA methodology to integrate software in the risk assessment process.

Center for Reliability Engineering


What we have done to date

What We Have Done to Date

  • Built a Software Failure Mode Taxonomy

  • Failure Modes’ Quantification: generic high-level data

    • Public Literature

    • Expert Opinion

  • Collaborated with JSC through Ms. Alice Lee

    • Validate Our Methodology

    • Collect Data

  • Developed a Test-Based Methodology for Integrating Software Into PRA

Center for Reliability Engineering


What we are planning to do in the future

What We Are Planning to Do in the Future

  • Investigate Scalability Issues of the Test-based Approach

  • Continue the validation of our methodology with JSC

  • Apply the approach to JSC system

  • Revise the methodology based on NASA system

  • Develop an Analytical Approach

  • Apply the Analytical Approach to JSC system

  • Revise the Analytical Approach based on NASA system

Center for Reliability Engineering


Integrating software into probabilistic risk assessment

Integrating Software into PRA:

A Test-based Approach

Presented by C. Smidts

C. Smidts, B. Li, M. Li

Center for Reliability Engineering

University of Maryland

Center for Reliability Engineering


Integrating software into pra approach

Integrating Software into PRA - Approach

  • We are working on an approach to integrate software into PRA.

    • Step 1: Identify events/components controlled/supported by software in MLD, accident scenarios, fault trees.

    • Step 2: Specify the functions involved

    • Step 3: Model software functions in ESDs/ETs and Fault Trees

    • Step 4: Construct the input tree

    • Step 5: Quantify the input tree

    • Step 6: Develop and perform software safety tests

Center for Reliability Engineering


Example system

Example System

An exit system in a building is used as the example in this case study.

The exit system includes an emergency exit system and the PACS system.

The Emergency exit system includes an emergency exit door and a marked egress router. It provides an escape route for personnel located inside the building during emergency situations.

The PACS system is a simplified version of an automated personal entry/exit access system used to provide privileged physical access to rooms /buildings, etc. Personal ID and PIN are needed to access this system.

Center for Reliability Engineering


Integrating software into pra approach1

Integrating software into PRA - Approach

Step 1: Identify events/components

  • Identify events/components controlled/supported by software in MLD, accident scenarios, fault trees.

  • For all such events, create/expand contributors to account for software.

  • Verify that no neglected “events” may now have become possible due to software.

Center for Reliability Engineering


Integrating software into probabilistic risk assessment

MLD

Center for Reliability Engineering


Integrating software into probabilistic risk assessment

MLD

Center for Reliability Engineering


Accident description

Accident Description

  • Fire is the initiating event

  • Response systems: Emergency system and PACS system

  • End State: Loss of life

Center for Reliability Engineering


Integrating software into probabilistic risk assessment

Center for Reliability Engineering


Integrating software into pra approach2

Integrating software into PRA - Approach

Step 2: Specify the functions involved

  • Not all software functions are involved in accident scenarios, i.e, not all software functions are involved in particular scenarios/fault trees or even in the entire realm of possible scenarios/fault trees.

  • To identify the specific functions involved in a scenario, determine the specific input to/output from the software – this will describe one function.

  • A list of possible functions can be found in the requirements.

  • Match the input/output combinations of these functions to the risk model

Center for Reliability Engineering


Integrating software into pra approach3

Integrating software into PRA – Approach

PACS Functional Decomposition

Center for Reliability Engineering


Integrating software into pra approach4

Integrating software into PRA - Approach

Actions and their inputs and outputs

Center for Reliability Engineering


Integrating software into pra approach5

Integrating software into PRA - Approach

Step 3: Modeling software function in ESDs/ETs and Fault trees

  • In the ESDs/ETs, the function of interest is modeled as

Center for Reliability Engineering


Integrating software into pra approach6

Integrating software into PRA - Approach

Step 3: Modeling software function in ESDs/ETs and Fault trees

  • In the fault tree, the function of interest is modeled as

Center for Reliability Engineering


Integrating software into pra esd

Integrating software into PRA - ESD

Center for Reliability Engineering


Integrating software into pra approach7

Integrating software into PRA - Approach

Step 4: Input Tree

  • Build the input tree for the particular function involved

  • The input tree is a decomposition of the space of possibilities

  • The input tree is mostly generic for a function. But may VARY due to context.(i.e. probabilities of basic events may vary, certain events may conflict with the rest of the scenario conditions.)

Center for Reliability Engineering


Integrating software into pra approach8

Integrating software into PRA - Approach

Step 4: Input Tree

Center for Reliability Engineering


Input fault tree

Input Fault Tree

Input Fault Tree for SW1

Center for Reliability Engineering


Input fault tree1

Input Fault Tree

Center for Reliability Engineering


Integrating software into pra approach9

Integrating software into PRA - Approach

Step 5: Quantify the input tree

Center for Reliability Engineering


Integrating software into pra approach10

Integrating software into PRA - Approach

Step 6: Develop and perform software safety tests

  • These tests’ unique objective is to answer the questions contained in the model, i.e. in the MLD, accident scenarios and fault tree.

  • The test is completely automated using Test Generation/test execution tools (TestMaster/WinRunner).

  • The process is as follows:

    • Build a finite State Machine model of the software by following the software functional decomposition derived from the risk model and the software requirements.

    • Derive the test profile and output conditions to be quantified from the risk model

    • Define and run the test cases according to the following test strategy

    • Analysis consists in computing the probabilities of the different outcomes based on the test data.

Center for Reliability Engineering


Testmaster model

TestMaster Model

Center for Reliability Engineering


Test script example

Test Script Example

win_activate ("mmount-76.umd.edu - CRT");

start_time1= get_time();

type ("1<kReturn>");

Check_Message(Message_b,1);

type ("0<kReturn>");

Check_Message(Message_c,1);

type ("155721495<kReturn>");

Check_Message(Message_b,1);

type ("0<kReturn>");

Check_Message(Message_c,1);

type("GayyardLupieN<kReturn>");

Check_Message(Message_b,1);

type("1<kReturn>");

end_time1=get_time();

report_msg("Cardtime is "&(end_time1-start_time1)"Seconds");

start_time2= get_time();

Check_Message(Message_d,1);

wait( 9);

type("4");

Check_Message(Message_e, 1);

wait(3);

type("5");

Check_Message(Message_f, 1);

wait(1);

type("1");

Check_Message(Message_g, 1);

wait(3);

type("9");

end_time2=get_time();

report_msg("PINtime is "&(end_time2-start_time2)"Seconds");

Case_Judge(Message_a,1);

Center for Reliability Engineering


Test profile

Test Profile

Test Profile for PACS

Center for Reliability Engineering


Failure modes application

Failure modes application

  • Test Case Selection

    • Sample from the profile/input tree to see whether we have a “Normal” or an “Abnormal Input”.

    • If it is a normal input, select randomly from the “Normal Input” domain.

    • If it is an abnormal input, randomly select the failure mode according to the profile/input tree.

    • Then randomly select the “base”value from the “Normal Input” domain and mutate this “base” value using the rules given below:

Center for Reliability Engineering


Testing results

Testing Results

200 cases have been tested for SW1 and SW2. 19 cases failed.

Failed cases classification

SW1 fails in only one case (58). Therefore, the point-estimate probability of Card failure is 1/200=0.005.

18 cases failed for SW2. Therefore, the unsafe probability (gate closed) is 18/199 =0.09.

Center for Reliability Engineering


Testing results1

Testing Results

Card time and Probability

Center for Reliability Engineering


Testing results2

Testing Results

PIN time and Probability

Center for Reliability Engineering


Test cases coverage

Test Cases Coverage

Input Failure Modes Coverage (SW1)

Input Failure Modes Coverage (SW2)

Center for Reliability Engineering


Integrating software into probabilistic risk assessment

ESD

Center for Reliability Engineering


Future work

Future Work

  • Represent hardware-related input failure modes in test model

  • Quantification of input fault tree based on field data

  • Output failure modes/Support failure modes

  • Sensitivity Analysis

  • Scalability

    • Test case generation

    • Test case execution

    • Number of test cases for each software component

Center for Reliability Engineering
