Presentation Transcript

Ecg interpretation l.jpg

ECG Interpretation

Arrhythmias of Formation

Chapters 4-5

Types of arryhthmias l.jpg

Types of Arryhthmias:

  • Sinus Problems: Formed in the sinus node, but irregular

  • Ectopic Problems: Formedoutside of the sinus node

  • Conduction Problems: Formed in the sinus node, but conduction in error

  • Pre-Excitation Problems: “Short circuits” in normal conduction

Causes of arrhytmias l.jpg

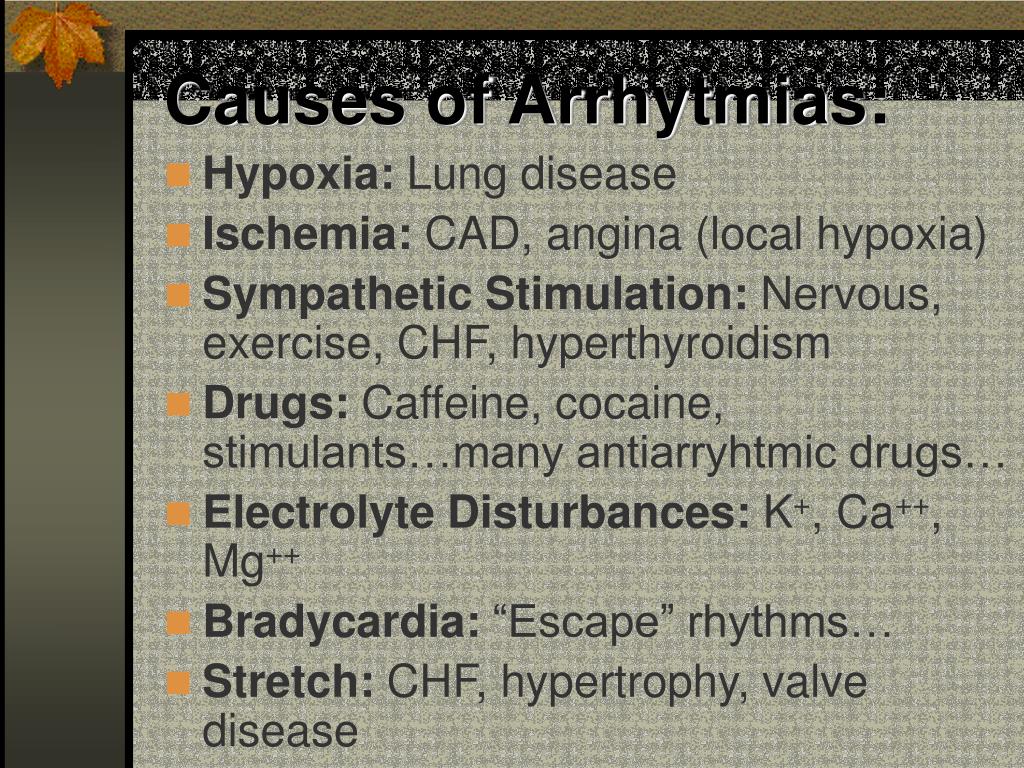

Causes of Arrhytmias:

  • Hypoxia: Lung disease

  • Ischemia: CAD, angina (local hypoxia)

  • Sympathetic Stimulation: Nervous, exercise, CHF, hyperthyroidism

  • Drugs: Caffeine, cocaine, stimulants…many antiarryhtmic drugs…

  • Electrolyte Disturbances: K+, Ca++, Mg++

  • Bradycardia: “Escape” rhythms…

  • Stretch: CHF, hypertrophy, valve disease

Rhythm id algorithm l.jpg

Rhythm ID: Algorithm

  • P-Wave: rate and rhythm

  • QRS: rate and rhythm - shape

  • P-R Interval: Is AV conduction normal? P:QRS regular?

  • T Wave and QT Interval

  • Any unusual complexes?


Clinical manifestations l.jpg

Clinical Manifestations:

  • Asymptomatic – generally benign

  • Palpitations – Awareness may cause anxiety

  • Compromised CO – Syncope

  • Myocardial Ischemia – tachy

  • CHF – Chronic insufficiency

  • Sudden Death – Cardiac arrest

Define normal l.jpg

Define “Normal”

  • Regular Atrial and Ventricular Rhythms: 1P : 1 QRS

  • Rates: 60-100

  • P Morphology: small, round, regular and positive in Lead II

  • QRS Morph: Similar size and shape

  • Positive T waves in Lead II

P wave l.jpg


  • 1.SA Node “fires”

  • 2. Right and Left Atria Depolarize

  • 3. AV Node “pauses”

  • Questions:

    • P waves present?

    • Regular rhythm?

    • 1/QRS?



SA Node



Sinus rhythms l.jpg

Sinus Rhythms

  • Normal Sinus Rhythm: 1P/QRS: 60-100 bpm

  • Sinus brady: 1P/QRS: <60 bpm

  • Sinus tachy: 1P/QRS: >100 bpm

  • Sinus Arrhythmia: 1P/QRSNormalIrregularities caused by inspiration/expiration – more noticeable in children / elderly

Absent pqrs complex sinus arrest l.jpg

ABSENT PQRS Complex: Sinus Arrest:

  • Causes:

    • Heart disease, acute infection, VAGAL stimulation (Bush’s Pretzel Problem?)

    • Sick Sinus Syndrome: Usually in elderly – more irregular


    • Rare and asymptomatic

    • Frequent and symptomatic

Atrial arrhythmias l.jpg

Atrial Arrhythmias:

  • PAC: Premature Atrial Contraction

  • Atrial Tachycardias: SVT – with or without blocks, PAT

  • Atrial Flutter:

  • Atrial Fibrillation

Premature atrial contractions l.jpg

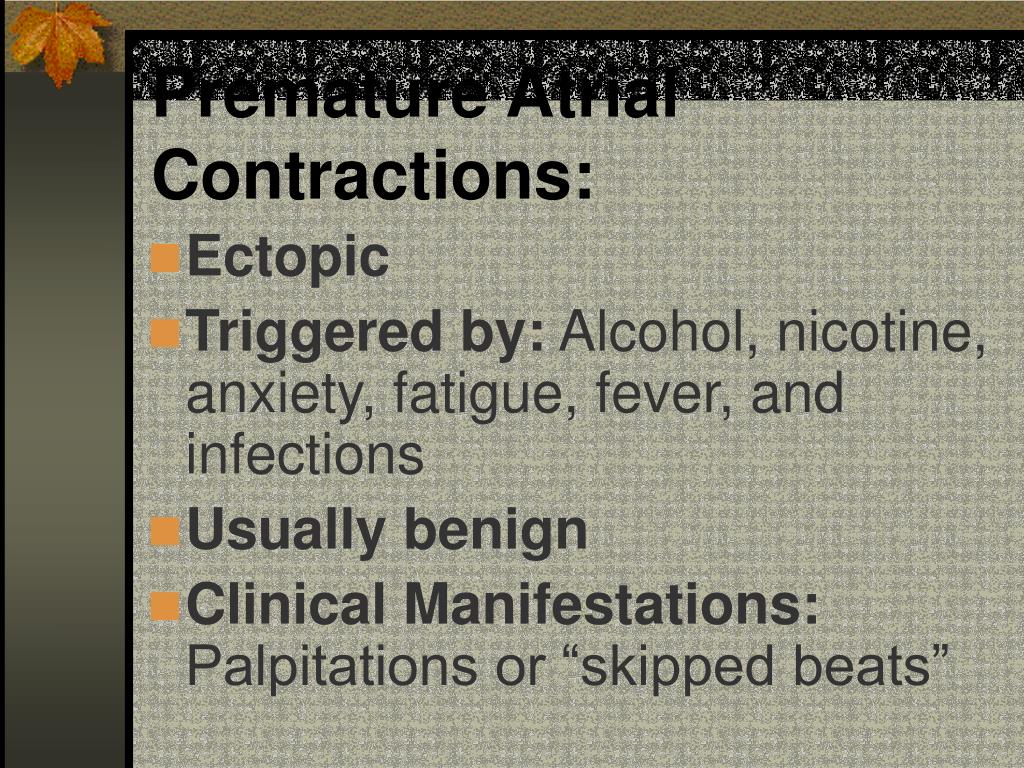

Premature Atrial Contractions:

  • Ectopic

  • Triggered by: Alcohol, nicotine, anxiety, fatigue, fever, and infections

  • Usually benign

  • Clinical Manifestations: Palpitations or “skipped beats”

Pac id l.jpg


  • Irregular P-R rhythms

  • Premature, irregular P waves (sometimes “lost” in the T wave)

Atrial tachycardias l.jpg

Atrial Tachycardias:

  • Also: Supra Ventricular Tachycardia (PSVT)

  • Rates: 100-250 bpm

  • Regular Rhythms

  • “Hidden” P waves (could be inverted – indicating a Junctional focus PSVT)

  • PAT = Common in warm-up/cool down and doesn’t respond to Carotid Massage (don’t try this!)

Afib aflut l.jpg

Afib – Aflut…

Slide15 l.jpg

Atrial Fibrillation: Atrial Fib and/or


Slide16 l.jpg

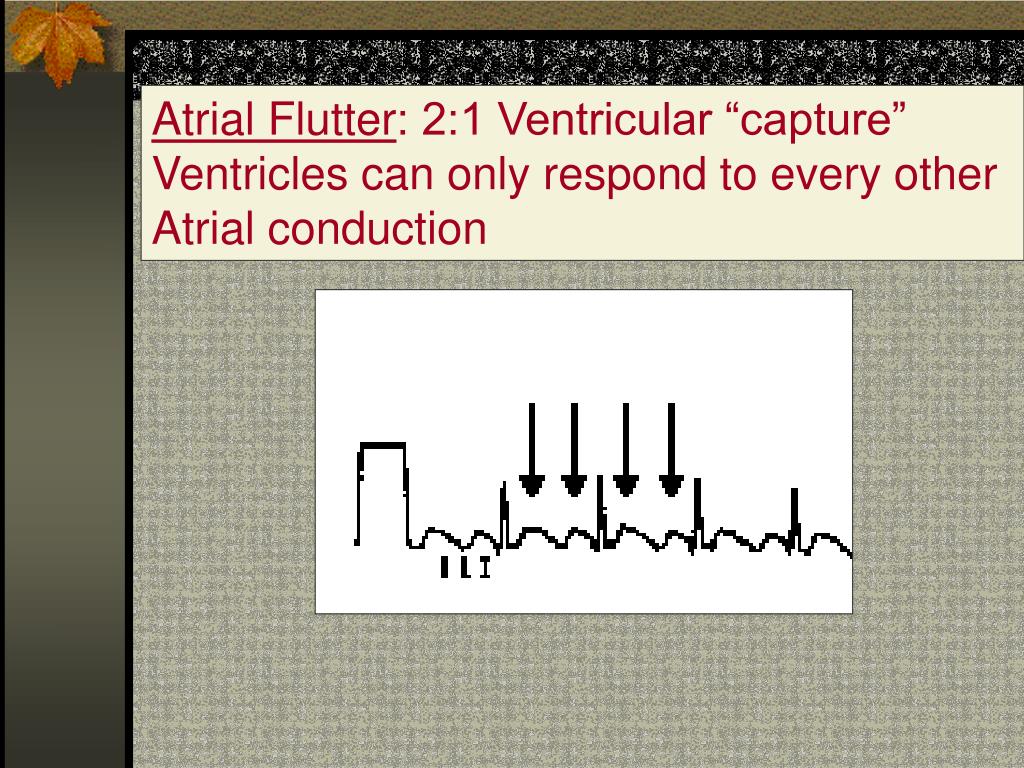

Atrial Flutter: 2:1 Ventricular “capture”

Ventricles can only respond to every other

Atrial conduction

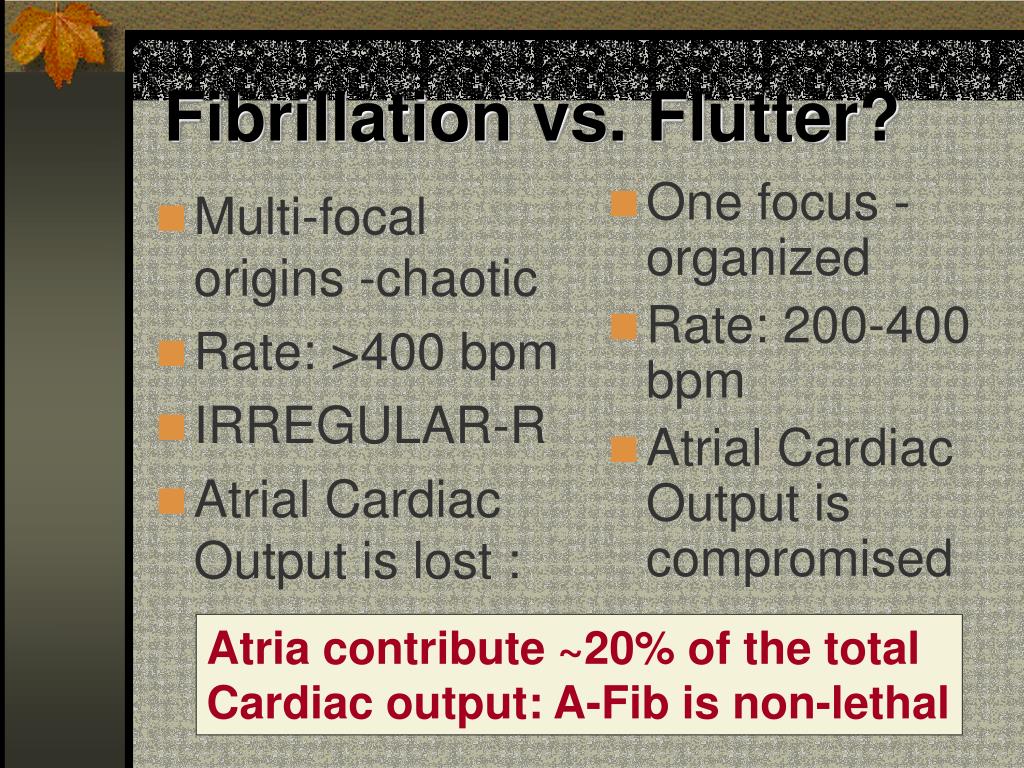

Fibrillation vs flutter l.jpg

Multi-focal origins -chaotic

Rate: >400 bpm


Atrial Cardiac Output is lost :

One focus - organized

Rate: 200-400 bpm

Atrial Cardiac Output is compromised

Fibrillation vs. Flutter?

Atria contribute ~20% of the total

Cardiac output: A-Fib is non-lethal

Summarize sinus and atrial rhythms l.jpg

Summarize: Sinus and Atrial Rhythms

  • Sinus: Normal, Tachy, Brady

  • Absent P: Sinus Arrest, A-fib, Junctional (PSVT), PAT

  • Weird P: A-Flut, PAC

Formation arrhythmias l.jpg

Formation Arrhythmias

Junctional and Ventricular

Chapters 6-7

Junctional l.jpg


  • Form in the AV (Junction) Node

  • May be an “Escape” rescue if SA node fails to fire or conduct

    • Escape Rate ~40-60 bpm

  • May be an “Ectopic” Irritable Focus

    • Ectopic Rate ~ 60-100 bpm

  • Responds to vagal stimulus

  • P Waves inverted, missing or after the QRS

Ventricles qrs rhythms l.jpg

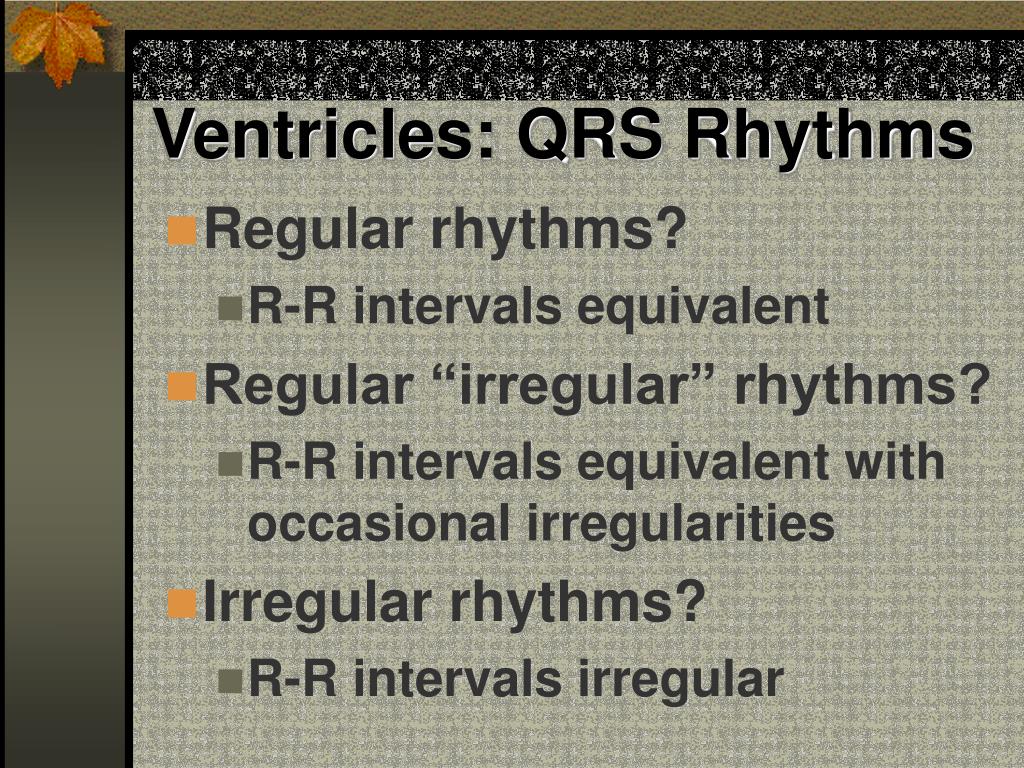

Ventricles: QRS Rhythms

  • Regular rhythms?

    • R-R intervals equivalent

  • Regular “irregular” rhythms?

    • R-R intervals equivalent with occasional irregularities

  • Irregular rhythms?

    • R-R intervals irregular

Regular irregular l.jpg

Regular “Irregular”

  • Premature Beats: PVC

    • Widened QRS, not associated with preceding P wave

    • Usually does not disrupt P-wave regularity

    • T wave is “inverted” after PVC

    • Often Followed by compensatory ventricular pause

Slide23 l.jpg

Notice a Pattern in the PVC’s?

Pvc patterns l.jpg

PVC Patterns:

  • PVC: 1 Isolated beat

  • Couplet: 2 consecutive PVC’s

  • Bigeminy: PVC every other beat

  • Non-Sustained VT: >3 beats for less than 1 minute

  • Sustained VT: > 1 minute of ventricular tachycardia

Irregular ventricular rhythms chaotic l.jpg

Irregular Ventricular Rhythms: CHAOTIC

  • Ventricular Fibrillation:

    • Multi-focal origins

    • Irregular wave morphologies

    • Cardiac Output = 0

    • Coarse vs. Fine V-Fib

Clinical manifestations pvc s l.jpg

Clinical Manifestations – PVC’s

  • Often benign BUT

  • Compromised CO

  • Possibly precipitate a lethal arrhythmia: Vtach, VFib

More on pvc s l.jpg

More on PVC’s

  • Cardiac Output: Pulse deficit = reduced CO (~20%)

  • One PVC usually asymptomatic

  • Symptoms: LOC or dizziness demand treatment

  • Risk of Lethal Arrhythmias: V-Tach more dangerous in CAD

Rules of malignancy l.jpg

Rules of Malignancy:

  • Frequency: > 6 / minute

  • Runs: 3+ consecutive

  • Multiform

  • “R on T”

  • PVC’s during MI

Slide29 l.jpg

What is the threat of sustained Ventricular Tachycardia?1. What happens to diastole? 2. What happens to Cardiac Output? 3. What happens to myocardial perfusion?4. What happens to myocardial VO2?

Slide30 l.jpg

Winslow Homer: “The Stile”
