Ebnf a notation for describing syntax

EBNF:A Notation for Describing Syntax

nLanguages and Syntax

nEBNF Descriptions and Rules

nMore Examples of EBNF

nSyntax and Semantics

nEBNF Description of Sets

nAdvanced EBNF (recursion)


Quote of the day
Quote of the Day

“When teaching a rapidly changing technology, perspective is more important than content.”


Why study ebnf
Why Study EBNF

EBNF is a notation for formally describing syntax: how to write symbols in a language. We will use EBNF to describe the syntax of Java. But there is a more compelling reason to begin our study of programming with EBNF: it is a microcosm of programming. There is a strong similarity between the control forms of EBNF and the control structures of Java: sequence, decision, repetition, recursion, and the ability to name descriptions. There is also a strong similarity between the process of writing EBNF descriptions and writing Java programs. Finally studying EBNF introduces a level of formality that will continue throughout the semester.

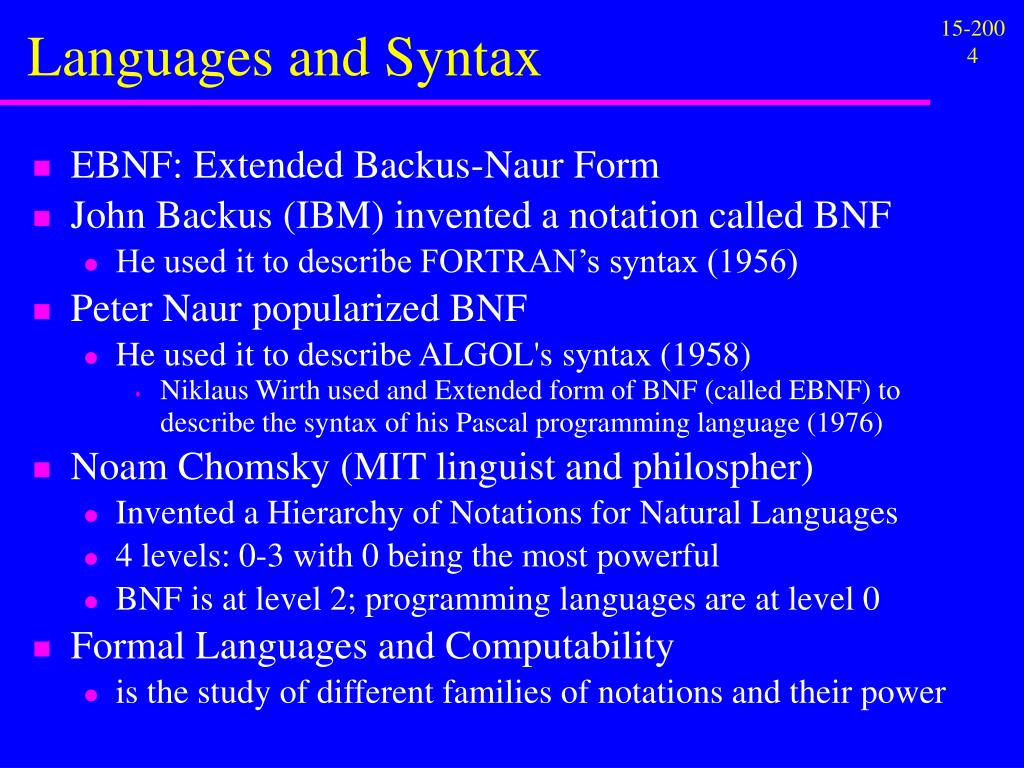

Languages and syntax
Languages and Syntax

  • EBNF: Extended Backus-Naur Form

  • John Backus (IBM) invented a notation called BNF

    • He used it to describe FORTRAN’s syntax (1956)

  • Peter Naur popularized BNF

    • He used it to describe ALGOL's syntax (1958)

      • Niklaus Wirth used and Extended form of BNF (called EBNF) to describe the syntax of his Pascal programming language (1976)

  • Noam Chomsky (MIT linguist and philospher)

    • Invented a Hierarchy of Notations for Natural Languages

    • 4 levels: 0-3 with 0 being the most powerful

    • BNF is at level 2; programming languages are at level 0

  • Formal Languages and Computability

    • is the study of different families of notations and their power


Ebnf descriptions and rules
EBNF Descriptions and Rules

  • Each Description is a list of Rules

  • Rule Form: LHS Ü RHS (read Ü as “is defined as”)

  • Rule Names (LHS) are italicized, hyphenated words

  • Control Forms in RHS

    • Sequence Items appear left to right; order is important

    • Choice Alternatives separated by | (stroke); exactly one item is chosen from the alternatives

    • Option Optional item enclosed between [ and ]; it can be included or discarded

    • Repetition Repeatable item enclosed between { and }; it can be repeated 0 or more times


An ebnf description of integers
An EBNF Description of Integers

  • A symbol (sequence of characters) is classified legal by an EBNF rule if we can process all the characters in the symbol when we reach the end of the right hand side of the EBNF rule.

    digitÜ 0|1|2|3|4|5|6|7|8|9

    integerÜ [+|-]digit{digit}

    digit is defined as any of the alternatives0 through 9

    integer is defined as a sequence of three items: (1) an optional sign (if it is included, it must be the alternative+ or -), followed by (2) any digit, followed by (3) a repetition of zero or more digits.

    The integer RHS combines and illustrates all EBNF

    control forms: sequence, option, alternative, repetition.


Proofs in english
Proofs In English

  • Is the symbol 7 an integer? Yes, the proof:

    In the integer EBNF rule, start with the optional sign; discard the option. Next in the sequence is a digit: choose the 7 alternative. Next in the sequence is a repetition; choose 0 repetitions. End of symbol & integer reached.

  • Is the symbol +127 an integer? Yes, the proof.

    In the integer EBNF rule, start with the optional sign; include the option; choose the + alternative. Next in the sequence is a digit: choose the 1 alternative. Next in the sequence is a repetition; choose 2 repetitions; choose the 2 alternative for the first; choose the 7 alternative for the second. End of symbol & integer reached.

  • Are the symbols 1,024A515-1+2 an integer?


Tabular proof

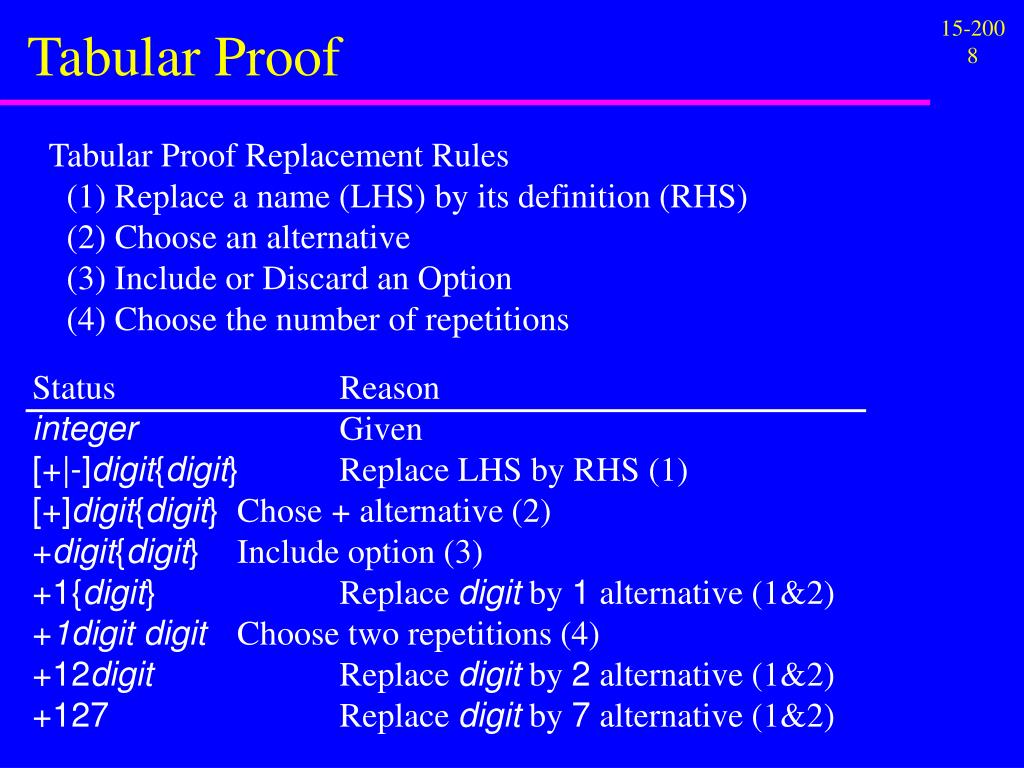

Tabular Proof

Tabular Proof Replacement Rules

(1) Replace a name (LHS) by its definition (RHS)

(2) Choose an alternative

(3) Include or Discard an Option

(4) Choose the number of repetitions

Status Reason

integerGiven

[+|-]digit{digit} Replace LHS by RHS (1)

[+]digit{digit} Chose + alternative (2)

+digit{digit} Include option (3)

+1{digit} Replace digit by 1 alternative (1&2)

+1digit digitChoose two repetitions (4)

+12digitReplace digit by 2 alternative (1&2)

+127 Replace digit by 7 alternative (1&2)


Graphical proof
Graphical Proof

integer

[+|-]

digit

{digit}

[+]

1

digit

digit

+

2

7

A graphical proof replaces multiple (equivalent) tabular proofs, since the order of rule application (which is unimportant) is often absent in graphical proofs.

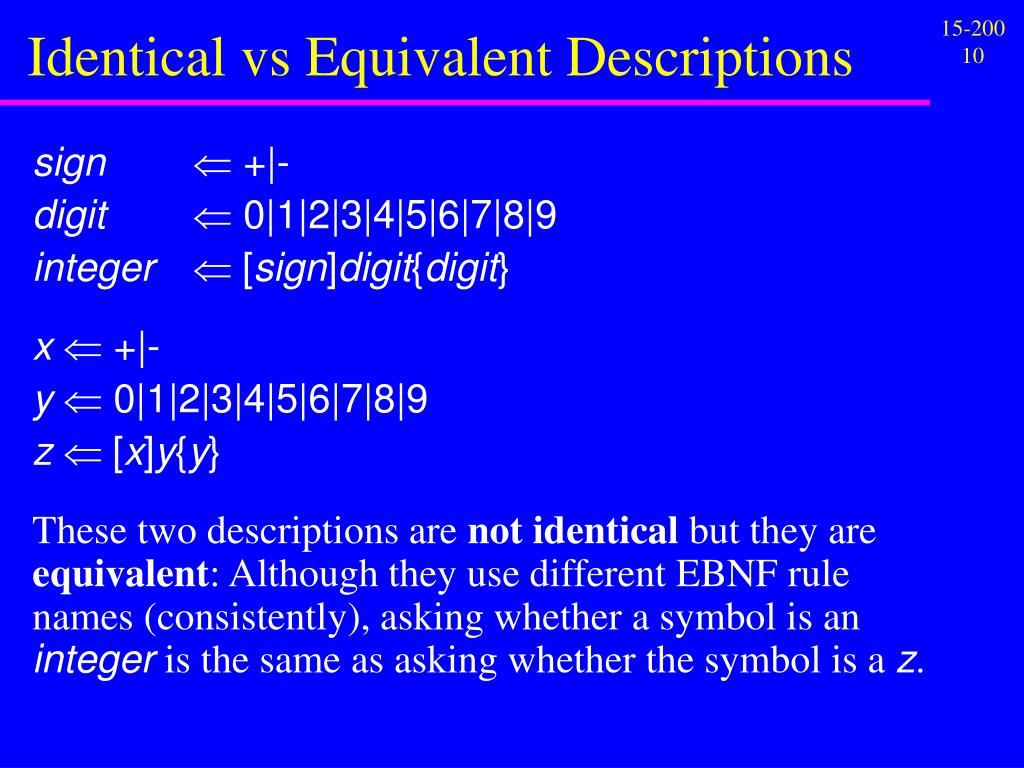

Identical vs equivalent descriptions
Identical vs Equivalent Descriptions

signÜ +|-

digitÜ 0|1|2|3|4|5|6|7|8|9

integerÜ [sign]digit{digit}

xÜ +|-

yÜ 0|1|2|3|4|5|6|7|8|9

zÜ [x]y{y}

These two descriptions are not identical but they are equivalent: Although they use different EBNF rule names (consistently), asking whether a symbol is an integer is the same as asking whether the symbol is a z.


Two problematical descriptions
Two Problematical Descriptions

A “simplified but equivalent” definition of integer?

signÜ +|-

digitÜ 0|1|2|3|4|5|6|7|8|9

integerÜ [sign]{digit}

A “good” definition of integers with commas (1,024)?

signÜ +|-

comma-digitÜ 0|1|2|3|4|5|6|7|8|9|,

comma-integerÜ [sign]comma-digit{comma-digit}

Both definitions classify “non-obvious” symbols as legal integer or comma-integer. Find such symbols.


Syntax and semantics
Syntax and Semantics

  • Syntax = Form

  • Semantics = Meaning

  • Key Questions

    • Can two different symbols have the same meaning?

    • Can a symbol have many meanings (depending on context)?

  • Do the following symbols have the same meaning?

    • 1 and +1, 000193 and 193

    • 9.000 and 9.0

    • Rich and rich

  • EBNF specifies syntax, not semantics

    • Semantics is supplied informally: English, examples, ...

    • Formal semantics is a research area in CS, AI, Linguistics, ...


Structured integers
Structured Integers

Allow non-adjacent embedded underscores to add a special structure to a number

2_10_54

1_800_555_1212

1_000_000 (compared to 1000000; figure each value fast)

Define structured-integer

digitÜ 0|1|2|3|4|5|6|7|8|9

structured-integerÜ [sign]digit{[_]digit}

Semantically, the underscore is ignored

1_2 has the same meaning as 12

How can we fix the date problem: 12_5_1987 and 1_25_1987


Syntax charts
Syntax Charts

Sequence

Choice

A

B

C

D

A|B|C|D

ABCD A B C D

Option

Repetition

A

[A]

A

{A}

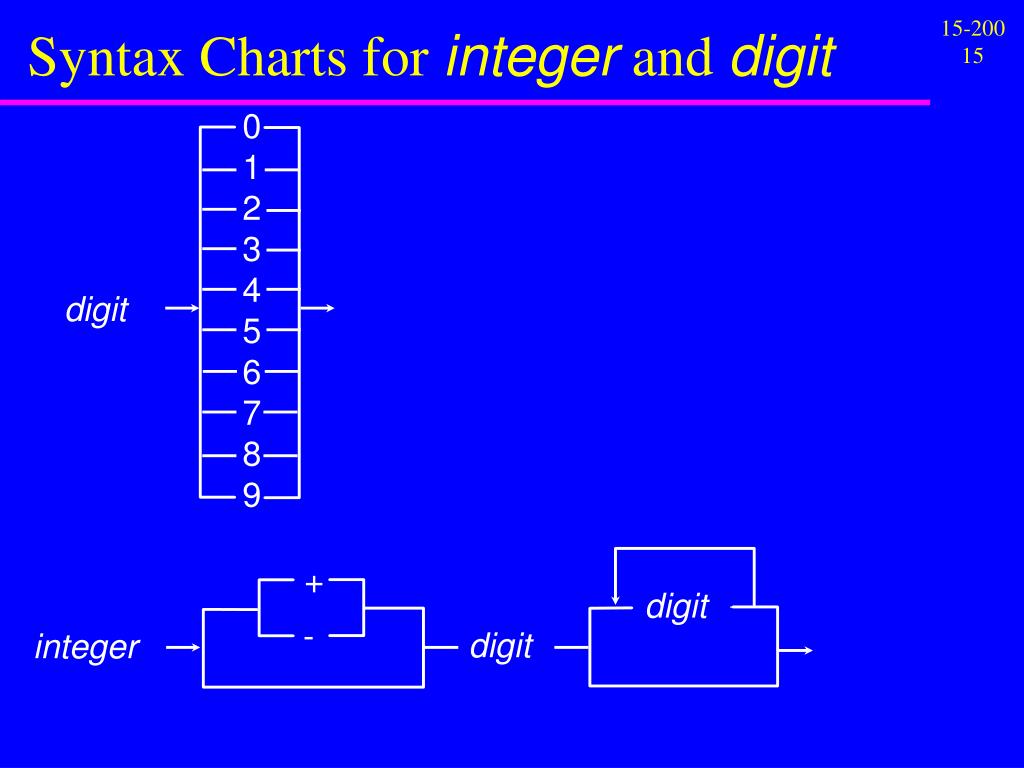

Syntax charts for integer and digit
Syntax Charts for integer and digit

0

1

2

3

4

5

6

7

8

9

digit

+

digit

-

digit

integer


A syntax chart with no other names
A Syntax Chart with no other names

0

1

2

3

4

5

6

7

8

9

0

1

2

3

4

5

6

7

8

9

+

-

integer

Which Syntax chart for integer is simpler? The previous one (because it is smaller) or this one (because it it doesn’t need another name for digit)?


Interesting rules their charts

A

A

B

{A|B}

B

{A}|{B}

A

B

C

AB|C

Interesting Rules & Their Charts


Description of sets
Description of Sets

  • Set syntax

    • Sets start with ( and end with )

    • Sets contain 0 or more integers

    • A comma appears between every pair of integers

      integer-listÜinteger{,integer}

      integer-setÜ ([integer-list])

  • Set semantics

    • Order is unimportant

      • (1,3,5) is equivalent to (5,1,3) and any other permutation

    • Duplicate elements are unimportant

      • (1,3,5,1,3,3,5) is equivalent to (1,3,5)


Proof 5 2 11 is an integer set
Proof: (5,-2,11) is an integer-set

Status Reason

integer-setGiven

([integer-list]) Replace integer-set by its RHS

(integer-list) Include option

(integer{,integer}) Replace integer-list by its RHS

(5{,integer}) Lemma: 5 is an integer

(5,integer,integer) Choose two repetitions

(5,-2,integer) Lemma: -2 is an integer

(5,-2,11) Lemma: 11 is an integer


Description of sets with ranges
Description of Sets with Ranges

  • Ranges syntax

    • A ranges is a single integer or a pair separated by ..

      integer-rangeÜinteger[..integer]

      integer-listÜinteger-range{,integer-range}

      integer-setÜ ([integer-list])

  • Range semantics X..Y

    • X£Y: all integers from X up to Y (inclusive)

      • 1..5 is equivalent to 1,2,3,4,5; 5..5 is equivalent just to 5

    • X>Y: a null range; it contains no values

      • (1..4,10,5..4,11..13) is equivalent to (1,2,3,4,10,11,12,13)


Recursive descriptions
Recursive Descriptions

A directly recursive EBNF rule has its LHS in its RHS

r1Ü| Ar1

We read this as r1 is defined as the choice of nothing or an A followed by an r1. The symbols recognized as an r1 are of the form An, n³ 0. Proof that AAA is an r1

r1Given

Ar1Replace r1 by the second alternative in its RHS

AAr1Replace r1 by the second alternative in its RHS

AAAr1Replace r1 by the second alternative in its RHS

AAA Replace r1 by the first (empty) alternative in its RHS

This rule is equivalent to r1Ü{A}


The power of recursion
The Power of Recursion

To recognize symbols of the form form An Bn , n³ 0 we cannot write r1Ü{A}{B}, because nothing constrains us choosing different repetitions of A and B: AAB

The recursive rule r1Ü| Ar1B works, because each choice of the second alternative uses exactly one A and one B. Proof that AAABBB is an r1

r1Given

Ar1B Replace r1 by the second alternative in its RHS

AAr1BB Replace r1 by the second alternative in its RHS

AAAr1BBB Replace r1 by the second alternative in its RHS

AAABBB Replace r1 by the first (empty) alternative in its RHS

Symbols of the form form An Bn , n³ 0

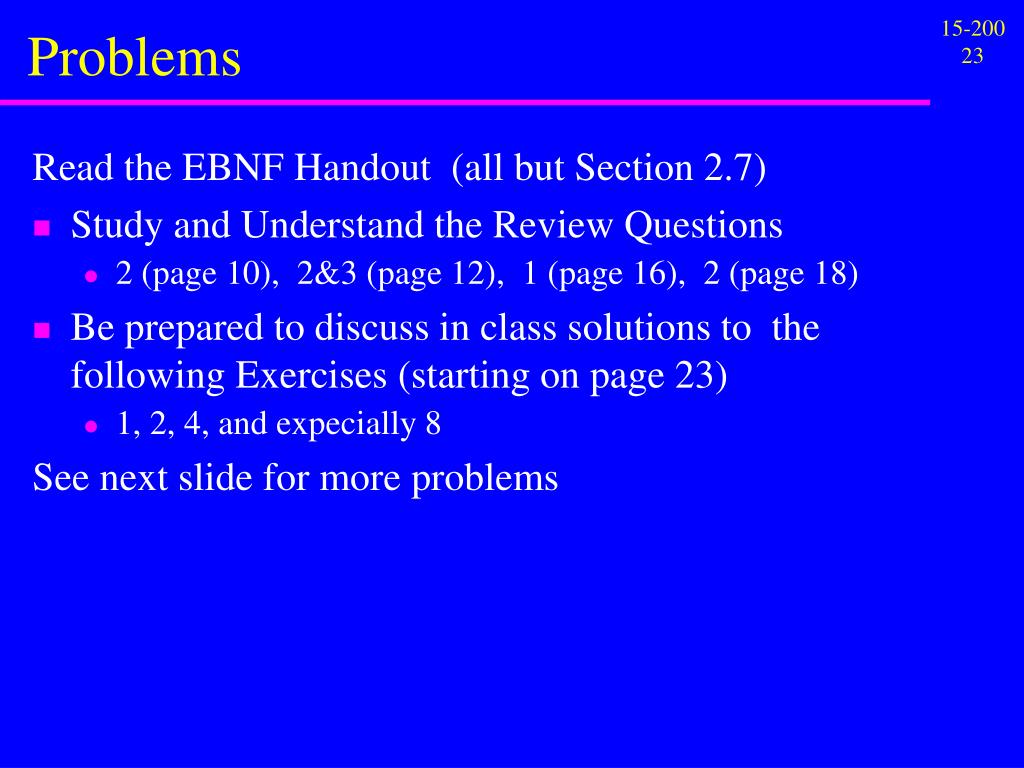

Problems
Problems

Read the EBNF Handout (all but Section 2.7)

  • Study and Understand the Review Questions

    • 2 (page 10), 2&3 (page 12), 1 (page 16), 2 (page 18)

  • Be prepared to discuss in class solutions to the following Exercises (starting on page 23)

    • 1, 2, 4, and expecially 8

      See next slide for more problems


Problems continued
Problems (continued)

  • Translate the following RHS of an EBNF rule into its equivalent syntax chart. Then, classify each of the examples below as legal or illegal according to this rule (or its equivalent chart).

    • A{BA}Z

      • AZ BZ ABZ ABAZ

      • ABABZ ABA AAAZ ABABBZ

    • A{B[C]}Z

      • BZ ABC ABBBZ ACCZ

      • ABCZ ABCBCZ ABBCBBZ ABCZBCZ

    • A{B|C}Z

      • AB ABC ABBBZ BBZ

      • ABBCCZ ACCBBZ ACBBCZ ABCZBCZ
