Presentation Transcript


Concept design review l.jpg

Concept Design Review

THE DUKES OF HAZARD

CAMILLE LEGAULT, NEIL KENNEDY, OMAR ROJAS,

FERNANDO QUIJANO, AND JIMMY BUFFI

April 24, 2008


The dukes of hazard l.jpg

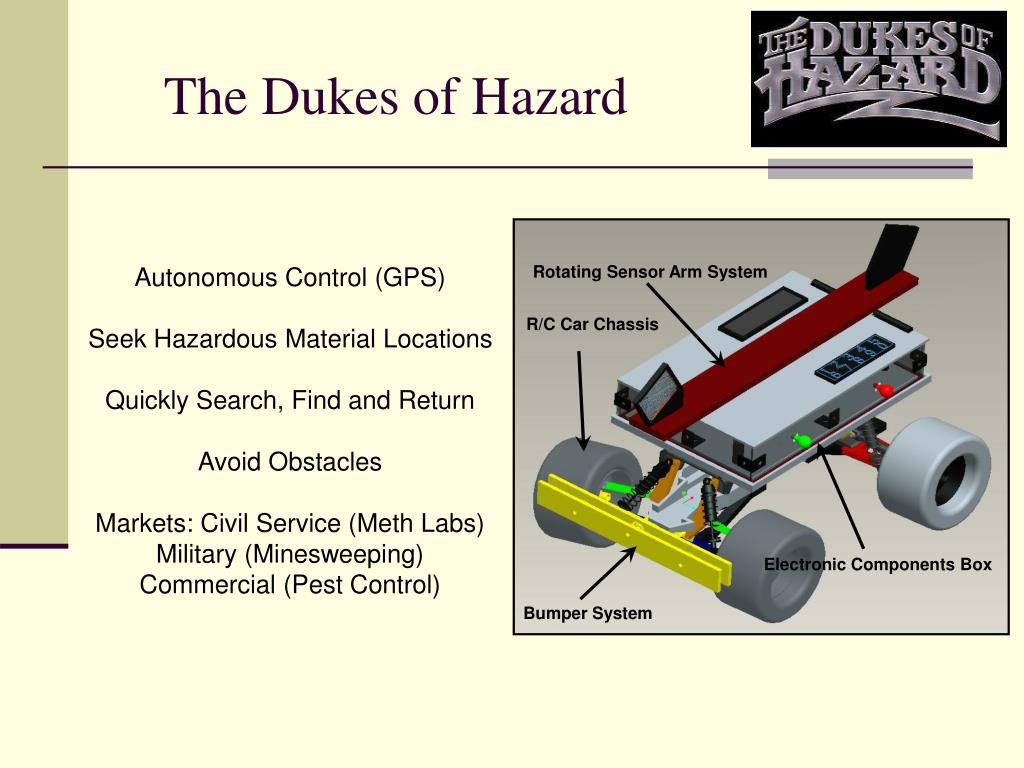

The Dukes of Hazard

Autonomous Control (GPS)

Seek Hazardous Material Locations

Quickly Search, Find and Return

Avoid Obstacles

Markets: Civil Service (Meth Labs)

Military (Minesweeping)

Commercial (Pest Control)

Rotating Sensor Arm System

R/C Car Chassis

Electronic Components Box

Bumper System


Key design requirements l.jpg

Key Design Requirements

Proof-of-Concept prototype is a GPS-guided vehicle that locates and identifies an IR transmitter


Final concept l.jpg

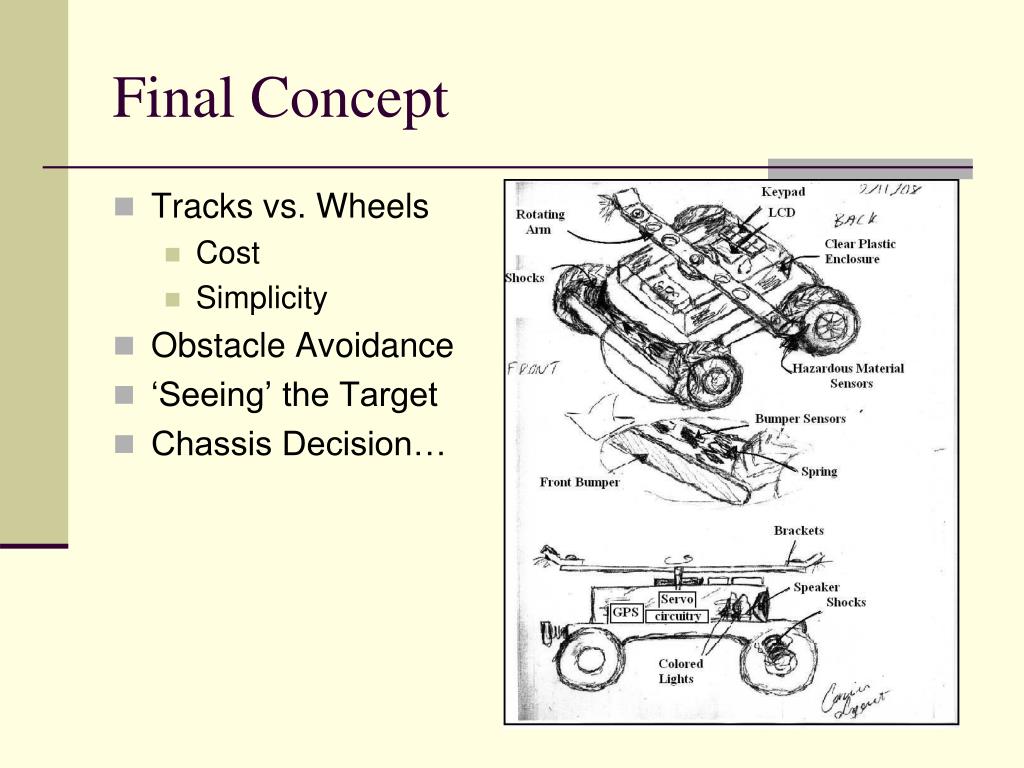

Final Concept

  • Tracks vs. Wheels

    • Cost

    • Simplicity

  • Obstacle Avoidance

  • ‘Seeing’ the Target

  • Chassis Decision…


Buy vs build l.jpg

Buy vs. Build

  • Cost

    • True Robot chassis = $$$$ or too small

    • Building a chassis ~ $240

    • Buying Traxxas Stampede = $196.10

  • Most Valuable Asset – TIME

    • Main challenges

    • Coding

    • Wiring


Organization l.jpg

Organization

  • Vehicle Feature Design

    • Platform & Enclosure

    • Sweeping Arm & Sensors

    • Bumper

    • Suspension

  • Wiring & Circuitry

  • Programming

  • Prototype Performance & Feasibility


I vehicle design l.jpg

I - Vehicle Design


Platform and enclosure l.jpg

Platform and Enclosure

  • Improvements and/or Alternatives:

    • Permanent platform

    • Compartmentalize circuitry

    • Weatherproofing


Sensor arm l.jpg

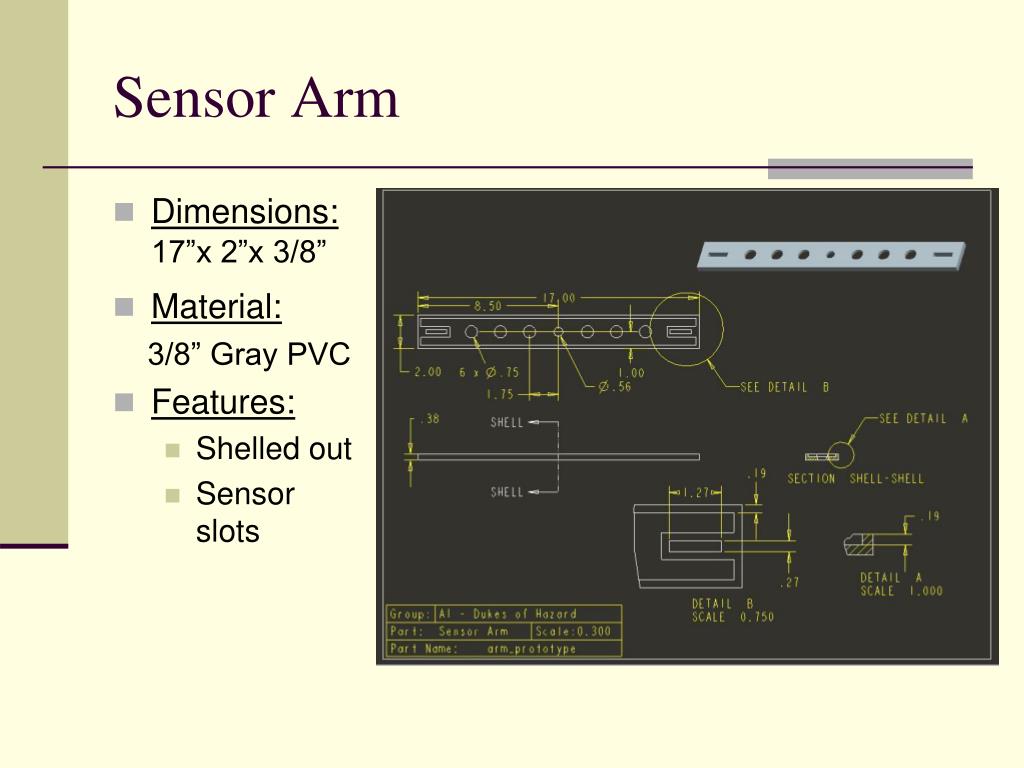

Sensor Arm

  • Dimensions:17”x 2”x 3/8”

  • Material:

    3/8” Gray PVC

  • Features:

    • Shelled out

    • Sensor slots


Sensor arm10 l.jpg

Sensor Arm


Servo selection l.jpg

Servo Selection


Signaling l.jpg

Signaling

  • Hazardous: Red lights

  • Non-Hazardous: Green lights


Signaling13 l.jpg

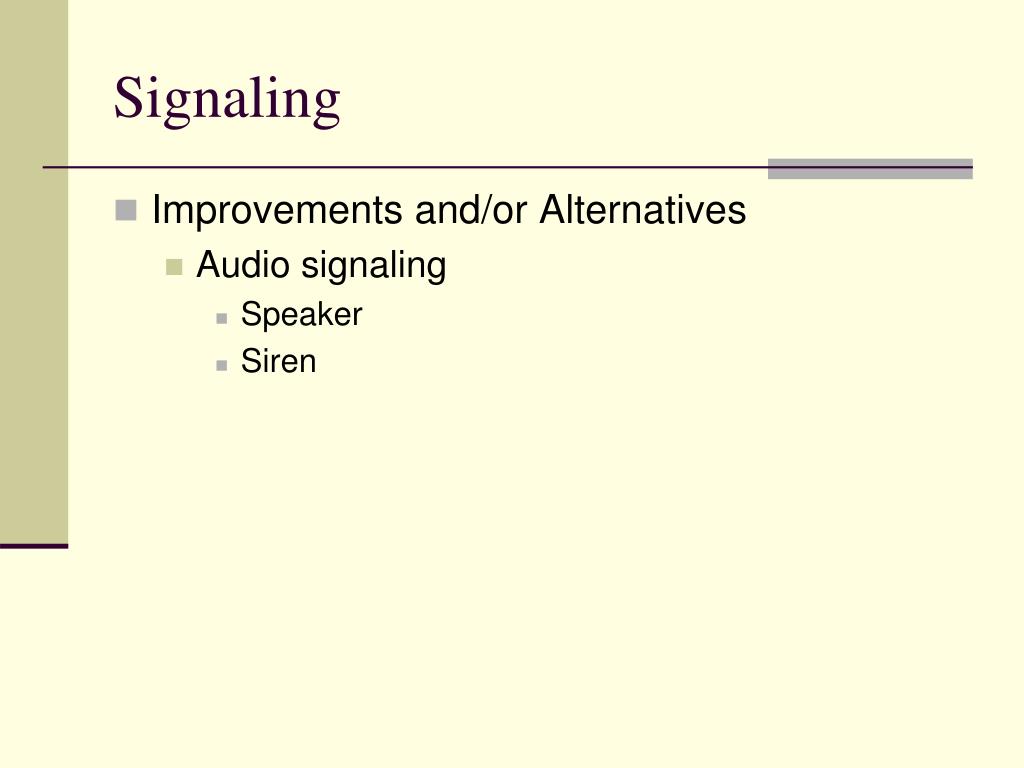

Signaling

  • Improvements and/or Alternatives

    • Audio signaling

      • Speaker

      • Siren


Sensor placement l.jpg

Sensor Placement

  • Detect transmitter within a foot or less away

  • Rotating arm

  • Effective height and angle for sensor


Sensor transmitter system l.jpg

Sensor/Transmitter System

  • Maximum range of sensor/transmitter system ~50 feet

  • Transmitter: ~9° lobe

  • Sensor: ~180° range of view


Experimental results l.jpg

Experimental Results


Sensor holder design l.jpg

Sensor Holder Design

30°


Sensor arm mechanism l.jpg

Sensor Arm Mechanism

  • Improvements and/or Alternatives:

    • Weatherproofing of sensors

    • More supports for arm at rotation point

    • Stepper Motor

    • Height adjustable


Bumper system l.jpg

Bumper System

  • Detect and avoid obstacles higher than 3”

  • Absorb impact

  • Appropriate spring


Bumper system20 l.jpg

Bumper System

Bumper System


Bumper system21 l.jpg

Bumper System

  • Improvements and/or Alternatives:

    • Permanently attach bumper

    • Softer springs

    • Ultrasonic range-finder


Suspension system l.jpg

Suspension System

  • Suitable shocks to:

    • Handle various terrains

    • Maintain desired ground clearance: ~3”


Suspension system23 l.jpg

Suspension System


Ii electronics l.jpg

II - Electronics


Improvements l.jpg

Improvements

  • Multiple Power Sources

    • Concept Phase - Make into single source

    • Stabilize voltage during signaling

  • Simplify interfacing with microcontroller

    • 5 V circuits, or voltage regulators

  • Electronic noise filters

  • Internal Circuitry Protection


Iii programming the vehicle l.jpg

MAJOR ISSUES

Interfacing with the chassis

Interfacing with the GPS

Creating a search algorithm

Avoiding obstacles

PROGRAM FLOW

Wait for GPS to fix.

Store coordinates of transmitter.

Move vehicle to new location.

Begin Search Algorithm.

Stop if transmitter is found or perform avoidance routine if obstacle is encountered.

III - Programming the Vehicle


User interface l.jpg

User Interface

  • “Waiting” Mode

  • Store coordinates

  • “Preparing for movement” mode

  • Activate the car and begin search

  • Car will display “Hazardous Material Found”


Slide28 l.jpg

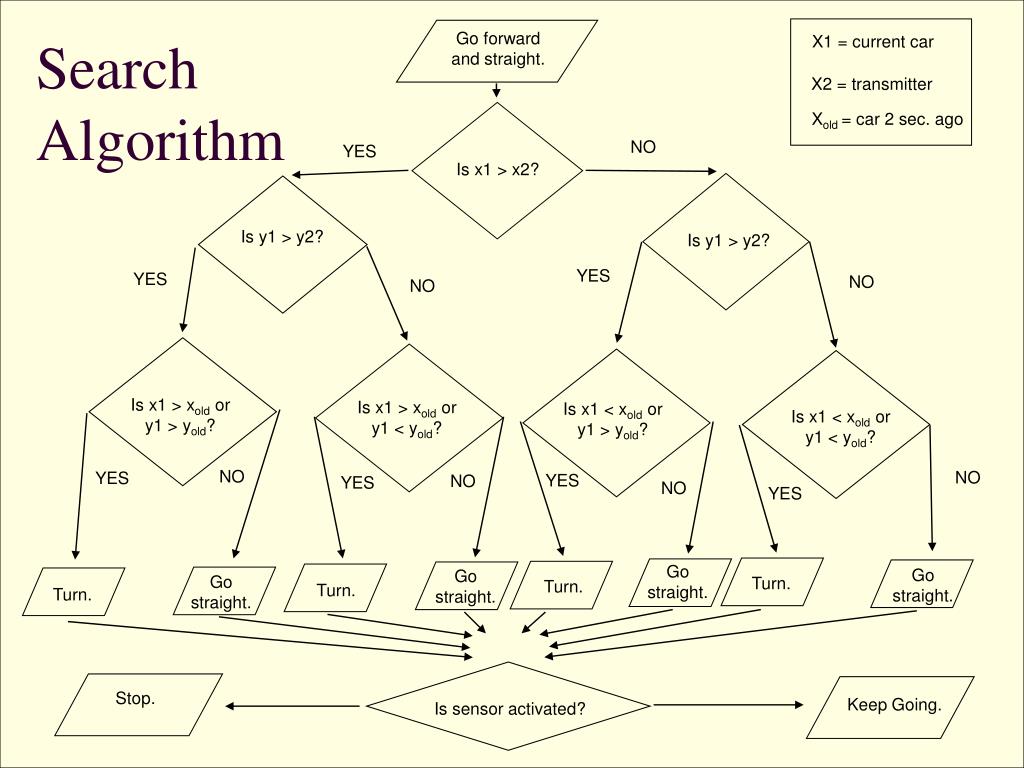

Go forward and straight.

Search Algorithm

X1 = current car

X2 = transmitter

Xold = car 2 sec. ago

NO

YES

Is x1 > x2?

Is y1 > y2?

Is y1 > y2?

YES

YES

NO

NO

Is x1 > xold or y1 > yold?

Is x1 > xold or y1 < yold?

Is x1 < xold or y1 > yold?

Is x1 < xold or y1 < yold?

NO

NO

YES

YES

NO

YES

NO

YES

Go straight.

Go straight.

Go straight.

Go straight.

Turn.

Turn.

Turn.

Turn.

Stop.

Keep Going.

Is sensor activated?


Programming areas to improve l.jpg

Programming Areas to Improve

  • More precise pulse width modulation.

  • More efficient search algorithm.

    • Use a digital compass.

    • More speed variation.

  • Streamline programming with functions.

  • Reverse the search algorithm to make the car return to the starting point after the “hazardous material” is found.

  • Storing multiple locations


Iv proof of concept demonstration l.jpg

IV - Proof of Concept Demonstration


Iv proof of concept demonstration31 l.jpg

IV - Proof of Concept Demonstration


Iv performance evaluation l.jpg

IV - Performance Evaluation

Score based on the Prototype Requirements

83/90


Iv performance requirements l.jpg

IV - Performance Requirements

  • Hazard Sensor Accuracy (10/10)

    • Sensor activated consistently within 1 foot of transmitter

  • Vehicle Accuracy (15/15)

    • Reached locations within 1 meter of transmitter

  • Obstacle Avoidance (15/15)

    • Successfully avoids obstacles

  • Time to reach transmitter (10/10)

    • Successfully reaches and evaluates target within 1 minute


Performance requirements l.jpg

Performance Requirements

  • Vehicle Weight (10/10)

    • Final Prototype Weight: 10.976 lbs

  • Audio/Visuals (6/10)

    • No audio signal

    • Visual signal detectable within 20-60 yards depending on illumination.

  • Incline Movement (7/10)

    • Able to move up a 30o incline

  • Cost (10/10)

    • Proof of concept cost: ~ $375.00


Iv feasibility l.jpg

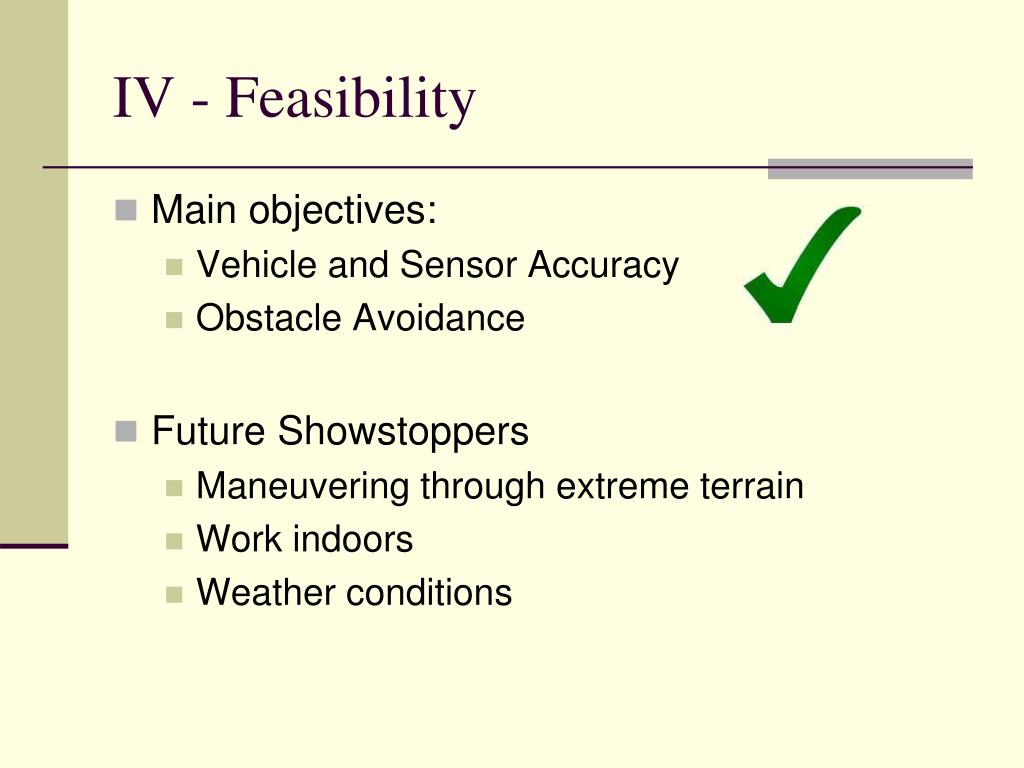

IV - Feasibility

  • Main objectives:

    • Vehicle and Sensor Accuracy

    • Obstacle Avoidance

  • Future Showstoppers

    • Maneuvering through extreme terrain

    • Work indoors

    • Weather conditions


Additional information l.jpg

Additional Information

www.nd.edu/~me463a18


Questions l.jpg

QUESTIONS?
