  1. The Air Around Us Air is more than one removed from nothing

  2. Learning objectives • Describe what is meant by pressure • Identify units of gas pressure • Describe the basic gas laws • Apply gas laws to simple problems • Describe composition of the atmosphere • Name important pollutants and their effects • Describe origin of the ozone hole

  3. Gas laws and crash safety • The airbag is chemistry applied in a very practical area • Airbags have reduced serious injuries and fatalities by significant margin • Chemistry plays a crucial role in airbag performance

  4. Timing is everything • The airbag must deploy within about 40 ms of the impact • The airbag must not deploy unless there is an impact • Inflation depends upon a rapid chemical reaction generating a quantity of gas • The bag, once inflated, must then deflate at the point of impact with the driver to prevent injury

  5. Gas: no interactions • Not rigid • Completely fills container • Compressible • Low density

  6. Atom motion and temperature • Atoms in molecules have three types of motion • Rotation – moving about the centre of mass • Vibration – vibrating about the centre of mass • Translation – movement of the centre of mass • As temperature increases, the energies of all types of motion increase • In gases molecular energies exceeds all interactions

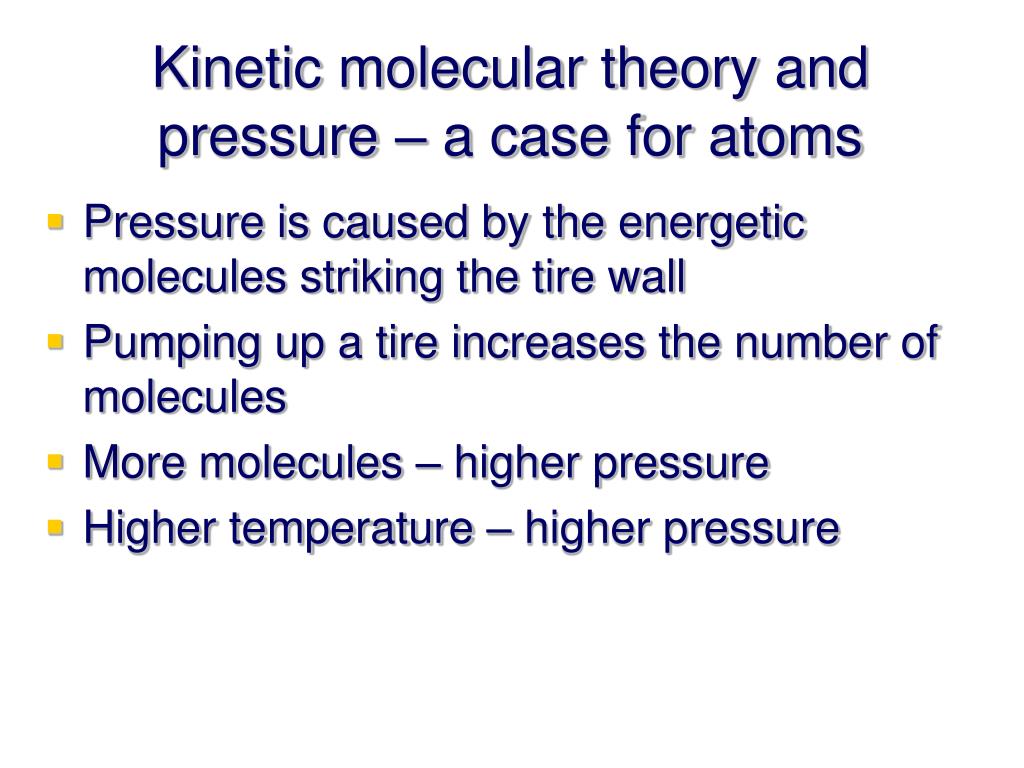

  7. Kinetic molecular theory and pressure – a case for atoms • Pressure is caused by the energetic molecules striking the tire wall • Pumping up a tire increases the number of molecules • More molecules – higher pressure • Higher temperature – higher pressure

  8. Under pressure • Gases exert pressure by virtue of motion • Gravity makes the air density higher near the earth’s surface • Pressure decreases with elevation

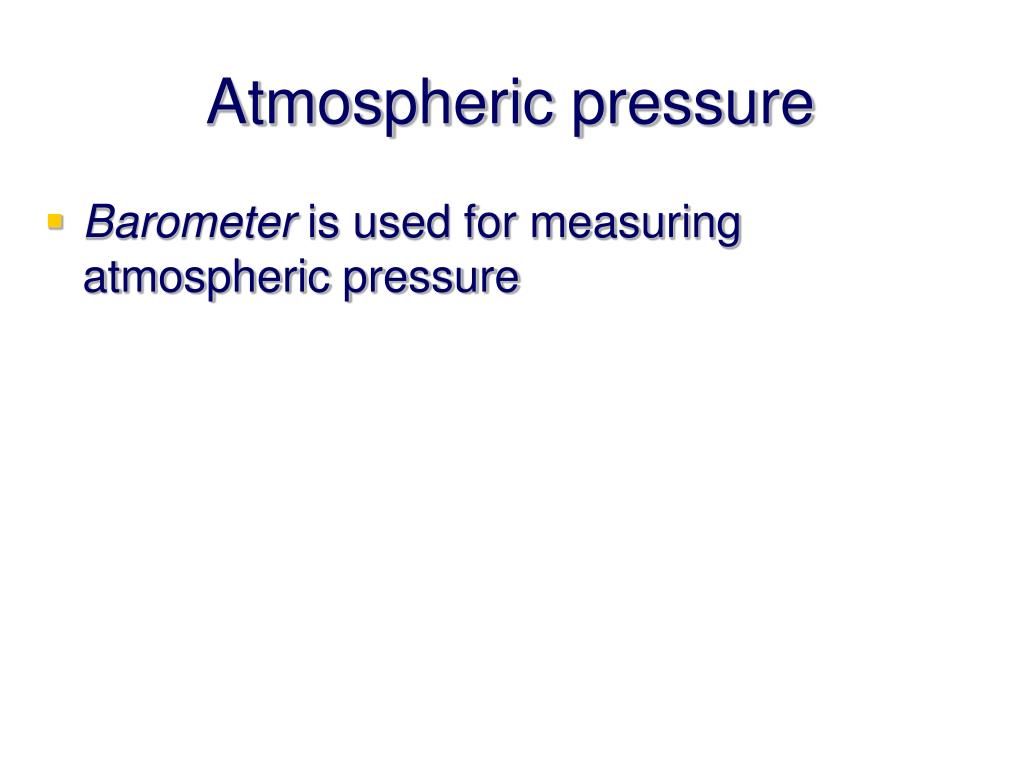

  9. Atmospheric pressure • Barometer is used for measuring atmospheric pressure

  10. Atmospheric pressure • The weight of the air supports a column of mercury 760 mm high • Nominally atmospheric pressure is 760 mm Hg • Atmospheric pressure changes with the weather

  11. Units of pressure

  12. Gas laws: experience in math form • The properties of gases can be described by a number of simple laws • The laws establish quantitative relationships between different variables • They are largely intuitively obvious and familiar

  13. The four variables • Pressure (P) • Volume (V) • Temperature (T in Kelvin) • Number of molecules (n in moles)

  14. Variables and constants • In the elementary gas laws two of the four variables are kept constant • Each law describes how one variable reacts to changes in another variable • All the simple laws can be integrated into one combined gas law

  15. Boyle’s law • The first experimental gas law • Pressure increases, volume decreases (T, n constant)

  16. Charles’ Law • As temperature increases, volume increases (P, n constant) • Temperature must be measured in Kelvin

  17. Absolute zero • Gay-Lussac observed V changed by 1/273 of value at 0ºC • Plotted as V = kT (T = ºC + 273): • V = 0 at T = 0 K • Does the gas actually occupy zero volume? • No, at lower T the law is not followed

  18. Combined gas law • Fold together Boyle and Charles: • P1V1/T1 = P2V2/T2 • Given five of the variables, find the sixth • Units must be consistent • Temperature in Kelvin

  19. Standard temperature and pressure (STP) • Standard conditions allow direct comparison of properties of different substances • Standard temperature is 273 K (0ºC) • Standard pressure is 760 mm Hg or 1 atmosphere • At STP, 1 mole of any ideal gas occupies 22.414 L

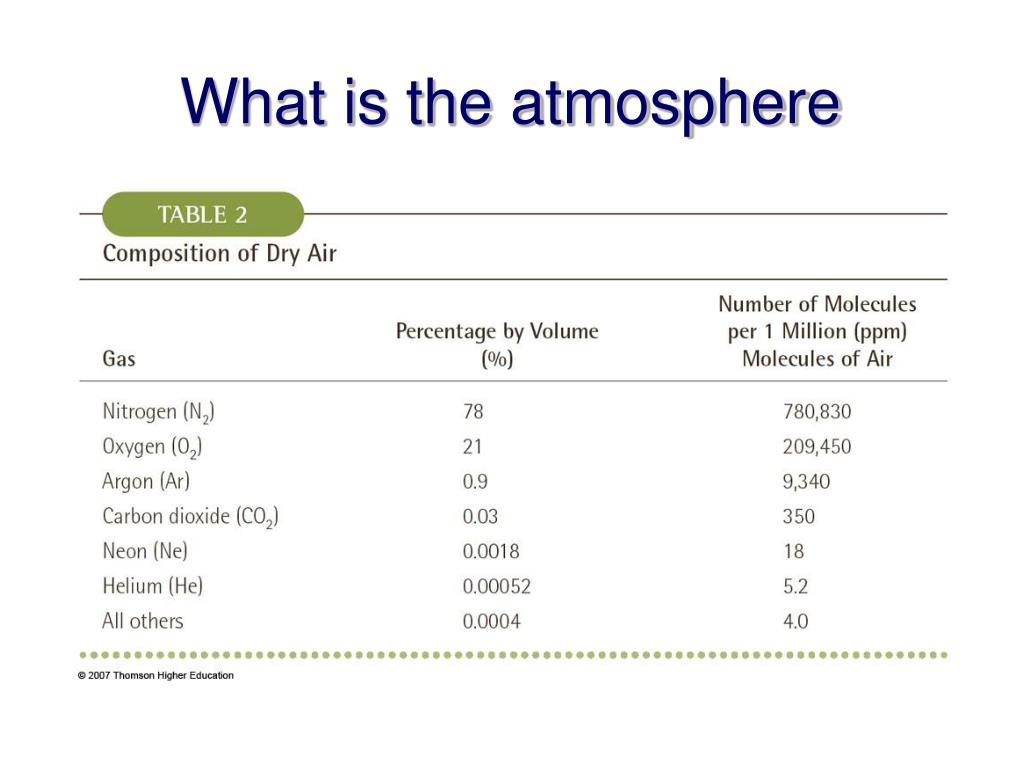

  20. What is the atmosphere

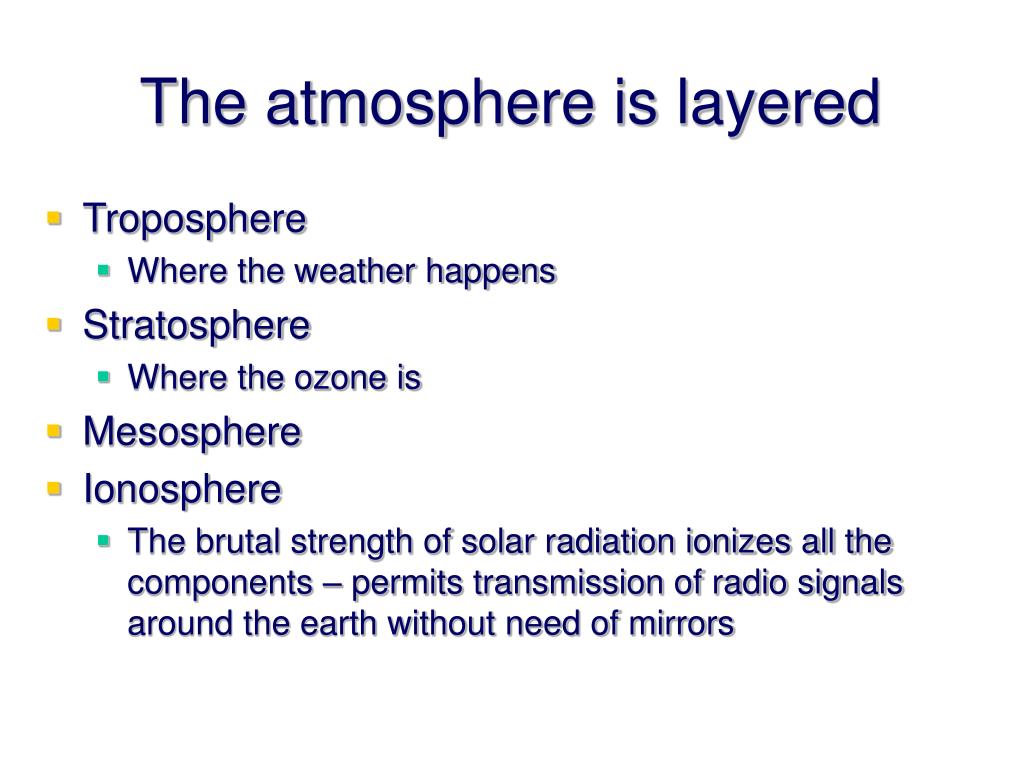

  21. The atmosphere is layered • Troposphere • Where the weather happens • Stratosphere • Where the ozone is • Mesosphere • Ionosphere • The brutal strength of solar radiation ionizes all the components – permits transmission of radio signals around the earth without need of mirrors

  22. Pollutants: things that shouldn’t be there • SO2 power plant emissions • PM-10 particulate matter from agriculture and construction • CO vehicle emissions • O3 sunlight and vehicle emissions • NO2 vehicle emissions • Pb smelters and battery plants

  23. Cleaning up our act: successes • Clean Air Act of 1970 • Amended in 1977 • Top six pollutants have all decreased • Problems remain

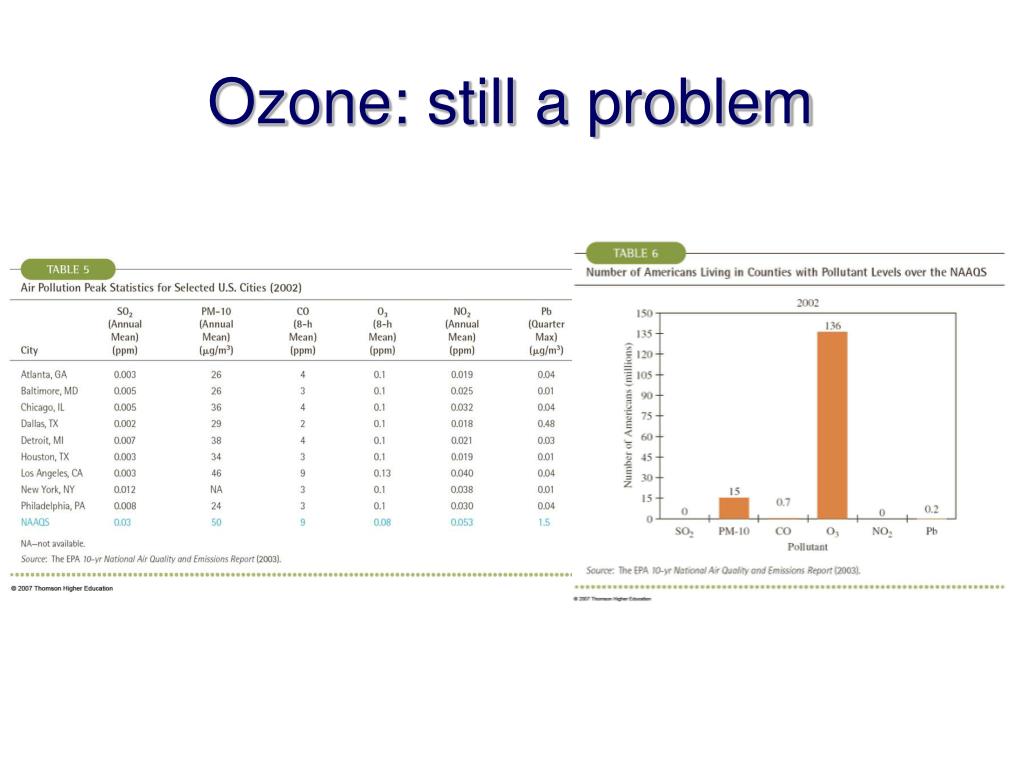

  24. Ozone: still a problem

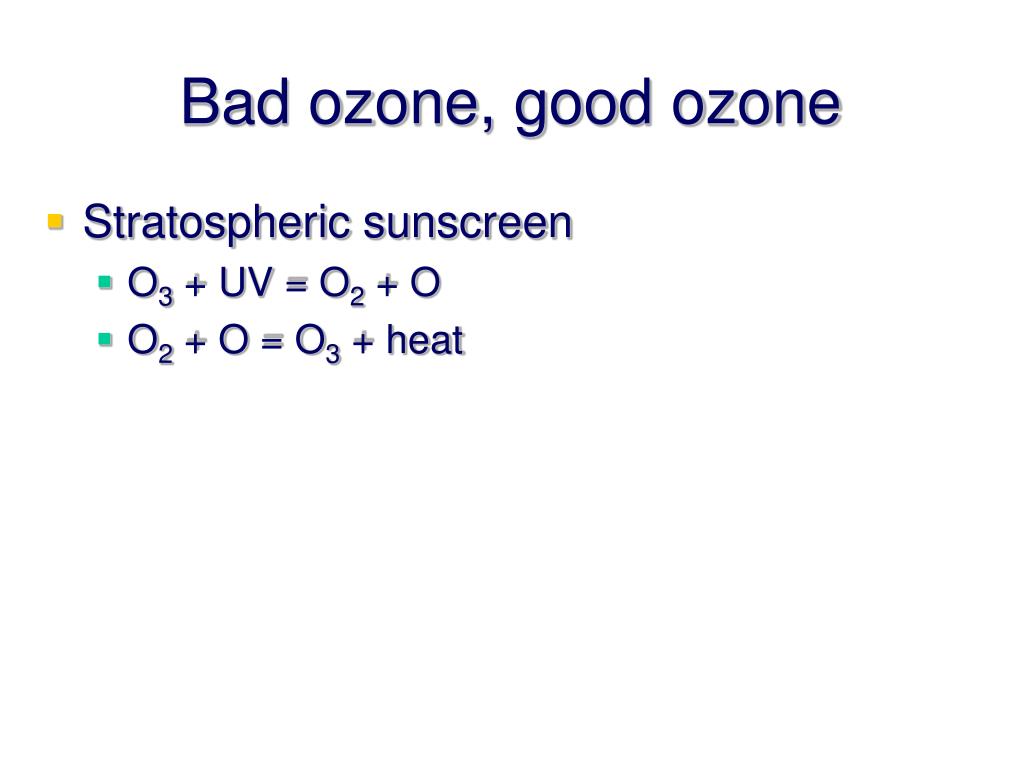

  25. Bad ozone, good ozone • Stratospheric sunscreen • O3 + UV = O2 + O • O2 + O = O3 + heat

  26. Chlorofluorocarbons (CFCs): wonder chemicals

  27. Hidden dangers • CFCs are unstable in UV CF2Cl2 + UV = Cl + CF2Cl • Cl radicals catalyze decomposition of ozone Cl + O3 = ClO + O2 O3 + UV = O2 + O ClO + O = Cl + O2 • One Cl atom can react again and again destroying countless O3 molecules

  28. The Antarctic ozone hole • Ozone depletion in the Antarctic is severe • Stratosphere isolated by polar vortex • Polar stratospheric clouds (PSCs) form • Clouds produce chlorine gas

  29. Montreal Protocol and CFCs • Phase-out of CFCs began 1978 • Montreal Protocol (1987) called for 50 % decrease by 2000 • Amended to complete phaseout • Chemical ingenuity required for alternatives like HCFCs
