  1. A Cognitive Diagnosis Model forCognitively-Based Multiple-Choice Options Jimmy de la Torre Department of Educational Psychology Rutgers, The State University of New Jersey

  2. All wrong answers are wrong; But some wrong answers are more wrong than others.

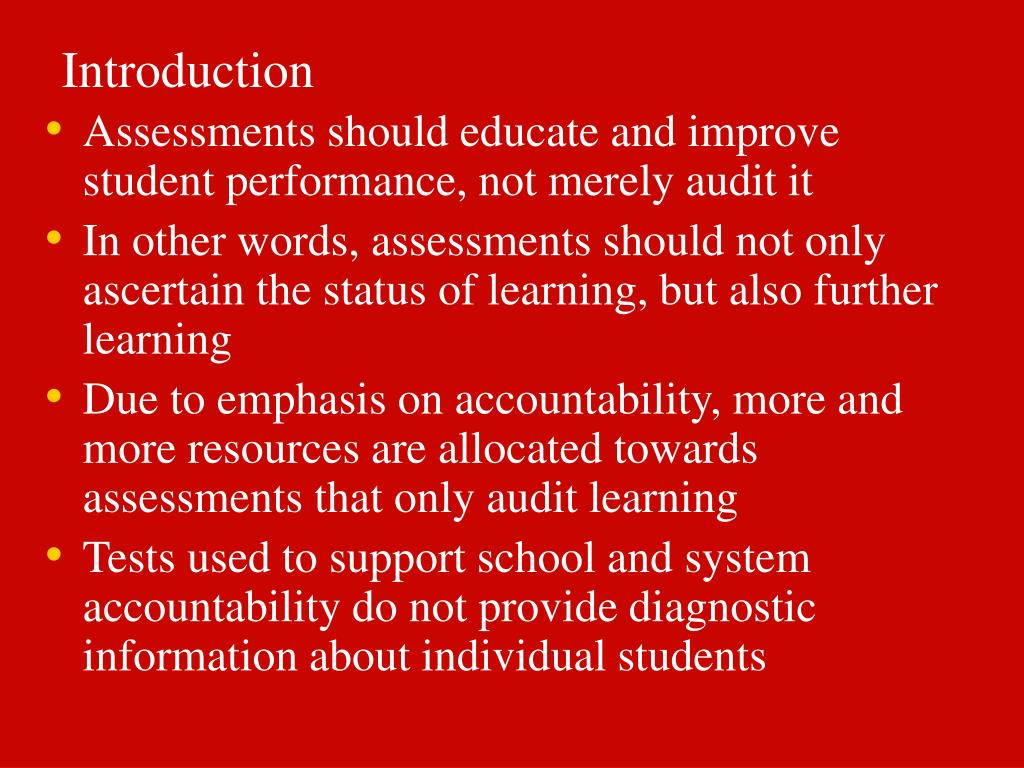

  3. Introduction • Assessments should educate and improve student performance, not merely audit it • In other words, assessments should not only ascertain the status of learning, but also further learning • Due to emphasis on accountability, more and more resources are allocated towards assessments that only audit learning • Tests used to support school and system accountability do not provide diagnostic information about individual students

  4. Tests based on unidimensional IRT models report single-valued scores that submerge any distinct skills • These scores are useful in establishing relative order but not evaluation of students' specific strengths and weaknesses • Cluster scores have been used, but these scores are unreliable and provide superficial information about the underlying processes • Needed are assessments that can provide interpretative, diagnostic, highly informative, and potentially prescriptive information

  5. Some psychometric models allow the merger of advances in cognitive and psychometric theories to provide inferences more relevant to learning • These models are called cognitive diagnosis models (CDMs) • CDMs are discrete latent variable models • They are developed specifically for diagnosing the presence or absence of multiple fine-grained skills, processes or problem-solving strategies involved in an assessment

  6. Fundamental difference between IRT and CDM: A fraction subtraction example • IRT: performance is based on a unidimensional continuous latent trait • Students with higher latent traits have higher probability of answering the question correctly

  7. Fundamental difference between IRT and CDM: A fraction subtraction example • IRT: performance is based on a unidimensional continuous latent trait • Students with higher latent traits have higher probability of answering the question correctly • CDM: performance is based on binary attribute vector • Successful performance on the task requires a series of successful implementations of the attributes specified for the task

  8. Required attributes: (1) Borrowing from whole (2) Basic fraction subtraction (3) Reducing • Other attributes: (4) Separating whole from fraction (5) Converting whole to fraction

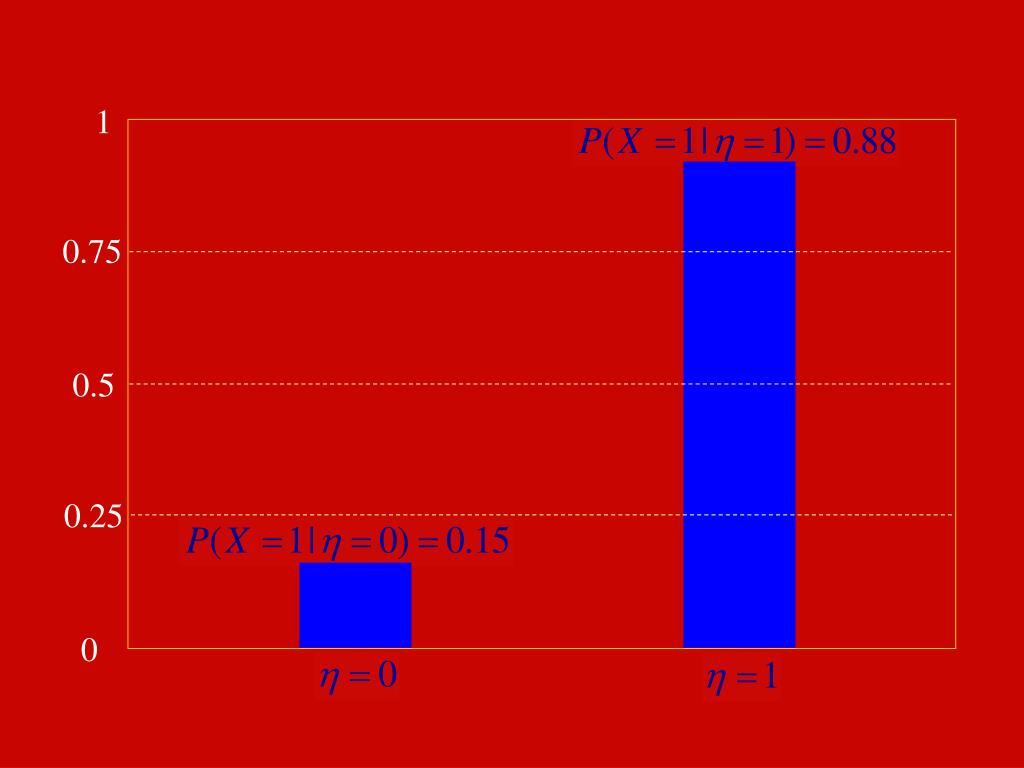

  9. 1 0.75 0.5 0.25 0

  10. Background • Denote the response and attribute vectors of examinee i by and • Each attribute pattern is a unique latent class; thus, K attributes define latent classes • Attribute specification for the items can be found in the Q-matrix, a J x K binary matrix • DINA (Deterministic Input Noisy “And” gate) is a CDM model that can be used in modeling the distribution of given

  11. In the DINA model • where is the latent group classification of examinee i with respect to item j • P(H|g) is the probability that examinees in group g will respond with h to item j • In more conventional notation of the DINA = guessing, = slip

  12. Of the various test formats, multiple-choice (MC) has been widely used for its ability to sample and accommodate diverse contents • Typical CDM analyses of MC tests involve dichotomized scores (i.e., correct/incorrect) • The approach ignores the diagnostic insights about student difficulties and alternative conceptions in the distractors • Wrong answers can reveal both what students know and what they do not know

  13. Purpose of the paper is to propose a two-component framework for maximizing the diagnostic value of MC assessments • Component 1: Prescribes how MC options can be designed to contain more diagnostic information • Component 2: Describes a CDM model that can exploit such information • Viability (i.e., estimability, efficiency) of the proposed framework is evaluated using a simulation study

  14. Component 1: Cognitively-Based MC Options • For the MC format, , where each number represents a different option • An option is coded or cognitively-based if it is constructed to correspond to some of the latent classes • Each coded option has an attribute specification • Attribute specifications for non-coded options are implicitly represented by the zero-vector

  15. A Fraction Subtraction Example A) B) C) D)

  16. Attributes Required for Each Option of

  17. The option with the largest number of required attributes is the key

  18. Attributes Required for Each Option of

  19. The option with the largest number of required attributes is the key • Distractors are created to reflect the type of responses students who lack one or more of the required attributes for the key are likely to give

  20. Attributes Required for Each Option of

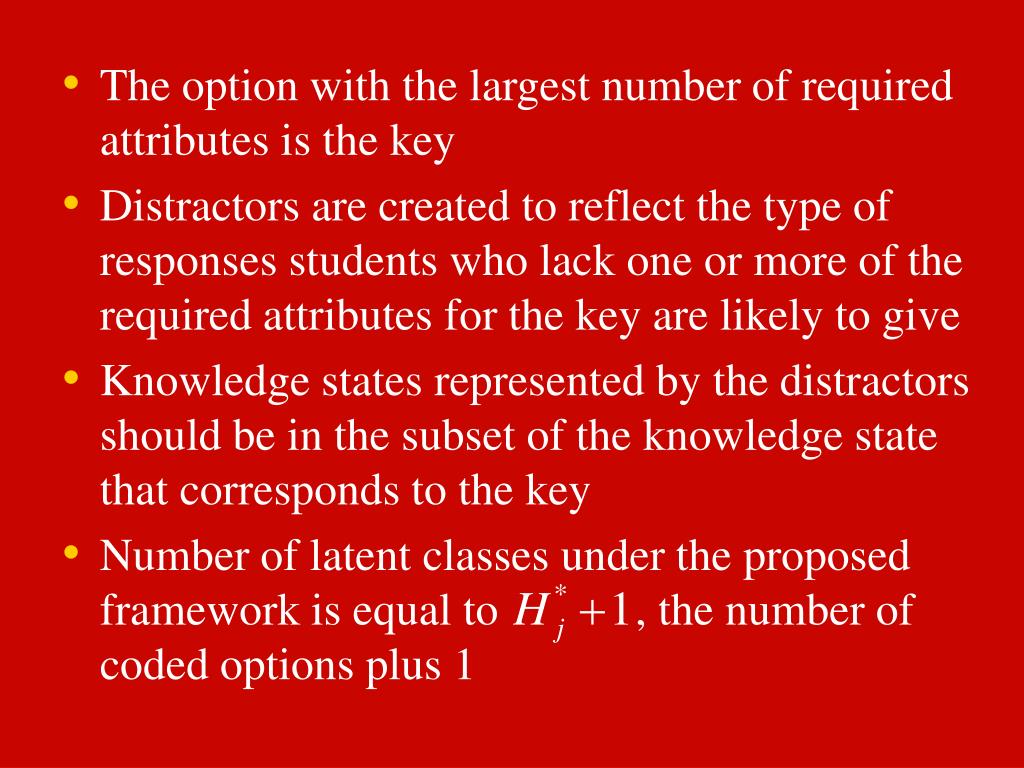

  21. The option with the largest number of required attributes is the key • Distractors are created to reflect the type of responses students who lack one or more of the required attributes for the key are likely to give • Knowledge states represented by the distractors should be in the subset of the knowledge state that corresponds to the key • Number of latent classes under the proposed framework is equal to , the number of coded options plus 1

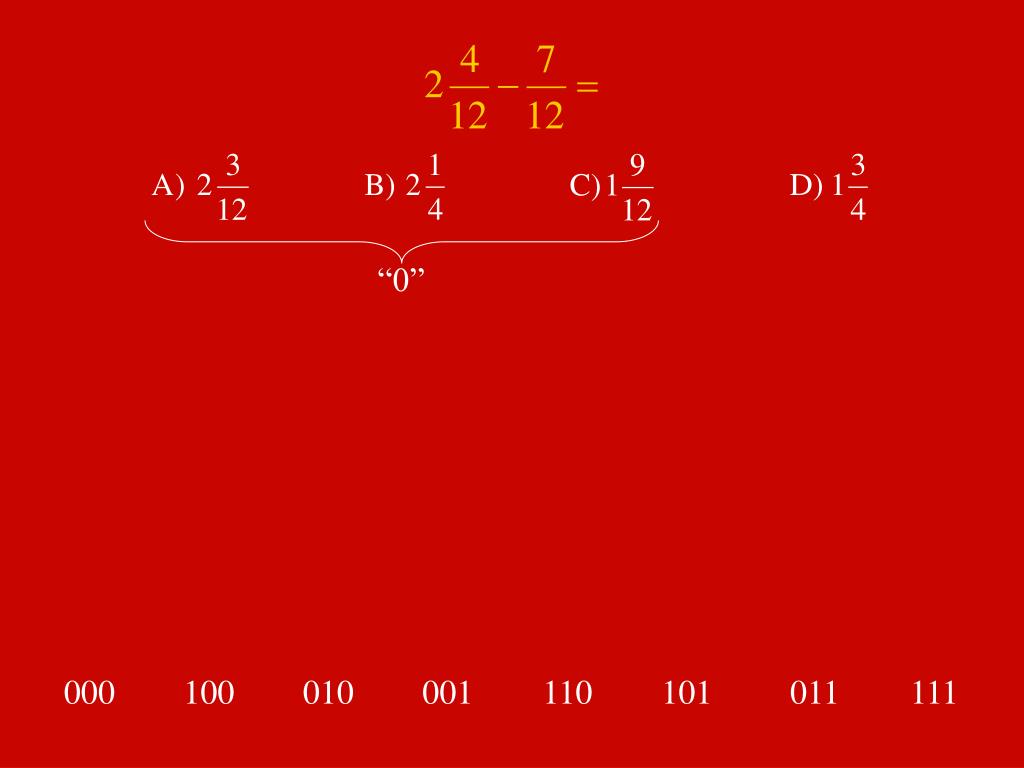

  22. 000 100 010 001 110 101 011 111 “0”

  23. “0” “1” 000 100 010 001 110 101 011 111

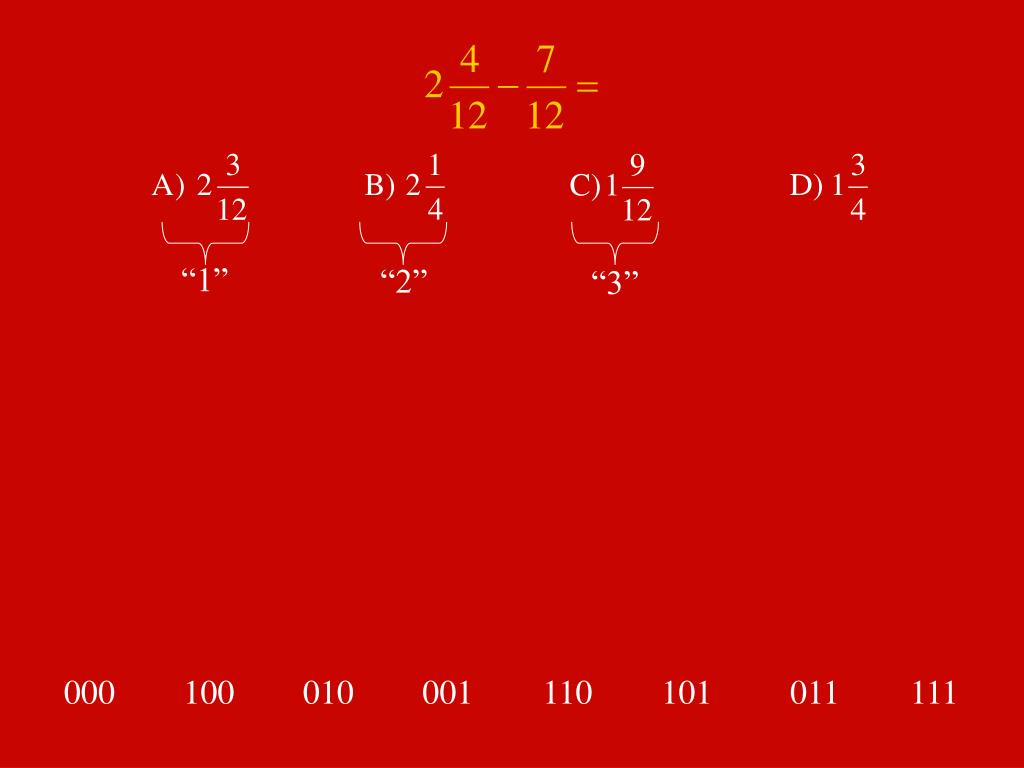

  24. “1” “2” “3” 000 100 010 001 110 101 011 111

  25. “1” “2” “4” “3” “0” 000 100 010 001 110 101 011 111

  26. Component 2: The MC-DINA Model • Let be the Q-vector for option h of item j, and • With respect to item j, examinee i is in group • Probability of examinee i choosing option h of item j is

  27. 0 1 2 3 4

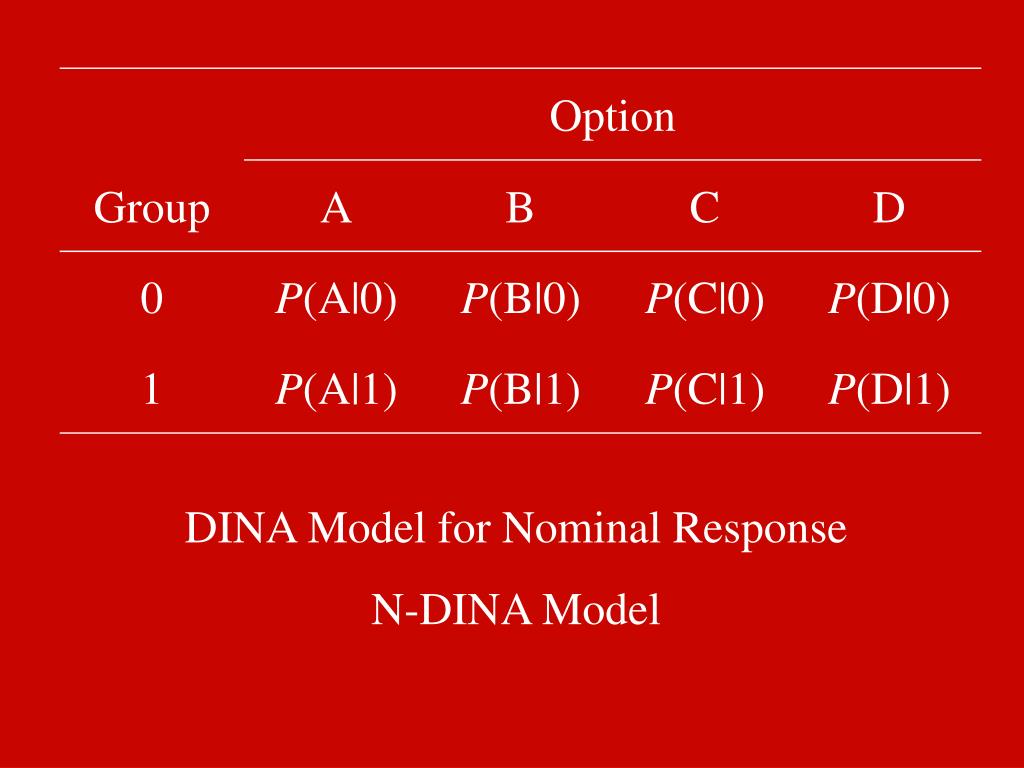

  28. DINA Model for Nominal Response N-DINA Model

  29. Group A C D B 0 1

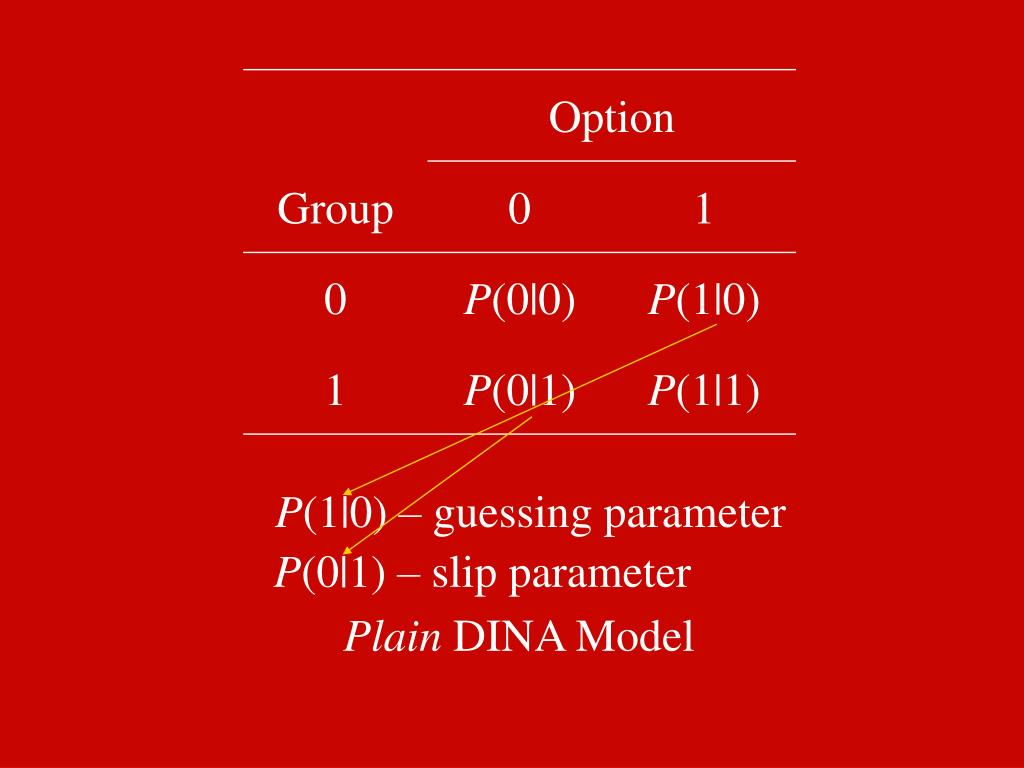

  30. P(1|0) – guessing parameter P(0|1) – slip parameter Plain DINA Model

  31. A Simulation Study • Purpose: To investigate how • well the item parameters and SE can be estimated • accurately the attributes can be classified • MC-DINA compares with the traditional DINA • 1000 examinees, 30 items, 5 attributes • Parameters: • Number of replicates: 100

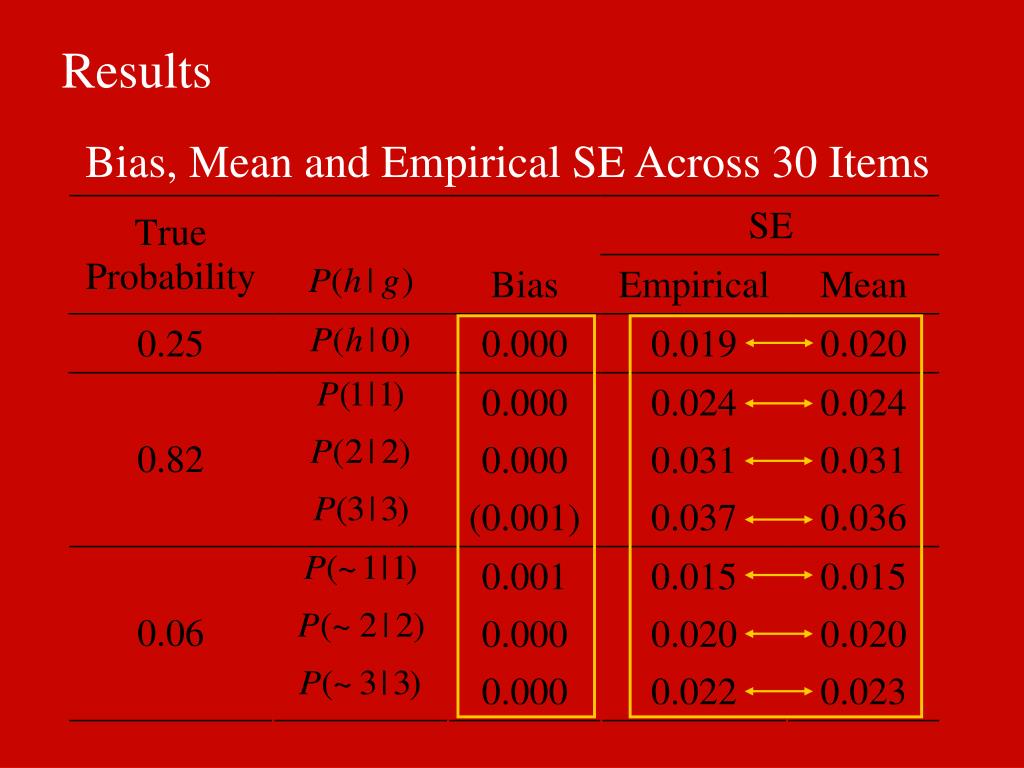

  32. Results Bias, Mean and Empirical SE Across 30 Items

  33. Attribute Classification Accuracy Percent of Attribute Correctly Classified 89.71 97.43 91.13 69.58 6.30 20.13

  34. Summary and Conclusion • There is an urgent need for assessments that provide interpretative, diagnostic, highly informative, and potentially prescriptive scores • This type of scores can inform classroom instruction and learning • With appropriate construction, MC items can be designed to be more diagnostically informative • Diagnostic information in MC distractors can be harnessed using the MC-DINA

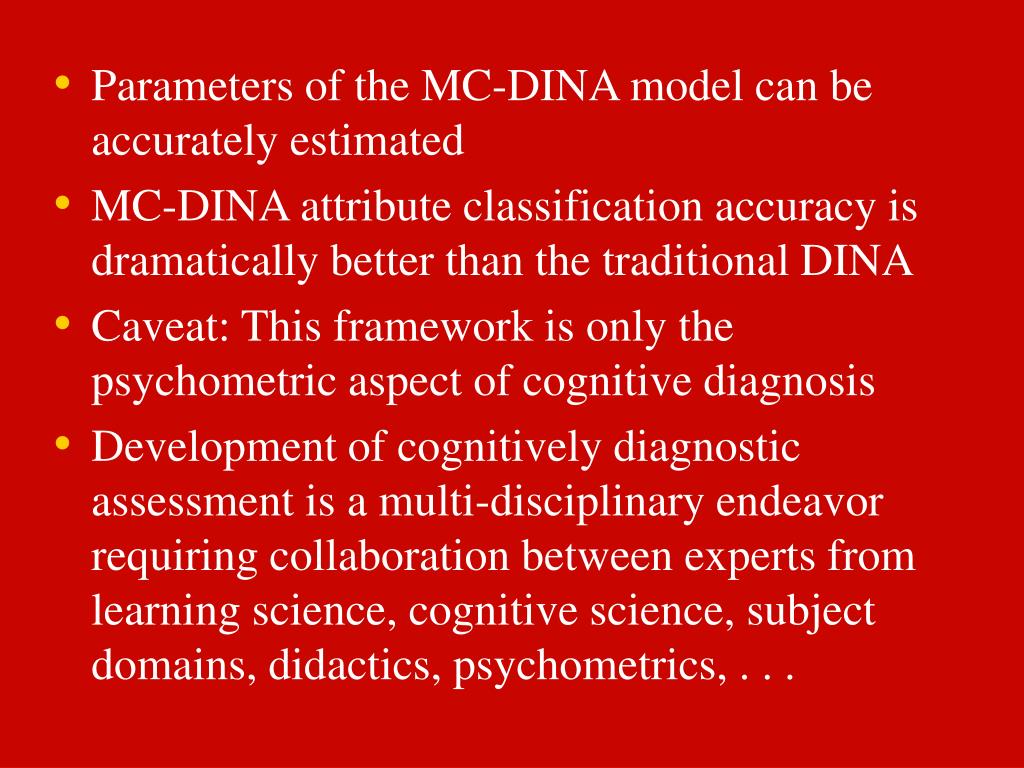

  35. Parameters of the MC-DINA model can be accurately estimated • MC-DINA attribute classification accuracy is dramatically better than the traditional DINA • Caveat: This framework is only the psychometric aspect of cognitive diagnosis • Development of cognitively diagnostic assessment is a multi-disciplinary endeavor requiring collaboration between experts from learning science, cognitive science, subject domains, didactics, psychometrics, . . .

  36. That’s all folks!
