Notes on cyclone extended static checking

Notes on CycloneExtended Static Checking

Greg Morrisett

Harvard University


Static extended checking sex c
Static Extended Checking: SEX-C

  • Similar approach to ESC-M3/Java:

    • Calculate a 1st-order predicate describing the machine state at each program point.

    • Generate verification conditions (VCs) corresponding to run-time checks.

    • Feed VCs to a theorem prover.

    • Only insert check (and issue warning) if prover can't show VC is true.

    • Key goal: needs to scale well (like type-checking) so it can be used on every edit-compile-debug cycle.


Example strcpy
Example: strcpy

  • strcpy(char ?d, char ?s)

  • {

  • while (*s != 0) {

  • *d = *s;

  • s++;

  • d++;

  • }

  • *d = 0;

  • }

Run-time checks are inserted to ensure that s and d are not NULL and in bounds.

6 words passed in instead of 2.


Better
Better

  • strcpy(char ?d, char ?s)

  • {

  • unsigned i, n = numelts(s);

  • assert(n < numelts(d));

  • for (i=0; i < n && s[i] != 0; i++)

  • d[i] = s[i];

  • d[i] = 0;

  • }

This ought to have no run-time checksbeyond the assert.

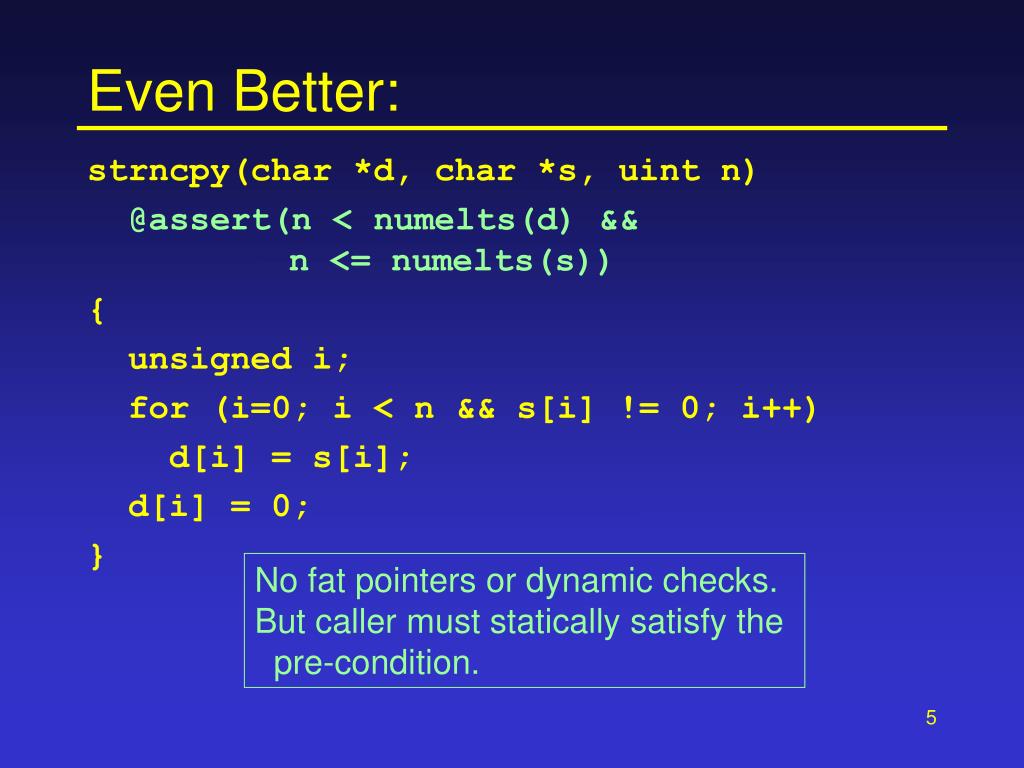

Even better
Even Better:

  • strncpy(char *d, char *s, uint n)

  • @assert(n < numelts(d) && n <= numelts(s))

  • {

  • unsigned i;

  • for (i=0; i < n && s[i] != 0; i++)

  • d[i] = s[i];

  • d[i] = 0;

  • }

No fat pointers or dynamic checks.

But caller must statically satisfy the pre-condition.


In practice
In Practice:

  • strncpy(char *d, char *s, uint n)

  • @checks(n < numelts(d) && n <= numelts(s))

  • {

  • unsigned i;

  • for (i=0; i < n && s[i] != 0; i++)

  • d[i] = s[i];

  • d[i] = 0;

  • }

If caller can establish pre-condition, no check.

Otherwise, an implicit check is inserted.

Clearly, checks are a limited class of assertions.

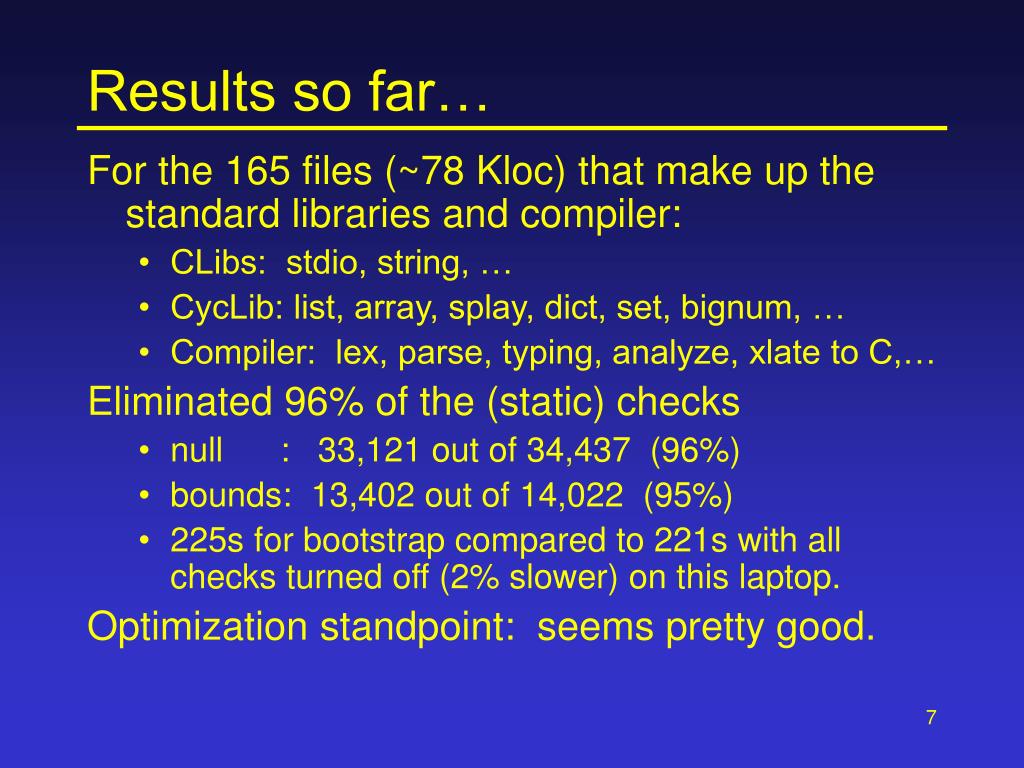

Results so far
Results so far…

  • For the 165 files (~78 Kloc) that make up the standard libraries and compiler:

    • CLibs: stdio, string, …

    • CycLib: list, array, splay, dict, set, bignum, …

    • Compiler: lex, parse, typing, analyze, xlate to C,…

  • Eliminated 96% of the (static) checks

    • null : 33,121 out of 34,437 (96%)

    • bounds: 13,402 out of 14,022 (95%)

    • 225s for bootstrap compared to 221s with all checks turned off (2% slower) on this laptop.

  • Optimization standpoint: seems pretty good.



Not all rosy
Not all Rosy:

  • Don't do as well at array-intensive code.

  • For instance, on the AES reference:

  • 75% of the checks (377 out of 504)

  • 2% slower than all checks turned off.

  • 24% slower than original C code.(most of the overhead is fat pointers)

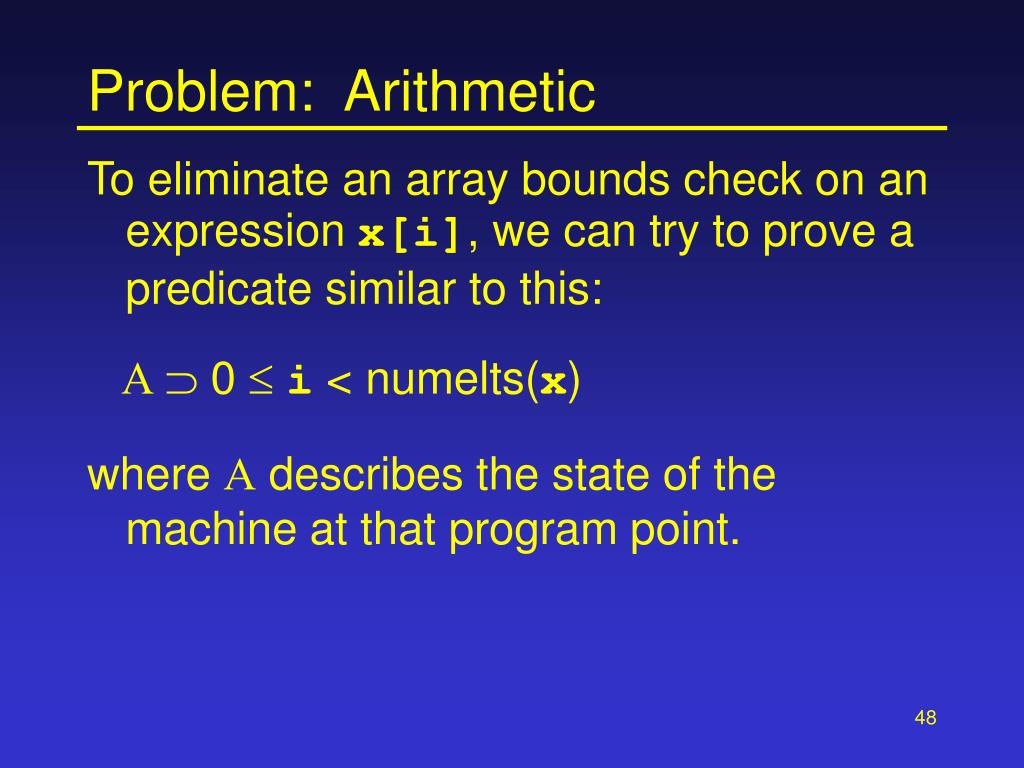

  • The primary culprit:

    • we are very conservative about arithmetic.

    • i.e., x[2*i+1] will throw us off every time.


Challenges
Challenges

  • Assumed I could use off-the-shelf technology.

  • But ran into a few problems:

  • scalable VC generation

    • previously solved problem (see ESC guys.)

    • but entertaining to rediscover the solutions.

  • usable theorem provers

    • for now, rolled our own

    • (not the real focus.)


Verification condition generation
Verification-Condition Generation

  • We started with textbook strongest post-conditions:

  • SP[x:=e]A=A[a/x]x=e[a /x] (a fresh)

  • SP[S1;S2]A=SP[S2](SP[S1]A)

  • SP[if (e) S1else S2]A=

  • SP[S1](A e0)  SP[S2](A e=0)


Why sp instead of wp
Why SP instead of WP?

  • SP[if (c) skip else fail]A=A c

  • When A  c then we can eliminate the check.

  • Either way, the post-condition is still A c.

  • WP[if (c) skip else fail]A =(c A) c

  • For WP, this will be propagated backwards making it difficult to determine which part of the pre-condition corresponds to a particular check.


1st problem with textbook sp
1st Problem with Textbook SP

  • SP[x:=e]A=A[a/x]x=e[a/x]

  • What if e has effects?

  • In particular, what if e is itself an assignment?

  • Solution: use a monadic interpretation:

  • SP : Exp  Assn  Term  Assn

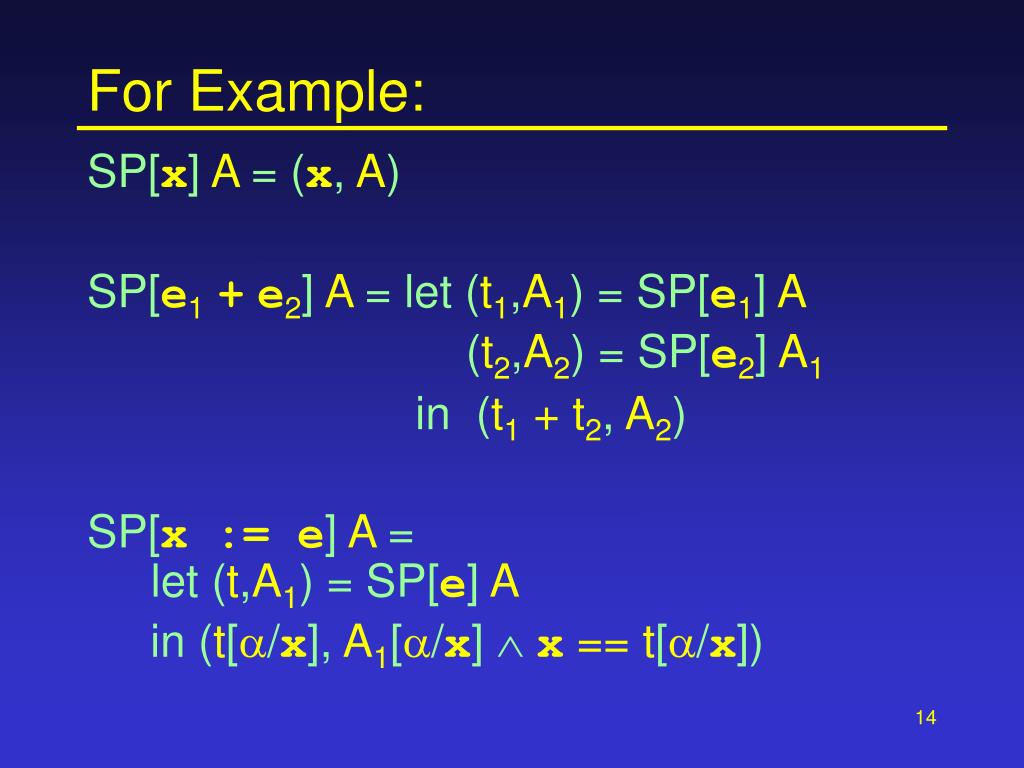

For example
For Example:

  • SP[x] A =(x, A)

  • SP[e1+e2] A =let (t1,A1) = SP[e1] A

  • (t2,A2) = SP[e2] A1

  • in (t1 + t2, A2)

  • SP[x := e] A = let (t,A1) = SP[e] A

  • in (t[a/x], A1[a/x] x == t[a/x])


Or as in haskell
Or as in Haskell

  • SP[x] = return x

  • SP[e1+e2] = do { t1 SP[e1] ;

  • t2 SP[e2] ;

  • return t1 + t2}

  • SP[x := e] = do { t SP[e] ;

  • replace [a/x] ;

  • and x == t[a/x] ;

  • return t[a/x] }


One issue
One Issue

  • Of course, this oversequentializes the code.

  • C has very liberal order of evaluation rules which are hopelessly unusable for any sound analysis.

  • So we force the evaluation to be left-to-right and match our sequentialization.

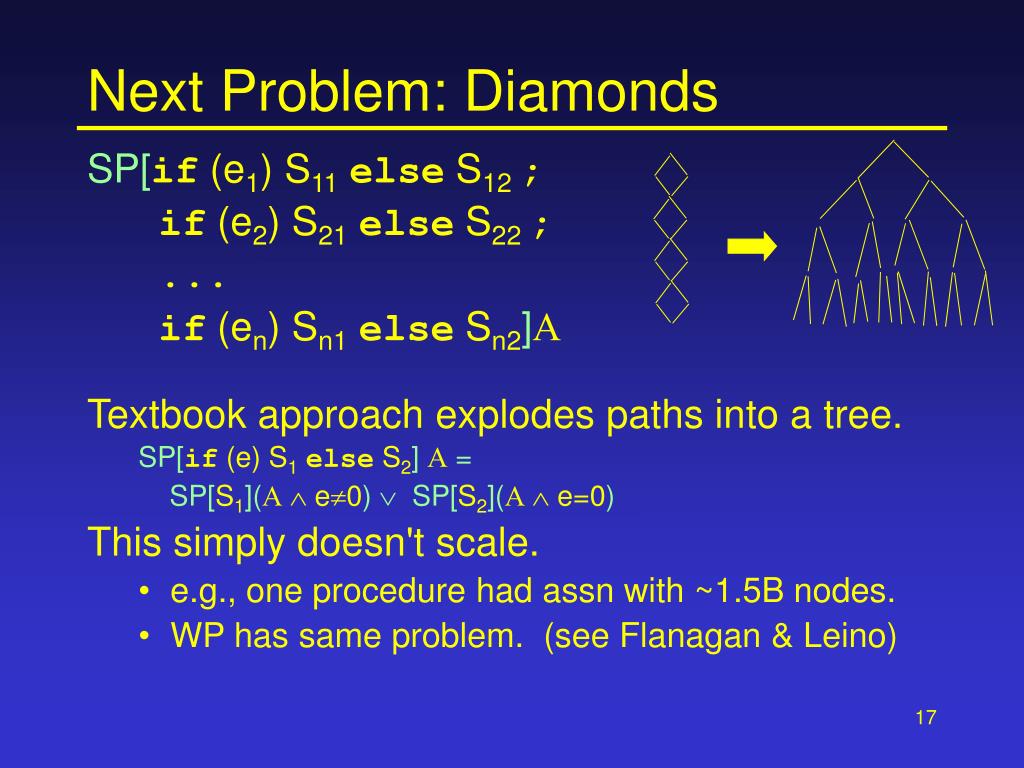

Next problem diamonds
Next Problem: Diamonds

  • SP[if (e1) S11else S12 ;

  • if (e2) S21else S22 ;

  • ...

  • if (en) Sn1else Sn2]A

  • Textbook approach explodes paths into a tree.

    SP[if (e) S1else S2]A=

    SP[S1](A e0)  SP[S2](A e=0)

  • This simply doesn't scale.

    • e.g., one procedure had assn with ~1.5B nodes.

    • WP has same problem. (see Flanagan & Leino)

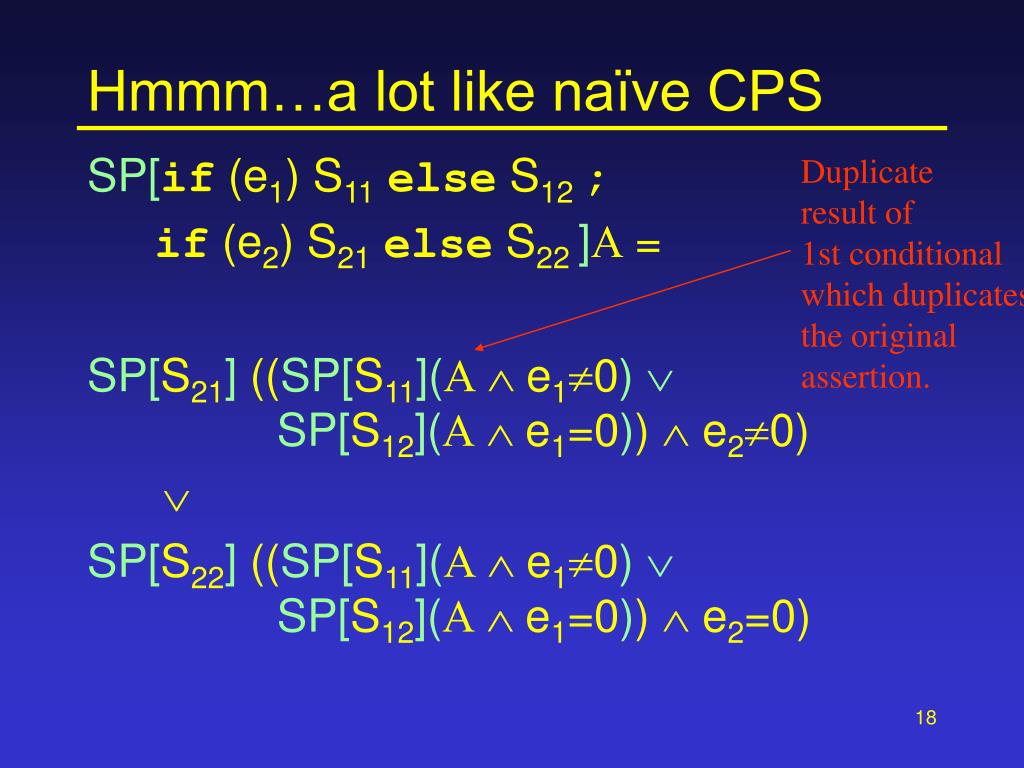

Hmmm a lot like na ve cps
Hmmm…a lot like naïve CPS

Duplicate

result of 1st conditional

which duplicatesthe original

assertion.

  • SP[if (e1) S11else S12 ;

  • if (e2) S21else S22 ]A =

  • SP[S21] ((SP[S11](A e10)  SP[S12](A e1=0))  e20)

  • SP[S22] ((SP[S11](A e10)  SP[S12](A e1=0))e2=0)

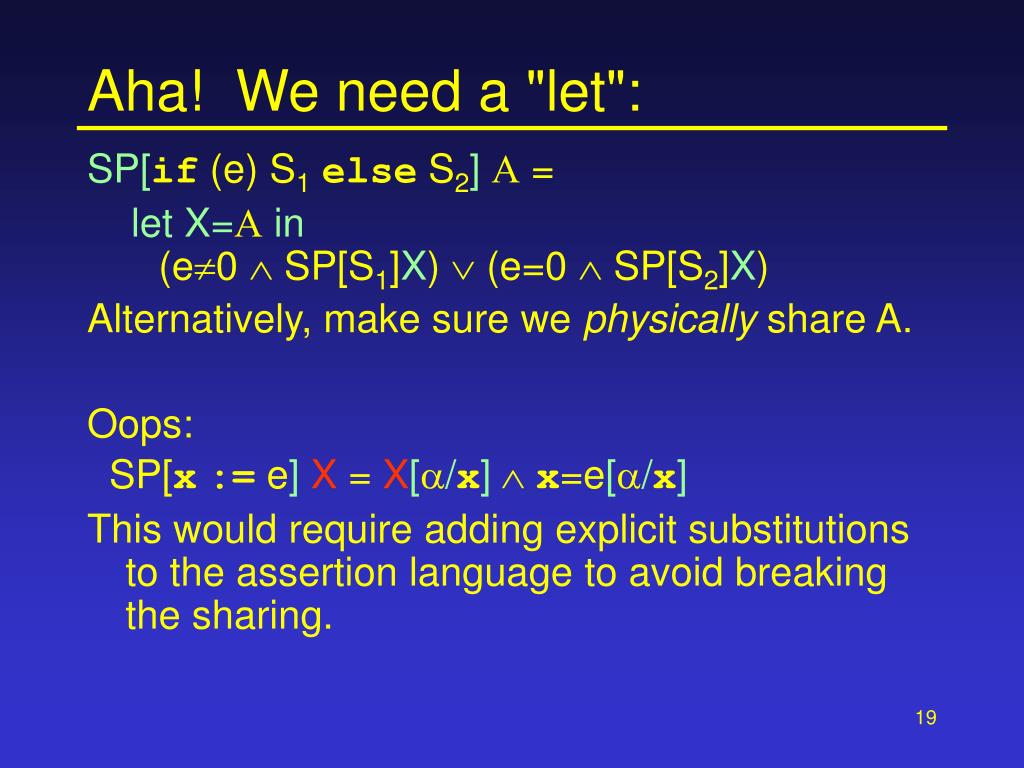

Aha we need a let
Aha! We need a "let":

  • SP[if (e) S1else S2]A =

  • letX=Ain (e0 SP[S1]X)  (e=0 SP[S2]X)

  • Alternatively, make sure we physically share A.

  • Oops:

  • SP[x:=e]X = X[a/x]x=e[a/x]

  • This would require adding explicit substitutions to the assertion language to avoid breaking the sharing.

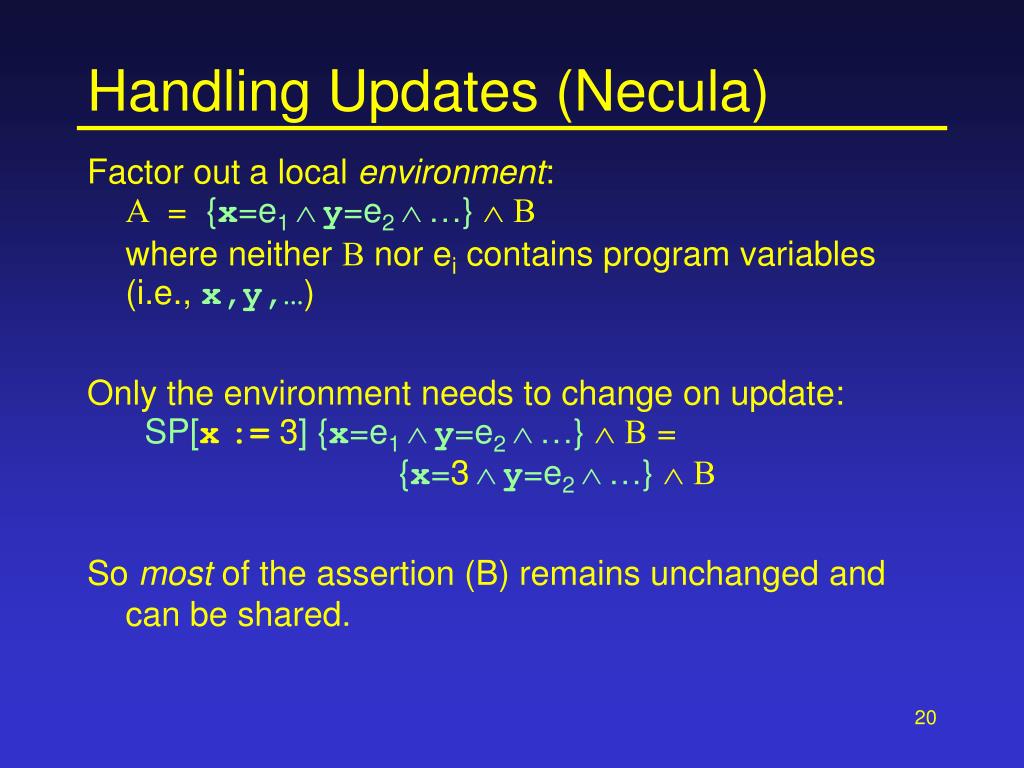

Handling updates necula
Handling Updates (Necula)

  • Factor outa local environment: A = {x=e1 y=e2 …}Bwhere neither B nor ei contains program variables (i.e., x,y,…)

  • Only the environment needs to change on update: SP[x:=3]{x=e1 y=e2 …}B ={x=3y=e2 …}B

  • So most of the assertion (B) remains unchanged and can be shared.

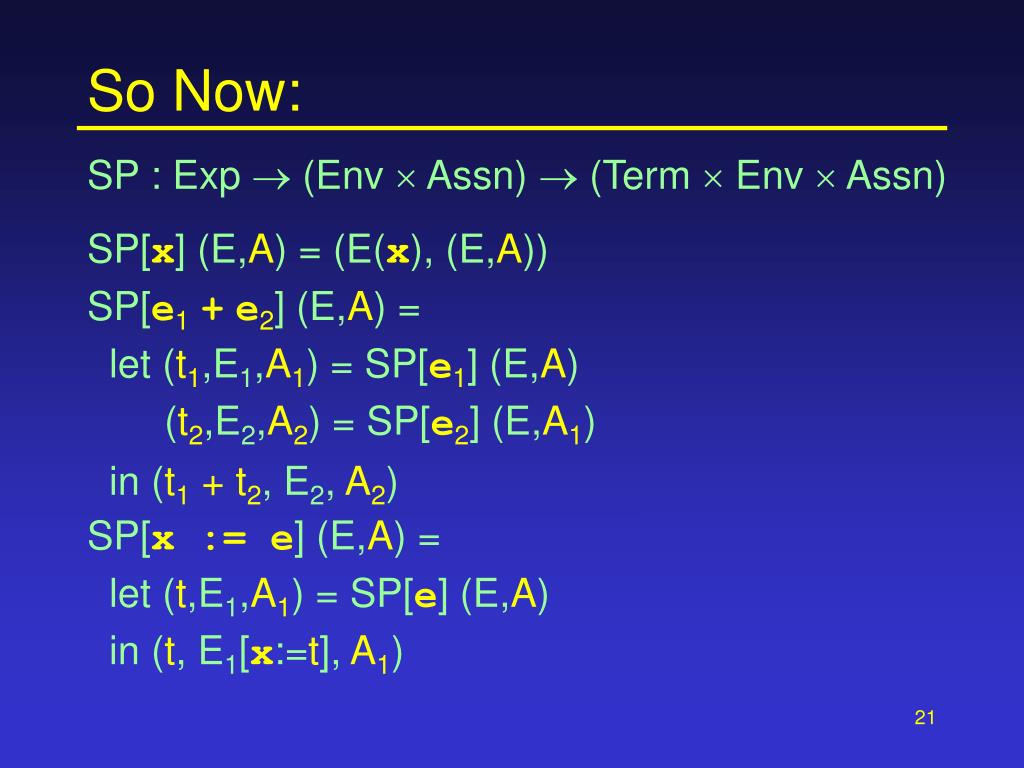

So now
So Now:

  • SP : Exp  (Env  Assn)  (Term  Env  Assn)

  • SP[x] (E,A) = (E(x), (E,A))

  • SP[e1+e2] (E,A) =

  • let (t1,E1,A1) = SP[e1] (E,A)

  • (t2,E2,A2) = SP[e2] (E,A1)

  • in (t1 + t2, E2, A2)

  • SP[x := e] (E,A) =

  • let (t,E1,A1) = SP[e] (E,A)

  • in (t, E1[x:=t], A1)


Or as in haskell1
Or as in Haskell:

  • SP[x] = lookup x

  • SP[e1+e2] = do { t1 SP[e1] ; t2 SP[e2] ;

  • return t1 + t2 }

  • SP[x := e] = do { t SP[e] ; set xt;

  • return t }


Note:

  • Monadic encapsulation crucial from a software engineering point of view:

  • actually have multiple out-going flow edges due to exceptions, return, etc.

    • (see Tan & Appel, VMCAI'06)

  • so the monad actually accumulates (Term  Env  Assn) values for each edge.

  • but it still looks as pretty as the previous slide.

  • (modulo the fact that it's written in Cyclone.)

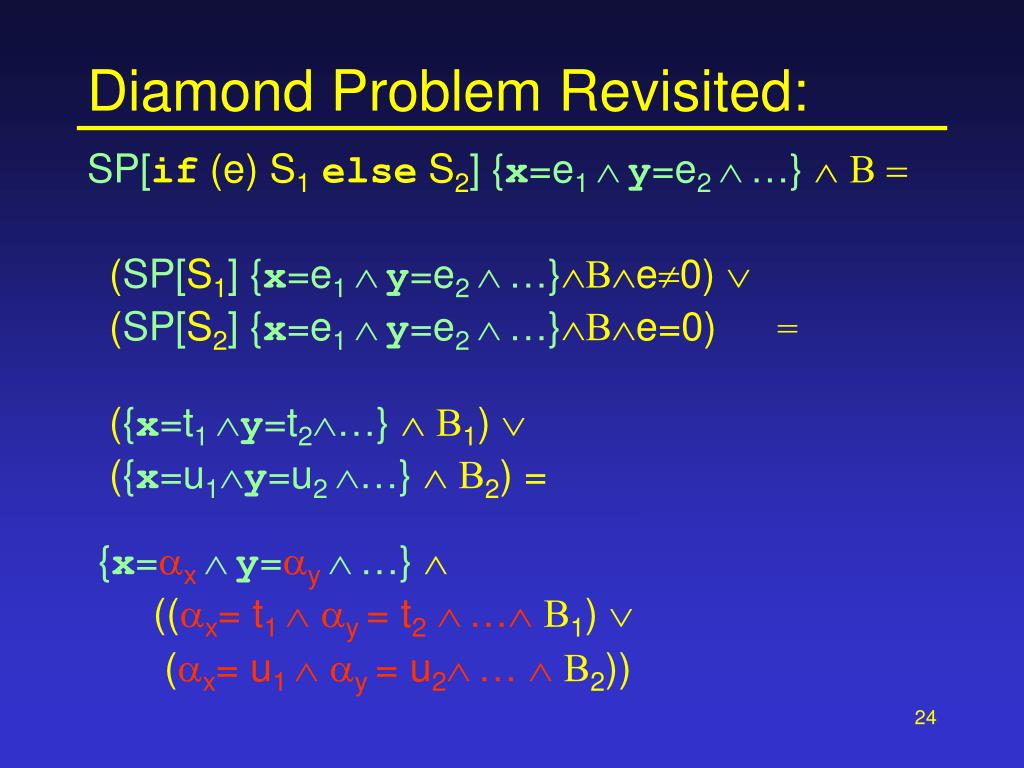

Diamond problem revisited
Diamond Problem Revisited:

  • SP[if (e) S1else S2]{x=e1 y=e2 …}B =

  • (SP[S1]{x=e1 y=e2 …}Be0) 

  • (SP[S2]{x=e1 y=e2 …}Be=0) =

  • ({x=t1 y=t2…} B1) 

  • ({x=u1y=u2 …}B2) =

  • {x=axy=ay…}

  • ((ax= t1 ay = t2…B1) 

  • (ax= u1 ay = u2…B2))

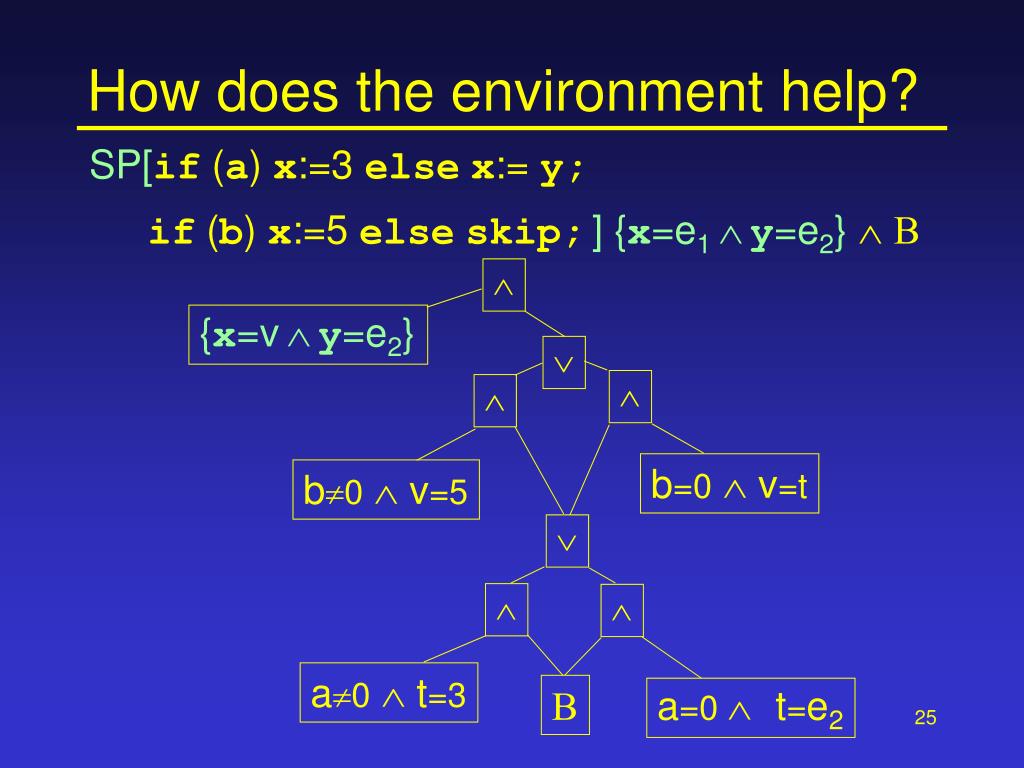

How does the environment help
How does the environment help?

SP[if (a) x:=3 elsex:= y;

if (b) x:=5 elseskip;]{x=e1 y=e2}B

{x=vy=e2}

b=0 v=t

b0 v=5

a0 t=3

B

a=0  t=e2


Tah dah
Tah-Dah!

  • I've rediscovered SSA.

    • monadic translation sequentializes and names intermediate results.

    • only need to add fresh variables when two paths compute different values for a variable.

    • so the added equations for conditionals correspond to -nodes.

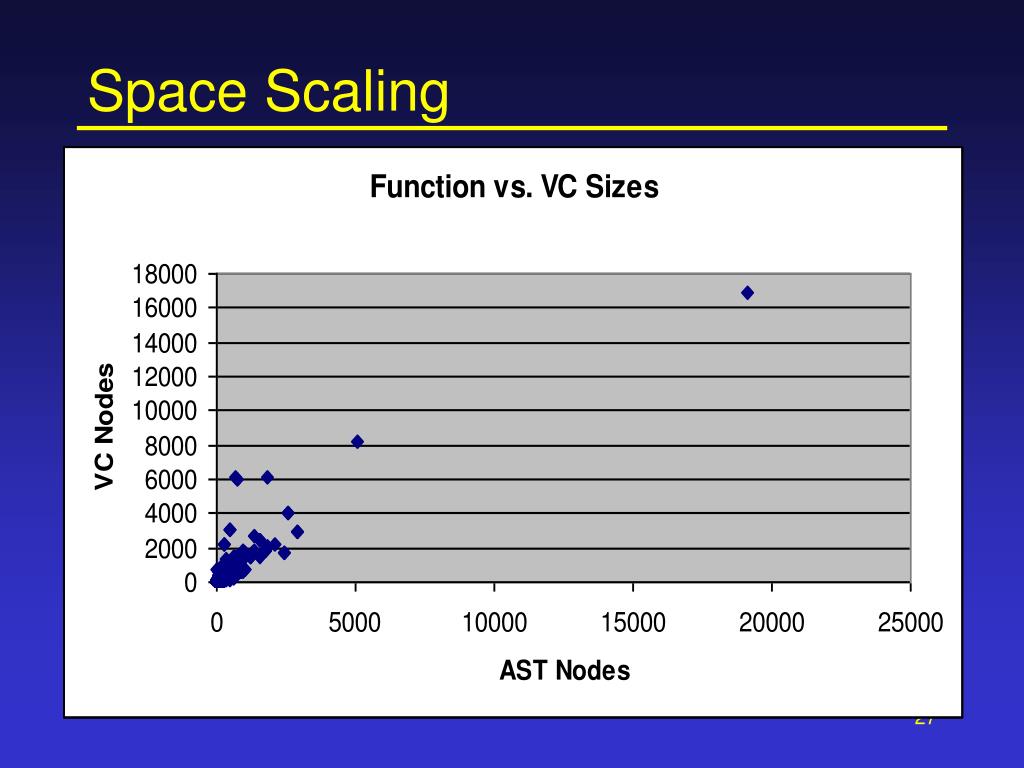

  • Like SSA, worst-case O(n2) but in practice O(n).

  • Best part: all of the VCs for a given procedure share the same assertion DAG.



So far so good
So far so good:

  • Of course, I've glossed over the hard bits:

    • loops

    • memory

    • procedures

  • Let's talk about loops first…


Widening
Widening:

  • Given AB, calculate some C such that A  C and B  C and |C| < |A|, |B|.

  • Then we can compute a fixed-point for loop invariants iteratively:

    • start with pre-condition P

    • process loop-test & body to get P'

    • see if P'  P. If so, we're done.

    • if not, widen PP' and iterate.

    • (glossing over variable scope issues.)


Our widening
Our Widening:

  • Conceptually, to widen AB

  • Calculate the DNF

  • Factor out syntactically common primitive relations:

    • In practice, we do a bit of closure first.

    • e.g., normalize terms & relations.

    • e.g., x==e expands to x  e  x  e.

  • Captures any primitive relation that was found on every path.


Widening algorithm take 1
Widening Algorithm (Take 1):

  • assn = Prim of reln*term*term

  • | True | False | And of assn*assn

  • | Or of assn*assn

  • widen (Prim(…)) = expand(Prim(…))

  • widen (True) = {}

  • widen (And(a1,a2)) = widen(a1)  widen(a2)

  • widen (Or(a1,a2)) =

  • widen(a1)  widen(a2)

  • ...

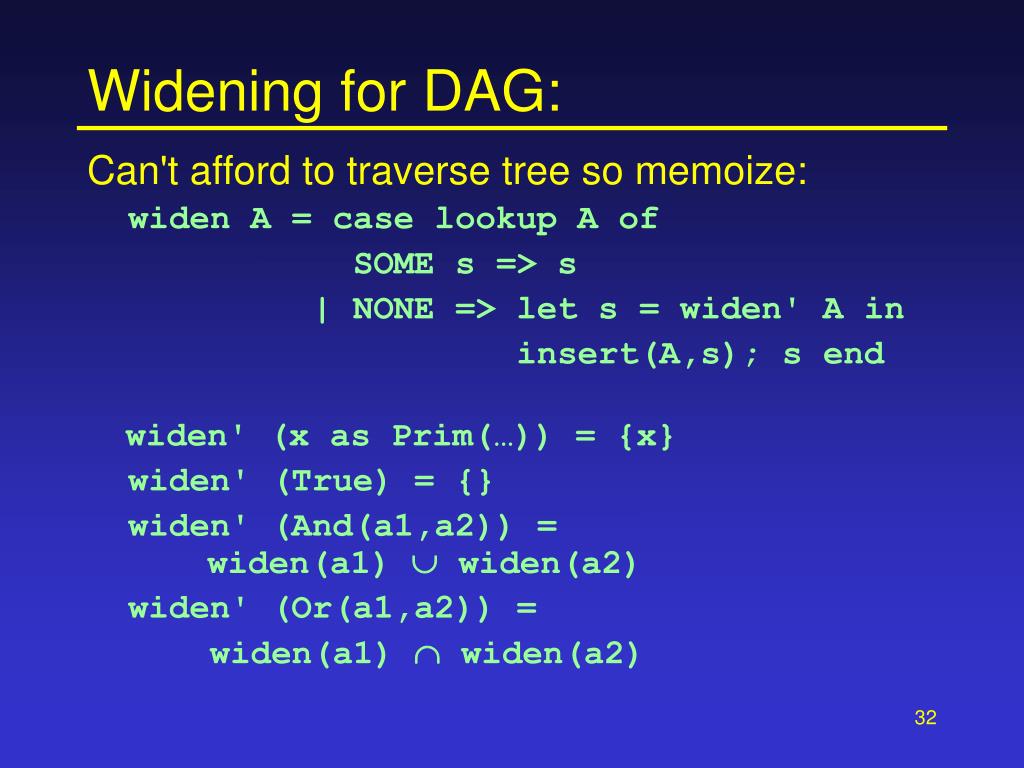

Widening for dag
Widening for DAG:

  • Can't afford to traverse tree so memoize:

  • widen A = case lookup A of

  • SOME s => s

  • | NONE => let s = widen' A in

  • insert(A,s); s end

  • widen' (x as Prim(…)) = {x}

  • widen' (True) = {}

  • widen' (And(a1,a2)) = widen(a1)  widen(a2)

  • widen' (Or(a1,a2)) =

  • widen(a1)  widen(a2)

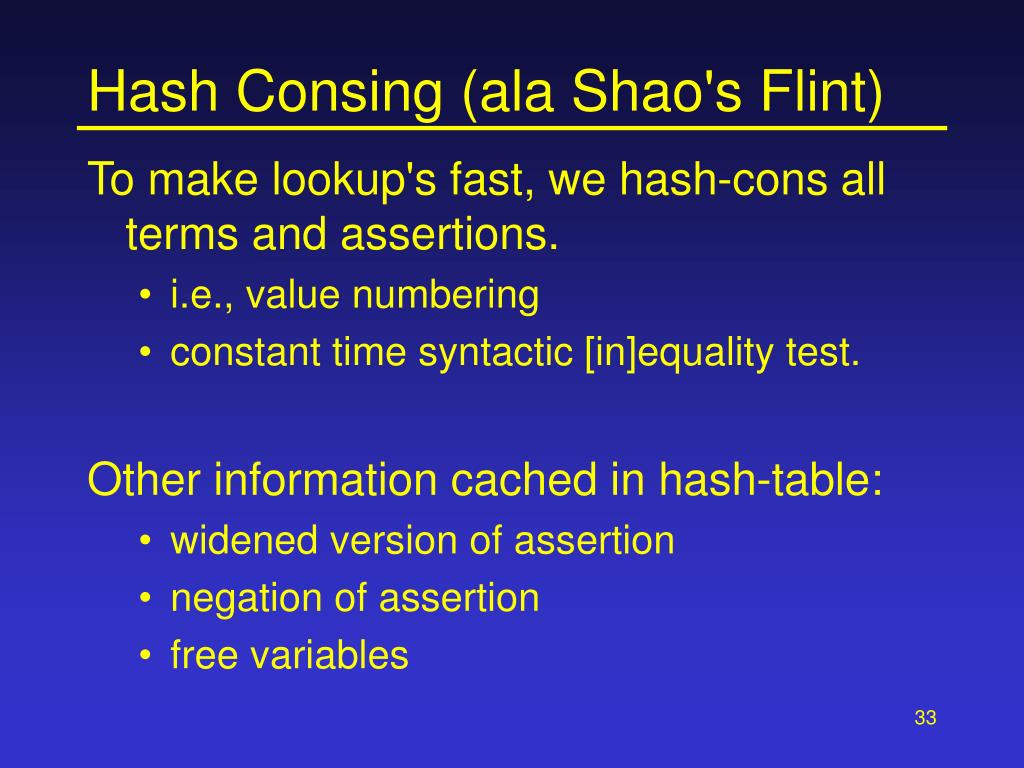

Hash consing ala shao s flint
Hash Consing (ala Shao's Flint)

  • To make lookup's fast, we hash-cons all terms and assertions.

    • i.e., value numbering

    • constant time syntactic [in]equality test.

  • Other information cached in hash-table:

    • widened version of assertion

    • negation of assertion

    • free variables


Note on explicit substitution
Note on Explicit Substitution

  • Originally, we used explicit substitution.

  • widen S (Subst(S',a)) = widen (S  S') a

  • widen S (x as Prim(…)) = {S(x)}

  • widen S (And(a1,a2)) = widen S a1  widen S a2

  • ...

  • Had to memoize w.r.t. both S and A.

    • rarely encountered same S and A.

    • result was that memoizing didn't help.

    • ergo, back to tree traversal.

  • Of course, you get more precision if you do the substitution (but it costs too much.)


Back to loops
Back to Loops:

  • The invariants we generate aren't great.

    • worst case is that we get "true"

    • we do catch loop-invariant variables.

    • if x starts off at i, is incremented and is guarded by x < e < MAXINT then we can get x >= i.

  • But:

    • covers simple for-loops well

    • it's fast: only a couple of iterations

    • user can override with explicit invariant(note: only 2 loops in string library annotated this way, but plan to do more.)

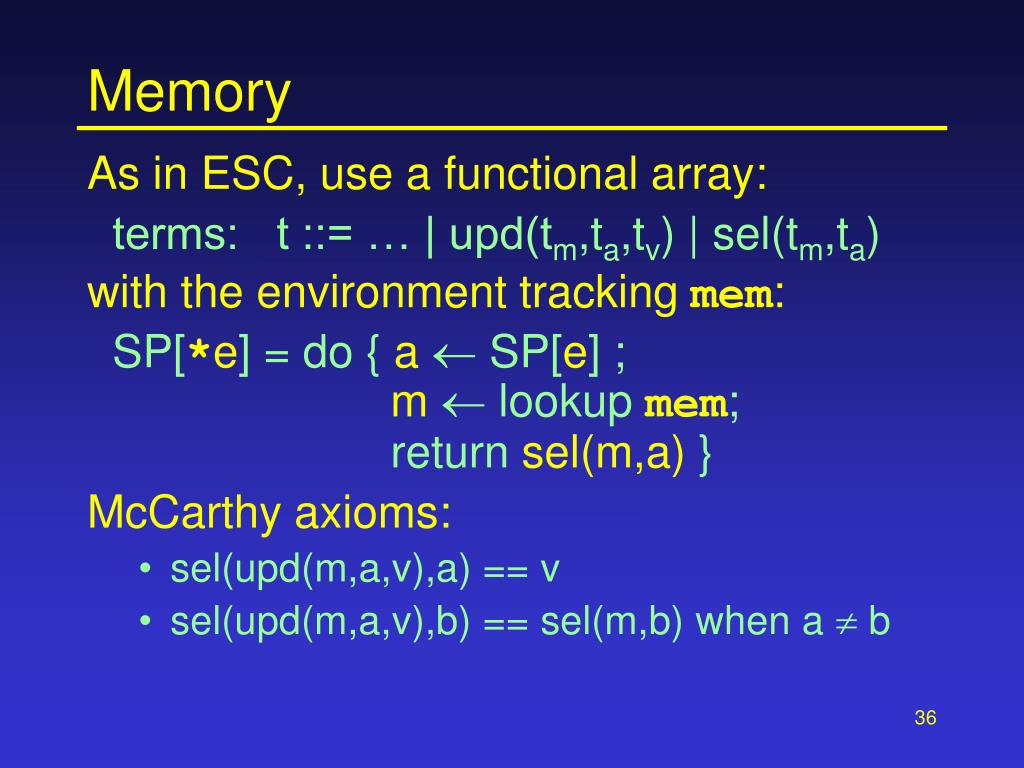

Memory
Memory

  • As in ESC, use a functional array:

  • terms: t ::= … | upd(tm,ta,tv) | sel(tm,ta)

  • with the environment tracking mem:

  • SP[*e] = do { a  SP[e]; m  lookupmem;return sel(m,a) }

  • McCarthy axioms:

    • sel(upd(m,a,v),a) == v

    • sel(upd(m,a,v),b) == sel(m,b) when a  b


The realities of c bite again
The realities of C bite again…

  • Consider:

  • pt x = new Point{1,2};

  • int *p = &x->y;

  • *p = 42;

  • *x;

  • sel(upd(upd(m,x,{1,2}), x+offsetof(pt,y),42),x) = {1,2} ??


Explode aggregates
Explode Aggregates?

  • update(m,x,{1,2}) =

  • upd(upd(m,x+offsetof(pt,x),1), x+offsetof(pt,y),2)

  • This turns out to be too expensive in practice because you must model memory down to the byte level.


Refined treatment of memory
Refined Treatment of Memory

  • Memory maps roots to aggregate values:

  • Aggregates: {t1,…,tn} | set(a,t,v) | get(a,t)

  • Roots: malloc(n,t)

  • where n is a program point and t is a term used to distinguish different dynamic values allocated at the same point.

  • Pointer expressions are mapped to paths:

  • Paths: path ::= root | path  t


Selects and updates
Selects and Updates:

  • Sel and upd operate on roots only:

  • sel(upd(m,r,v),r) = v

  • sel(upd(m,r,v),r') = sel(m,r') when r != r'

  • Compound select and update for paths:

  • select(m,r) = sel(m,r)

  • select(m,a  t) = get(select(m,a),t)

  • update(m,r,v) = update(m,r,v)

  • update(m, a  t, v) =

  • update(m, a, set(select(m,a),t,v))


For example1
For Example:

  • *x = {1,2};

  • int *p = &x->y;

  • *p = 42;

  • update(upd(m,x,{1,2}), xoff(pt,y), 42) =

  • upd(upd(m, x,{1,2}), x, set({1,2},off(pt, y), 42) =

  • upd(upd(m, x,{1,2}), x, {1,42})) =

  • upd(m, x,{1,42})


Reasoning about memory
Reasoning about memory:

  • To reduce:

  • select(update(m,p1,v),p2)) to select(m,p2)

  • we need to know p1and p2 are disjoint paths.

  • In particular, if one is a prefix of the other, we cannot reduce (without simplifying paths).

  • Often, we can show their roots are distinct.

  • Many times, we can show they are updates to distinct offsets of the same path prefix.

  • Otherwise, we give up.

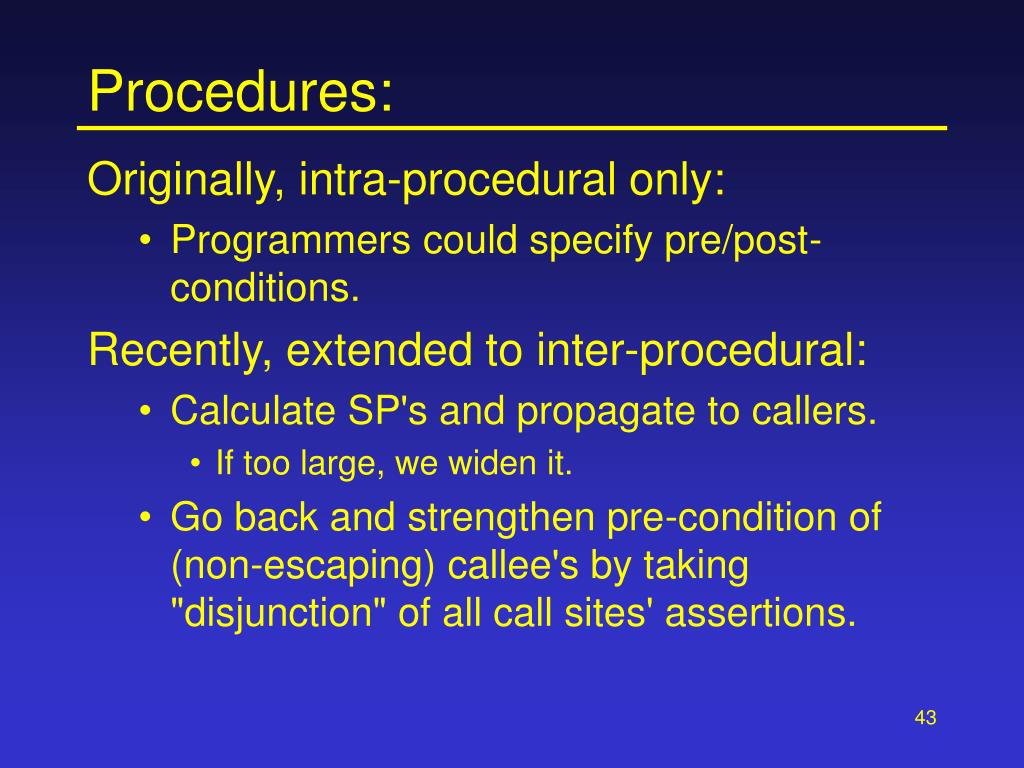

Procedures
Procedures:

  • Originally, intra-procedural only:

    • Programmers could specify pre/post-conditions.

  • Recently, extended to inter-procedural:

    • Calculate SP's and propagate to callers.

      • If too large, we widen it.

    • Go back and strengthen pre-condition of (non-escaping) callee's by taking "disjunction" of all call sites' assertions.


Summary of vc generation
Summary of VC-Generation

  • Started with textbook strongest post-conditions.

  • Effects: Rewrote as monadic translation.

  • Diamond: Factored variables into an environment to preserve sharing (SSA).

  • Loops: Simple but effective widening for calculating invariants.

  • Memory: array-based approach, but care to avoid blowing up aggregates.

  • Extended to inter-procedural summaries.


Proving
Proving:

  • Original plan was to use off-the-shelf technology.

    • eg., Simplify, SAT solvers, etc.

  • But found:

    • either didn't have decision procedures that I needed.

    • or were way too slow to use on every compile.

    • so like an idiot, decided to roll my own…


2 prover s
2 Prover(s):

  • Simple Prover:

  • Given a VC: A  C

  • Widen A to a set of primitive relns.

  • Calculate DNF for C and check that each disjunct is a subset of A.

  • (C is quite small so no blowup here.)

  • This catches a lot:

    • all but about 2% of the checks we eliminate!

    • void f(int @x) { …*x… }

    • if (x != NULL) …*x…

    • for (i=0; i < numelts(A); i++)…A[i]…


2nd prover
2nd Prover:

  • Given A  C, try to show A  C inconsistent.

  • Conceptually:

  • explore DNF tree (i.e., program paths)

    • the real exponential blow up is here.

    • so we have a programmer-controlled throttle on the number of paths we'll explore (default 33).

  • accumulate a set of primitive facts.

  • at leaves, run simple decision procedures to look for inconsistencies and prune path.


Problem arithmetic
Problem: Arithmetic

  • To eliminate an array bounds check on an expression x[i], we can try to prove a predicate similar to this:

    A  0 i < numelts(x)

    where A describes the state of the machine at that program point.


Do we need checks here
Do we need checks here?

  • char *malloc(unsigned n)

  • @ensures(n == numelts(result));

  • void foo(unsigned x) {

  • char *p = malloc(x+1);

  • for (int i = 0; i <= x; i++)

  • p[i] = ‘a’;

  • }

  • }

0  i < numelts(p)?

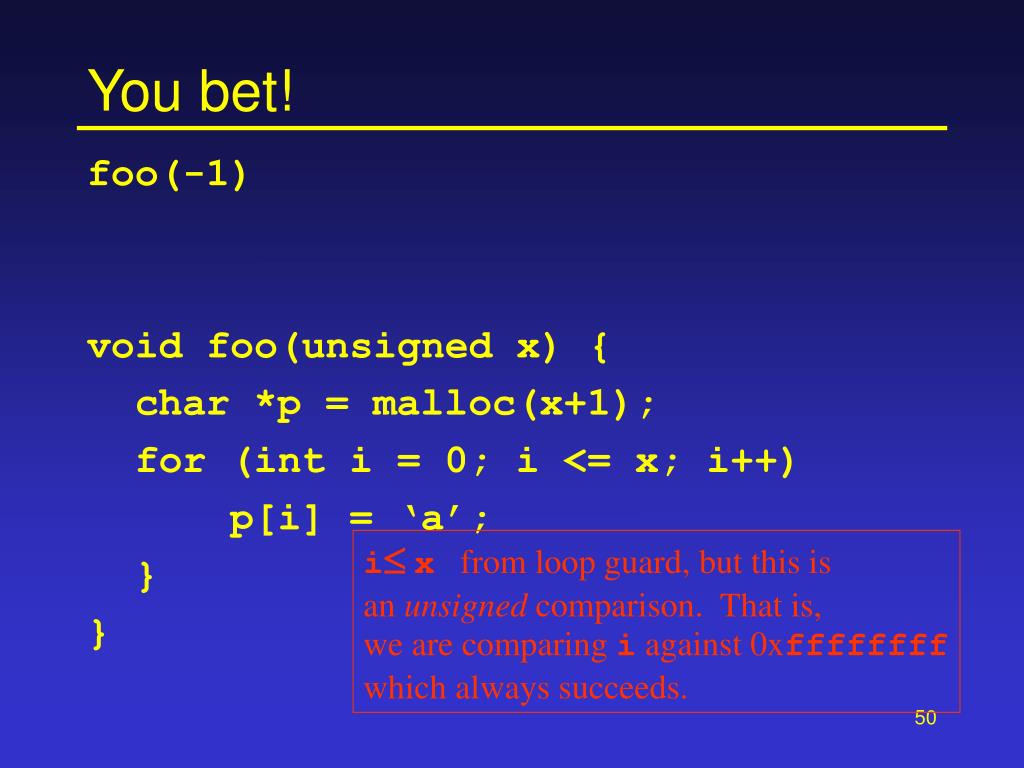

You bet
You bet!

  • foo(-1)

  • void foo(unsigned x) {

  • char *p = malloc(x+1);

  • for (int i = 0; i <= x; i++)

  • p[i] = ‘a’;

  • }

  • }

ix from loop guard, but this isan unsigned comparison. That is,

we are comparing i against 0xffffffffwhich always succeeds.


Integer overflow
Integer Overflow

  • This example is based on a vulnerability in the GNU mail utilities (i.e., IMAP servers)

  • http://archives.neohapsis.com/archives/ fulldisclosure/2005-05/0580.html

  • There are other situations where wrap-around gets you into trouble.

  • So we wanted to take machine arithmetic seriously.

  • Unfortunately, I haven't yet found a prover that I can effectively use. (If you know of any, please tell me!)


Our dumb arithmetic solver
Our (Dumb) Arithmetic Solver

  • Determines [un]satisfiability of a conjunction of difference constraints (similar to approach used by Touchstone & ABCD):

  • Constraints: x – yS c and x – yU  c

    • care needed when generating constraints

    • e.g., x + c <= y + k cannot (in general) be simplified to x - y  (k - c).

  • Algorithm tries to find cycles in the graphs:

  • x–x1U<= c1, x1– x2U<= c2, … , xn–xU<= cn

  • where c1+c2+…+cn < 0. That is, x–x < 0.

    • again, care needed to avoid internal overflow.


Future
Future?

  • We need provers as libraries/services:

    • can we agree upon a logic?

      • typed, untyped?

      • theories must include useful domains (e.g., Z mod).

    • can we agree upon an API?

      • sharing must be preserved

      • need incremental support, control over search

      • need counter-example support

      • need witnesses?

    • we can now generate some useful benchmarks.

      • multiple metrics: precision vs. time*space


Currently
Currently:

  • Memory?

    • The functional array encoding of memory doesn't work well.

    • Can we adapt separation logic? Will it actually help?

    • Can we integrate refinements into the types?

    • Work with A. Nanevski & L. Birkedal a start.

  • Loops?

    • Can we divorce VC-generation from theorem proving all together? (e.g., by compiling to a language with inductive predicates?)


False positives
False Positives:

  • We still have 2,000 checks left.

  • I suspect that most are not needed.

  • How to draw the eye to the ones that are?

    • strengthen pre-conditions artificially(e.g., assume no aliasing, overflow, etc.)

    • if we still can't prove the check, then it should be moved up to a "higher-rank" warning.


Lots of borrowed ideas
Lots of Borrowed Ideas

  • ESC M3 & Java

  • Touchstone, Special-J, Ccured

  • SPLint (LCLint)

  • FLINT

  • ABCD


More info
More info...

http://cyclone.thelanguage.org


ad
