Dr mrs nalini ramamurty king institute of preventive medicine chennai

Dr.Mrs.Nalini Ramamurty

King Institute of Preventive Medicine, Chennai

Quality assurance

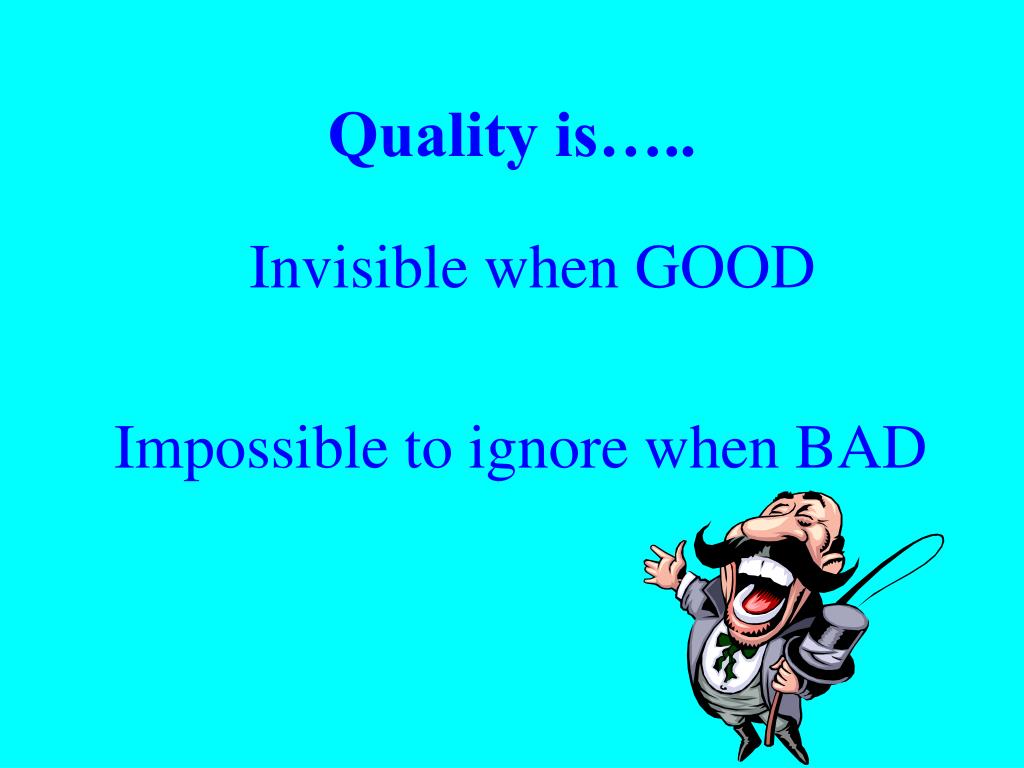

Quality is

Quality is…..

Invisible when GOOD

Impossible to ignore when BAD

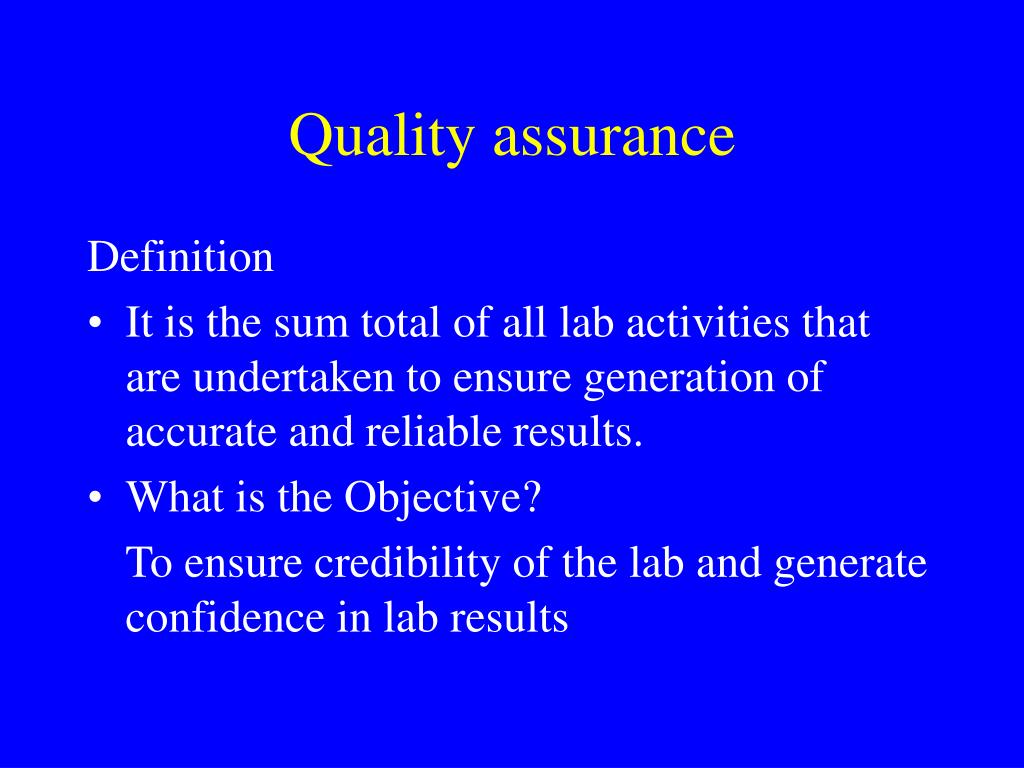

Quality assurance

Quality assurance


  • It is the sum total of all lab activities that are undertaken to ensure generation of accurate and reliable results.

  • What is the Objective?

    To ensure credibility of the lab and generate confidence in lab results

Components of quality assurance

Components of Quality assurance

  • Internal Quality control: IQC

    • Nature: Concurrent

    • performed by: lab staff

    • Objective: Reliable results on a daily basis

  • External quality assessment: EQA

    • Nature: Retrospective to evaluate IQC

    • Performed by: Independent agency

    • Objective: Ensure interlaboratory comparability

Quality systems

Quality systems


  • To prevent risks

  • To detect deviations

  • To correct errors

  • To improve efficiency

  • To reduce costs

    How : By establishing a quality manual defining

  • Organizational structure – Staff

  • Responsibilities

  • Procedures and processes

  • Resources

  • Documentation

The 5m s of quality

The 5M’s of Quality

  • Man

  • Material

  • Machinery

  • Manuals/Methodology ( SOP)

  • Motivation

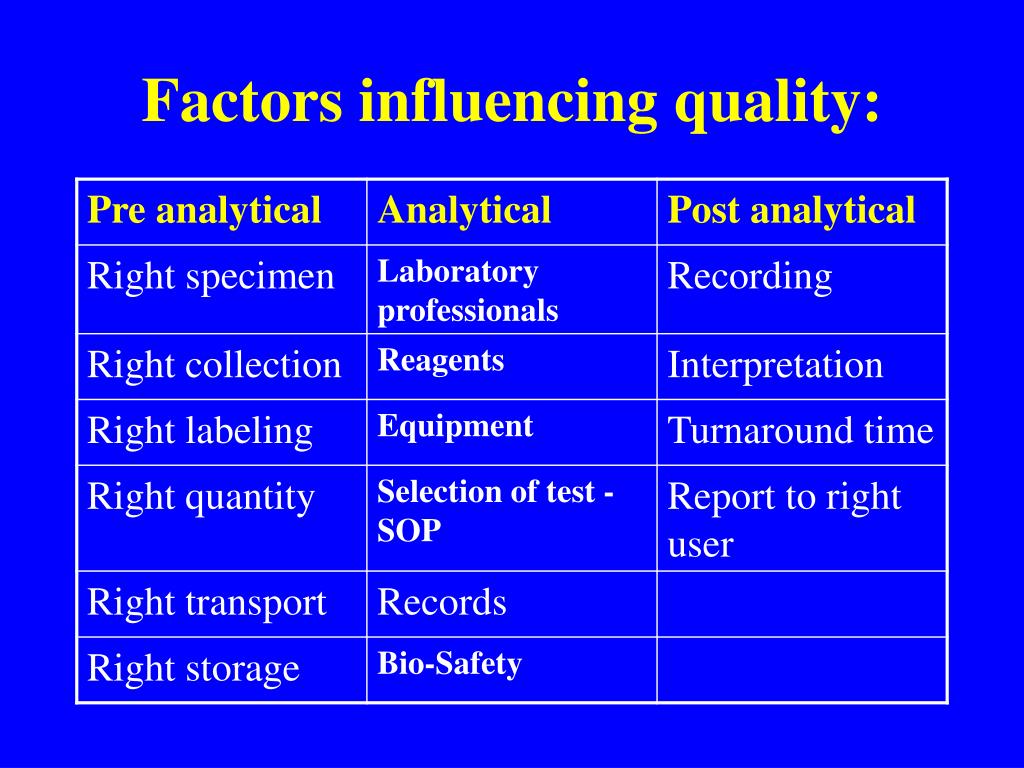

Factors influencing quality

Factors influencing quality:

Quality assurance1

Quality Assurance

Standard Operating Procedures

Standard operating procedure sops


An authorized written procedure giving instructions for performing operations not necessarily specific to a given process, product or material (e.g. equipment operation, maintenance and cleaning; validation; cleaning of premises and environmental control; sampling and inspection).

Standard operating procedures sops


  • Standard operating procedures describe in a detailed form the activities performed in the laboratory

  • Provide uniformity, consistency and reliability in each of the activities performed in the laboratory

  • Reduce systematic errors

  • Provide training and guidance for new staff

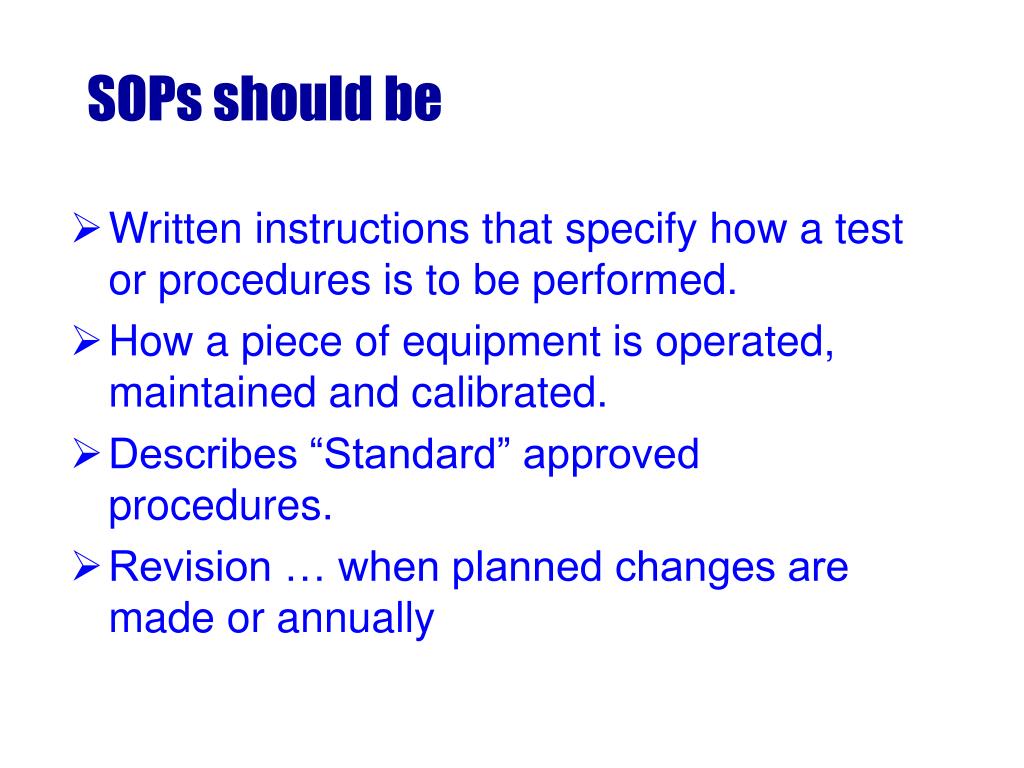

Sops should be

SOPs should be

  • Written instructions that specify how a test or procedures is to be performed.

  • How a piece of equipment is operated, maintained and calibrated.

  • Describes “Standard” approved procedures.

  • Revision … when planned changes are made or annually

Sops should be cont

SOPs should be (Cont..)

  • Original – maintained in a central file.

  • Copies – distributed to locations.

  • Written by the person performing the procedure or who knows the procedure well.

  • Supervisor review SOPs for completeness and content.

  • QA or QC staff approval

What should be covered under sop

What should be covered under SOP

  • General:Document Preparation (SOP for SOP)

  • Preparation and maintenance of work area

    • Washing and sterilization

    • Decontamination

    • Testing area

  • Receipt of samples,

    • Recording and labeling

    • Storage and discarding

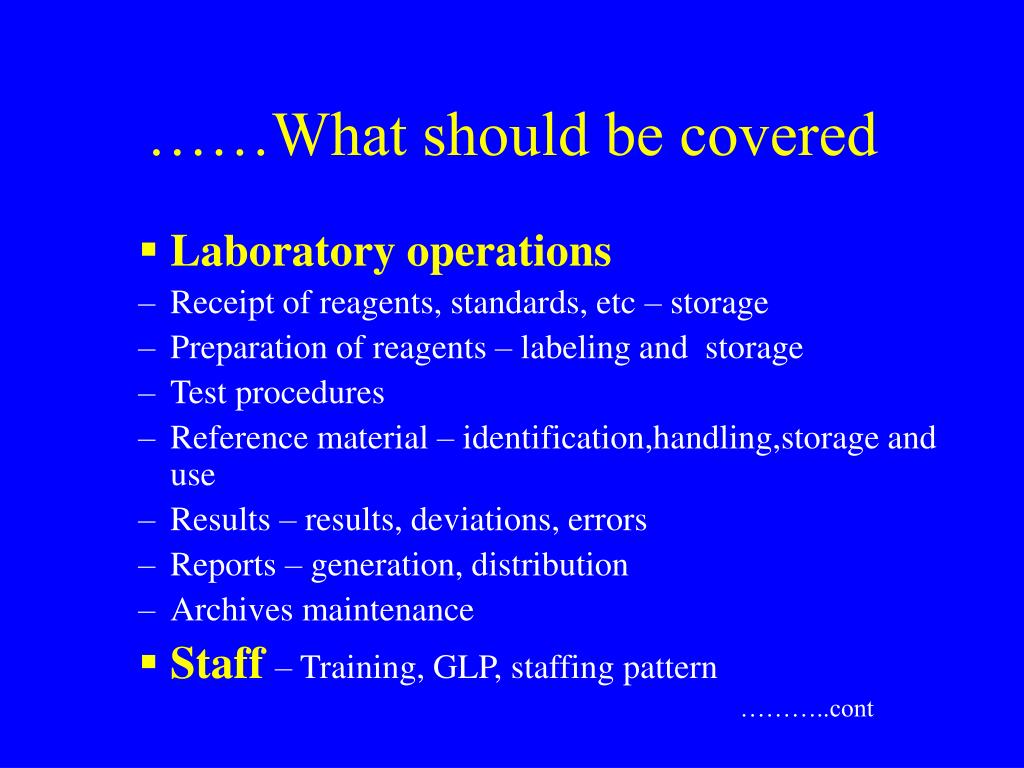

What should be covered

……What should be covered

  • Laboratory operations

  • Receipt of reagents, standards, etc – storage

  • Preparation of reagents – labeling and storage

  • Test procedures

  • Reference material – identification,handling,storage and use

  • Results – results, deviations, errors

  • Reports – generation, distribution

  • Archives maintenance

  • Staff – Training, GLP, staffing pattern


What should be covered1

……What should be covered

  • Equipments

  • Indent, purchase, installation and validation

  • Maintenance

    • Daily checks and records

    • Periodic calibration and validation

    • Trouble shooting and action to be taken

    • Annual maintenance

    • In case of accidents – action to be taken


What should be covered2

……What should be covered

  • Deviations

  • Planned deviations

  • Unplanned deviations

  • Variance

  • Errors

  • Record of all the above – Action taken

Format of an sop

Format of an SOP

Title: descriptive

Code : Number relating to procedure and revisions

Objective : Aim of the procedure clearly described

Scope : The operating unit and field of application

Definitions: Meaning of principle terms used

Description : Operating instructions clearly described without any ambiguity, understood by all staff with flow diagrams

Safety : Measures to be kept in mind when executing the SOP

Documentation : Protocol, Data sheets and measurements

References : Used to draw up the SOP

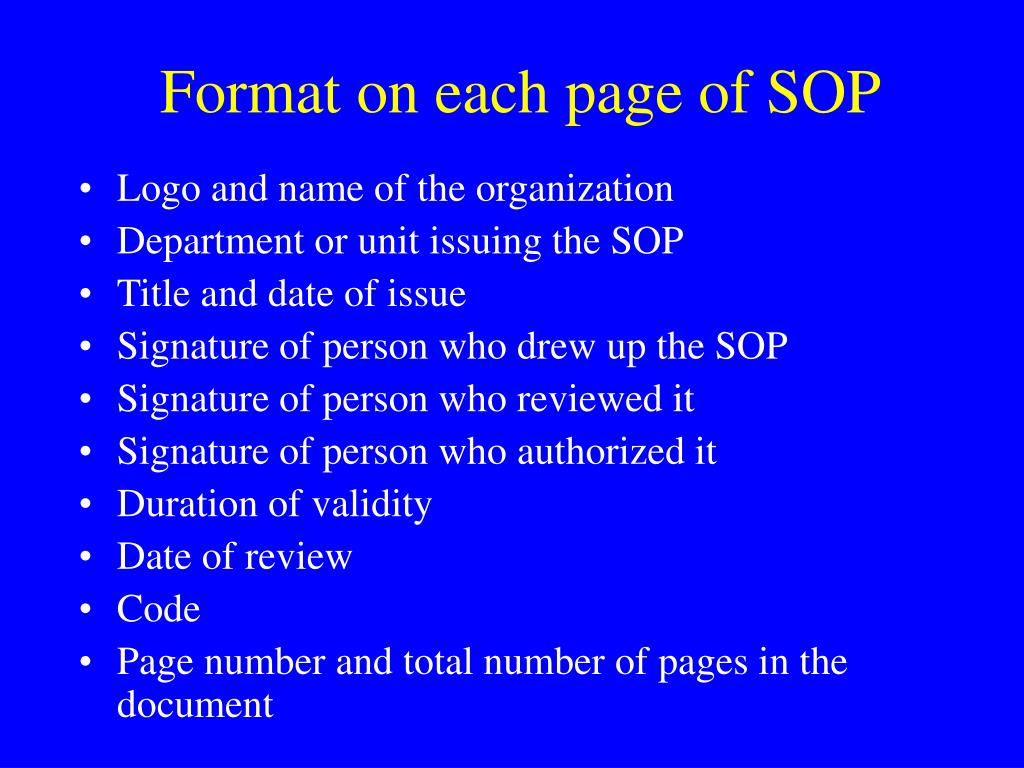

Format on each page of sop

Format on each page of SOP

  • Logo and name of the organization

  • Department or unit issuing the SOP

  • Title and date of issue

  • Signature of person who drew up the SOP

  • Signature of person who reviewed it

  • Signature of person who authorized it

  • Duration of validity

  • Date of review

  • Code

  • Page number and total number of pages in the document

Quality assurance 5418

King Institute of Preventive Medicine,

National Polio Laboratory - Department of Virology,

Standard Operating Procedure - 001






Date of issue of this version:1/4/2003 Page Number 1/4

Objectives: Procedure to be followed for receiving and storing stool samples of AFP Cases.

Scope: This document contains the procedure that is adopted when stool specimens are received from

cases of AFP from Tamilnadu, Andhra Pradesh, Pondicherry, Andaman & Nicobar.


 Stool sample carrier – marked with red for stool samples only

Deep freezer –20 (1) – preparation of ice pack

Refrigerator No.3 – for pre processing storage of samples

LRF – Lab request form.

AFP – Acute flaccid paralysis.

Place of testing:


Tech/Scientist incharge Checked by Authorized by



Main objective

to establish, monitor and record “Quality” for all aspects of Good Laboratory Practices and Quality Control”.

Type of documents

Standard operating procedures

Protocols of tests, results


If you have not documented it you have not done it

“IF you have not documented it you have not done it”

Laboratory records

  • Description and identification of sample received

  • Description of method of testing

  • Record of all data secured in the course of the test

  • Record of test results and how they compare with standards of identity, strength and quality

  • Record of all deviations and modification of test

  • Record of standardization of reference standards

  • Record of calibration of equipments

Quality assurance 5418

  • FDA CFR 211 - Sec. 211.194 Laboratory Records (In part).

  • Laboratory records shall include complete data derived from all tests necessary to assure compliance with established specifications and standards, including examinations and assays, as follows:

  • A description of the sample received for testing with identification of source (that is, location from where sample was obtained), quantity, lot number, date sample was taken, and date sample was received for testing.

  • A statement of each method used in the testing of the sample. The suitability of all testing methods used shall be verified under actual conditions of use.

  • A complete record of all data secured in the course of each test, including all graphs, charts, and spectra from laboratory instrumentation, properly identified to show the lot tested.

Quality assurance 5418

  • A record of all calculations performed in connection with the test, including units of measure, conversion factors etc.

  • Results of tests and how the results compare with established standards of identity, strength, quality, and purity.

  • The initials or signature of the person who performs each test and the date(s) the tests were performed.

  • The initials or signature of a second person showing review for accuracy, completeness, and compliance

  • Complete records shall be maintained of any modification of an established method employed in testing.

  • Complete records shall be maintained of any testing and standardization of laboratory reference standards, reagents, and standard solutions.

  • Complete records shall be maintained of the periodic calibration of laboratory instruments and recording devices

Sop for material and reference standards control

SOP for material and reference standards control

Material control

Material Control

  • Specification For Raw Materials

  • Specification For Supplies/Disposables

  • Inspection & Acceptance Criteria For Supplies/ Disposables/Raw Material.

  • Inventory Control Procedures For Supplies/Disposables.

Quality assurance 5418

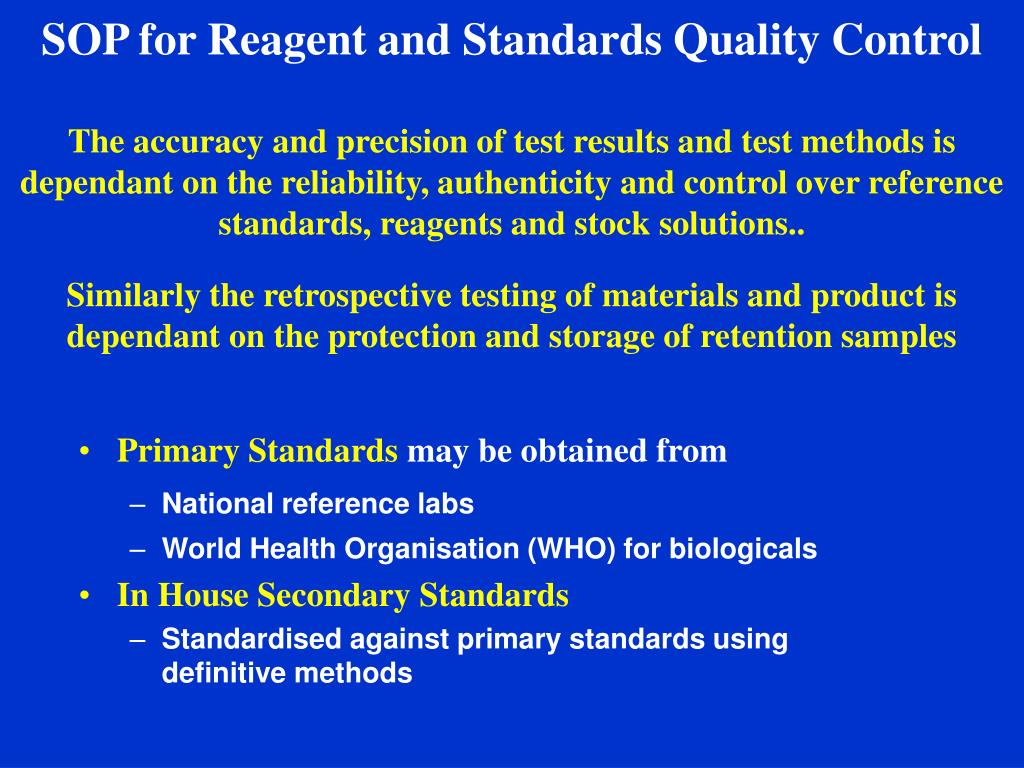

SOP for Reagent and Standards Quality ControlThe accuracy and precision of test results and test methods is dependant on the reliability, authenticity and control over reference standards, reagents and stock solutions..Similarly the retrospective testing of materials and product is dependant on the protection and storage of retention samples

  • Primary Standards may be obtained from

    • National reference labs

    • World Health Organisation (WHO) for biologicals

  • In House Secondary Standards

    • Standardised against primary standards using definitive methods

Quality assurance 5418

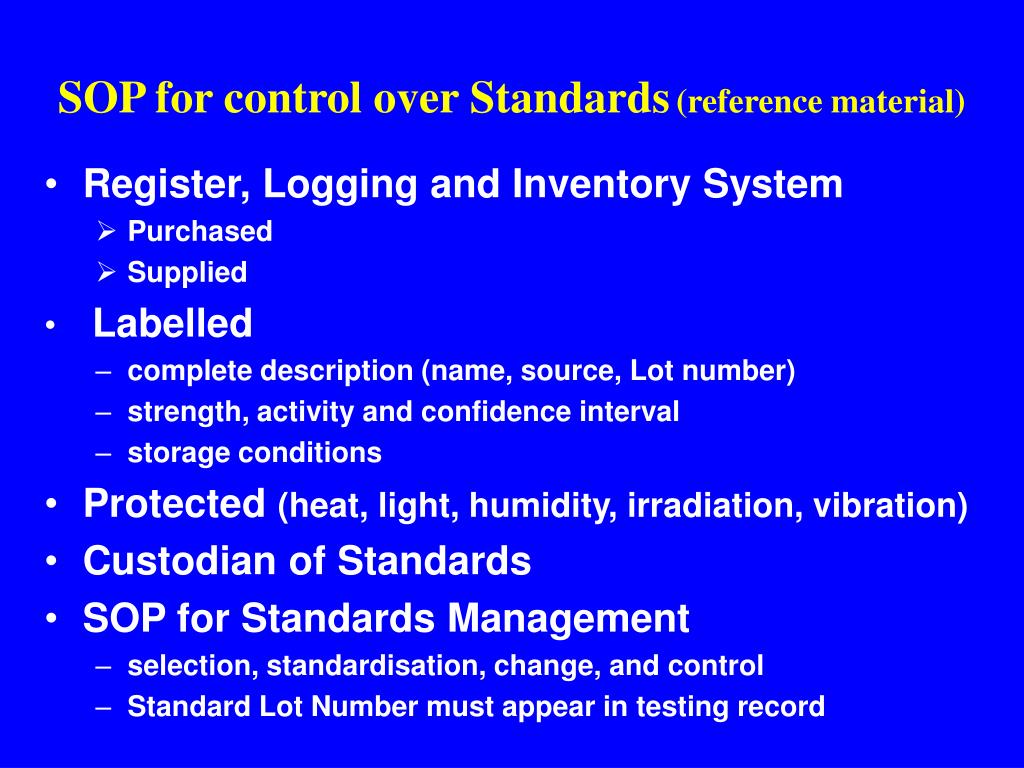

SOP for control over Standards(reference material)

  • Register, Logging and Inventory System

    • Purchased

    • Supplied

  • Labelled

    • complete description (name, source, Lot number)

    • strength, activity and confidence interval

    • storage conditions

  • Protected (heat, light, humidity, irradiation, vibration)

  • Custodian of Standards

  • SOP for Standards Management

    • selection, standardisation, change, and control

    • Standard Lot Number must appear in testing record

Quality assurance 5418

SOP for Standard Solutions & Reagents

  • QC Program for Incoming Lots of Reagents

  • Standard Procedure for Preparation (BP and USP)

  • Records of Standardisation

  • Storage and Protection Conditions

  • Validated expiry or re-standardisation date

  • Complete labelling; each standard or stock solution must be labelled with:

    • Standard Name

    • Batch Number

    • Date of preparation

    • Date of expiry

    • Storage conditions

    • Strength

Sop for laboratory control

SOP for Laboratory Control

  • Record Review : Quality Monitors

  • Review & Trending Of Error Reports

  • Review Of Field Complaints

  • Review Of Quality Control Data

  • Internal Audits : Review Trends

Quality assurance is a dynamic process

Quality Assurance is a dynamic process

It is a journey

towards the destination

Quality assurance 5418

Thank you

Quality assurance2

Quality assurance

Equipment Management

How does good equipment management affect quality assurance

How does good equipment management affect Quality assurance

  • Ensures reliable test results and customer satisfaction thus credibility of the lab

  • Reduces interruption of services and delays in reporting due to breakdowns

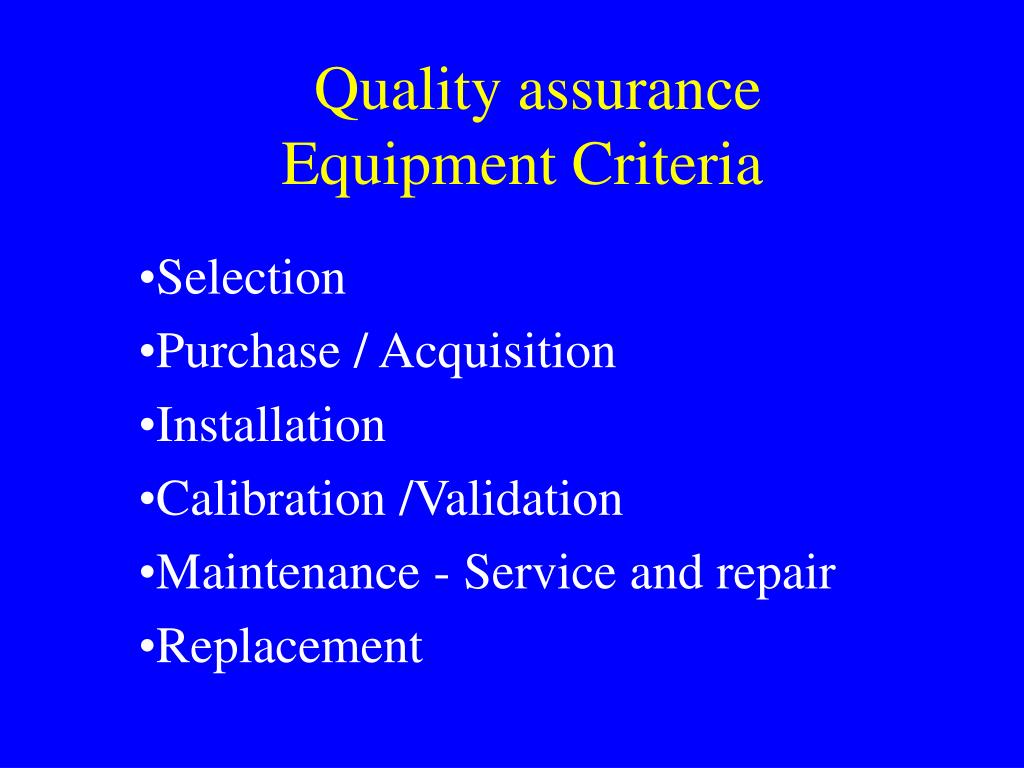

Quality assurance equipment criteria

Quality assurance Equipment Criteria


Purchase / Acquisition


Calibration /Validation

Maintenance - Service and repair

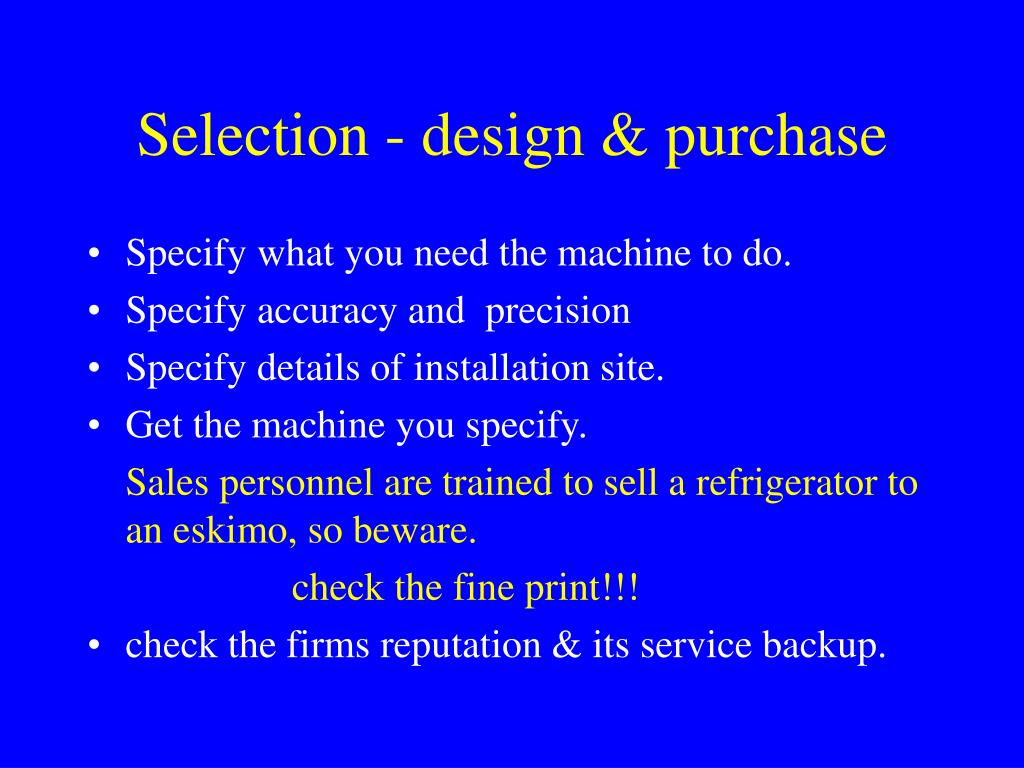

Selection design purchase

Selection - design & purchase

  • Specify what you need the machine to do.

  • Specify accuracy and precision

  • Specify details of installation site.

  • Get the machine you specify.

    Sales personnel are trained to sell a refrigerator to an eskimo, so beware.

    check the fine print!!!

  • check the firms reputation & its service backup.

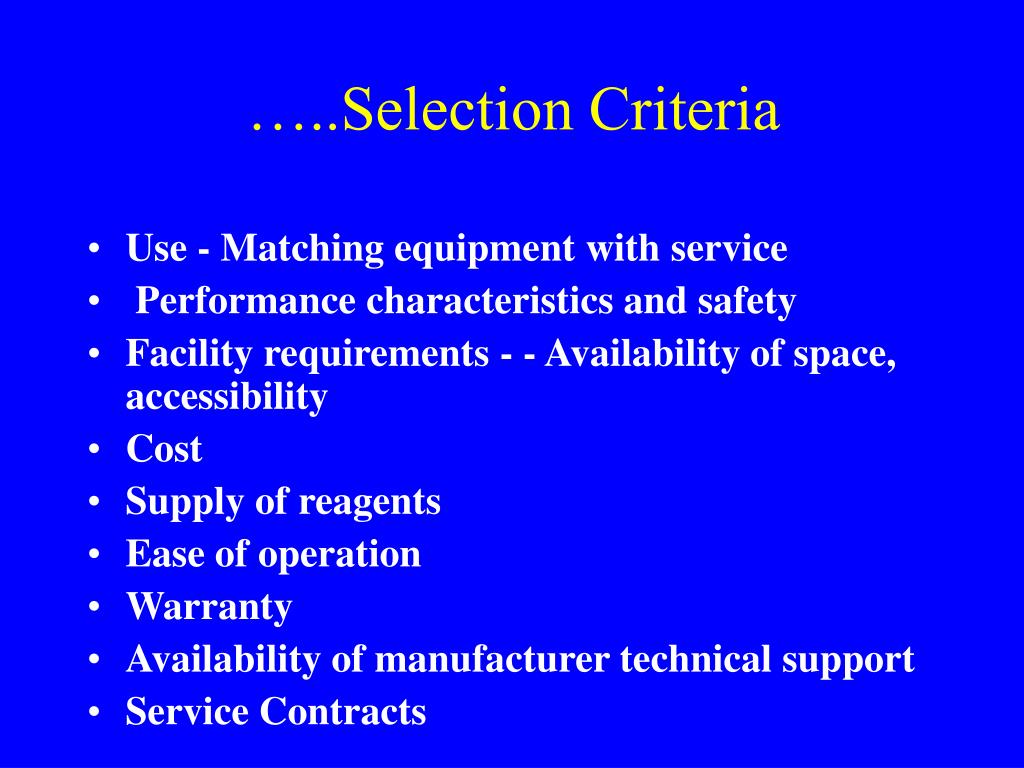

Selection criteria

…..Selection Criteria

  • Use - Matching equipment with service

  • Performance characteristics and safety

  • Facility requirements - - Availability of space, accessibility

  • Cost

  • Supply of reagents

  • Ease of operation

  • Warranty

  • Availability of manufacturer technical support

  • Service Contracts

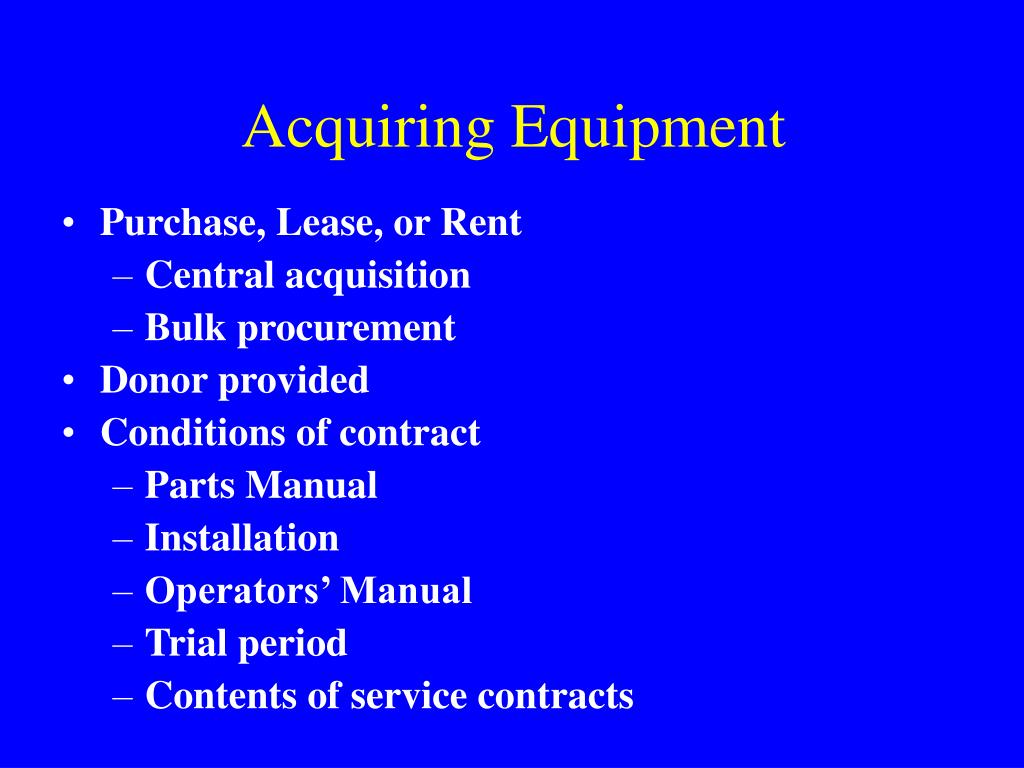

Acquiring equipment

Acquiring Equipment

  • Purchase, Lease, or Rent

    • Central acquisition

    • Bulk procurement

  • Donor provided

  • Conditions of contract

    • Parts Manual

    • Installation

    • Operators’ Manual

    • Trial period

    • Contents of service contracts

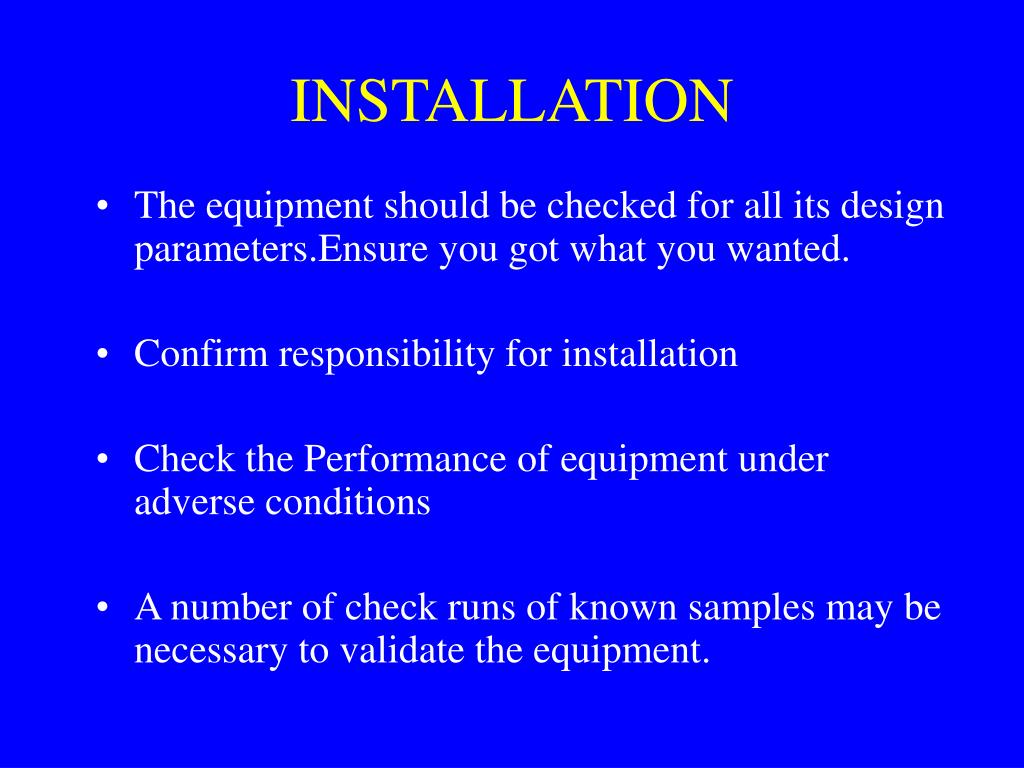

  • The equipment should be checked for all its design parameters.Ensure you got what you wanted.

  • Confirm responsibility for installation

  • Check the Performance of equipment under adverse conditions

  • A number of check runs of known samples may be necessary to validate the equipment.

Post installation

Post Installation

  • Establish inventory record

  • Define conditions

  • Develop and implement SOP for calibration, performance verification, and operating procedures

  • Establish maintenance program

  • Provide training for all operators – trouble shoot

Performance checks


Equipment performance degrades over time.

  • Check the equipment regularly for its performance – daily, weekly, monthly etc.

    • Eg; Autoclave: Daily use - autoclave indicator tapes

      - Monthly validation by BI

  • Performance checks must be conducted after repair of equipment before putting it into routine use.

  • Ensure a cleaning programme after each use

  • Determine frequency of routine calibration

Economics of maintenance

Economics of maintenance

Maintenance is a costly activity.

  • How much maintenance is needed?

  • Extent of the maintenance facilities and strength of maintenance squad.

  • When and how often ??

  • Is centralized maintenance desirable? or

    - Should maintenance be done only by out side contractors.

Equipment management program

Equipment Management program

  • Assign responsibilities for all activities

    • Routine maintenance

    • Preventive maintenance

  • Train all personnelon equipment management

  • Develop standard operating proceduresfor maintenance

  • Maintain history card and logbooks

  • Monitor equipment management activities :

    • Routinely reviewing all records

    • Ensuring all procedures are followed

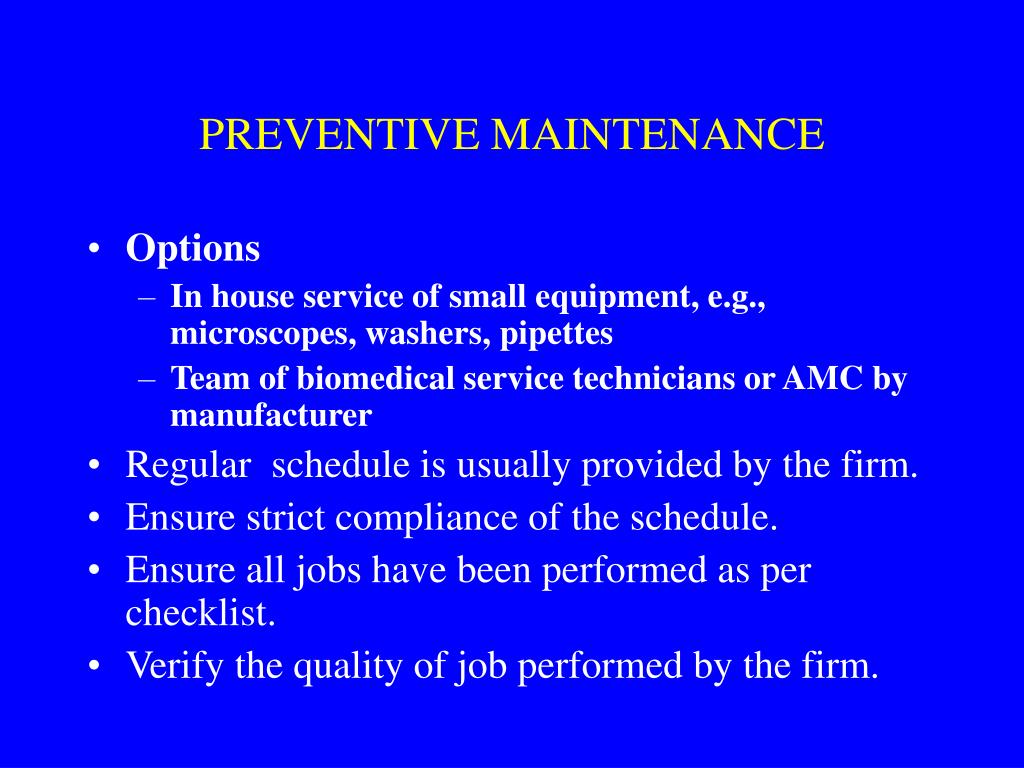

Preventive maintenance


  • Options

    • In house service of small equipment, e.g., microscopes, washers, pipettes

    • Team of biomedical service technicians or AMC by manufacturer

  • Regular schedule is usually provided by the firm.

  • Ensure strict compliance of the schedule.

  • Ensure all jobs have been performed as per checklist.

  • Verify the quality of job performed by the firm.

Equipment maintenance documents and records

Equipment Maintenance : Documents and records

  • Equipment History card :A record for equipment inventory

    • Name, Model #, Serial #

    • Location in lab

    • Date purchased

    • Manufacturer and vendor contact information

    • Warranty, expiration date

    • Spare parts

      For each piece of equipment:

      • Establish routine maintenance plan

      • Establish required function checks

      • Develop a list of spare parts

Equipment maintenance documents and records1

Equipment Maintenance : Documents and records

  • Develop written procedures for all equipment

    • Concise step-by-step instructions

  • Establish maintenance record to track:

    • function checks and routine maintenance

    • calibration

    • manufacturer’s service

    • Nature of Records

      • Charts and graphs

      • Logs

      • Checklists

      • Service Reports

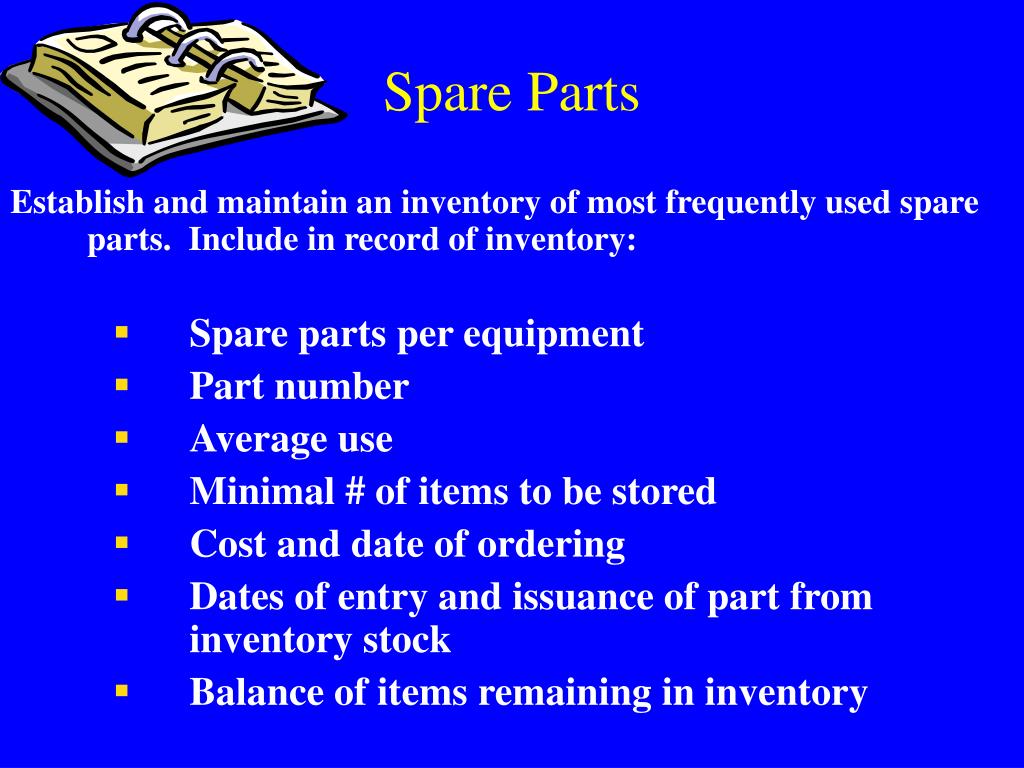

Spare parts

Spare Parts

Establish and maintain an inventory of most frequently used spare parts. Include in record of inventory:

  • Spare parts per equipment

  • Part number

  • Average use

  • Minimal # of items to be stored

  • Cost and date of ordering

  • Dates of entry and issuance of part from inventory stock

  • Balance of items remaining in inventory

When in problem what needs to be done

When in problem what needs to be done

  • Do NOT use the equipment

  • Options for testing:

    • Refer samples to nearby laboratory

    • Obtain backup instrument from central stores

    • Store samples appropriately

  • Seek help from manufacturer or other technical expert

  • Place a malfunction notice on equipment

When in problem what needs to be done trouble shoot

When in problem what needs to be done? TROUBLE SHOOT

  • Does the equipment display any error messages.

  • Check manufacturers instruction

  • Could you identify the cause to the problem - a fluctuation in power supply, temperature, water, reagent problem, sample problem etc - MAKE ONE CHANGE AT A TIME)

  • Inform the maintenance department / firm giving all details

  • Have the engineer prepare a detailed service report

  • After rectification have all performance checks done.

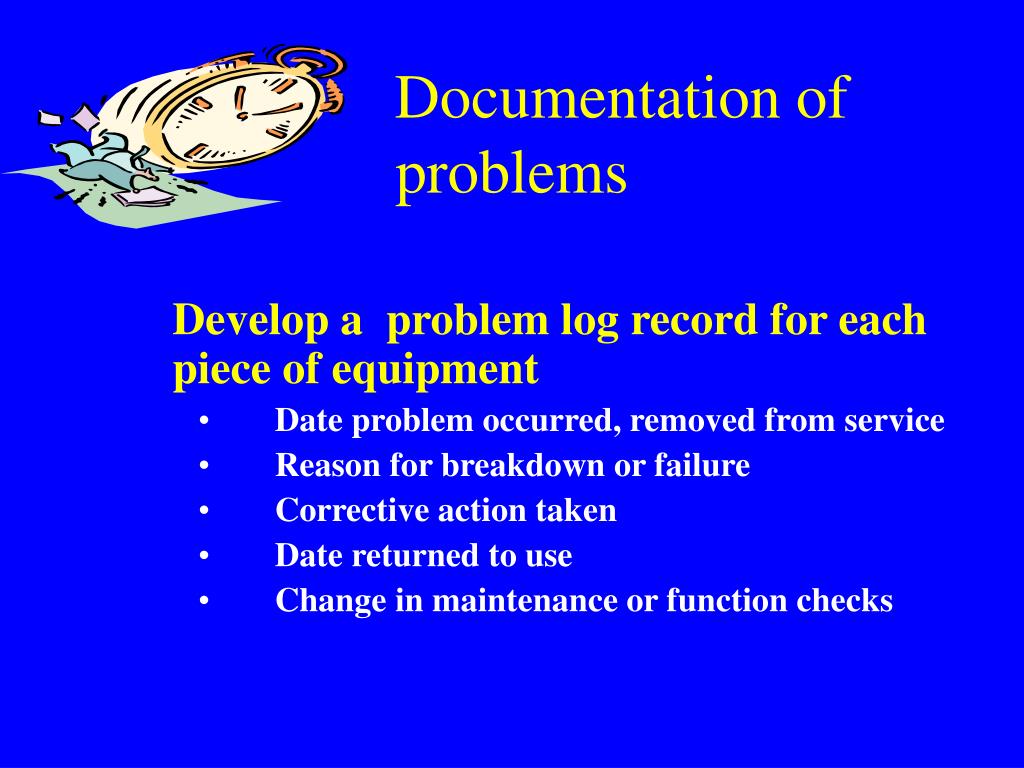

Documentation of problems

Documentation of problems

Develop a problem log record for each piece of equipment

  • Date problem occurred, removed from service

  • Reason for breakdown or failure

  • Corrective action taken

  • Date returned to use

  • Change in maintenance or function checks

Quality assurance 5418

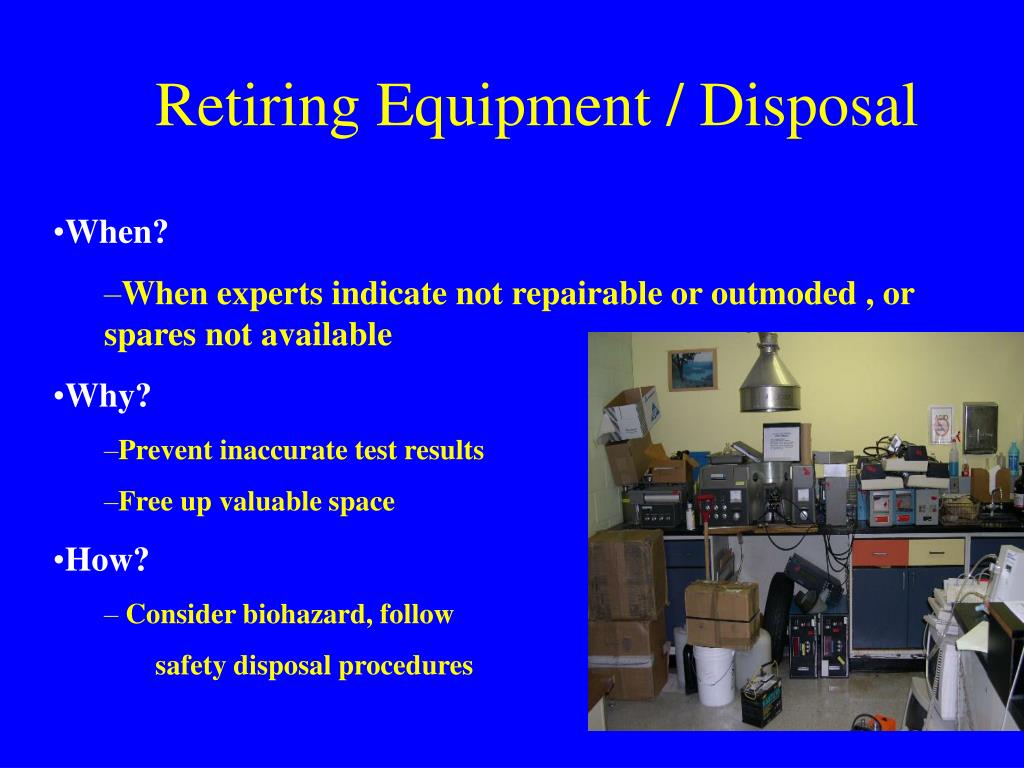

Retiring Equipment / Disposal

  • When?

    • When experts indicate not repairable or outmoded , or spares not available

  • Why?

    • Prevent inaccurate test results

    • Free up valuable space

  • How?

    • Consider biohazard, follow

    • safety disposal procedures

Benefits of a maintenance program

Benefits of a Maintenance Program

  • Greater confidence in the results

  • Safety

  • Fewer interruptions of work

  • Lower repair costs

  • Elimination of premature replacement

  • Reduction of variation in test results

Quality assurance is responsibility of

Quality Assurance is responsibility of….

All Staff

Common laboratory equipment















Maintenance of refrigerators freezers and walk in cold rooms


  • Maintain daily record of temperature

  • Ensure regular defrosting of the cabinets.

  • Fans of walk in cold rooms need to be regularly oiled and cleaned.

  • Check the compressors for unusual sound or over heating and report it to the firm (even though the equipment is performing).

  • Do not over pack the refrigerators or freezers

Incubators walk in incubators carbon dioxide incubators


  • Maintain daily temperature record

  • Clean regularly

  • Water used to maintain humidity may become contaminated. should be changed regularly.

  • Record the CO2 concentration daily. Check pressure in CO2 cylinder

  • Do not overload

Steam sterilizers


  • Use only distilled water for steam generation

  • Ensure valves and door gasket are not leaking.

  • Special attention needs to be given to the drain line and the steam trap.

  • Do not over pack. Allow free circulation of steam

  • Open the autoclave only after the pressure drops.

  • Use separate autoclaves for decontamination and sterilization or use at different times for each.

  • check the sterilizer regularly with Biological indicators – spore strips/ampoules.

Biological safety cabinets


  • Do not overcrowd the cabinet

  • Switch on the airflow 15 mins prior to use. Check the manometer reading and record

  • Ensure the cabinet is cleaned and disinfected at the end of each use.

  • Maintain log book and record the daily usage.

  • Entrust the maintenace to an AMC. HEPA filters are to be checked at regular intervals for their efficiency and replaced when indicated.

  • Record the use of UV light and replace regularly

Biological safety cabinets1


  • Primary or pre-filters are changed when the cabinet air flow is low or uneven

  • Decontaminate the cabinet before changing the filters or any work on motor or fans by fumigation.

  • A notice showing “cabinet decontaminated and not to be used” should be displayed.

  • Used filters are sealed by placing in plastic or tough paper bags and discarded.

  • Do not attempt to change filters with unskilled work force it is a specialized job.

  • Ensure certification and validation after each replacement – DOP and sterility tests

Microscope balance


  • These equipment are susceptible to dust, and humidity- Keep covered when not in use

  • Balances are also susceptible to vibration - Place on stable table top.

  • voltage fluctuations should be the checked

  • Periodically calibrate the balance with standards.

  • Sophisticated microscopes and balances should be placed under AMC and thoroughly checked and cleaned every 6 months.

  • Login
