Ferret: RFID Localization for Pervasive Multimedia

Xiaotao Liu,

Mark Corner, Prashant Shenoy

University of Massachusetts, Amherst


Scenario i ve lost my keys l.jpg
Scenario: I’ve Lost my Keys

  • People frequently misplace common items

    • books, keys, tools, clothing, etc.

    • difficult due to the sheer scale: we interact with >1000s of items

  • Need a system to find objects quickly and efficiently

    • then tell the user where the object is


Problems l.jpg
Problems

  • Tracking objects can be broken into sub-problems

    • Locate: find position, perhaps not exact, but a general idea

    • Store: keep object locations in a convenient place

    • Update: when objects move, need to change store

    • Display: Present locations to user in a helpful way


Solution ferret l.jpg
Solution: Ferret

  • Provides a real-time augmented reality service

    • locates, stores, updates, and displays object locations

    • intended for nomadic objects not mobile ones

  • Leverage passive RFID, multimedia, and location systems

    • passive RFID: inexpensive, scalable, maintenance-free

    • multimedia systems: provide convenient display and storage

    • location systems: bootstrap process of finding locations

  • Goal is to pack all functions into a hand held device

    • including RFID detection, storage, and display

    • a combination of video camera and RFID reader


Outline l.jpg
Outline

  • Motivation and Applications

  • Overview of Use

  • Design of Ferret

    • Sensor model

    • Offline location algorithm

    • Online location algorithm

    • Display

    • In paper: Storage, Update for nomadic objects

  • Prototype implementation

  • Experiments

    • Speed and accuracy

    • Robustness to different movement patterns

  • Related Work

  • Conclusions


Overview of operation l.jpg

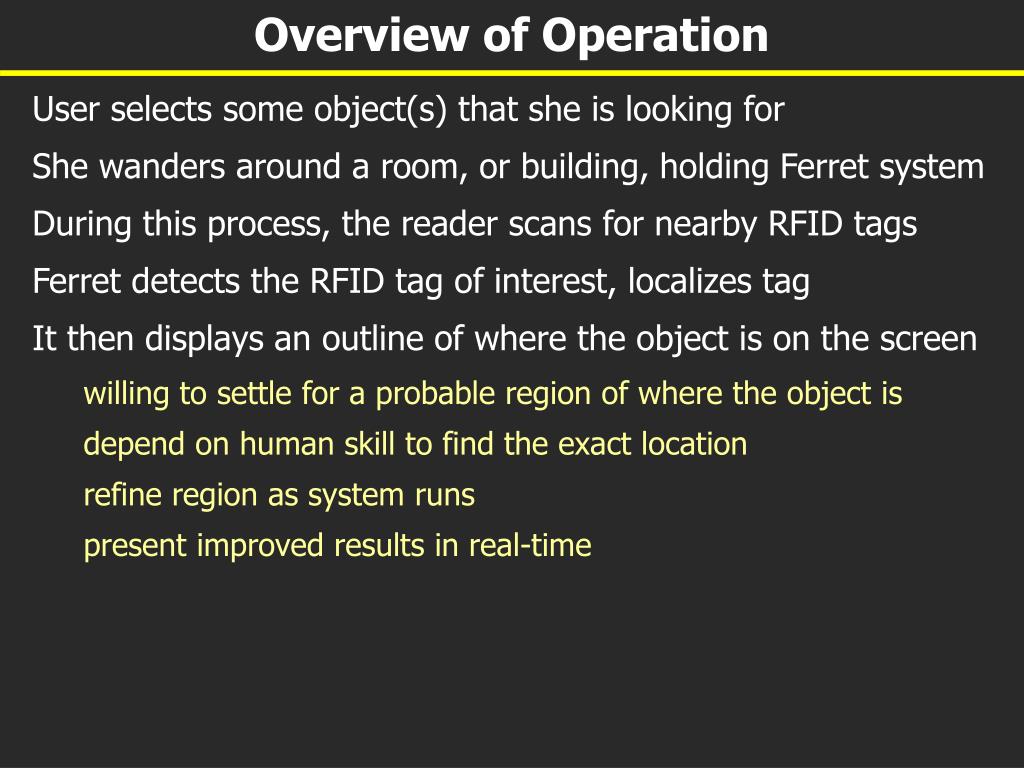

Overview of Operation

  • User selects some object(s) that she is looking for

  • She wanders around a room, or building, holding Ferret system

  • During this process, the reader scans for nearby RFID tags

  • Ferret detects the RFID tag of interest, localizes tag

  • It then displays an outline of where the object is on the screen

    • willing to settle for a probable region of where the object is

    • depend on human skill to find the exact location

    • refine region as system runs

    • present improved results in real-time


Rfid localization l.jpg
RFID Localization

1. energy

3. id

2. use RF energy

to charge up

  • Passive RFID tags are not self-locating

  • Instead we depend on the handheld to locate tags

  • Passive RFID tags have significant error rates

    • false negatives are frequent

    • false positives due to reflections

  • Locate using probabilistic model

    • inspired by [Hähnel et. al]

RFID

reader


Bayesian probability model l.jpg
Bayesian Probability Model

  • Goal:p(x|D1:n): Probability of tag at x given readings

  • Initially, without readings, p(x|D0) is uniformly distributed

  • Assume we have p(x|D1:n)

  • Positive reading

    • p(Dn+1=True|x)

  • Bayes’ rule p(x|D1:n+1) = α p(x|D1:n) p(Dn+1|x)

    • α– normalization factor

  • Similarly, for negative readings

    • p(Dn+1=False|x) = 1 - p(Dn+1=True|x)


Tag detection probability l.jpg
Tag Detection Probability

Manually measure probability of detecting tag (positive reading)

p(D =True|x) x – tag’s position


Ferret localization algorithm reading l.jpg
Ferret Localization Algorithm (+ reading)

  • Multiple readings come from user mobility, previous, or shared readings


Ferret localization algorithm reading11 l.jpg
Ferret Localization Algorithm (- reading)

Repeated intersection of positive and negative readings


Offline algorithm complexity l.jpg
Offline Algorithm Complexity

  • We refer to the previous algorithm as the “offline” algorithm

  • Each + or - reading Ferret performs O(n^3) operations

    • n is the number of sample points

    • it must rotate, translate the RFID sensor model

    • multiply each sample point against every other sample point

    • must do this for each object!

  • Computational requirements at least 0.7s on a laptop

    • reader is producing at least 4 readings per second

    • some readings include multiple objects

  • Algorithm most useful for back-annotating video


Online algorithm l.jpg
Online Algorithm

  • To address real-time concerns use an “online” algorithm

    • instead of intersecting all interior points, just find convex intersection

    • only uses positive readings, not negative ones (keeps shape convex!)

  • Complexity reduced to O(n^2) or 6ms per reading


Display l.jpg
Display

  • Each RFID location is a 3-D shape

  • To display we simply project this 3-D shape onto a 2-D screen


Ferret prototype l.jpg
Ferret Prototype

  • ThingMagic Mercury4 RFID reader

    • 30dBm (1 Watt), monostatic circular antenna

  • Alien Technology “M” RFID Tag

    • EPC Class 1, 915 MHz

  • Sony Motion Eye web-camera

    • 320x240 at 12fps

  • Cricket Ultrasound 3-D locationing system

    • global location not necessary, but need relative locations at least

  • Sparton SP3003 Digital Compass

    • Pan, tilt, and roll

  • Software

    • translate between coordinate systems, rotate, and display


Ferret prototype16 l.jpg
Ferret Prototype

Built-in Camera

Cricket locationing sensor

Compass

ThingMagic

RFID reader

RFID antenna


Evaluation l.jpg
Evaluation

  • Evaluation metrics:

    • Size of location region for many objects

    • Speed of localization for a particular object

    • Robustness of localization to mobility patterns

  • Evaluation setup for many objects:

    • Place 30+ objects with passive tags around the room

    • Move Ferret system around the room by human for 20 minutes

    • CDF of localization over 30 objects

  • Evaluation setup for single object:

    • Place single object in room with passive tag

    • Move Ferret system in and out of view randomly and using a specific pattern

    • Size of localization after some amount of time


Online vs offline cdf 30 objects l.jpg
Online Vs Offline (CDF-30 Objects)

Offline algorithm outperforms online, but most objects localized to 0.2 m^3


Refinement relative volume 1 object l.jpg
Refinement: Relative Volume (1 Object)

Volume size drops down 100 times to 0.02m3 in 2 mins

When starting with previous readings, localization is faster


Refinement relative projection area l.jpg
Refinement: Relative Projection Area

Final projection area decreases 33 times in 2 mins

to a 54 pixel diameter circle


Different movement patterns l.jpg

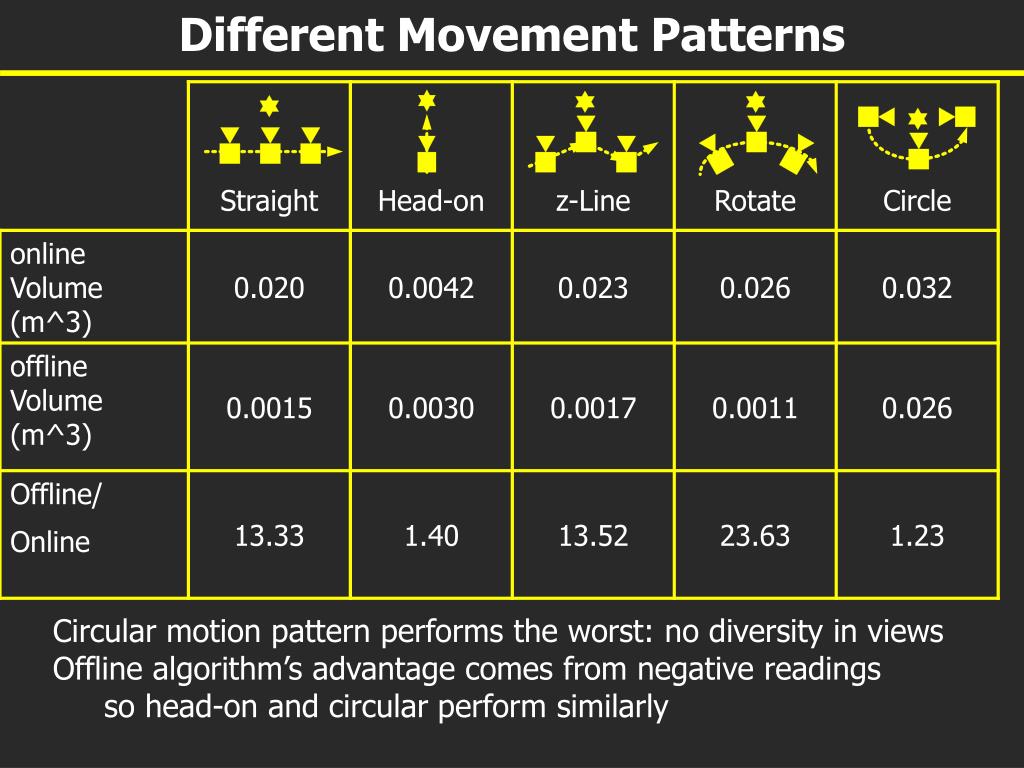

Different Movement Patterns

  • Circular motion pattern performs the worst: no diversity in views

  • Offline algorithm’s advantage comes from negative readings

    • so head-on and circular perform similarly


Related work l.jpg
Related Work

  • Grown out of our work on Sensor Enhanced Video Annotation

    • SEVA ACM Multimedia 2005 (Best Paper Award)

    • Used active sensors for location

  • RFID Localization inspired by techniques from [Hähnel et. al]

    • 2-D sensor model, application of Bayes rule positive readings

    • we add 3-D model, negative readings, and online technique

    • focuses on SLAM/localizing reader, we focus on reverse

  • LANDMARC and SpotON RFID locationing

    • active RFID and signal strength


Conclusions l.jpg
Conclusions

  • Ferret: a scalable, RFID-based, augmented reality system

    • localize objects augmented with passive RFID tags

    • display probable location regions to a user in real-time

  • Uses two algorithms: online and offline

    • both are accurate and efficient (localizes objects to 0.2m^3 in minutes)

    • robust to a variety of user mobility patterns

  • Ferret lays the ground work for other augmented reality applications


Ferret rfid localization for pervasive multimedia24 l.jpg

Ferret: RFID Localization for Pervasive Multimedia

Xiaotao Liu,

Mark Corner, Prashant Shenoy

University of Massachusetts, Amherst


Location storage l.jpg
Location Storage

  • Locations (3-Dimensional probability maps)

  • Storage on reader

    • simple to implement, but must acquire readings as it goes

  • Database

    • any Ferret readers can take advantage of prior knowledge

    • also permits offline searching, but privacy/authorization concerns

  • Storage on writable tags

    • tags self-locating and provide locations to non-Ferret systems


What if objects move l.jpg

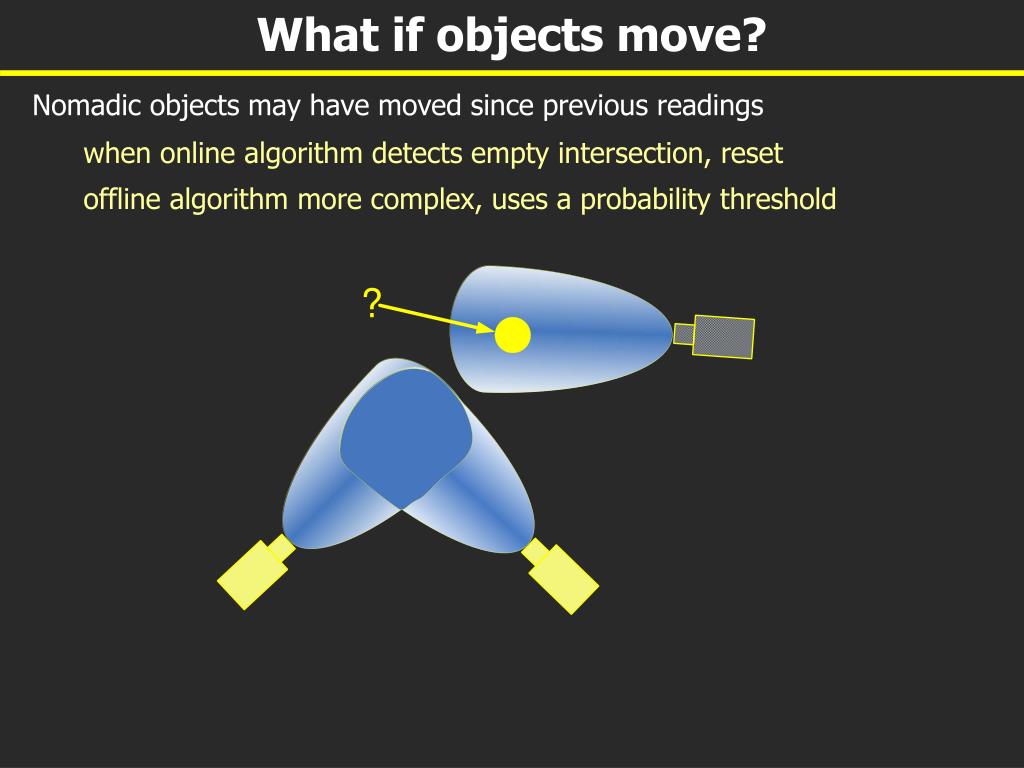

What if objects move?

  • Nomadic objects may have moved since previous readings

    • when online algorithm detects empty intersection, reset

    • offline algorithm more complex, uses a probability threshold


Ferret software architecture l.jpg
Ferret Software Architecture

Ferret System

Visualization Module (modified from FFmpeg)

Intercept original display function

Display projection boundary

Use optics model

Compute projection of location estimates

Fuse video, tag’s location together

Deal with large amount of data,

Optimized for real-time usage

Bayesian Locationing

Module

Video

Recording

via TCP, Use SQL-like language

RFID Module (operate RFID reader)

Device Drivers for Cricket and Compass


H hnel et al l.jpg

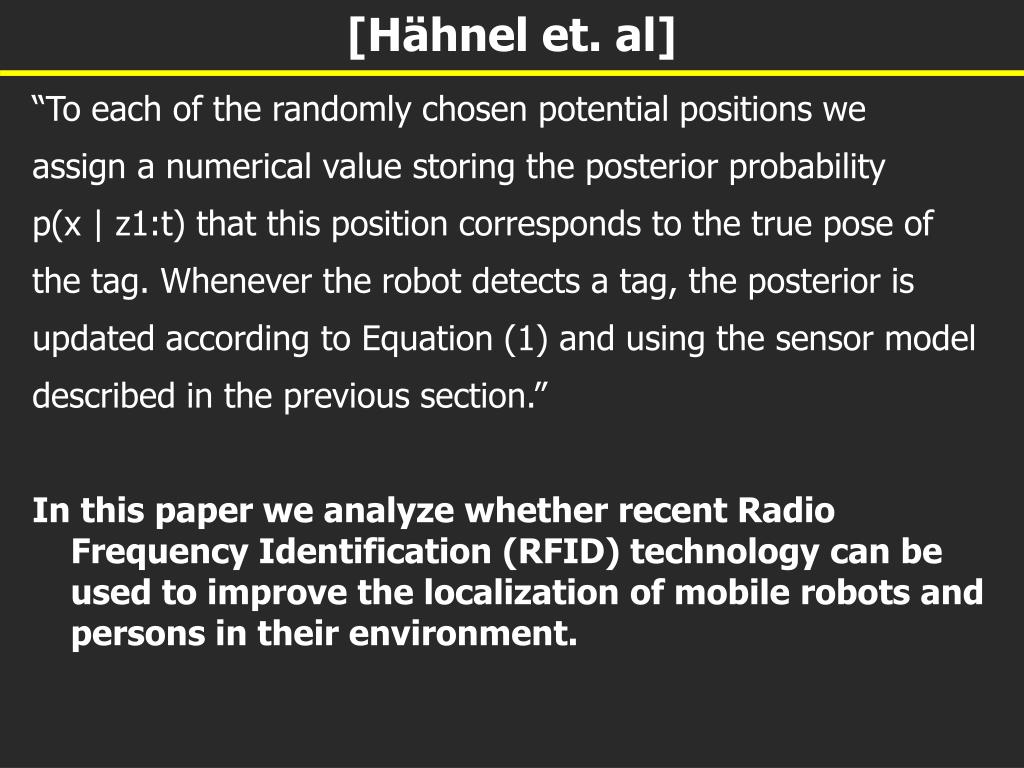

[Hähnel et. al]

  • “To each of the randomly chosen potential positions we

  • assign a numerical value storing the posterior probability

  • p(x | z1:t) that this position corresponds to the true pose of

  • the tag. Whenever the robot detects a tag, the posterior is

  • updated according to Equation (1) and using the sensor model

  • described in the previous section.”

  • In this paper we analyze whether recent Radio Frequency Identification (RFID) technology can be used to improve the localization of mobile robots and persons in their environment.
